YAMAKATO 27mm Carburetor for Predator GX340 GX390 and 11–13HP Clones — 7 Jets, Direct-Fit OEM-Style

YAMAKATO’s 27mm OEM-standard carburetor kit replaces and upgrades small engine carburetors for Predator, Honda-clone, and compatible 11–13 HP engines.

This carburetor assembly is a direct-fit aftermarket replacement designed to improve throttle response and tuning flexibility on mini bikes, go-karts, pressure washers, snow blowers, tillers, pumps, and similar equipment using 337–459cc or 11–13 HP engines. The kit centers on a 27mm carb body built to OEM dimensions and includes multiple main jets and essential fittings so you can tune fuel delivery to your specific application.

Which engines and machines will this YAMAKATO carburetor work on?

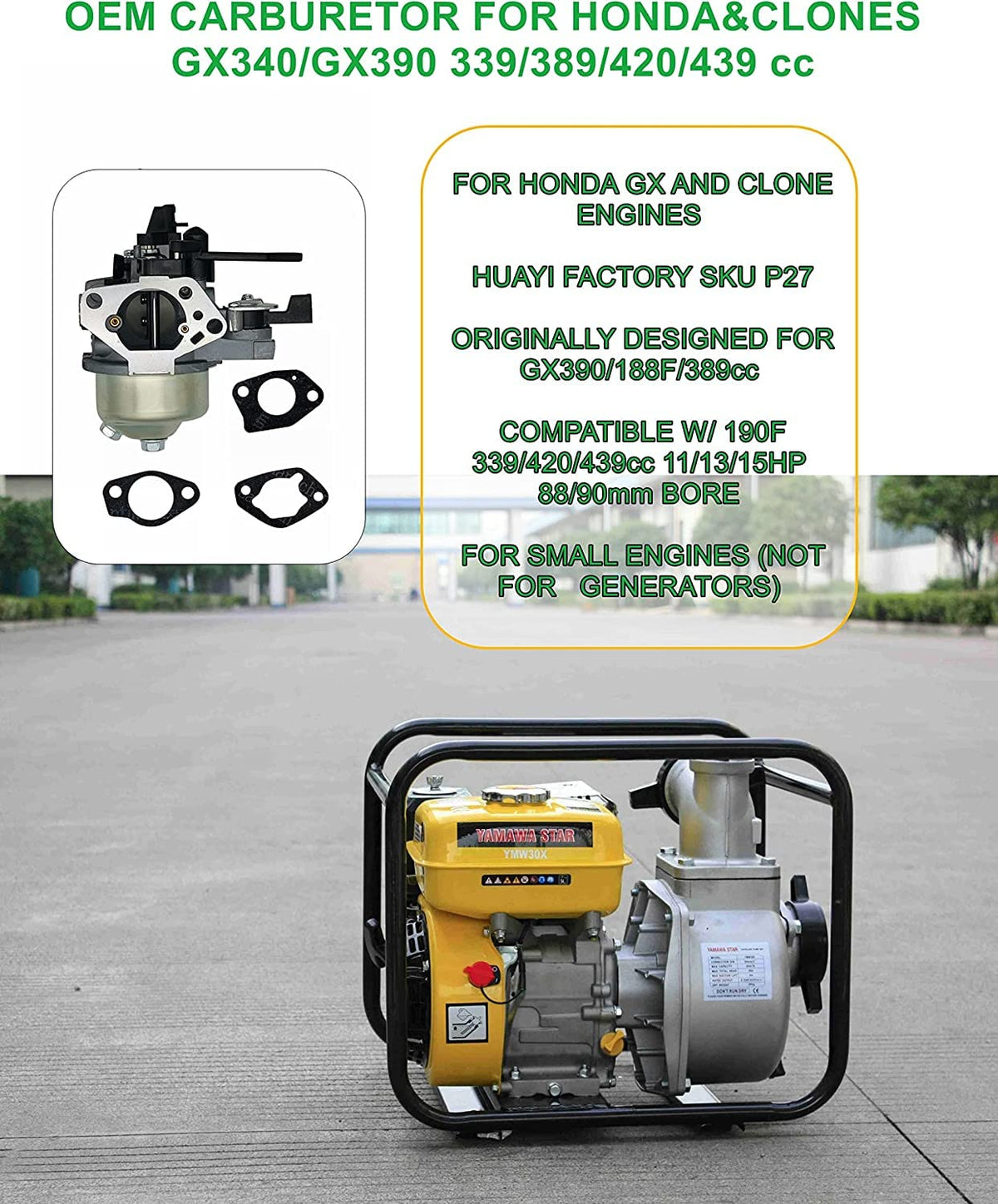

The YAMAKATO 27mm carburetor is built to fit a wide range of Honda-style and clone engines, including Predator 420/420cc series and GX340/GX390-style motors. It’s commonly used on mini bikes, go-karts, ATVs, pressure washers, and others, but note that it is typically not intended for standard household generators unless explicitly compatible.

• Compatible engine sizes: 337cc, 338cc, 389cc, 420cc, 439cc, 440cc, 459cc and similar clones.
• Common brands: Predator, Honda-clone engines, Ducar, Lifan, Loncin, RATO, ToolTuff, Raven, Bilt Hard.
• Typical applications: go-kart, mini bike, pressure washer, snow blower, tiller, water pump, air compressor.
• Not recommended for most stock generator setups unless verified.

What parts are included and how do the jets improve tuning?

The kit ships with a full 27mm carburetor assembly plus seven selectable main jets and essential hoses and gaskets, giving you the parts needed to match fuel flow to altitude, load, and throttle habits. Swapping jets lets you richen or lean the mixture in small steps so you can find the best compromise between power, throttle response, and fuel economy for your machine.

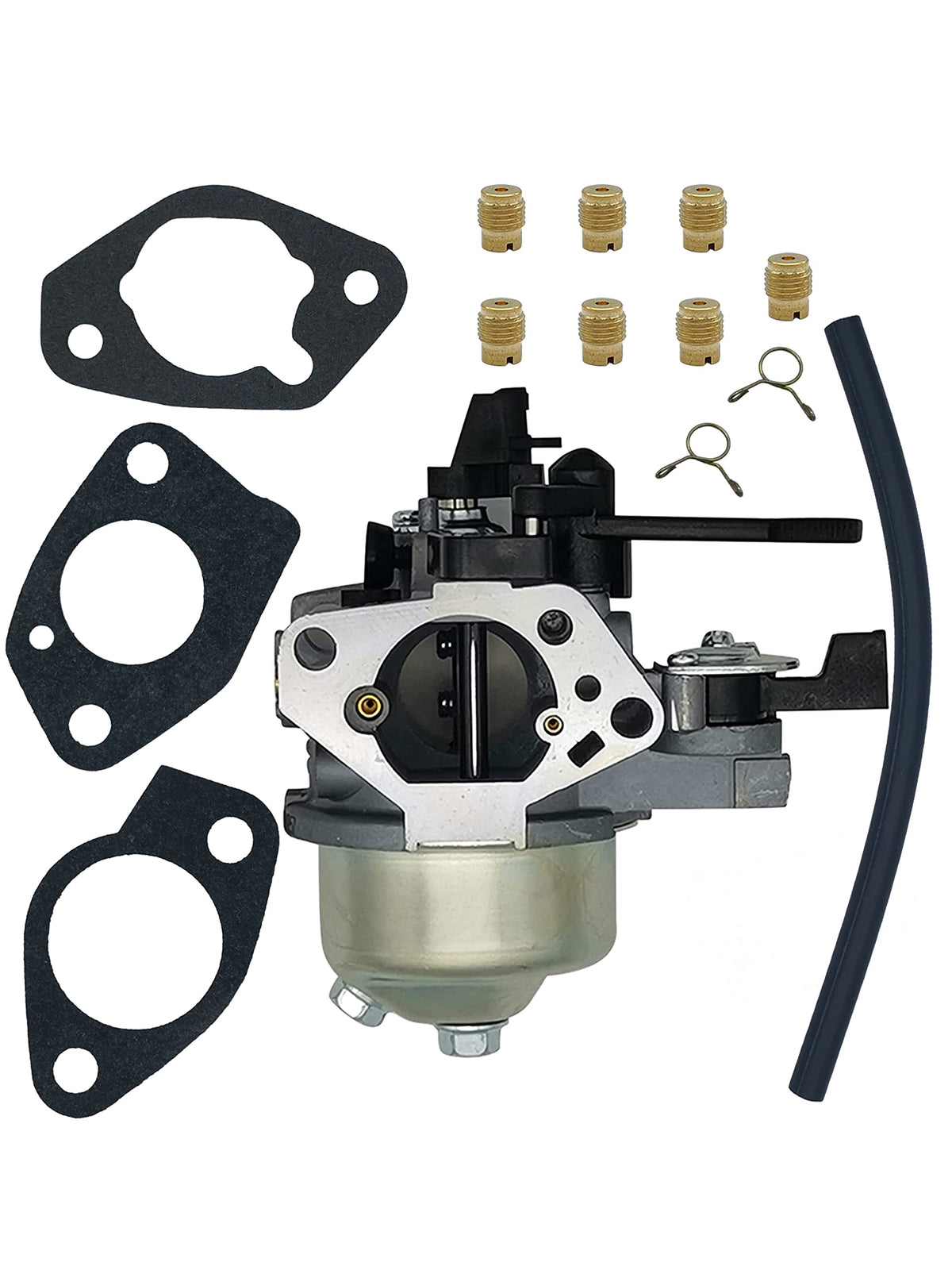

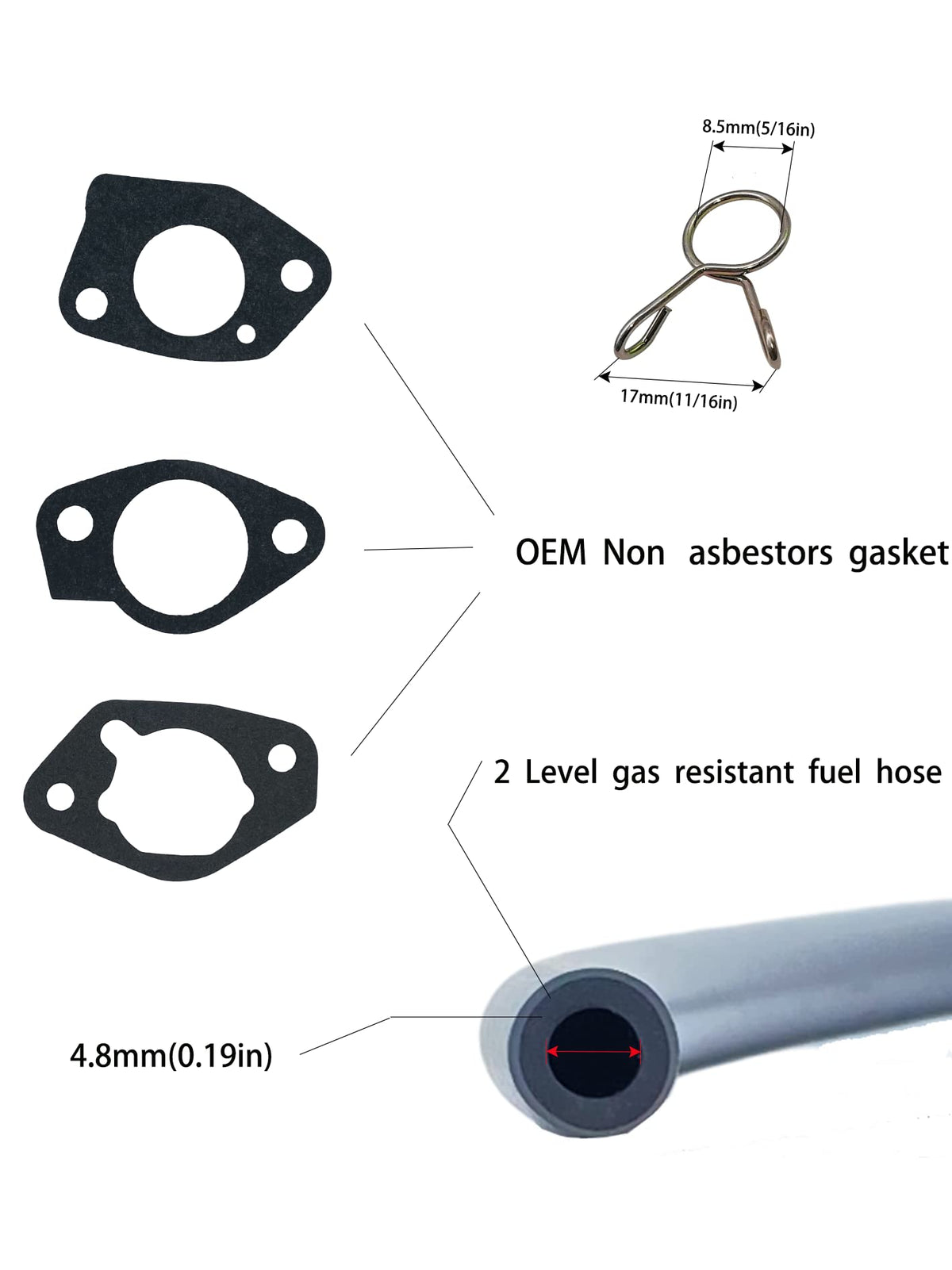

• Included: 27mm carburetor body, fuel line, mounting gaskets, instruction leaflet.

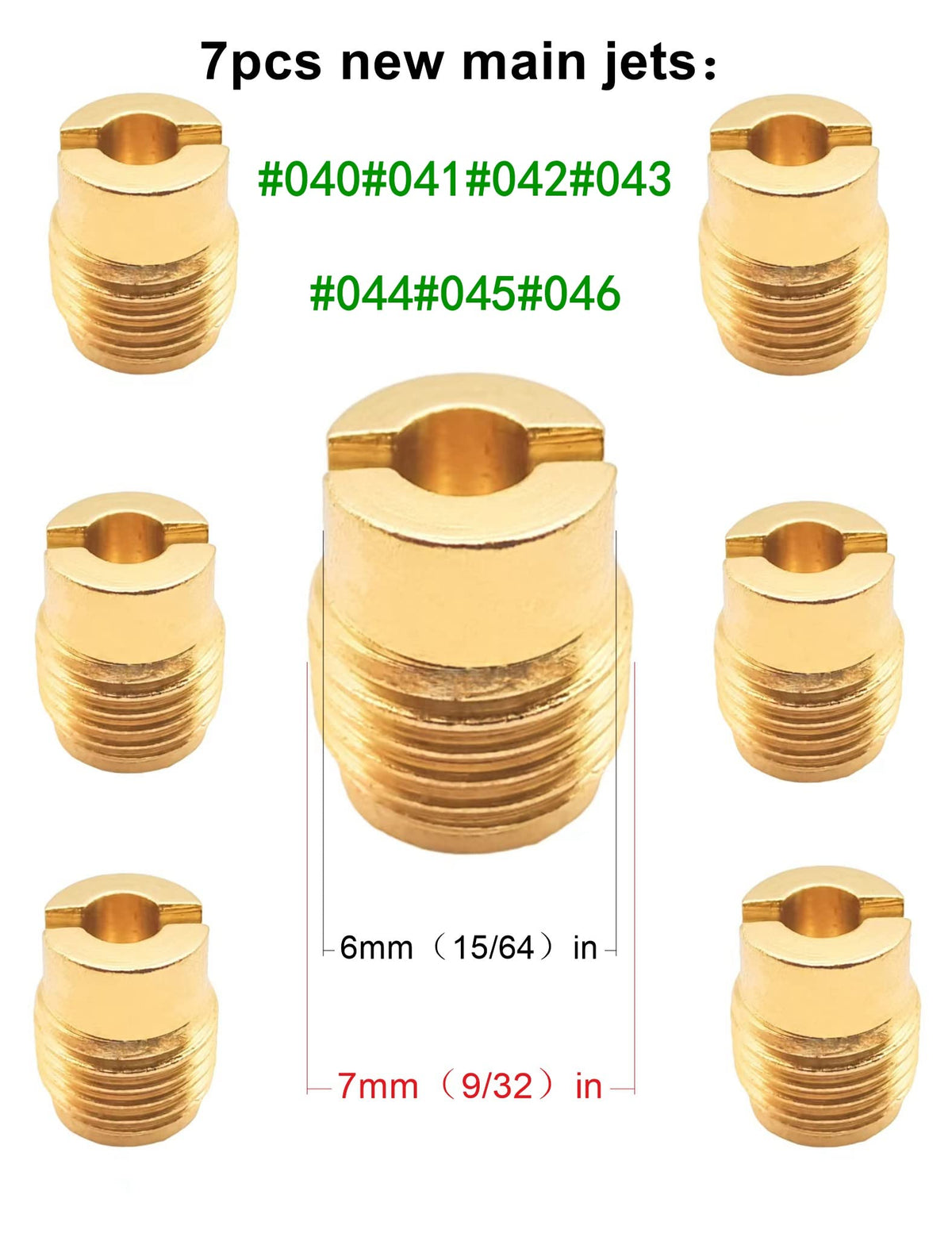

• Main jets: seven sizes (040–046 or metric equivalents #102–#117 range) for sequential testing.
• Quick tuning: change one jet at a time and road/test between changes to dial-in performance.
• Spares on-hand: extra jets reduce downtime during troubleshooting or seasonal changes.

How difficult is installation and what should I check during fitment?

Installation is straightforward for users comfortable with small-engine maintenance; basic hand tools and a few hours are normally sufficient. Key checks include manifold alignment, throttle linkage geometry, choke operation, and fuel bowl sealing; misalignment or loose fittings can cause leaks or poor performance.

• Tools required: screwdrivers, wrenches, pliers, and a clean workspace.
• Verify: mating surface flatness and gasket orientation before tightening bolts.
• Adjust: throttle and choke linkages for full range without binding.
• Leak test: run engine and inspect for fuel drips or strong fuel smell before prolonged use.

How do I choose the correct jet and maintain peak performance?

Start with a mid-range jet and test under typical load conditions; listen for smooth acceleration, consistent idle, and proper top-end power. If the engine hesitates under load or displays black smoke, use a smaller jet; if it surges, sputters, or overheats, try a richer (larger) jet. Keep a log of jet sizes and conditions to speed future tuning.

• Method: begin with a middle-size jet, then adjust one step richer or leaner based on behavior.
• Symptoms: black smoke indicates rich, lean stumble or overheating indicates too lean.
• Environmental factors: altitude and temperature affect jet selection—test in real-use conditions.
• Maintenance: clean jets and fuel screen periodically to prevent clogging and performance loss.

Who this is for: This YAMAKATO carburetor kit is ideal for DIY mechanics, small-engine hobbyists, and fleet maintainers who want a ready-to-tune replacement for Honda-clone and Predator-style 11–13 HP engines. If you need improved tunability, spare jets for different operating conditions, or a reliable aftermarket replacement for go-karts, mini bikes, pressure washers, or similar equipment, this kit gives the parts needed to get engines running cleanly and responsively.
