YAMAKATO Pull Start Assembly for 212cc/224cc Engines — 4-Point & 6-Point Mount, 47mm Pulley Height

YAMAKATO’s Universal Pull Start Assembly replaces worn recoil starters on 212cc and 224cc horizontal engine replicas with either 4-hole or 6-hole mounting patterns.

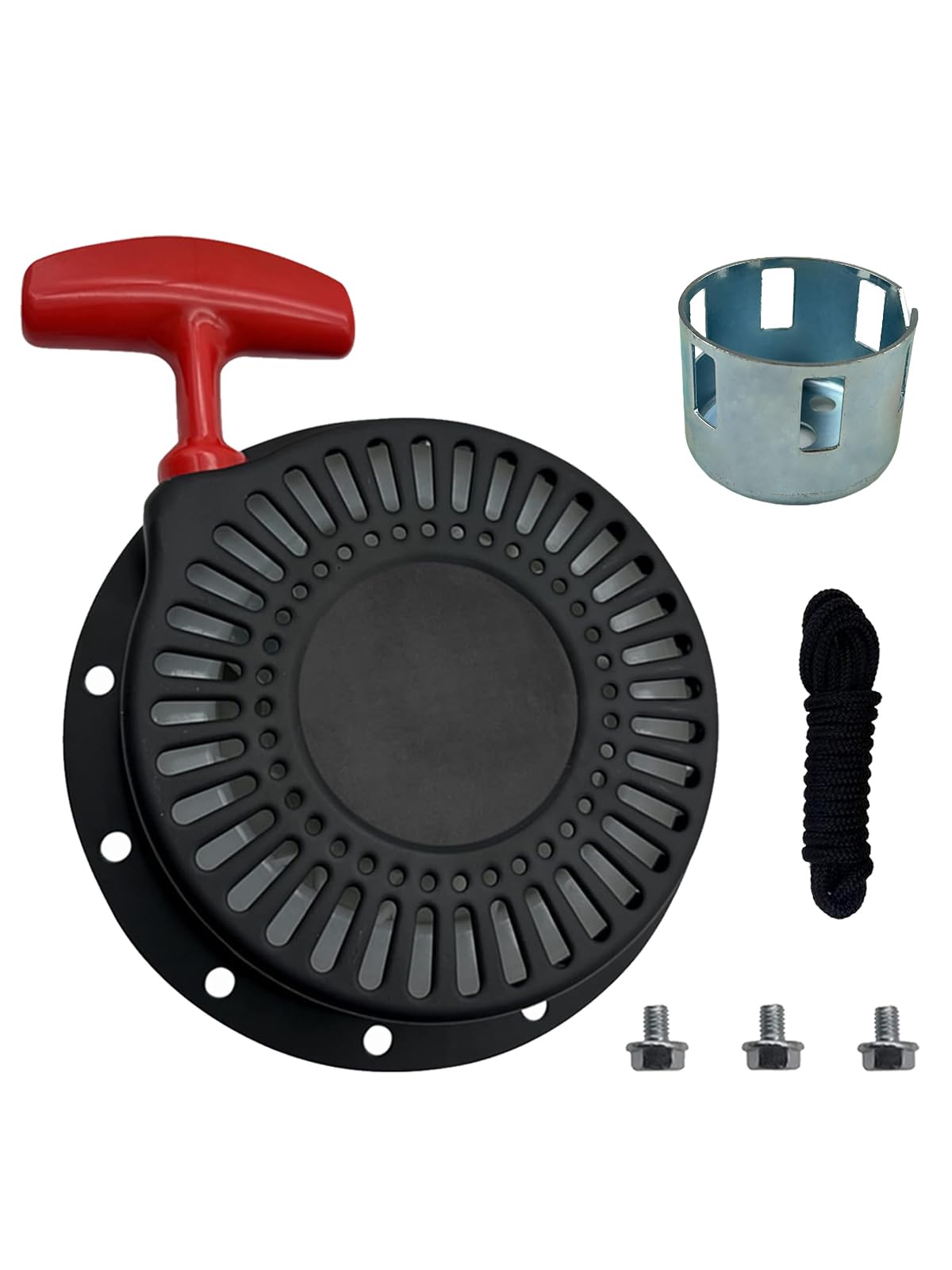

If your compact engine, go-kart, or small equipment uses a horizontal power core built to GX-style specifications and the original pull starter is failing, this YAMAKATO assembly offers a direct-fit, economical replacement. Designed to match common 4-mount and 6-mount bolt patterns and sized for pulleys with a 47mm height, the unit adapts to many engines in the 159–224cc range. The package includes a robust nylon 66 reel, OEM-grade starter cord, iron pawls, and extra mounting fasteners so you can restore reliable pull-start performance quickly.

Will this pull starter fit my engine?

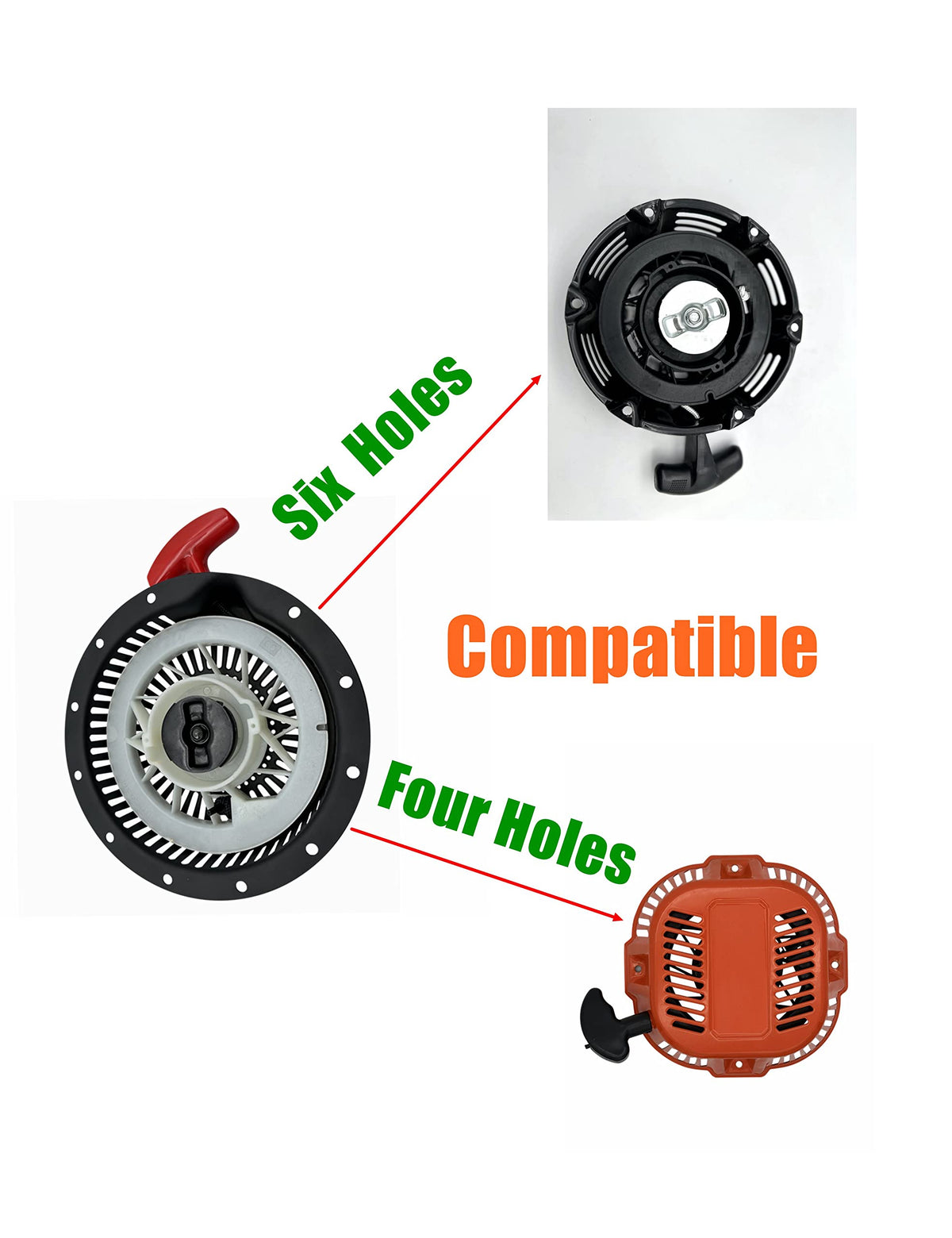

Compatibility centers on mounting pattern, ratchet diameter, and pulley height. This starter fits both 4-hole and 6-hole mounting arrangements used on many GX-style horizontal cores, and is sized for pulleys with a 47mm height only. Compare your original starter’s bolt spacing and pawl layout to the specs and images before ordering.

• Ratchet (pawl) diameter: 55mm
• Outer plastic housing diameter: 78mm

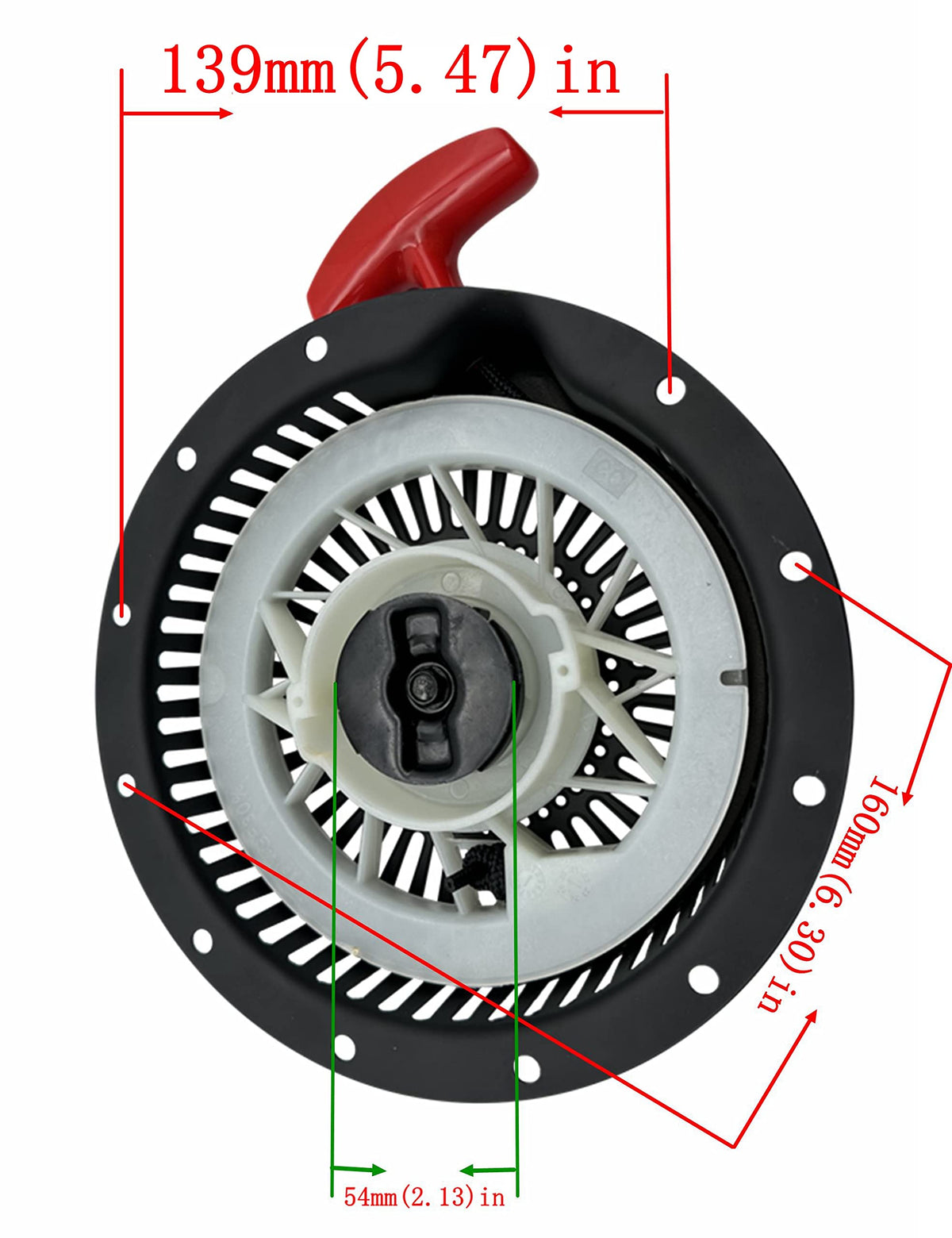

• 6-hole triangular bolt center distance: 139mm; diagonal spacing: 160mm
• 4-hole bolt center-to-center spacing: 160mm
• Suitable for pulleys with 47mm height; not for taller pulleys

Which engine sizes and types does it support?

This replacement is built to work with horizontal power cores manufactured to Honda GX-style dimensions. It supports several small-engine displacements commonly found in compact equipment and recreational frames. It’s intended for units like mini tractors, go-karts, pumps, and other small driven assemblies that use those cores.

• Compatible displacements: 159cc, 160cc, 196cc, 200cc, 208cc, 210cc, 212cc, 213cc, 224cc
• Common horsepower equivalents: 4hp, 5.5hp, 6.5hp
• Works with universal power units equivalent to GX120/GX160/GX200
• Not limited to a single brand — fits many replica/core manufacturers

What materials and components are included?

The assembly combines durable materials chosen for starter duty and field repairs. The reel is molded from 100% nylon 66 for strength and wear resistance, while iron plate pawls provide dependable engagement. The kit ships with OEM-grade nylon 66 starter cord and extra fasteners so you can perform a complete replacement right away.

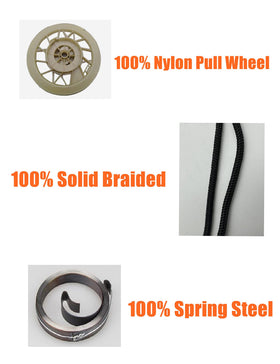

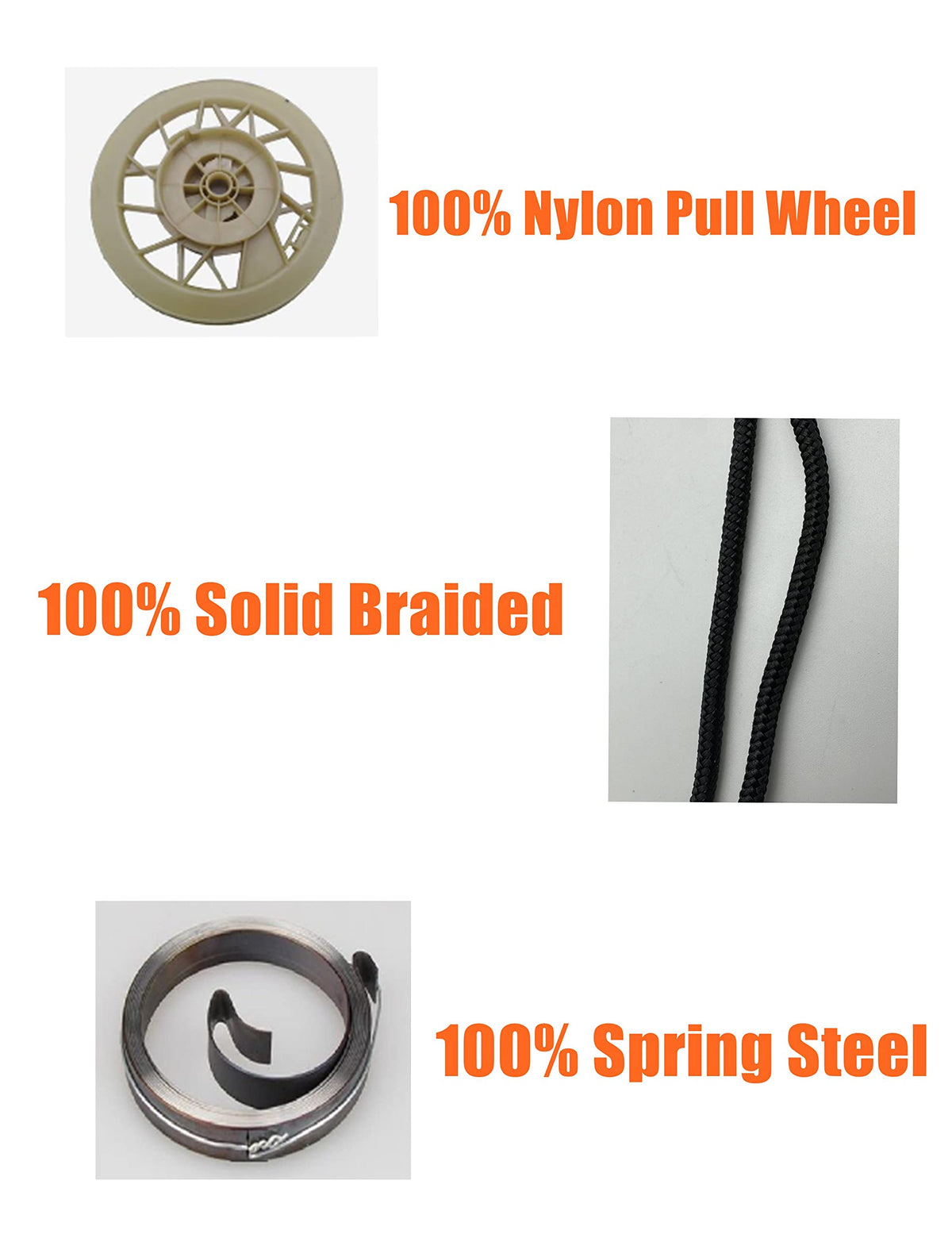

• 100% nylon 66 starter reel for durability and low friction

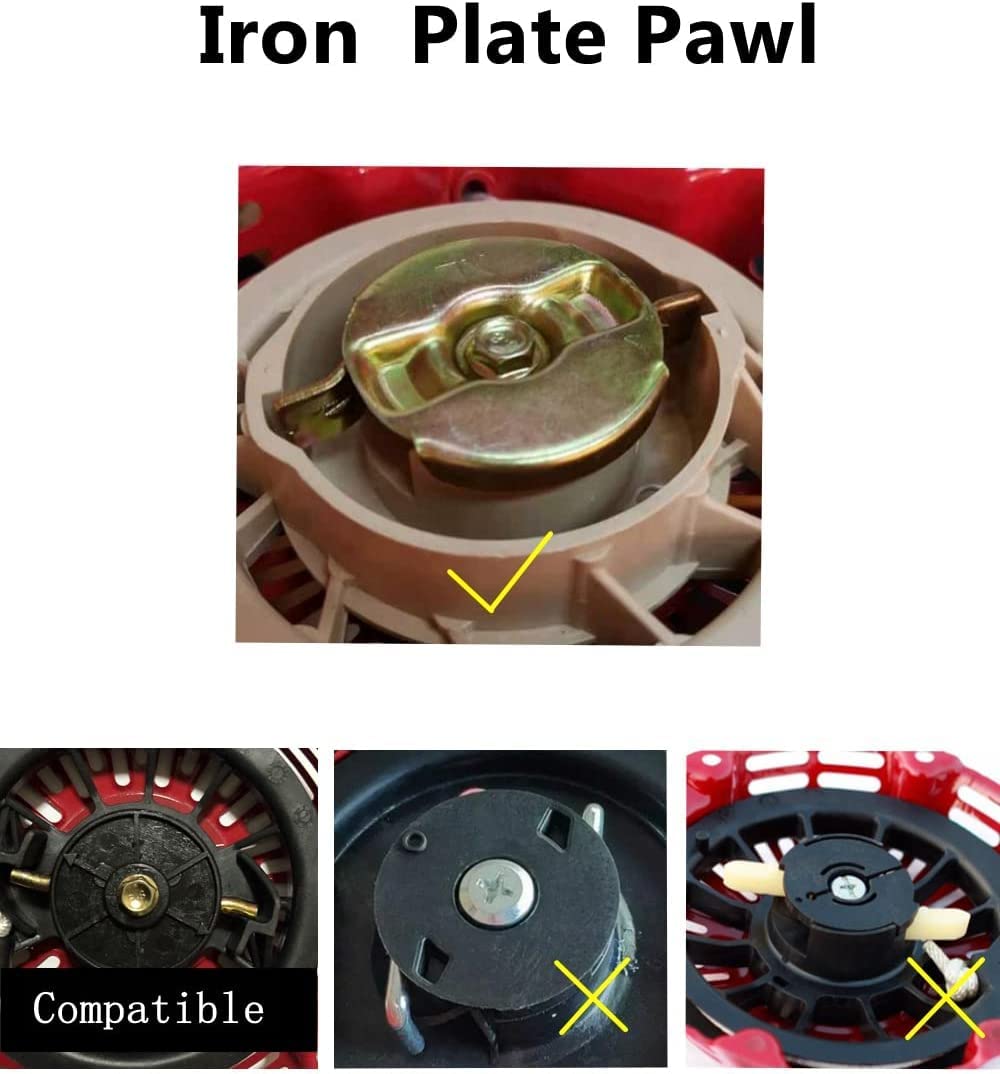

• Iron plate pawls for secure ratcheting engagement

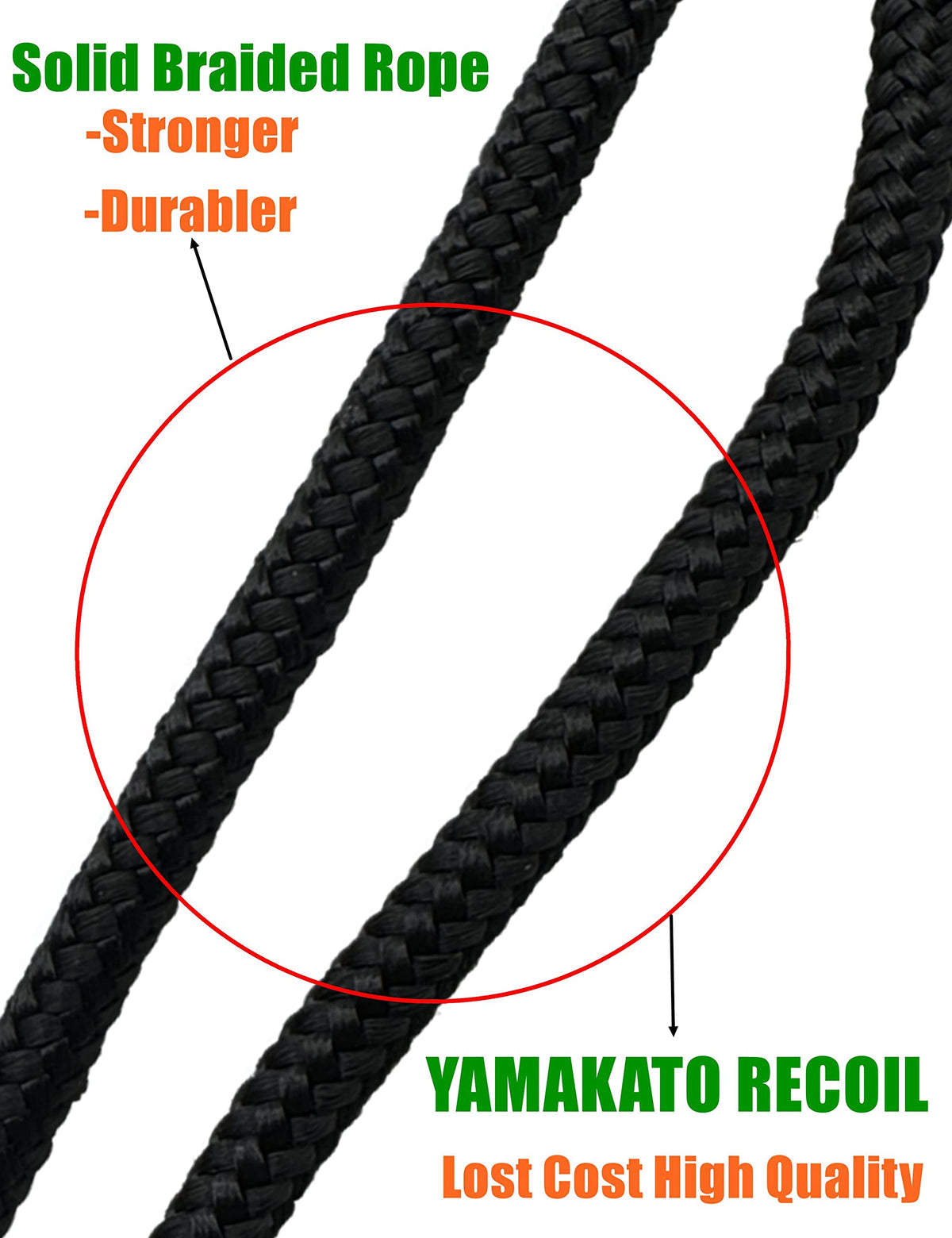

• OEM-grade nylon 66 starter cord included
• Extra mounting fasteners provided for immediate installation

How do I confirm the pawl design and mounting before buying?

Because pawl shape and hole spacing vary between starters, visually match the pawl arrangement and bolt pattern from your original unit to the product photos and measurements. This step prevents ordering an incompatible starter and saves time on returns. If uncertain, measure center-to-center bolt distances and the ratchet diameter.

• Compare pawl layout in product images to your old starter
• Measure bolt hole spacing (160mm and 139mm/160mm diagonals where applicable)
• Confirm pulley height is 47mm to ensure fit
• Check ratchet diameter of 55mm against your assembly

Who is this for: This YAMAKATO universal pull start suits DIY mechanics, small-engine repair shops, and hobbyists restoring or maintaining mini vehicles, portable pumps, generators, and light-duty equipment that use GX-style horizontal engine cores. Choose this assembly if you need a cost-effective replacement with durable materials and an inclusive hardware kit, but verify pawl design and bolt spacing to confirm a proper fit.
