YAMAKATO Recoil Starter Assembly for 160–224cc Engines — 47mm Pulley, Nylon Rope & Iron Pawl, Ready-to-Install

YAMAKATO pull start is a complete recoil starter assembly designed to replace worn starters on 160–224cc small engines used in generators, pressure washers, mowers, go-karts and similar equipment.

If your engine’s original recoil is frayed, slipping, or won’t rewind, this YAMAKATO replacement offers a ready-to-install option with a nylon 66 pull rope, new rubber handle and an iron pawl. It’s built to fit a range of Honda-clone and OEM-style engines like Predator, Champion, Ryobi and many 5.5–6.5 HP models, provided the pulley and bolt pattern match the dimensions below.

How do I know this starter will fit my engine?

Compatibility depends on pulley height, bolt pattern and overall starter diameter. Check your original starter or your engine manual and compare those measurements to the specs below before ordering.

• Fits 47mm pulley height only — verify with your existing pulley.

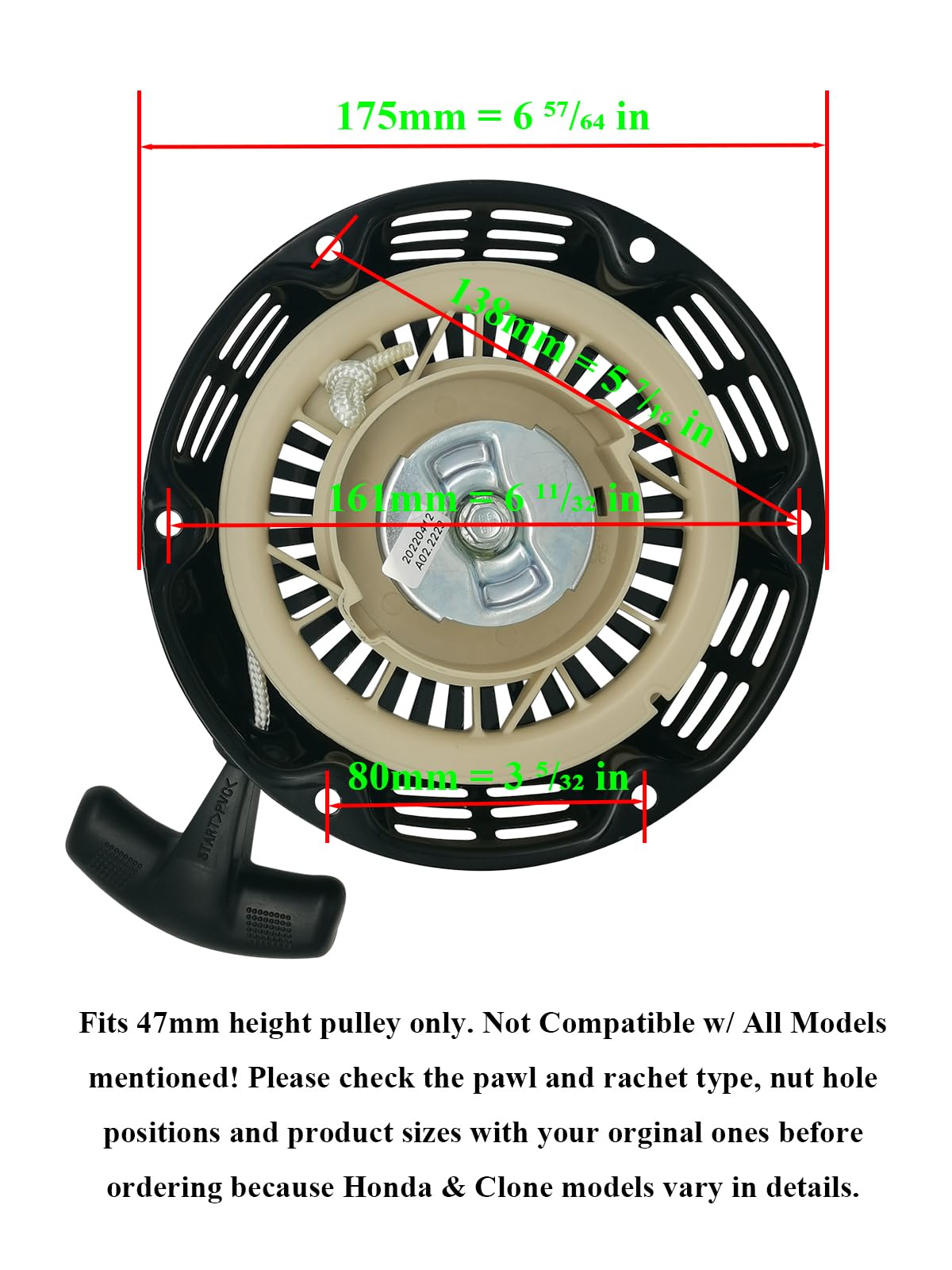

• Rachet diameter 54mm and plastic housing 75mm; center-to-center bolt distances: 139mm (triangle) and 160mm (through-center).
• Compatible with many 160–224cc engines, including Predator CT200/212 and Honda-clone models; not for engines over 225cc or generators above 4.5 kW.

What components are included and what are they made of?

The starter ships as a ready-to-install assembly with basic hardware so you can swap it in quickly. Materials are chosen for durability while matching common OEM replacement requirements.

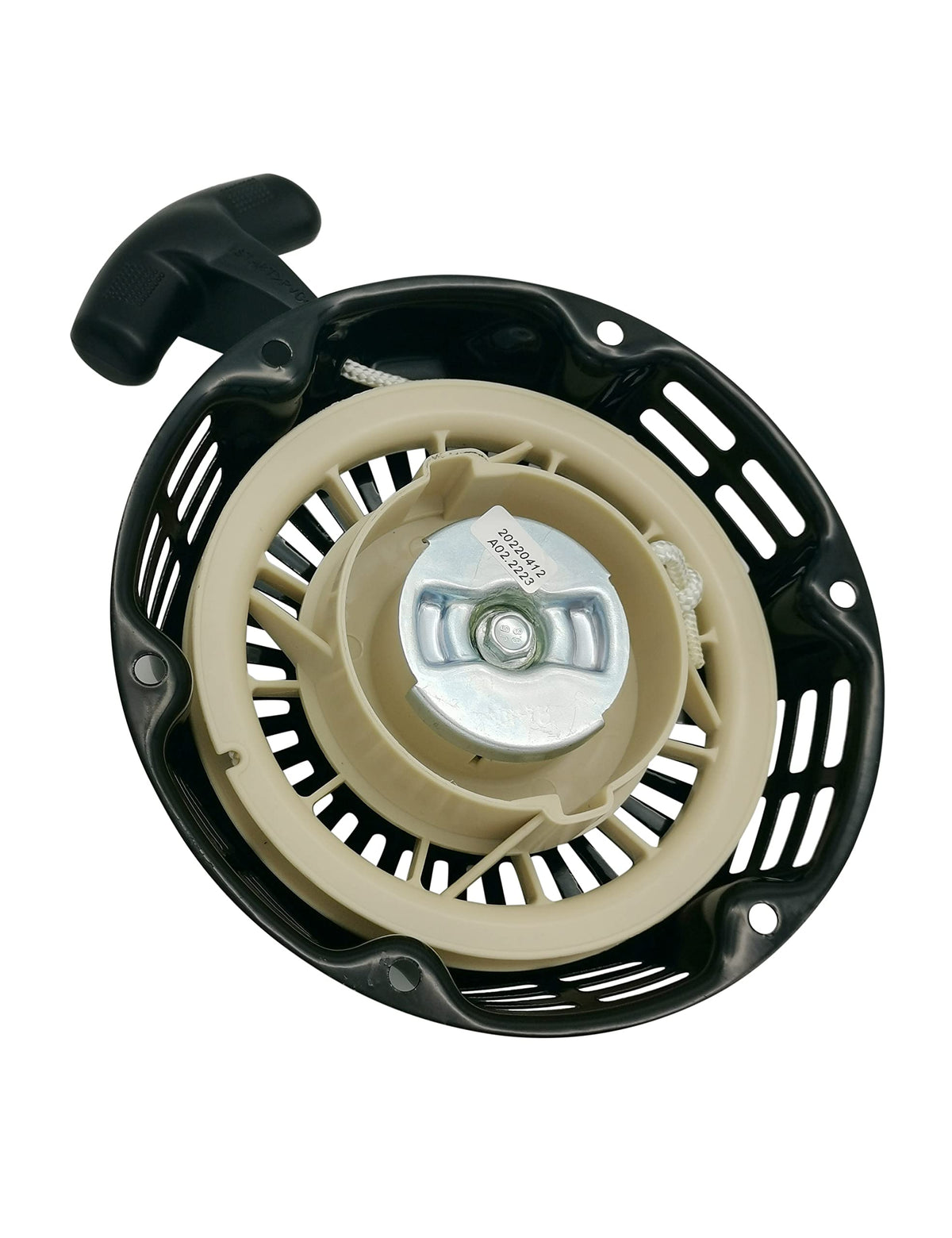

• One recoil pull starter assembly with black hexagon design housing.

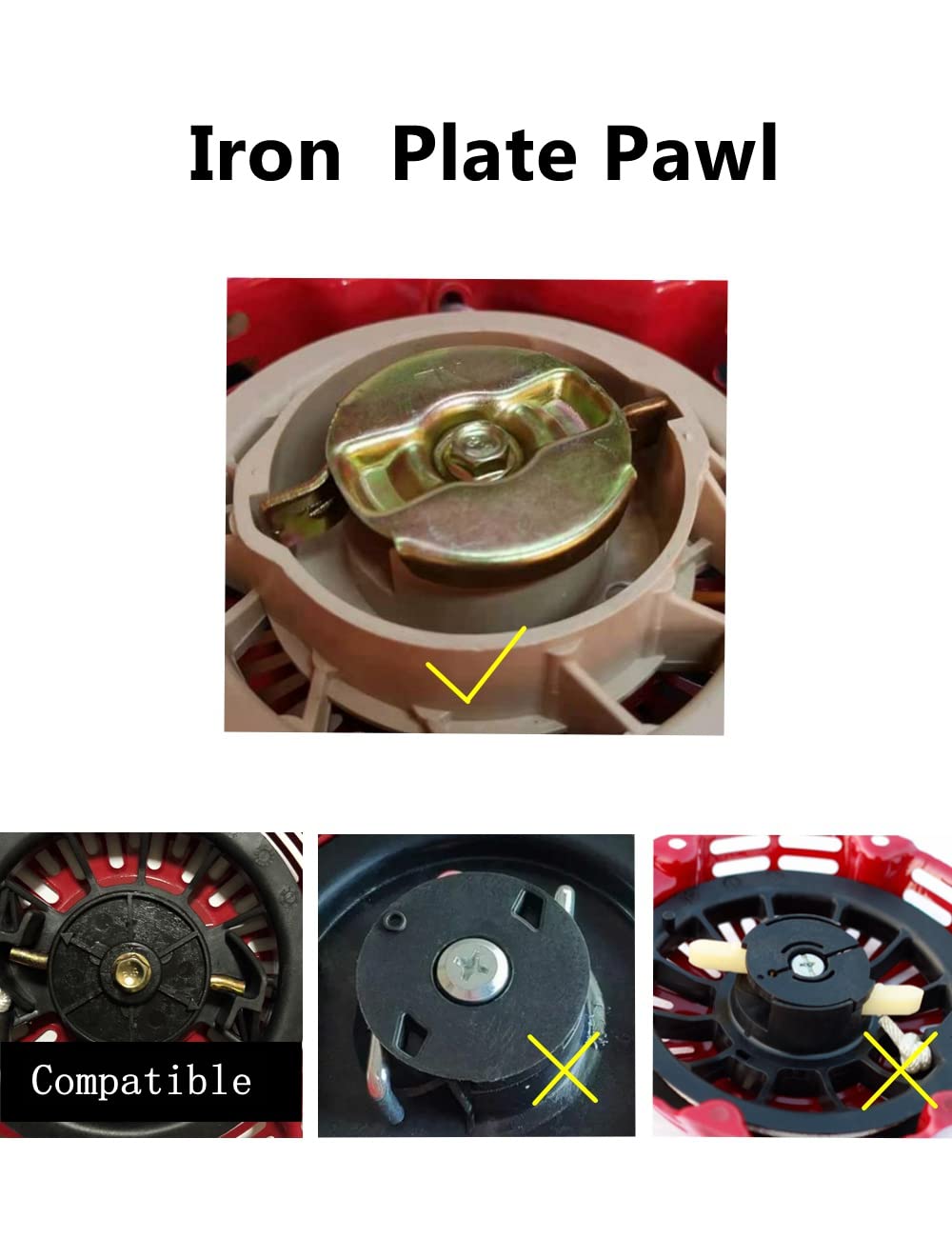

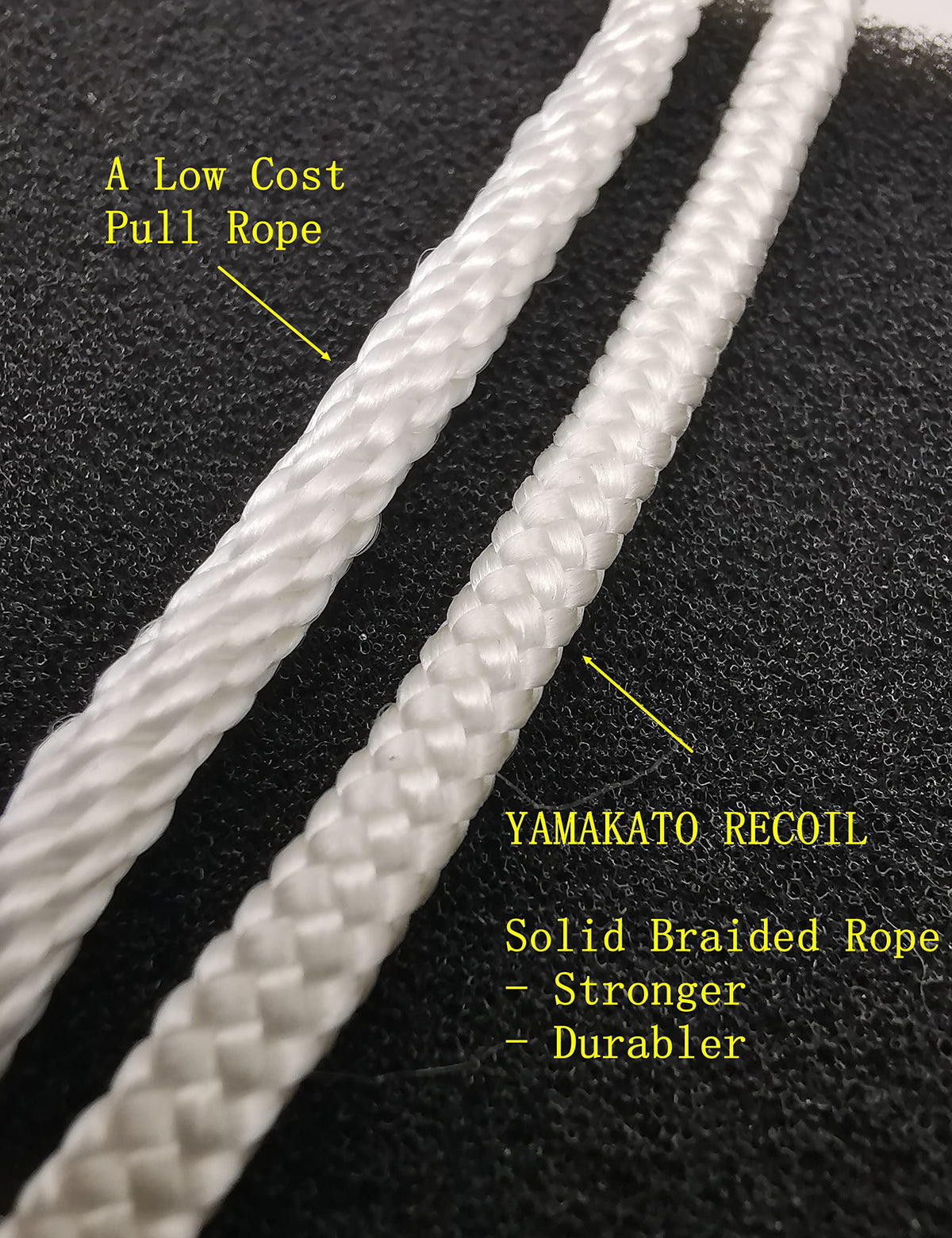

• Iron plate pawl and nylon 66 pull rope (4.0mm diameter) compatible with Honda-style cords.
• Three mounting nuts, new soft rubber pull handle, packed in protective bubble and plastic bags.

Which machines and engine models commonly use this starter?

This recoil fits many small engines used across outdoor power equipment brands where the starter dimensions match. It’s especially common on Honda-clone and open-frame generator engines that share the Predator/Champion footprint.

• Generators: 3000–4650 series models with 160–224cc engines (check kW limits).
• Engines: Predator 212, CT200, BT200X, KT196 and similar clones; Champion, Ryobi and other small engine brands.
• Equipment: lawn mowers, tillers, pressure washers, water pumps, ATVs, mini bikes, go-karts and snow blowers.

Are there limitations or engines this won’t work with?

This starter is not universal; it will fail to fit some Champion 196cc variants and any engine exceeding the stated size range. Always verify the physical dimensions and engine output before purchase.

• Not compatible with some Champion 196cc generators — check your model specifics.
• Not recommended for engines over 225cc or generators above 4.5 kW (approx. 7 HP).
• Ensure bolt hole pattern and pulley height match the listed measurements.

Who is this for: This YAMAKATO recoil starter is aimed at DIY mechanics, small-engine repair shops and owners of Predator/Champion/Honda-clone equipment who need a direct, budget-friendly replacement. If you can confirm the 47mm pulley height and the 139mm/160mm bolt patterns, this kit supplies the parts required for a fast, reliable swap without buying an entire engine or expensive OEM assembly.
