YAREMYEYE 54.6V 2A Charger for 48V E-bike & Scooter — 3-Pin XLR, 110W, LED Status

The YAREMYEYE 54.6V 2A charger is a replacement 110W power unit designed to safely recharge 48V lithium scooter and e-bike battery packs with a 3-pin male XLR plug.

If your electric bike or fat-tire scooter uses a 48V lithium battery and a 3-pin XLR connection, this YAREMYEYE charger is built to be a direct replacement for many popular models including Heybike Mars/Ranger, Ecotric Hammer 48V, Rad Power, Raleigh, Pedego and Freego. It accepts standard US mains power, provides steady 54.6V DC at up to 2.0A, and uses simple LED indicators to show charging status. The unit includes basic protections to reduce risk while charging and is intended for periodic recharging with an 8–10 hour full-charge window.

How long does it take to charge my 48V battery with this charger?

Typical full recharge time is about 8–10 hours, depending on your battery’s capacity and state of charge. This charger delivers up to 2.0A, so larger battery packs may require the full overnight period to reach full voltage.

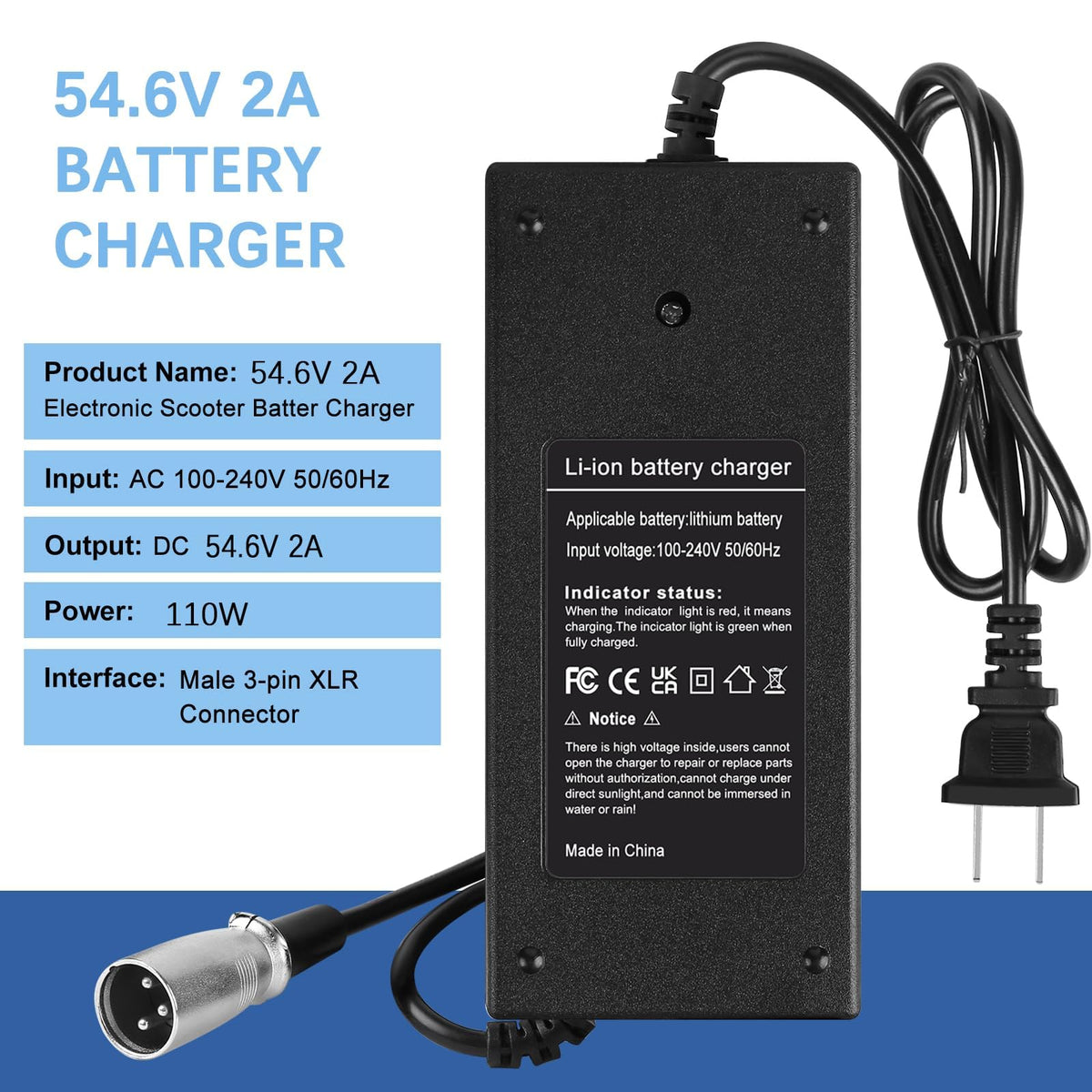

• Output: DC 54.6V at 2.0A (110W max)
• Recommended single charge session: under 12 hours
• Typical full charge window: 8–10 hours for most 48V packs

What do the LED indicators mean and how should I read them?

A two-color LED clearly shows charging state: red while charging and green when charging is complete or the charger is in standby. If the indicator behaves unexpectedly, check connections and battery condition before attempting further charging.

• Red LED = actively charging
• Green LED = charge complete or standby
• Loose connector or poor contact may prevent the red LED from illuminating

Is this charger safe and compatible with my scooter or e-bike?

The charger includes short-circuit, over-current and over-voltage protections to help protect battery packs during normal use. Compatibility depends on matching the charger output (54.6V/2A) and the 3-pin male XLR plug to your device’s original charger specifications and connector type.

• Protection features: short-circuit, over-current, over-voltage
• Input range: AC 100–240V 50/60Hz (US plug variant uses 120V mains)
• Confirm connector and voltage/current match your original charger before ordering

What troubleshooting steps should I try if the charger doesn’t work?

If the charger seems inactive after connecting, first verify the plug matches and the outlet supplies power. Common causes include incompatible voltage/current specs, a permanently damaged battery, or a loose XLR connection that prevents proper contact.

• Ensure charger parameters and plug match your original charger
• Check battery age—long-unused or damaged batteries may not accept charge
• Reseat the 3-pin XLR plug to restore firm contact if LED behavior is abnormal

Who is this for: This YAREMYEYE 54.6V 2A charger is made for riders and fleet operators who need a reliable replacement or spare for 48V lithium scooter and e-bike packs that use a 3-pin XLR connector. It suits owners of Heybike, Ecotric, Rad Power, Raleigh, Pedego and similar models provided the connector and electrical specs match. Ideal for overnight charging at home, light commercial use, or as a backup unit to keep your e-vehicle ready — follow the safety guidance, avoid covering the charger during use, and store or use it within one year of purchase for best results.
