Yinlowa CVT Stepper Motor 3.5L for Nissan JF009E/JF010E — Direct Replacement, 6‑Pin Connector, 2‑Bolt Mount

The Yinlowa 3.5L CVT stepper motor is a direct replacement actuator for select Jatco JF009E and JF010E continuously variable transmissions, controlling pulley ratio adjustments via a 6‑pin connector and 2‑bolt bracket.

This replacement stepper motor is built to match the electrical and mounting layout used on many Nissan vehicles that employ the JF009E/JF010E CVT valve bodies. It is intended for technicians and DIYers who need a like‑for‑like actuator to restore ratio control when the original motor has failed or exhibits erratic behavior. Before ordering, always verify the transmission code, connector type, bracket configuration and physical motor shape against the removed unit to ensure compatibility.

How does this stepper motor affect CVT operation?

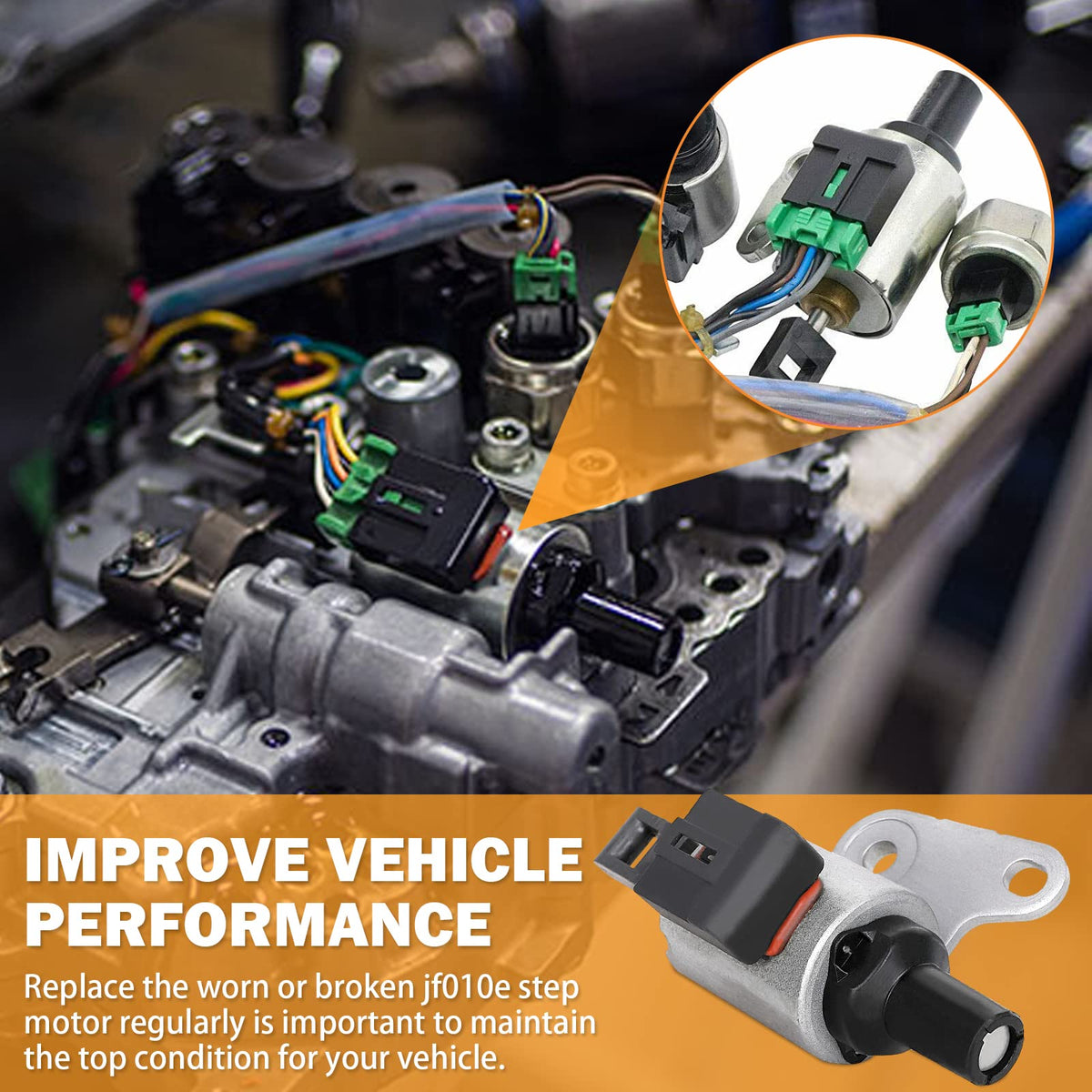

The stepper motor positions internal valve components that change the effective pulley ratio in the CVT. Accurate positioning ensures smooth, efficient ratio transitions and proper engine load management. When the motor becomes unreliable, drivers may notice poor acceleration response, diagnostic trouble codes, or the transmission entering limp mode.

• Controls pulley ratio via precise electrical steps

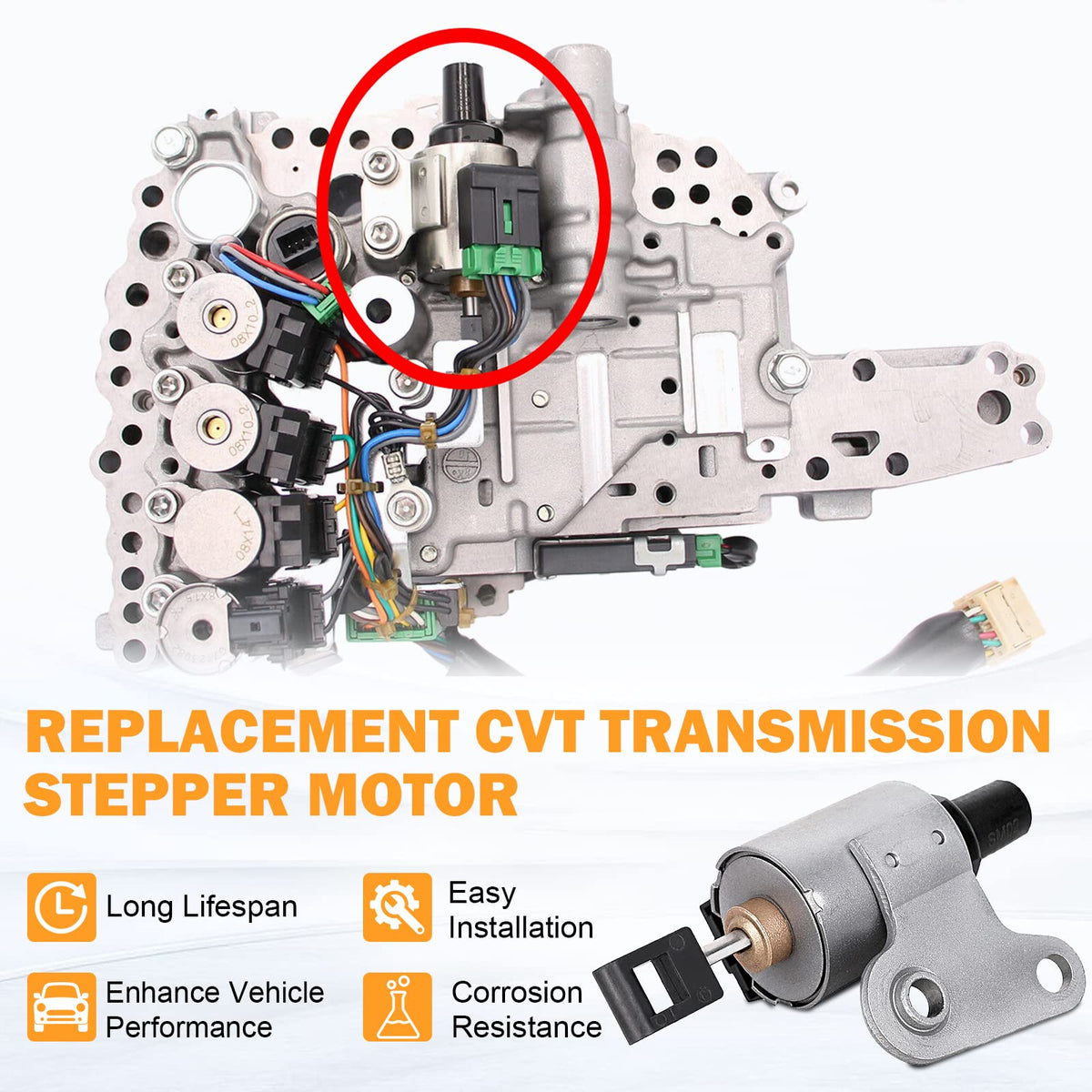

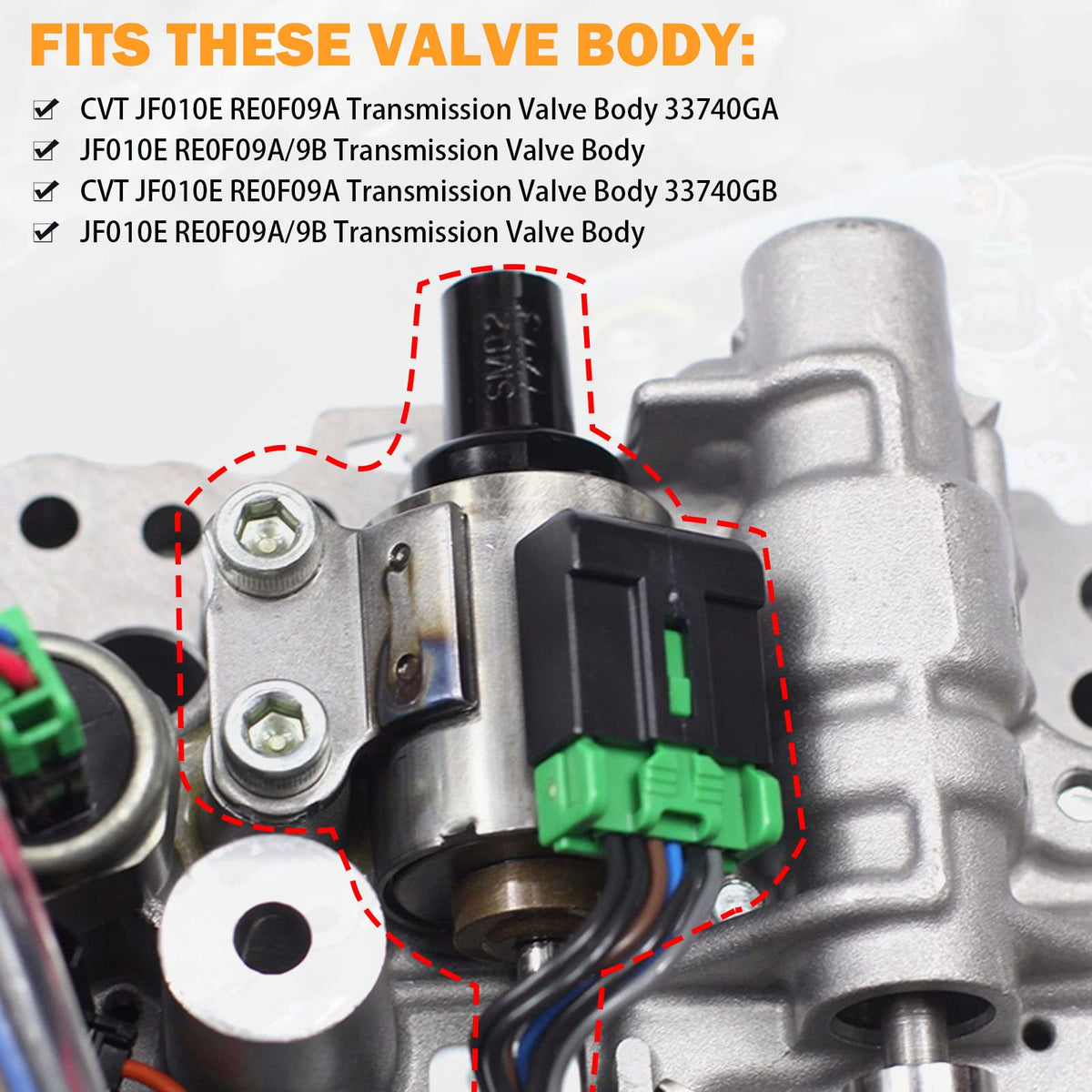

• Directly mounts to JF009E / JF010E valve bodies using the 2‑bolt bracket

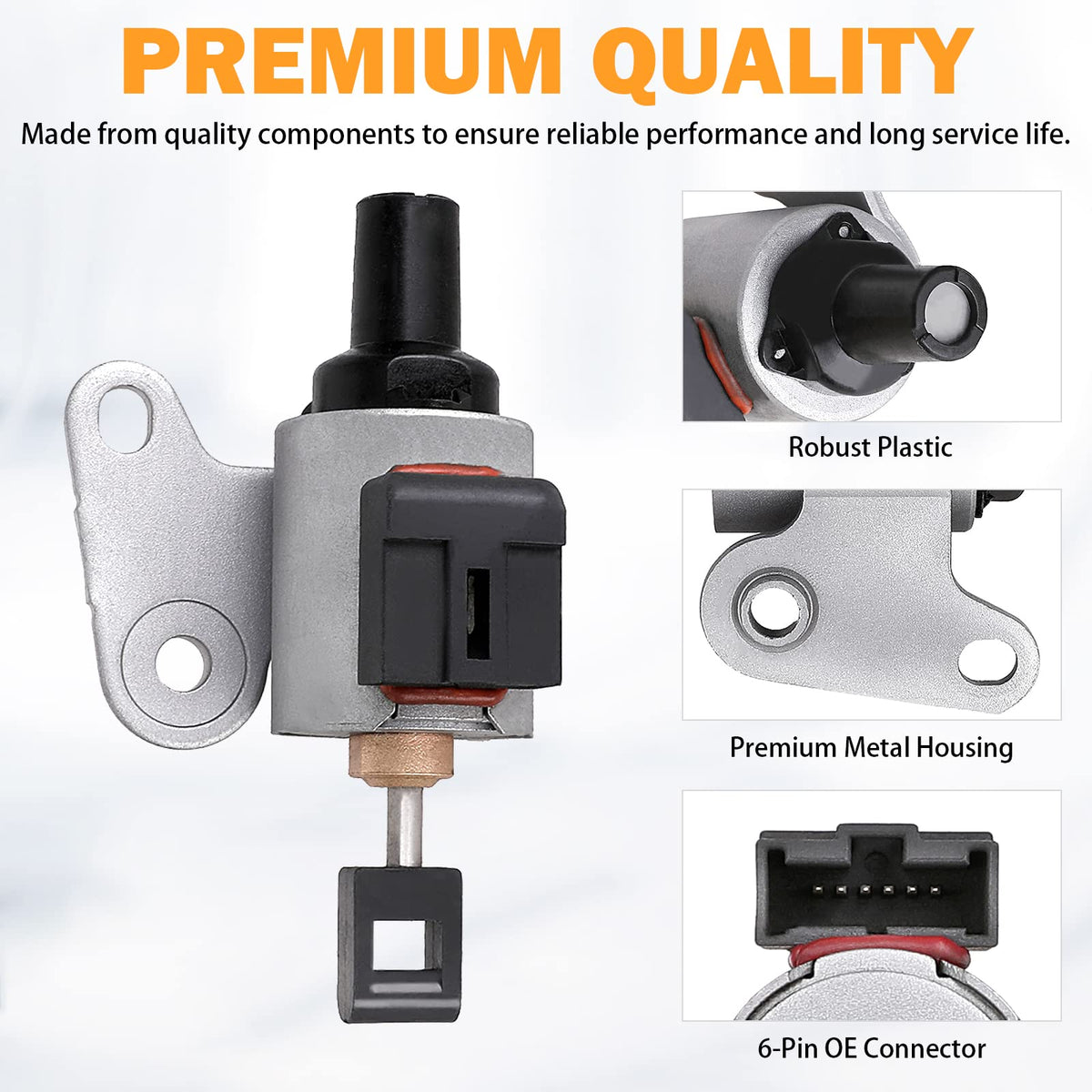

• Interfaces through the factory 6‑pin connector—no splicing if matched correctly
• Replacement can correct ratio‑related drivability symptoms when motor is root cause

Which Nissan models and years use this part?

This Yinlowa motor fits specific applications that employ the Jatco JF009E or JF010E CVT. Common U.S. fitments include multiple model years of Murano, Altima, Maxima, Quest, Versa and Cube when equipped with the listed transmission codes. Model, engine size or year alone do not guarantee compatibility; the transmission code is the definitive fitment factor.

• Common examples: 2003–2007 & 2009–2014 Murano 3.5L
• Also found on many 2007–2014 Maxima and 2007–2012 Altima 3.5L units
• Used on selected 2007–2012 Versa 1.8L and 2009–2014 Cube 1.8L installations

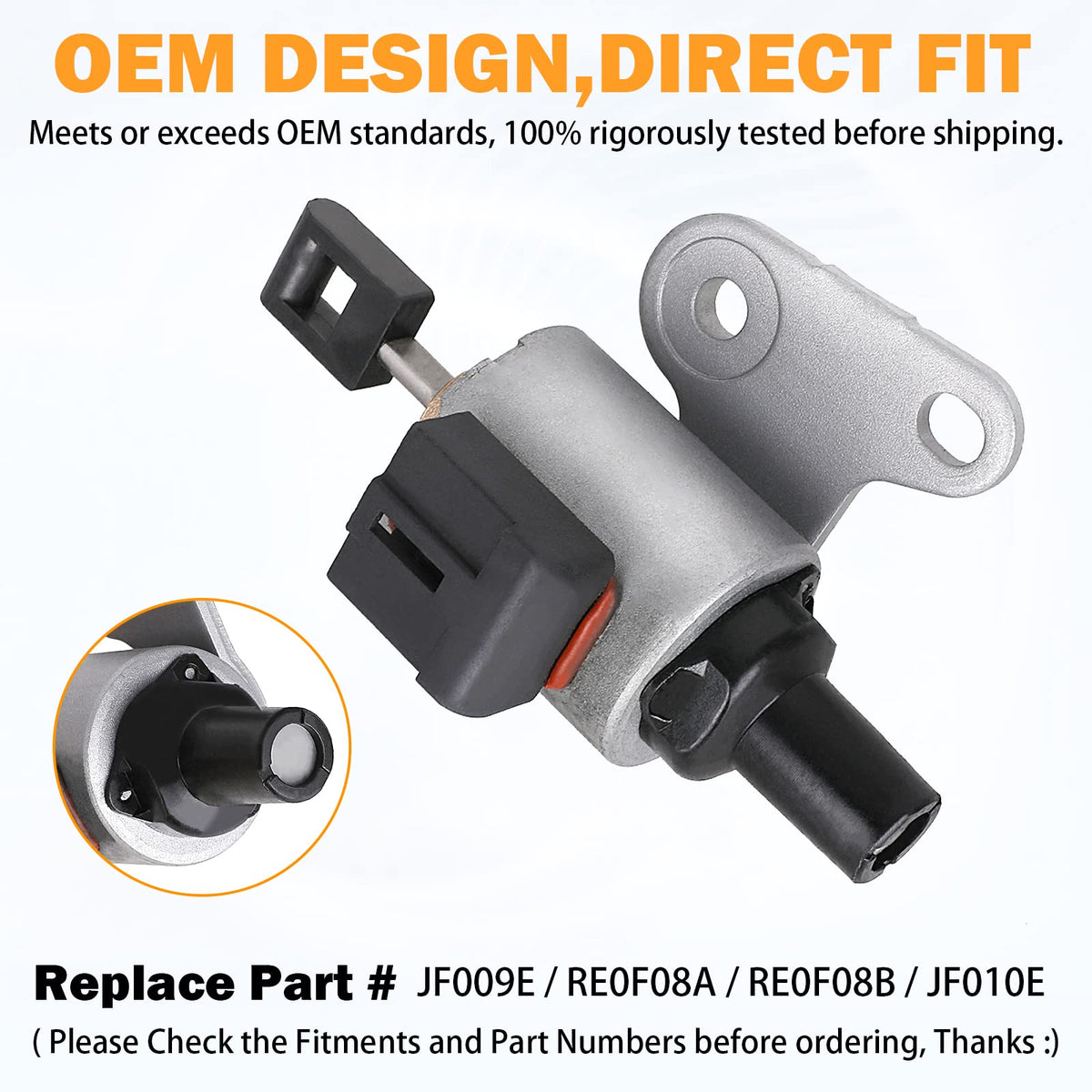

• Always confirm the transmission code printed on the transmission (RE0F08A/B, RE0F09A/B)

What symptoms indicate the stepper motor needs replacement?

Failing stepper motors can produce a range of symptoms, but similar issues may come from wiring faults, hydraulic pressure loss or valve body wear. Typical signs include stored P1777/P1778 codes, hesitation during acceleration, unexpected ratio jumps, or the transmission defaulting to limp mode. Proper diagnosis of electrical connections, mechanical condition and fluid levels should precede part replacement.

• Diagnostic codes such as P1777 or P1778 may be present
• Hesitation, jerks, or inconsistent ratio changes under load
• Limp‑in mode or reduced driveability linked to ratio control
• Inspect wiring, connectors and valve body before replacing the motor

How should this part be installed and verified?

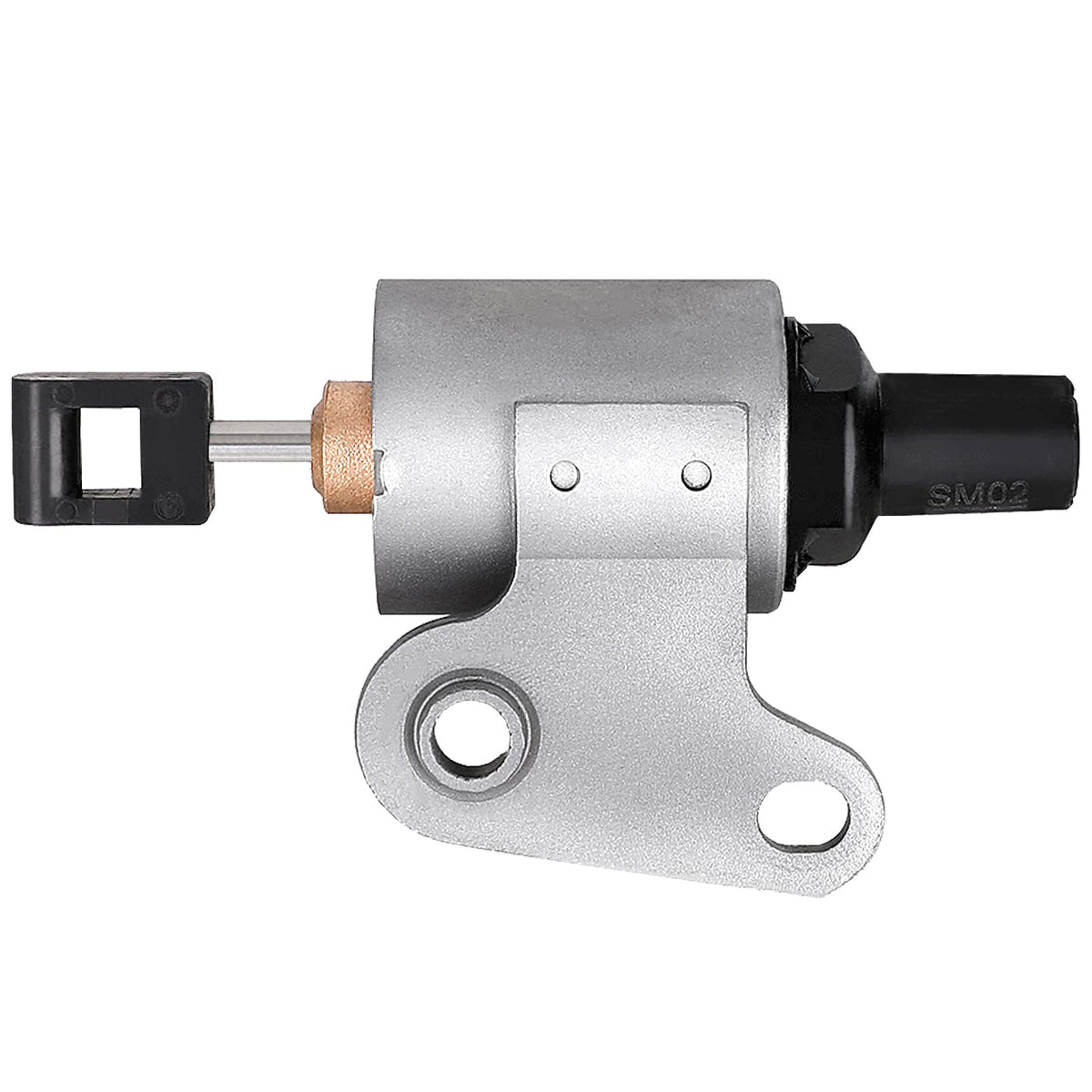

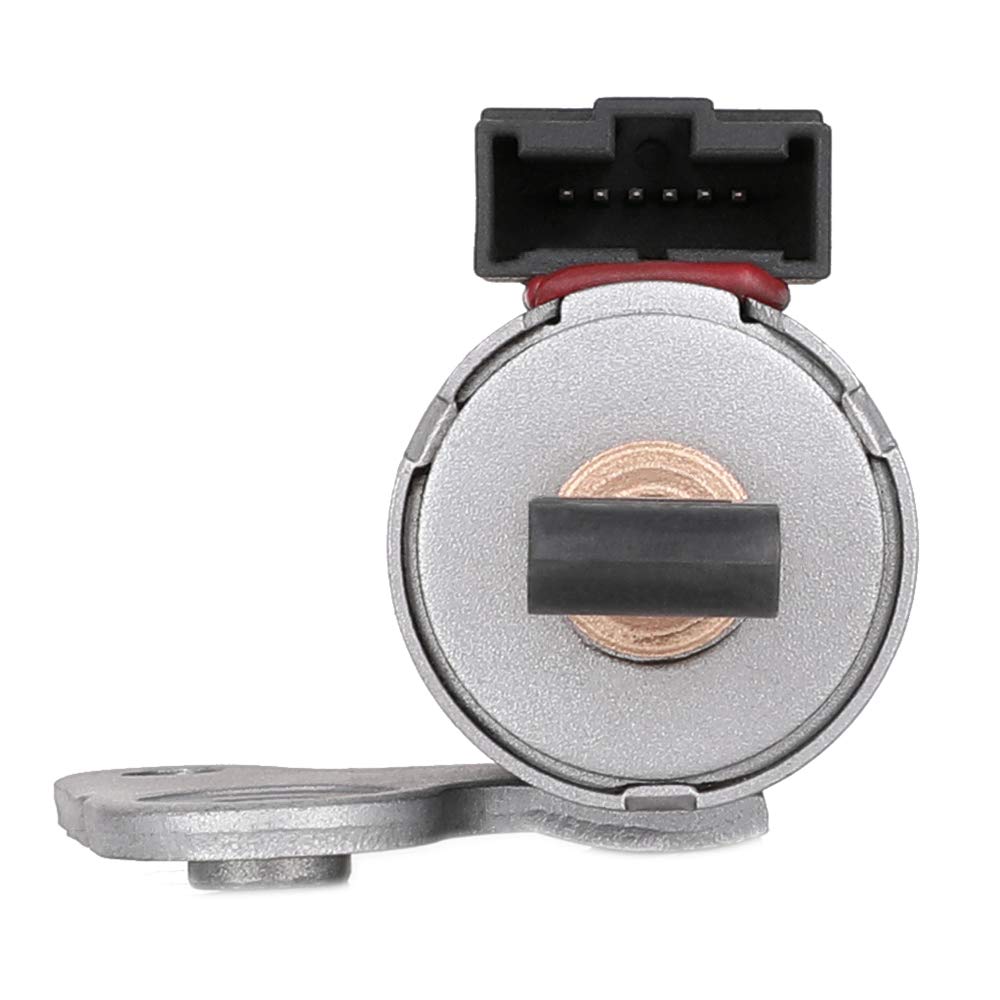

The motor ships in an installation‑ready configuration with the 6‑pin connector and 2‑bolt bracket used on the targeted valve bodies. Compare the electrical plug, bolt spacing and overall motor shape to the removed unit prior to installation. Follow the vehicle manufacturer’s procedures, use the correct CVT fluid, and torque fasteners to spec; professional installation is recommended if you lack transmission experience.

• Match connector pinout and bracket placement before fitting
• Use factory service manual steps and proper CVT fluid type
• Confirm no harness damage and secure all fasteners to spec
• Verify operation with road test and scan tool after installation

Who this is for: automotive technicians, independent repair shops and informed DIYers who need a like‑for‑like CVT stepper motor replacement for Jatco JF009E/JF010E valve bodies. This part is ideal when the original unit’s connector, mounting pattern and physical shape match the Yinlowa offering. If the transmission code differs (e.g., JF011E/RE0F10A or JF015E/RE0F11A), or if internal CVT damage is suspected, select an appropriate part or consult a transmission specialist before purchasing. Yinlowa includes one motor and offers a one‑year limited warranty; provide vehicle details and a photo of the original part for fitment assistance.
