YOOREAL Battery & Hour Meter for Golf Carts 12–72V — 10‑LED State-of-Charge, Panel-Mount

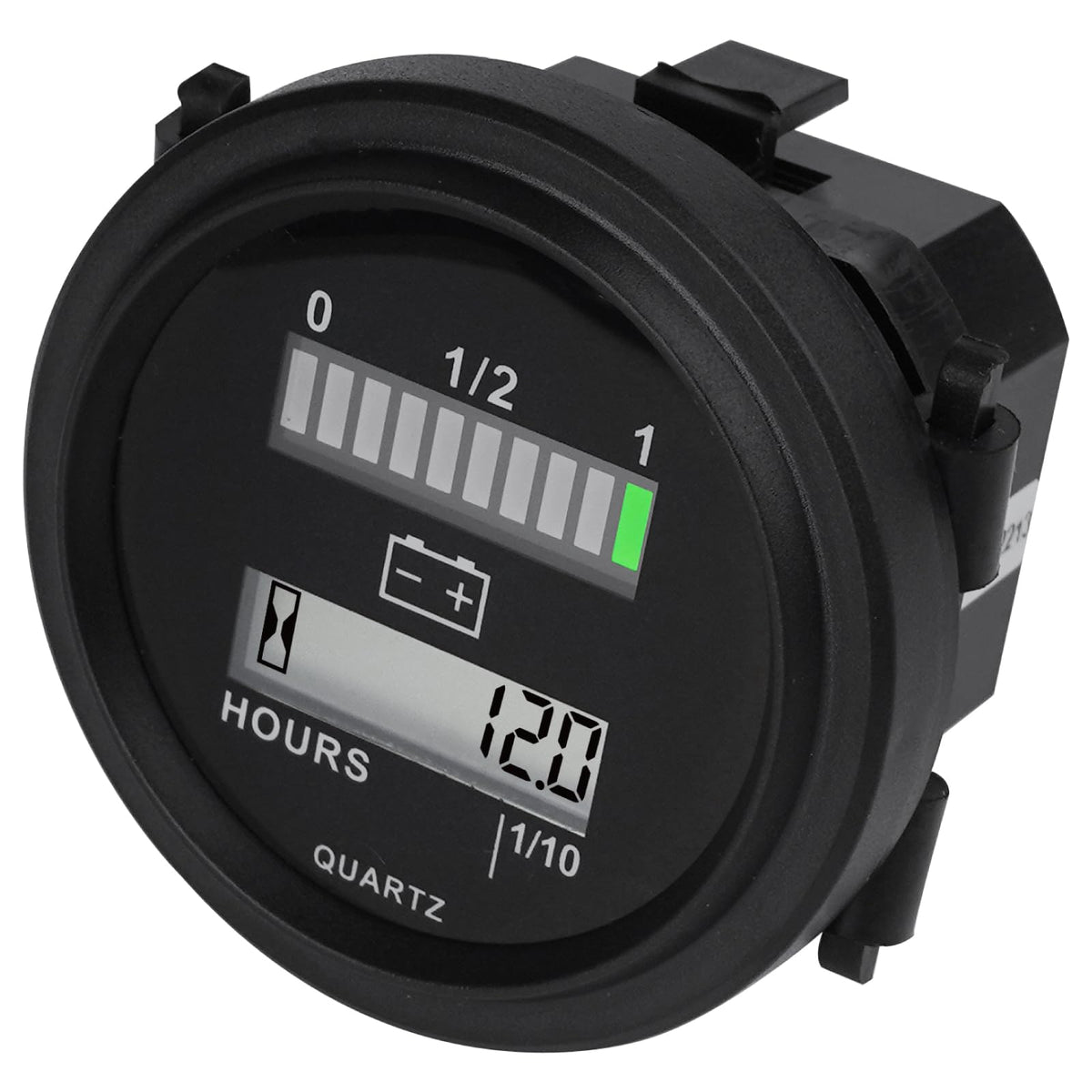

YOOREAL's compact battery and hour meter is a universal gauge that shows real-time charge level for 12–72V lead-acid systems and logs total run hours.

Designed for golf carts, utility vehicles and other lead-acid battery powered equipment (excluding Trojan batteries), this meter combines a 10-LED state-of-charge bar, a three-color visual scale, and an hour counter in a panel-mount housing. It fits tight dashboards with a snap-in design and offers two wiring options so you can connect through a key switch or directly to the battery. The LED bar is bright enough for daytime reading and remains clearly visible at night.

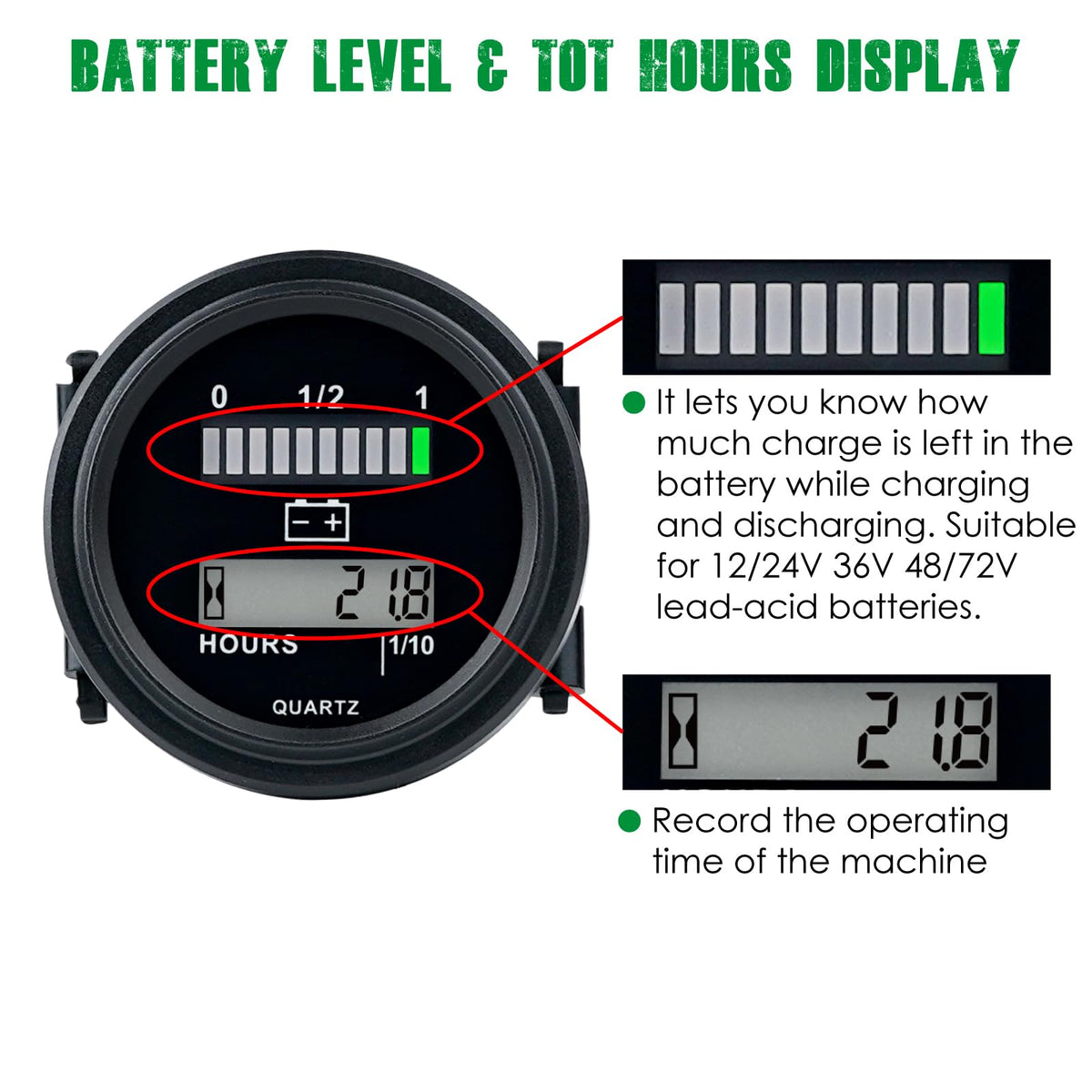

How does the gauge indicate battery charge?

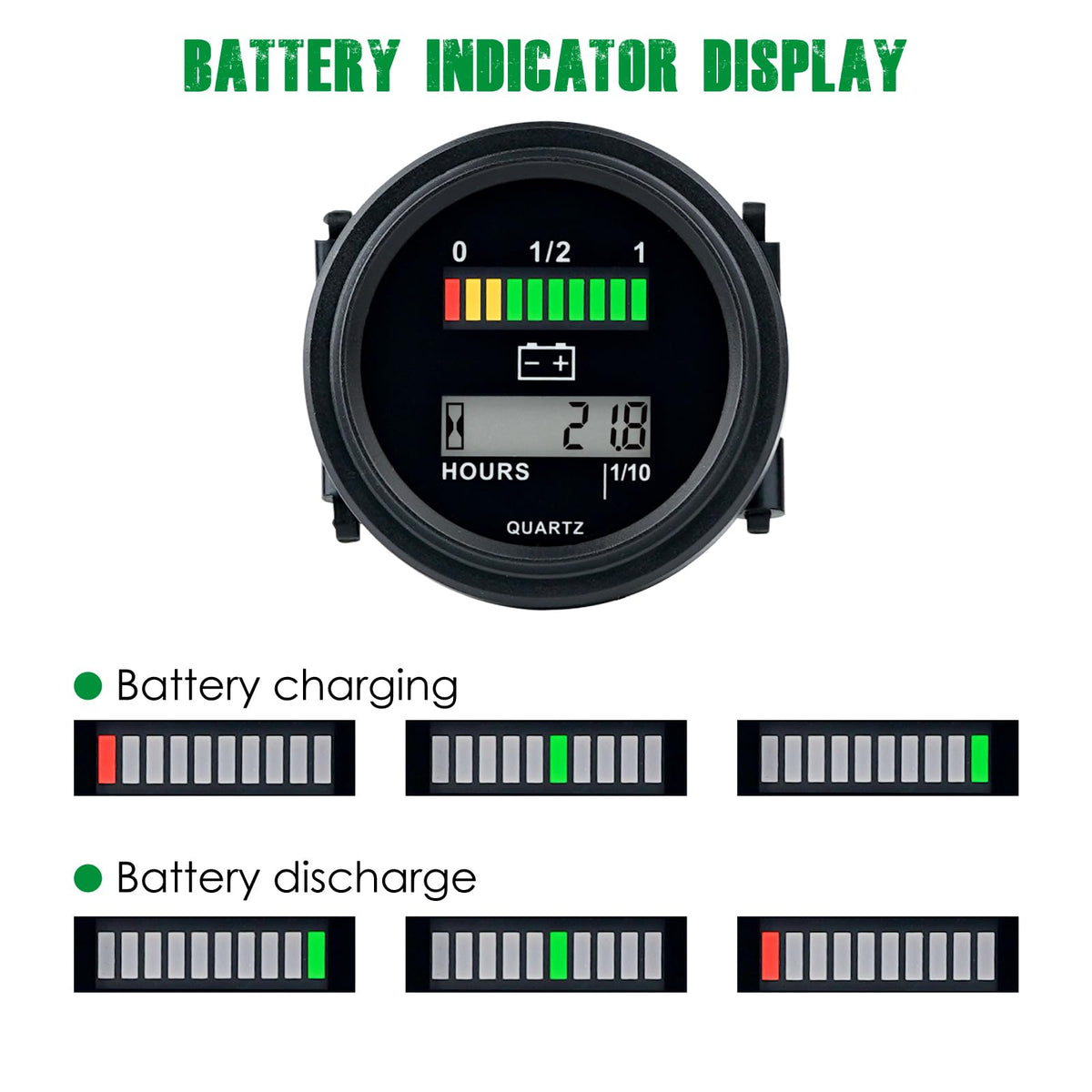

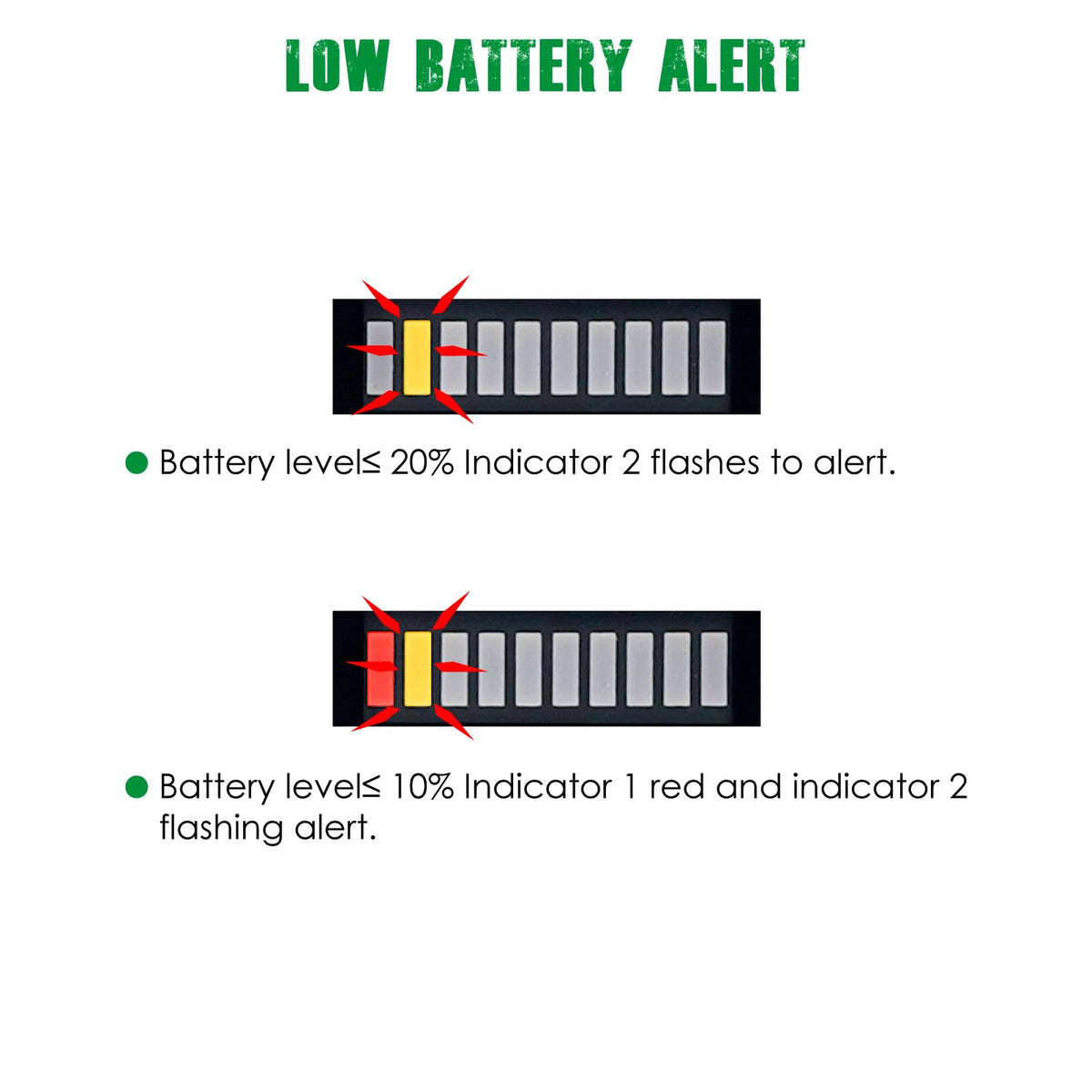

The display uses ten LEDs across three colors to communicate battery condition at a glance: green for good charge, yellow for caution, and red for low. This segmented approach makes it simple to tell if the battery needs charging or immediate attention without reading numerical values.

• 10-segment LED bar with 3-color coding (7 green, 2 yellow, 1 red)
• Works with 12V, 24V, 36V, 48V and 72V lead-acid setups
• High-visibility LEDs suitable for daylight and low-light use
• Instant visual feedback for quick operational decisions

What does the hour meter track and how do I reset it?

The built-in hour meter accumulates total operating hours up to 999,999 so you can monitor usage, schedule maintenance, and track vehicle life. If you need to clear the reading between deployments or when changing equipment, the meter includes a reset method using the negative and "R" wires.

• Records total hours from 0 to 999,999
• Reset feature via "-" and "R" wire connection for reuse across units
• Useful for maintenance intervals like motor checks or battery servicing
• Simple digital readout integrated with the gauge face

How do I install the meter in my vehicle?

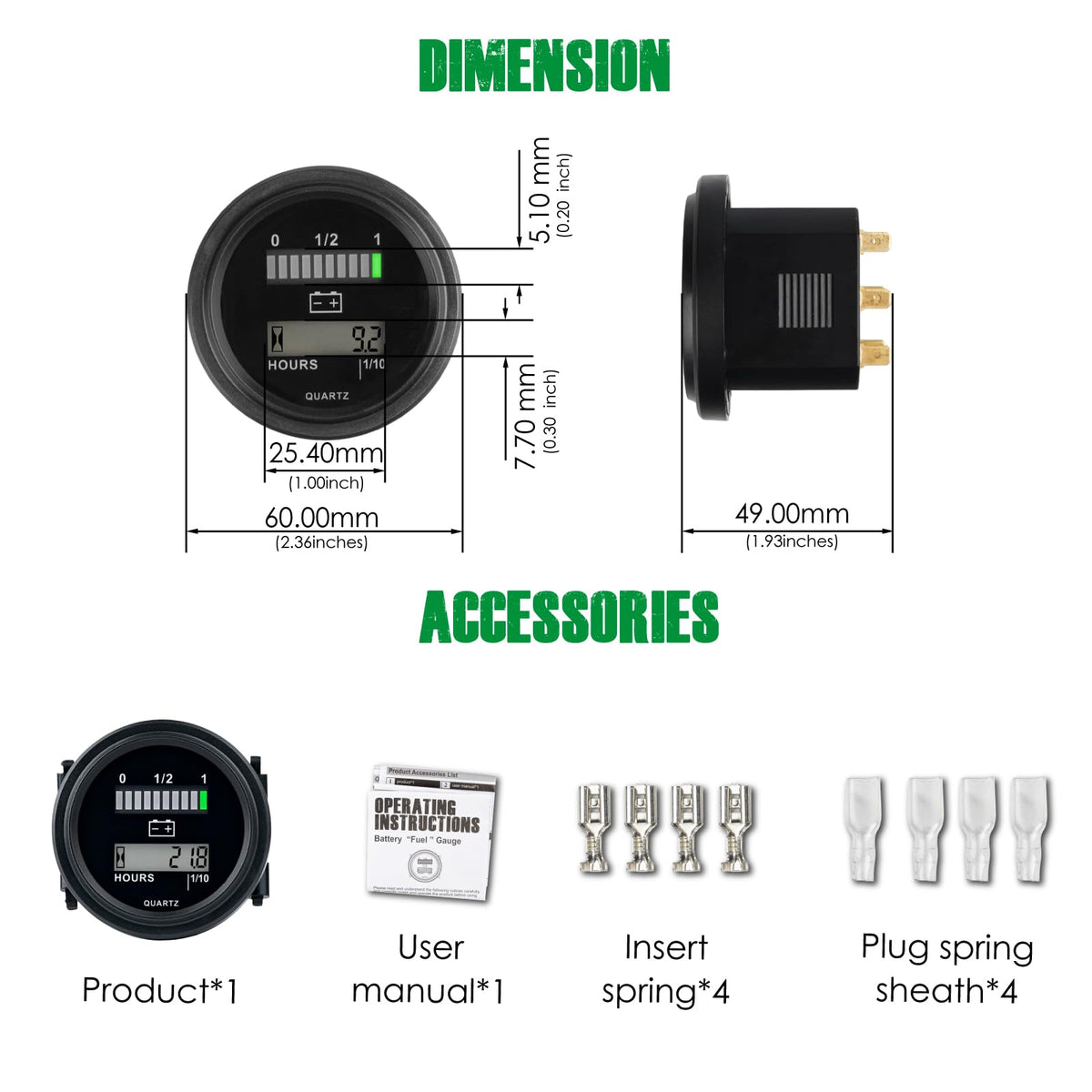

Installation is straightforward: the unit snaps into a 43×39 mm panel cut-out or the optional circular 50 mm opening and secures without complex hardware. You have the option to wire it to a keyed ignition switch so the meter powers with the vehicle, or hardwire it for constant monitoring.

• Panel cut-out approx. 43×39 mm or φ50 mm (1.69×1.54 inch, φ50)
• Snap-in mounting for quick fitment into dashboards and consoles

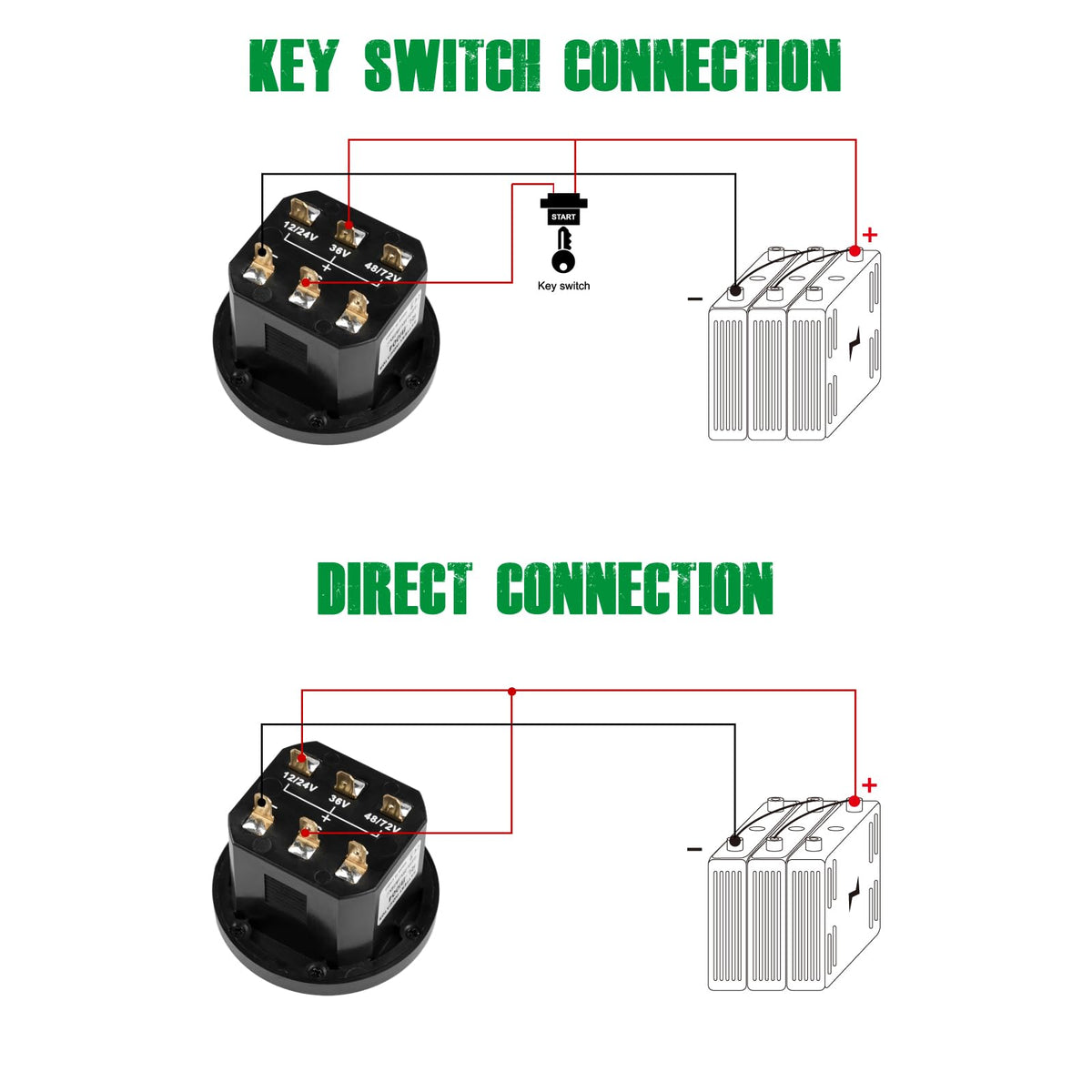

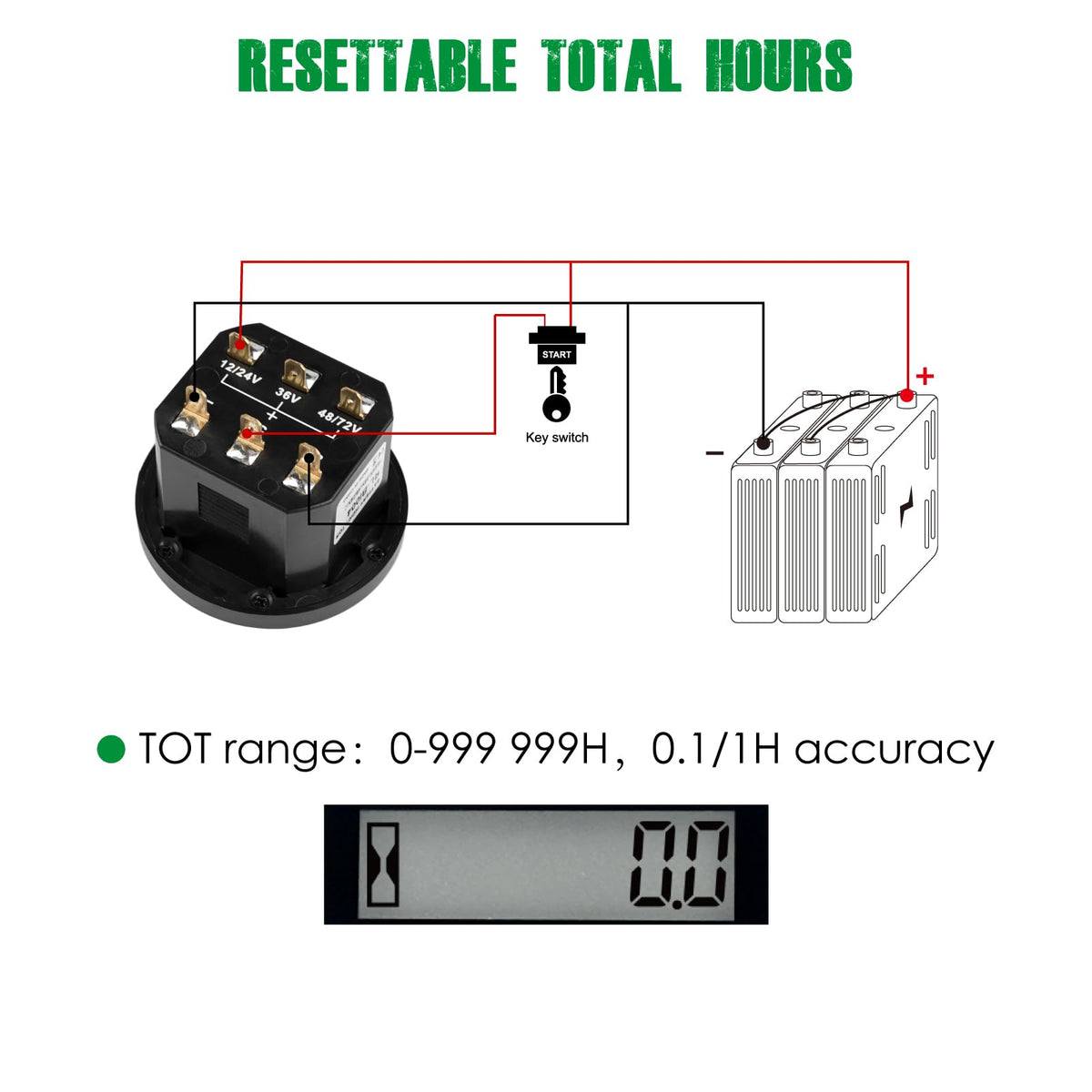

• Two wiring choices: keyed switch connection or direct battery feed
• Clear wiring layout for professionals and DIY installers

Are there any compatibility limits or support options?

This meter is built for lead-acid battery systems and does not support certain chemistries such as Trojan-brand batteries — check your battery type before installing. YOOREAL backs the product with a two-year support window and offers returns for product issues, plus online customer service for troubleshooting.

• Compatible with most lead-acid batteries; not for Trojan batteries
• Two-year after-sales support and return policy
• Online customer service for setup and troubleshooting

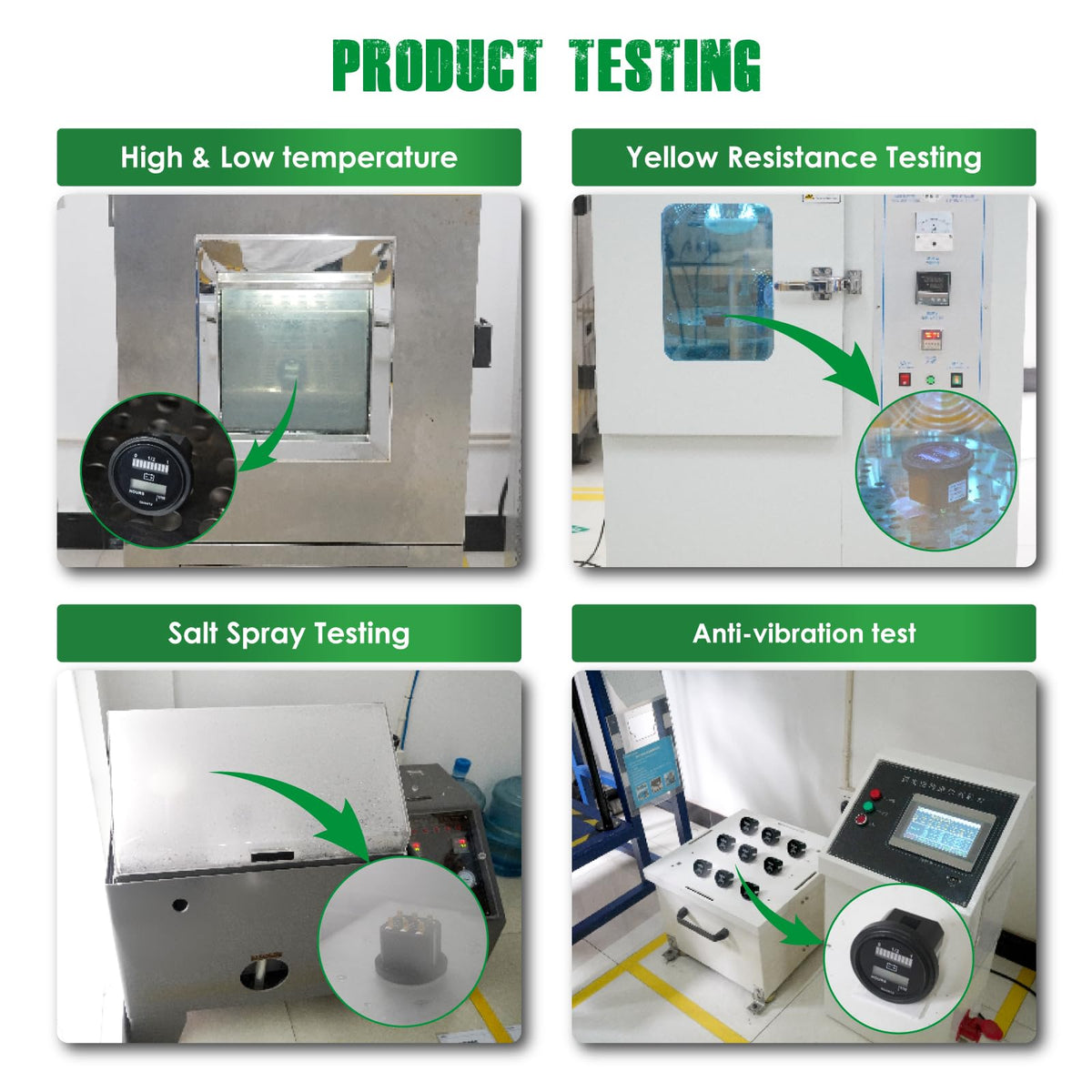

• Durable design intended for long service life in vehicle environments

Who is this for: technicians, fleet managers, and golf cart owners who want a reliable, easy-to-read battery state-of-charge indicator plus an hour recorder in a compact panel-mount unit. It's ideal for anyone needing straightforward monitoring without installing complex battery management systems — particularly for maintenance planning, rental fleets, and recreational vehicles using lead-acid batteries.
