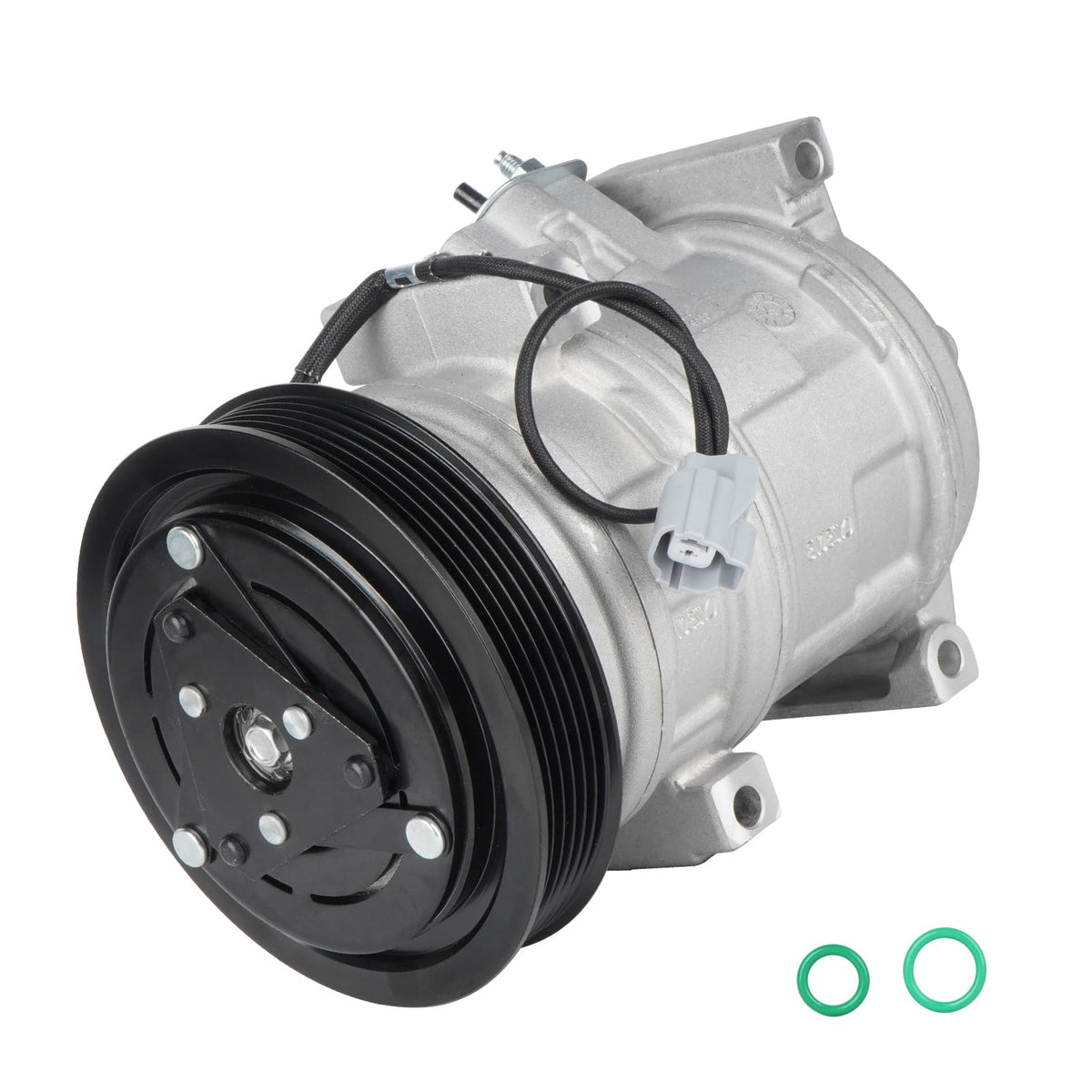

Youxmoto AC Compressor with A/C Clutch fit for Acura TL/MDX & Honda 3.2/3.5L — 135mm pulley, 6-groove

This Youxmoto AC compressor with integrated A/C clutch replaces worn units in select Acura and Honda V6 vehicles to restore cold, reliable air conditioning.

If your car’s air conditioning has grown weak, noisy, or stopped blowing cold, a failing compressor is often the culprit. This Youxmoto compressor is engineered as a direct-fit replacement for a range of Acura and Honda V6 engines from the mid-2000s, offering the correct pulley size, groove count, and prefilled PAG oil to simplify installation and help return system performance.

Which cars and engine sizes does this compressor fit?

This unit is specified for many Acura and Honda V6 models. It covers Acura TL (3.2L 2004–2008 and 3.5L 2007–2008), Acura MDX (3.5L 2003–2006), and a set of Honda vehicles including Odyssey (3.5L 2005–2007), Pilot (3.5L 2005–2008), and Ridgeline (3.5L 2006–2008). Always verify your vehicle’s OEM part number and engine size before ordering.

• Acura TL: 3.2L (2004–2006), 3.5L (2007–2008)
• Acura MDX: 3.5L (2003–2006)
• Honda Odyssey: 3.5L (2005–2007)
• Honda Pilot & Ridgeline: 3.5L (Pilot 2005–2008; Ridgeline 2006–2008)

What are the technical specifications and prefill details?

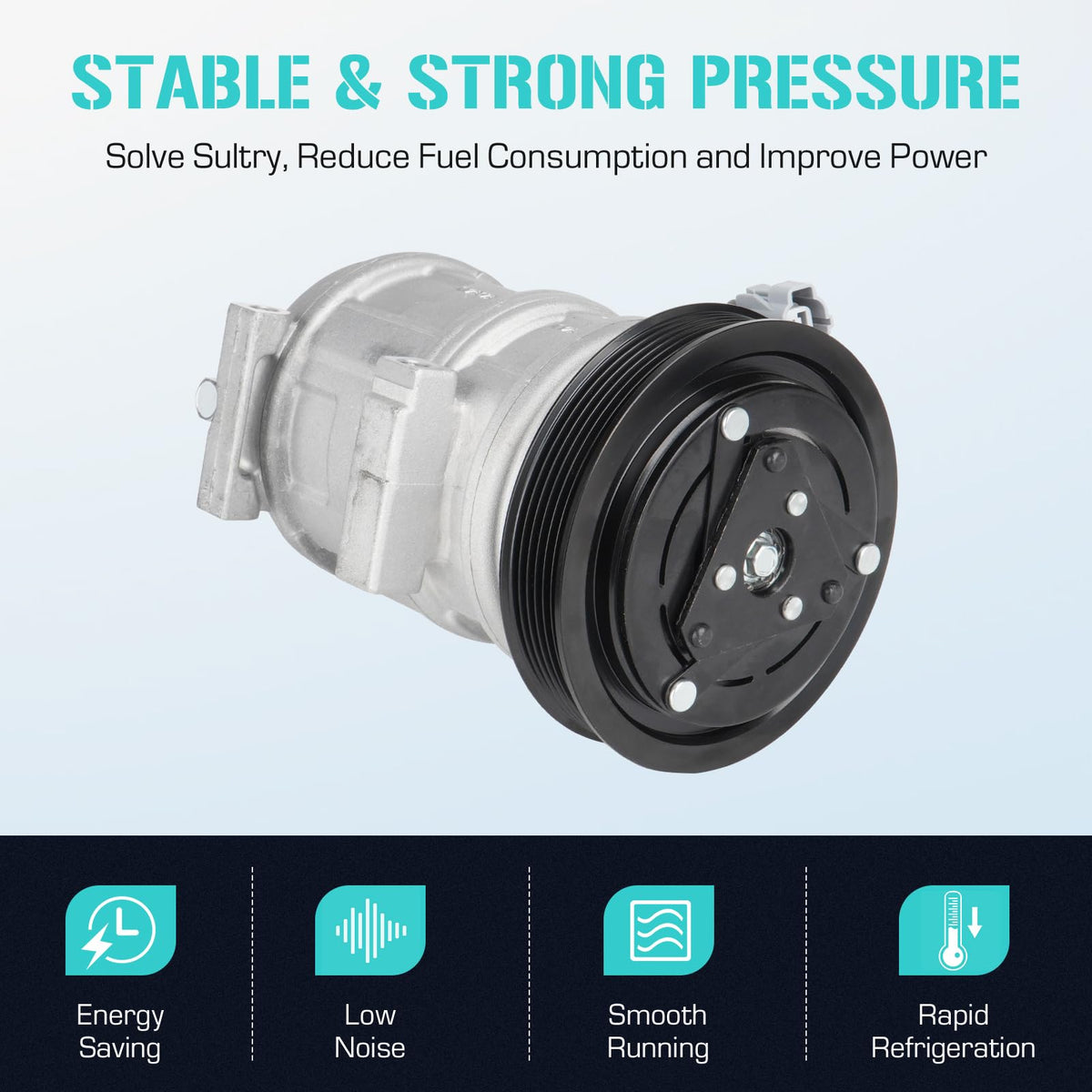

The compressor uses a 10S20C type design with a 135 mm pulley and a 6-groove serpentine interface. It’s shipped prefilled with approximately 180 ±10 mL of PAG 100 oil and integrates an A/C clutch matched to the listed vehicles for correct engagement characteristics.

• Compressor type: 10S20C
• Oil: PAG 100, prefilled ~180±10 mL
• Pulley diameter: 135 mm; grooves: 6

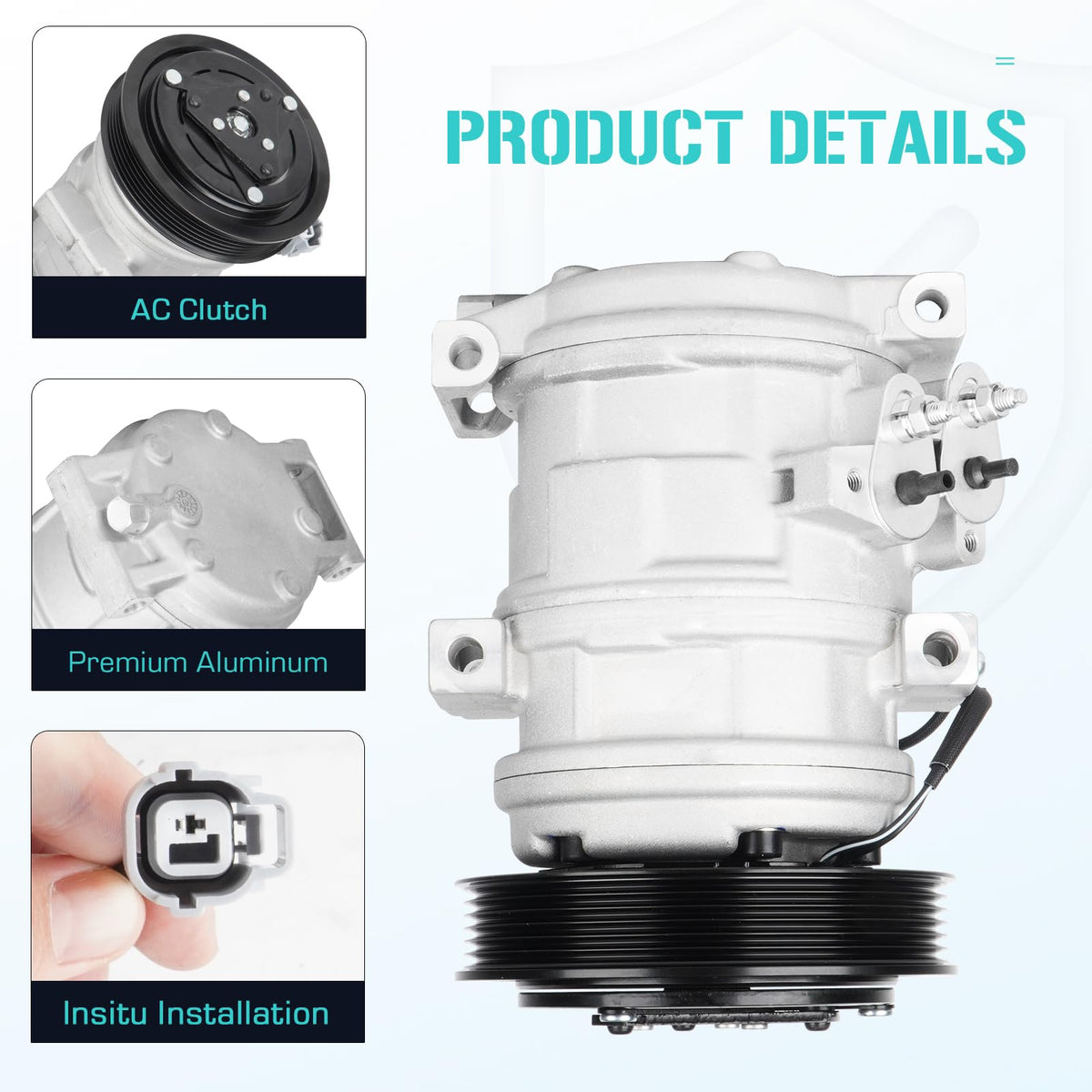

• Includes integrated A/C clutch for proper fit and function

Which OEM or aftermarket part numbers does it replace?

This Youxmoto part is intended as a replacement for a long list of OEM and aftermarket references so it can swap into systems originally specified with various numbers. Check your current compressor’s reference to confirm compatibility before purchase.

• Common replacement references include: 38810-RCAA-01, 38810-RDA-A01, 38810-RDJA-01 and multiple supplier codes
• Also cross-references several catalog and remanufactured numbers used by major parts distributors
• Use your vehicle VIN or existing compressor number to verify exact match

Are there important installation and system-prep steps?

Yes — replacing the compressor requires a clean, dry A/C system to avoid immediate failure. The condenser, lines, and evaporator should be flushed and verified, and any cleaning agents must be fully evaporated before installing the new compressor.

• Disassemble and thoroughly clean the entire A/C circuit before installation
• Confirm condenser and expansion components are functioning properly
• Only install when cleaning solvents have fully evaporated to protect the new unit

Who is this for: This Youxmoto compressor is aimed at DIY mechanics and professional technicians servicing mid-2000s Acura and Honda V6 models who need a full-form, bolt-in replacement with the correct pulley, clutch, and oil prefill. It’s suitable for owners restoring AC performance after compressor failure, shops looking for a cost-effective non-OEM option, and anyone who will perform the required system cleaning and refrigerant handling per local regulations. Note: follow professional refrigeration service procedures for evacuation, recharge, and leak testing; this product description is technical, not a substitute for certified HVAC service instructions.
