Youxmoto AC Compressor with Clutch for Chevrolet Equinox 2.4L 2012-2014 & GMC Terrain 2.4L 1st Design — CO 22229C, PAG46 Prefilled

Designed to replace the factory unit, this Youxmoto air conditioning compressor (model 7SBH17C, CO 22229C) arrives prefilled with PAG 46 oil and a 5-groove, 120 mm pulley to match original equipment specifications. It is engineered to provide steady cooling with low operational noise while supporting better fuel efficiency under lighter load. Before installation, follow the recommended system cleaning steps to protect the new compressor and ensure long service life.

Which vehicles and years will this compressor fit?

This compressor is intended for Chevrolet Equinox with the 2.4L engine from 2012 through 2014 and for GMC Terrain 2.4L first-design variants from 2012 through 2015. Confirm your vehicle uses the first-design compressor layout before ordering, as later-design units differ in mounting and connections.

• Chevrolet Equinox 2.4L: 2012, 2013, 2014
• GMC Terrain 2.4L (first design): 2012, 2013, 2014, 2015
• Fits vehicles requiring part references like CO 22229C or OEM cross numbers listed below

What are the key specifications and compatibility details?

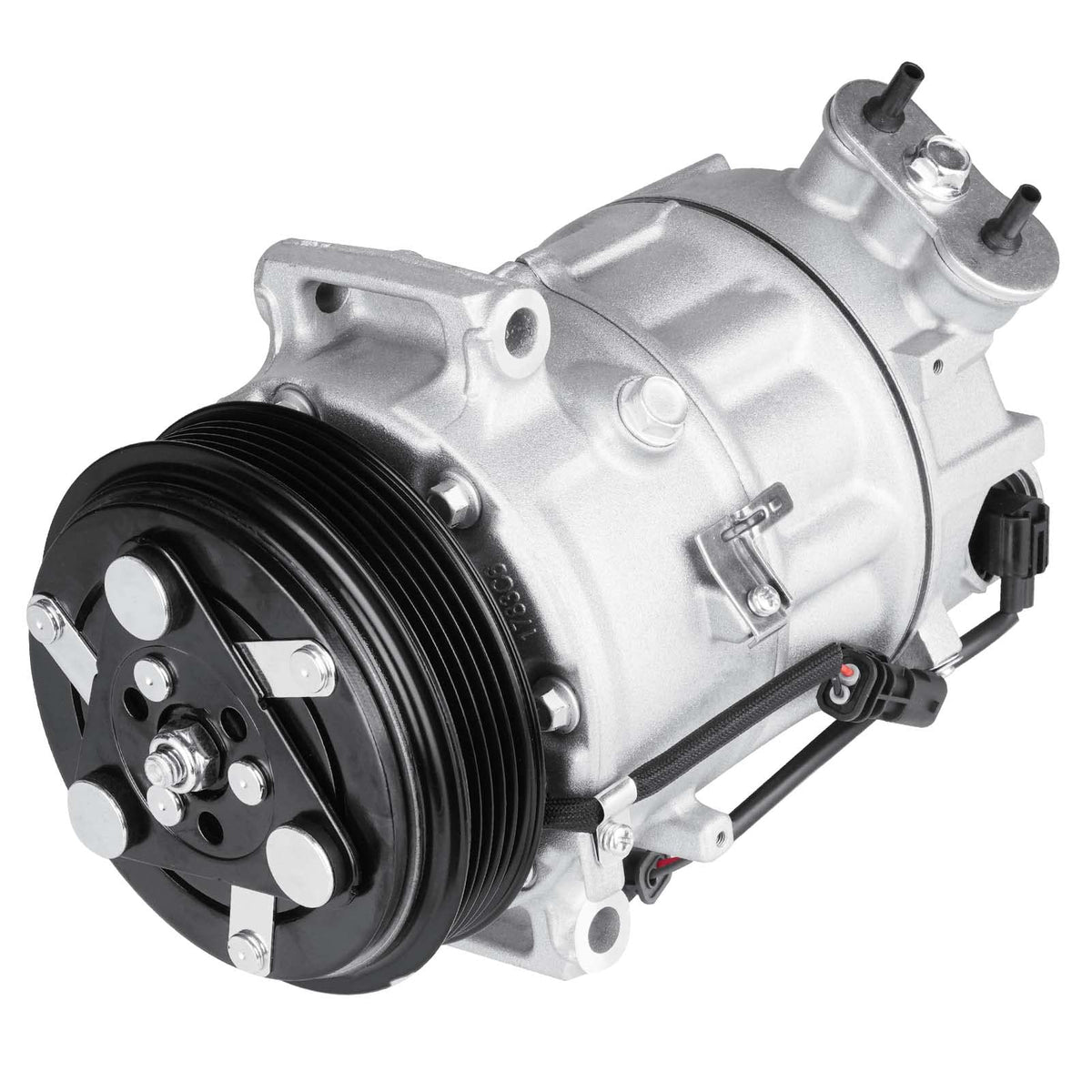

The Youxmoto unit is built to match OEM dimensions and lubrication needs: compressor type 7SBH17C, prefilled with approximately 100±10 mL of PAG 46 oil, a 120 mm diameter pulley and a 5-groove configuration. It replaces a range of manufacturer numbers, making it suitable when those part codes appear in your vehicle’s repair documentation.

• Compressor Type: 7SBH17C
• Oil Type and Fill: PAG 46, ~100±10 mL prefilled
• Pulley: 120 mm diameter, 5 grooves
• Cross references: CO 22229C, 16003549-101 to -104, 22798745, 23255703, 4472604850, 4472806770

How should I prepare my vehicle and what installation notes matter?

To protect the new compressor and avoid premature failure, fully evacuate and clean the entire A/C system before installation. Ensure the condenser and other components are functioning; do not install the new compressor until any cleaning solvents or residues have completely evaporated.

• Disassemble and thoroughly clean the A/C system prior to installation
• Inspect and verify condenser and receiver-drier condition
• Allow cleaning agents to evaporate fully before installing the compressor
• Use correct oil type (PAG 46) and follow torque and belt alignment specifications

What performance and operational benefits should I expect?

The unit is designed for steady, quiet operation and is optimized to reduce input power under lighter loads, which can improve fuel economy while cruising. Expect restored cooling when the system is properly serviced and compatible components are in place.

• Low-noise operation for a more comfortable cabin
• Efficient compression reduces parasitic drag at higher speeds
• Prefilled oil simplifies installation while matching OEM lubrication needs
• Direct-fit form factor minimizes modification during replacement

Who this is for: This Youxmoto compressor is aimed at DIY mechanics and professional technicians replacing a failed or worn A/C compressor on compatible Chevrolet Equinox and GMC Terrain models. It suits owners who want an OE-style replacement with matching specifications, prefilled oil for convenience, and clear cross-reference compatibility. If your vehicle uses a different compressor design or later-generation A/C components, consult service data or your mechanic to confirm fitment before purchase.
