Yuesstloo Cam Timing Tool Kit for Cummins 2007–2017 — 16-Piece with Jake Brake Adjustment, CNC Steel Case

Yuesstloo's Cam Timing Tool Kit with Jake Brake Adjustment Tool is a complete 16-piece set built to accurately time Cummins gear trains and set engine brake adjustments on 2007–2017 Cummins engines.

This kit combines a precision crank pin, cam gear puller, multiple wedge sizes and a dedicated Jake brake feeler to let technicians and fleet mechanics align single- and dual-cam Cummins engines quickly and reliably. All components are CNC-machined from heavy-duty steel and arrive in a compact case with gloves, so you can take the tools to the shop or the fleet yard and start work right away.

How does this kit help when timing Cummins camshafts?

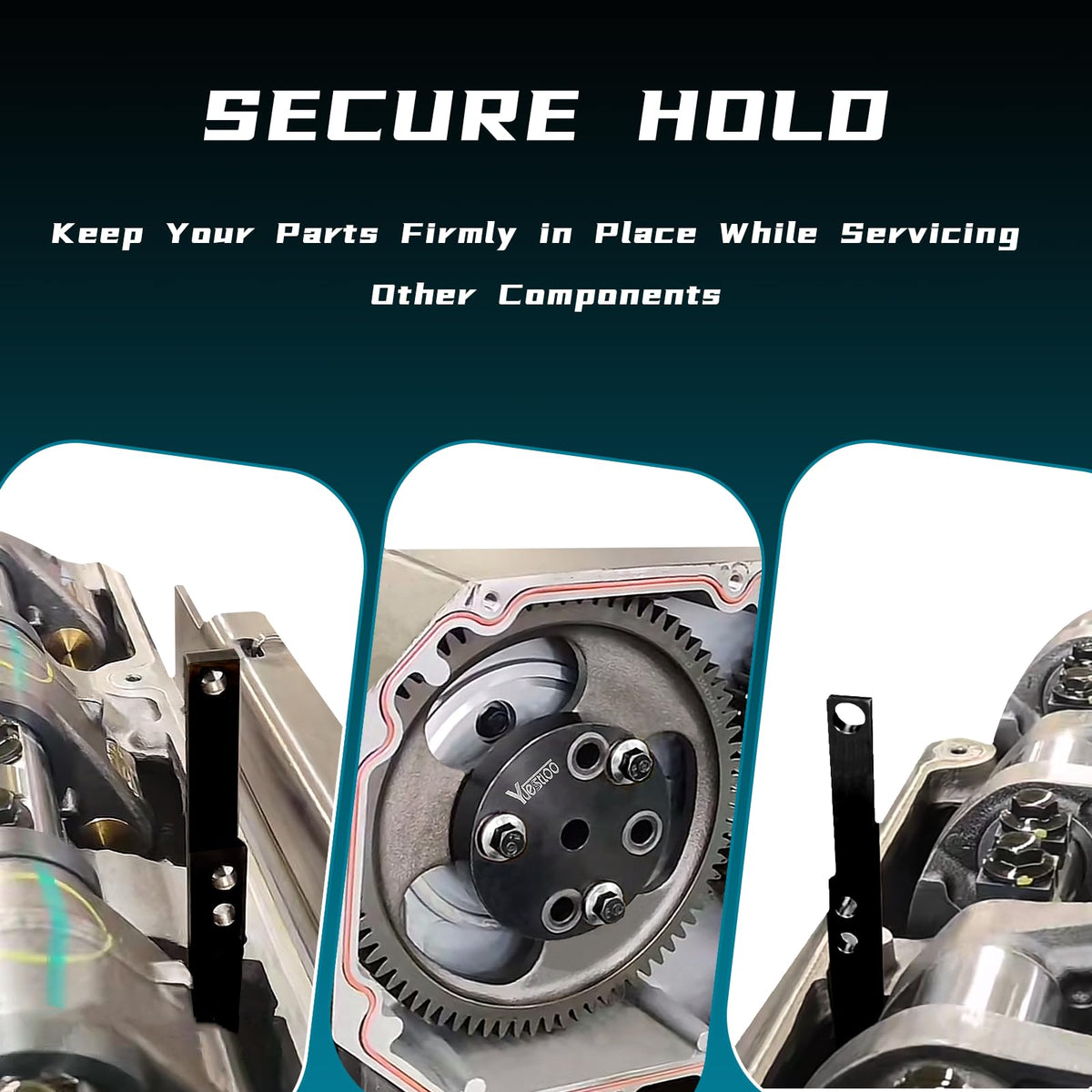

The kit provides the locating pins, wedges and puller needed to lock and align the crank and cam gears so the gear train timing can be set or verified. Wedges let you accommodate different camshaft configurations and degree offsets for single- or dual-cam setups.

• Includes crank pin and cam gear puller for safe gear removal and positioning.

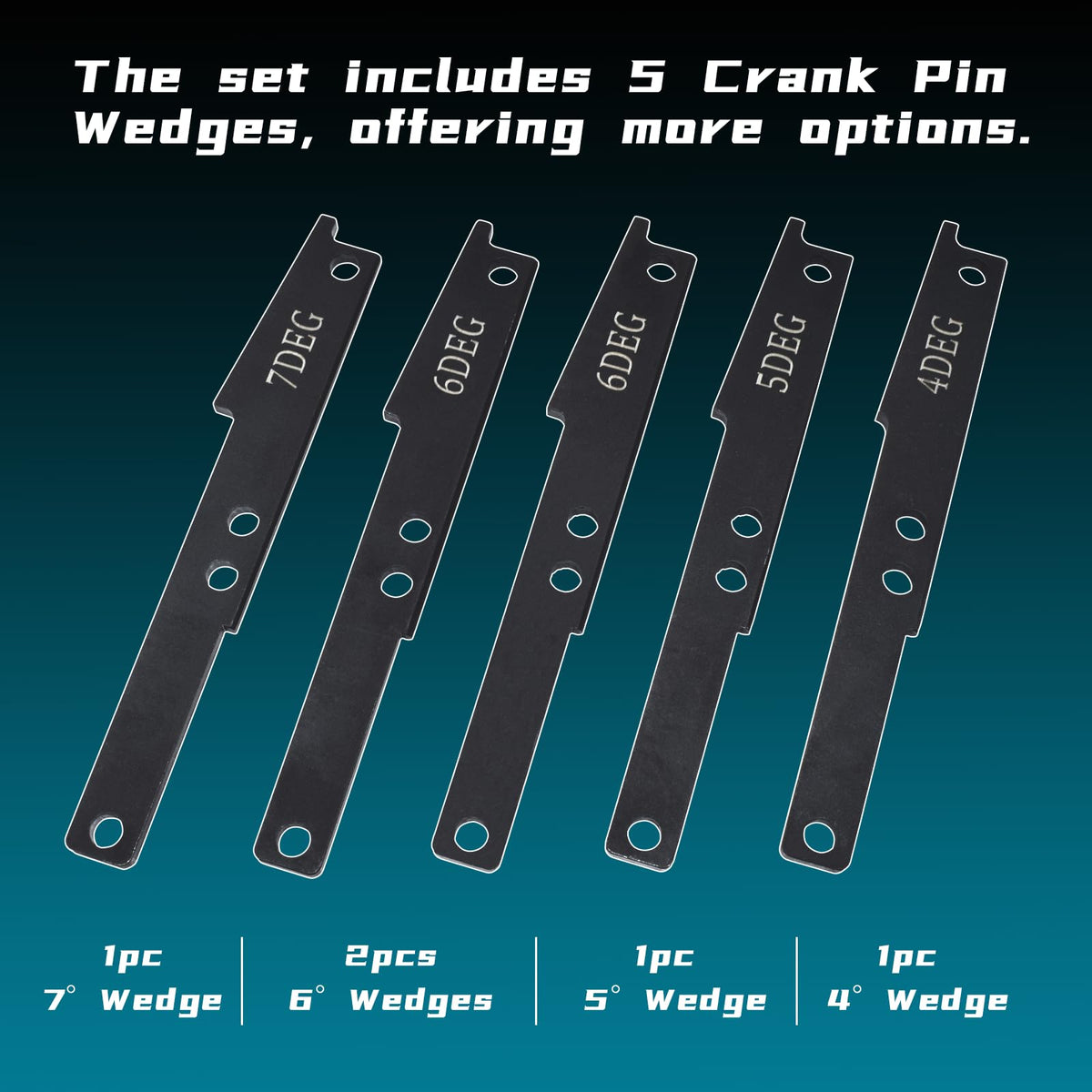

• Five wedge pieces (4°, 5°, two 6° and 7°) to fit 2007–2017 models and dual-cam engines.
• CNC-machined steel ensures accurate fit and repeatable timing locations.

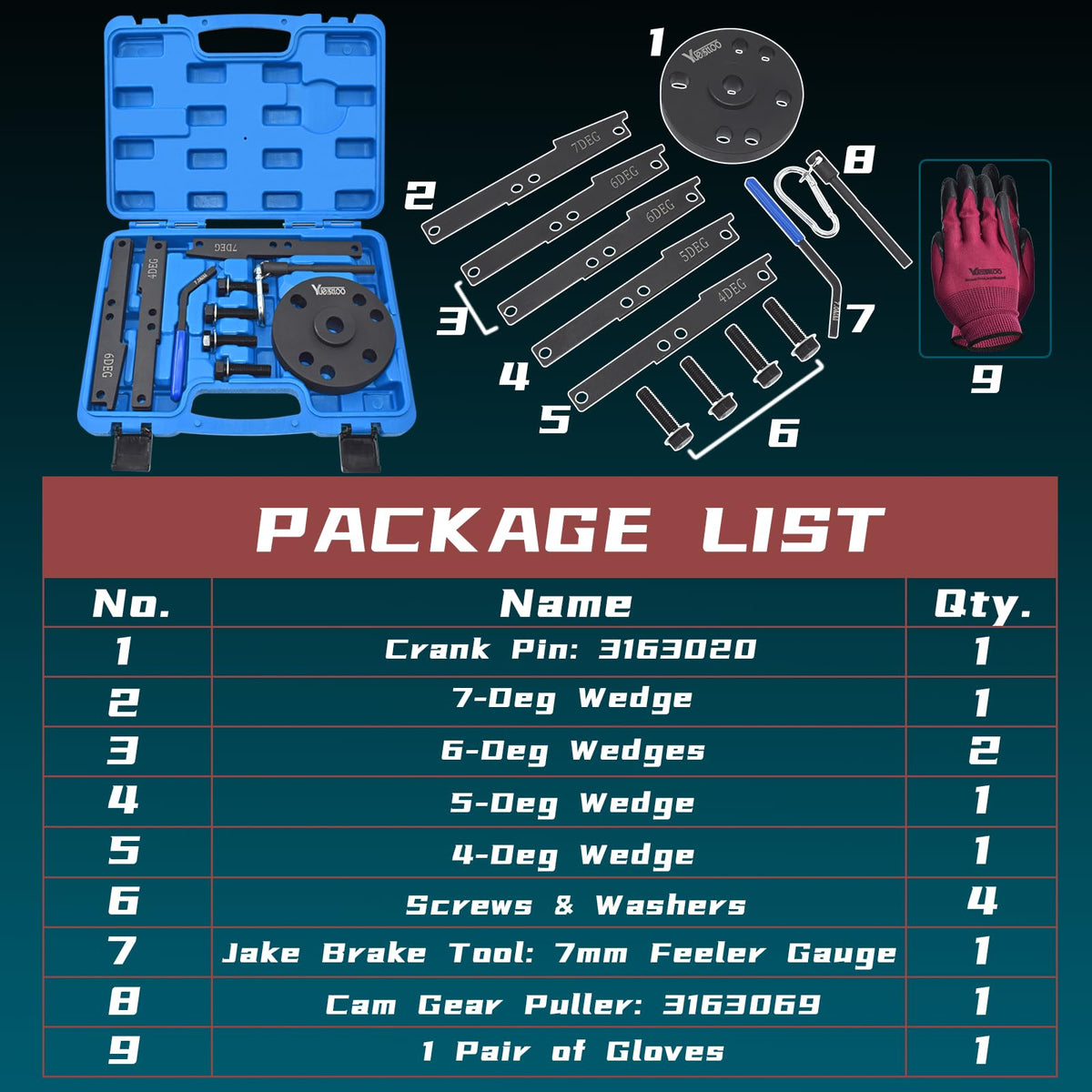

What parts are in the 16-piece set and what do they do?

The set bundles every item needed to set gear train timing and adjust Jake brakes without hunting for extra tools. Fasteners and washers provide secure assembly while the feeler gauge helps set exhaust valve contact precisely.

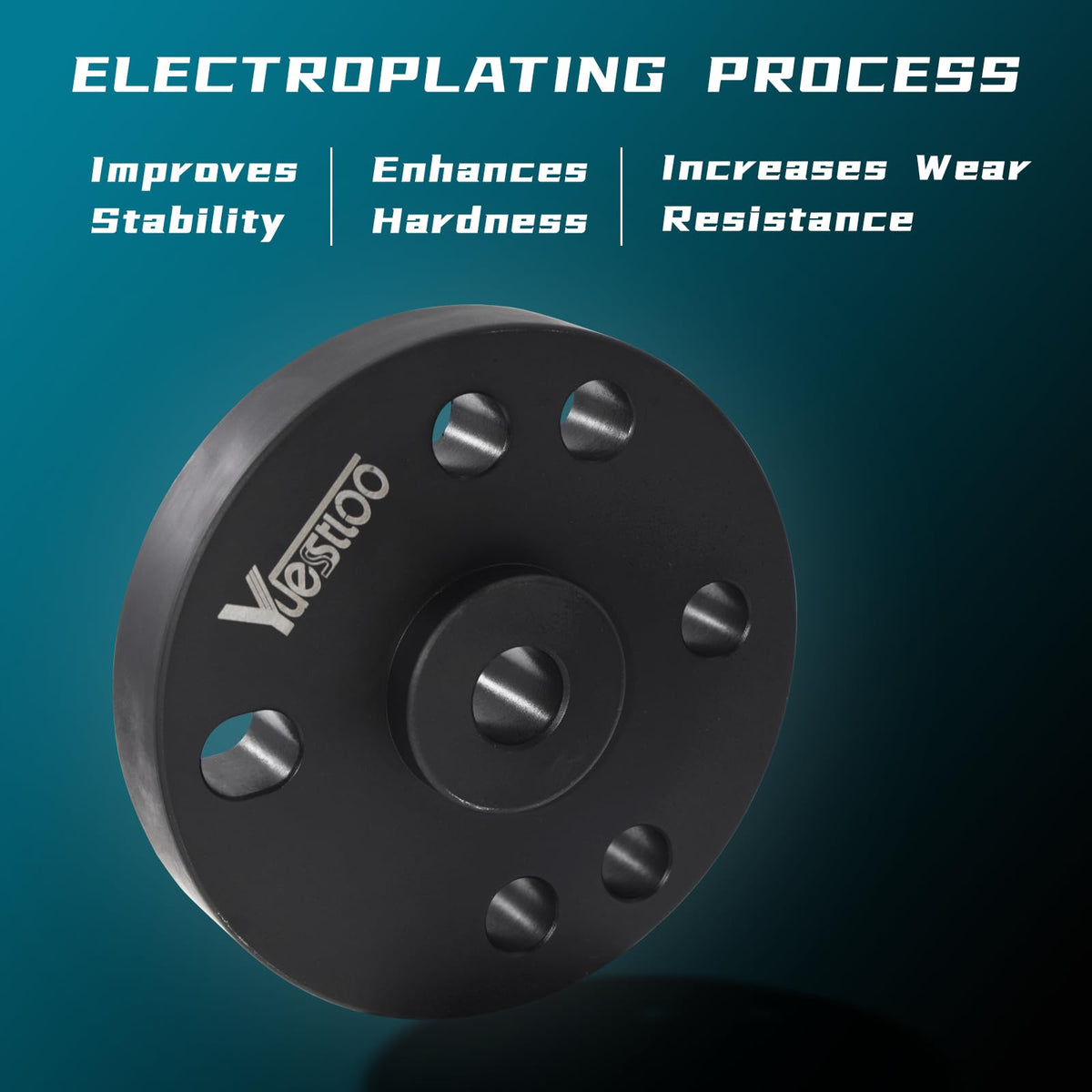

• 1 crank pin (3163020) and 1 cam gear puller (3163069) for alignment and removal.

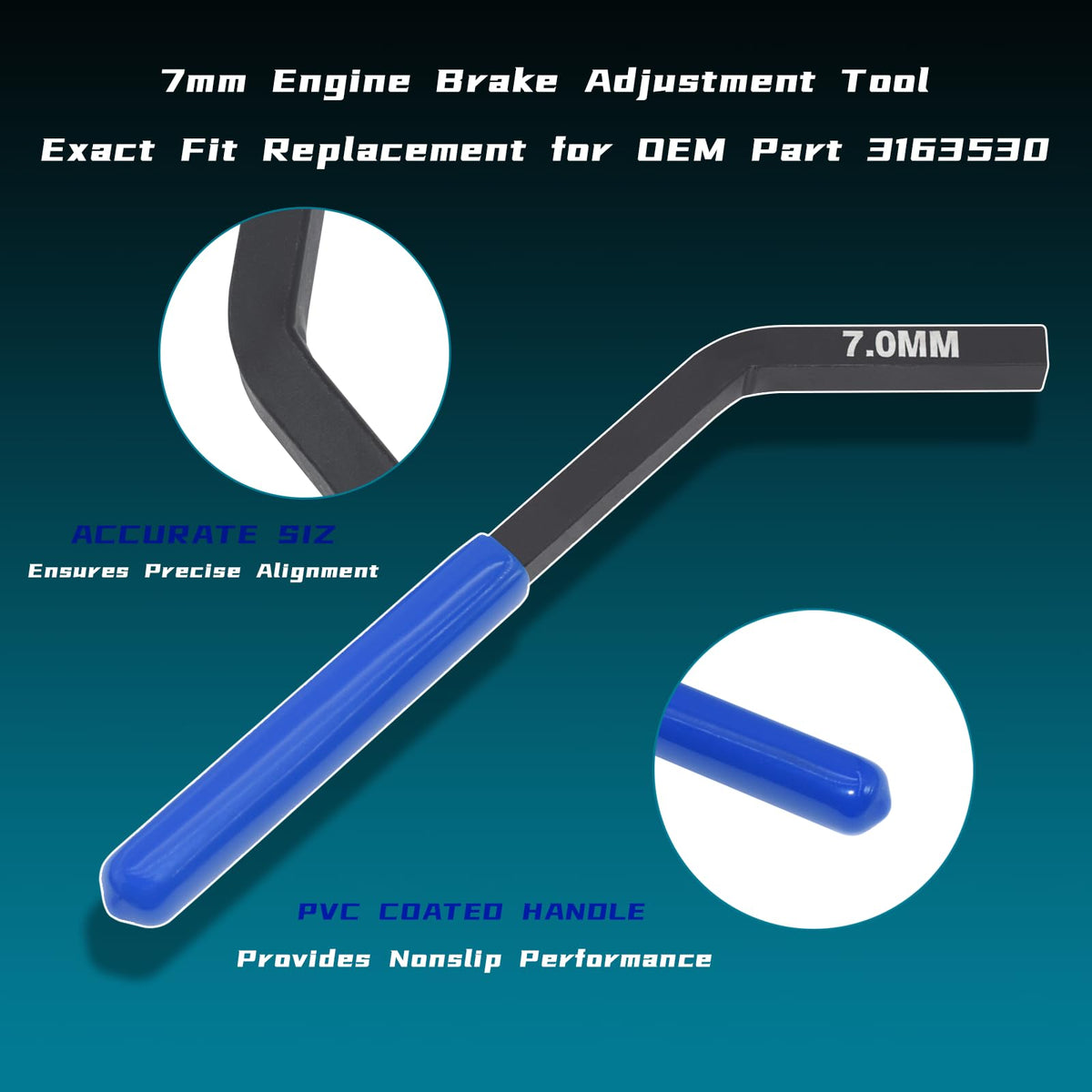

• 1 Jake brake feeler (7mm), 4 screws, 4 washers for secure assembly.
• 5 wedge kits: 4°, 5°, two 6° wedges, 7° wedge tailored to Cummins variants.

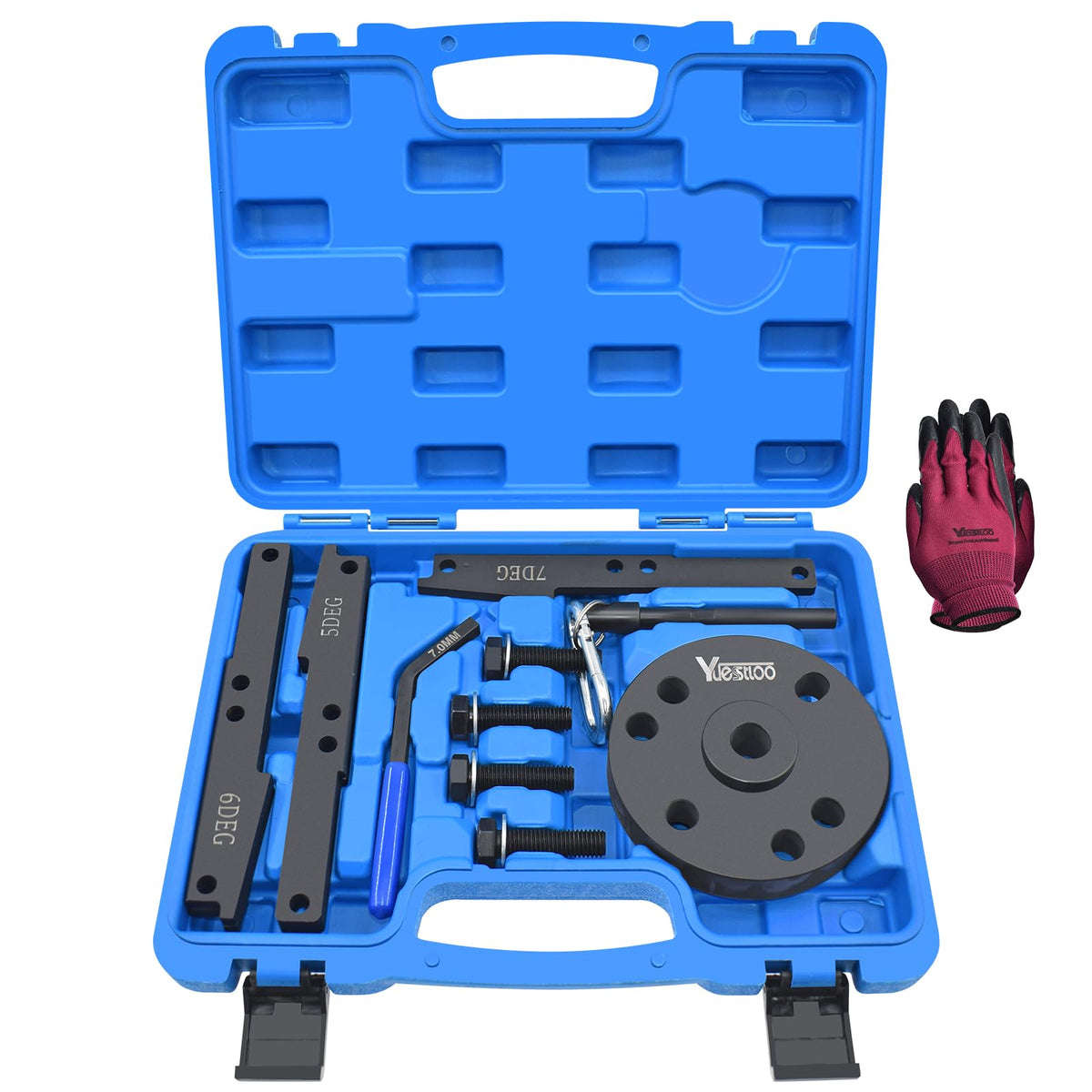

• Carry case and gloves included for on-site convenience and protection.

Which Cummins engines and years is this compatible with?

The tools were designed to match the timing and brake adjustment requirements of a wide range of Cummins diesel engines from the late 2000s through the mid-2010s. The 6° wedge is intended for dual-cam configurations found on earlier models.

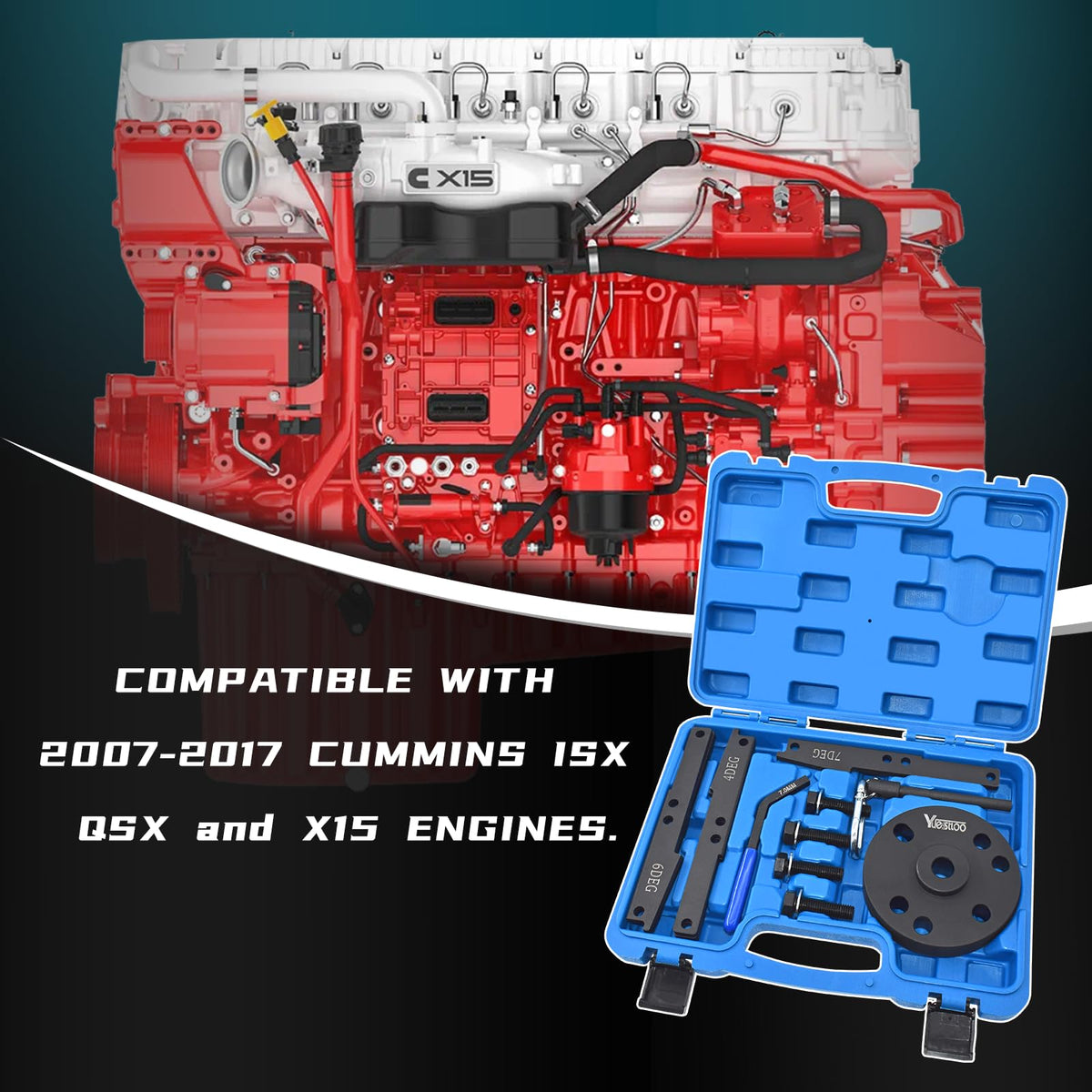

• Compatible with Cummins engines from 2007 to 2017.
• Works with ISX (2016–2017), QSX and X15 families and other 2007–2017 models.
• OEM-equivalent numbers referenced: 3163020, 3163021, 3163069, 3163530.

Who this is for: This tool kit is aimed at professional diesel technicians, fleet maintenance crews and experienced DIY mechanics who work on medium- and heavy-duty Cummins engines and need a portable, OEM-accurate timing and brake-adjustment solution. It's especially useful for shops that service multiple model years and both single- and dual-cam configurations and want durable, repeatable tools that reduce downtime and the need for multiple single-purpose instruments.
