Yuesstloo Engine Camshaft Timing Locking Tool Kit for Ford & Mazda 1.25–2.5L — TDC pins, cam sprocket plate, crank absorber

Yuesstloo Engine Camshaft Belt Timing Locking Tool Kit secures Ford camshafts and crankshafts at true TDC so you can remove, service, and reassemble timing components accurately.

This comprehensive locking tool kit is designed to simplify timing work on many Ford and compatible Mazda engines by holding camshafts, crankshafts, and tensioners in the correct positions while you replace belts, chains, or perform top-end servicing. The set gathers the pins, plates, bars and a crank shock absorber you need into a heavy-duty case, reducing search time and lowering risk of incorrect timing during reassembly. Materials feature a corrosion-resistant finish to withstand workshop conditions.

How does the kit lock camshafts and crankshafts for accurate timing?

The kit includes specific pins and a positioning plate that engage factory alignment holes and sprocket teeth, preventing rotation while you work. These parts locate on camshaft sprockets and the crank to maintain original timing relationships during belt removal and installation.

• Camshaft sprocket locking tool 303-1097 secures sprocket teeth precisely.
• Camshaft positioning plate 303-376 holds camshafts in correct angular position.

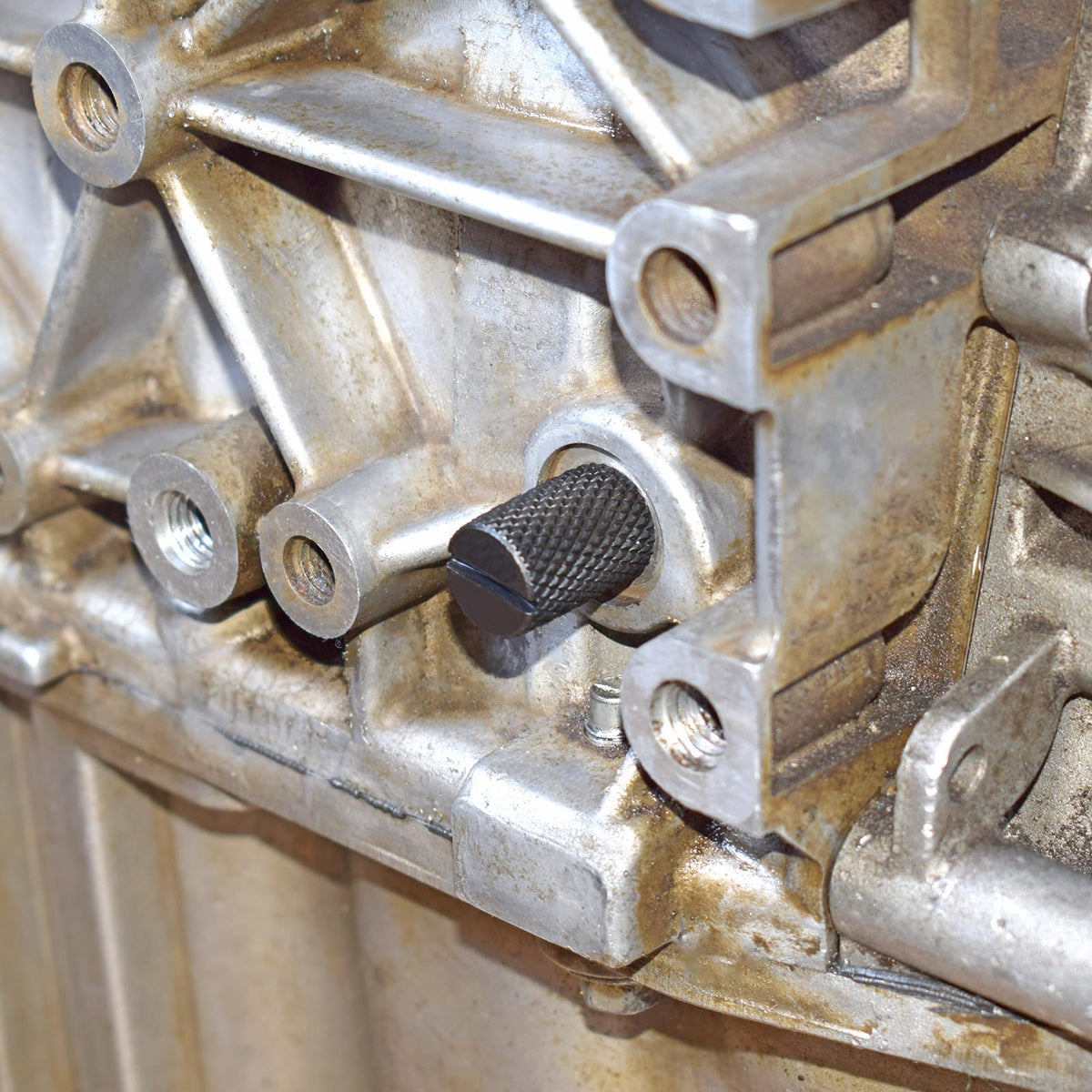

• Crankshaft timing pins 303-748 and 303-620 lock the crank at TDC.

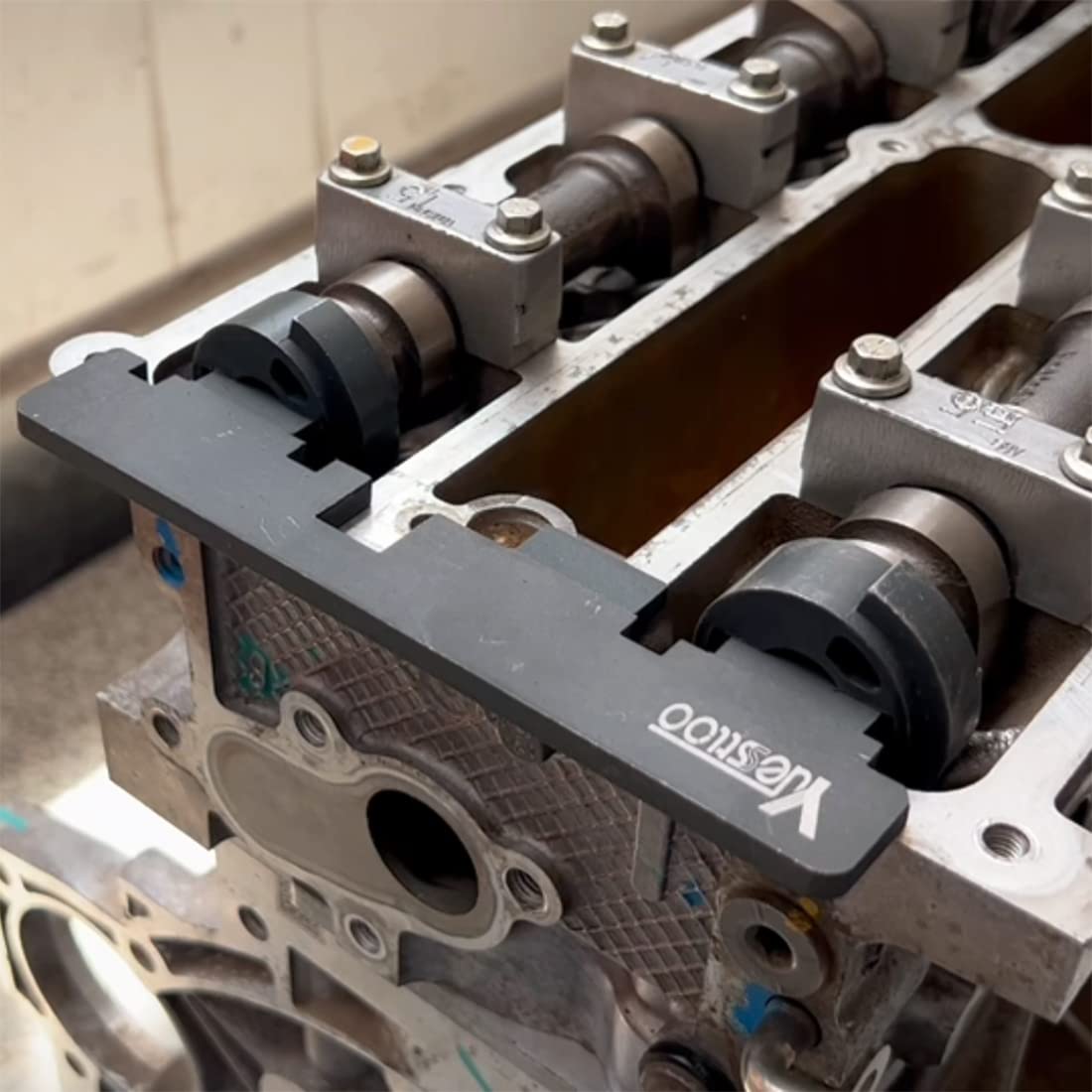

• Camshaft setting bar 303-1552 aligns cam journals during assembly.

Which engines and vehicle models are compatible with this tool set?

This kit targets a wide range of Ford twin-cam and EcoBoost engines plus some Mazda models, covering many common petrol units from the mid-1990s onward. It lists exact displacements and vehicle families so you can confirm fitment before purchase.

• Fits Ford 1.25L–2.5L twin cam 16V engines and 1.6L TI-VCT, 1.5L/1.6L VVT EcoBoost units.
• Compatible models: Fiesta, Focus, Mondeo, C-Max, Transit variants, Kuga, Puma, S-Max, Galaxy and more.
• Supports many 1993–2020 Ford 1.5L and 1.6L engines; not for 2.3T turbo applications.
• Also usable on select Mazda vehicles such as MPV, Tribute, and Mazda3.

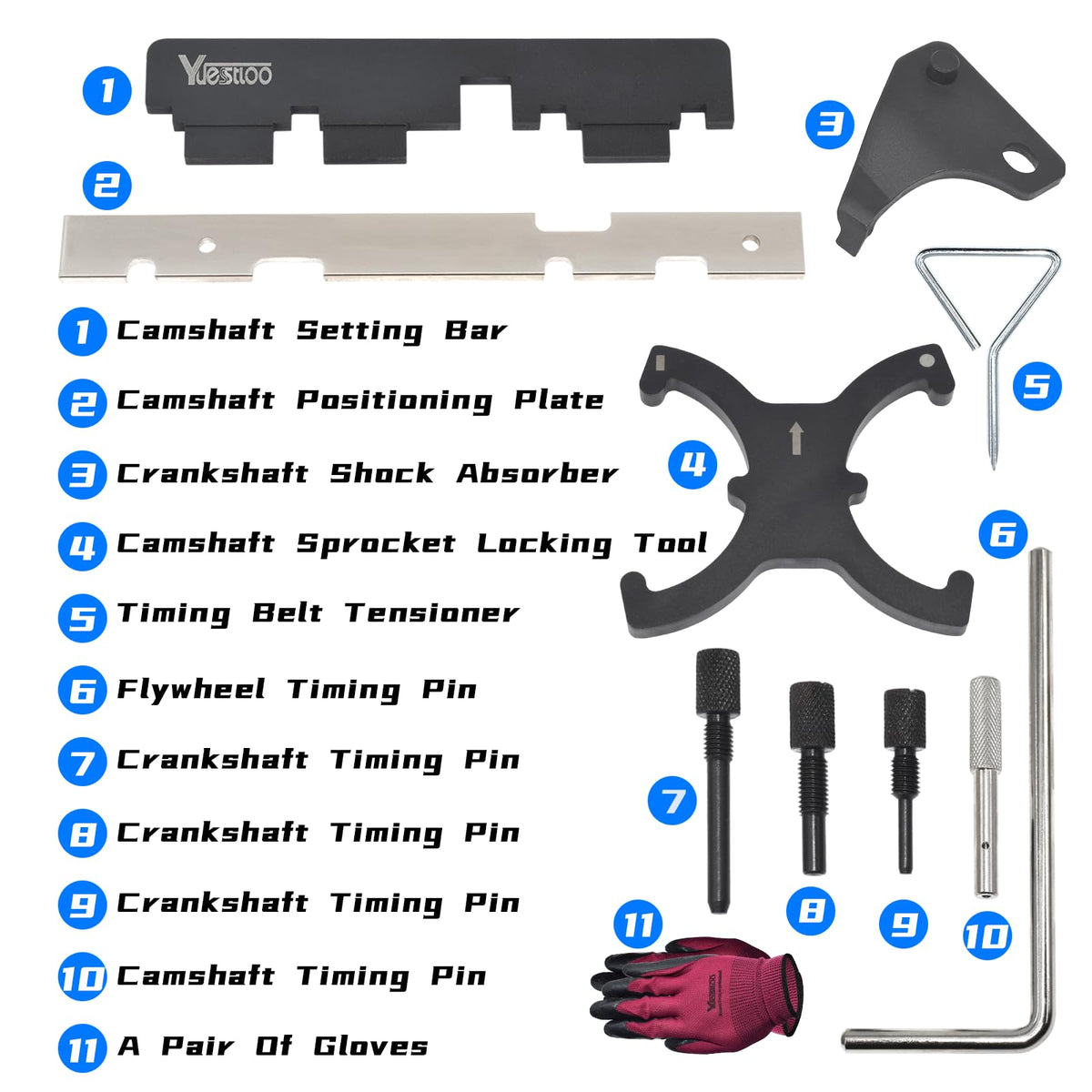

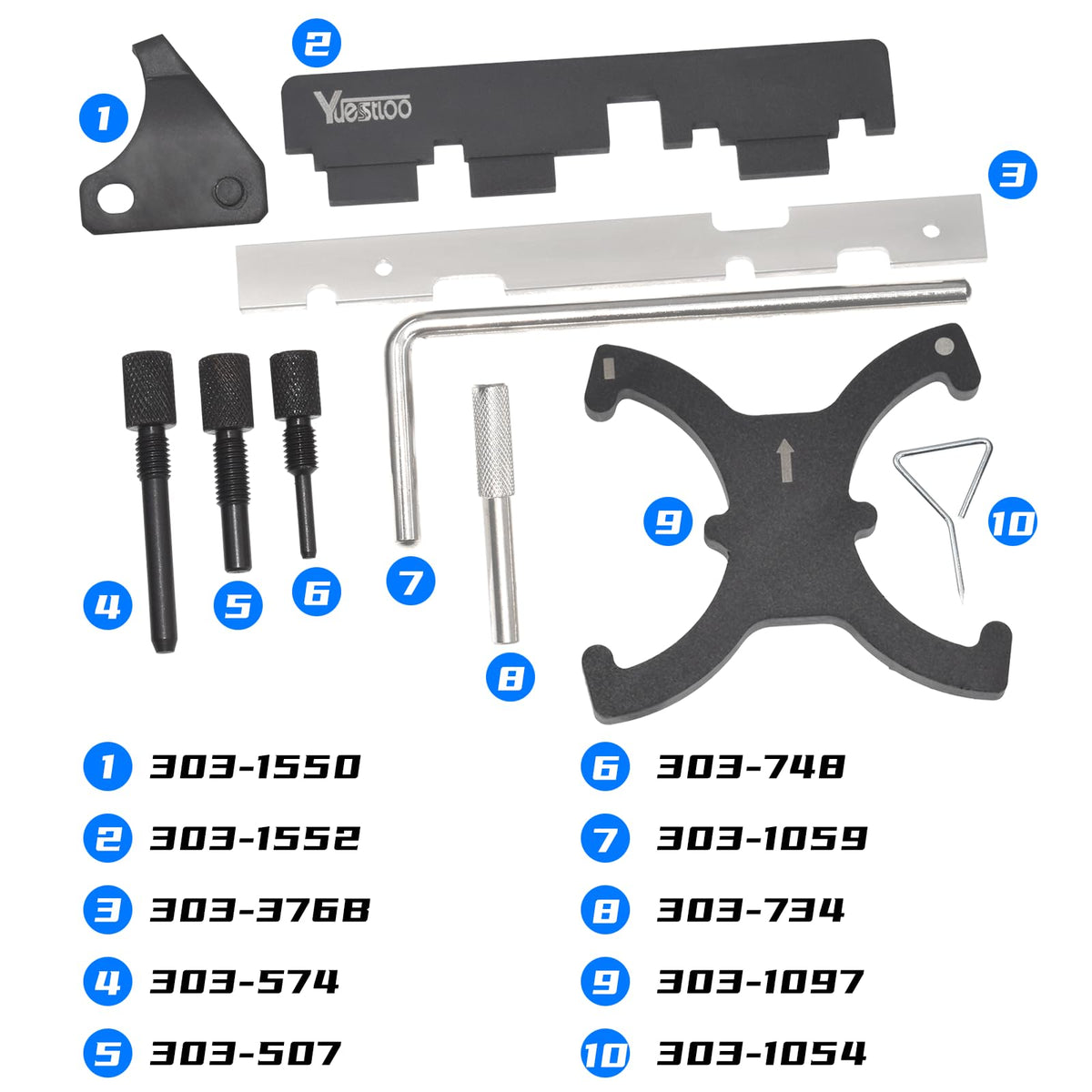

What tools are included and how will they speed up my timing job?

The set delivers a complete collection of workshop-specific tools so technicians don’t have to improvise with makeshift locking methods. Each piece is shaped for repeatable engagement with factory alignment points, which reduces trial-and-error and helps avoid timing errors that can cause engine damage.

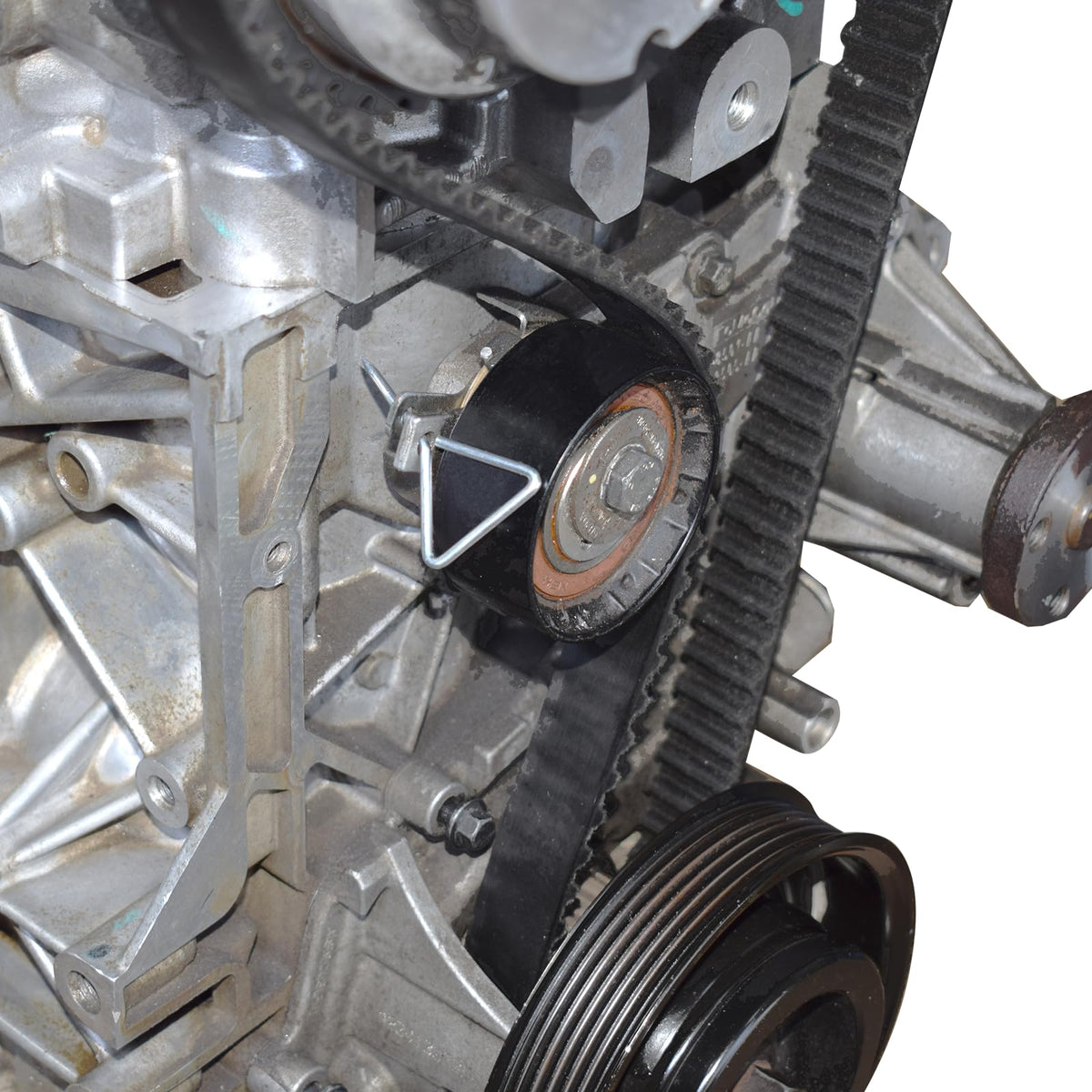

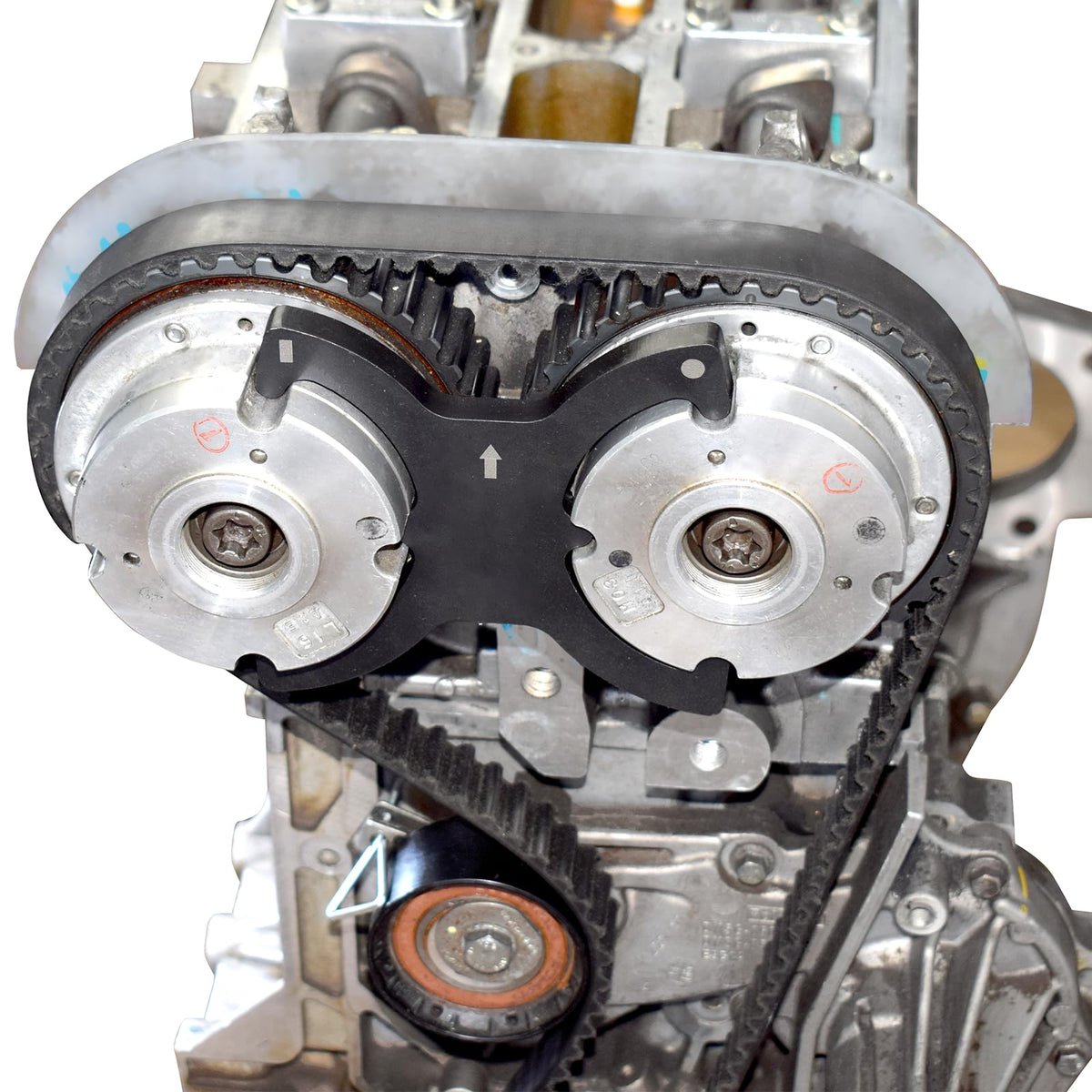

• Timing belt tensioner tool 303-1054 for proper tension during installation.

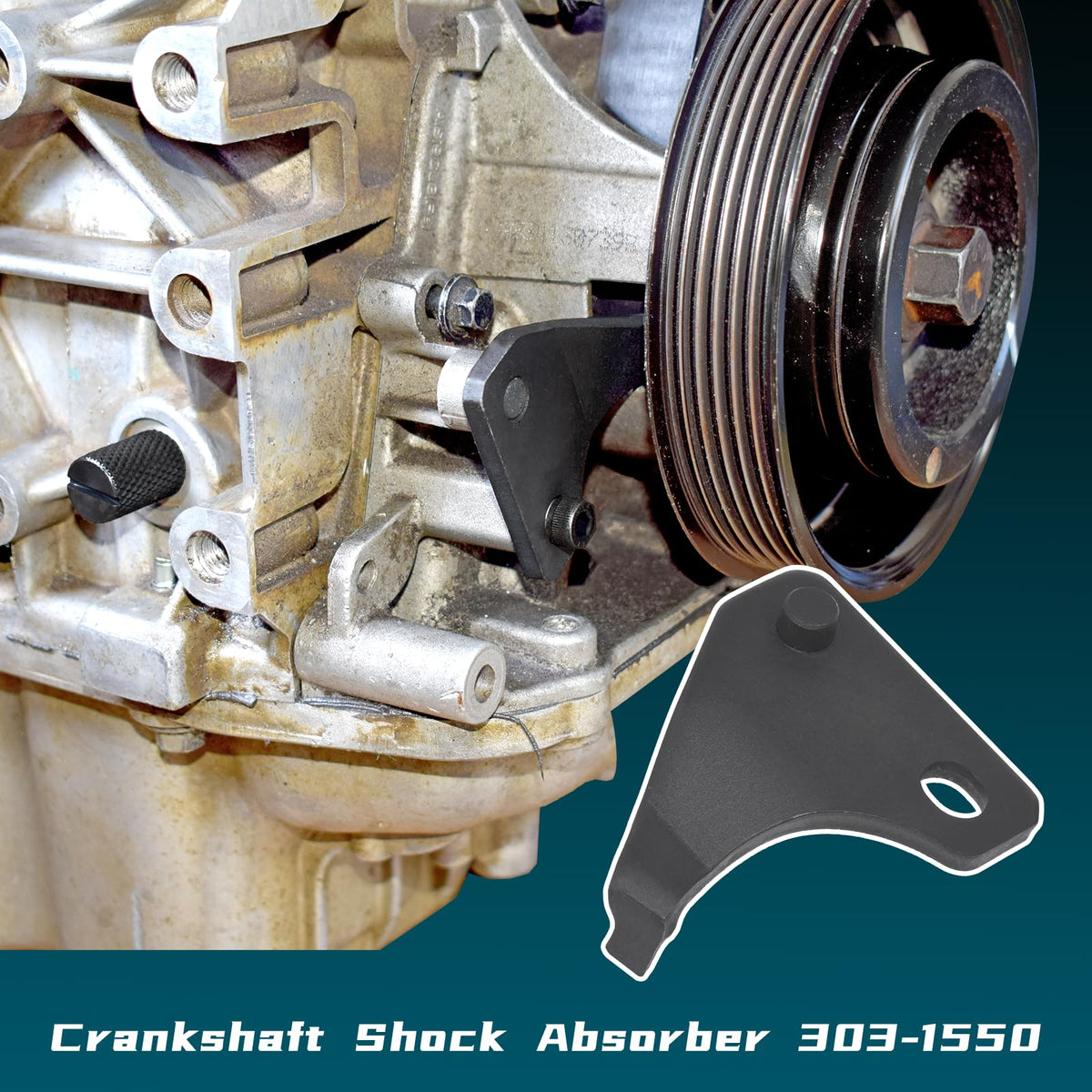

• Flywheel timing pin 303-1059 and crank shock absorber 303-1550 for stable crank positioning.
• Camshaft sprocket pin 303-735 and other pins for secure locking.
• Durable case and included gloves for organized, cleaner work.

What are the materials, durability, and after-sales options?

Components are manufactured from hardened, corrosion-resistant metals and finished with a black anti-oxidation coating to withstand repeated workshop use. The set is built for strength and wear resistance so pins and plates keep accurate engagement over time. Customer support is offered if you encounter any problems with the kit.

• High-hardness metal construction with anti-rust coating.
• Designed for repeated professional or DIY use without premature wear.

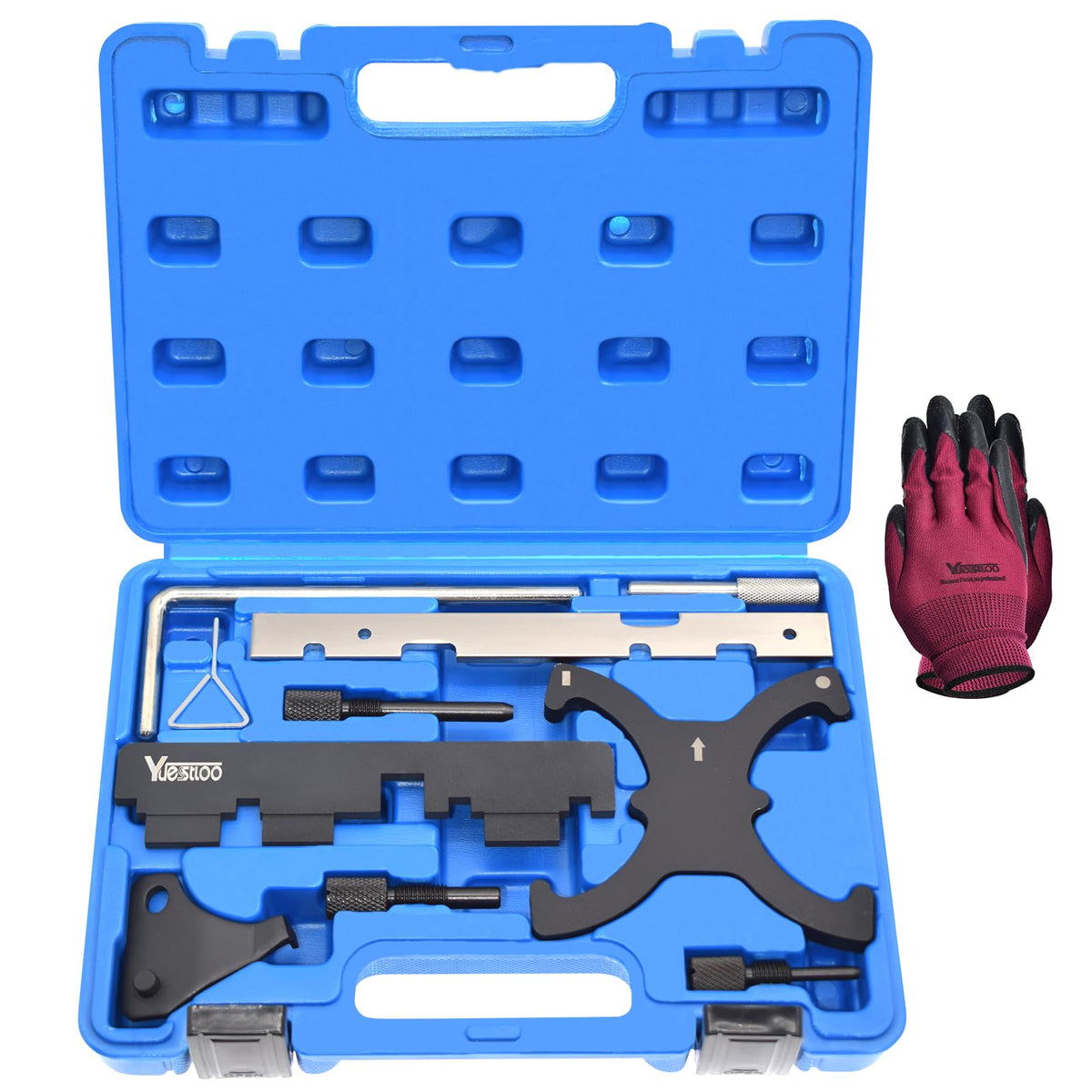

• Comes in a heavy-duty case to protect and organize tools between jobs.
• Manufacturer assistance available for fitment or quality questions.

Who is this for: This Yuesstloo timing locking kit is aimed at professional mechanics, mobile engine technicians, and experienced DIYers who work on Ford twin-cam and selected EcoBoost engines and value precise, repeatable timing alignment. If you regularly service timing belts/chains, replace head components, or rebuild engines on the listed Ford and Mazda applications, this kit centralizes the essential locking tools into one workshop-ready package.
