ZJTBLL 4L60E DBC LS Standalone Wiring Harness for LS1 1999–2006 Vortec — Plug-and-Play with 8 EV1→EV6 Adapters

ZJTBLL 4L60E DBC LS standalone wiring harness is a plug-and-play engine harness designed to wire LS1 1999–2006 Vortec engines with a 4L60E transmission in drive-by-cable applications.

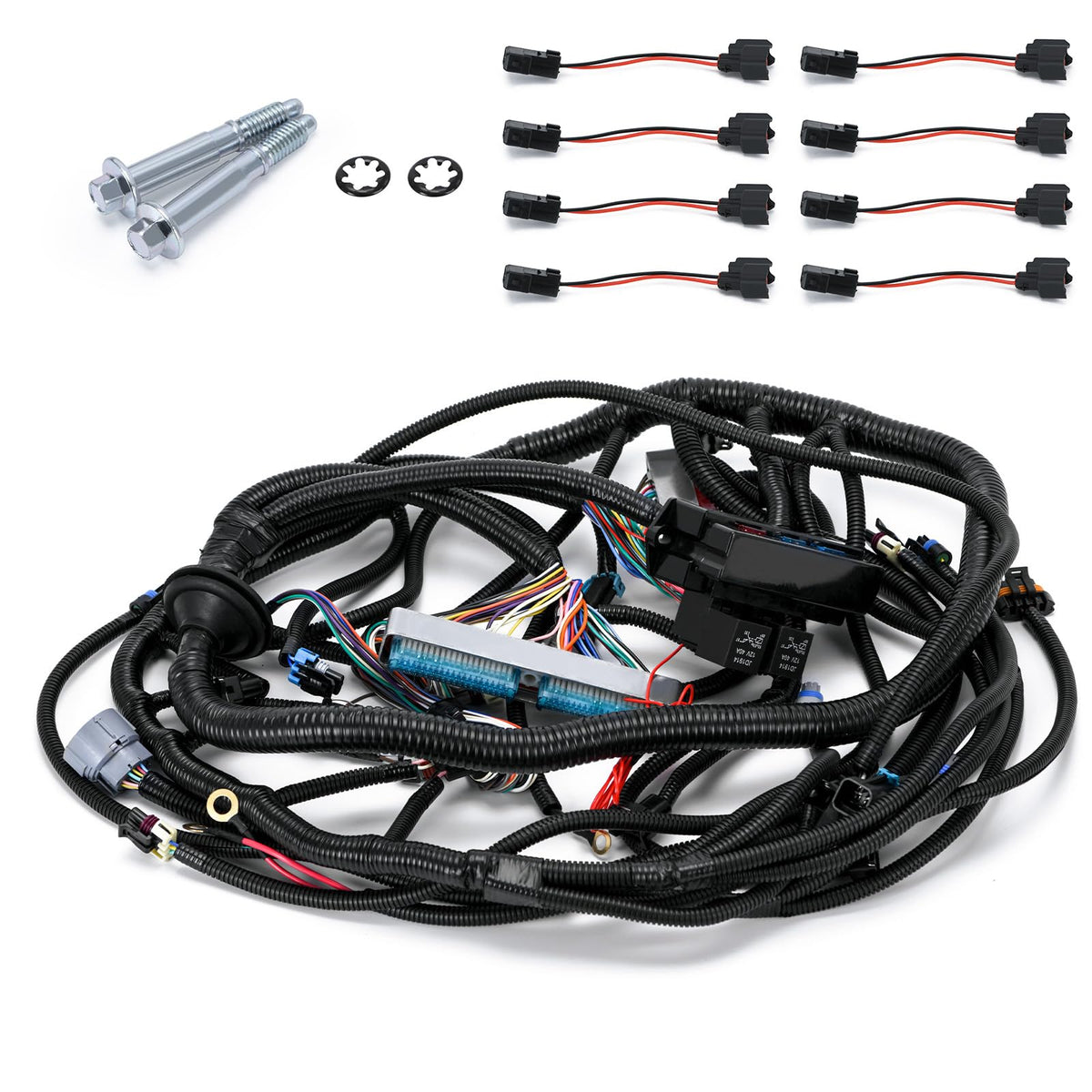

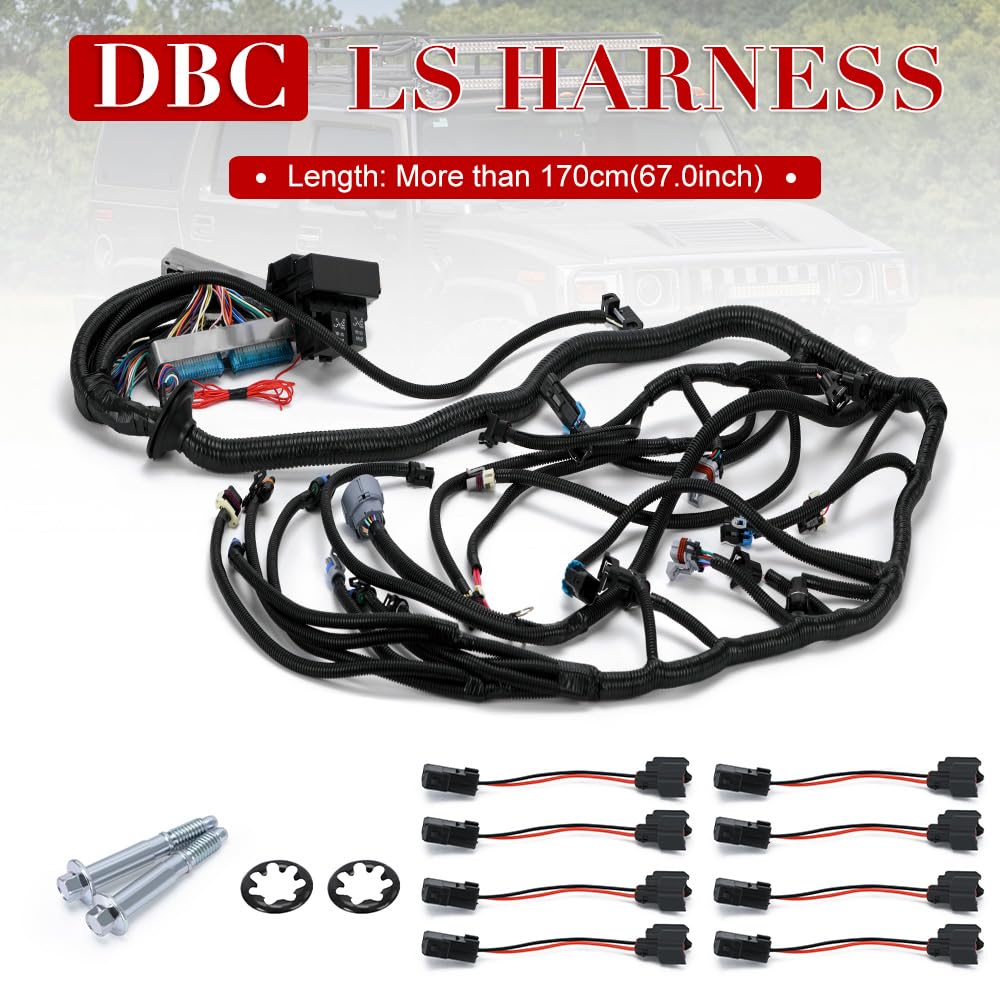

This harness consolidates engine and transmission wiring into a single, serviceable loom for Chevy, GMC, Cadillac and Hummer trucks running LS1-style 4.8L, 5.3L or 6.0L Vortec engines. It includes connectors for sensors, coils, fuel injectors, crank and cam sensors, transmission plug, DLC and a grommet for routing the PCM under the dash. Eight EV1-to-EV6 injector adapters are supplied so modern EV6-style injectors can be fitted without cutting into original plugs.

How does this harness simplify LS1 swap wiring?

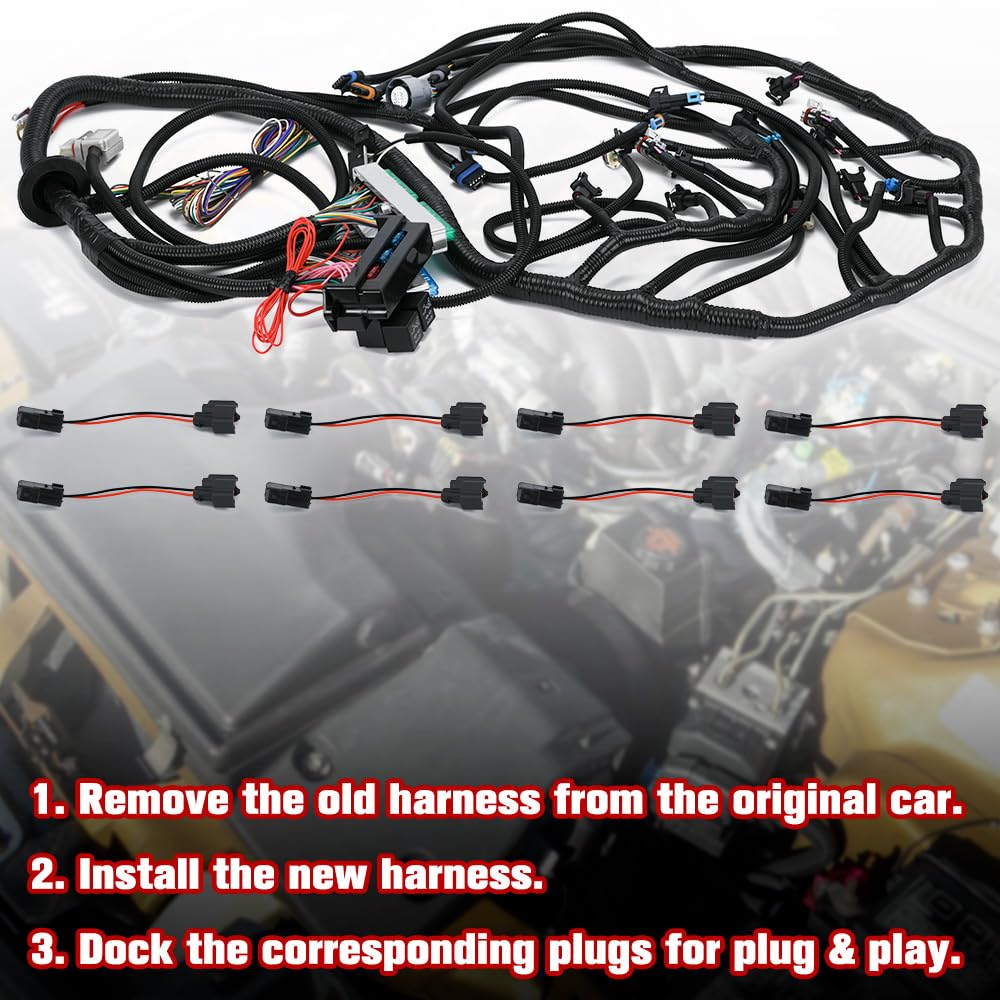

The harness groups all engine sensors, coils and transmission terminals in one assembly so you avoid splicing multiple pigtails. Color-coded plugs, labeled connectors and included installation instructions reduce mistakes and installation time.

• Complete set of sensor and coil connectors matched to LS1 pinouts
• 4L60E transmission connector integrated for seamless transmission wiring
• Grommet seal for routing PCM under dash and preventing moisture ingress
• EV1-to-EV6 adapter pack for injector compatibility upgrades

Will this fit my 1999–2006 LS1 Vortec engine with a 4L60E?

Yes — it is built specifically for drive-by-cable LS1 engines in that year range and matches the 4L60E transmission wiring layout. Confirm that your application uses a DBC throttle body and that any factory VATS/security has been removed from the PCM before final tuning.

• Compatible with 4.8L, 5.3L and 6.0L LS1 Vortec engines (1997–2006 listed coverage)
• Designed for drive-by-cable throttle bodies (DBC)
• Requires VATS/security removal from PCM where applicable
• Fits eight-cylinder engines wired to 4L60E transmissions

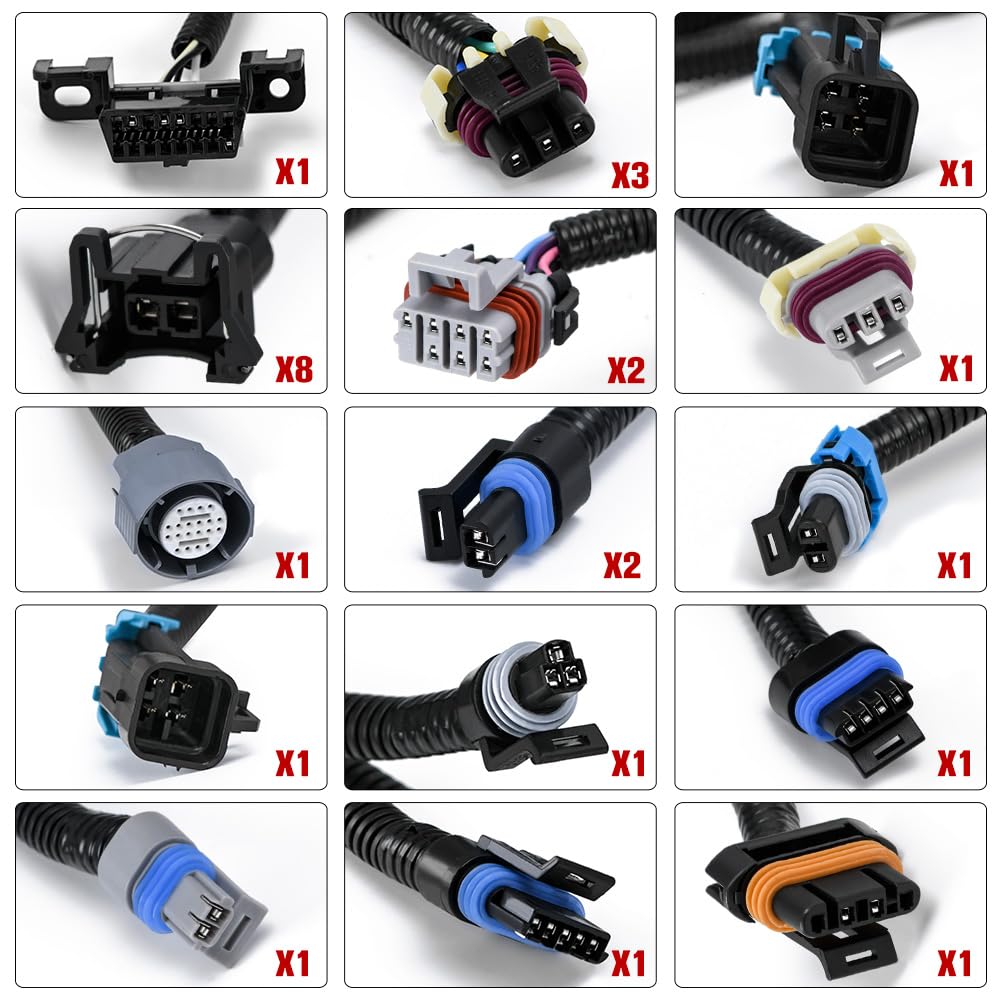

What connectors and sensors are included in the harness?

The harness supplies wiring and mating plugs for the usual LS1 sensor suite plus ignition and injector circuits. It also includes spare sensor wiring and a dedicated connector set for the transmission and DLC port so diagnostics remain accessible.

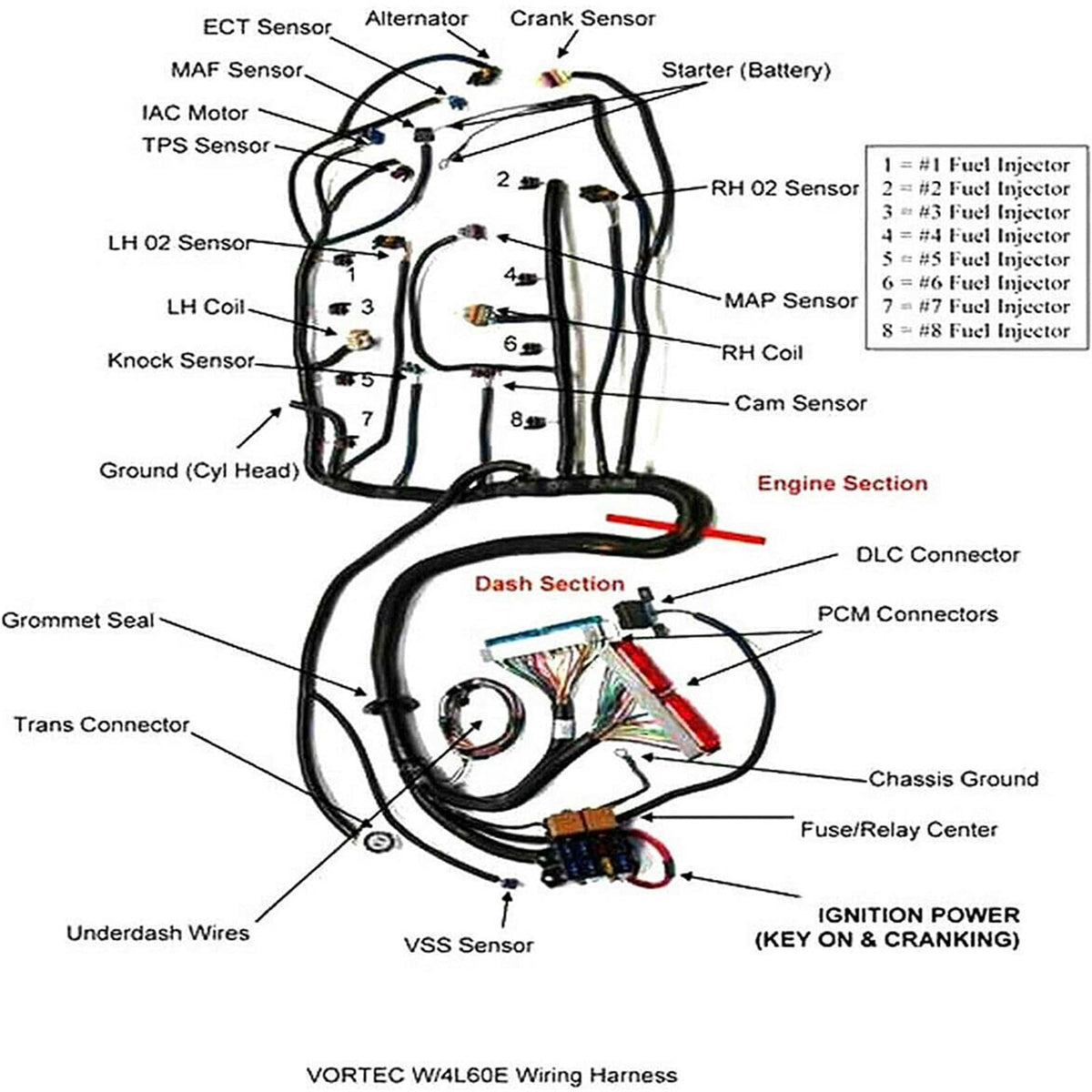

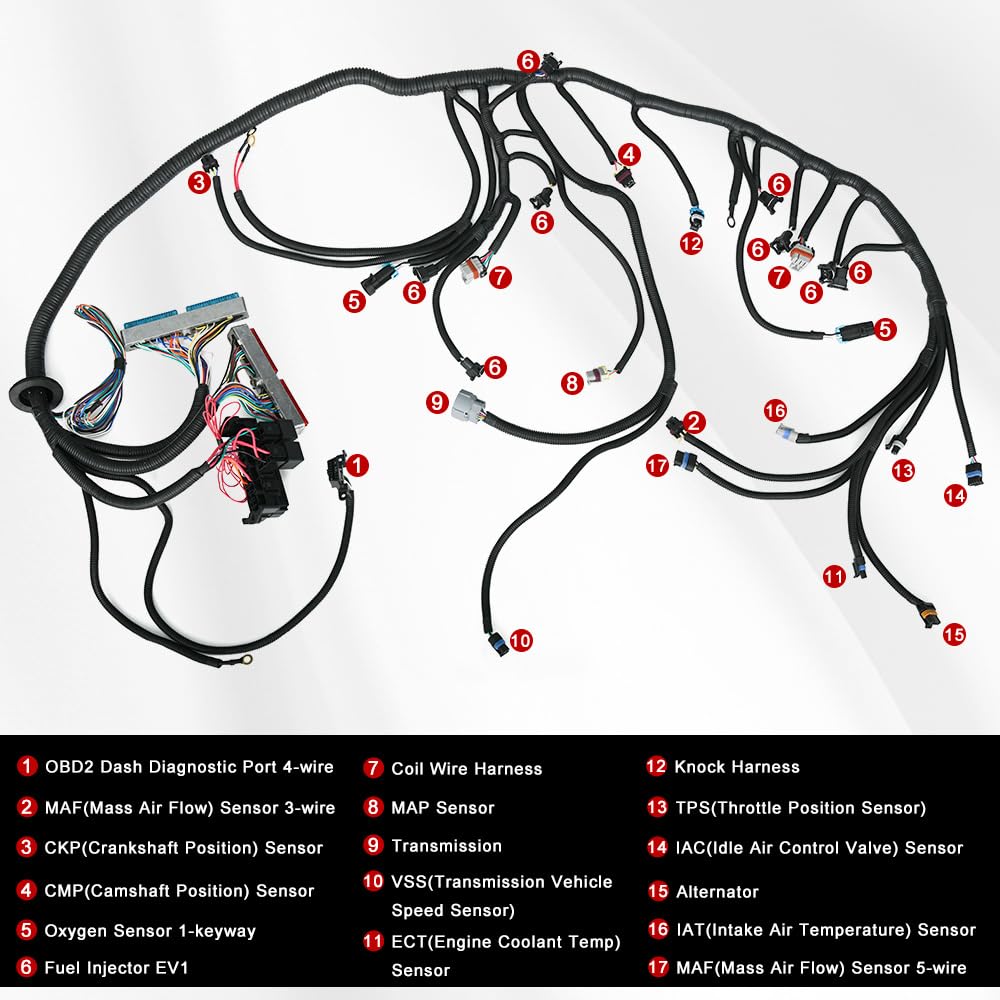

• Alternator, MAF, IAT, TPS, IAC, ECT, MAP, cam/crank sensors and knock sensor connectors

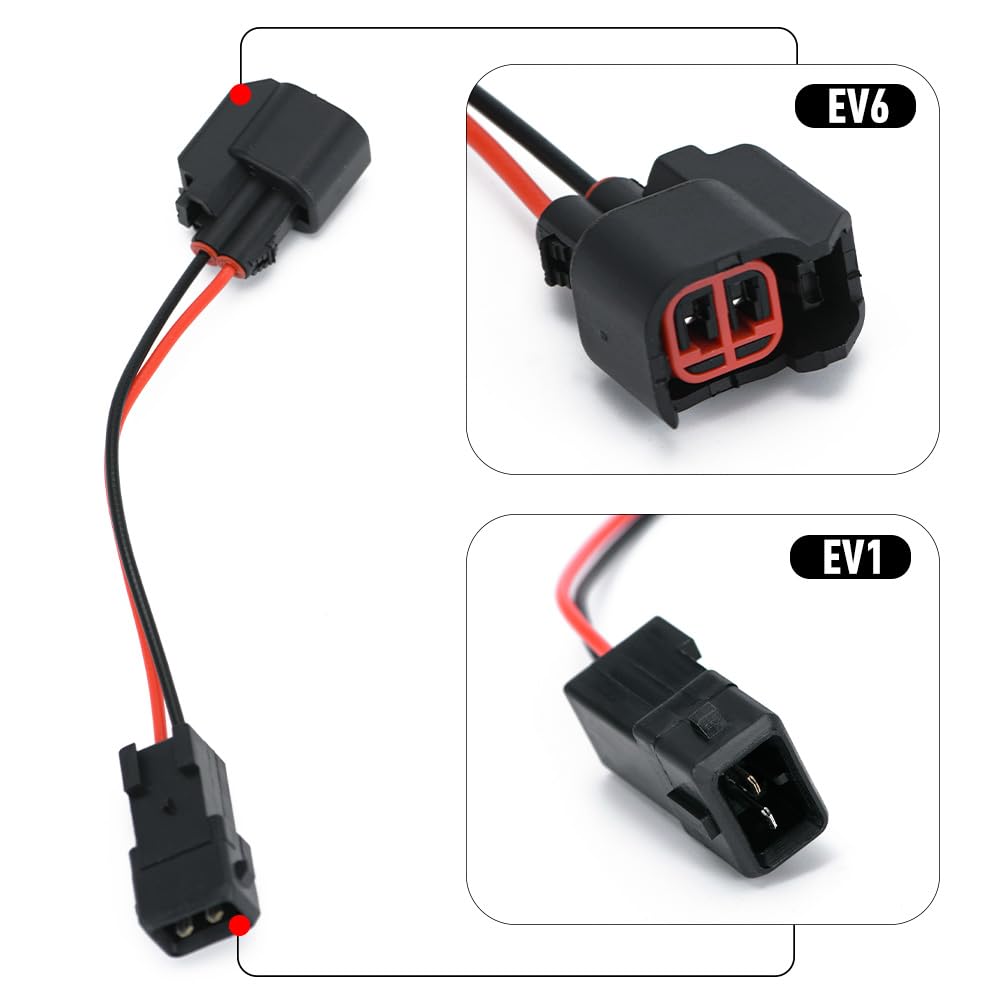

• #1–#8 fuel injector plugs plus 8 EV1→EV6 adapters
• Left/right coil connectors, LH/RH O2 sensor leads and ground points

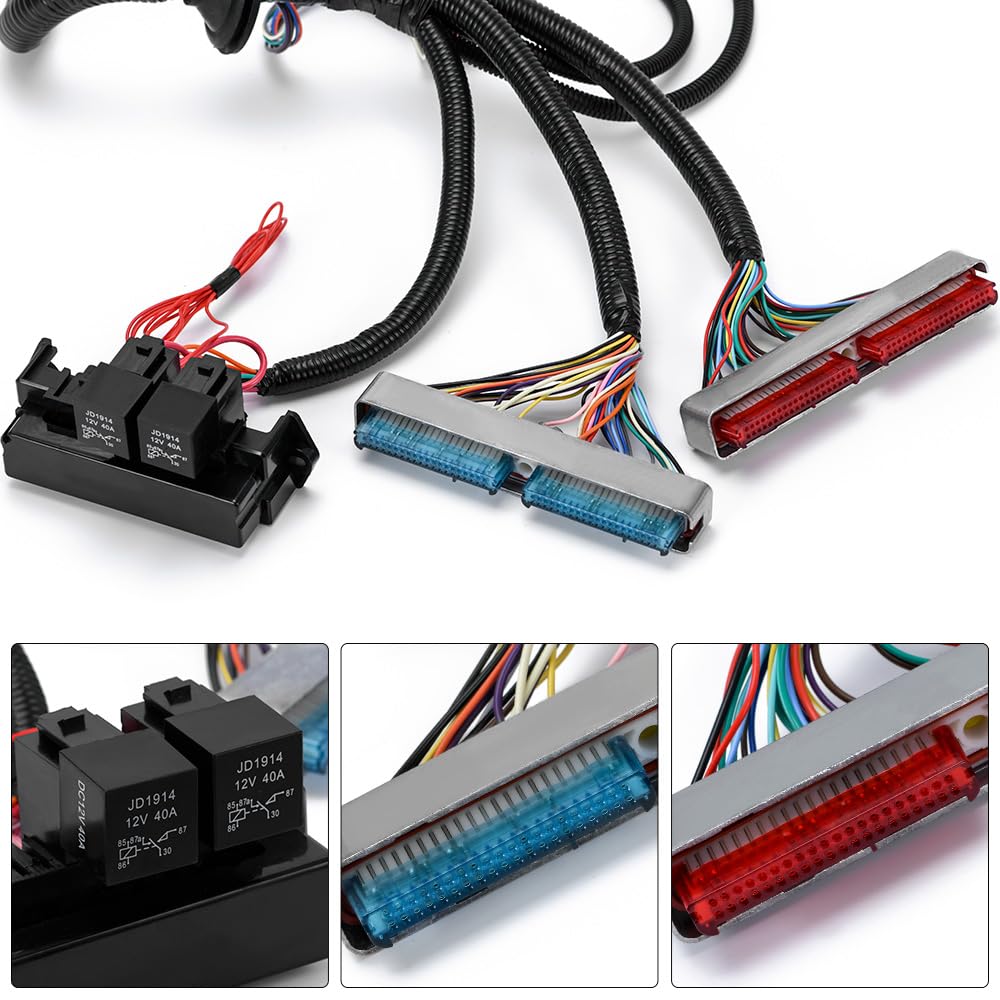

• Transmission connector, DLC plug, PCM mating connectors and grommet

How durable and safe is the wiring harness for long-term use?

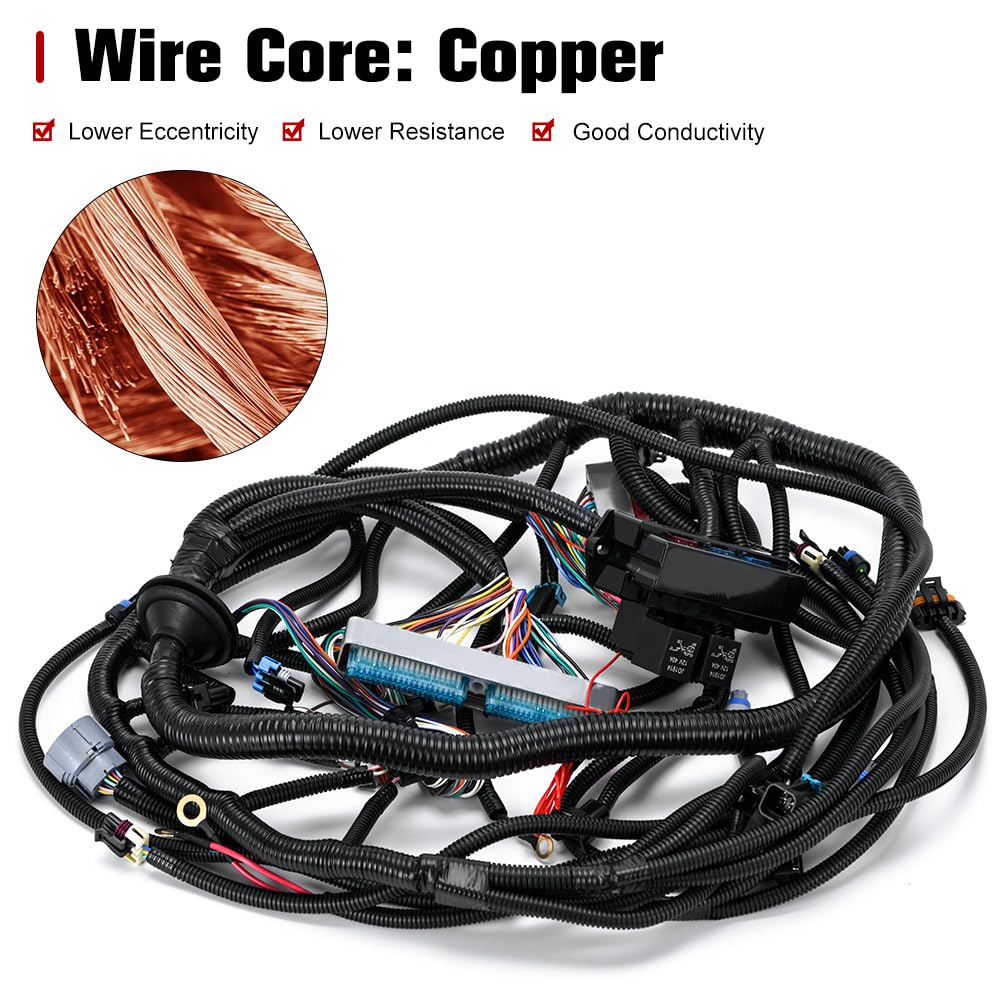

Terminals use crimped copper for reliable conductivity and lower corrosion risk. The outer materials combine rubber and polypropylene for good insulation, flame-retardant behavior and resistance to environmental degradation.

• Crimped copper terminals for stable electrical contact and low resistance
• Rubber and PP outer materials for insulation and corrosion resistance
• Grommet seal helps keep moisture and debris out of the PCM area
• Color-coded plugs and included instructions minimize installation errors

Who is this for?

This ZJTBLL harness is aimed at DIY mechanics, engine swap shops and restorers installing LS1 Vortec engines with a 4L60E transmission in drive-by-cable setups who want a neat, reliable wiring solution. It’s especially useful if you plan to retain factory sensor locations, run the PCM under the dash, or convert injector types using the included EV1→EV6 adapters. It is not a standalone ECU or tuning solution — plan to address PCM security features and tuning separately.
