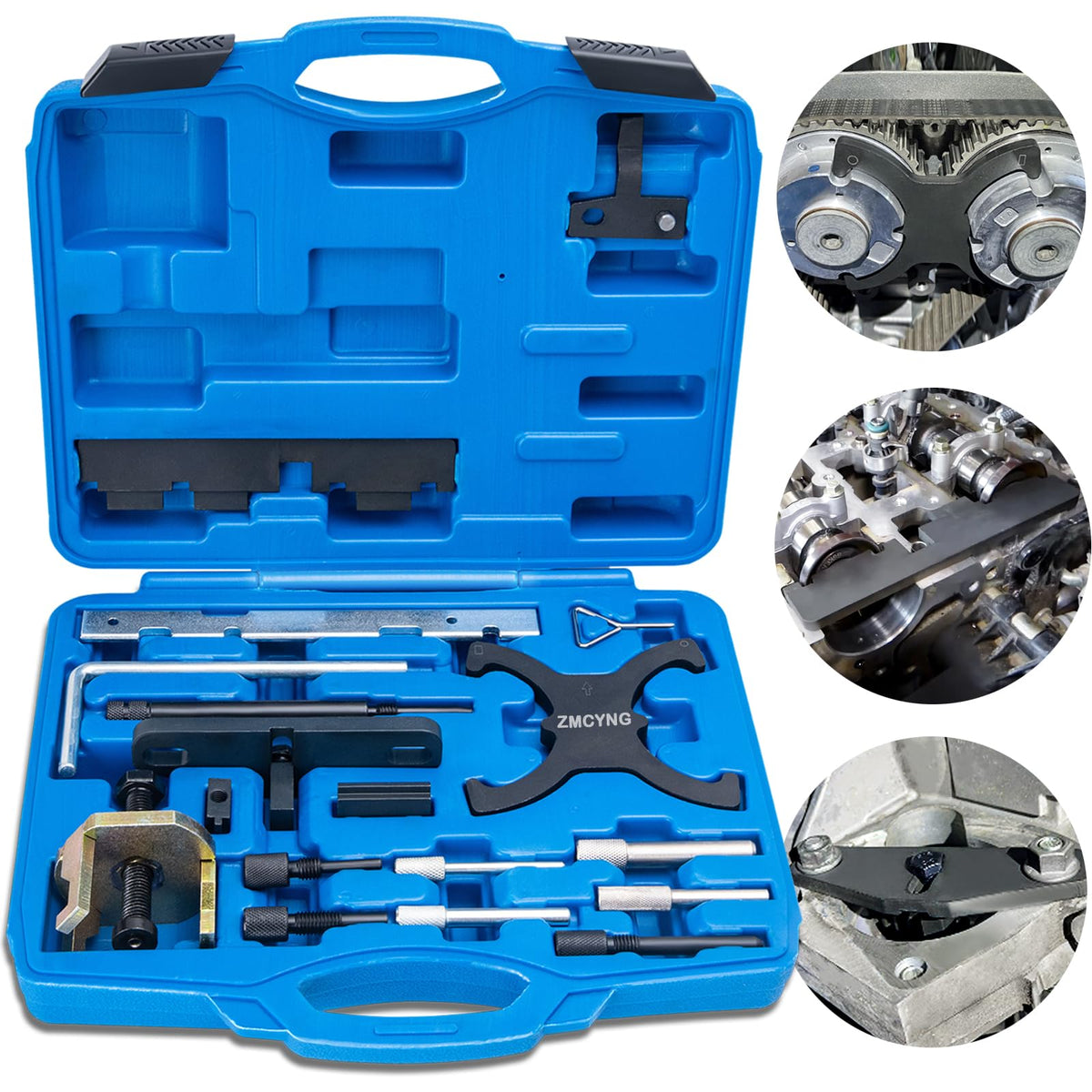

ZMCYNG Timing Tool Kit for Ford & Mazda 1.4–1.6 Engines — Camshaft, Crankshaft & VTC Locking Set

The ZMCYNG 1.5 / 1.6 Timing Tool Kit is a complete camshaft, crankshaft and VTC locking set engineered to set and hold timing positions for Ford and Mazda 1.4–2.0 engines.

This professional-grade timing tool set groups the specialty fixtures technicians need to lock camshafts, secure the crankshaft and tensioner, and align variable timing devices so belt or chain servicing can be done accurately. It’s designed to match multiple Ford Duratec, Duratorq, EcoBoost and compatible Mazda engine codes, replacing many OE part numbers to simplify parts sourcing and reduce repeat trips to the shop.

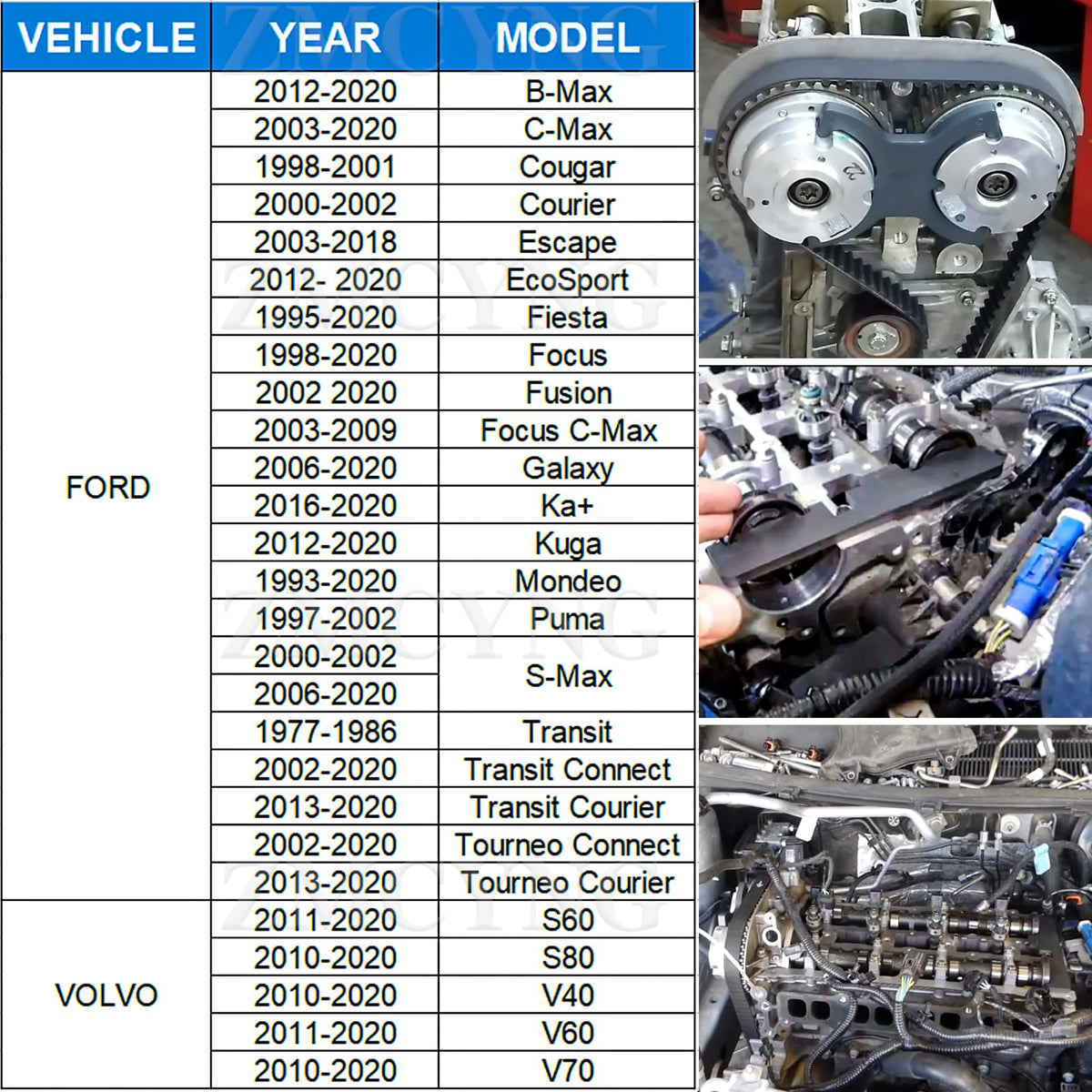

Which engines and vehicle models does this kit fit?

The kit covers a wide range of 1.25–2.5L twin-cam petrol and certain diesel engines used across Ford and Mazda model lines. Fitment spans specific Duratec, Duratorq, Ecoboost and Mazda engine codes — check the detailed engine code list for exact matches.

• Compatible with Ford Duratec petrol 1.25–2.0 16V and some 2.3/2.5 engines
• Works with Duratorq diesel 1.4–2.0 TDCi variants
• Supports EcoBoost/Ti‑VCT and VVT 1.5/1.6 engines used in Fiesta, Fusion, C‑Max, Transit
• Also suits Mazda PSA 1.4–2.3 engines listed in the product engine code references

How does the kit help during timing belt or chain service?

Its purpose-built tools lock engine components in precise alignment so you can remove and reinstall belts or chains without losing timing reference. This reduces the risk of valve-train damage and keeps timing tolerances within manufacturer criteria when reassembled.

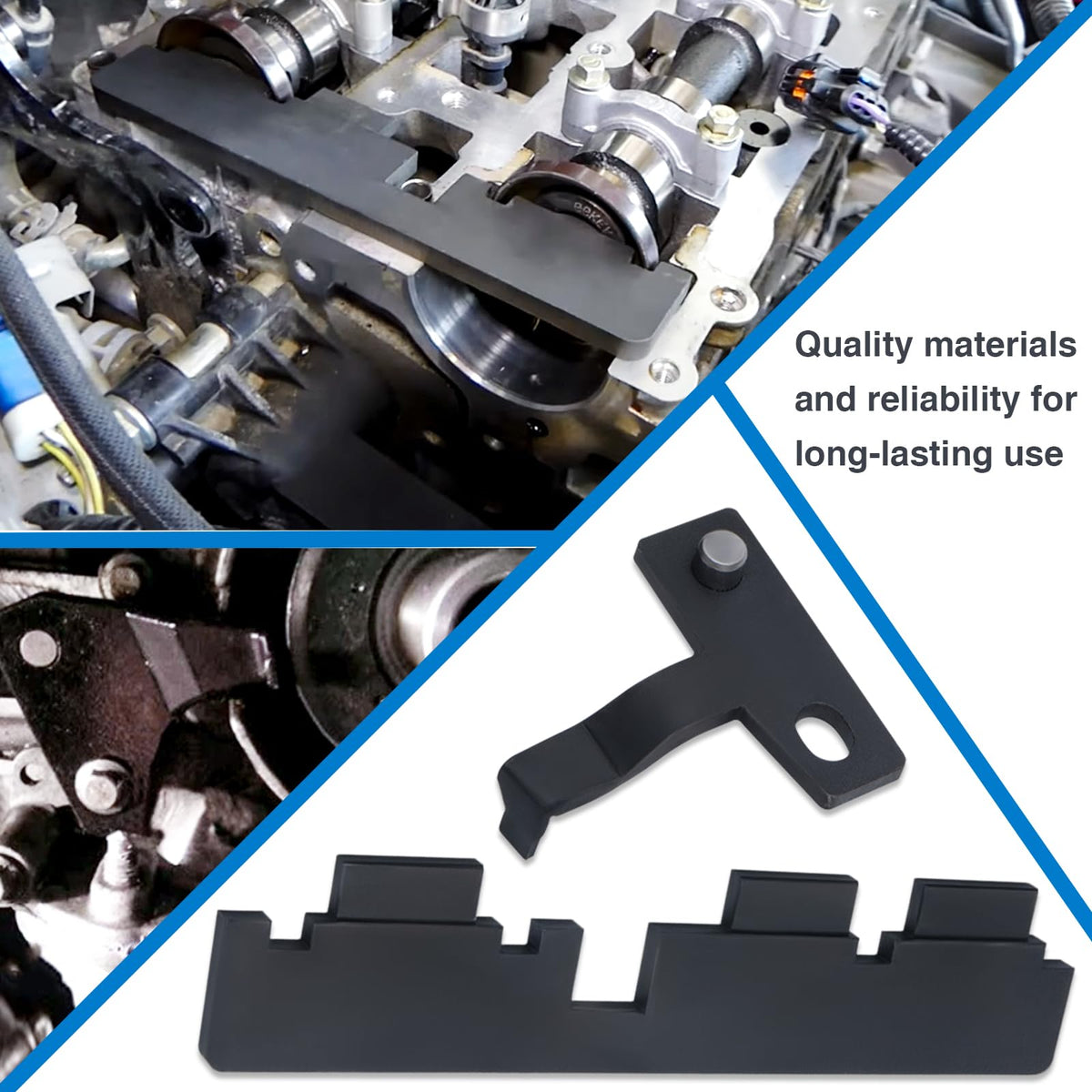

• Camshaft and crankshaft locking pins hold exact timing positions
• Tensioner locking tools secure the belt/chain tensioner during work

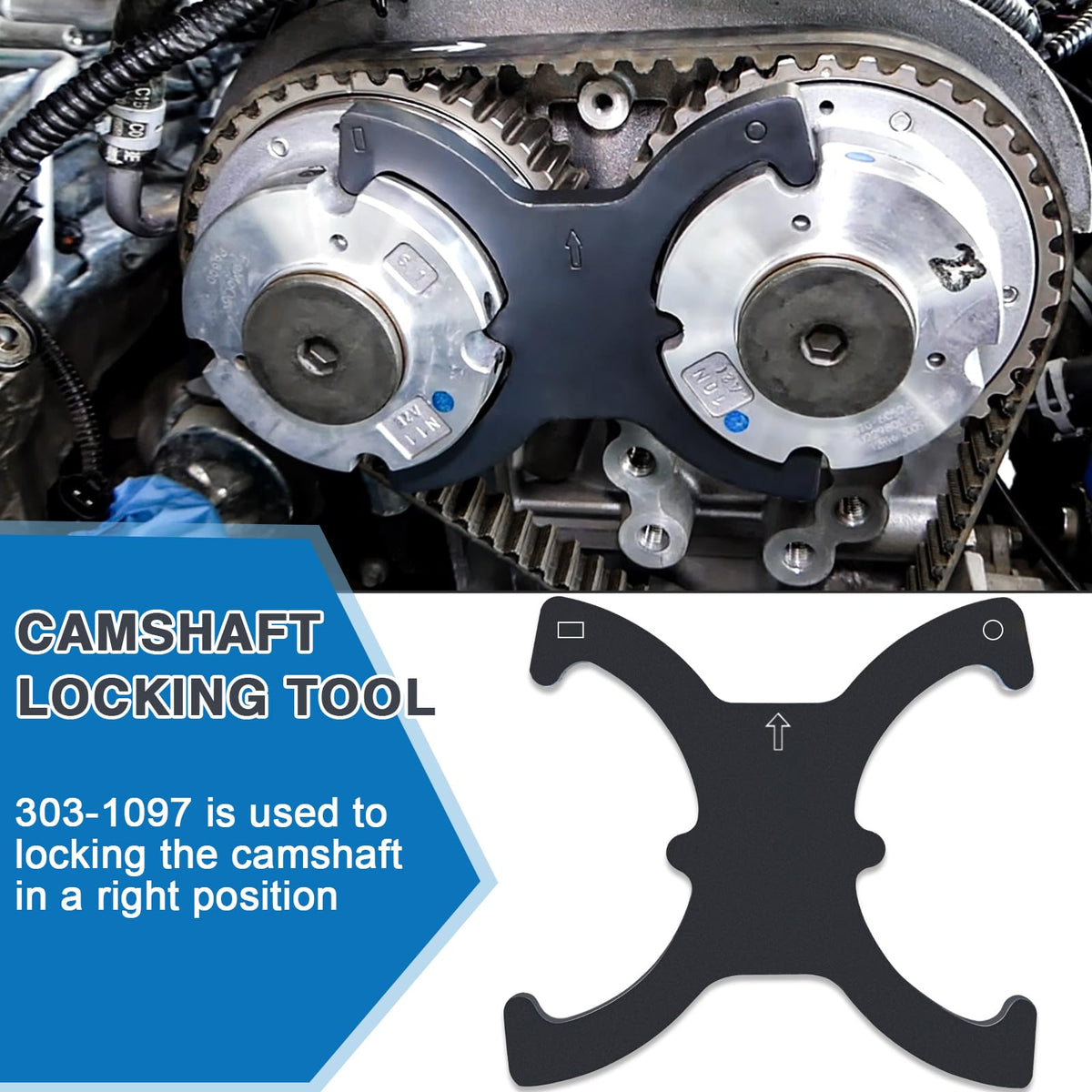

• VTC (variable timing) adjustment fixture allows correct phasing of VVT components
• Replaces multiple OE tool numbers to match factory service procedures

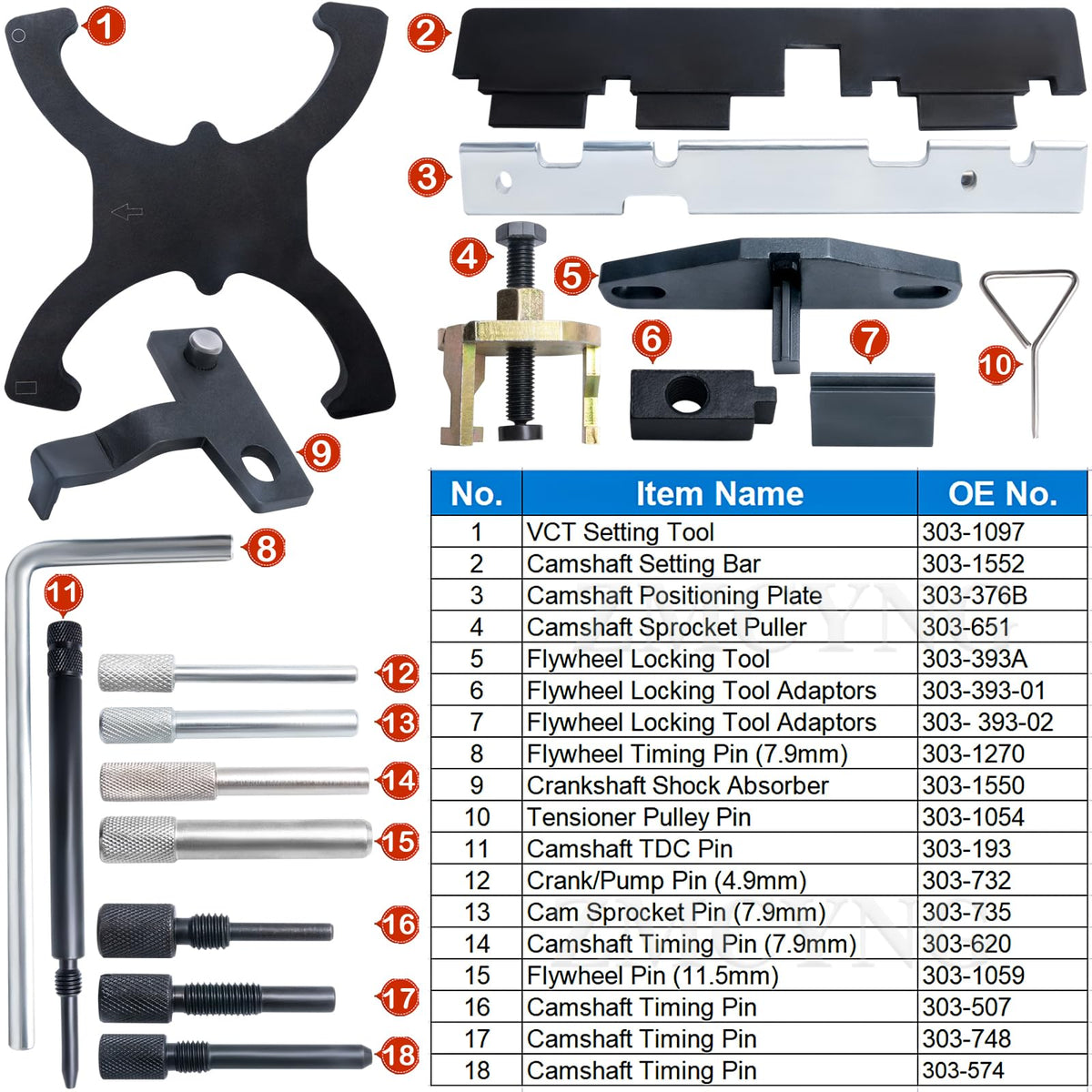

What parts are included and which OE numbers does it replace?

The set bundles the primary alignment pins, tensioner locks and adapters needed for the covered engines. It’s manufactured to serve as an equivalent to many OE tools so you avoid sourcing several individual factory items.

• Camshaft alignment pins and crankshaft locking plate
• Tensioner lock tools and VTC adjustment fixtures
• Listed as compatible replacements for common OE numbers like 303‑1097, 303‑376B, 303‑393A and others
• Complete kit eliminates the need to purchase multiple separate factory tools

Will this kit reduce workshop downtime and improve accuracy?

Yes — by providing dedicated tooling for locking and aligning, the kit streamlines timing procedures and lowers the chance of human error. Correct use helps technicians complete timing jobs faster and with repeatable alignment accuracy.

• Speeds up belt/chain removal and reinstallation steps
• Minimizes trial-and-error adjustments during reassembly
• Reduces risk of engine damage from incorrect timing
• Suits both independent shops and DIY mechanics with service manuals

Who is this for: The ZMCYNG 1.5 / 1.6 Timing Tool Kit is aimed at professional mechanics, mobile technicians and experienced DIYers who service Ford and compatible Mazda twin-cam engines. If you perform timing belt or chain replacements, VVT/VTC adjustments, or cylinder head work on the listed engines, this kit provides the alignment tools needed to follow factory timing procedures and complete jobs with confidence.
