ZNTVW Washer Shift Actuator and Drive Belt 5‑Piece Repair Kit WH03X30517 WH01X27538 — clutch, pulley included

High-performance automotive accessories made for confident daily results

$49.23

3 shoppers currently have this item in cart.

Low stock: only 10 left in inventory. Add to cart before it's gone.

Shop Pay installment options may appear at checkout where eligible.

Free shipping Secure checkout 100% refund eligible
Bundle & save Buy 2 and save checkout time

Premium automotive accessories quality selected for Canada customers.

Routine pack Build your routine pack (3)

Fast dispatch with always-free shipping and secure checkout on every order.

Free shipping

i

Free shipping on every order. Fast dispatch, tracked delivery, and secure checkout included.

Easy returns

i

Simple return flow and responsive support for eligible items.

Peak-demand shipping delays

i

During high demand, deliveries may experience short carrier delays. Tracking updates remain active for every order.

24/7 customer support

Questions before checkout? Our team is available and ready to help.

Return & RefundEasy returns and policy details Shipping PolicyDelivery process and tracking info
Share

Why customers choose NorthTrail Auto

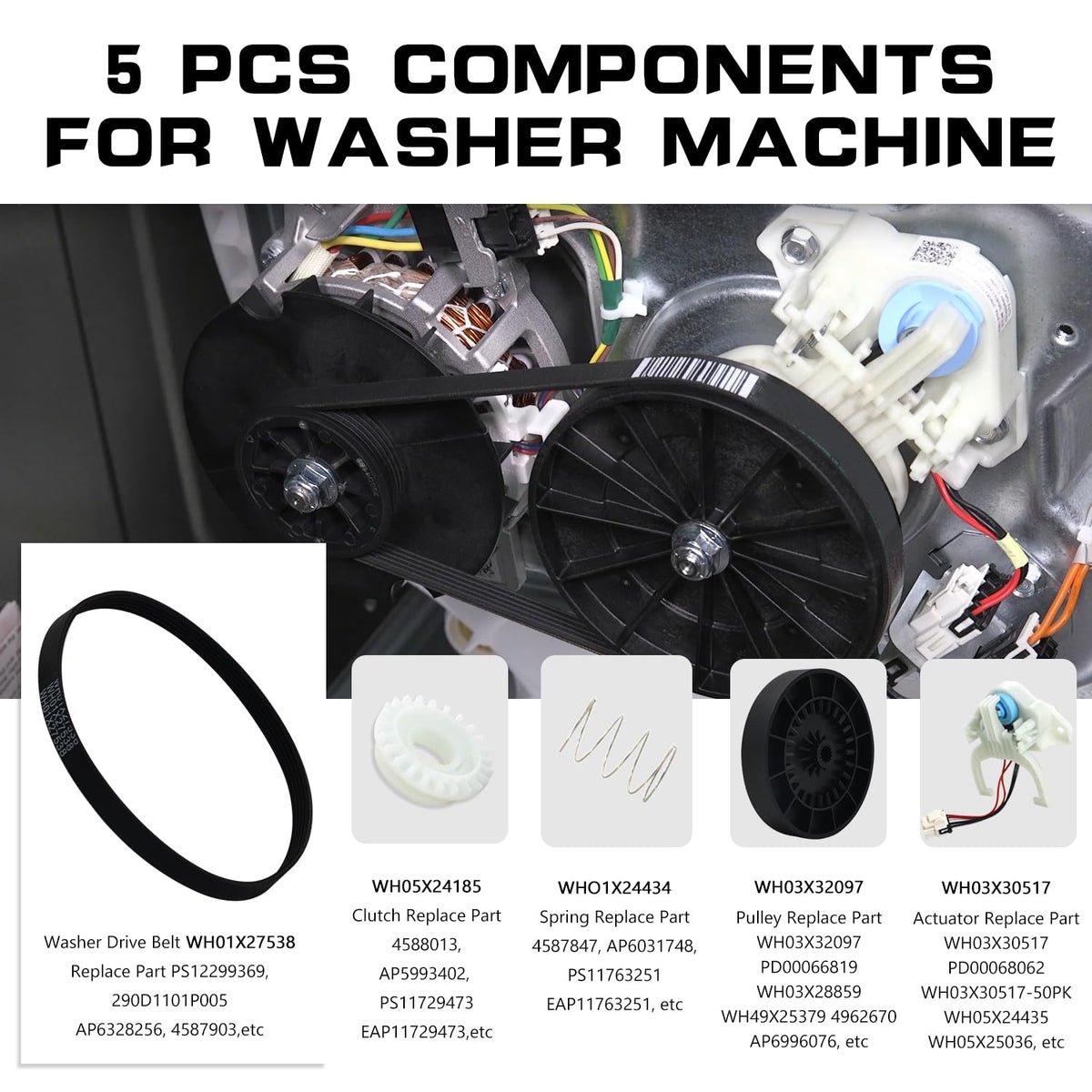

ZNTVW WH03X30517 Washer Shift Actuator and WH01X27538 Drive Belt 5-piece kit restores proper agitation-to-spin shifting and driveline function in compatible top-load washers. This repair kit groups the key drivetrain and clutch components most commonly responsible for a washer that won’t switch between agitate and spin, makes loud mechanical noises, or leaves clothes excessively wet after a cycle. The set bundles the WH03X30517 shift actuator, WH01X27538 drive belt, WH05X24185 clutch, WH01X24434 clutch spring, and WH03X32097 transmission pulley with nut — parts cross-referenced to common OEM numbers for easier fit confirmation.

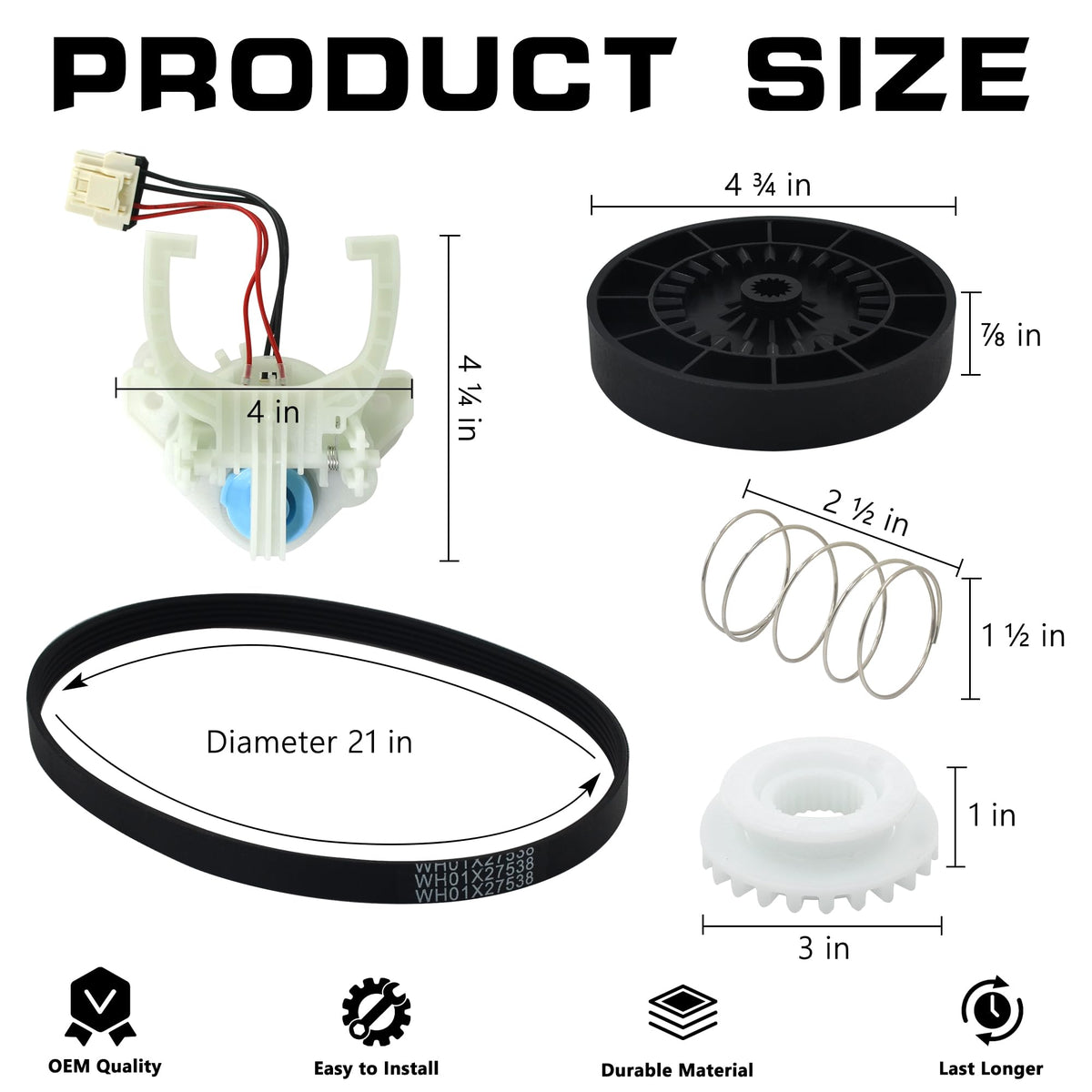

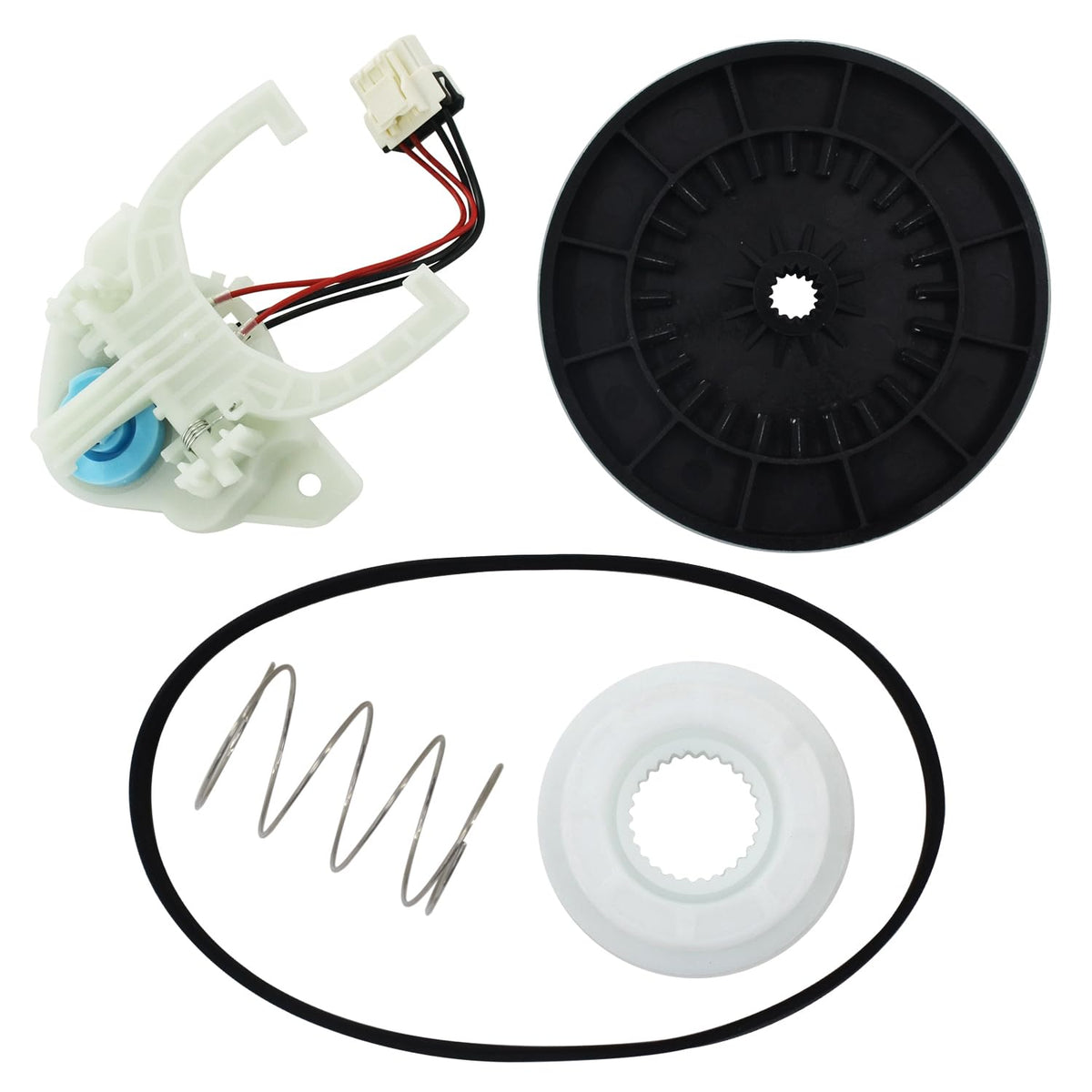

What exactly comes in this replacement bundle, and which factory part numbers does it match?

The kit contains five individual components selected to address drivetrain and clutch failures. Each piece is identified with original part numbers and compatible replacement codes, helping you confirm fitment for many Whirlpool/Maytag top-load models.

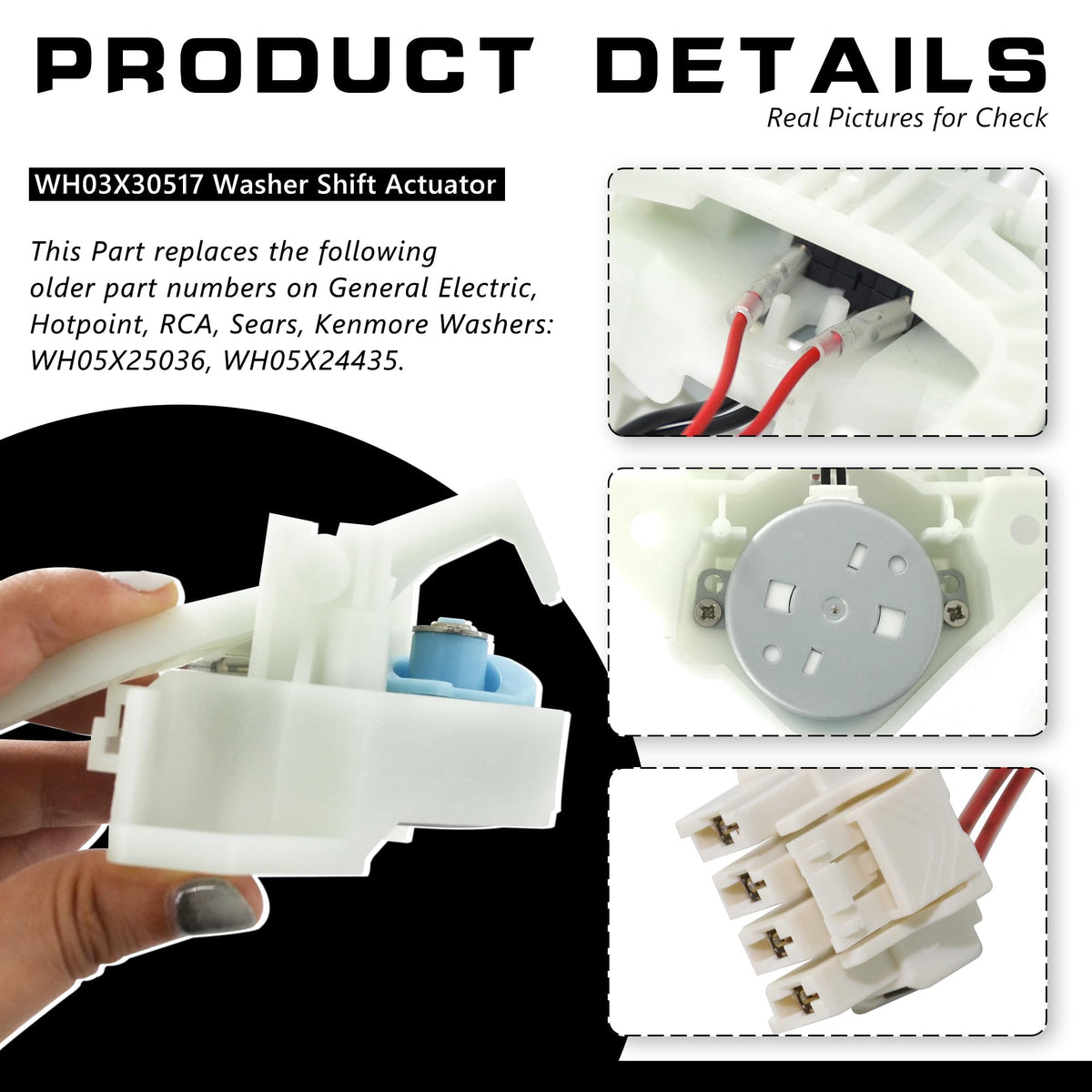

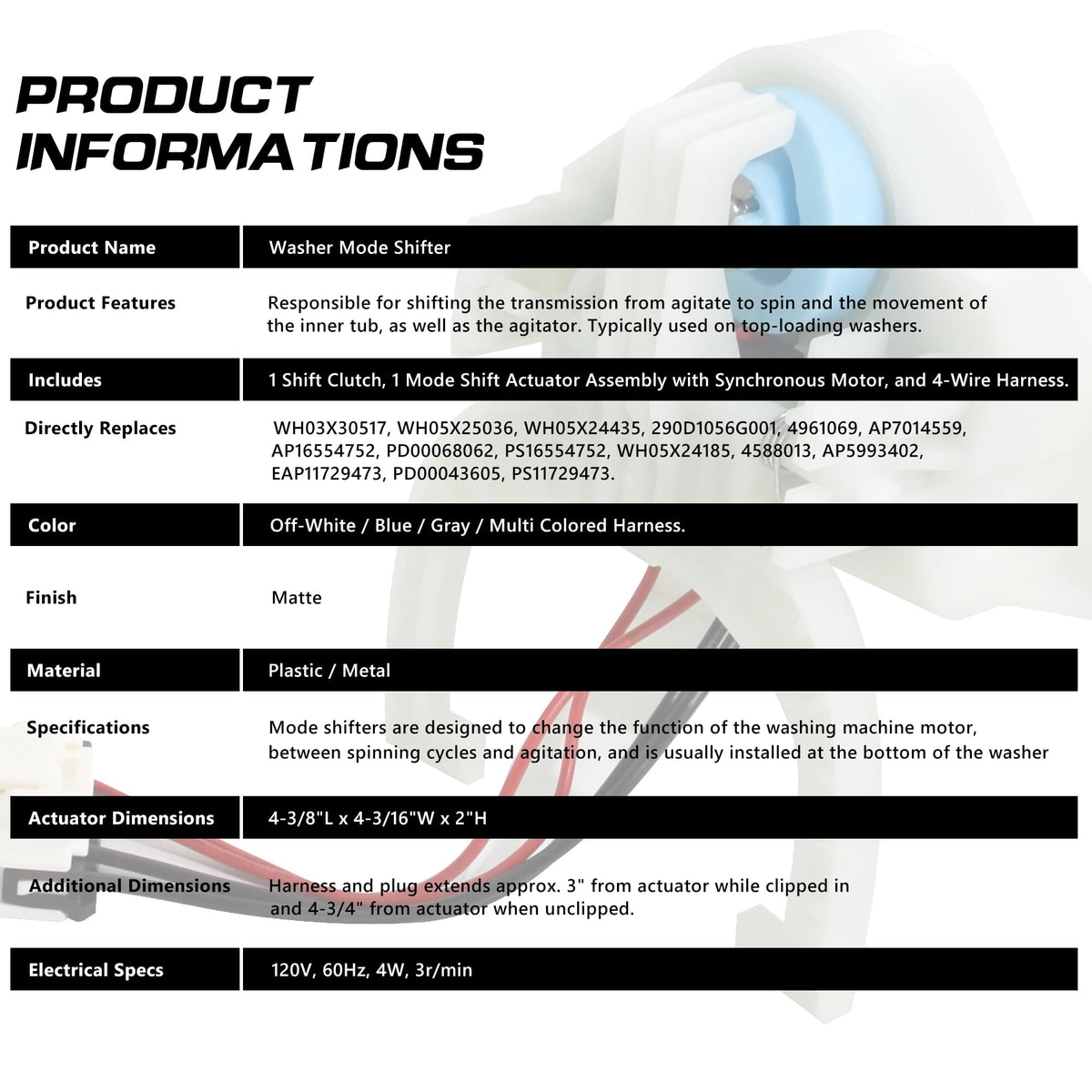

  • 1 × WH03X30517 washer shift actuator (replaces WH03X30517-50PK, WH05X24435, WH05X25036)
  • 1 × WH01X27538 washing machine drive belt (replaces WH01X27538-50PK, 4587903)
  • 1 × WH05X24185 washer clutch (replaces 4588013, AP5993402, PS11729473)
  • 1 × WH01X24434 washer clutch spring (replaces 4587847, AP6031748, PS11763251)
  • 1 × WH03X32097 transmission drive pulley and nut (replaces WH03X28859, WH49X25379)

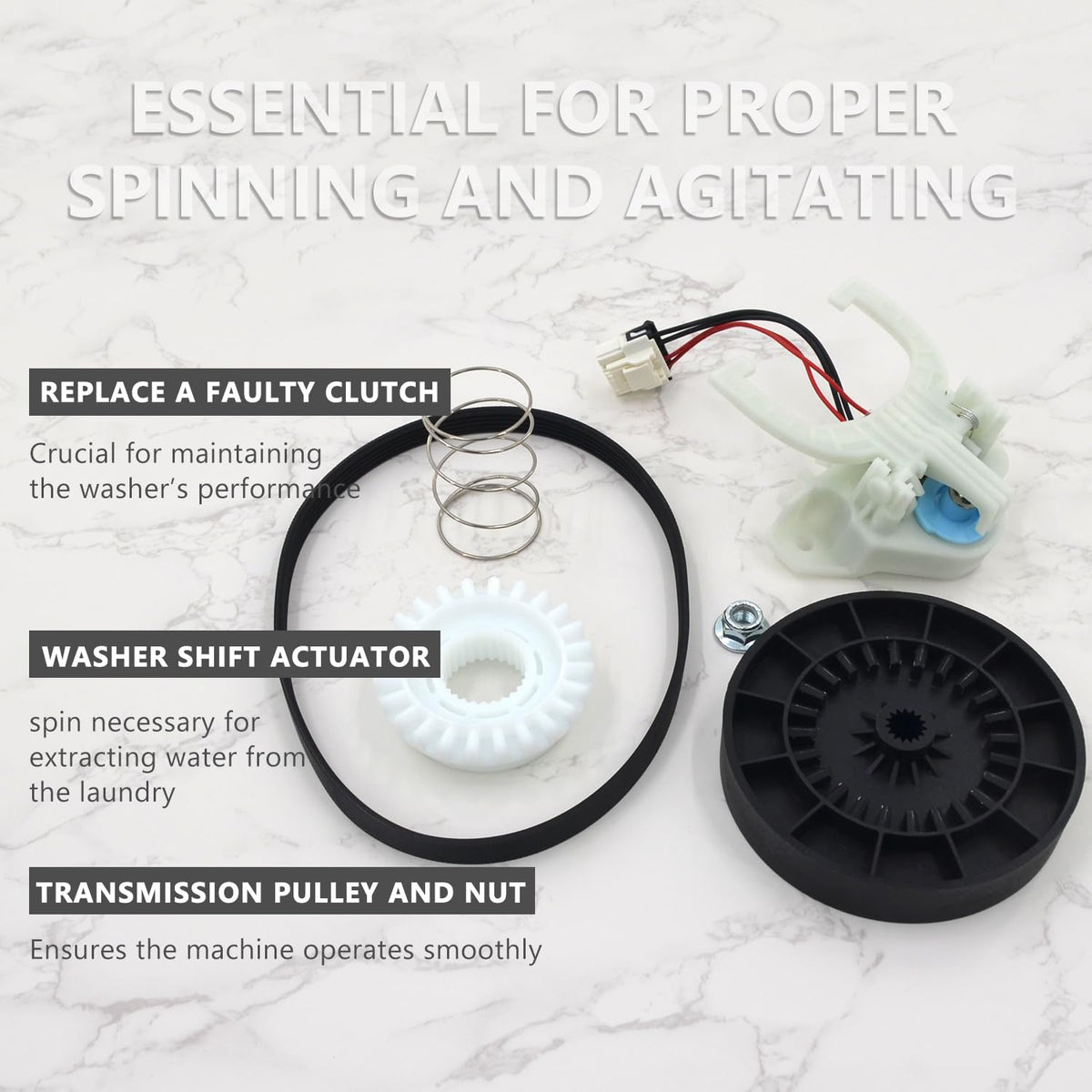

How will these parts solve common washer problems I’m experiencing?

Problems like failure to change modes, loud grinding, or poor spin performance are often traced to worn actuators, belts, clutches, or pulleys. Replacing the worn components in this kit restores the mechanical linkages and torque transfer needed for normal operation.

  • Shift actuator: re-establishes correct agitate-to-spin switching
  • Drive belt: replaces stretched or glazed belt that slips under load
  • Clutch and spring: renews engagement force during spin cycles
  • Pulley & nut: replaces damaged transmission pulley that causes noise or misalignment

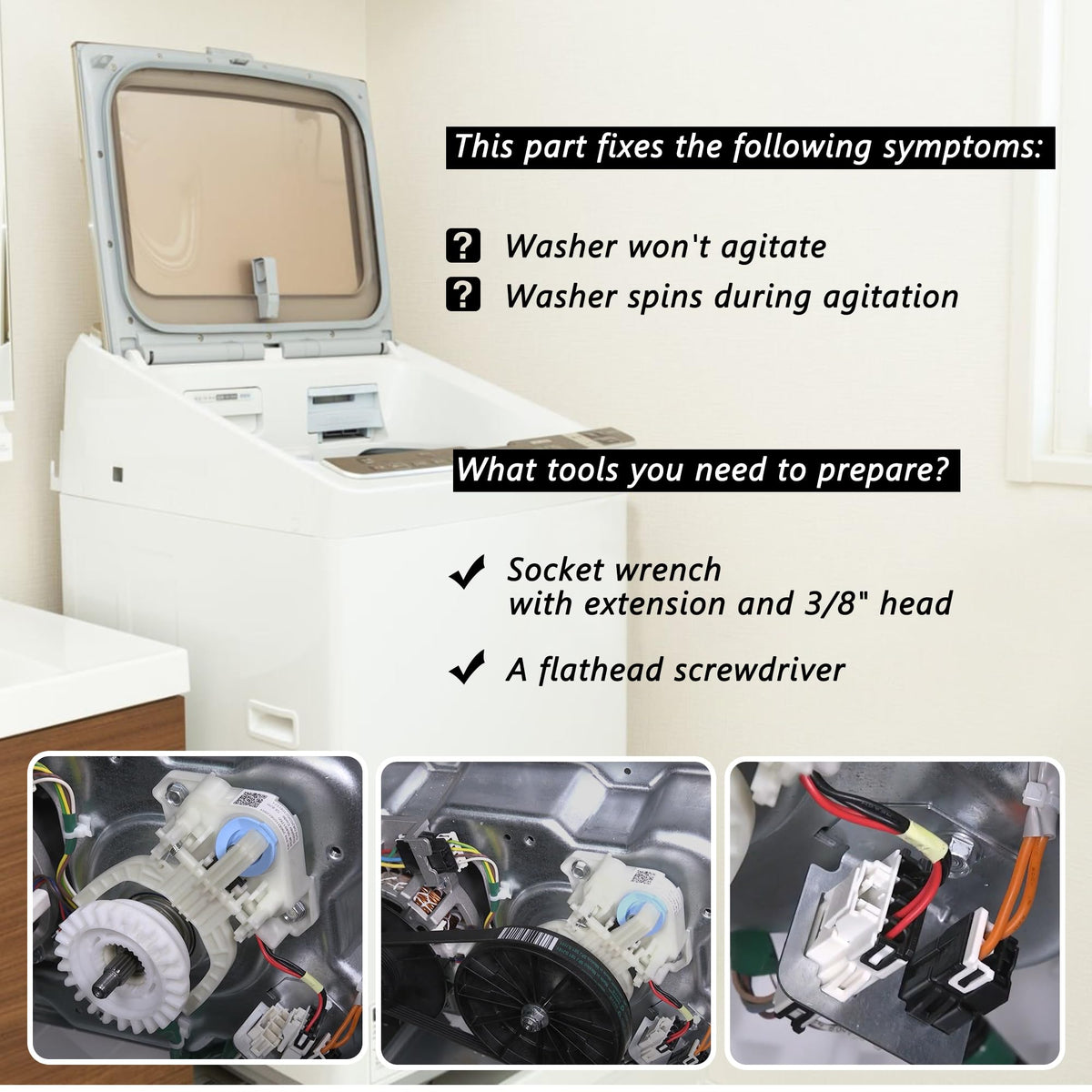

Is installation difficult, and what order should parts be replaced?

Installation is straightforward for anyone comfortable with basic appliance repair and standard hand tools. Follow a step-by-step disassembly order to access drivetrain components and prevent unnecessary strain on the transmission and tub.

  • Remove access panels and belts to reach pulley and clutch assembly
  • Replace drive belt (WH01X27538) first to set proper tension
  • Install transmission pulley and nut (WH03X32097), then clutch (WH05X24185) and spring (WH01X24434)
  • Fit the shift actuator (WH03X30517) last and verify mode switching

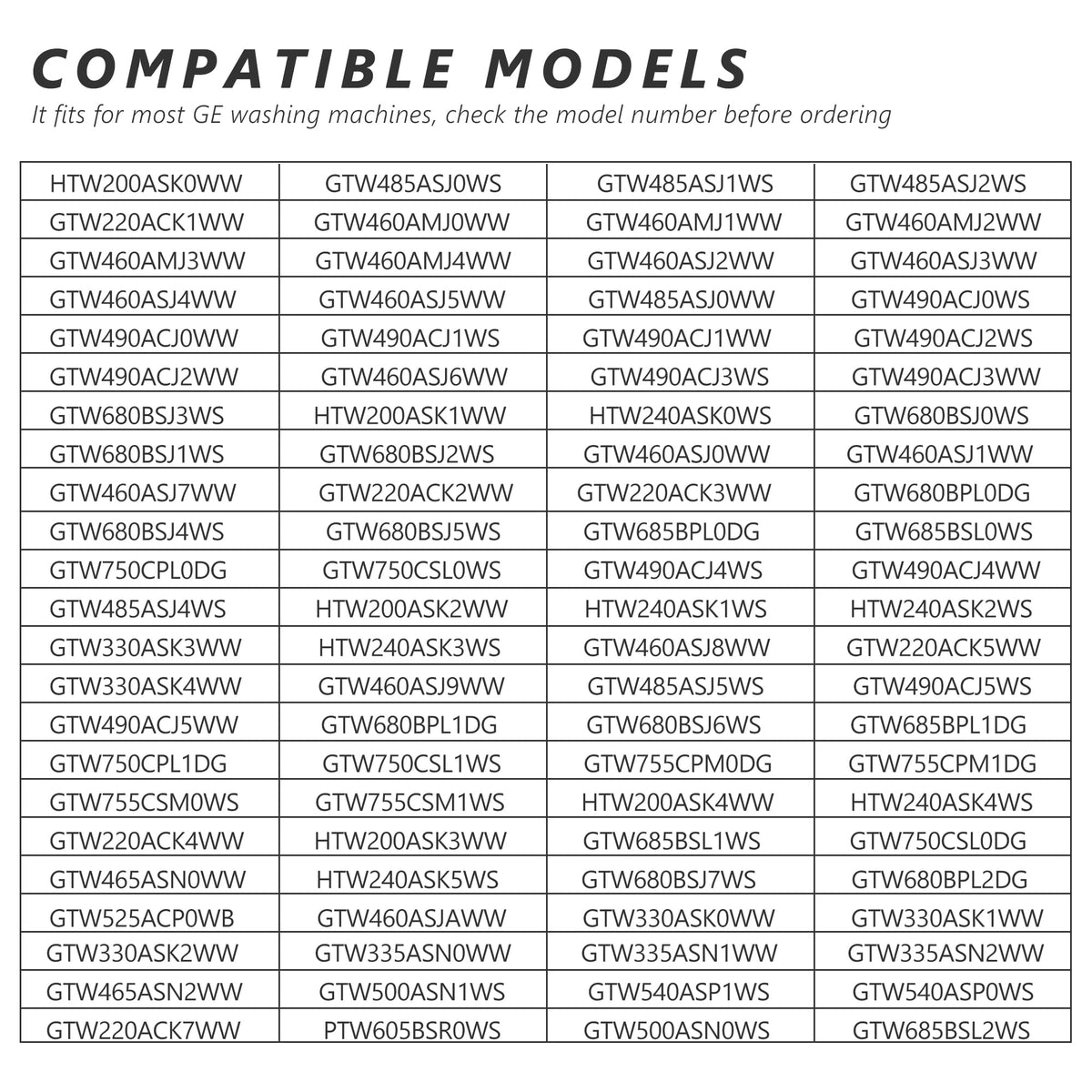

Which washer models are compatible with this ZNTVW kit?

The components are compatible with a wide range of Whirlpool-family top-load washers. Always cross-check part numbers or your washer model against the listed compatible models before ordering to ensure proper fit.

  • Compatible examples: GTW680BSJ2WS, GTW680BSJ3WS, GTW680BSJ4WS, GTW680BSJ5WS
  • Also fits GTW680BSJ6WS, GTW680BSJ7WS and several GTW685 and GTW750 series machines
  • Refer to the OEM replacement numbers in the kit for additional model matching
Who is this for? This ZNTVW five-piece repair kit is aimed at DIY homeowners, independent appliance technicians, and facility maintenance teams who need a cost-effective way to restore spin and mode selection on compatible top-load washers. If your washer exhibits slipping belts, grinding noises, or incomplete spins, this kit brings together the commonly failed drivetrain and clutch parts you’ll likely need to complete the repair and get laundry running normally again.

FAQ

Q: Will this kit fit my Whirlpool top-load washer?

A: Check your model against the compatible list or match OEM part numbers; the kit fits many GTW680, GTW685, and GTW750 series models.

Q: Do I need special tools to install these parts?

A: Basic hand tools (screwdrivers, socket set, wrench) are usually enough; no specialized tools required for typical installations.
