ZOOKOTO 250AC/DC250V Fuse Block 300A Class T Fuse Holder

ZOOKOTO 300A Class T fuse block is a heavy‑duty, V0 flame‑rated ABS fuse holder designed to protect high‑power inverters and appliances in boats, cars, trucks, and RVs.

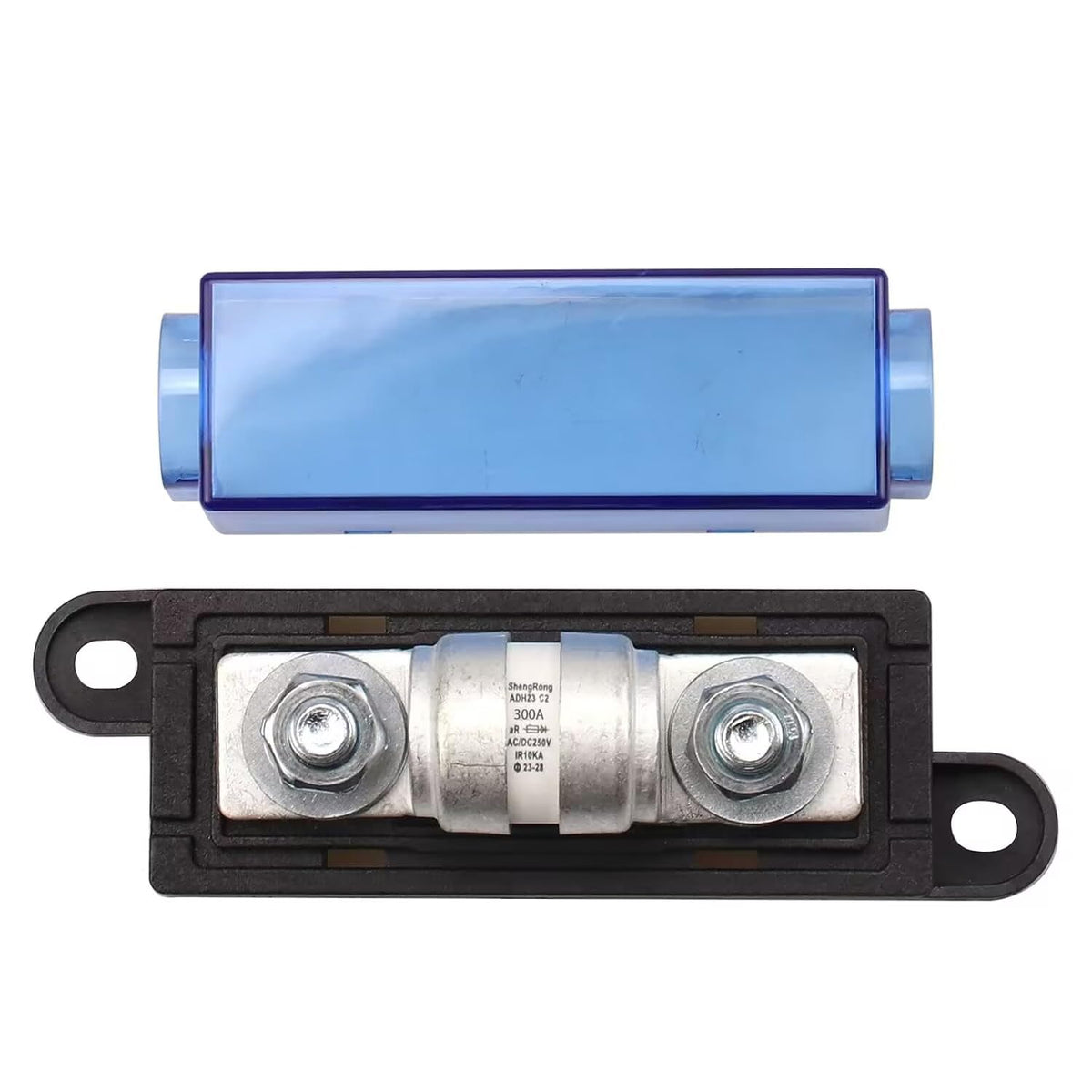

This fuse block accepts a 300 amp Class T fuse and is rated for 250V AC/DC, with M8 (5/16") terminal studs and a high interrupt rating (IR10KA). Built for installations where space, cable capacity, and proximity to the battery positive terminal matter, the unit combines a durable polymer shell with clear stud access so you can secure large gauge cables and protect power systems from overcurrent events.

How does this fuse block protect my vehicle or boat electrical system?

The Class T fuse inside the holder is engineered to open (blow) quickly when current rises beyond the safe threshold, interrupting the fault and limiting damage to wiring and components. Locating the block close to the battery positive terminal ensures the protected zone covers as much cable length as possible.

• 300A fuse rating for high‑current circuits like inverters and chargers
• IR10KA interrupt rating to handle short‑circuit energy
• Quick fault clearing reduces heat and cable damage risk
• Recommended mounting near battery positive for full circuit protection

What materials and safety features does the ZOOKOTO holder include?

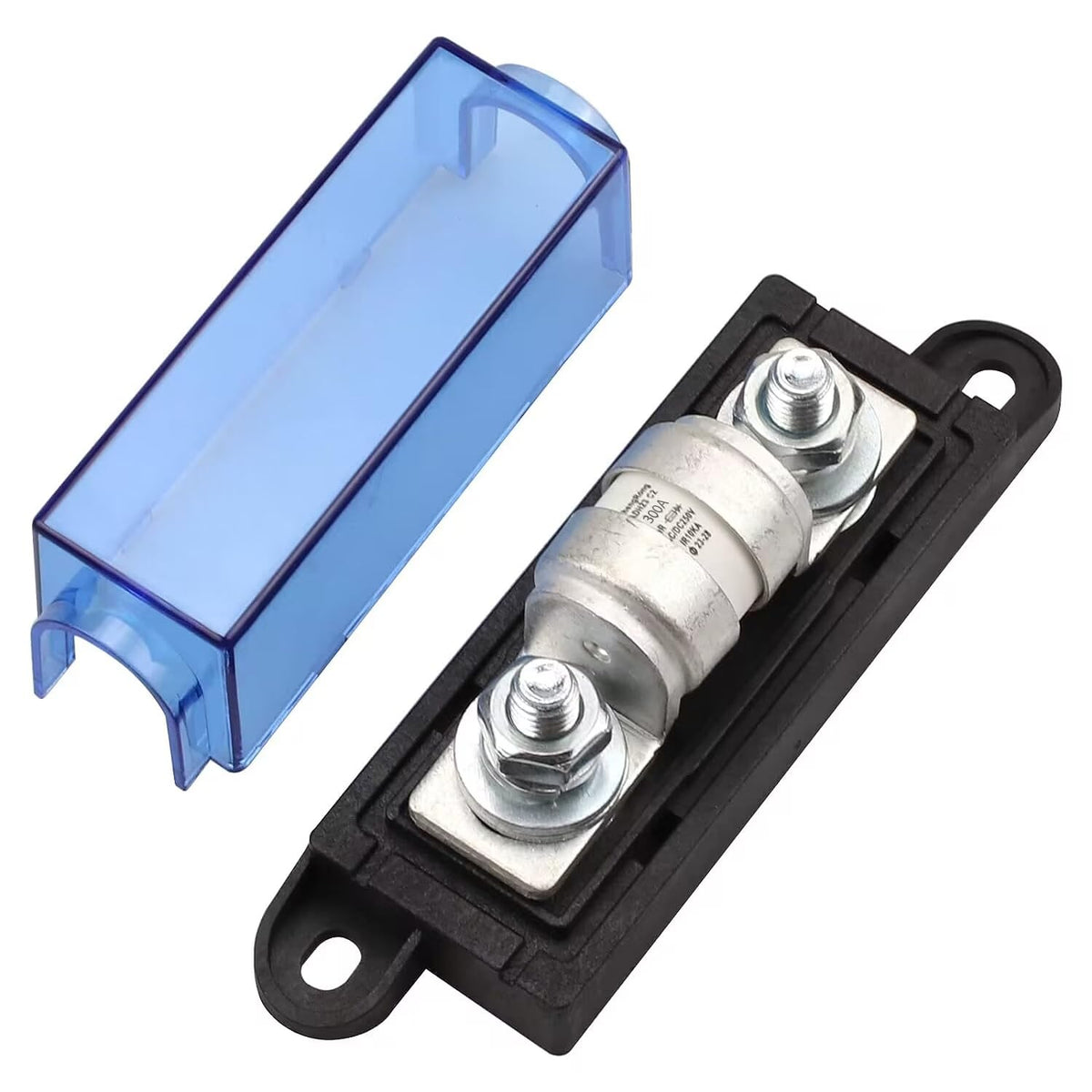

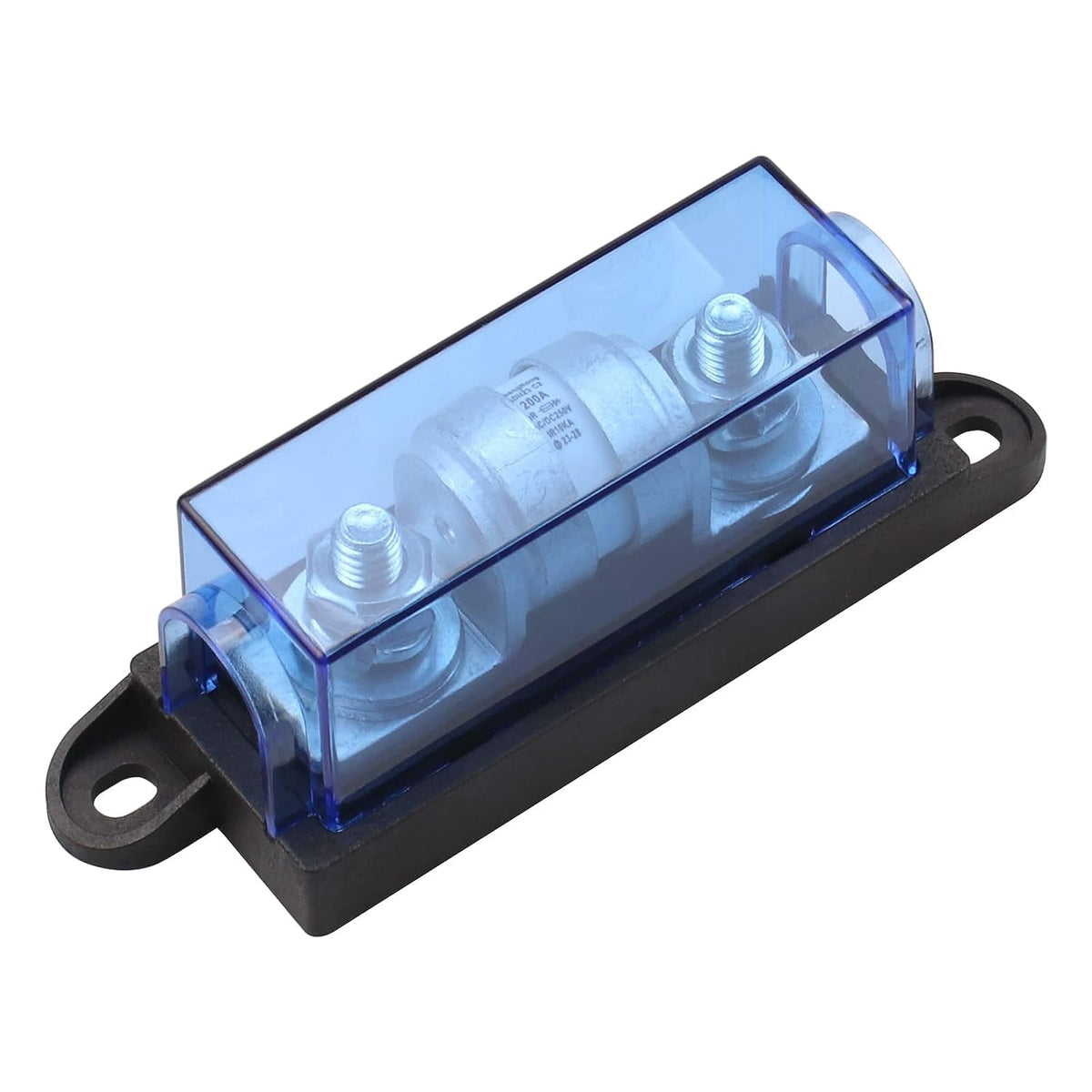

The outer shell is molded from ABS polymer with a V0 fire rating, providing flame resistance in demanding environments. The robust M8 (5/16") studs accept heavy gauge lugs and hardware while leaving space for tidy cable routing and strain relief.

• ABS polymer housing rated V0 for enhanced fire safety
• M8 (5/16") terminal studs to fit standard lug sizes
• Spacious interior clearance for larger cable bundles
• Sturdy construction to withstand vibration in marine and vehicle use

How do I install the 250V AC/DC fuse block correctly?

Mount the fuse block as close to the battery positive terminal as practical, using proper insulated tools and torque on the M8 studs. Ensure cable lugs are correctly sized and fastened, and that the fuse type matches the specified Class T 300A rating for safe operation.

• Place within inches of battery positive for maximum protected length
• Use appropriately sized lugs for M8 studs and tighten to recommended torque
• Select a 300A Class T fuse that matches system voltage (up to 250V AC/DC)
• Allow room for cable bends and heat dissipation around the block

Will this fuse holder work with my inverter and high‑power appliances?

Yes — it’s designed specifically for inverters and other high‑power devices commonly found in marine, automotive, truck, and RV installations. The 300A rating covers most large inverters and accessory banks while the 250V AC/DC capability supports a range of system architectures.

• Compatible with inverter input protection and high‑current accessory circuits
• Suitable for 12V/24V DC systems and AC setups within 250V limits
• Accommodates large cable packs needed for high power transfer
• Intended for marine, automotive, truck, and RV electrical systems

Who is this for? Installers, RV and boat owners, automotive electricians, and anyone configuring high‑power inverter systems will benefit from the ZOOKOTO 300A Class T fuse block. If you need a compact, fire‑resistant, high‑current fuse holder that accepts heavy gauge terminations and provides reliable overcurrent protection near the battery, this unit is built for those demanding applications.
