Aeagle 12 x 2 Electric Trailer Brake Assembly — 4-Piece Kit for 5,200–7,000 lb Axles, Left & Right, 3.88" PCD

AEagle 12" x 2" electric trailer brake assembly is a four-piece OEM-compatible braking kit (two left, two right) engineered to fit 5,200 lb, 6,000 lb and 7,000 lb trailer axles for reliable stopping power.

This AEagle kit supplies two left and two right 12" x 2" electric brake assemblies designed for common Dexter, Al-Ko, Lippert and other trailer axles. Built with non-asbestos brake linings and tested before shipping, the set aims to deliver consistent friction performance and long service life. The brakes are sized for trailers rated 5,200–7,000 pounds and include the standard bolt pattern (brake flange PCD 3.88") to simplify retrofits and replacements.

How will these brakes fit my existing axle and hub setup?

The AEagle assemblies are built to match common axle standards used by Dexter, Al-Ko and Lippert for 5,200–7,000 lb ratings. They use a 3.88" bolt circle for the flange, which aligns with many OEM hubs and backing plates, minimizing modification during installation.

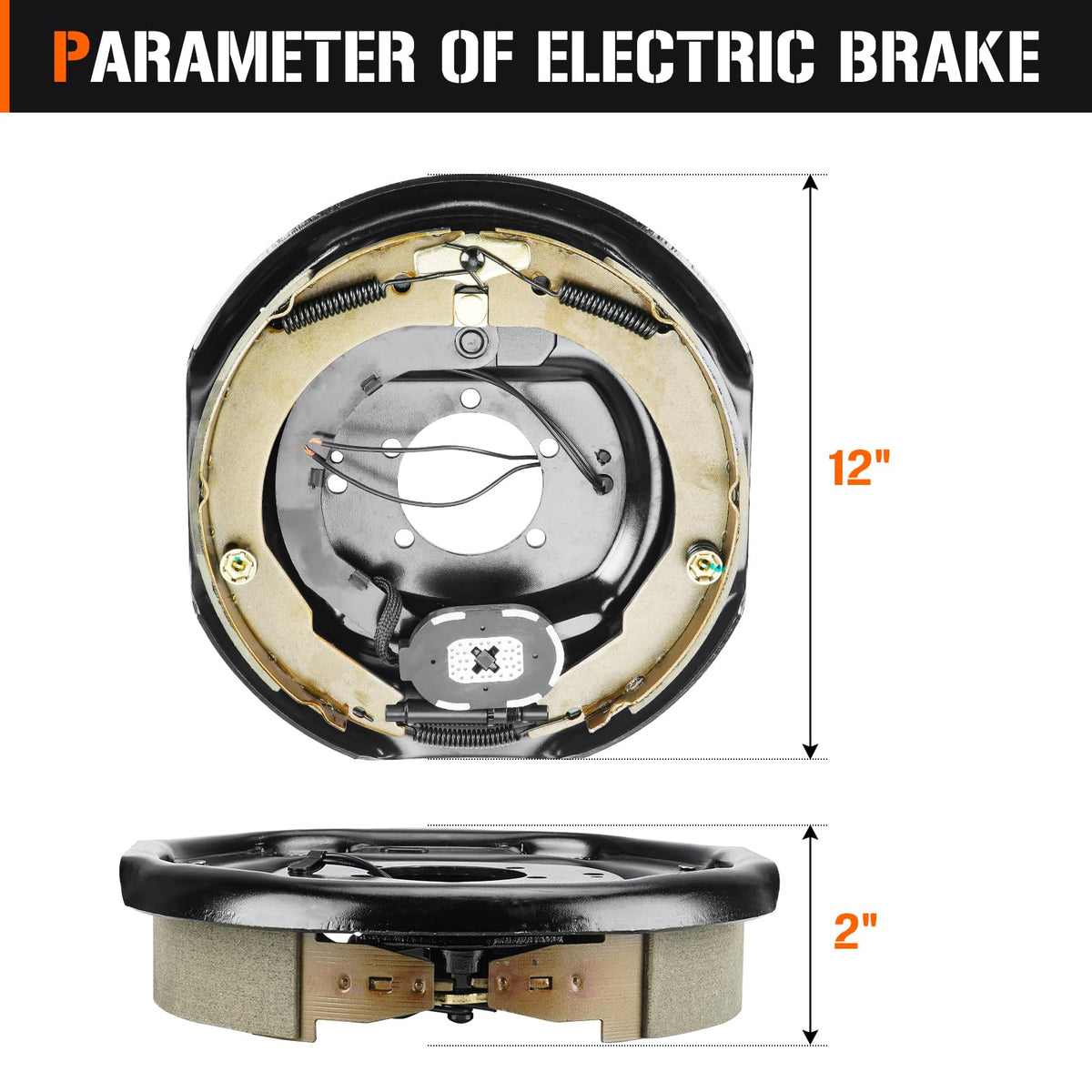

• Brake size: 12" diameter x 2" wide shoe.

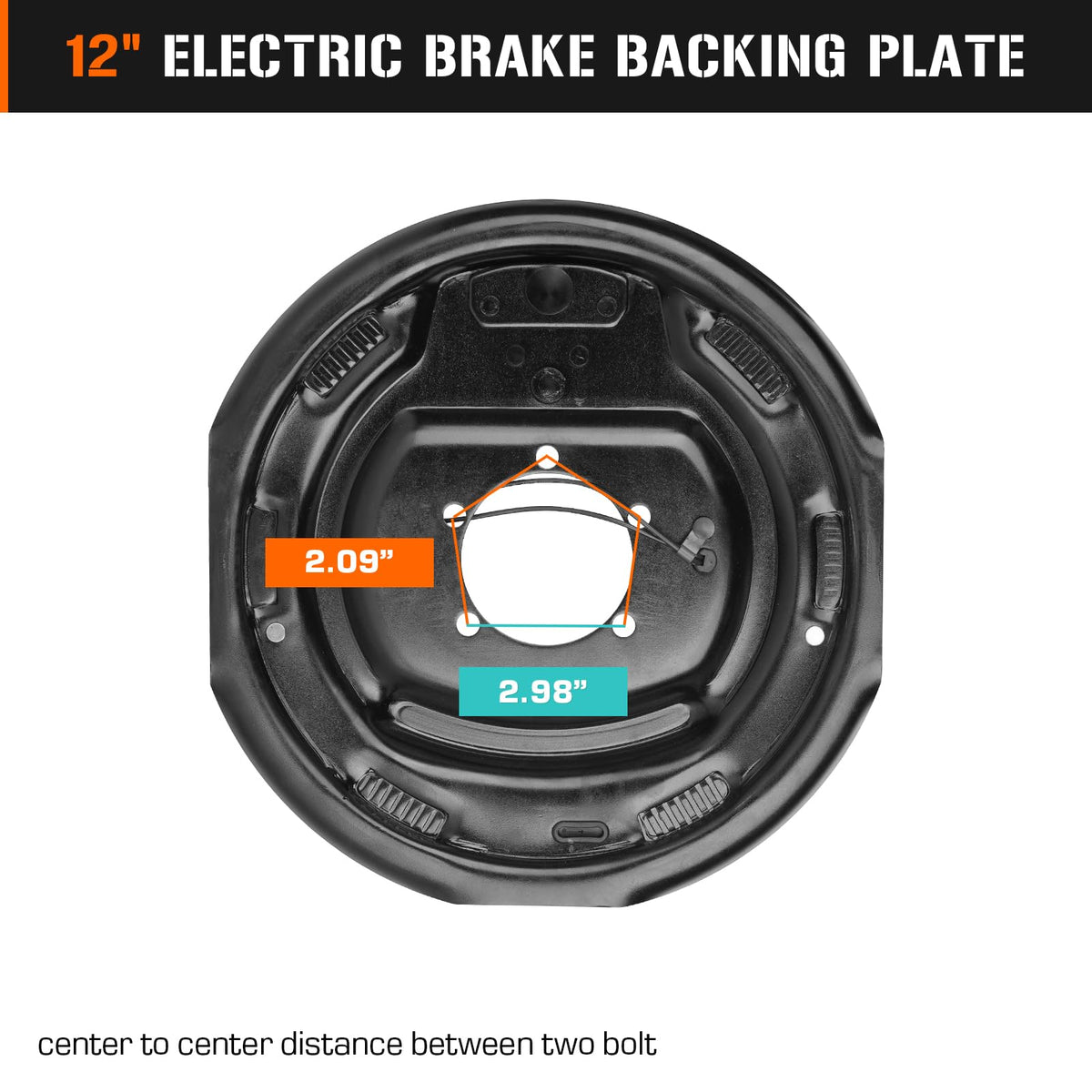

• Brake flange PCD: 3.88" to match common hubs.

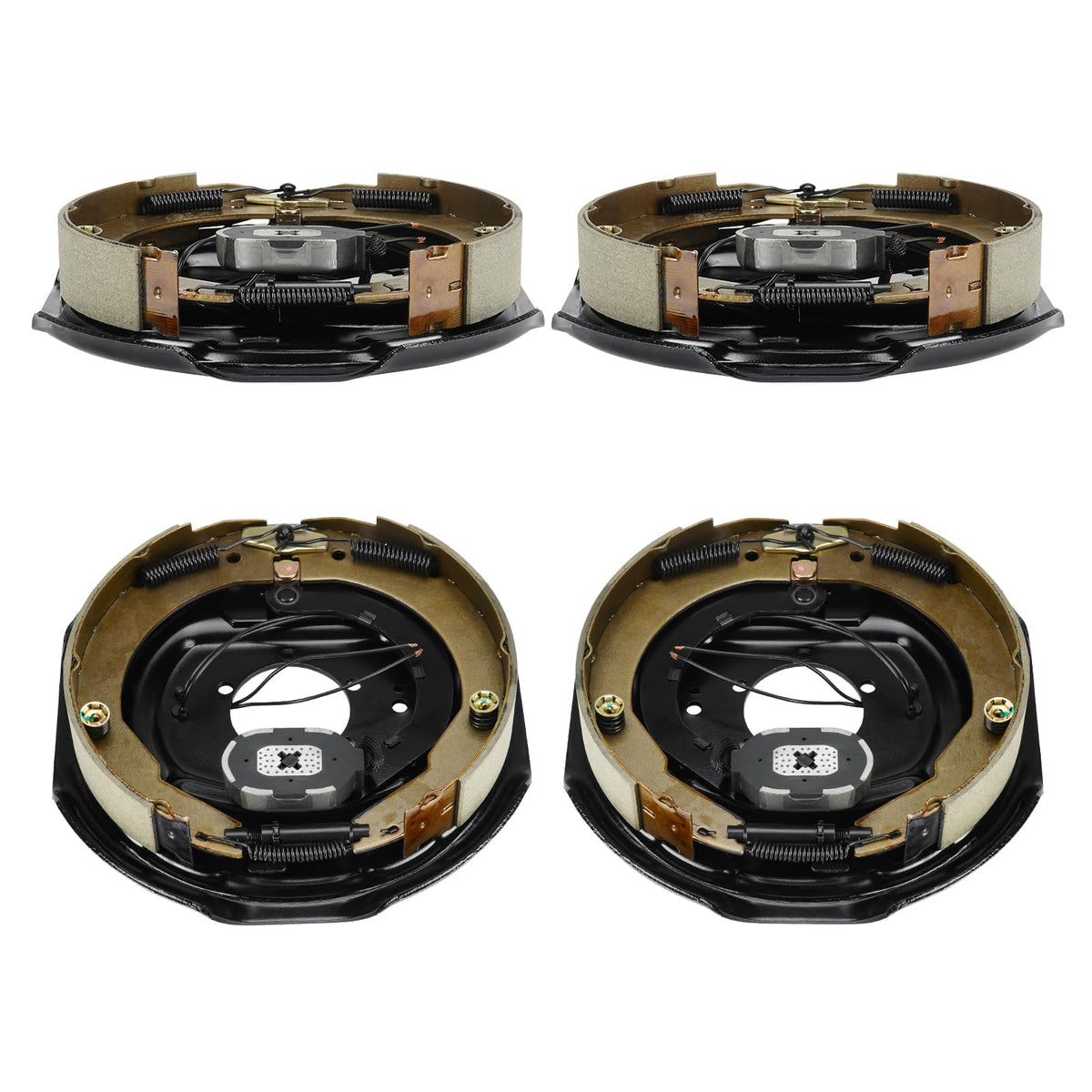

• Includes both left- and right-hand assemblies for full axle replacement.
• Fits axles rated 5,200, 6,000 and 7,000 lbs.

What performance and durability features do these assemblies offer?

AEagle electric brakes use non-asbestos friction linings formulated for steady stopping and extended wear life. Each assembly has been pre-tested, and the kit comes with a 12-month warranty to back manufacturing quality and initial reliability checks.

• Non-asbestos brake linings for consistent friction.
• Pre-shipped testing to ensure basic functionality.
• 12-month warranty against defects.
• Balanced left/right pairs to maintain even braking across an axle.

How straightforward is installation and what tools or parts might I need?

Installation is typical for electric brake replacement: remove the wheel and hub, detach the old backing plates, mount the new assemblies to the axle, reconnect wiring and reassemble the hub. Basic hand tools, a torque wrench, and brake spring pliers are commonly required; confirm pad-to-drum clearance and wiring polarity before road testing.

• Tools: socket set, torque wrench, brake spring pliers, screwdrivers.
• Verify bolt pattern (3.88" PCD) and hub compatibility beforehand.
• Rewire magnet connections carefully to ensure correct brake function.
• Test brakes at low speed after installation before regular use.

Which trailers and towing scenarios are these brakes best suited for?

This four-piece AEagle brake kit is appropriate for small-to-medium sized trailers whose axles are rated between 5,200 and 7,000 pounds, including utility, livestock, camper, and equipment trailers. They are intended as direct replacements or upgrades where the backing plate and hub match the flange pattern, not as a solution for axle capacity changes.

• Designed for trailers with 5,200–7,000 lb axle ratings.
• Commonly used on campers, utility and equipment trailers.
• Suitable for retrofit when hub bolt pattern matches.
• Not intended to alter trailer gross axle capacity ratings.

Who is this for: The AEagle 12" x 2" electric brake assembly set is aimed at DIY mechanics, trailer service shops and tow-vehicle owners needing a full left/right axle brake replacement. Choose this kit when your trailer hubs use a 3.88" flange PCD and the axle rating falls between 5,200 and 7,000 lbs, and when you want a pre-tested, warrantied aftermarket option that prioritizes reliable friction and straightforward swap-in installation.
