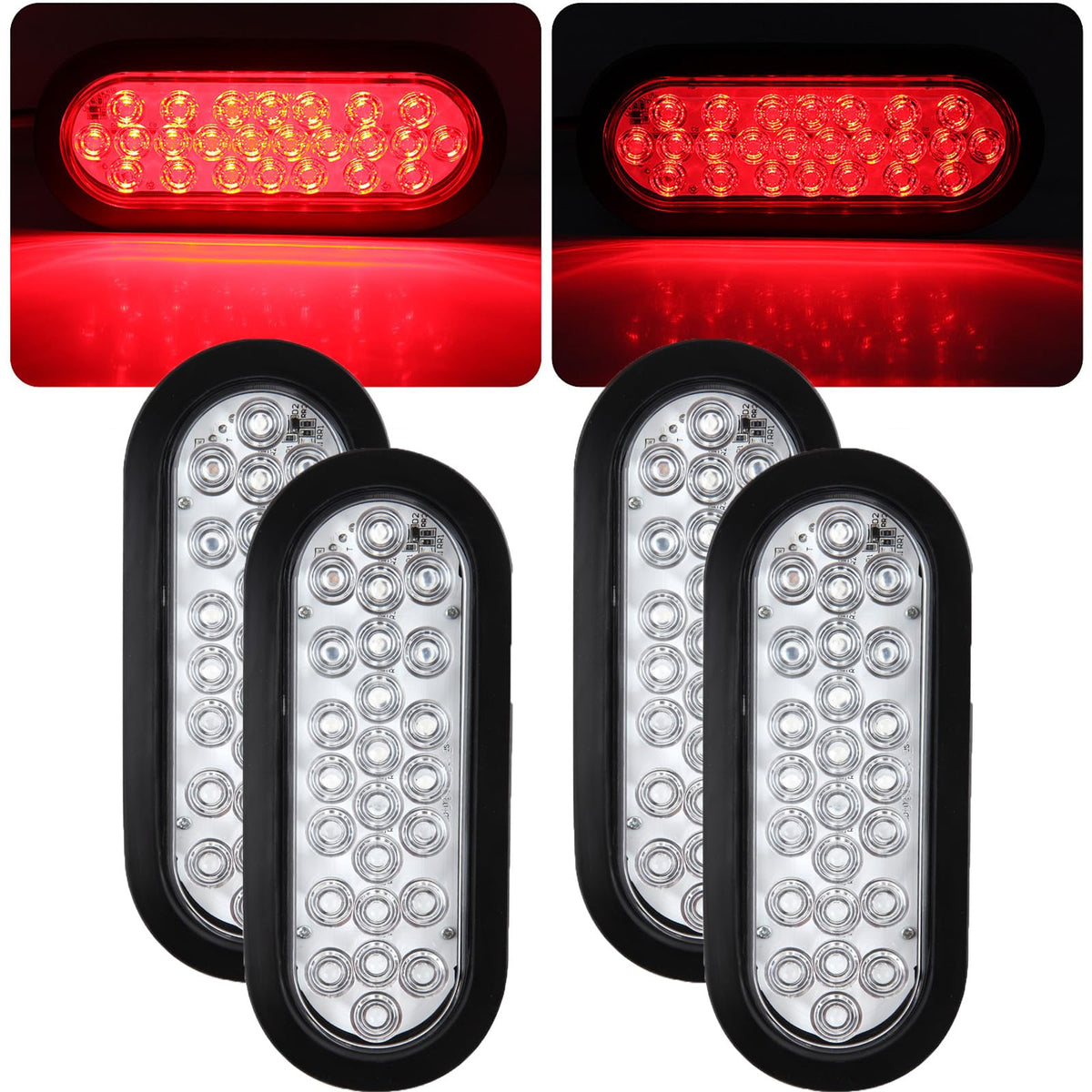

Traberm 6" Oval Red LED Trailer Tail Lights 4-Pack — 24 SMD LEDs, IP67 Sealed Flush-Mount

Built to replace older incandescent fixtures, this set from Traberm combines 24 SMD LEDs per lamp, a three-wire dual-brightness design, and included grommets plus 3-prong pigtails for a weatherproof surface-mount installation. The lights are rated IP67 for dust and water protection and sized to fit a ~6.7-inch mounting hole or flush surface with the supplied rubber grommets.

How bright are these LEDs and what do the two brightness levels do?

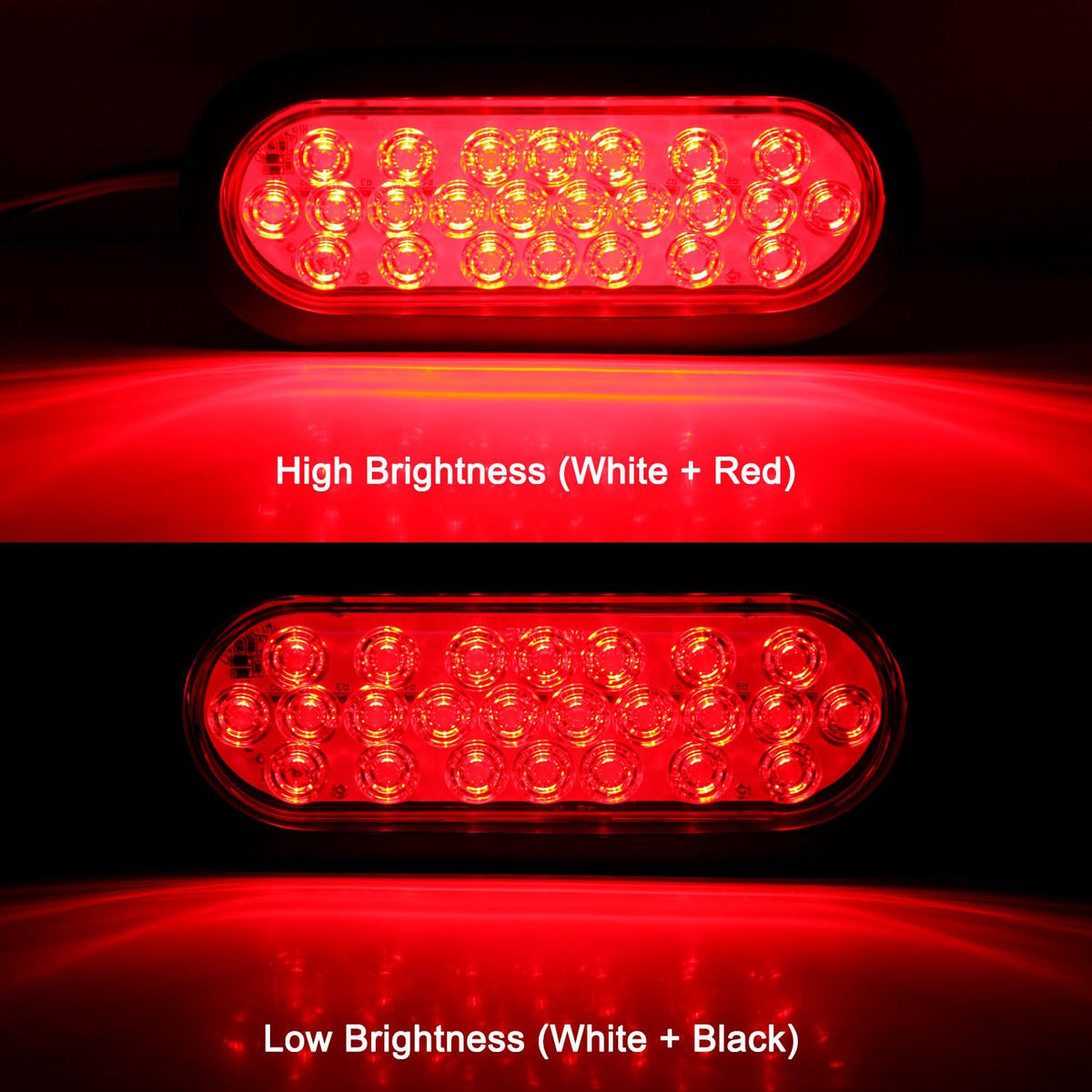

Each oval lamp contains 24 SMD LEDs engineered to provide a vivid red output. The three-wire wiring splits the function into a high-brightness circuit for brake and turn signals and a low-brightness circuit for tail/running illumination, so visibility increases actively during braking or signaling.

• 24 SMD LEDs per housing for strong, consistent red light
• High brightness: brake and turn signals for instant noticeability
• Low brightness: tail/running light to mark vehicle width while driving
• Operates from standard 12V DC vehicle systems

What are the physical dimensions and mounting requirements?

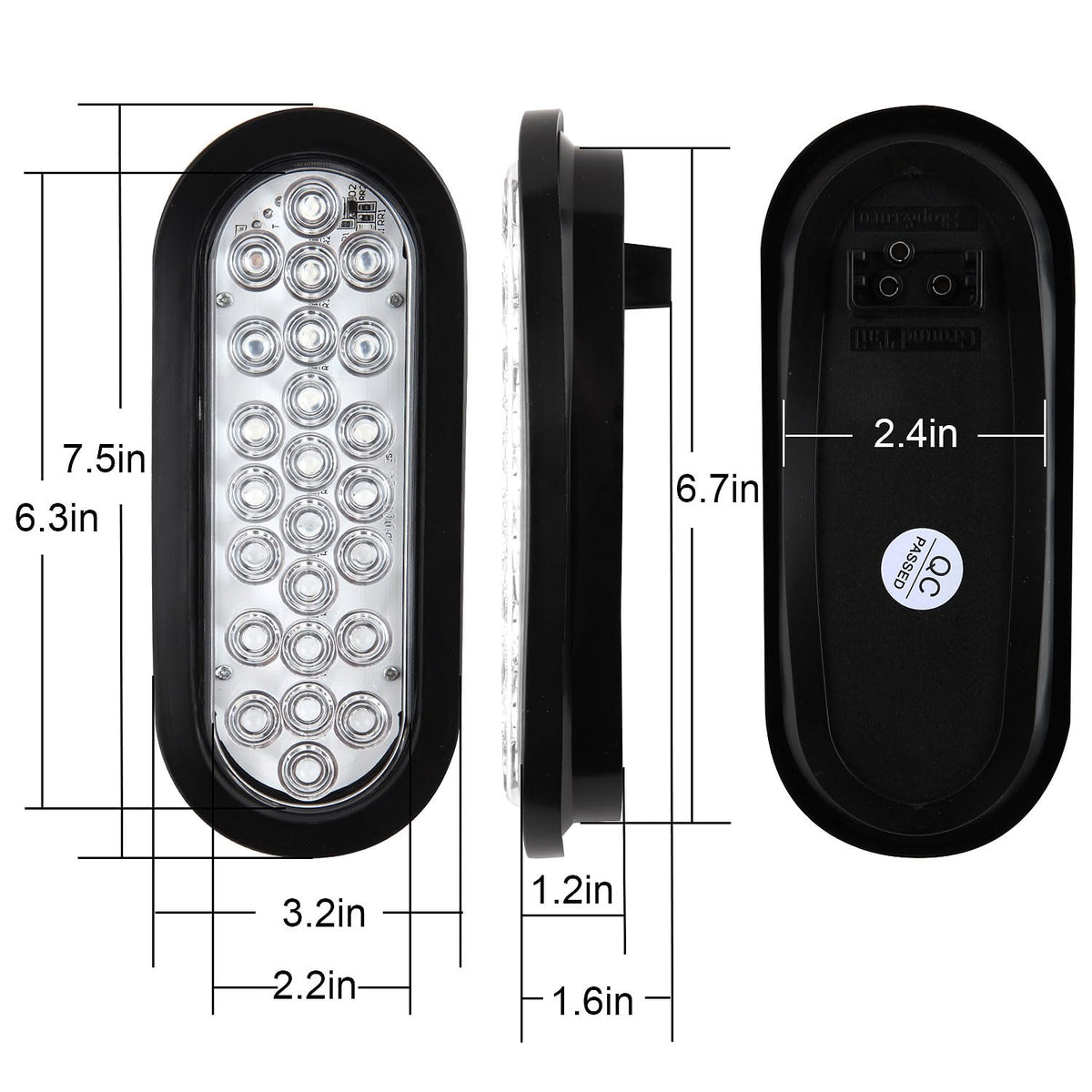

The sealed lamp body measures approximately 6.3" × 2.2" × 1.2", and the assembly with washer is about 7.5" × 3.2" × 1.6". Installers should prepare a hole of roughly 6.7 inches if recessed, or use the included rubber grommets for surface/flush mounting.

• Body size: 6.3" × 2.2" × 1.2"
• With washer: 7.5" × 3.2" × 1.6" to account for flange clearance
• Recommended cutout/hole: ~6.7 inches for recessed fit
• Includes rubber grommets for secure surface mounting

How do I wire and install these lights on my trailer or vehicle?

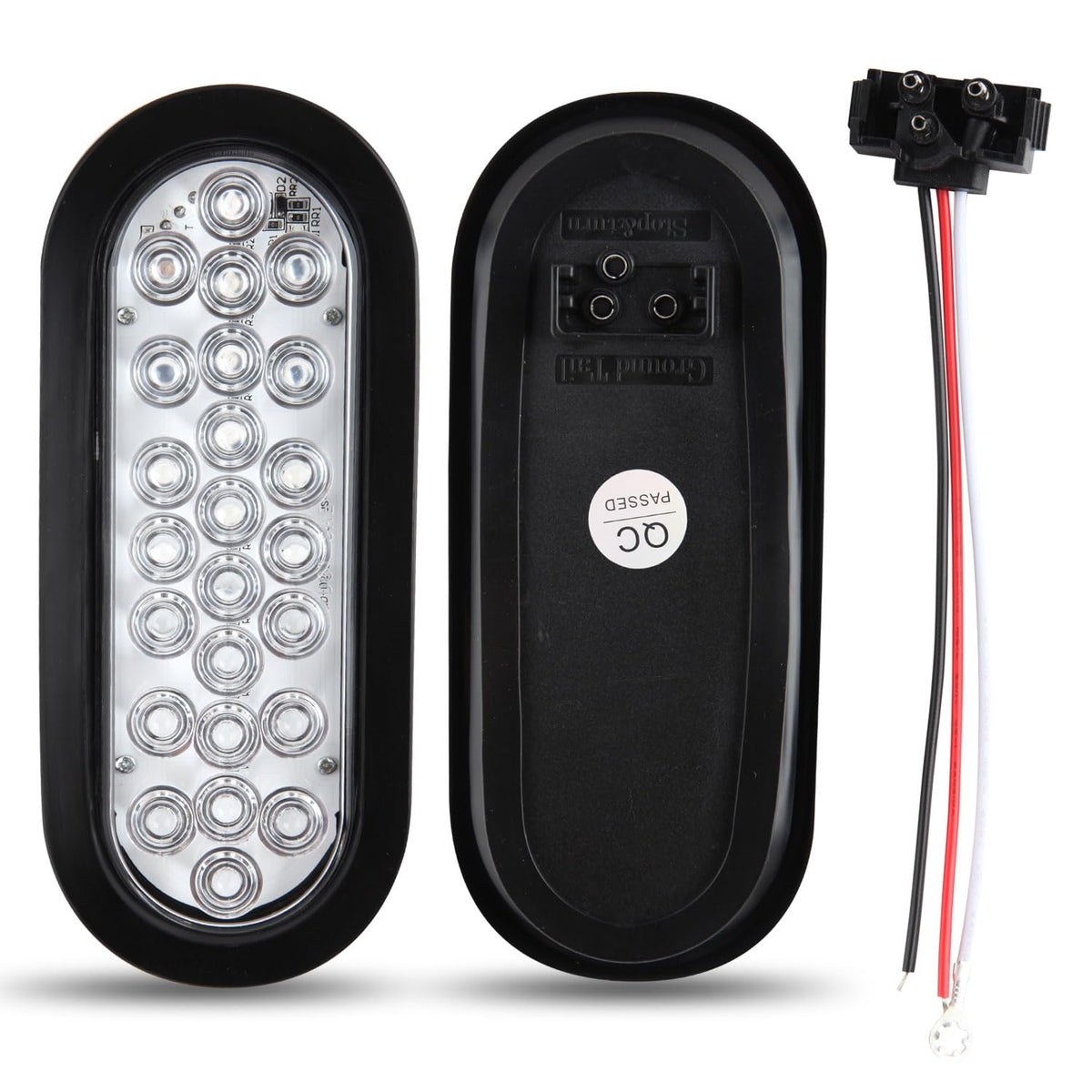

Wiring is straightforward: the three pigtail wires provide separate ground, high-brightness, and low-brightness connections. Surface mounting uses the supplied grommets and watertight 3-prong connectors; simply match each wire to your vehicle's corresponding circuit and secure the lamp in place.

• White wire = ground connection
• Red wire = high-brightness stop/turn/brake circuit
• Black wire = low-brightness tail/running circuit
• Comes with 3-prong watertight plug and grommets for a durable seal

Will these work for my truck, trailer, or boat and are they weatherproof?

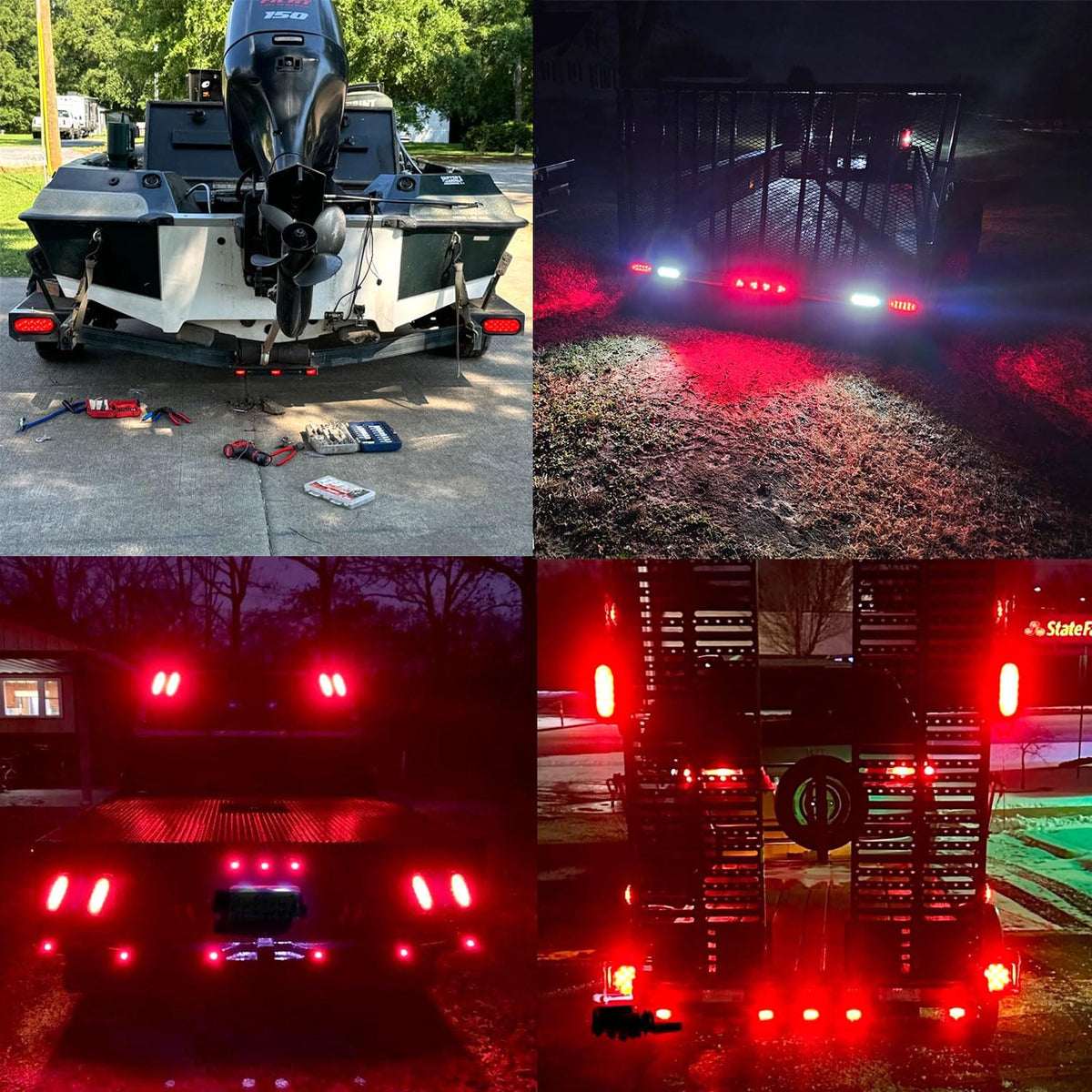

Yes — these oval LEDs are designed for wide application across trailers, trucks, RVs, buses, boats and other heavy-duty or specialty vehicles. The IP67 rating ensures protection from dust ingress and temporary water immersion, making them suitable for roadside, marine, and off-road conditions.

• Universal compatibility with 12V systems on trailers, trucks, RVs, boats
• IP67 sealing guards against dust and submersion for rugged use
• Flush or surface mounting adapts to different vehicle panels
• Durable SMD LEDs reduce maintenance compared with incandescent bulbs

Who is this for? Installers, fleet managers, and vehicle owners who need a dependable upgrade to incandescent tail lights will appreciate this Traberm 4-pack. It fits those who want brighter, lower-maintenance signaling and tail illumination for trailers, utility vehicles, RVs, trucks and boats, especially when weather resistance and simple wiring are priorities. The included grommets, 3-prong plugs, and clear dimension guidance make it suitable for DIY fitment or professional installation.
