APOWFIX Exhaust Back Pressure Tester Kit — 2.5" Gauge, 6.2 ft Stainless-Steel Hose, M12/M18 Adapters

Designed for both gasoline and diesel engines, this kit gives technicians and home mechanics a durable, portable way to verify exhaust restrictions without removing major components. The stainless braided hose resists heat and melting, while brass adapters with M12 and M18 threads fit common exhaust ports. The blow-molded case keeps everything organized, and the calibrated gauge provides clear color-coded readings to help identify blockages quickly.

How does this tester measure exhaust back pressure?

The APOWFIX kit connects to an exhaust port using brass adapters and channels pressure to the 2.5-inch analog gauge. The gauge displays real-time pressure and uses colored zones to indicate safe or concerning values. Readings can be taken at idle and at higher RPM to establish whether an obstruction exists.

• 2.5" high-definition pressure gauge with color indicator zones
• Brass M12 and M18 adapters for common vehicle fittings
• Right-angle quick-connect coupler for secure attachment

What makes the hose and fittings durable for exhaust testing?

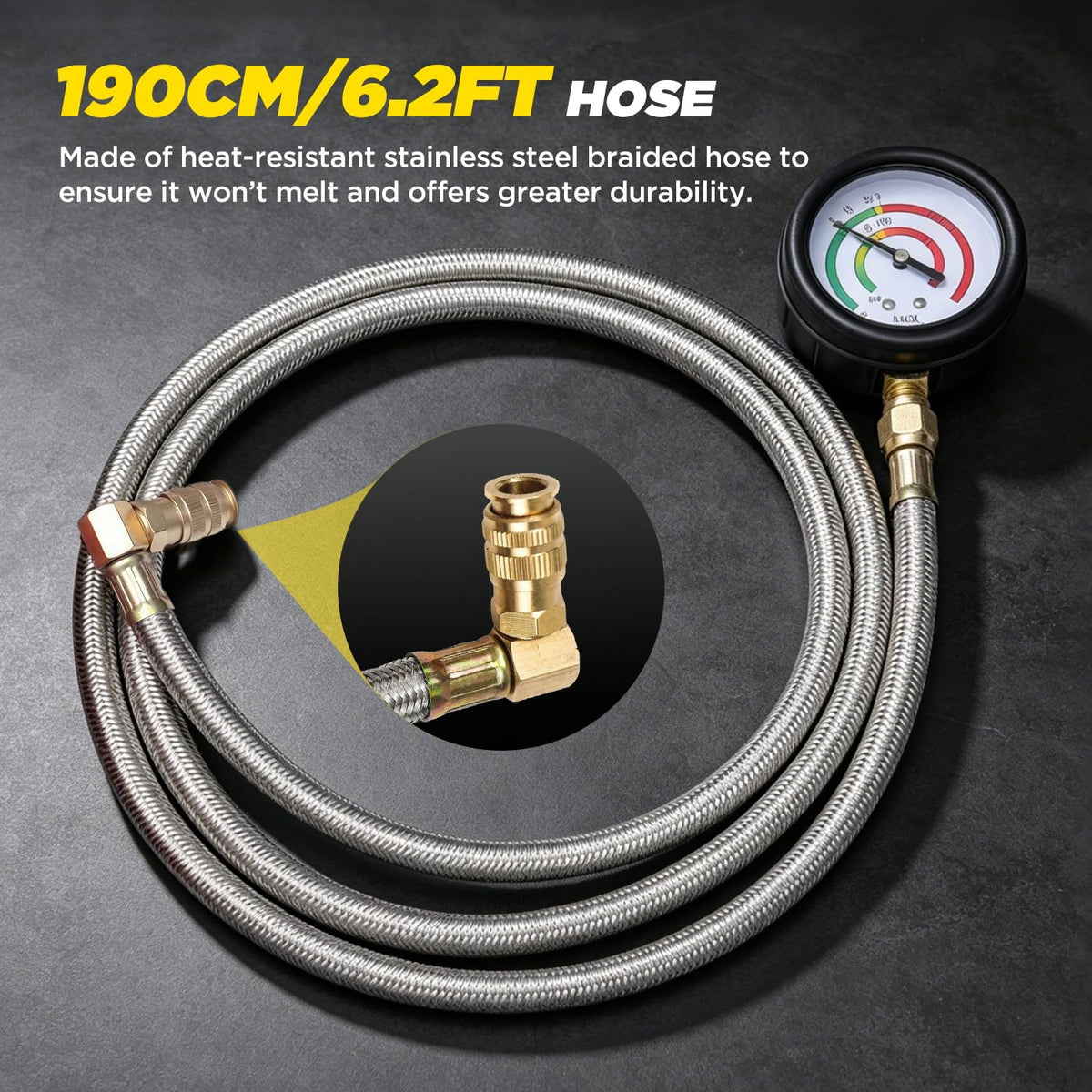

The included 6.2-foot hose is stainless-steel braided for high-temperature resistance and abrasion protection, reducing the risk of melting or failure near hot exhaust components. Corrosion-resistant brass adapters and a shock-resistant rubber cover on the gauge extend service life in workshop environments. The kit was designed for repeated professional or DIY use.

• 6.2 ft stainless-steel braided hose resists heat and wear

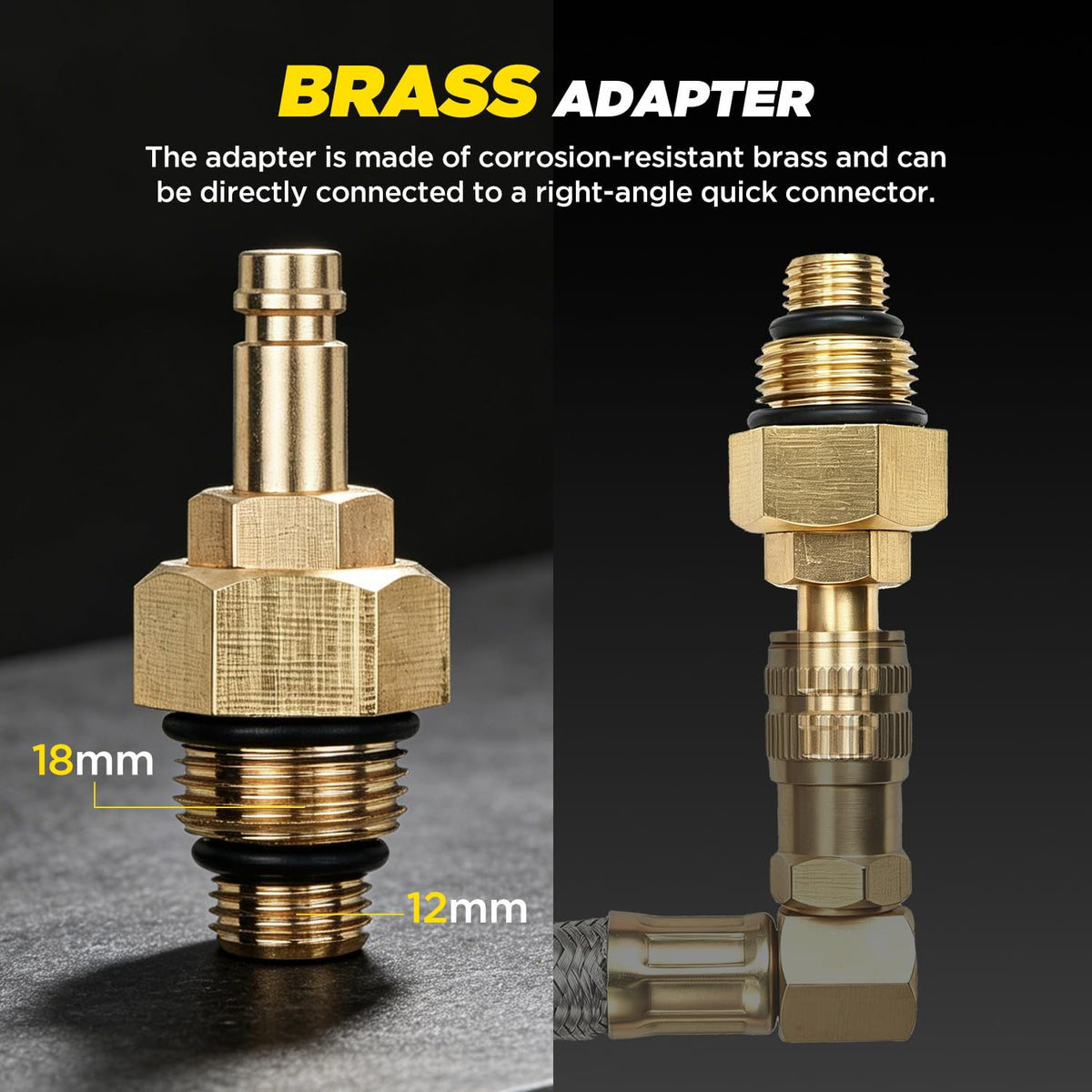

• Corrosion-resistant brass M12/M18 adapters and coupler

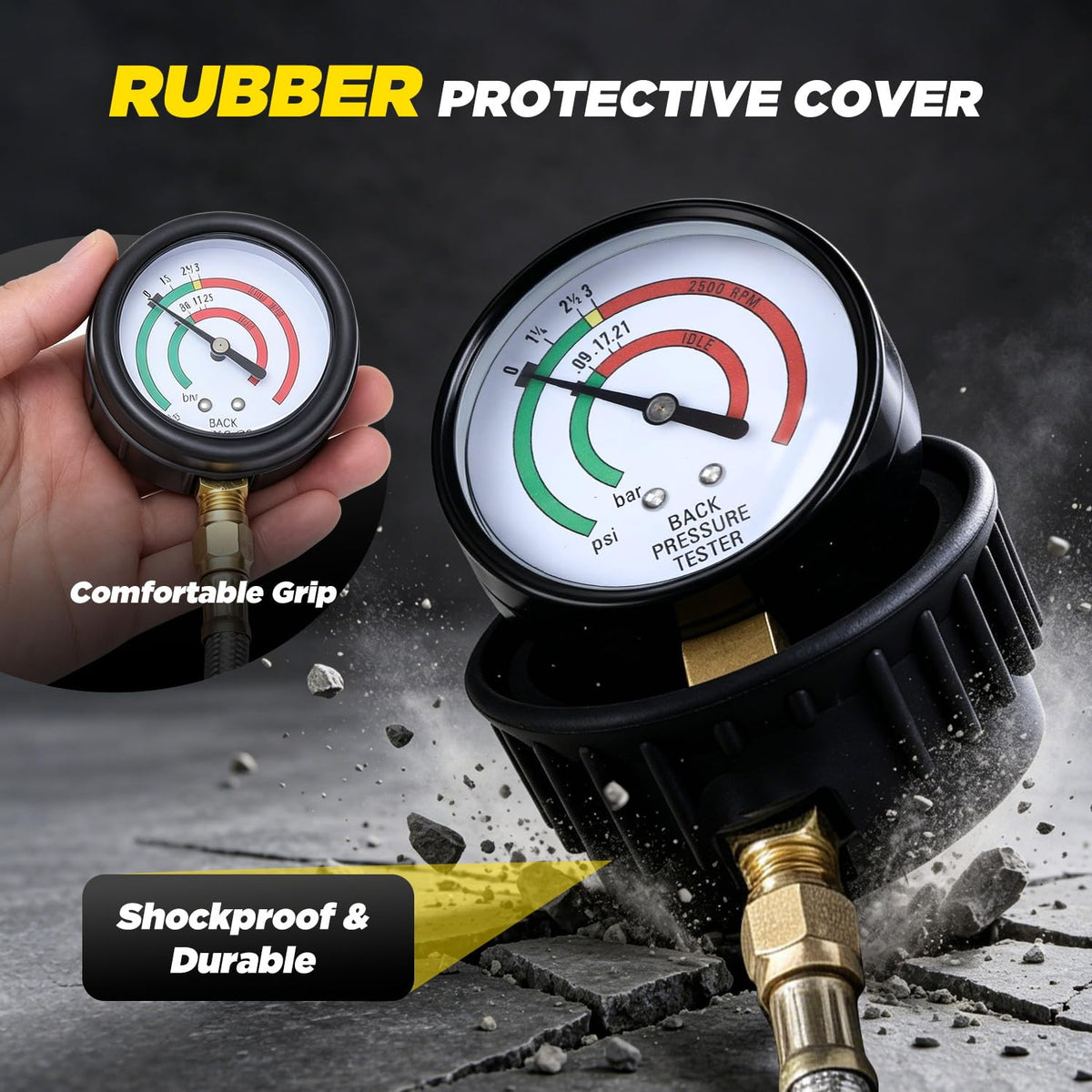

• Rubber protective cover cushions the gauge from impacts

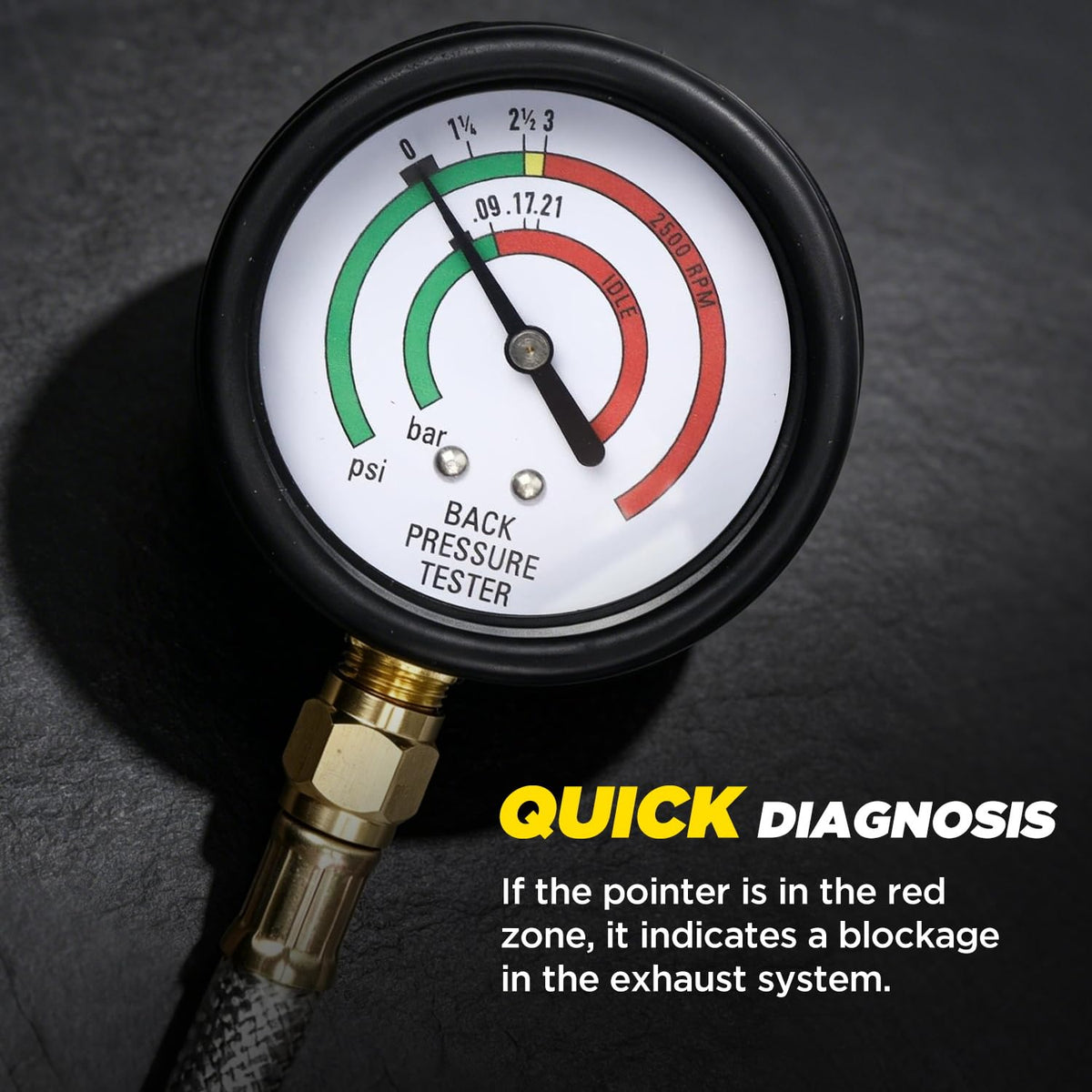

When and how should I interpret gauge readings?

The gauge provides target ranges for common diagnostic checks: idle and elevated engine speeds. As a general guideline, backpressure should be low at idle and rise within acceptable limits at higher RPM. If the pointer enters the red zone on the dial, the reading indicates a potential exhaust restriction warranting further inspection.

• Idle: expected to stay under approximately 1.25 psi
• At 2500 RPM: recommended to remain below about 3 psi
• Pointer in red zone signals possible blockage or exhaust flow issue

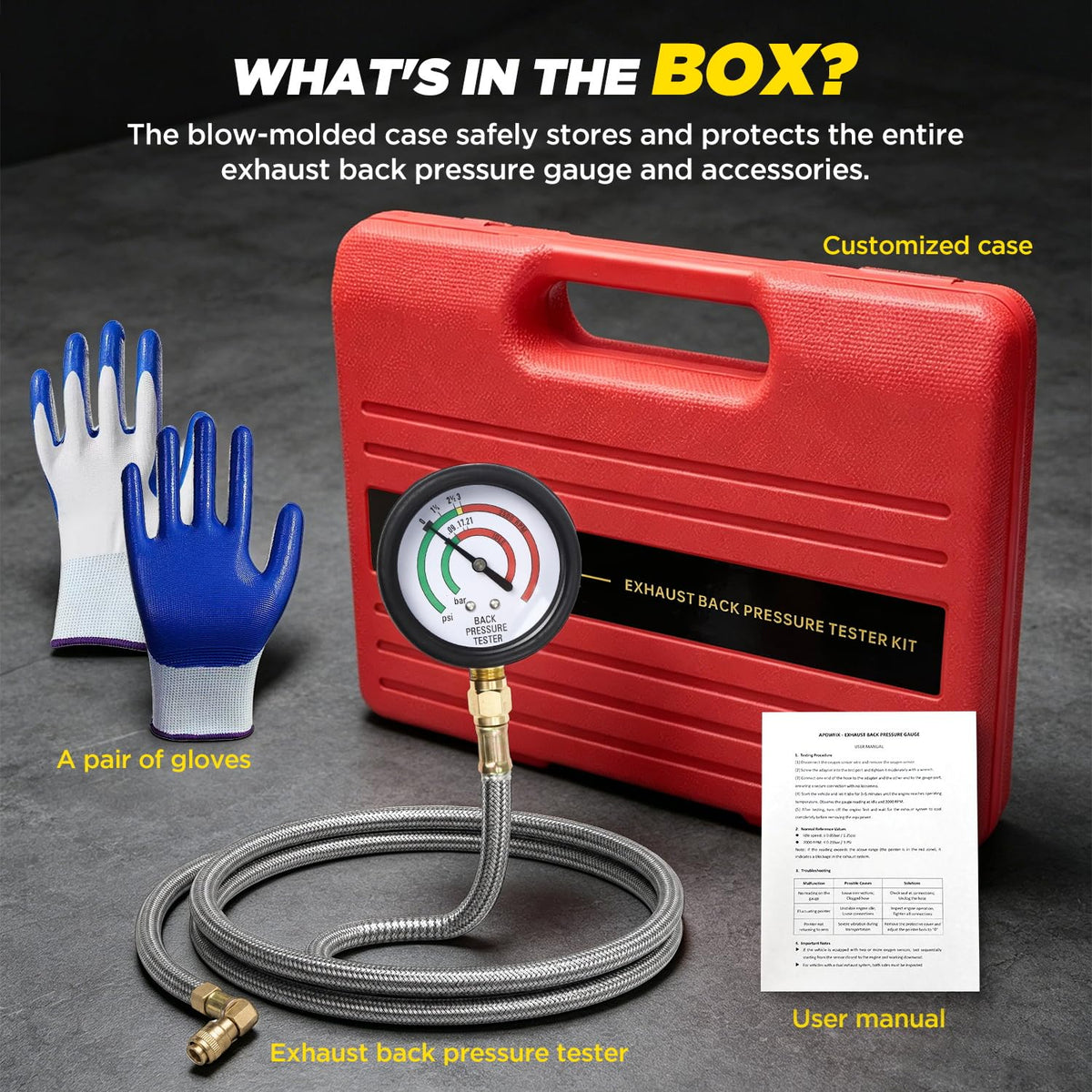

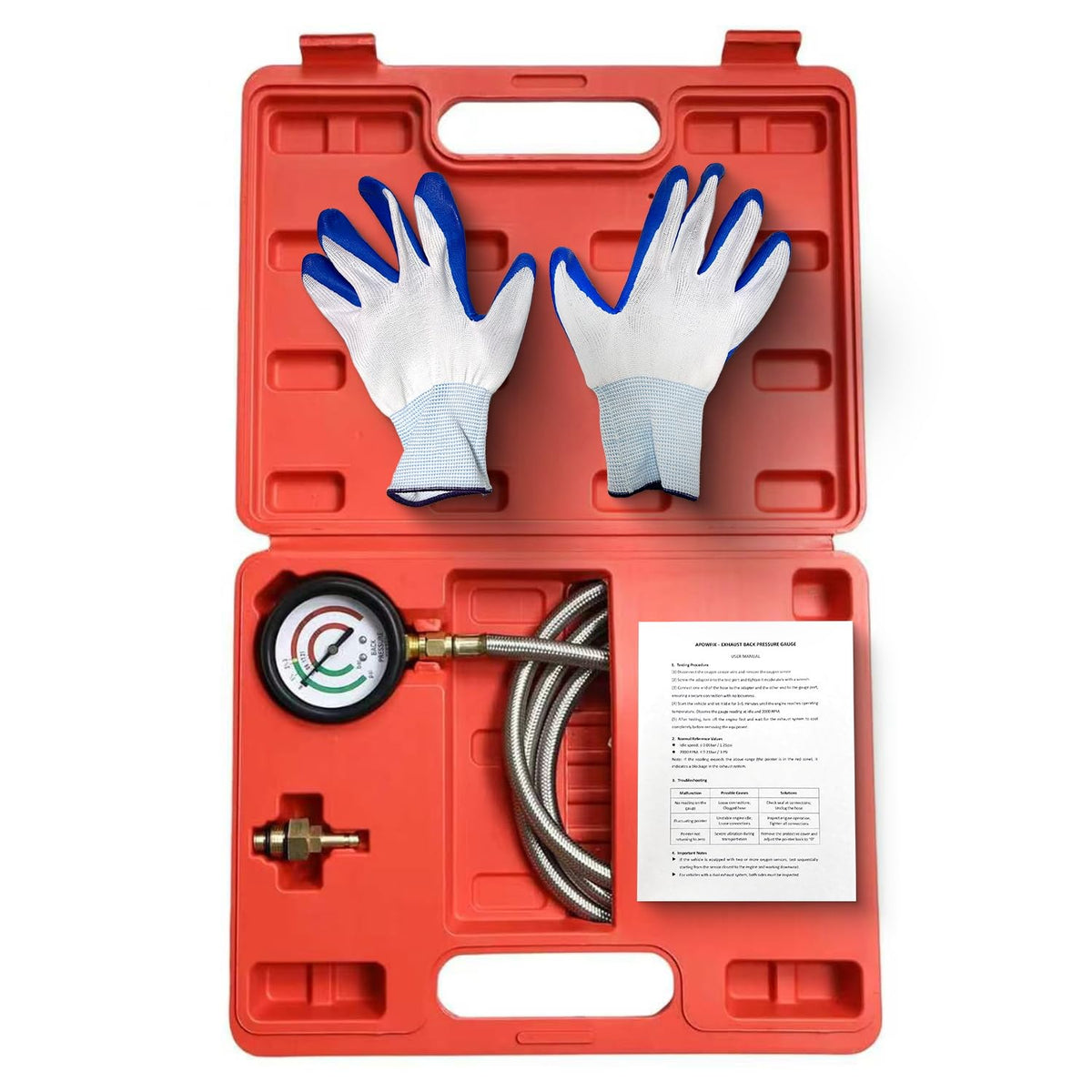

What comes in the kit and how do I store it?

The kit is packaged in a red blow-molded case sized for safe transport and organized storage. Alongside the gauge and hose, the kit includes brass adapters, a right-angle quick connect, gloves, and user instructions. Each gauge is calibrated at the factory and the manufacturer backs the product with a multi-year warranty.

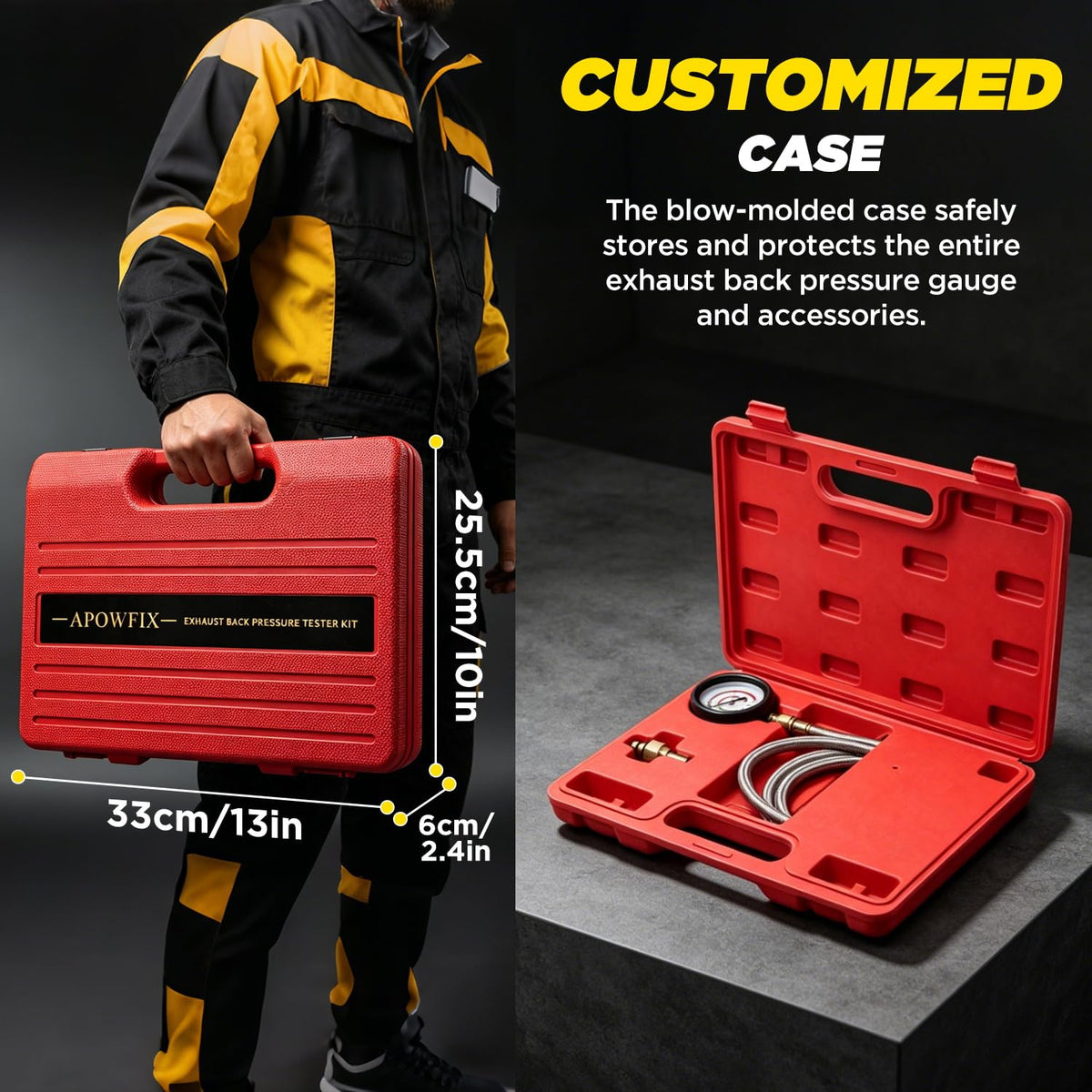

• Blow-molded storage case keeps parts secure and protected
• Includes gloves, instructions, and factory-calibrated gauge
• APOWFIX offers a 3-year warranty and replacement support

Who is this for: The APOWFIX Exhaust Back Pressure Tester Kit is suited to professional mechanics, exhaust specialists, and savvy DIYers who need a rugged, easy-to-read tool for diagnosing exhaust restrictions on gasoline or diesel vehicles. It’s particularly useful when you want to observe gauge behavior from the driver’s seat, thanks to the 6.2 ft hose that allows in-cab mounting of the gauge for live readings.
