ENGINEMAN Electric Fuel Pump Kit 12V Low-Pressure 3–6 PSI — 5/16" ID 6.56 ft Line, 30 GPH

ENGINEMAN's 12V universal electric fuel pump kit is a compact, low-pressure (3–6 PSI) pump with up to 30 GPH flow, supplied as a complete installation set for carburetors, small engines, and fuel-transfer use.

This kit combines a quiet, copper-motor pump with a durable 6.56-foot 5/16" fuel line, inline filter, hose clamps and fittings so you can replace or add a low-pressure pump quickly. Designed for 12-volt systems and compatible with gasoline and diesel (not alcohol-based fuels), the unit is suited to boost, standby or primary duty on lawn mowers, ATVs, generators, boats and many light vehicle applications. The package emphasizes easy installation, corrosion-resistant materials and stable low-pressure delivery for carburetor-style fuel systems.

How does this pump fit into my lawn mower or small-engine project?

The pump is built for low-pressure carbureted systems and small engines that require 3–6 PSI, making it a direct match for many lawn mowers, generators, ATVs and replacement jobs. Its two-bolt mount and compact housing let you position it close to the fuel tank or engine where space is limited.

• Supplied 5/16" ID fuel line (6.56 ft) for flexible routing.
• Mounting screws, hose clamps and wire connectors included for a one-box install.
• Built-in check valve to prevent fuel backflow when the pump stops.

What performance can I expect from a 3–6 PSI, 30 GPH pump?

Expect a steady, low-pressure output suitable for gravity-fed or carbureted fuel systems rather than high-pressure EFI systems. The pump's up to 30 gallons-per-hour flow supports continuous fuel delivery for small engines and can function as a booster or auxiliary pump when needed.

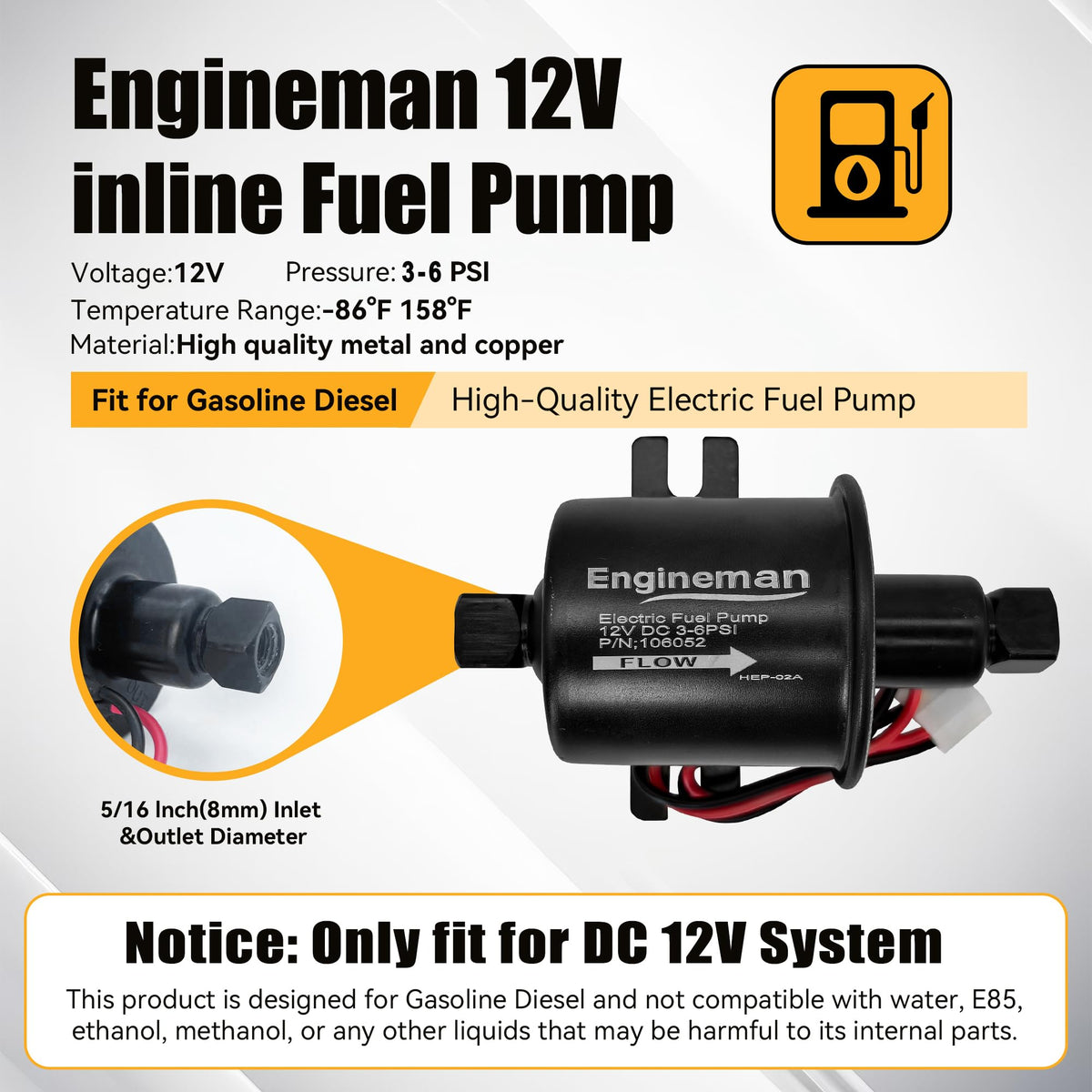

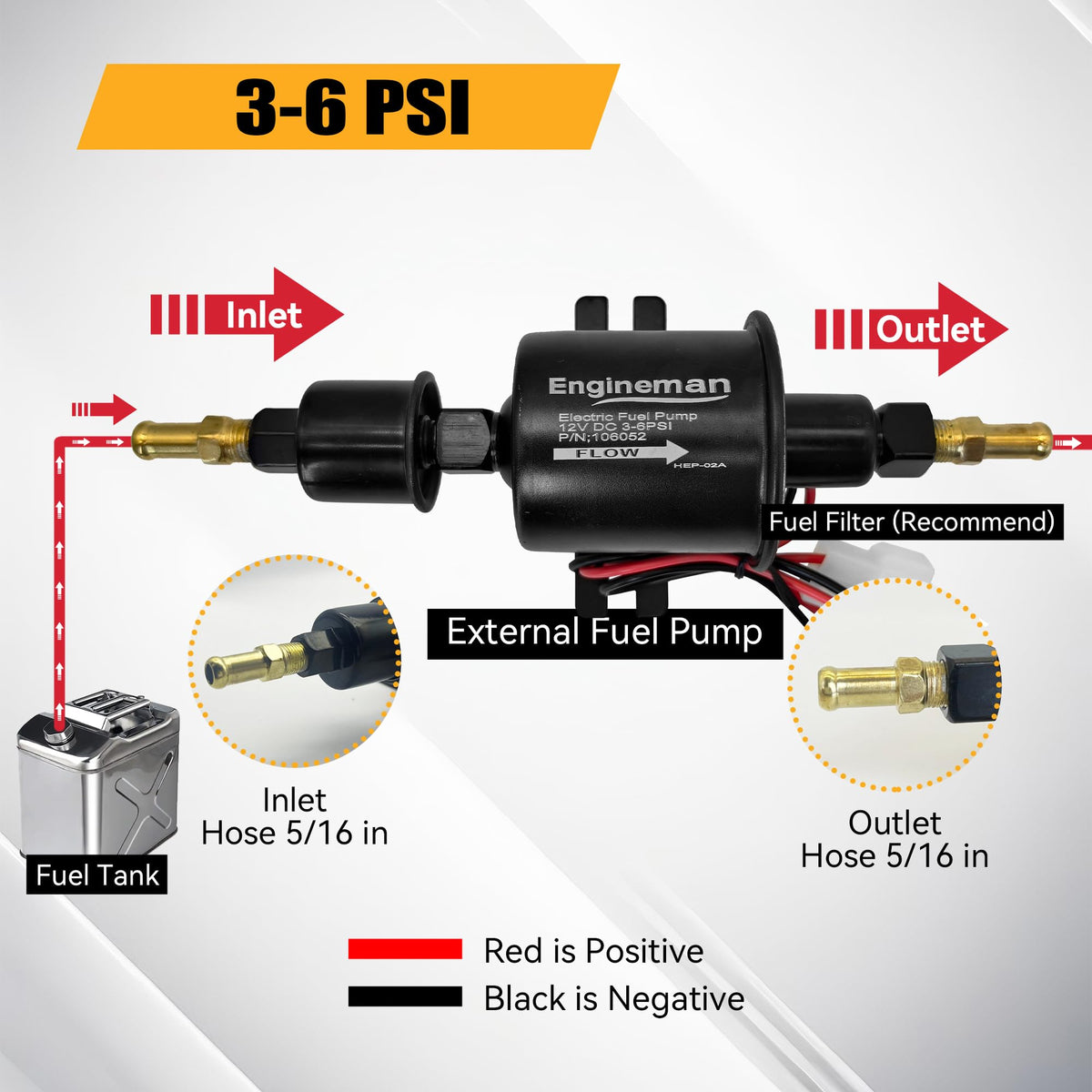

• Output pressure rated 3–6 PSI for carburetor fuel delivery.
• Flow capacity up to 30 GPH for reliable fueling under load.
• Strong suction and check valve minimize vapor lock and backflow risk.

Is installation difficult and what parts come in the kit?

Installation is straightforward for DIYers comfortable with basic electrical and fuel-line work. The kit includes the pump plus the hoses, clamps and electrical parts necessary to mount and wire the unit, reducing trips to the hardware store.

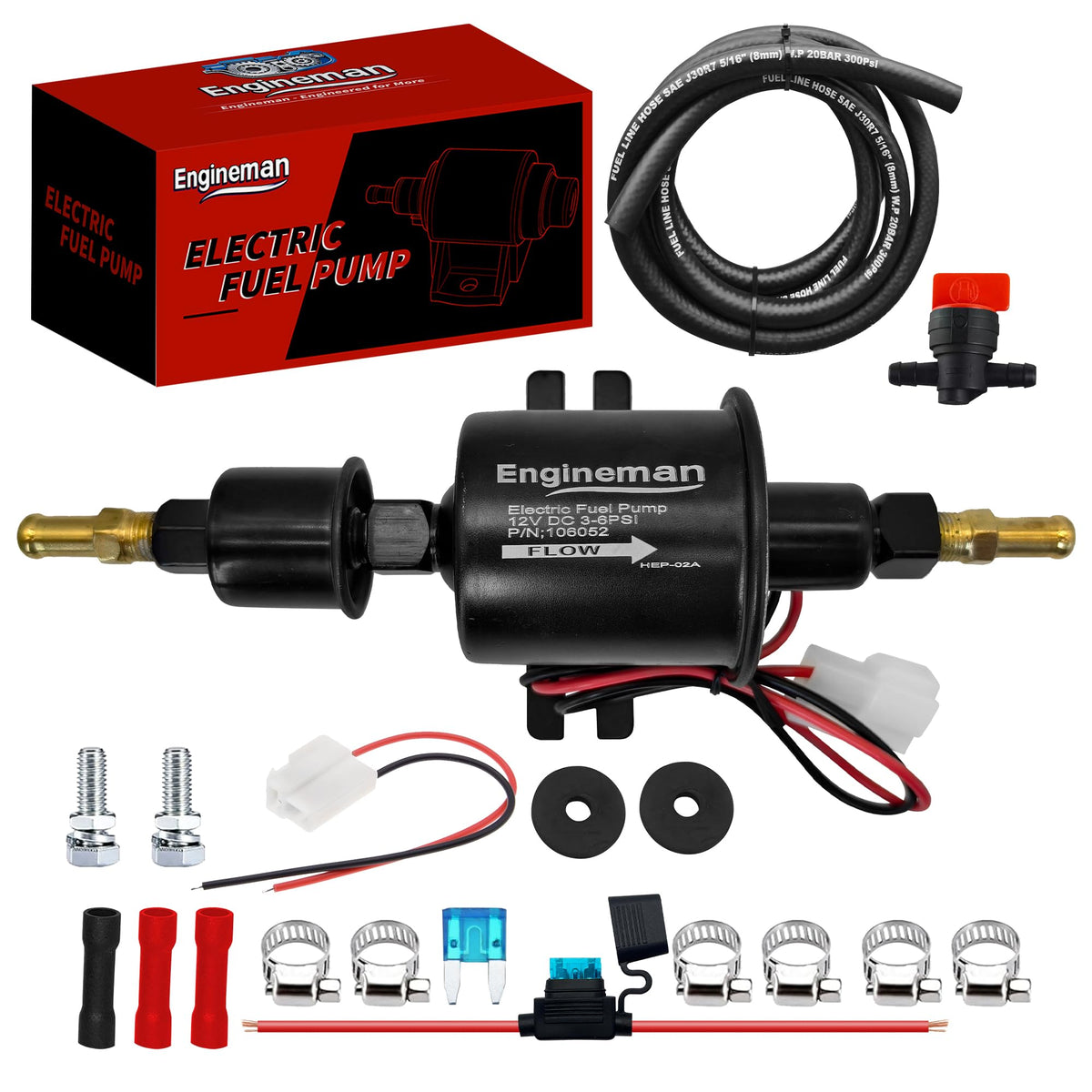

• 1 x 12V electric pump, 1 x 2 m (6.56 ft) 5/16" fuel line, 1 x fuel filter.
• 6 hose clamps, 2 mounting screws and nuts, 3 wire connectors and a socket wire.
• 15A inline fuse and 2 shut-off valves for safety and control.

How durable and safe is the pump for outdoor or seasonal use?

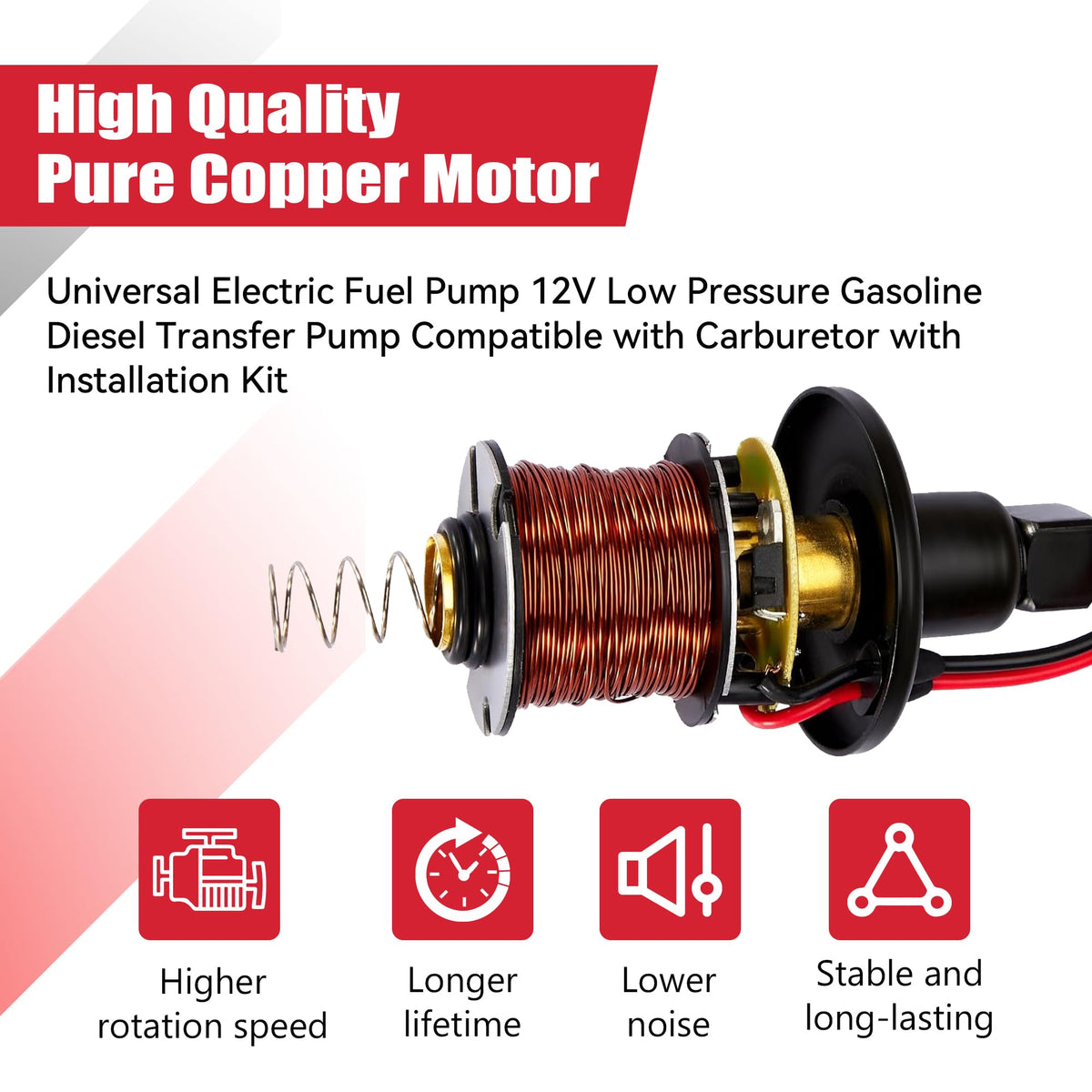

Components are selected for longevity: a copper motor for reliability, an upgraded check valve for quieter operation, and a fuel line rated for wide temperature ranges. Use the supplied inline filter and fuse to reduce wear and protect the pump from contaminants and electrical faults.

• Fuel line resists oil, ethanol and cold temperatures (-86°F to 158°F rated).
• Built-in check valve reduces backflow and noise during operation.
• Copper motor construction and included fuse improve durability and safety.

Who is this for: The ENGINEMAN 12V electric fuel pump kit is ideal for DIY mechanics, contractors and hobbyists installing or replacing low-pressure pumps on carbureted lawn equipment, generators, ATVs, UTVs, boats and light vehicles that run on gasoline or diesel. Choose it if you need a ready-to-install kit with a long fuel hose, filter and hardware for a quick, reliable upgrade or backup pump in small-engine and off-road applications.
