EVIL ENERGY 10AN Hose End Fitting 90 Degree Swivel Low

EVIL ENERGY 10AN 90° swivel hose end fitting is a low-profile, forged 6061-T6 aluminum connector designed for stainless steel and nylon braided lines, delivering compact routing and up to 1,500 PSI working pressure.

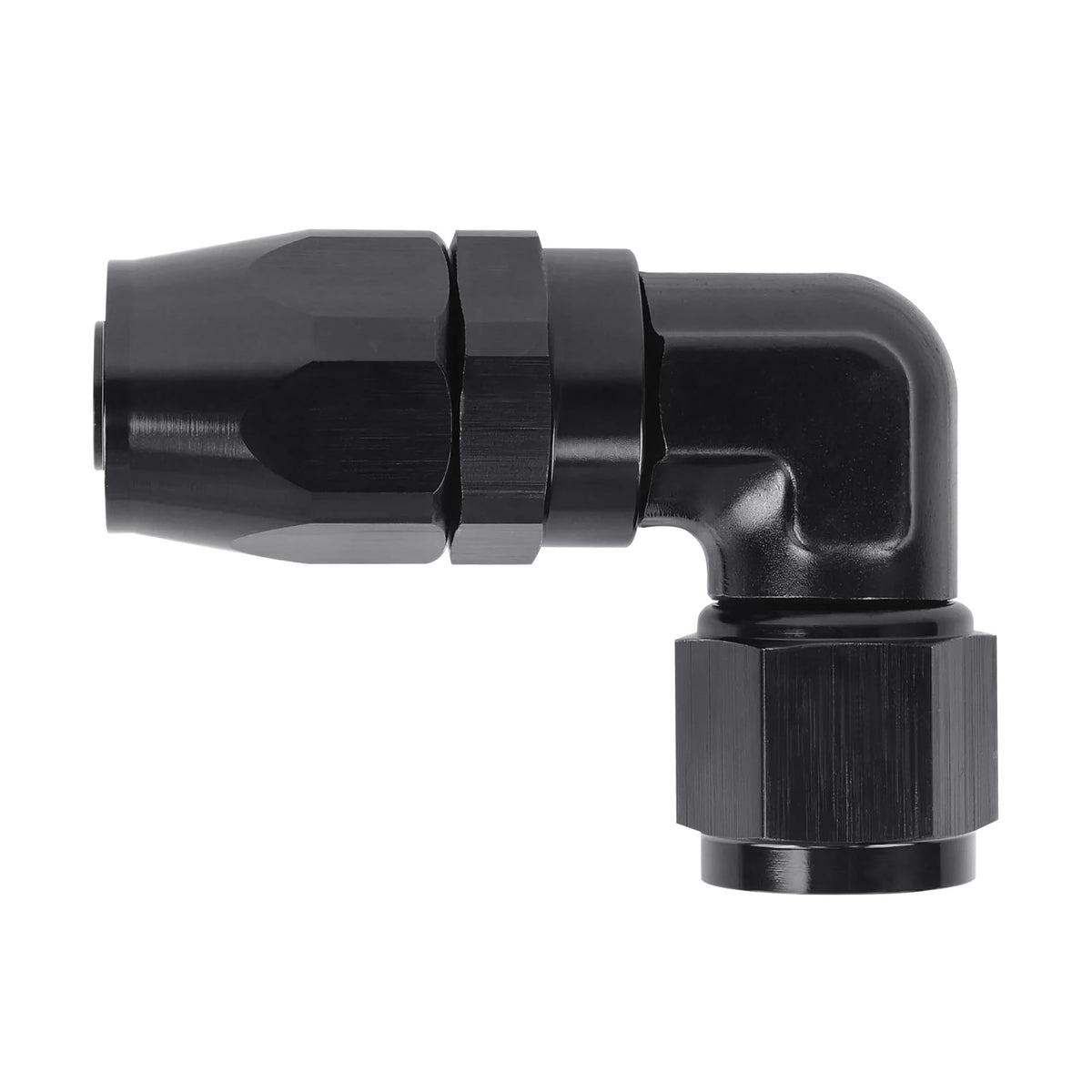

This 10AN hose end by EVIL ENERGY gives you a compact 90-degree swivel fitting engineered for tight routing, durable service, and reliable sealing. The threaded flare seals at a 37-degree angle and the fitting is forged from 6061-T6 aluminum for strength and corrosion resistance. It’s optimized for CPE braided hoses where space is limited—particularly in motorsports, custom plumbing, or performance engine installs.

How does the 90-degree swivel help in cramped installations?

The swivel head enables the hose to rotate independently from the threaded connection, reducing stress on the hose and simplifying alignment in tight spots. Its low-profile body minimizes protrusion so the hose can clear other components.

• Swivels independently for easier hose orientation and leak-free alignment
• Low-profile shape reduces contact with surrounding parts
• Forged joint improves durability where space restricts movement

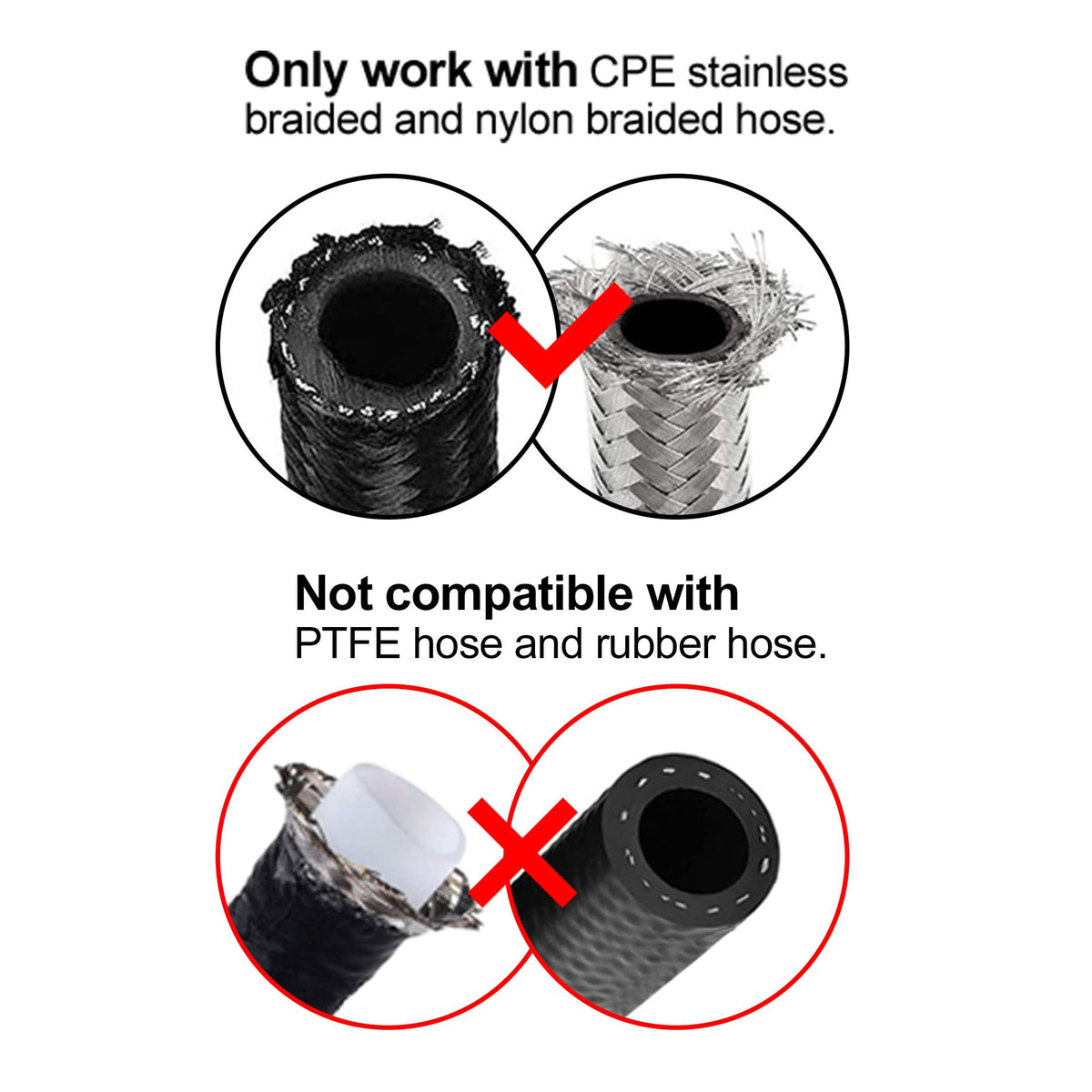

What hoses and systems is this fitting compatible with?

This 10AN fitting is designed specifically for stainless steel braided and nylon braided hoses that accept AN-style fittings. It uses a 7/8-14 UNF thread with a 37-degree flare seating angle, so it mates with standard AN/flare-compatible ports and adapters.

• Compatible with stainless steel braided hoses used in fuel, oil, and coolant lines
• Works with nylon braided lines that accept AN fittings
• Not intended for push-fit or hose barb systems without the proper adapters

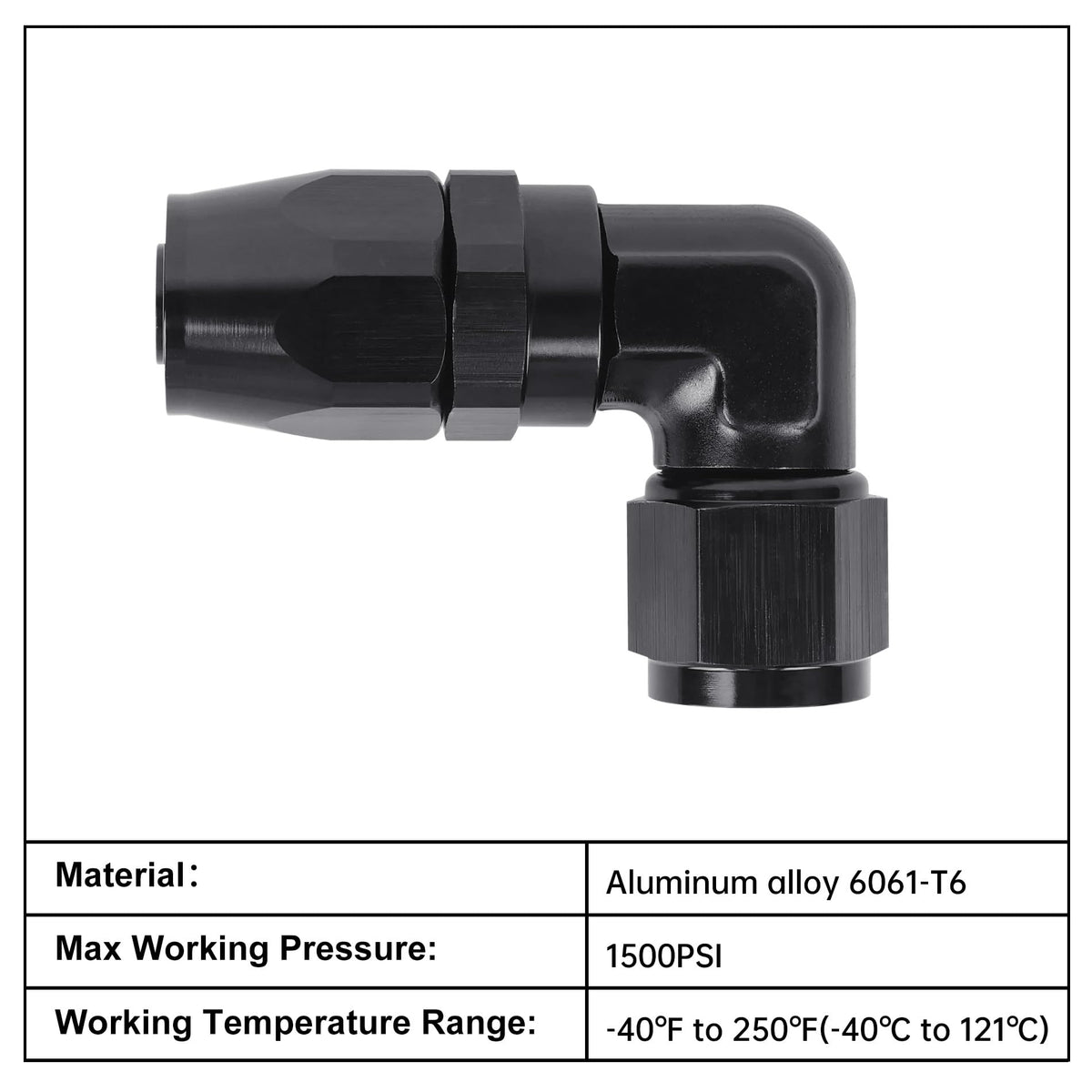

What are the material, pressure, and temperature specifications?

The fitting is forged from 6061-T6 aluminum for high strength-to-weight ratio and corrosion resistance. It’s rated to a maximum working pressure of 1,500 PSI and performs across a broad temperature range from -40°F to 250°F (-40°C to 121°C).

• Material: 6061-T6 forged aluminum for increased fatigue resistance
• Maximum working pressure: 1,500 PSI for many performance applications
• Operating temperature range: -40°F to 250°F (-40°C to 121°C)

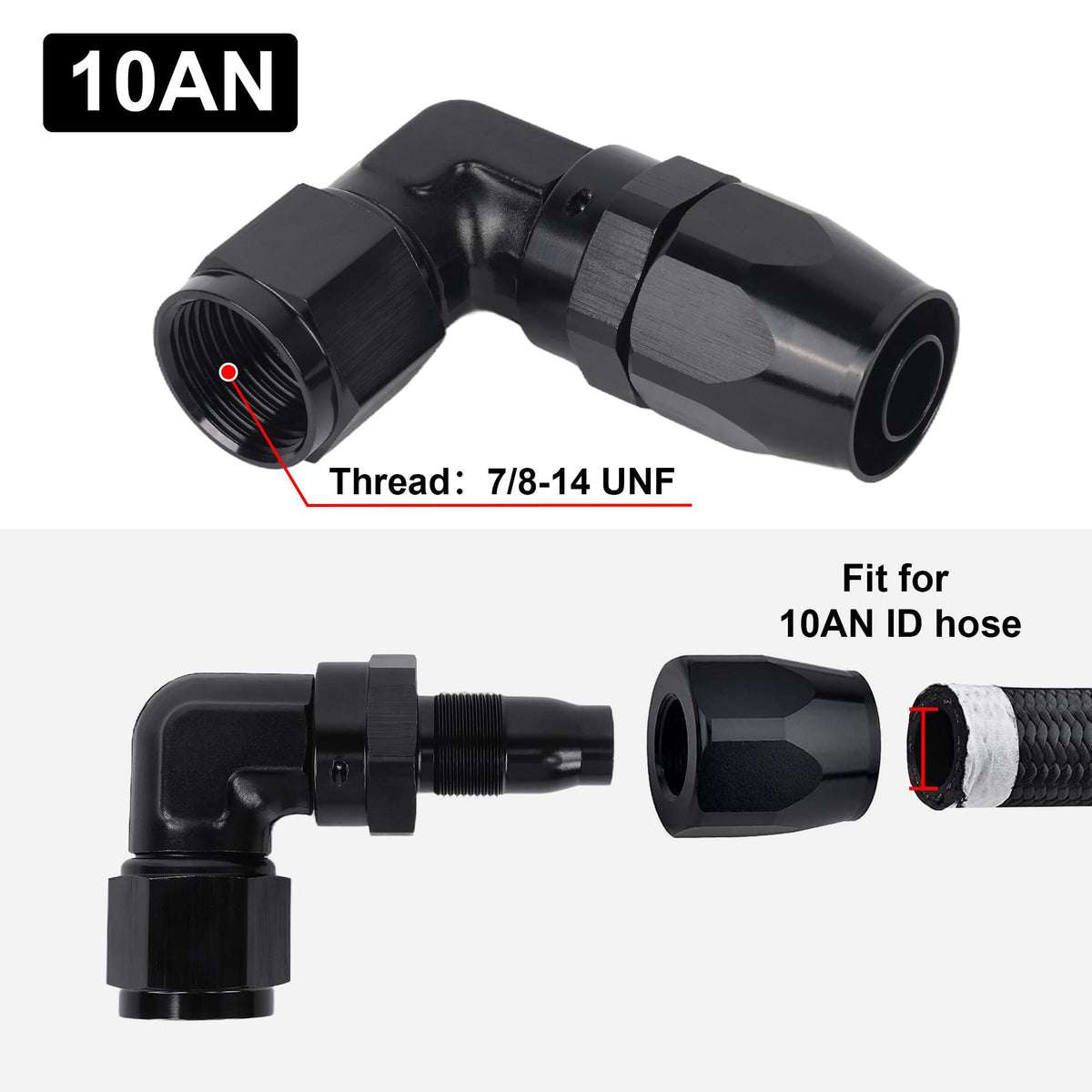

How does the 37-degree threaded seal affect installation?

The 7/8-14 UNF threaded end seals on a 37-degree flare, which provides a metal-to-metal seat that’s commonly used in AN-style fittings. Proper torque and the correct mating flare surface are essential to ensure a leak-free joint.

• Thread size: 7/8-14 UNF with 37-degree flare seating
• Requires compatible 37-degree flare ports or sealing adapters
• Use proper torque and inspect mating surfaces for reliable sealing

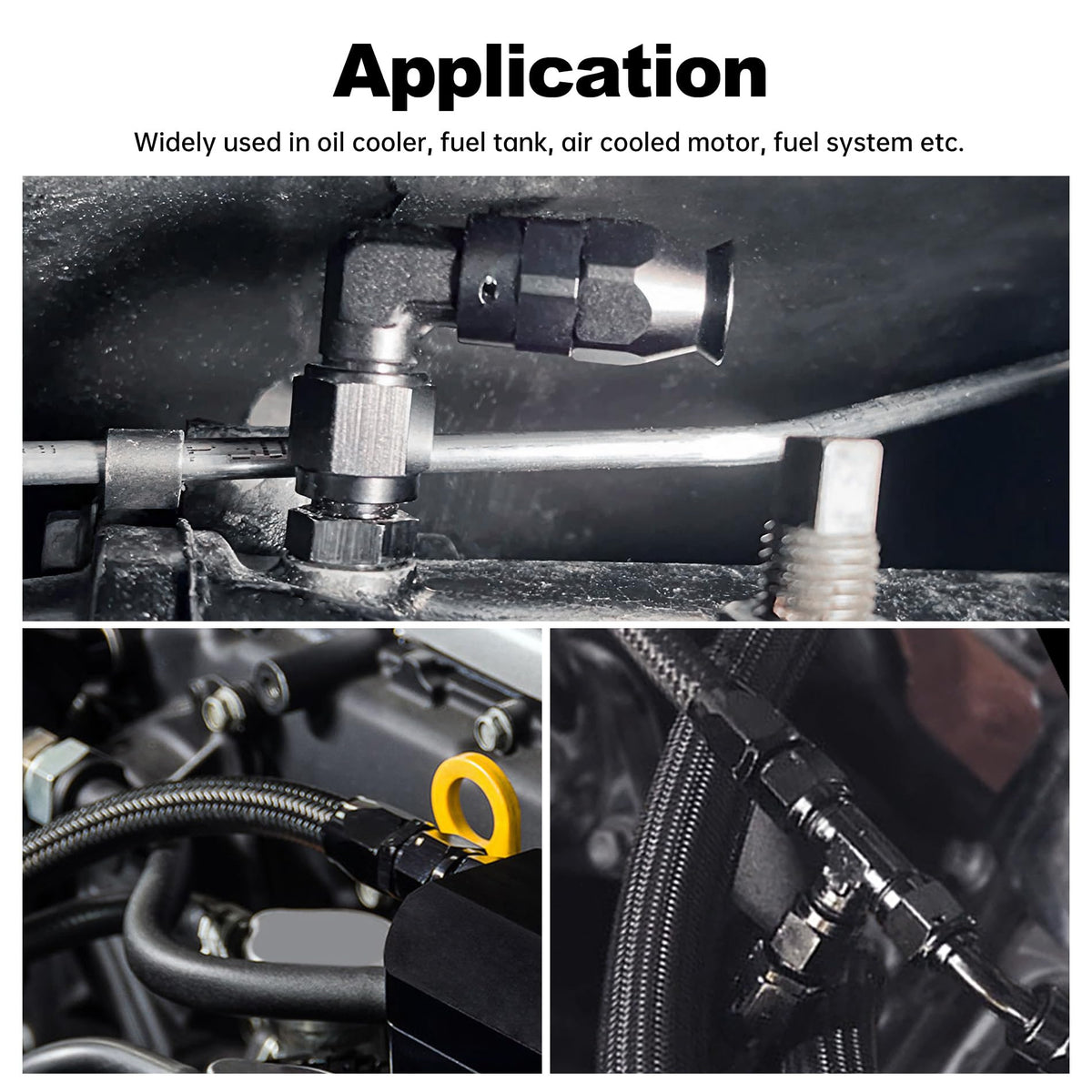

Who is this for: EVIL ENERGY’s 10AN 90° swivel low-profile fitting is ideal for performance mechanics, race teams, and DIY fabricators who need a compact, robust connector for braided hoses in tight engine bays or custom plumbing routes. If you build or maintain vehicles, racecars, or custom equipment that uses AN-style braided lines and demands reliable sealing at elevated pressures and temperatures, this forged aluminum swivel fitting is engineered to make hose routing cleaner and connections stronger.
