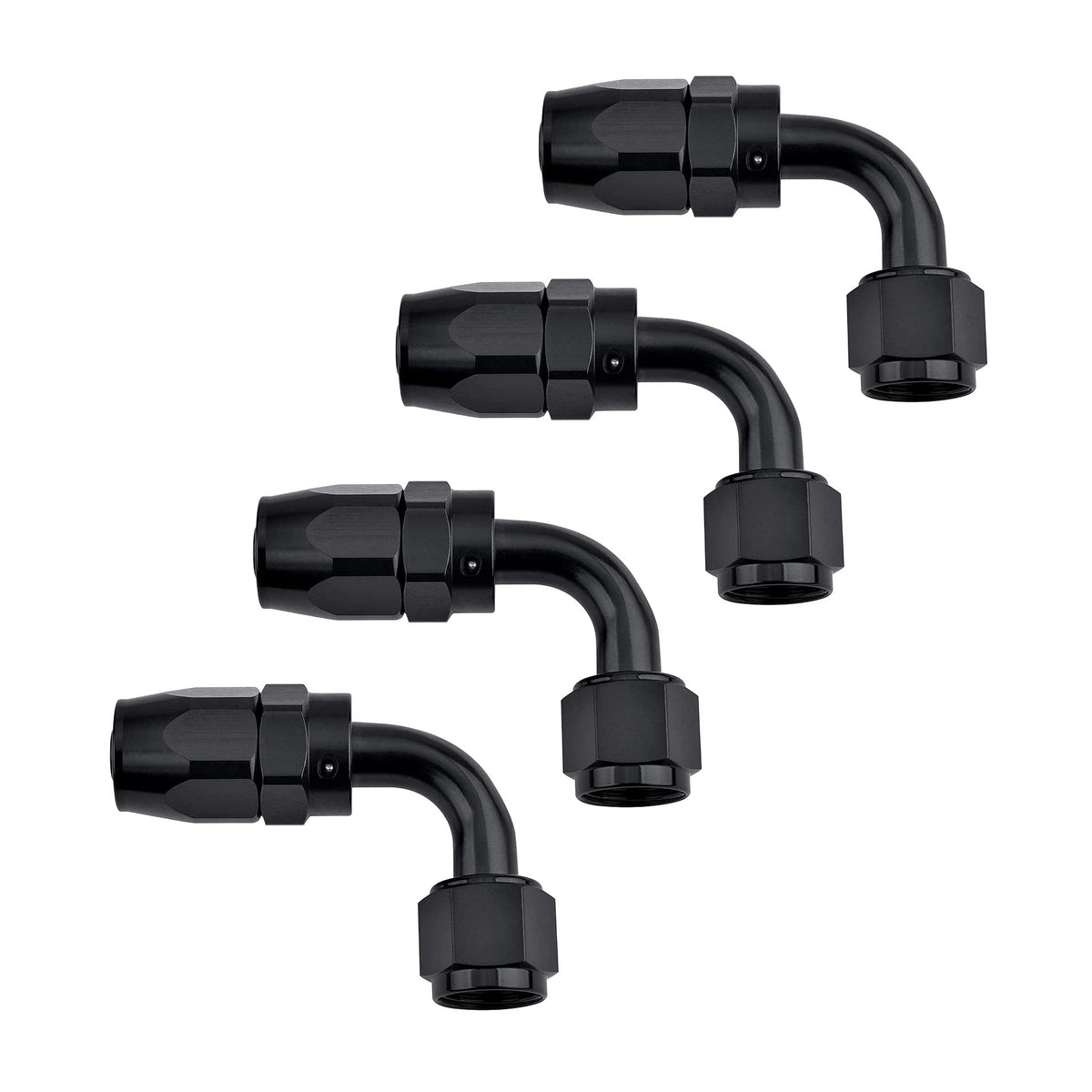

EVIL ENERGY 8AN 90° Swivel Hose End Fitting Black 4‑Pack, 6061‑T6 Aluminum & 360° Swivel

EVIL ENERGY 8AN 90° swivel hose end fitting is a 4-piece, 6061-T6 aluminum, 3/4-16 UNF threaded coupling designed for stainless steel and nylon braided hoses, offering a 360° swivel, 37° AN seal, and up to 1,500 PSI working pressure.

This compact hardware kit gives you robust, reusable hose ends suited for fuel, oil, coolant, or custom fluid-routing installations where space, durability, and leak resistance matter. Machined from 6061-T6 aluminum and using the standard 37° AN sealing angle, these fittings connect to 8AN (3/4-16 UNF) lines and swivel to simplify alignment during assembly. The black finish and right-angle geometry help route hoses neatly in tight engine bays or equipment racks while resisting corrosion and repeated use.

How does the 90-degree swivel simplify hose routing?

The 90° swivel lets you orient the hose end without twisting the hose body, reducing strain and simplifying tight installations. The 360° swivel action makes final alignment easy after tightening the threaded connection.

• 90° profile redirects hoses in compact spaces.
• 360° swivel allows final alignment after assembly.
• Reduces hose twisting and mechanical stress on connections.
• Smooth swivel action for repeatable installations.

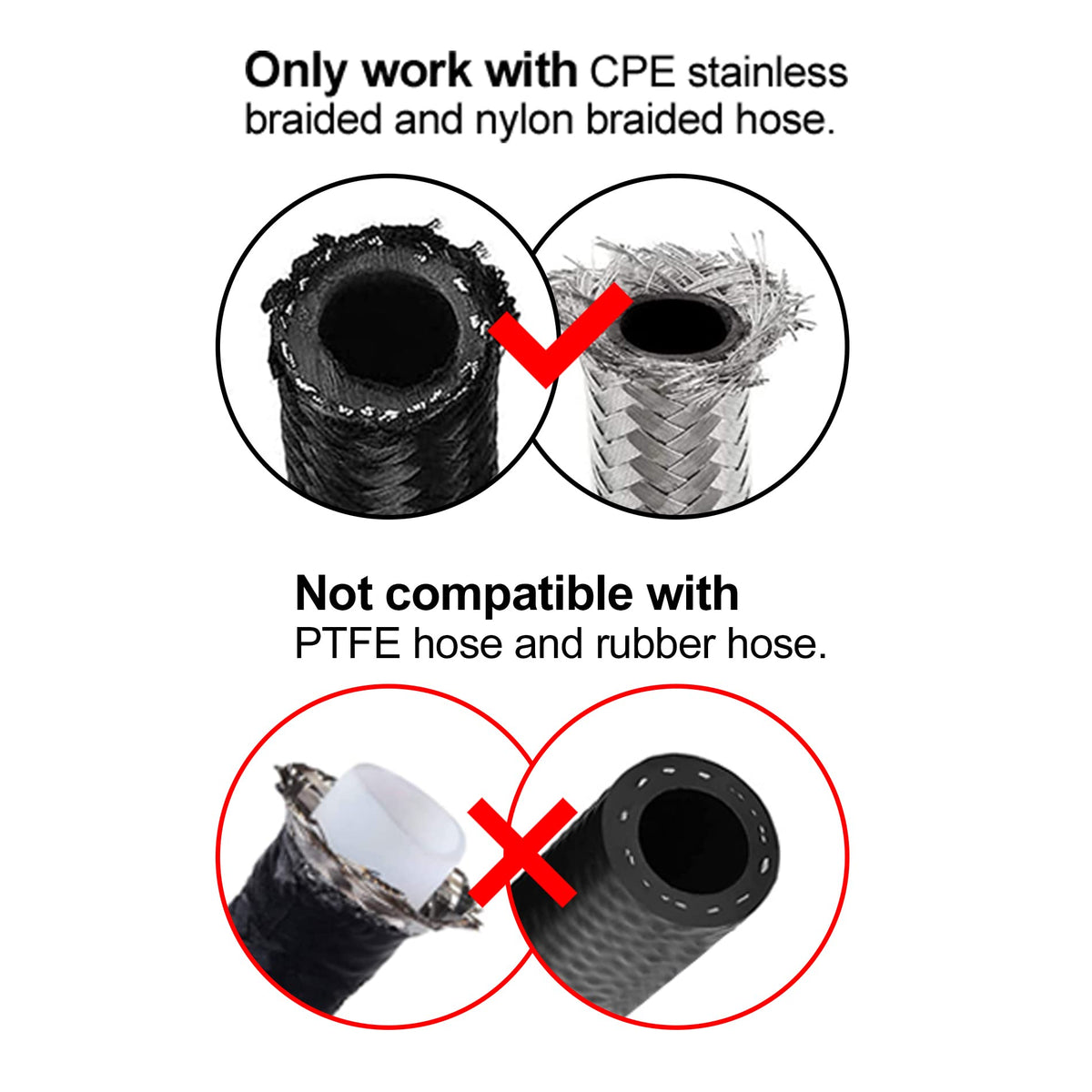

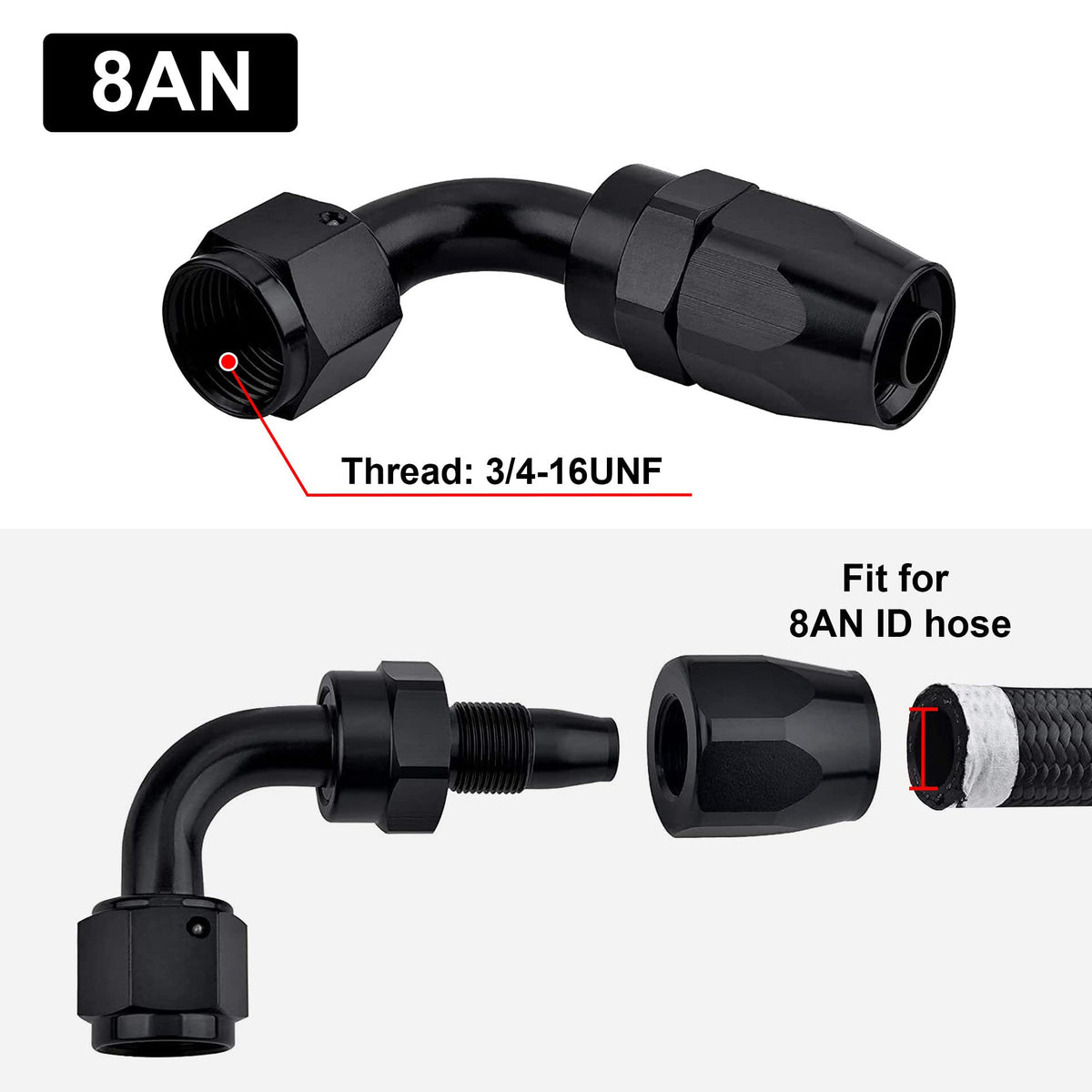

What hoses and thread sizes are compatible with this fitting?

These fittings are designed specifically for stainless steel braided and nylon braided hoses with an 8AN inner diameter. The thread side is a 3/4-16 UNF male thread and seals via the standard 37° AN seat—make sure your mating components use the same AN specification for leak-free service.

• AN side: 8AN with a 37° sealing angle.
• Thread side: 3/4-16 UNF male thread.
• Works only with stainless or nylon braided hoses built for 8AN fittings.
• Not intended for incompatible hose styles or non-AN seats.

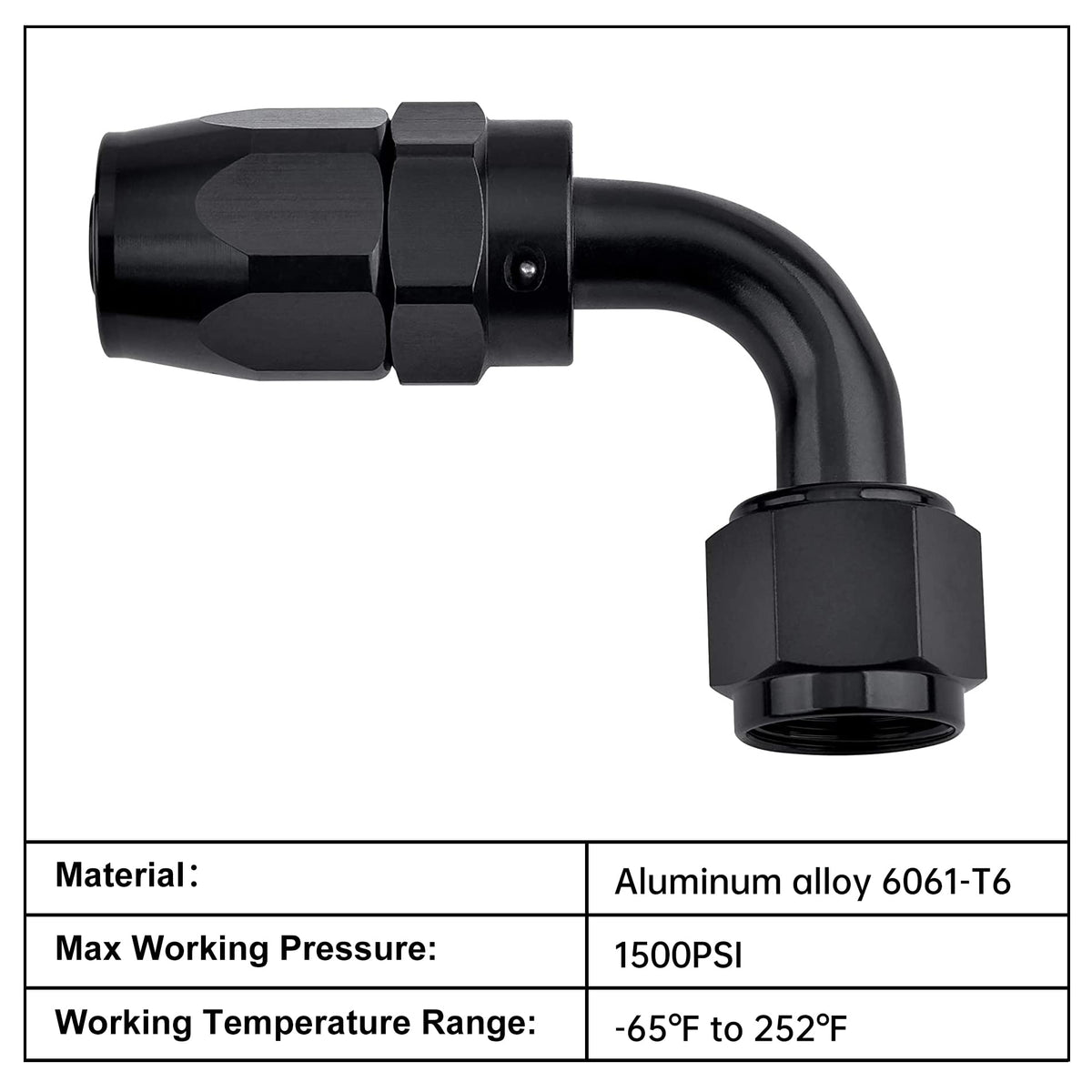

How durable is the material and what are the operating limits?

The fittings are machined from 6061-T6 aluminum, a common aerospace-grade alloy that balances strength and weight. They are rated to a maximum working pressure of 1,500 PSI and function across a broad temperature range, suitable for many automotive and industrial fluids within the specified limits.

• Material: 6061-T6 aluminum alloy for strength and light weight.
• Maximum working pressure: 1,500 PSI.
• Operating temperature range: -65°F to 252°F (-53°C to 122°C).
• Reusable design for maintenance and rebuilds.

Can these fittings be reused and how do you maintain them?

Yes — EVIL ENERGY designed these 8AN swivel fittings to be reusable for multiple assemblies or repairs. Inspect sealing surfaces for nicks or debris, lubricate threads lightly with compatible lubricant, and tighten to proper torque for reliable resealing.

• Recyclable and reusable aluminum construction.
• Inspect the 37° AN seat for damage before reuse.
• Clean threads and use proper torque to prevent leaks.
• Avoid incompatible chemicals outside the rated temperature/pressure range.

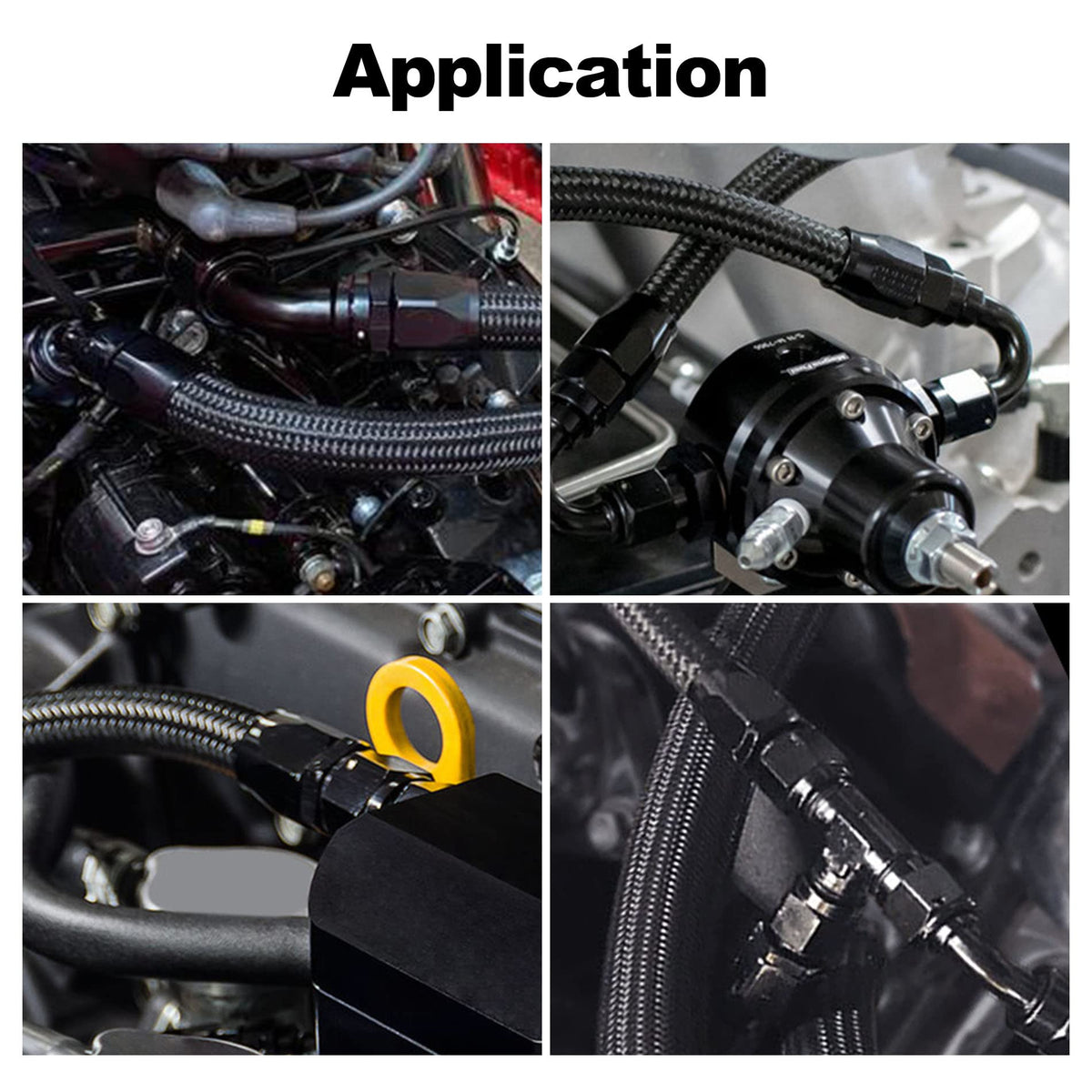

Who is this for: This 4-pack of EVIL ENERGY 8AN 90° hose end fittings is aimed at performance shops, home mechanics, fabricators, and equipment builders who need compact, reliable fittings for braided hoses. If you work on engines, racecars, custom plumbing in industrial equipment, or any project requiring dependable AN connections and space-saving hose routing, these fittings provide a practical, serviceable option.
