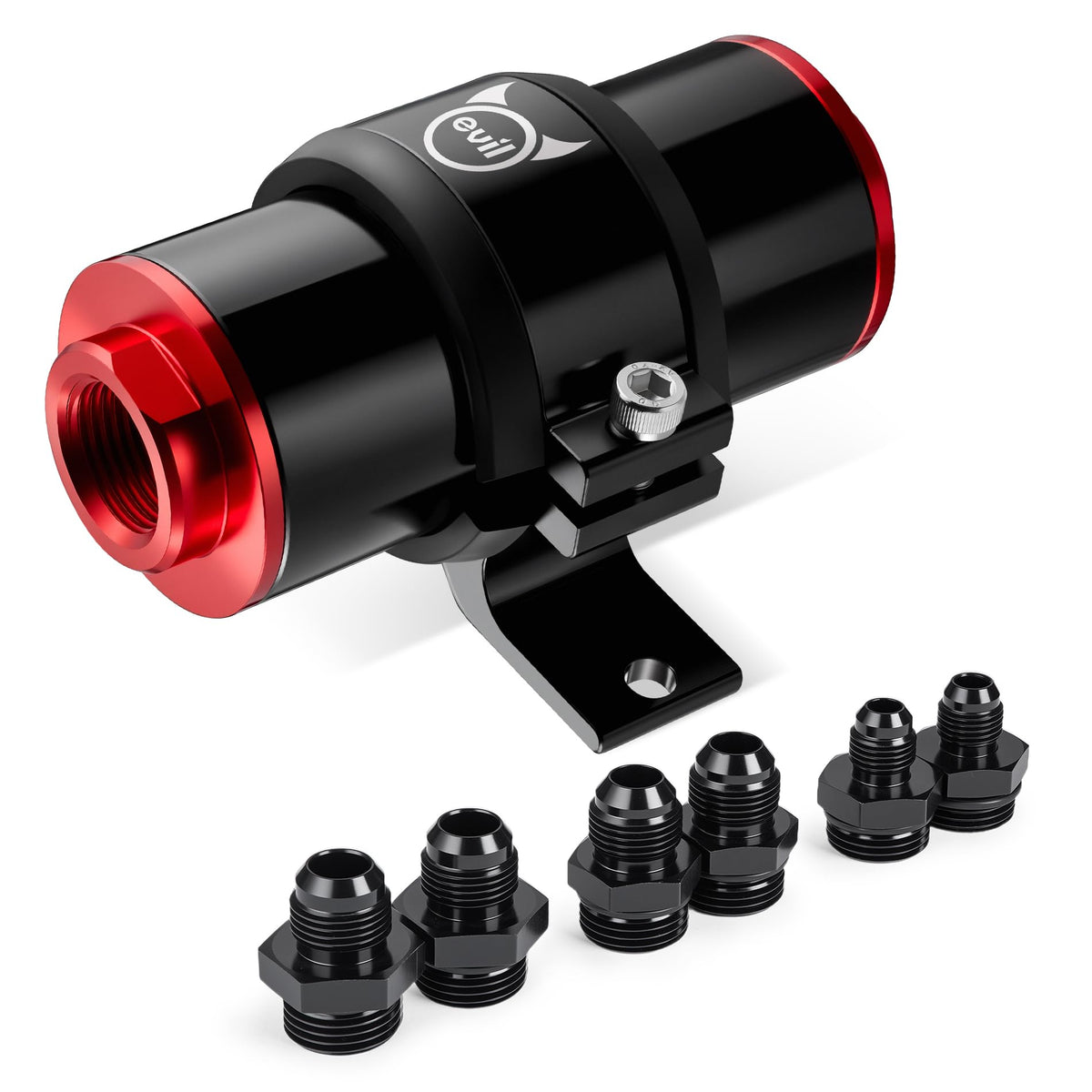

EVIL ENERGY Inline Fuel Filter 100 Micron Red — Serviceable Aluminum with 6AN/8AN/10AN Adapters & 50mm Bracket

The EVIL ENERGY inline fuel filter is a universal, serviceable aluminum filter that removes particles 100 microns and larger and ships with 6AN, 8AN, and 10AN adapters plus a 50mm mounting bracket for tidy, secure installation.

Designed for hobbyist tuners, performance street cars, ATVs and light diesel or gasoline systems (not compatible with E85), this compact red inline filter combines an aluminum canister, stainless-steel element and O-ring seals to keep fuel-system contaminants out of fuel rails, pumps and injectors. The removable element makes cleaning or replacement straightforward, and the included adapters let you fit a range of hose sizes without custom fittings.

How does this filter protect my engine components?

The EVIL ENERGY filter captures solid particles 100 microns and larger before they travel downstream. By stopping sediment, rust flakes and larger debris it reduces wear on pumps and fuel injectors and helps maintain consistent fuel flow. It’s not a fine filter for microscopic contaminants but is ideal as a pre-filter or for systems sensitive to larger particulates.

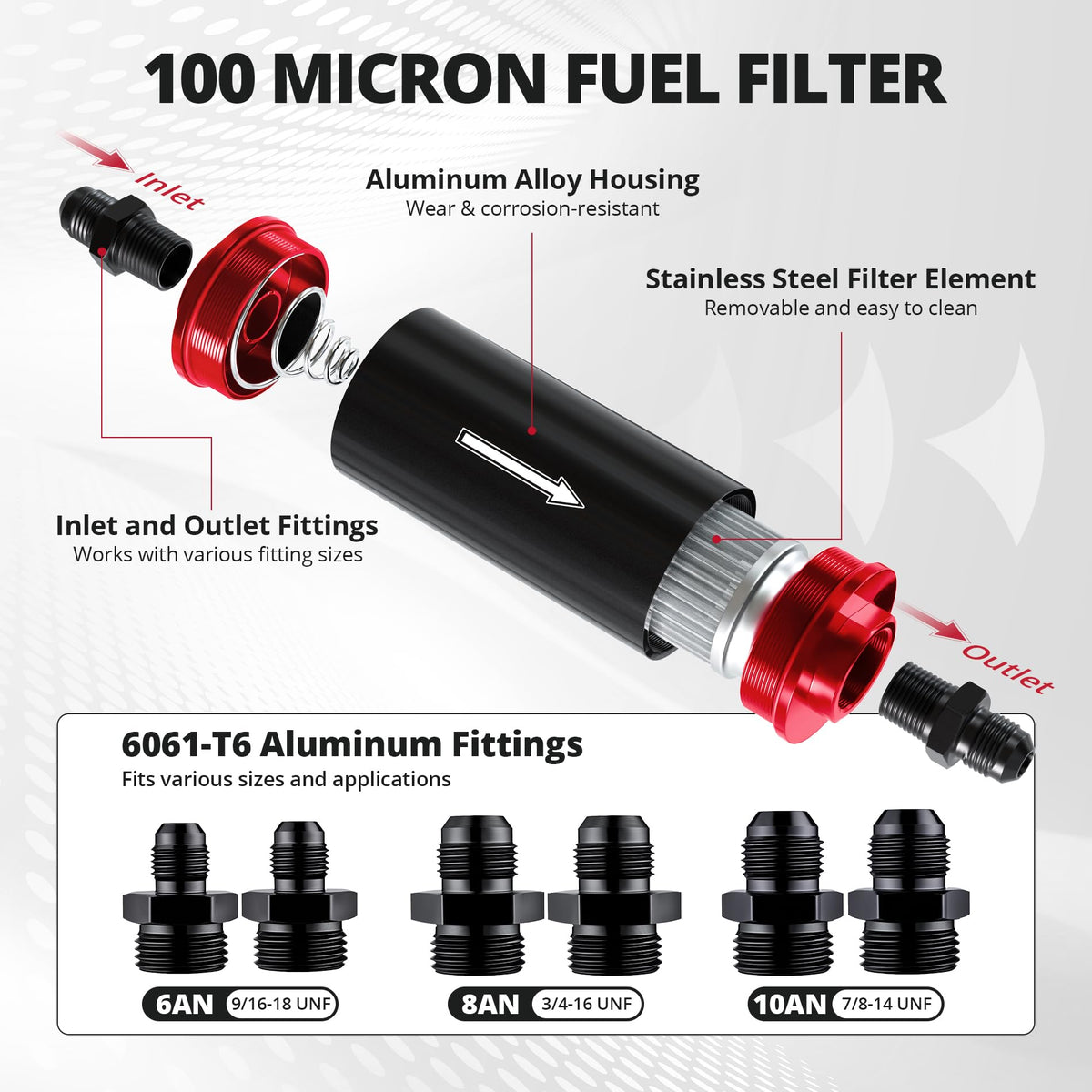

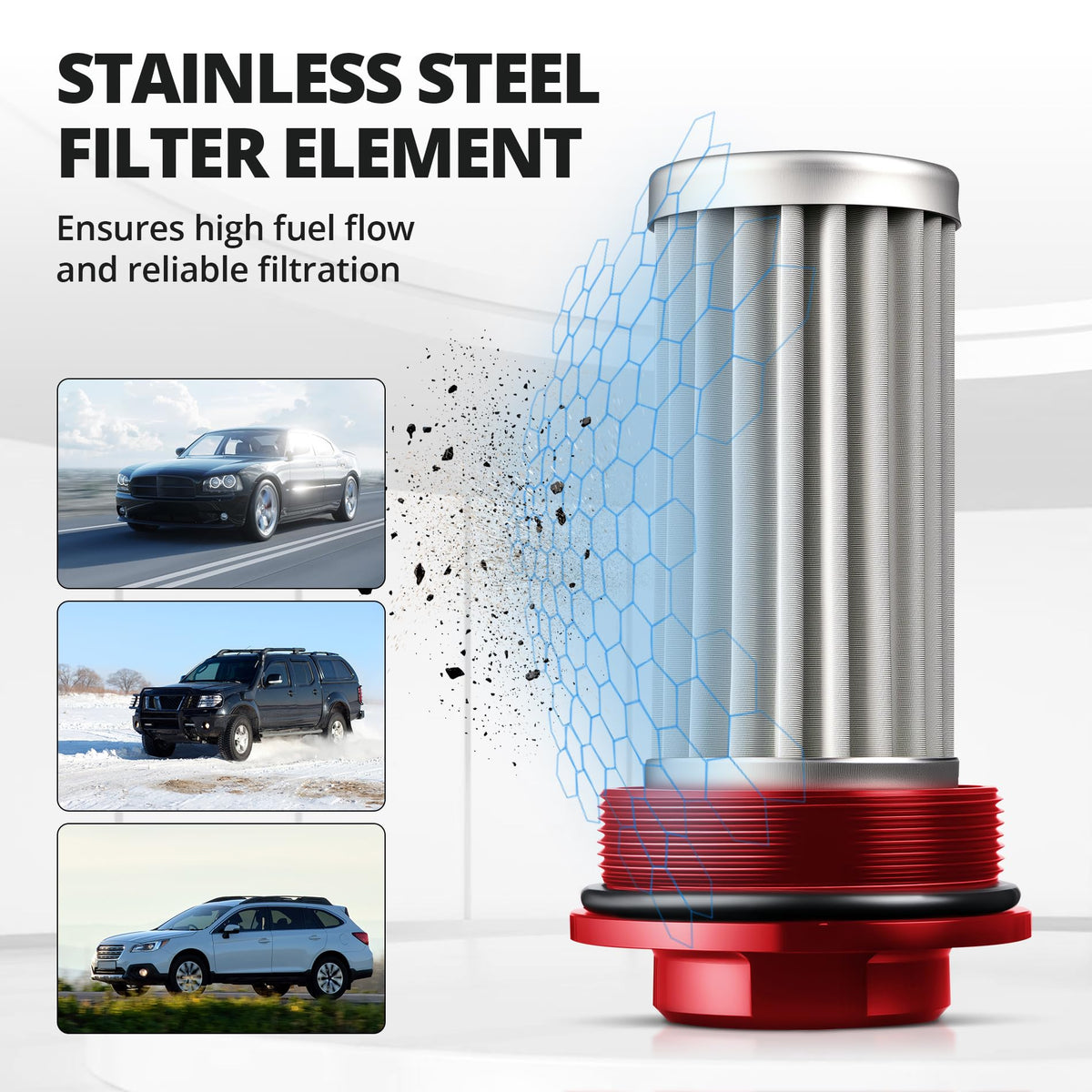

• Stainless-steel element traps particles ≥100 μm
• Aluminum housing resists corrosion and adds durability
• O-ring end caps ensure leak-free connections
• Serviceable design lets you clean or swap elements

Which vehicle lines and hose sizes will fit?

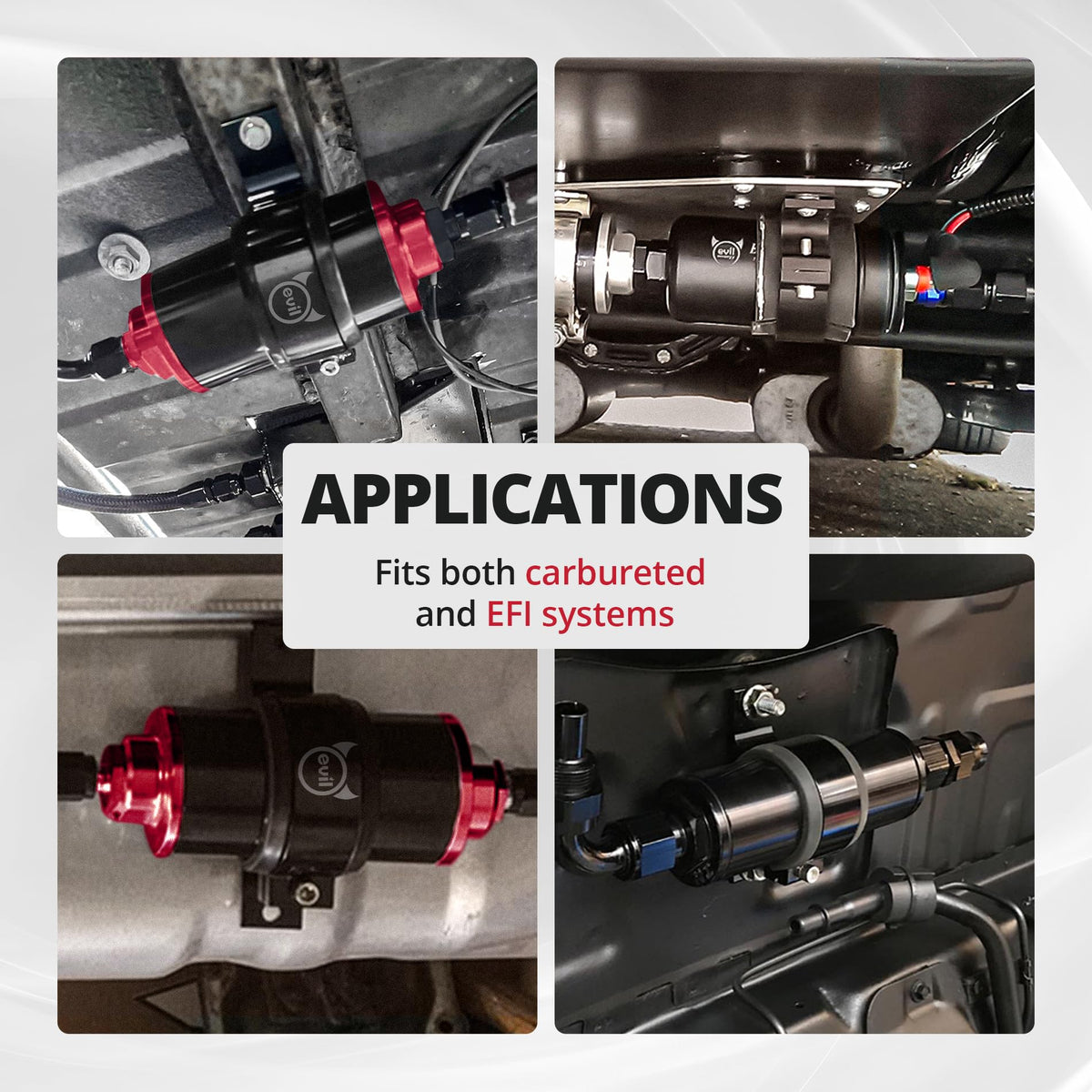

This inline unit is built as a universal adapter-style filter: it ships with 6AN, 8AN and 10AN fittings so you can match common braided hose and AN fittings without fabricating new lines. The included 50mm bracket clamps the canister securely to chassis or engine bays for professional mounting. It works with gasoline and diesel systems but should not be used with E85 or other high-ethanol blends.

• Includes 6AN, 8AN and 10AN adapters for wide compatibility

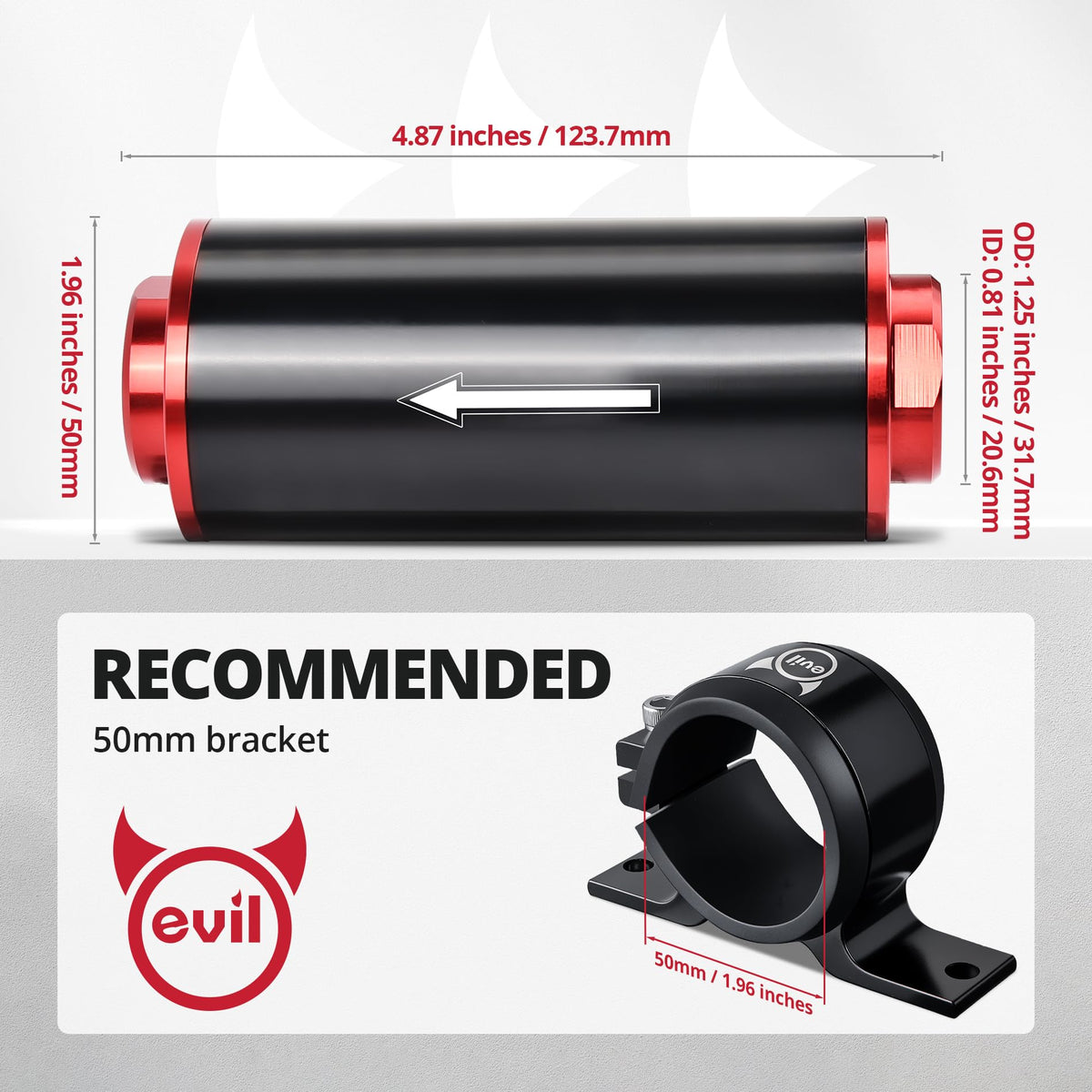

• 50mm mounting bracket keeps installation neat and stable
• Suitable for gasoline and diesel fuel systems (exclude E85)
• Compact footprint fits tight engine bays and custom installs

How do I install and maintain the filter correctly?

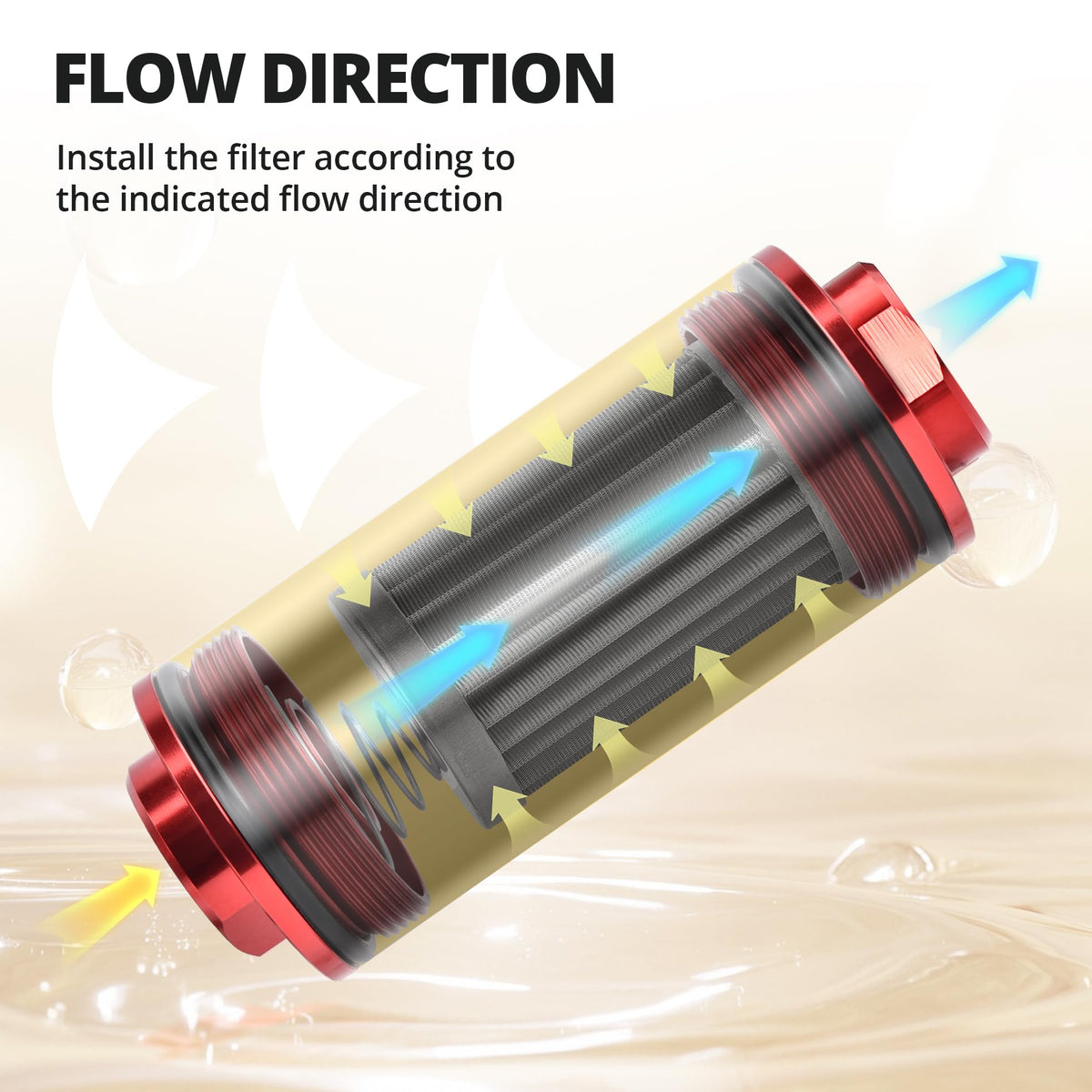

Installation is straightforward but direction-sensitive: the filter is pre-checked so that the closed end of the element sits against the internal spring. Ensure fuel flows in the arrow direction—from the spring end toward the outlet—to avoid premature clogging and extend service life. For maintenance, remove the canister, extract the stainless element, rinse and inspect; replace if damaged or excessively clogged.

• Pre-checked orientation: arrow indicates flow from spring end
• Hand-tighten fittings with O-ring seals for leak-free joints
• Removable element for periodic cleaning or replacement
• Inspect O-rings and replace if hardened or cracked

Will this change fuel pressure or flow in my system?

Because the EVIL ENERGY filter is a coarse 100-micron design, pressure drop is minimal in most fuel systems when properly sized for flow. It’s primarily intended to protect downstream components from larger debris rather than act as a fine inline regulator. If your application requires precise pressure control or filtration finer than 100 μm, use this as a pre-filter ahead of your primary filtration or regulator components.

• 100 μm rating balances protection with low flow restriction
• Best used as pre-filter or in systems with adequate pump capacity
• Not intended for ultra-fine filtration or pressure regulation
• Confirm pump flow specs when adding any inline device

Who is this for? The EVIL ENERGY inline fuel filter is aimed at DIY mechanics, performance enthusiasts and workshop professionals who need a durable, easily serviced pre-filter that adapts to different hose sizes. It’s a practical choice for restoring older tanks, protecting aftermarket fuel systems, or adding a tidy, visible filter in custom builds; it is not intended for E85 applications or as a replacement for fine-micron injector filters.
