ILONPA AC Compressor with Clutch for Scion xD & Toyota Corolla/Matrix 1.8L (2008–2014) — 6-groove Pulley, PAG46 Prefilled

ILONPA new air conditioning compressor with clutch replaces worn units for Scion xD 2008–2014 and Toyota Corolla/Matrix 1.8L 2009–2010 (manual temp control, 1.8L only).

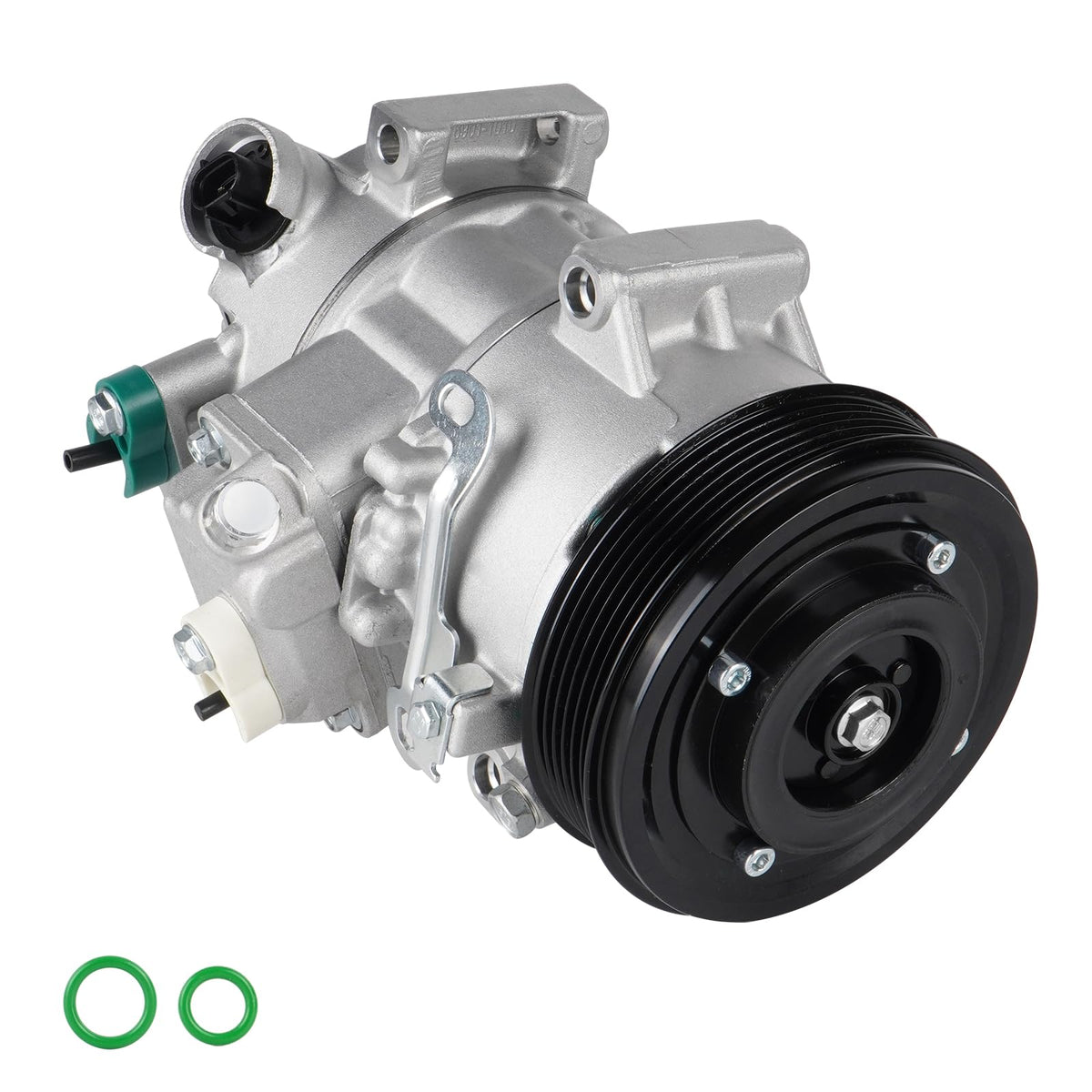

This replacement AC compressor kit is engineered as a direct-fit option for specific 1.8L models of Scion xD, Toyota Corolla (non-XRS trims), and Toyota Matrix (base trim). It arrives prefilled with PAG 46 oil and includes a 6-groove pulley and clutch assembly sized to match the original equipment, so you can return the vehicle’s air system to operational condition without complex modification. Confirm engine displacement and manual climate control before ordering to ensure compatibility.

Will this compressor fit my car?

This unit is compatible only with 1.8L engines and vehicles that use manual temperature control. It is not compatible with 2.4L engines, XRS trim Corollas, or Matrix higher trims. Double-check your vehicle year, trim, and engine size before purchase.

• Fits Scion xD 1.8L: model years 2008–2014
• Fits Toyota Corolla 1.8L (non-XRS): model years 2009–2010
• Fits Toyota Matrix Base 1.8L: model years 2009–2010
• Not compatible with 2.4L engines or automatic climate control systems

What are the technical specifications and part cross-references?

The compressor is a 6SEU14C type, supplied with 160 ml of PAG 46 oil and a 120 mm pulley with six grooves. It replaces several OEM numbers, making it suitable for many repair scenarios where those part numbers were used originally.

• Compressor type: 6SEU14C
• Oil type: PAG 46; oil prefilled 160 ml

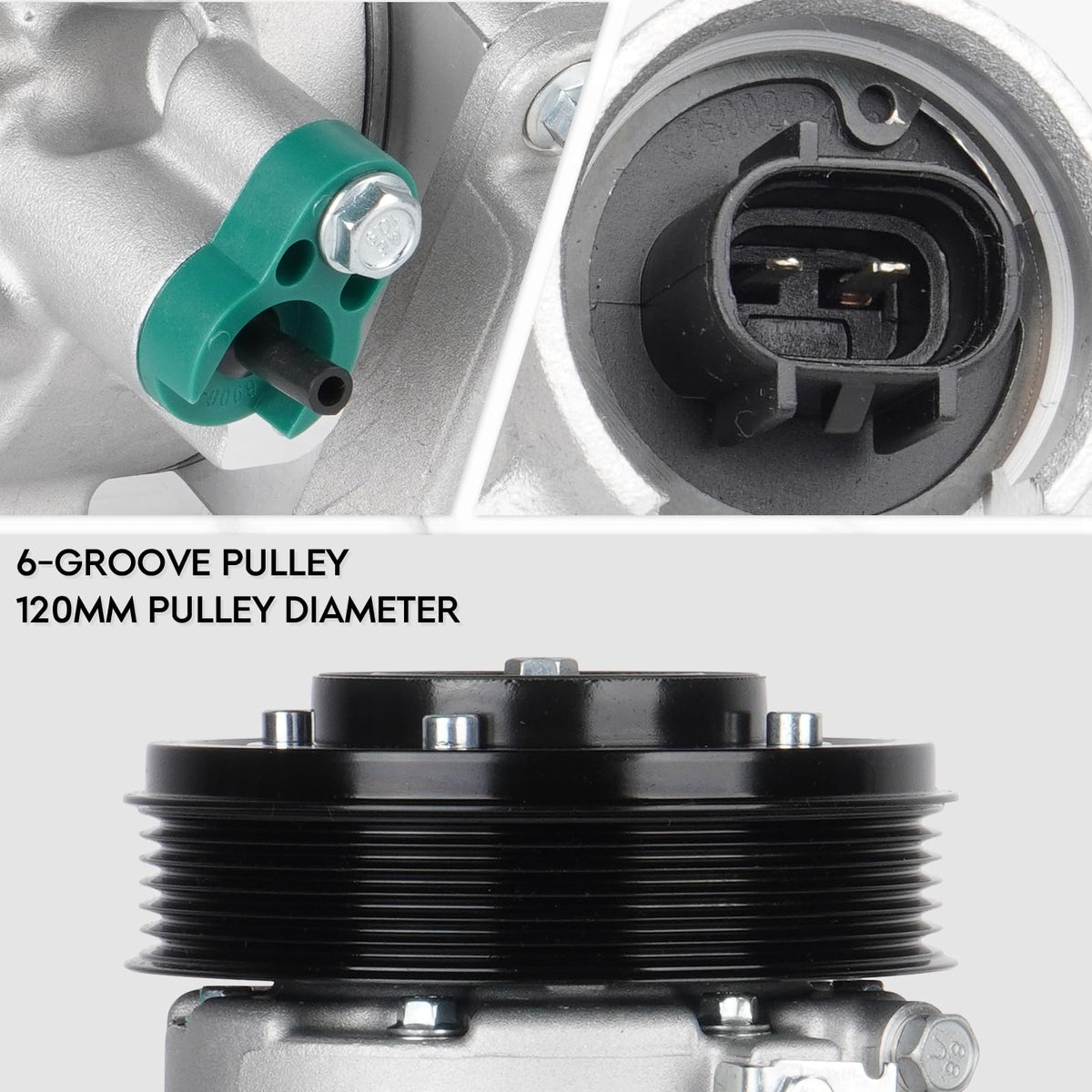

• Pulley: 6 grooves, 120 mm diameter
• Replaces part numbers: 4711632, 4710632, 4711608, 67328, 68328, and more

How does installation and maintenance work for this compressor?

Professional installation is recommended to ensure proper evacuation, flushing, and recharging of the AC system. The system must be thoroughly cleaned of contaminants and old refrigerant oil before fitting the new compressor to prevent premature failure or clogs.

• Ensure complete cleaning of the AC circuit before installation
• Have a certified technician perform vacuum, leak test, and recharge
• Verify manual temperature control compatibility prior to fitting
• Follow manufacturer torque and electrical connection procedures

What performance and durability features does this ILONPA compressor offer?

This compressor is built from high-strength aluminum alloy and designed to run with low vibration and reduced noise compared with worn components. While not a guaranteed improvement in fuel economy for every vehicle, the new compressor restores designed system efficiency and helps the AC operate reliably when correctly installed.

• Aluminum alloy construction for durability and heat dissipation
• Engineered for low noise and minimal vibration
• Precharged with the correct oil to speed installation
• Direct-fit design reduces need for modifications

Who is this for: This ILONPA compressor with clutch is for owners and technicians replacing a failed or leaking AC compressor on compatible Scion xD, Toyota Corolla (1.8L non-XRS), and Toyota Matrix (base 1.8L) vehicles. It suits anyone seeking a direct-fit replacement that matches common OEM part numbers — provided the vehicle uses manual temperature control and a 1.8L engine. If you are unsure about engine size or climate control type, check your vehicle’s VIN plate, owner’s manual, or consult a trusted mechanic before purchasing.
