iRhapsody 12V 4-Pin Waterproof Automotive Relay — 5-Pack with 40A Contacts & Heavy 12AWG Leads

iRhapsody 12V 4-pin waterproof automotive relay: a rugged 40A switching relay kit with heavy-duty leads designed for reliable automotive and off-road electrical control.

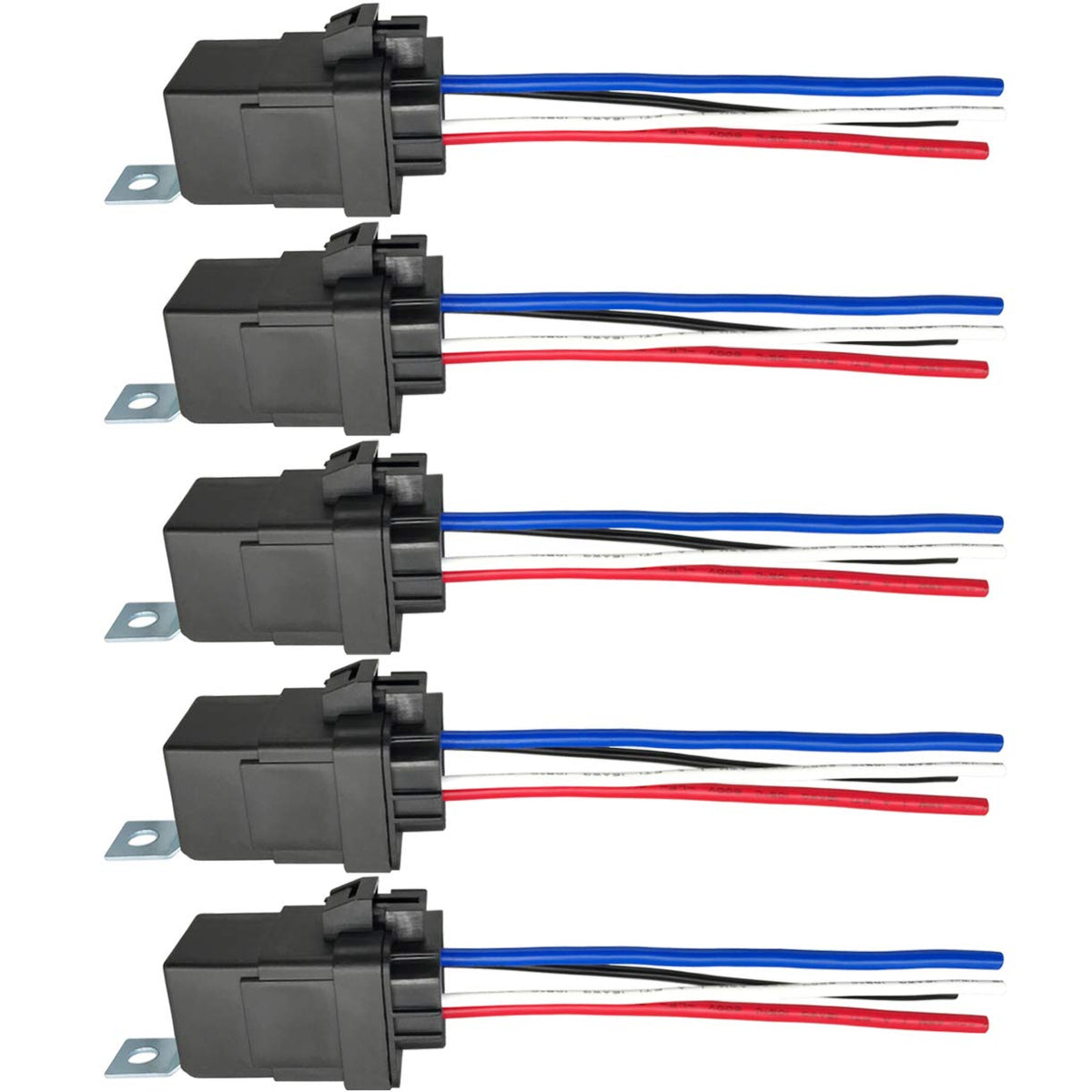

This five-pack of iRhapsody 12V DC 4-pin relays combines a water-repellent housing with high-current contacts and heavy-gauge wiring to handle common automotive loads such as lights, fans, pumps and accessory circuits. Each relay features a nominal 12 V coil, robust contact ratings (NO 40A at 14VDC), fast operate/release times, and mechanical durability built to withstand vibration, shock and temperature swings typical of vehicle and outdoor use.

How does this relay protect my vehicle circuits?

The sealed housing and durable contacts help prevent ingress and minimize corrosion, while the heavy-duty primary leads reduce voltage drop under load. The relay lets a low-current control circuit operate high-current devices, isolating switches and control modules from heavy electrical stress.

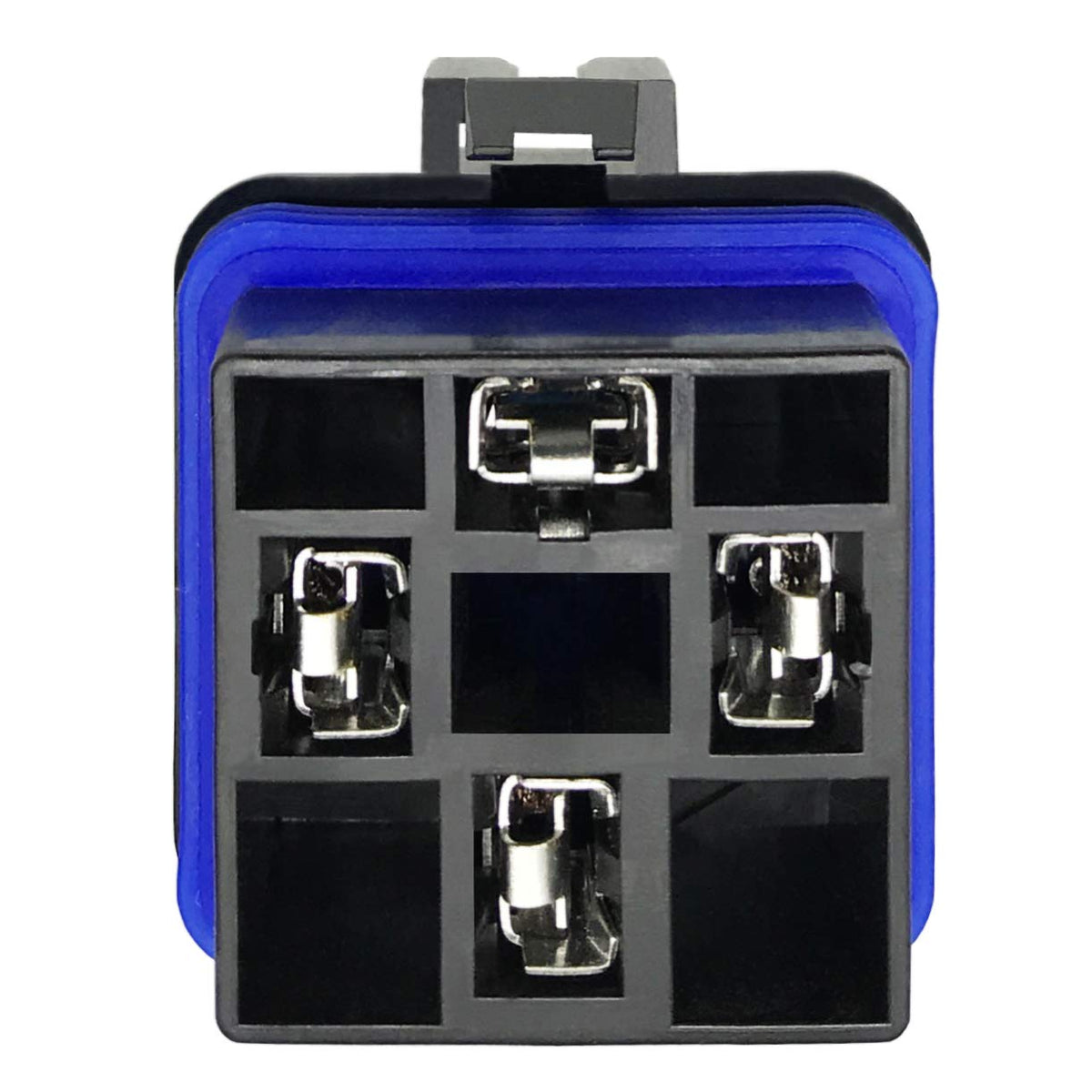

• Water-repellent and dustproof sealed enclosure to resist environmental exposure (not submersible)
• 40A normally-open contact rating suitable for many 12V automotive loads
• 12 AWG tinned copper primary leads for lower resistance and better heat handling
• Isolates control circuits from high current to prevent switch burn and wiring damage

What are the electrical and performance specifications I should know?

Key electrical specs include a nominal 12 V coil, 80 Ω coil resistance, 1.8 W coil power and maximum applied voltage of 15.6 V DC. The relay switches up to 40 A and 560 W with specified contact resistance and fast response times for reliable operation.

• Coil: 12 V DC, 80 Ω, 1.8 W; must-operate 6–8 V, must-release 0.6–3.6 V
• Contacts: NO 40A at 14 VDC, max switching power 560 W, contact resistance ≤100 mΩ
• Response: operate time ~7 ms, release time ~5 ms for fast switching
• Insulation/dielectric: 100 MΩ min (500 VDC) and dielectric strength between contacts 500 VAC

Will these relays survive off-road vibration and temperature extremes?

The iRhapsody relays are built to endure common automotive stresses: broad temperature tolerance, shock resistance and vibration endurance ensure sustained operation in harsh environments. They are rated for long mechanical and electrical life when used within specifications.

• Operating temperature range: -30°C to +80°C for wide climate compatibility
• Vibration resistance: 10–55 Hz at 1.5 mm amplitude; shock rating up to 10g operational
• Mechanical life: 10,000,000 operations; electrical life: 100,000 operations at rated cycling
• Designed to meet humid environments: rated for 40%–85% humidity conditions

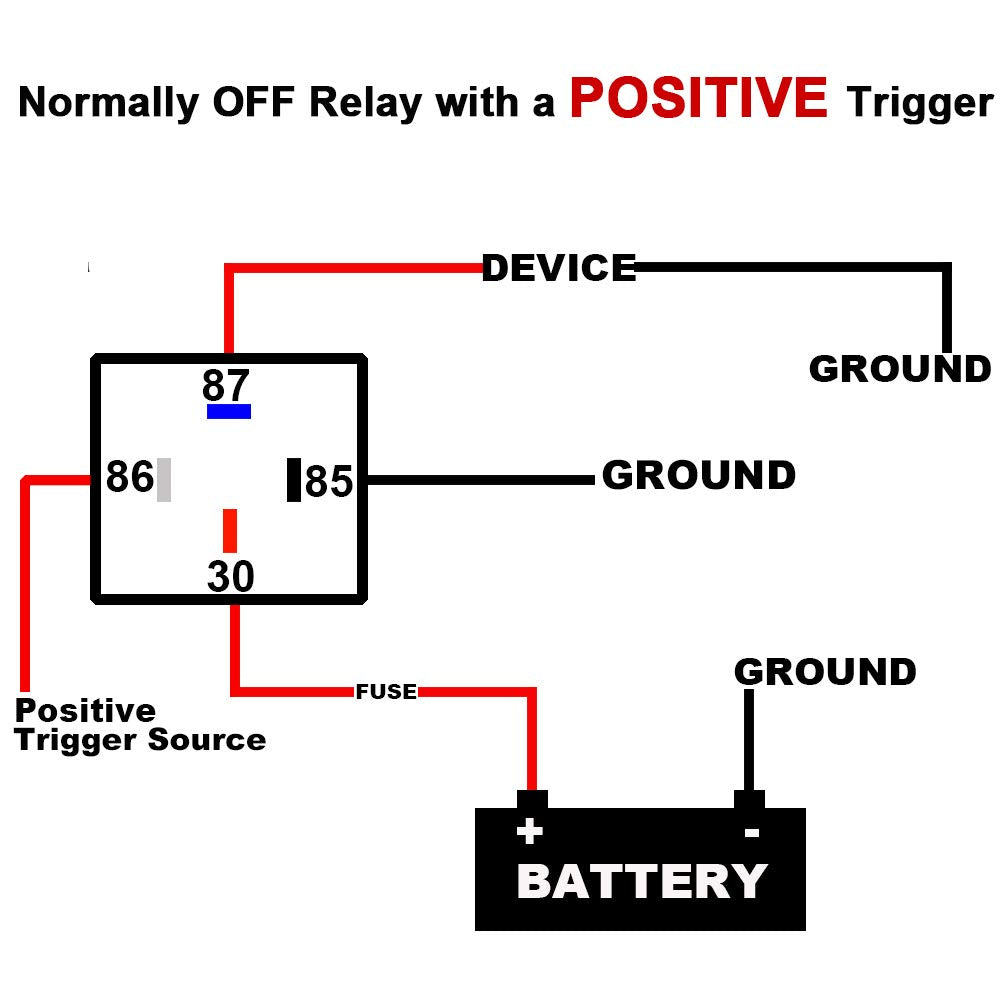

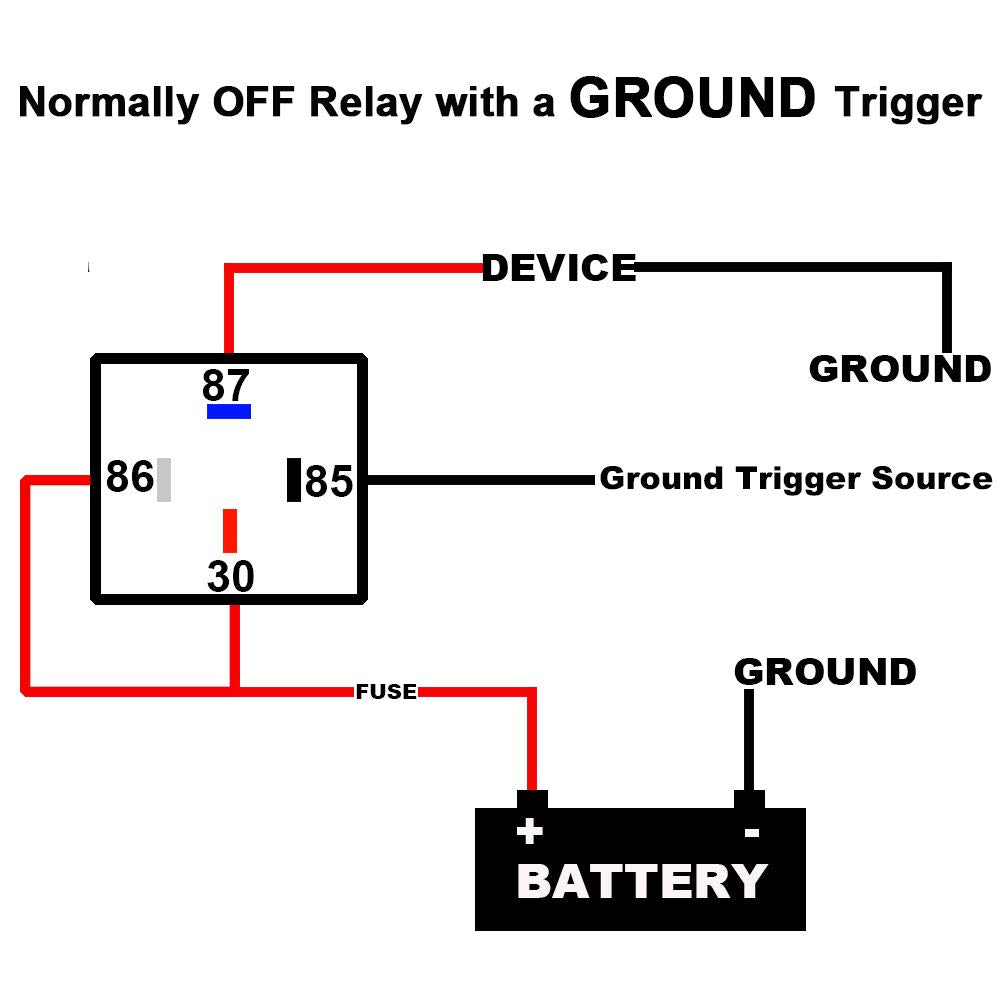

How should I wire and install these relays safely?

Follow wiring best practices: keep connections tight, choose appropriately fused circuits, and stay below the relay's rated limits to preserve longevity. Note the relay’s physical size and wire lengths before final installation.

• Primary (load) leads: 12 AWG tinned copper, coil leads: 16 AWG; wire length ~7 inches
• Recommended: stay 10–15% under rated current for margin and heat reduction
• Confirm tight, clean connections—loose terminals cause heat and failure

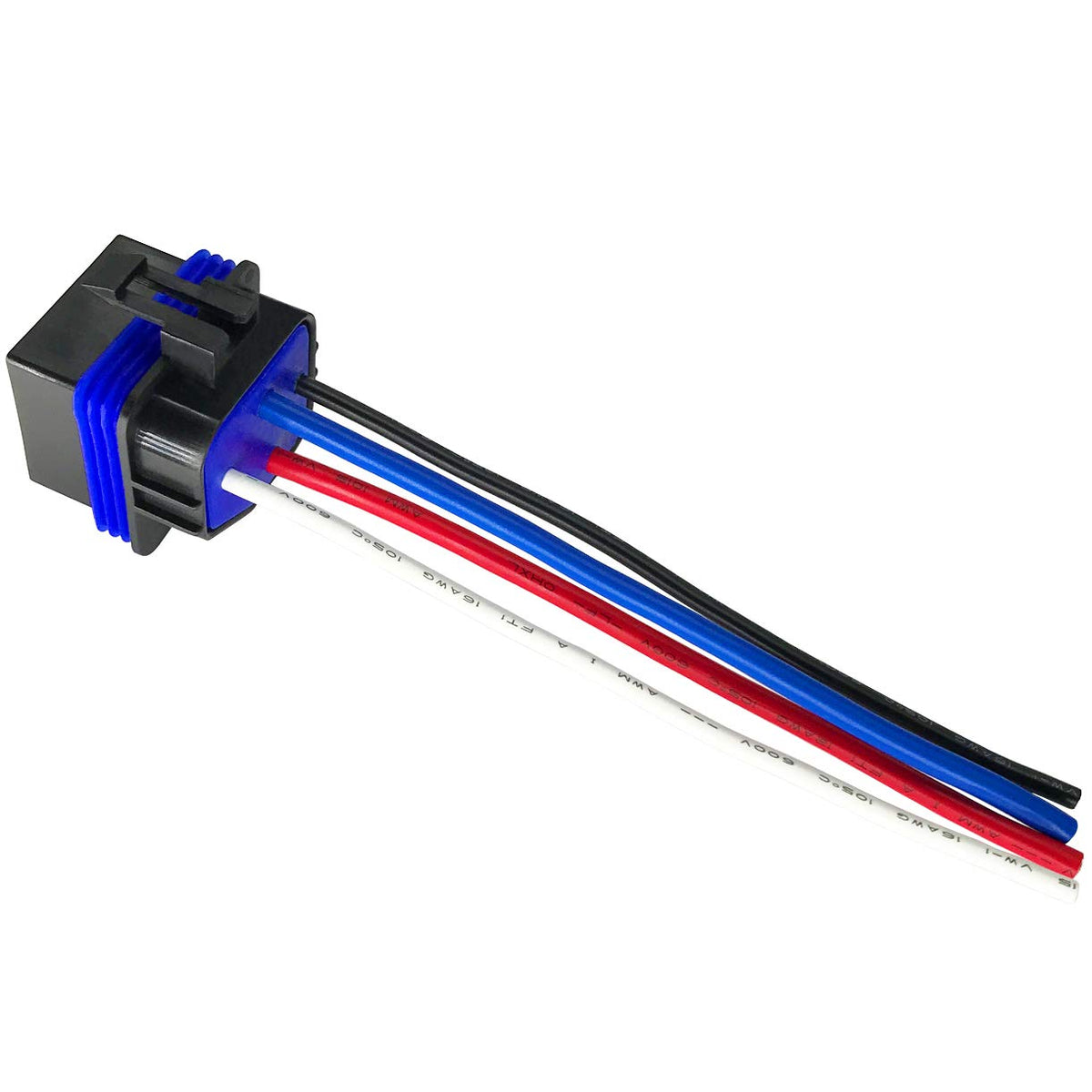

• Check dimensions (1.4 × 1.4 × 10 inches) to ensure fit in mounting locations

Who is this for: This iRhapsody 5-pack is ideal for vehicle owners, mechanics, custom installers and DIYers who need dependable 12V switching for lighting, fans, fuel pumps, winches and accessory circuits. Choose these relays when you want sealed enclosures, heavy-gauge leads and long service life for automotive and outdoor electrical projects. Avoid using them submerged; follow the electrical limits and installation recommendations for safe, durable performance.
