Joinfworld 500A Battery Disconnect Switch 12–36V Heavy-Duty with Lockout Plate, Fixed Handle & 3/8" Studs

The Joinfworld 500A Battery Disconnect Switch is a heavy-duty, manual master cut-off that isolates 12V–36V DC systems to stop parasitic drain and provide a secure, lockable power shutoff.

Designed for trucks, RVs, boats, UTVs and off-road vehicles, this 500-amp battery kill switch delivers a robust, compact way to disconnect your battery quickly and safely. Built from durable metal and copper with a fixed die-cast handle and threaded stud terminals, it supports high surge currents and includes a lockout plate for theft prevention and maintenance safety.

How does this switch protect batteries when vehicles sit idle?

By mechanically breaking the DC circuit, the switch eliminates parasitic current draw from accessories, alarms and control modules. That prevents slow discharge while your vehicle or boat is stored, helping preserve charge and extend battery service life.

• Stops background drains from electronics
• Suitable for long-term storage of cars, RVs and boats
• Manual on/off action guarantees no phantom loads
• Lock plate prevents accidental re-connection

What electrical loads and voltages can the Joinfworld 500A handle?

This isolator is engineered for DC systems from 12V up to 36V and is rated for continuous currents up to 500A, with instantaneous surge capacity around 5000A. It’s appropriate for high-current starters, winches and large accessory banks used in commercial and recreational vehicles.

• Working voltages: 12V, 24V, 36V
• Rated continuous current: 500A
• Instantaneous current tolerance: approximately 5000A
• 2 x M10 (3/8") threaded studs for heavy cable connections

How easy is installation and daily use?

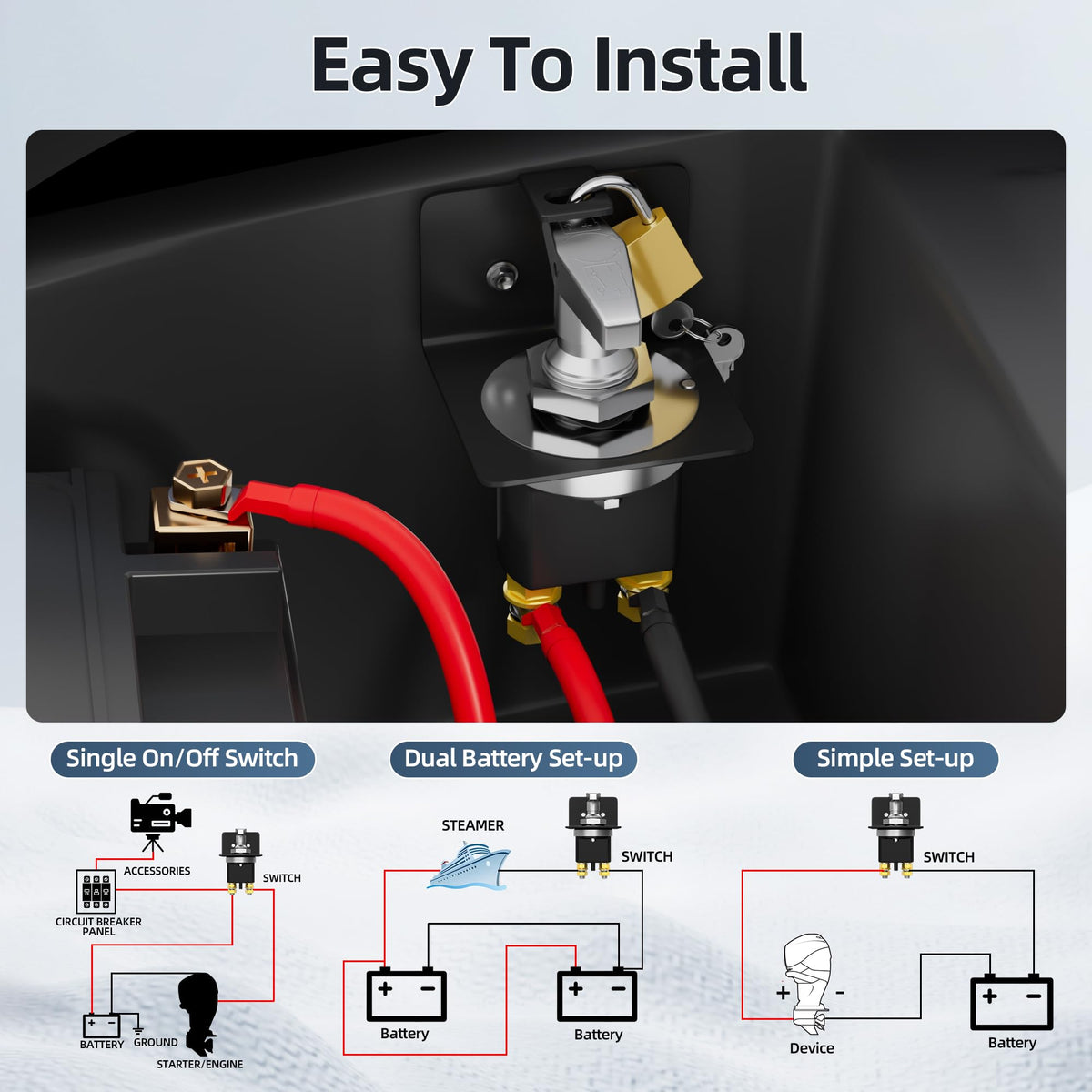

Installation is straightforward: connect battery cables to the two provided stud terminals and secure with the included nuts. Operation requires a simple half-turn of the fixed handle to open or close the circuit, and the included lockout plate lets you secure the switch position during service or storage.

• Includes two 3/8" (M10) threaded studs and nuts

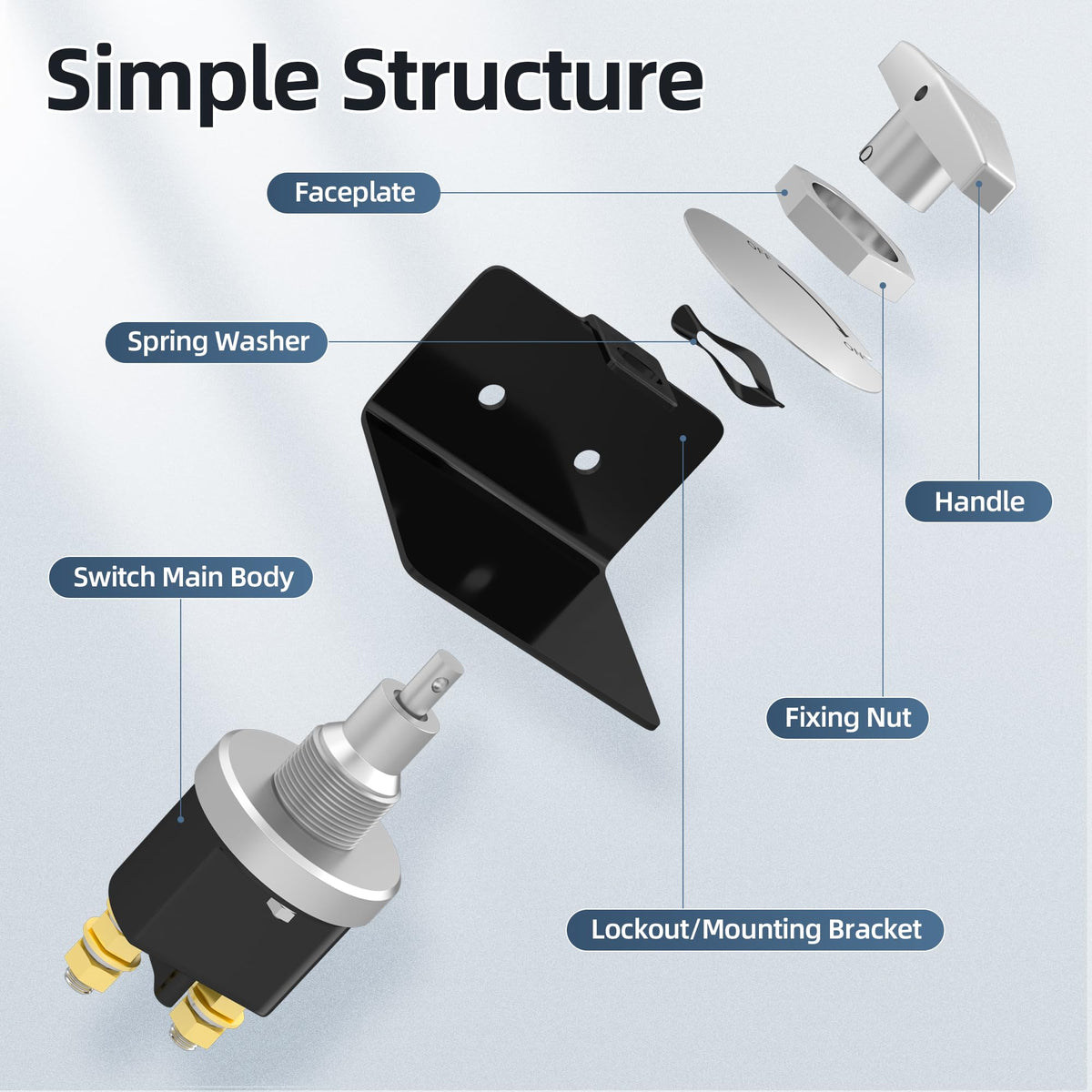

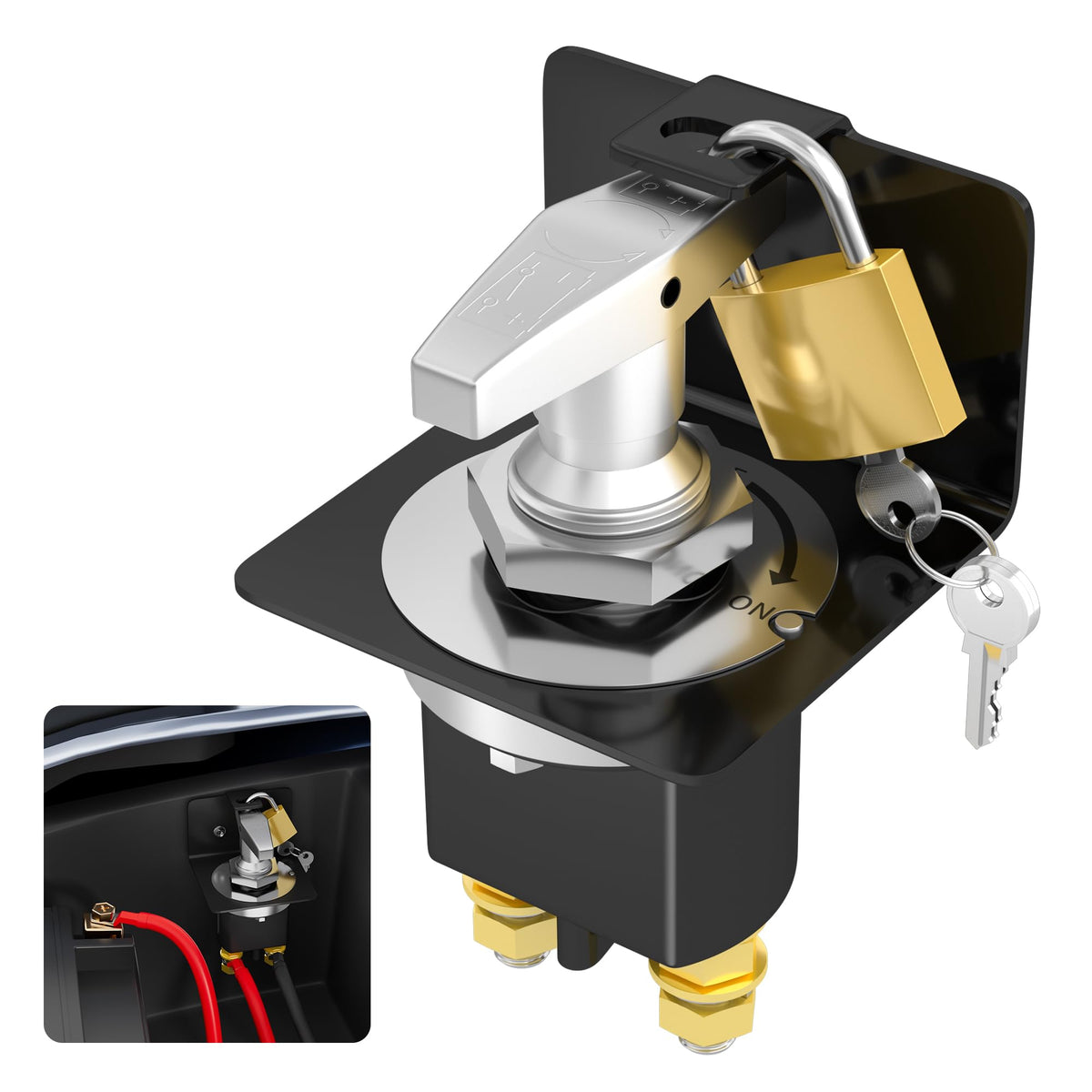

• Fixed die-cast handle for quick manual operation

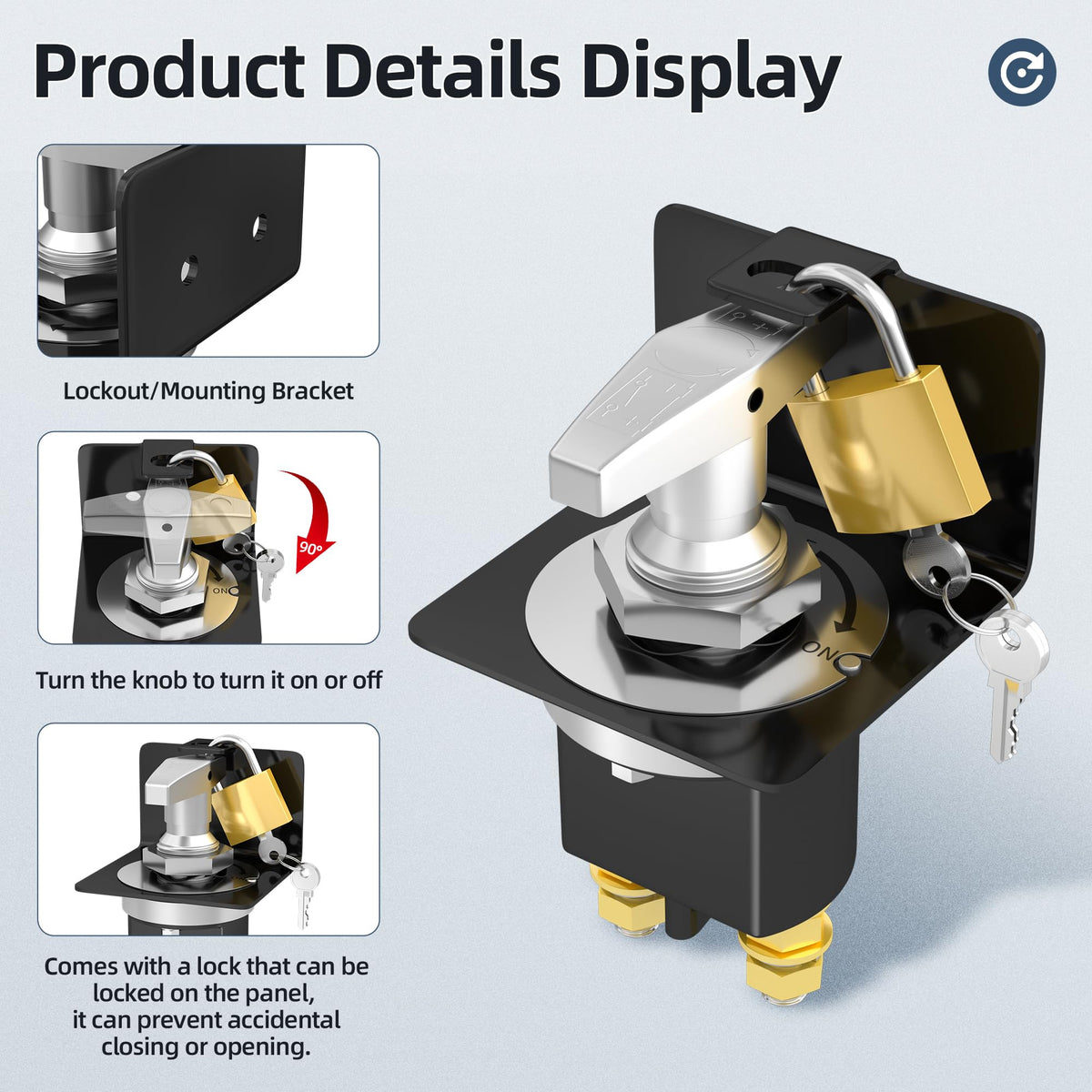

• Lock plate secures the switch in the off position
• Weather-resistant construction for exterior mounting

Where is this switch typically installed and who benefits most?

The Joinfworld 500A disconnect fits a wide range of applications — from heavy-duty commercial trucks to marine craft and recreational vehicles — wherever a reliable, high-current isolator is needed. It’s especially useful for fleet managers, boat owners, off-road enthusiasts and anyone who needs a secure, serviceable way to cut battery power.

• Ideal for semi trucks, RVs, yachts, boats, and UTVs
• Good for workshop or field service lockout/tagout
• Compact footprint for panels and battery boxes
• Durable for harsher outdoor and marine environments

Who is this for: Install the Joinfworld 500A Battery Disconnect Switch if you need a rugged, easy-to-use master cut-off for 12–36V systems that supports high startup currents and gives you a lockable safety option. It’s aimed at professionals and owners who want a dependable way to prevent battery drain, secure vehicles during storage or maintenance, and provide a clear mechanical isolation point for electrical work.
