JRready ST5257-PRO Deutsch Connector Pin Removal Kit — DT/DTM/DTP/DTV/HD, 6–22 AWG Extraction Tools

The JRready ST5257-PRO is a complete Deutsch connector pin removal kit that safely extracts solid and stamped contacts for 6–22 AWG wires across DT, DTM, DTP, DTV and HD series connectors.

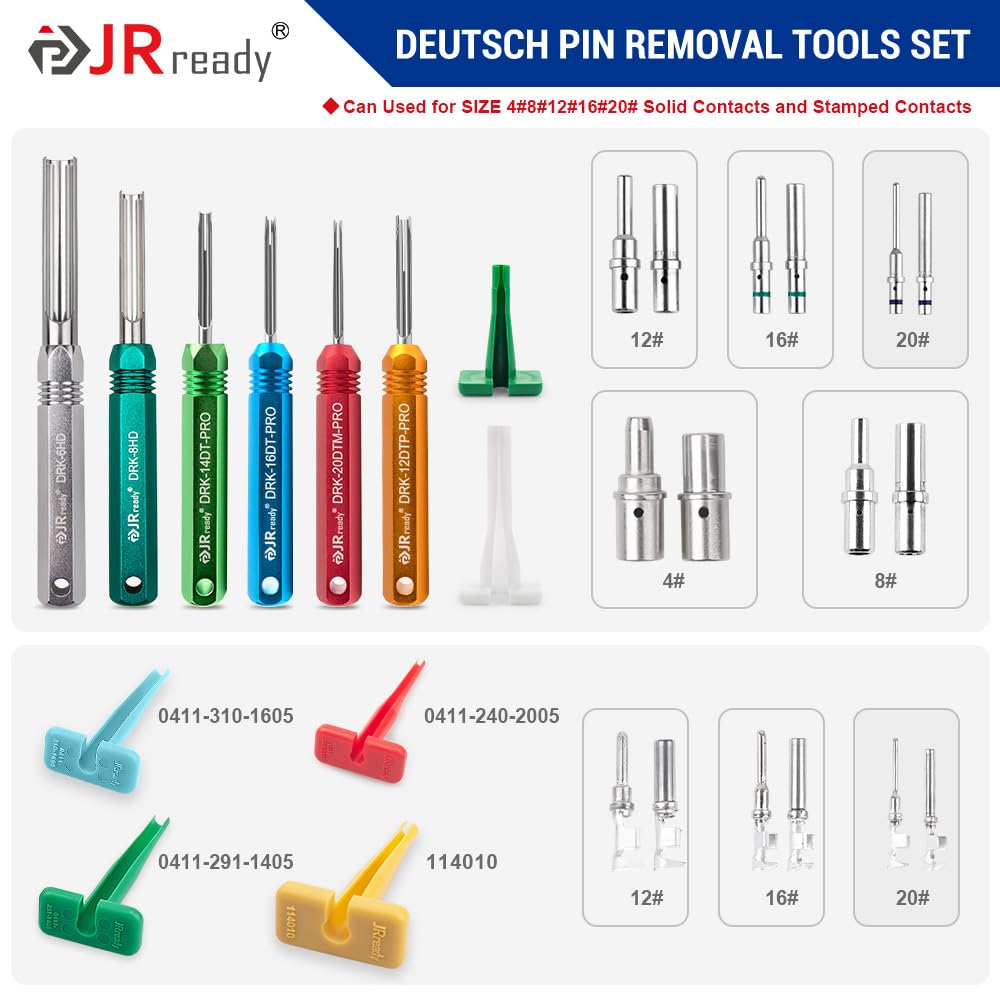

Whether you're repairing harnesses, replacing terminals or servicing off-road electrical systems, this kit collects the most commonly needed Deutsch extraction tools into one organized package. Each tool is shaped to fit specific terminal sizes (4, 8, 12, 16, 20) and is made to minimize damage to wires, seals and connector housings while speeding terminal release and rework.

Which connector types and wire sizes does this kit support?

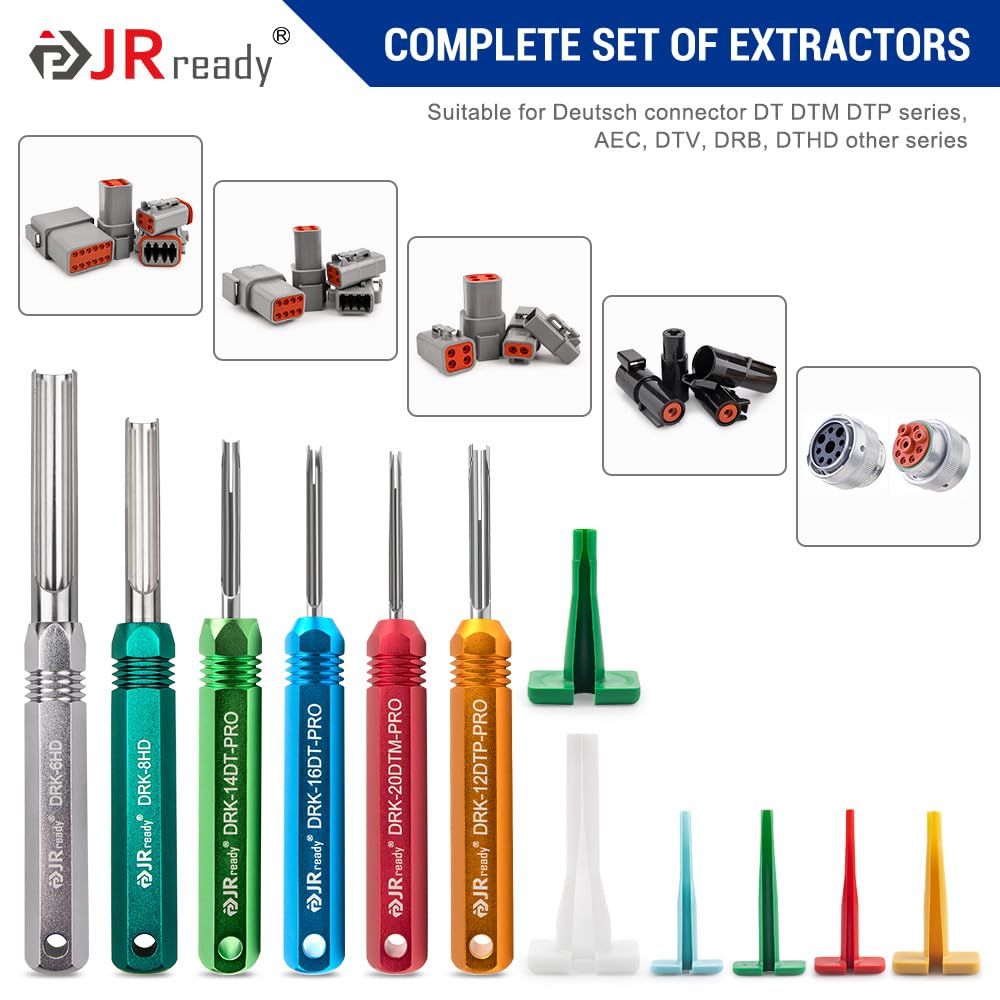

The kit covers both solid and stamped contacts across Deutsch families including DT, DTM, DTP, DTV, HD and related series. Tools are matched to common AWG ranges, with maximum outer wire diameters provided to ensure a proper fit.

• 4# tools: for 6 AWG solid contacts (max OD approx. 8.6 mm).
• 8# tools: for 8–10 AWG solid contacts (max OD ~6.1–6.5 mm).
• 12# tools: for 12–14 AWG solid contacts (max OD ~4.0–4.3 mm).
• 16# and 20# tools: cover 14–22 AWG ranges with specified max outer diameters.

How does the kit prevent damage to connectors and seals?

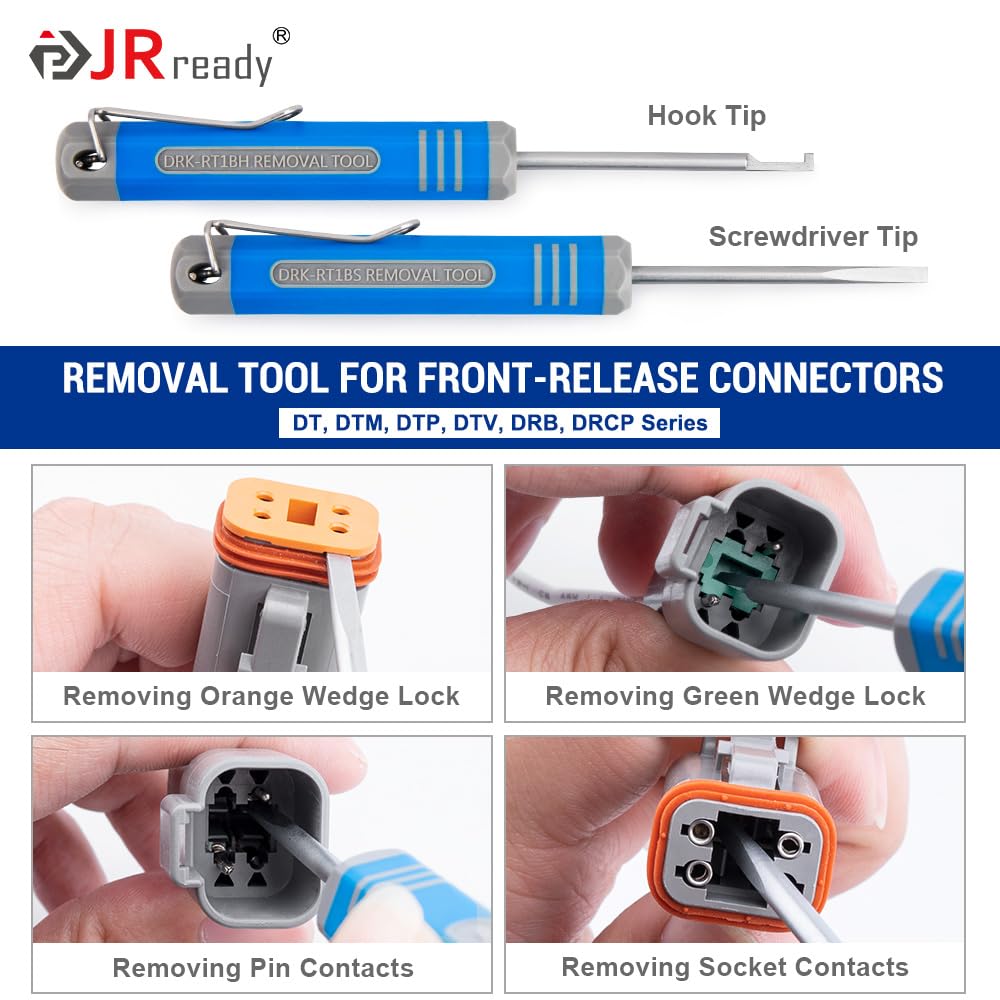

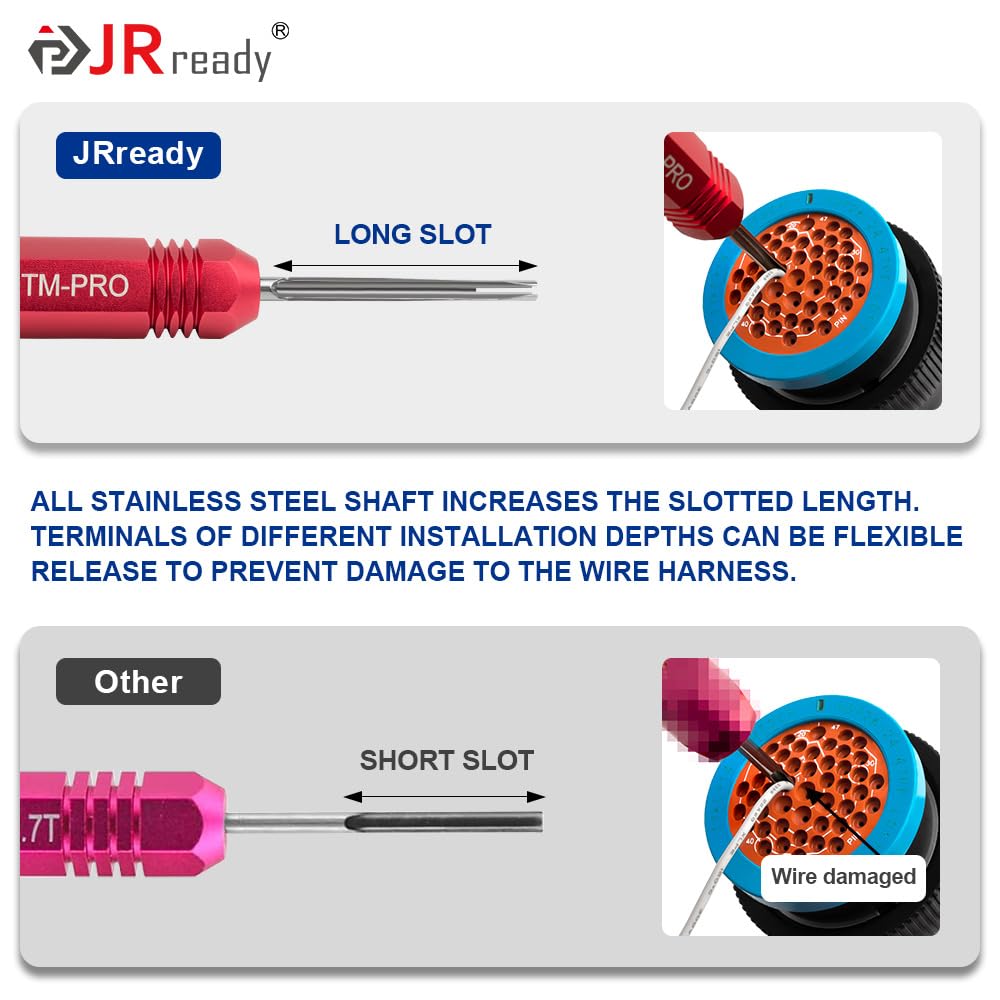

Each removal tool is shaped for controlled engagement with the terminal locking tang, so you release pins without deforming the wire insulation, connector body, or integrated seals. Stamped-contact tools use heavy-duty plastic to slide into narrow cavities safely.

• Precision tips engage locking tangs without bending contact wings.
• Plastic stamped-contact tools reduce abrasion and marring of seals.
• Size-specific tools avoid forcing oversized extractors into tight apertures.

What tools are included and how do I choose the right one?

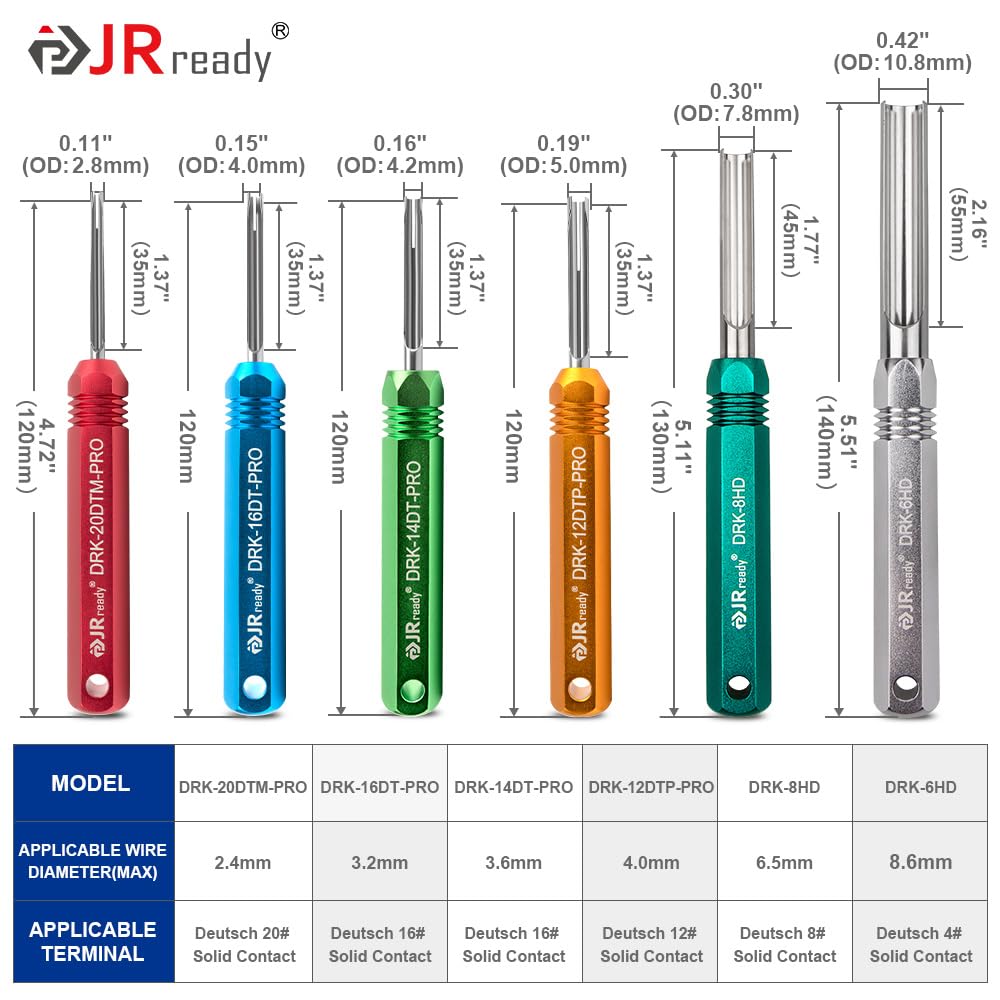

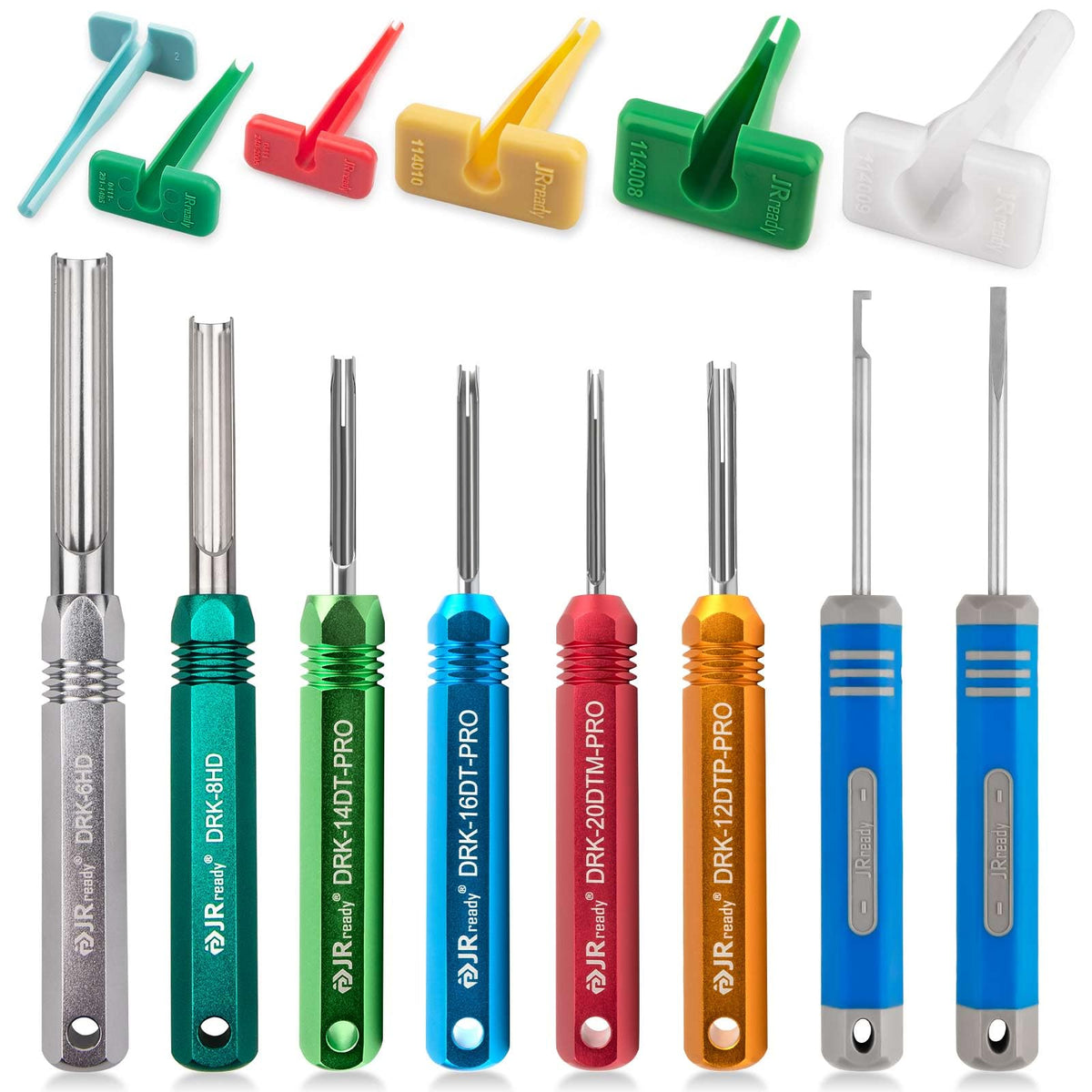

The ST5257-PRO set bundles extraction tools sized for 4, 8, 12, 16 and 20 pin terminals plus a dedicated DRK-RT1 plastic pin removal for stamped contacts. Match the tool to the terminal number and check the terminal diameter or wire outer diameter for confirmation.

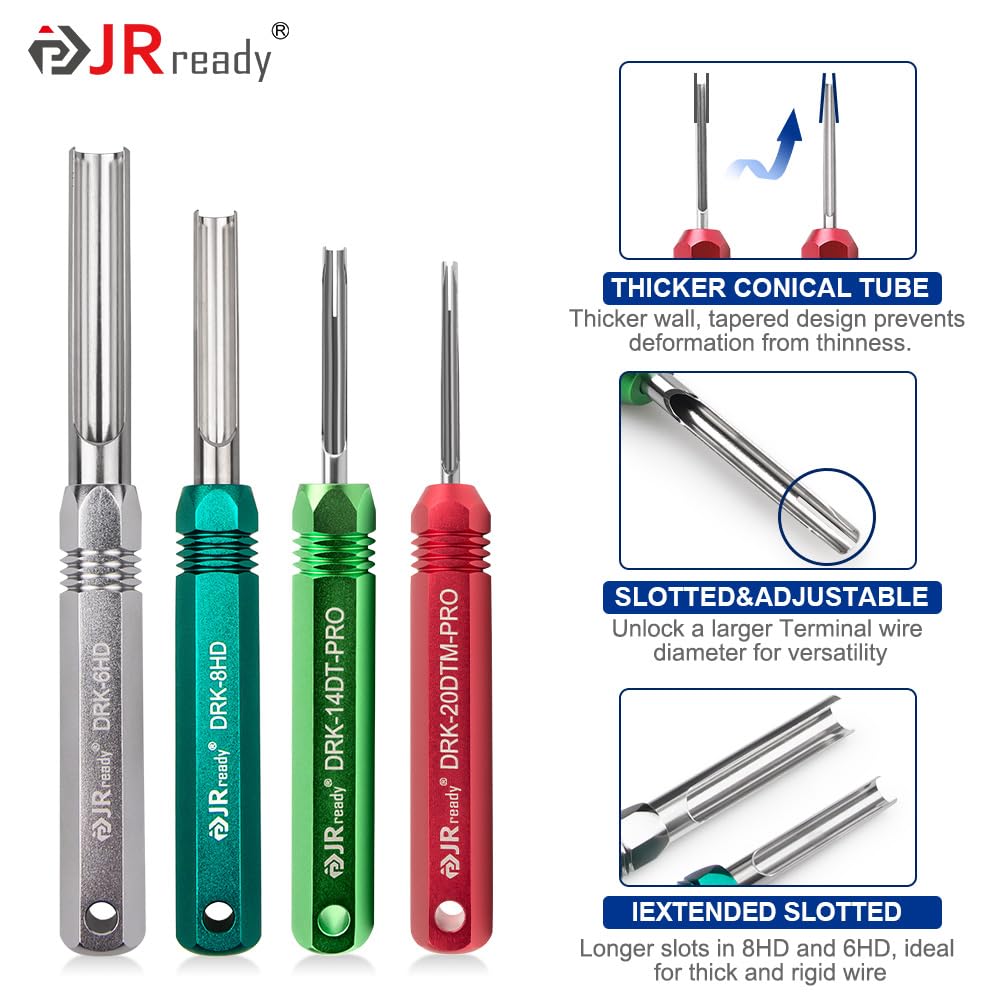

• DRK-6HD and 114009 for 4# solid contacts (largest OD allowances).
• DRK-8HD and 114008 for 8# solid contacts (8–10 AWG ranges).
• DRK-12DTP-PRO and DRK-14DT-PRO / DRK-16DT-PRO for 12# and 16# contacts.
• DRK-20DTM-PRO for 20# solid contacts (20–22 AWG applications).

What should I check before using these pin removal tools?

Always confirm the connector series and the physical terminal size before inserting a tool; mismatched extractors can seize or damage the connector. If in doubt, provide terminal diameter and connector aperture details to JRready support for help selecting the correct tool.

• Confirm connector family (DT, DTM, DTP, DTV, HD, etc.).
• Measure terminal diameter or wire outer diameter to match listed max ODs.
• Test in a spare connector when possible to avoid damage to live harnesses.

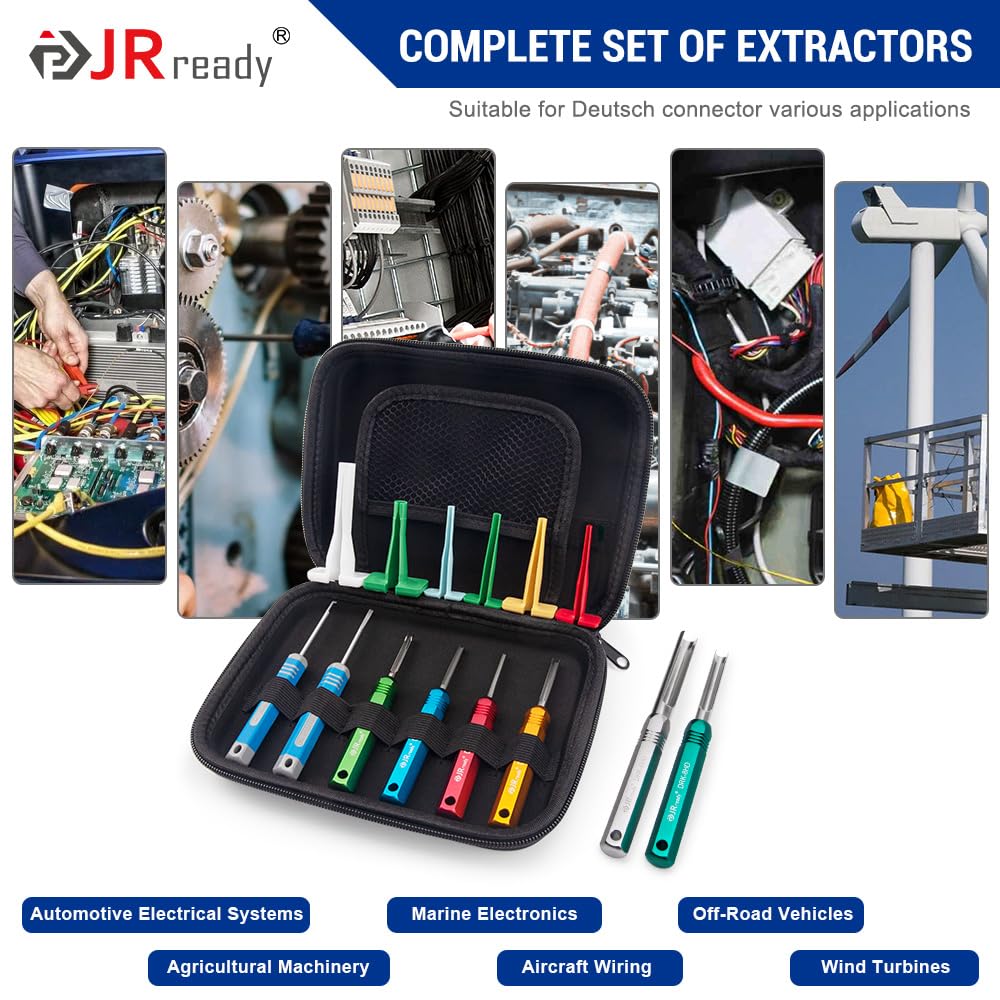

Who this is for: Technicians, fleet mechanics, off-road and motorsport electricians, and DIY vehicle or equipment owners who service Deutsch-style multi-pin connectors will benefit most from this kit. It’s useful for routine harness repairs, retrofits, and field service work where fast, safe terminal removal matters. If you need a portable, size-diverse set of extraction tools designed specifically for Deutsch connectors, the JRready ST5257-PRO gives clear sizing, durable materials, and compatibility guidance to reduce trial-and-error during connector maintenance.
