LINKITOM 40-LED Truck Tail Light Bar with Iron Net, 10–30V — IP65 Waterproof, DOT-Compliant Brake/Turn/Reverse

This LED tail light bar brings high-visibility illumination and rugged construction to trailers, trucks, vans, caravans and utility vehicles that use a five-wire DC system. Built to withstand rain, snow and road debris, the unit pairs a clear PC lens with an iron housing, protective iron net and an integrated mounting bracket for stable surface installation. With a mixed LED array for red, amber and white functions, it simplifies lighting upgrades and replacements while meeting practical durability expectations.

How bright and visible is this tail light bar?

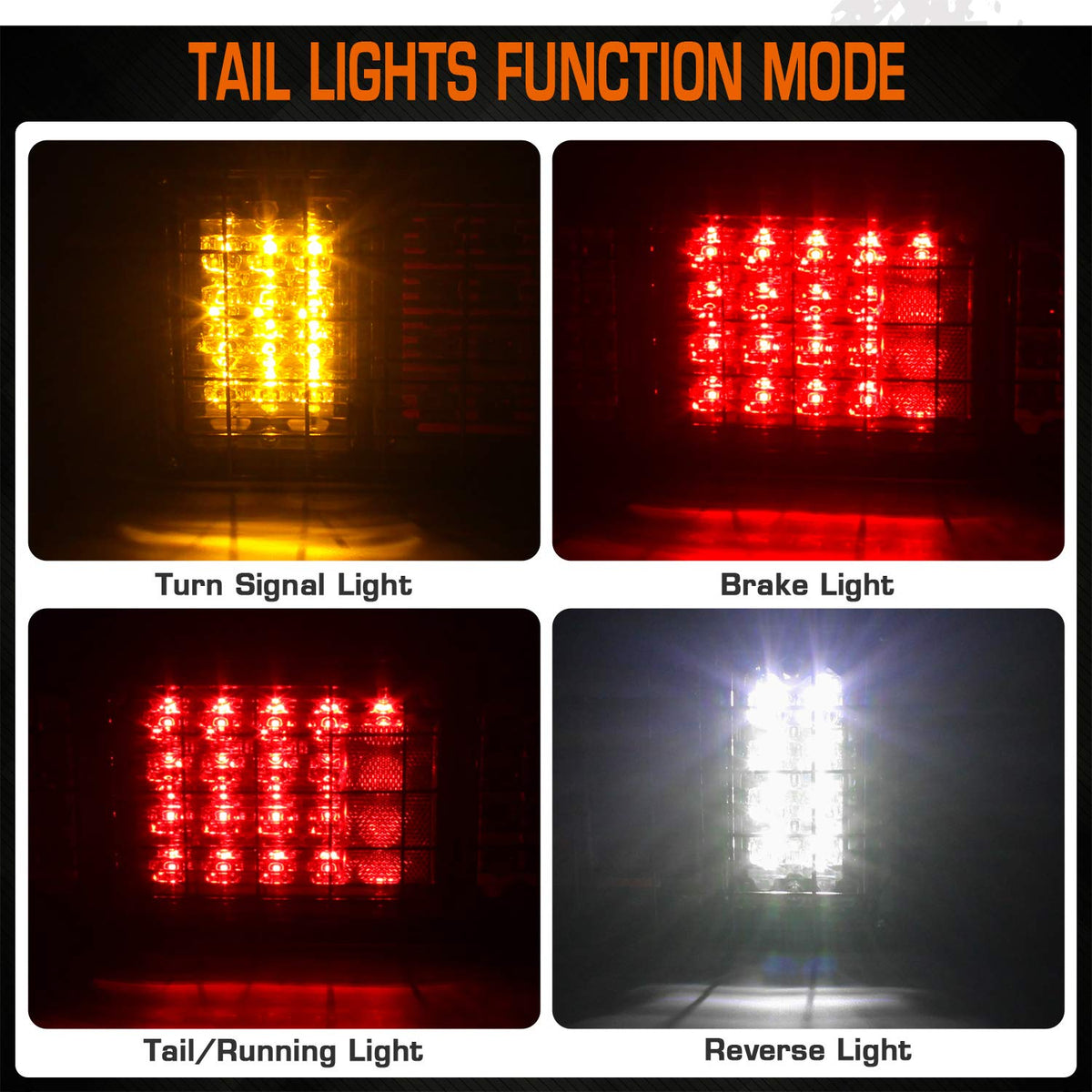

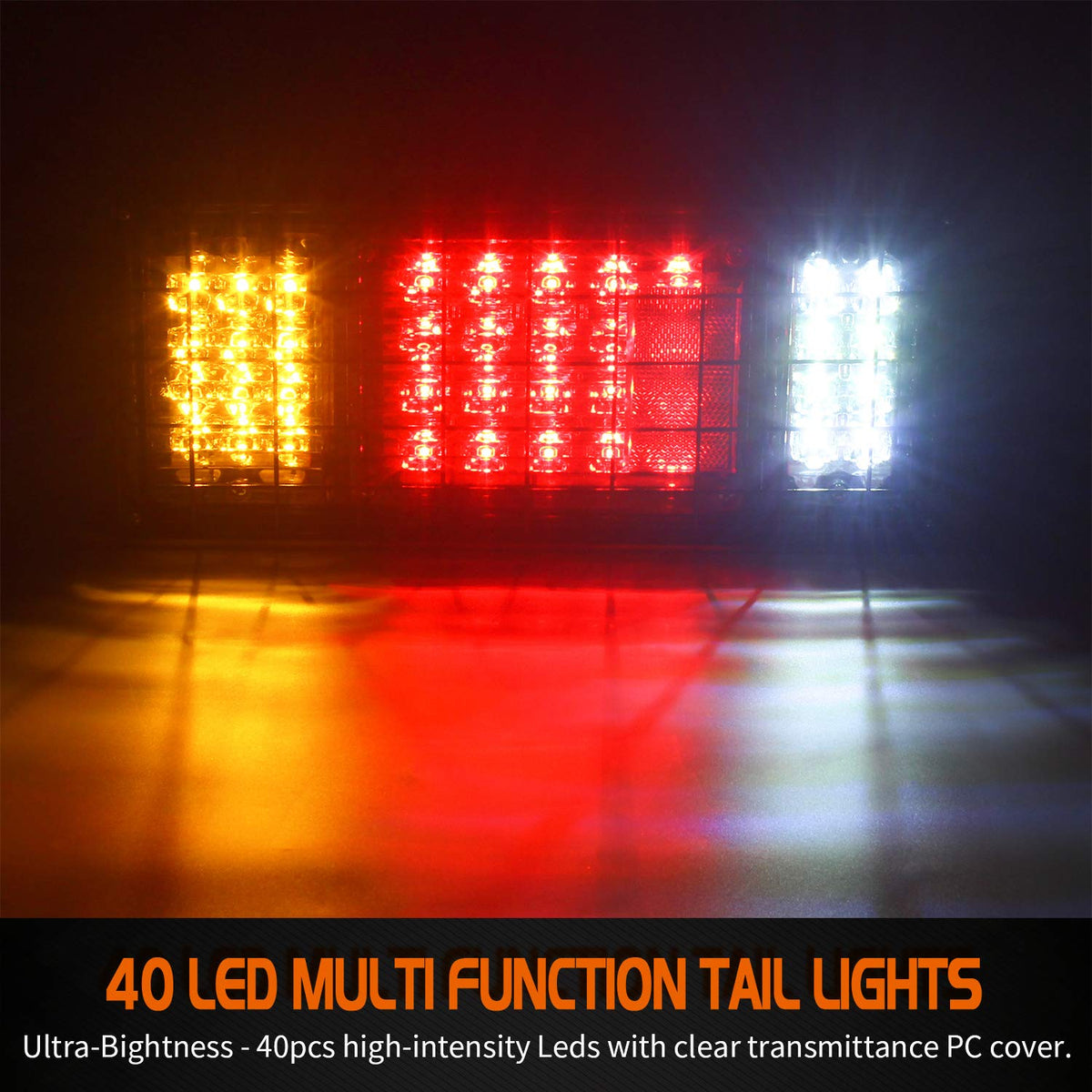

The bar uses 40 high-intensity rectangular LEDs behind a clear PC cover to maximize light transmission and visibility in varied conditions, including daytime, nighttime and poor weather. Its color distribution is arranged to ensure distinct brake, turn and reverse signals for safer following and maneuvering.

• 40 total LEDs: 20 red, 12 amber, 8 white
• Clear PC lens for improved light transmittance
• Designed for visibility in daylight, fog, and rain

Is this light built to survive harsh weather and road hazards?

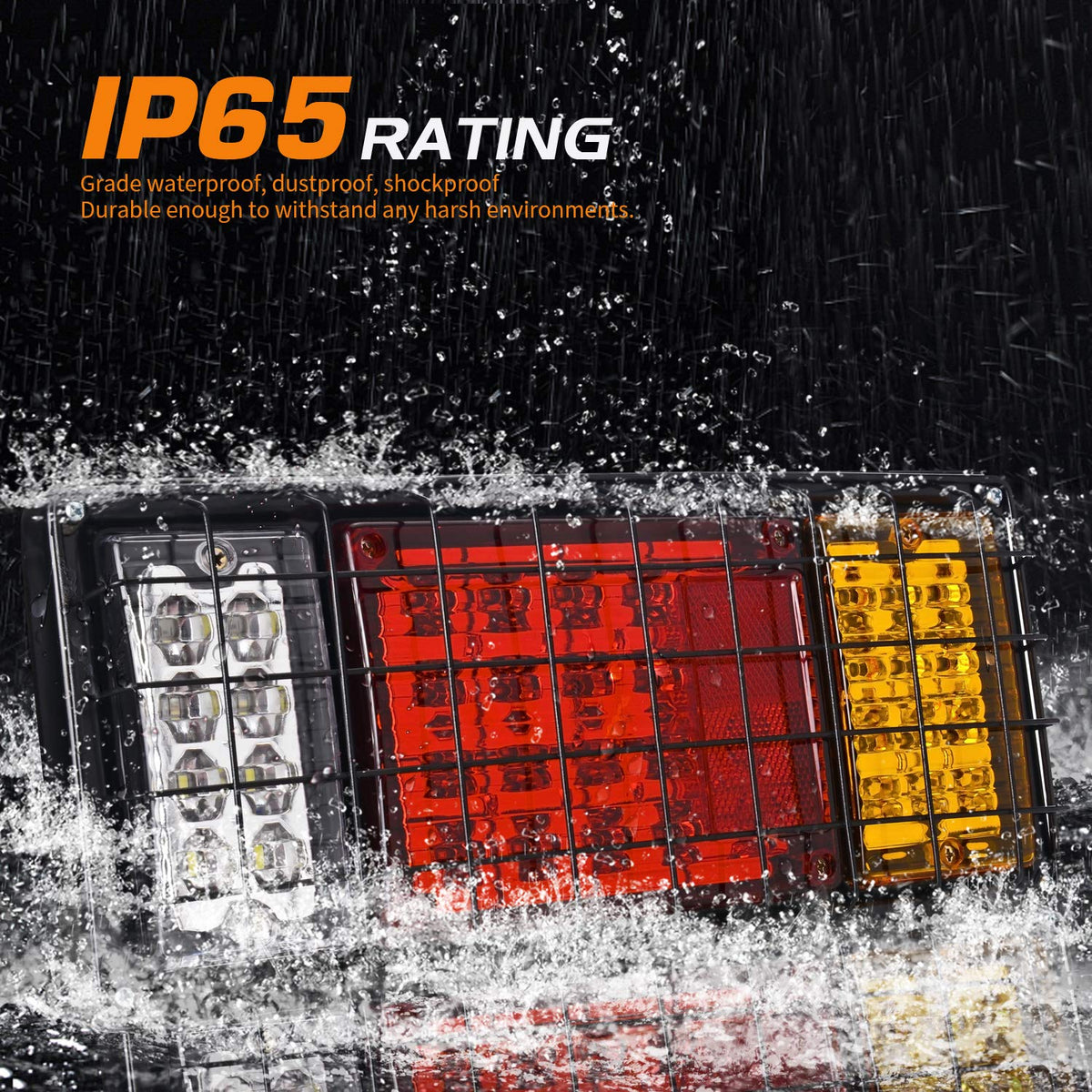

The LINKITOM light is rated IP65 for waterproofing, so it tolerates heavy rain and snow without compromising function. Mechanical protection comes from an ABS/iron housing, an iron bracket, and a front iron net that shields the lens and LEDs from impacts and debris.

• IP65 waterproof rating for severe weather resistance
• ABS and iron housing plus iron net shield for impact protection
• Durability engineered for long service life—over 50,000 hours

How does the wiring and installation work?

Installation uses a five-wire system that separates ground, brake, tail, reverse and turn signal circuits, making it compatible with vehicles that operate those functions independently. The package includes surface-mount hardware and a gasket for a secure, watertight fit on flat mounting surfaces.

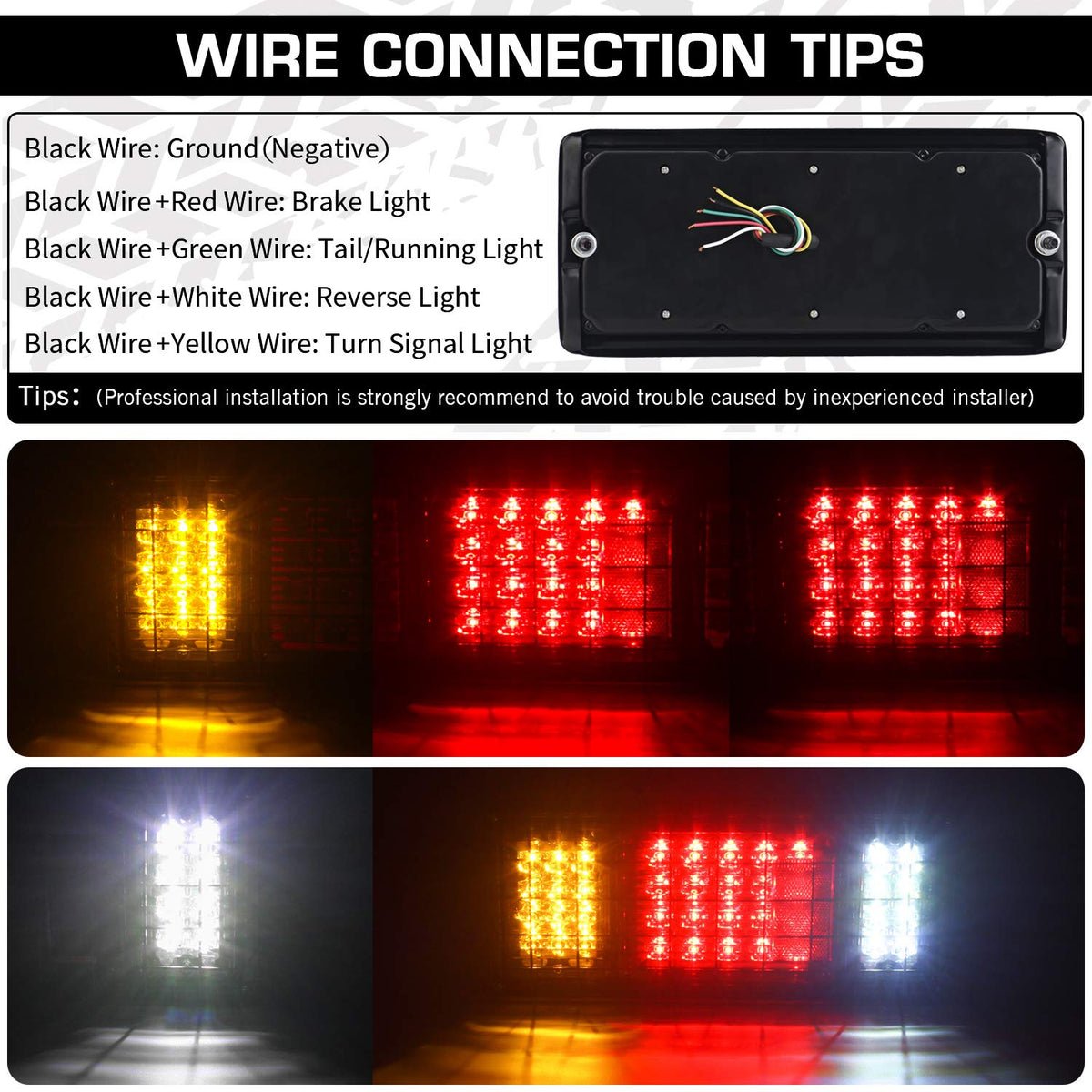

• Wires: Black = ground, Red = brake, Green = tail/running, White = reverse, Yellow = turn
• Supplied bolts, screws and gasket for surface mounting
• Compatible with 10–30V DC systems (not for single-circuit brake/signal systems)

Does this light meet regulatory and safety expectations?

The lamp is designed with DOT-compliant lens features, including a red reflector built into the red portion of the lens, and a lens material that meets utility trailer light standards. The combination of defined LED colors and reflector elements helps the unit conform to common transport lighting requirements.

• Red reflection integrated into the red lens area
• Lens and construction designed to meet DOT utility light conventions
• Clear lens and separated LED colors for distinct signaling

Who is this for? This LINKITOM tail light bar suits fleet managers, trailer owners, boat and caravan enthusiasts, and anyone needing a rugged, five-wire lighting solution for trucks, trailers, buses, snowmobiles and similar vehicles operating on 10–30V systems. It is ideal when you need a durable, weatherproof, multi-function lamp with clear signaling, but not for vehicles that combine brake and turn signals on a single circuit.
