Lisle Quick Quad Pad Spreader — 29100 4‑Piston Brake Caliper Tool, Compact Plate Design

Lisle 29100 Quick Quad Pad Spreader compresses disc brake pistons and spreads pads simultaneously, letting you reset calipers quickly on single, double and quad piston designs.

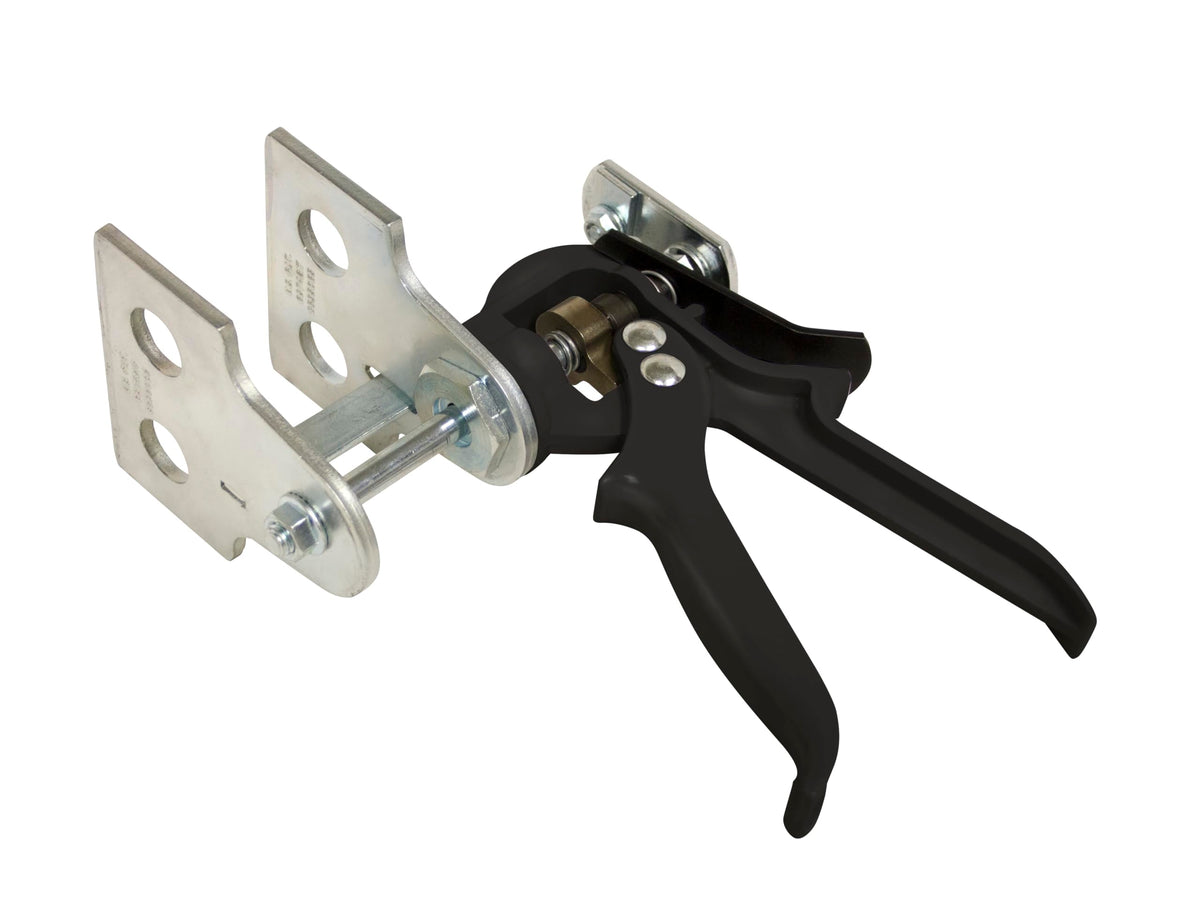

Swap brake pads faster and with less strain using a tool designed to handle modern multi-piston calipers. The Lisle 29100 is a compact, purpose-built plate spreader that pushes piston faces back into the caliper housing while keeping pads separated, so new pads fit without forcing or risk of damage. It works whether the caliper is still mounted on the vehicle or removed and hanging free, streamlining both DIY and professional brake service work.

How does the Quick Quad make brake pad replacement faster?

The tool compresses pistons and spreads pads in one operation, removing the need for multiple tools or repeated adjustments. Its solid plate design contacts the pad face uniformly, which reduces time and prevents uneven piston travel.

• Simultaneously compresses all four pistons on quad-piston calipers
• Compatible with single- and double-piston calipers as well
• Plate design prevents rotation for consistent contact
• Use with caliper on vehicle or hanging free to save removal time

Will this fit my calipers and what are the tool dimensions?

The Quick Quad is built to suit a wide range of disc brake calipers; its dimensions give enough reach and spread for most applications. Check the plate size and reach against your caliper spacing to confirm clearance before use.

• Plate thickness: 2.20" (0.220"? confirm units per spec)
• Width: 3 3/4" for broad contact across pad faces
• Reach from plate to outrigger arm: 1 7/8" to engage recessed pistons
• Spreads up to 2 1/2" between pad faces for larger calipers

Is the Lisle 29100 safe for pistons and pads?

Designed to apply even pressure across pad faces, the tool helps prevent piston cocking or pad damage that can happen with uneven or improvised compression methods. Its non-rotating plates maintain alignment, lowering the chance of overstressing a single piston.

• Even pressure across pad surface reduces localized force
• Non-rotating plates keep tool aligned during compression
• Use slowly and evenly to avoid forcing pistons beyond safe travel
• Appropriate for calipers whether intact on the vehicle or removed

How do professionals and DIYers use this tool effectively?

Start by retracting the caliper pistons until the new pads will fit, then place the spreader so the plate contacts the pad faces and engage the outrigger to compress evenly. Inspect pad and piston surfaces for debris or damage before compression to ensure clean, controlled operation.

• Clean pad faces and piston bores before use to prevent contamination
• Position plate squarely across both pads to distribute force
• Tighten or actuate gradually, watching piston travel to avoid over-compression
• Patent-protected design (Patent No. 6,874,217) reflects the tool’s engineered approach

Who is this for? The Lisle 29100 Quick Quad Pad Spreader is aimed at mechanics, restoration hobbyists, and DIY vehicle owners who service disc brakes with multi-piston calipers. It’s especially useful for shops and home garages that handle four-piston calipers regularly and want a faster, safer way to retract pistons and seat new pads without resorting to makeshift levers or multiple tools. If you need a reliable, compact spreader that preserves pad and piston condition while reducing service time, the Lisle 29100 is built to fit into your toolkit.
