Litime 500A Battery Monitor with M10 Shunt — Backlit LCD Display and Buzzer Alarm

The LiTime 500A Battery Monitor with Shunt M10 is a wired battery-monitoring system that displays voltage, current, capacity percentage, remaining time and triggers audible/visual alarms for 8–120V battery banks up to 9999 Ah.

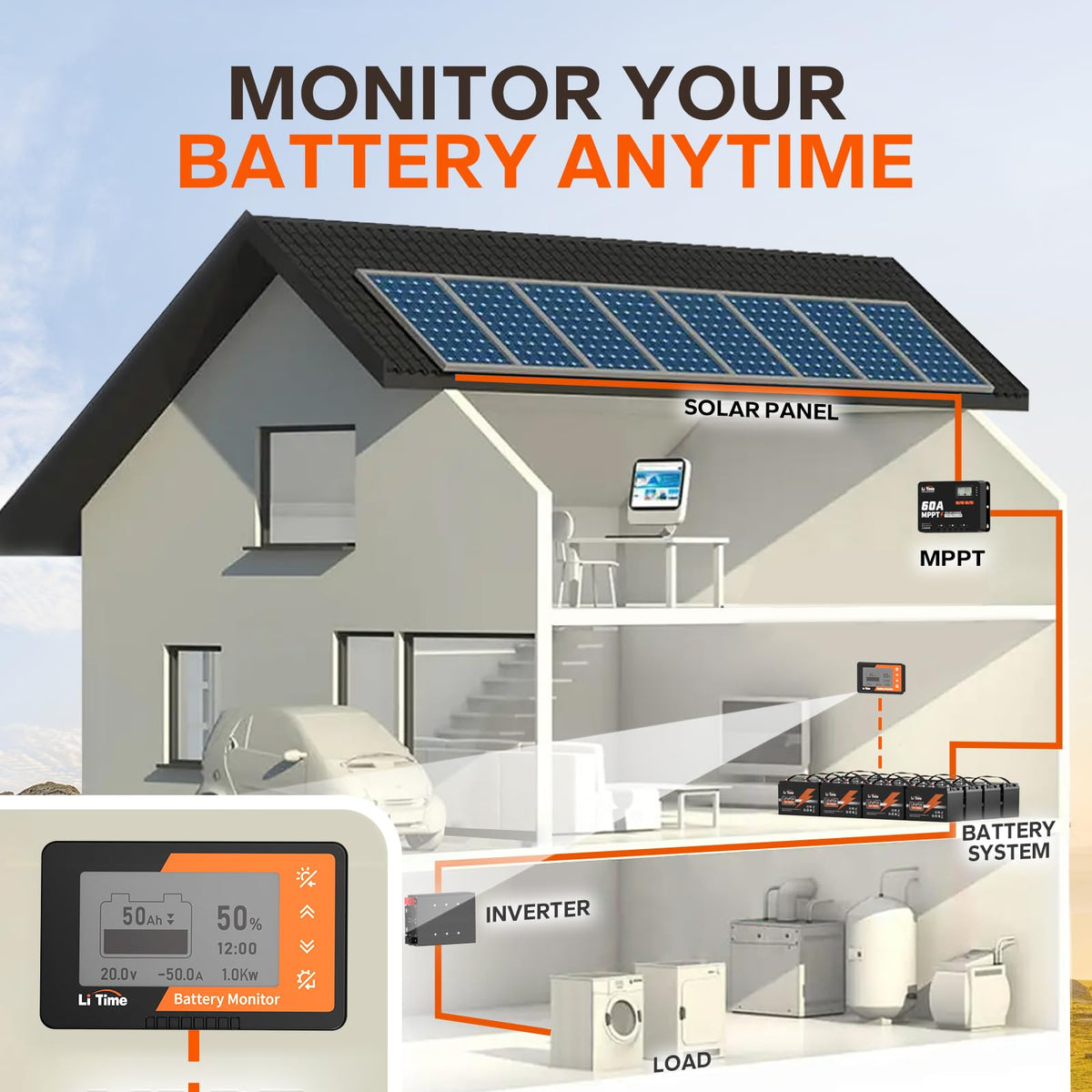

Designed for RVs, motorcycles, golf carts and off-grid solar setups, this monitor gives clear, at-a-glance status without an app. The unit pairs a precision shunt (M10) with a backlit LCD readout and buzzer alarm to track charge/discharge behavior, estimate remaining runtime and warn when voltage or capacity crosses user-set thresholds. The display and shunt mount separately so you can place the screen where it’s easiest to read and install the shunt close to the battery bank for accurate current measurement.

How does the LiTime 500A monitor battery health and run-time?

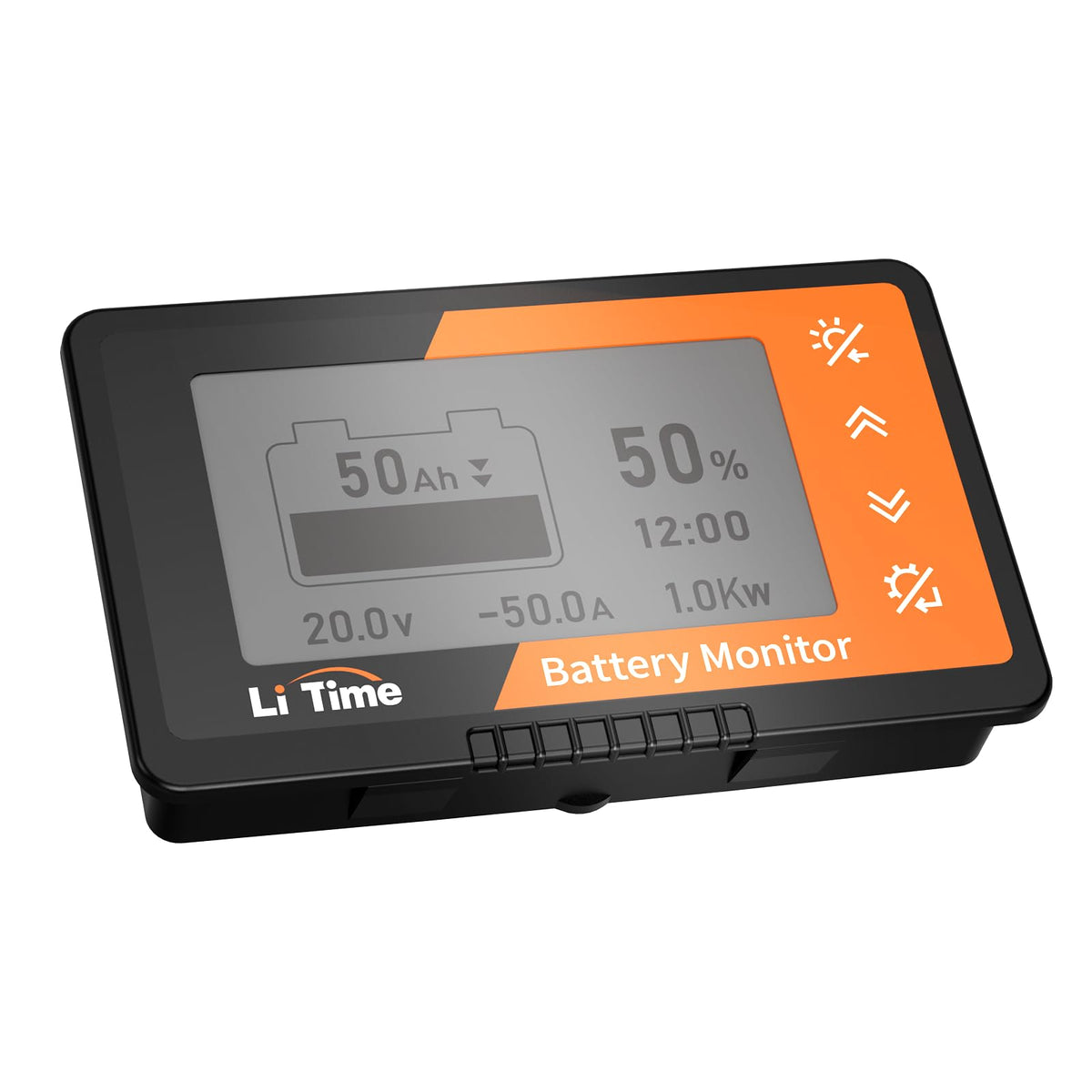

The monitor measures voltage, current and accumulated amp-hours through the included shunt to calculate state of charge and estimate remaining charge or discharge time. Readings update continuously on the LCD and the backlight keeps values visible at night. It supports multiple battery chemistries and auto-recognizes common types for more accurate capacity calculations.

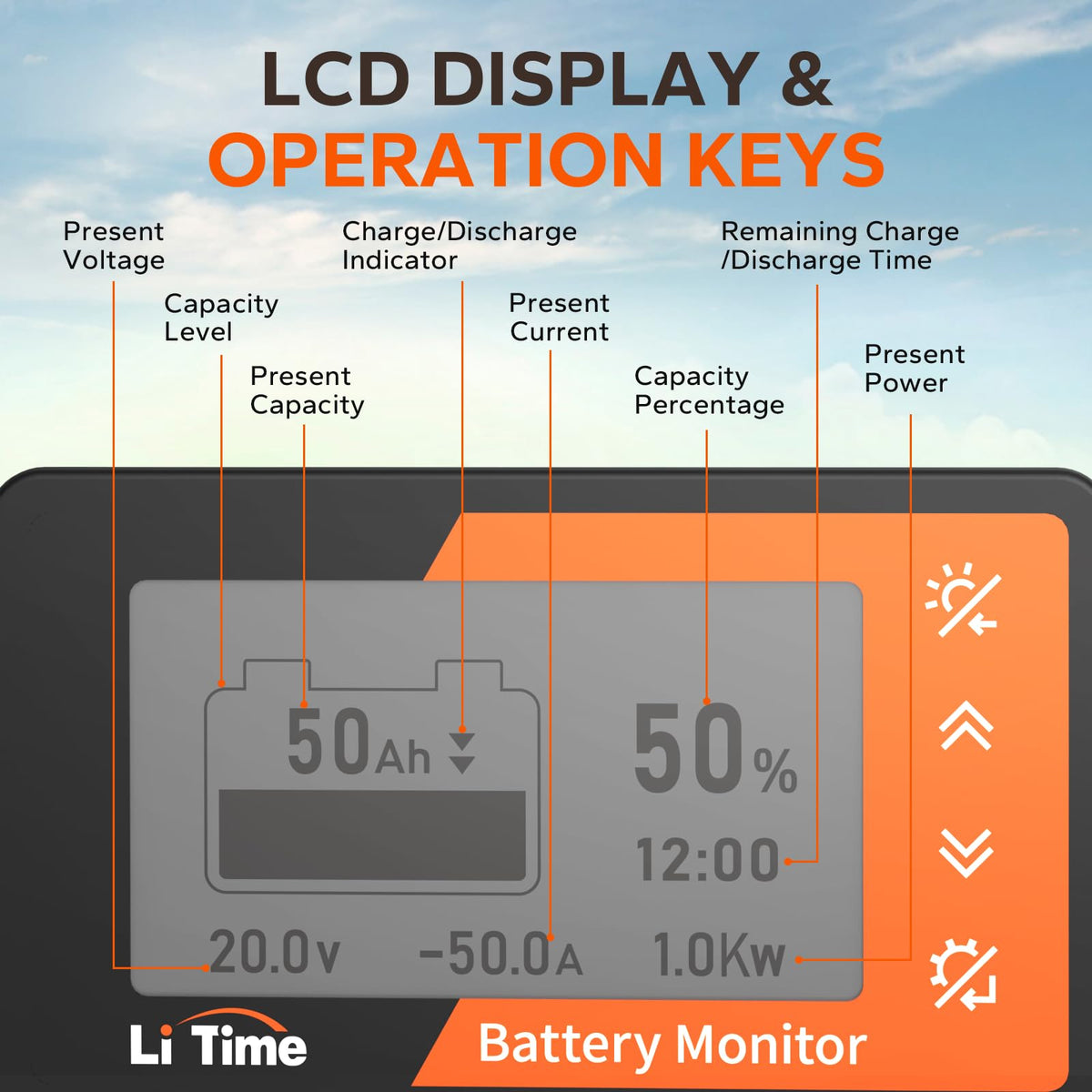

• Real-time voltage, current and power (watts) display.
• Amp-hour tracking up to 9999 Ah for long battery banks.
• Estimated remaining charge/discharge time shown on screen.
• Auto-recognition of Li-ion, LiFePO4, AGM, Gel and other battery types.

What alarms and protections are included, and how do they work?

You can set threshold alarms for voltage and capacity; when a parameter drops below the configured limit the screen flashes and a buzzer sounds every 10 seconds until acknowledged. The audible and visual alerts help prevent unexpected deep discharge or over-discharging of sensitive battery chemistries. Note this product is not waterproof and should not be used in marine installations.

• Configurable low-voltage and low-capacity alarms with flashing LCD.
• 10‑second interval buzzer for persistent notification.
• Protection-focused design—install shunt near battery, display in dry area.
• Not rated for boats or other marine environments; not waterproof.

How is the LiTime monitor installed and mounted?

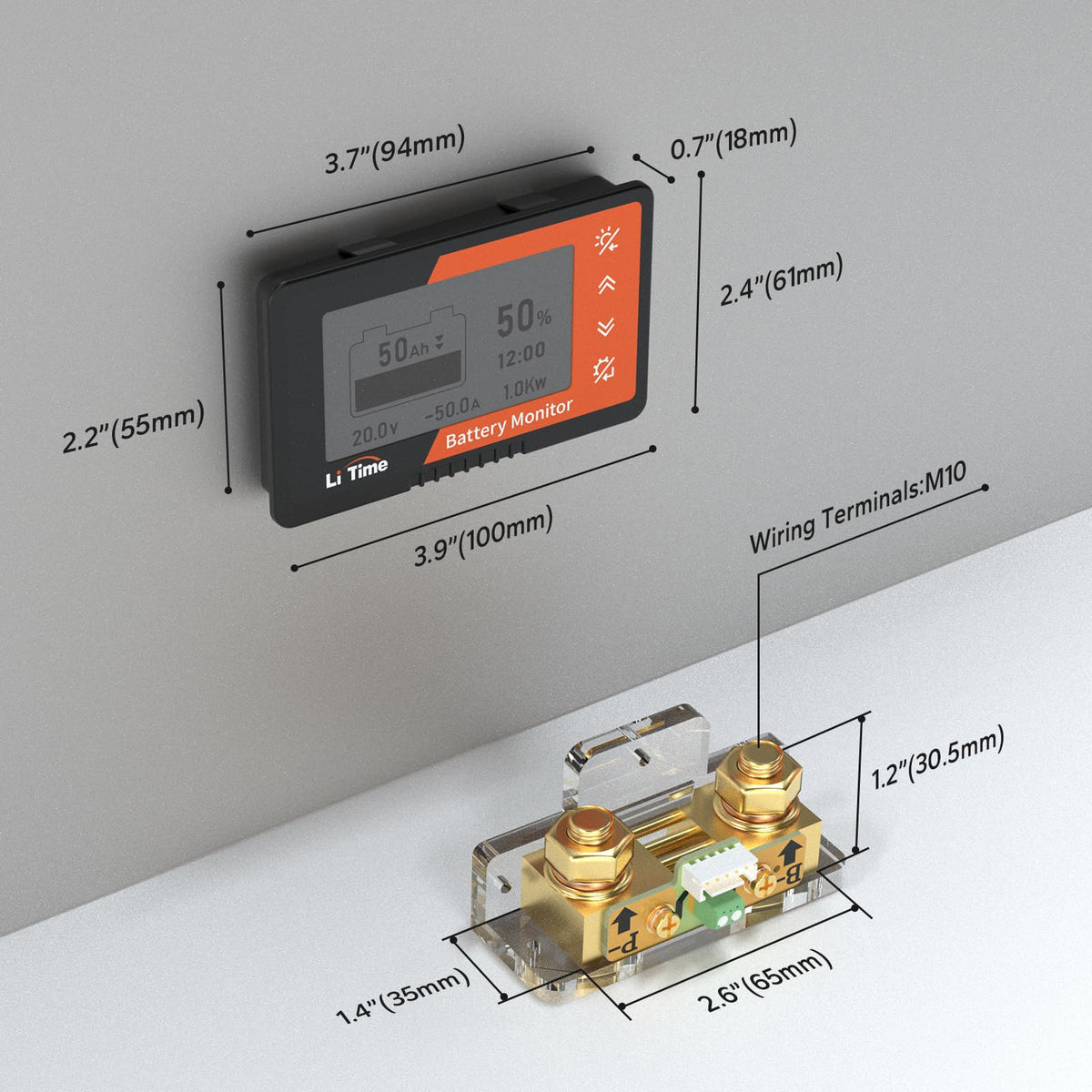

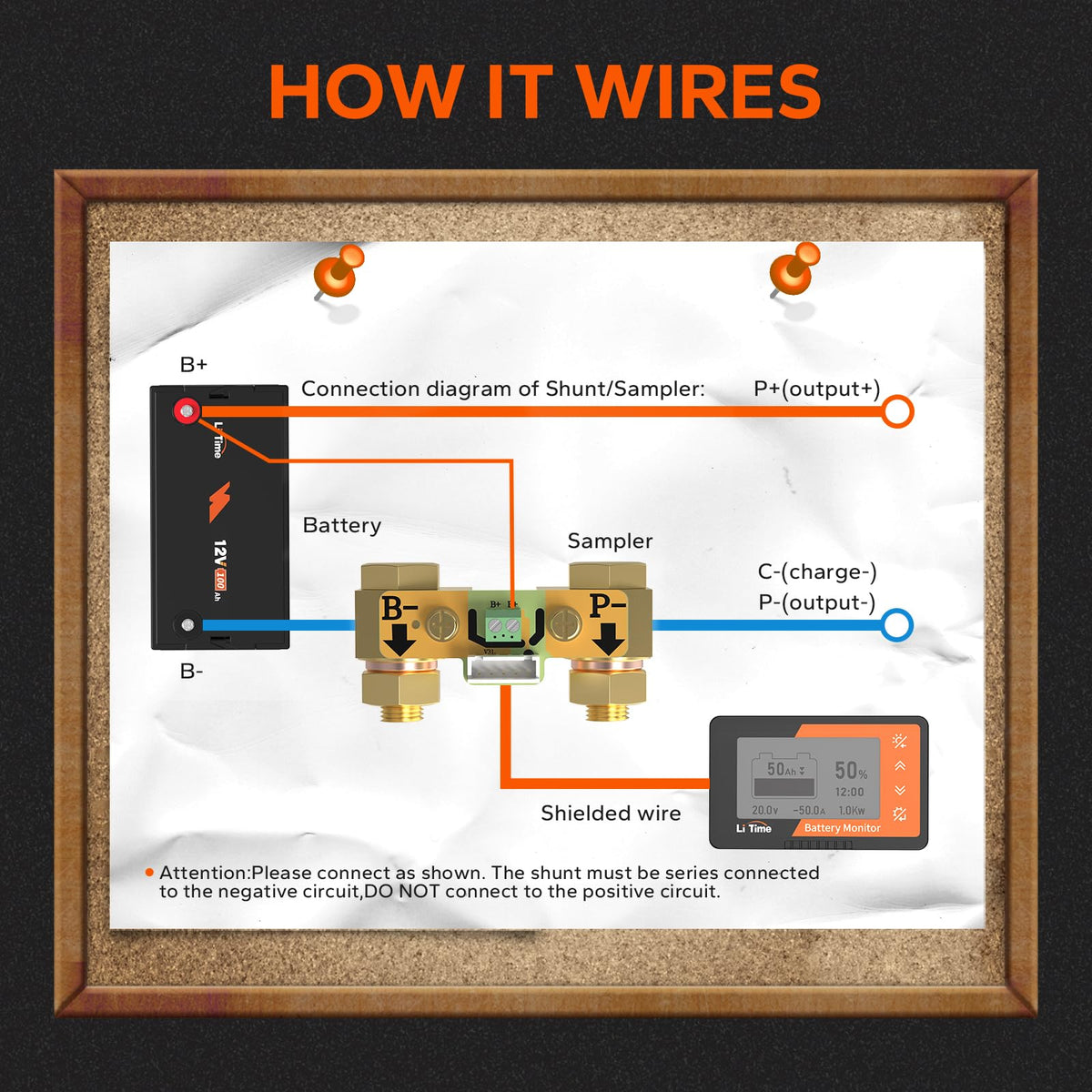

The system separates into a compact shunt and a slim display module so you can mount each where it fits best. The shunt bolts into the negative battery bus with M10 hardware; the display snaps into its bezel and can be secured with the supplied holder or snap-in tabs. The manual provides step-by-step wiring and setup instructions, including how to complete the initial configuration after powering the display.

• M10 shunt designed for secure bus-bar connection close to battery negatives.
• Snap-in display with mounting holder for dash or panel installation.
• Detailed manual walks through wiring, calibration and battery-type selection.
• Requires proper dry location; avoid installation where exposed to water.

What battery systems and capacities does it support?

The LiTime monitor covers a wide voltage range (8–120 V) and handles battery banks from small 12 V setups to larger multi-series configurations, with amp-hour tracking up to 9999 Ah. It is suitable for lead‑acid variants and modern lithium chemistries, making it versatile for varied off-grid and vehicle uses. Ensure correct battery-type selection during setup for accurate state-of-charge reporting.

• Voltage compatibility: 8–120 V systems, single or multi-battery banks.
• Amp-hour capacity supported up to 9999 Ah.
• Compatible with Li-ion, LiFePO4, Gel, AGM and other battery types.
• Automatic battery-type recognition improves accuracy after setup.

Who this is for: The LiTime 500A is aimed at DIYers, RV owners, tiny‑home and off-grid solar users, golf cart and motorcycle owners who want an accurate wired monitor without relying on a phone app. It’s best when you need a clear, mounted display and reliable alarms to protect battery longevity—provided installations stay in dry, non-marine environments.
