MANNIFEN 6-Inch 2-Jaw Gear Puller — Compact Reversible Bearing & Pulley Removal Tool, CR-V Steel

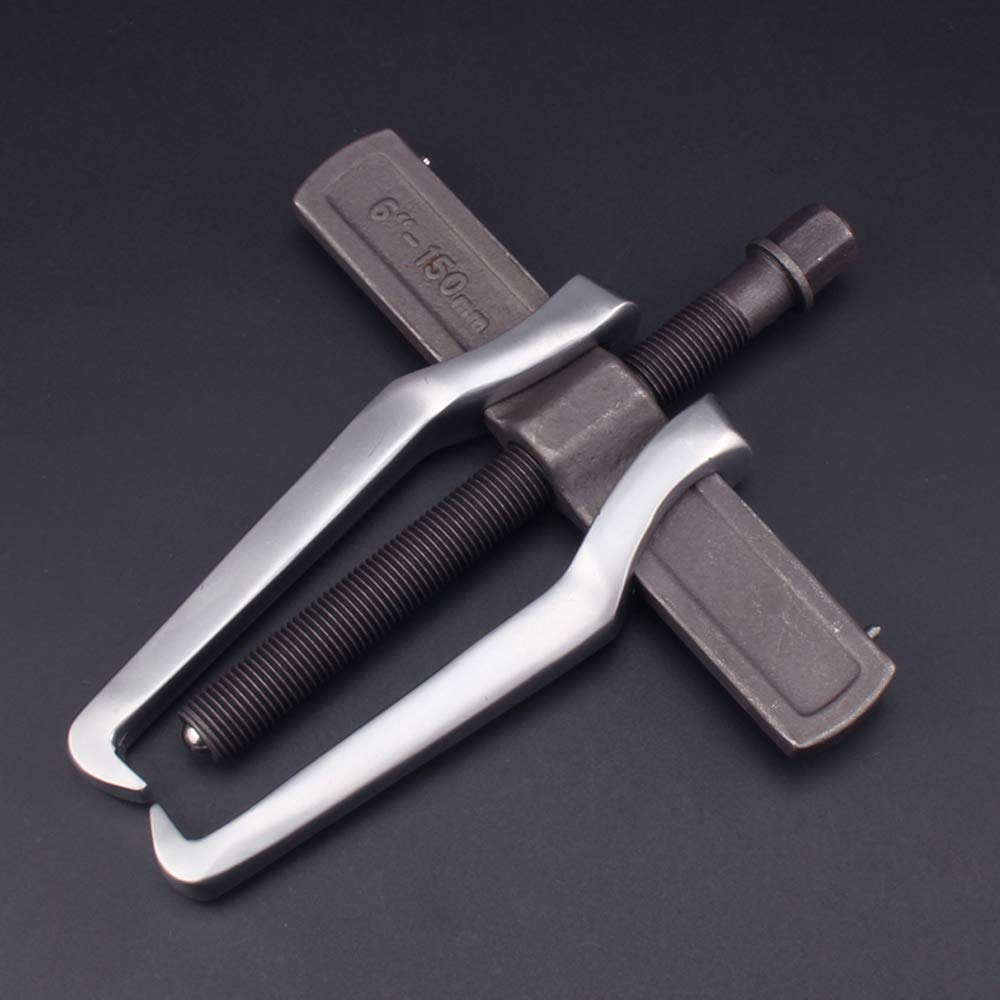

Compact, reversible 2-jaw gear puller designed to remove small bearings, pulleys and gears without harming parts. The MANNIFEN 6-inch 2-jaw gear puller is a compact removal tool built for mechanics and hobbyists who need controlled, reliable extraction of bearings, pulleys, and gears from shafts and housings. Constructed from heat-treated CR-V alloy steel, this puller combines durability with a reversible jaw layout so it can work internally or externally in confined spaces. Its moderate size and clear specifications make it especially useful where larger pullers are impractical.

How does this puller handle both internal and external removal jobs?

The puller’s arms are reversible so you can flip them to grab the outside of a flange or expand inward to engage an inner race. Switching modes is straightforward: remove the bracket, rotate the jaws, and reassemble—no special tools needed. The reversible design is ideal for alternately extracting bearings from housings and pulling off pulleys from shafts.

• Reversible jaws for internal or external grip

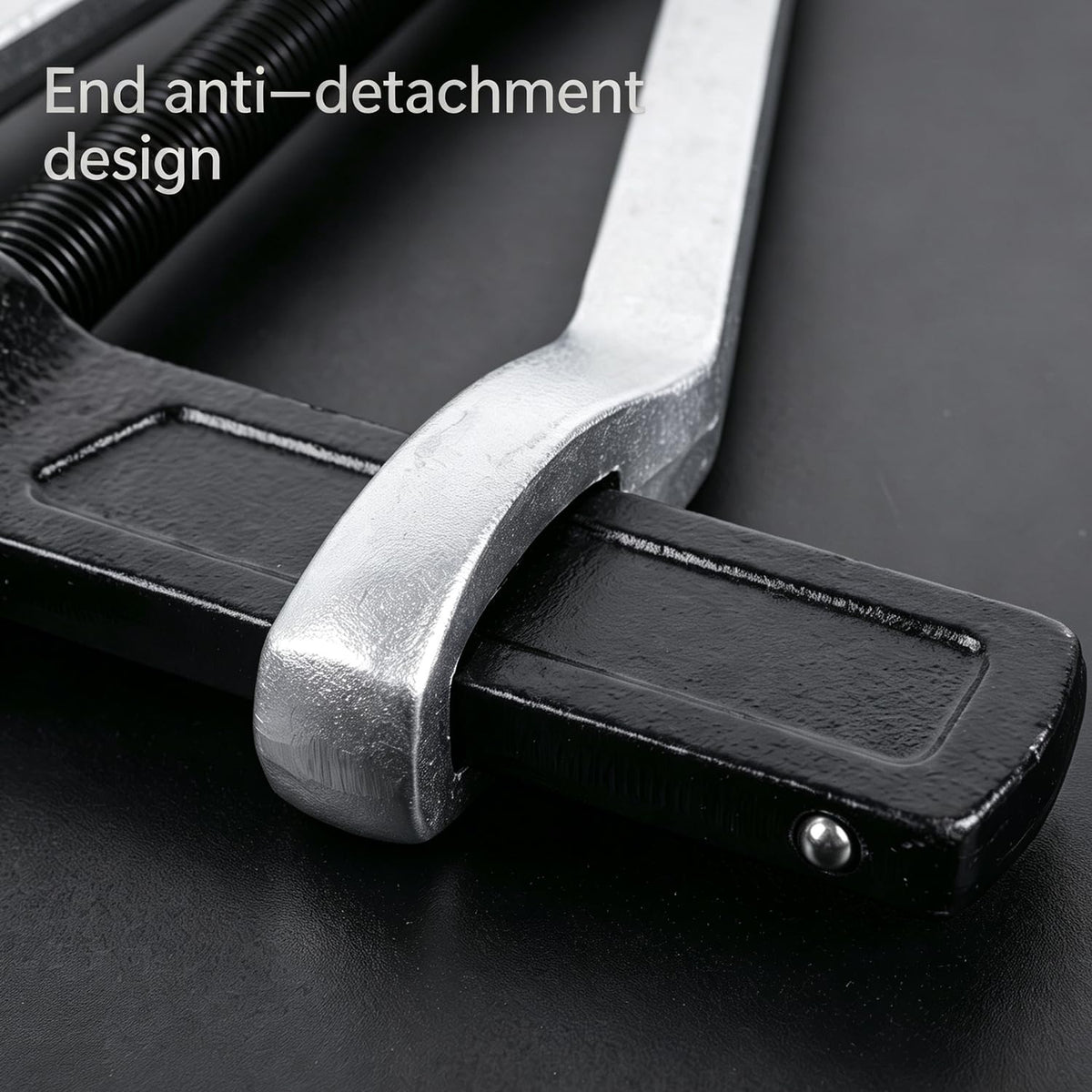

• Bracket with anti-drop pins secures jaws during operation
• Screw drive provides steady, controllable pulling force

What are the key dimensions and capacity limits I should know?

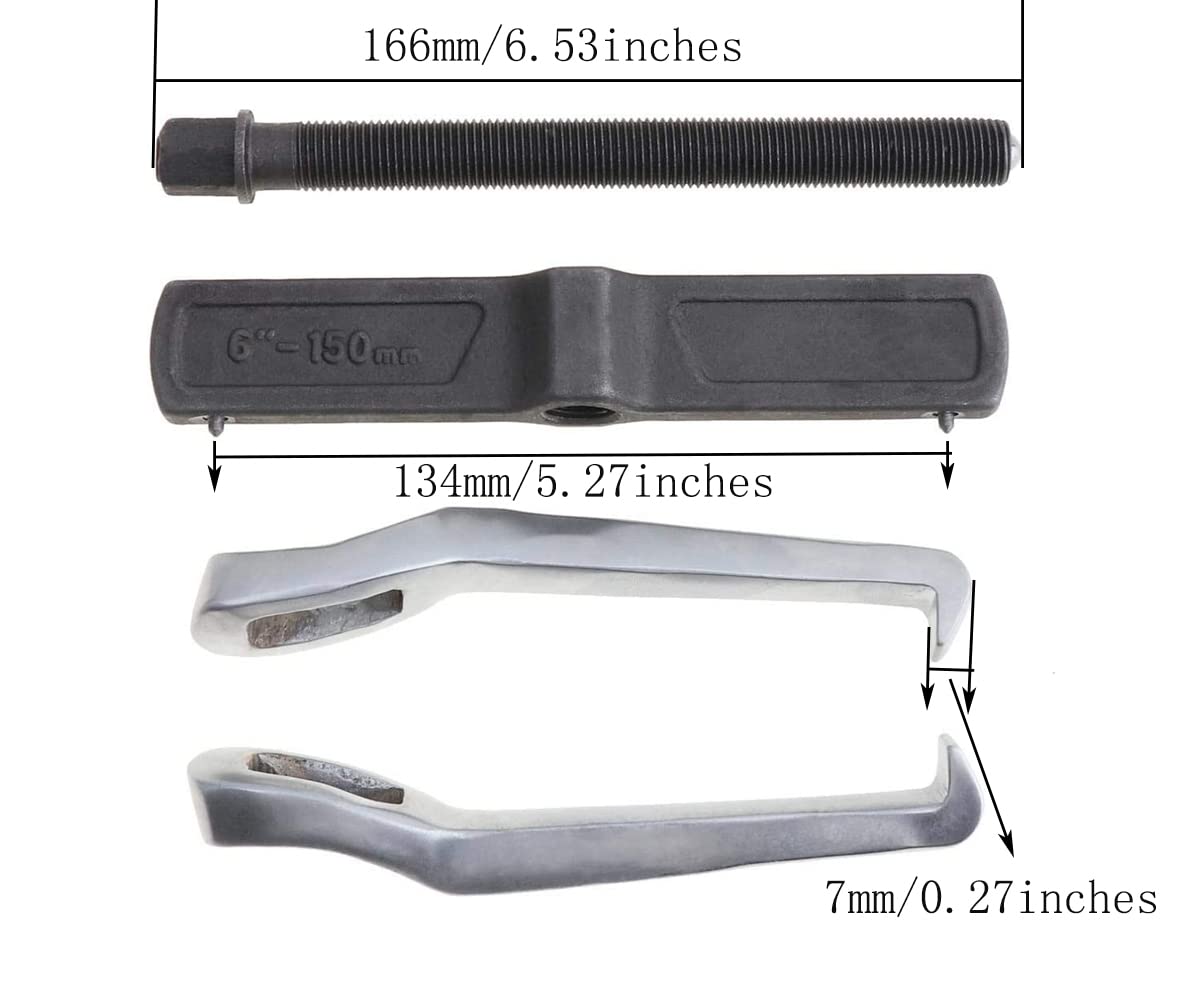

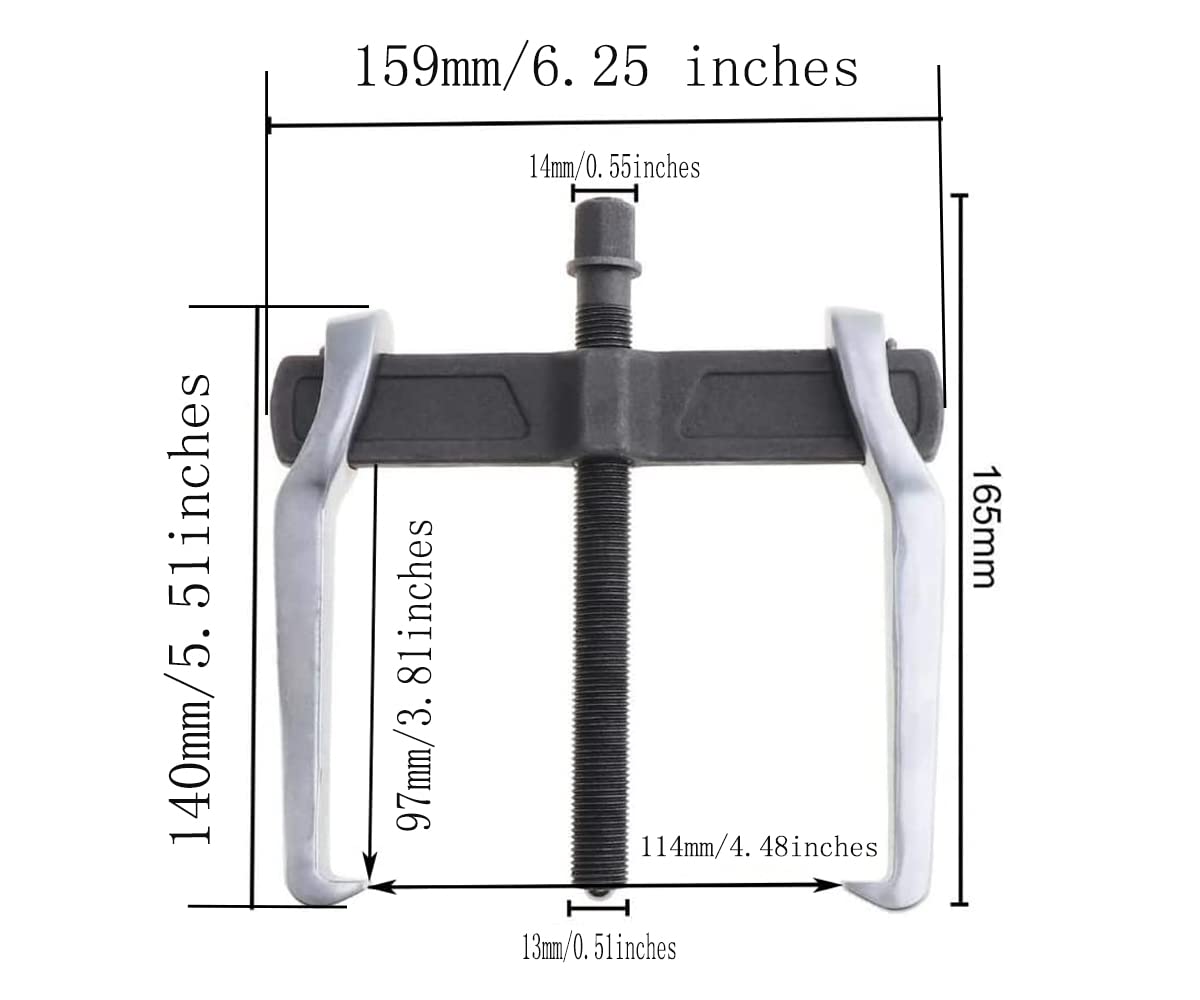

This MANNIFEN model has a 6-inch (150 mm) bracket length with a screw length of 6.5 inches (165 mm), giving a compact reach for small to medium parts. The jaws extend a total of 5.6 inches (140 mm) overall, with an effective working length of about 3.8 inches (97 mm) once the bracket is fitted. Maximum recommended gear span is approximately 5.3 inches.

• Bracket length: 6 in (150 mm)
• Screw length: 6.5 in (165 mm); screw diameters: 14 mm top and bottom
• Claw total length: 5.6 in (140 mm); usable after assembly: ~3.8 in (97 mm)
• Claw thickness: 5 mm; suitable for small bearings and pulleys

Is this puller durable enough for workshop use?

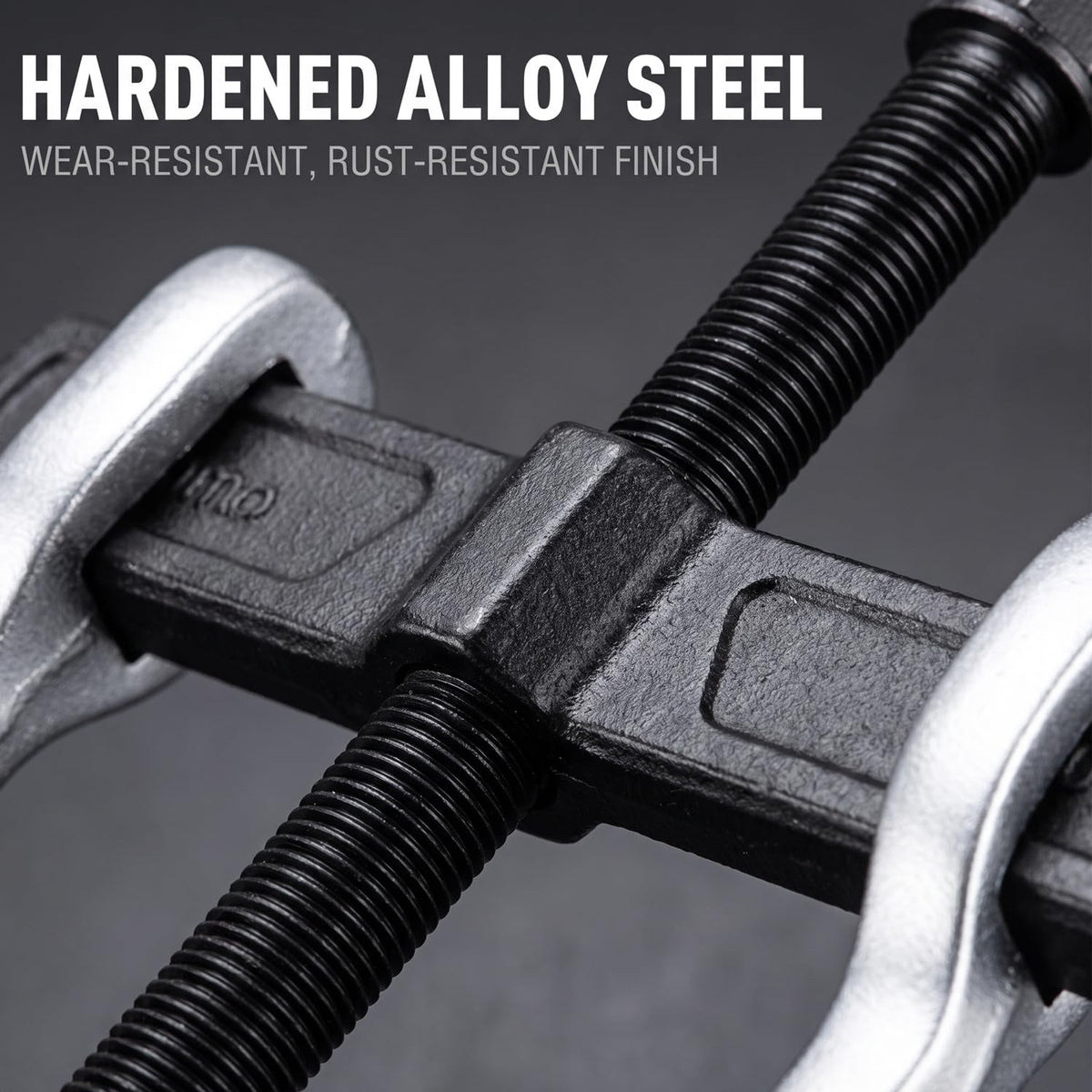

Yes—the puller is forged from heat-treated chromium-vanadium (CR-V) steel to resist bending and withstand repeated use. The screw and jaws are built to handle typical automotive and light industrial loads when used within the tool’s specified range. Regular maintenance like light lubrication of the screw will keep operation smooth and extend service life.

• Heat-treated CR-V steel body for strength
• Anti-drop pins on the bracket improve safety during use
• Suitable for repeated DIY and professional light-duty tasks

How easy is it to set up and operate this 2-jaw gear puller?

The tool is designed for quick assembly and straightforward operation: place the jaws, secure the bracket, align the center screw on the shaft, and tighten to extract the part. Its simple mechanics make it accessible for novice users while still meeting the needs of experienced technicians. MANNIFEN also offers multiple size options if you need a smaller or larger reach for different jobs.

• Tool-free jaw reversal for fast mode changes
• Clear center screw alignment for controlled pulls
• Available in six sizes: 4", 6", 8", 10", 12", 14" for broader coverage

Who is this for? This MANNIFEN 6" 2-jaw gear puller is aimed at home mechanics, motorbike and bicycle repairers, small-engine technicians and anyone needing a compact yet robust extractor for bearings, pulleys and small gears. Choose this model when workspace is tight but you still require a dependable, heat-treated tool that lets you extract parts without damaging surrounding components. If you frequently work on larger assemblies, consider one of the bigger sizes in the product range.

FAQ

Q: Can this puller remove internal bearing races?

A: Yes. Flip the jaws inward for internal pulling and align the center screw to extract bearing races safely.

Q: What maintenance does the puller need?

A: Keep the screw lightly oiled, inspect jaws for wear, and store dry to preserve the CR-V steel finish.
