Mishimoto Coolant Filter Kit for Ford 6.0L Powerstroke (2003–2007) — Black, WIX Filter & Brass Valves

The Mishimoto MMCFK-F2D-03BK is a direct-fit coolant filtration kit that captures casting debris and other solid particles from the coolant loop of 2003–2007 Ford 6.0L Powerstroke engines.

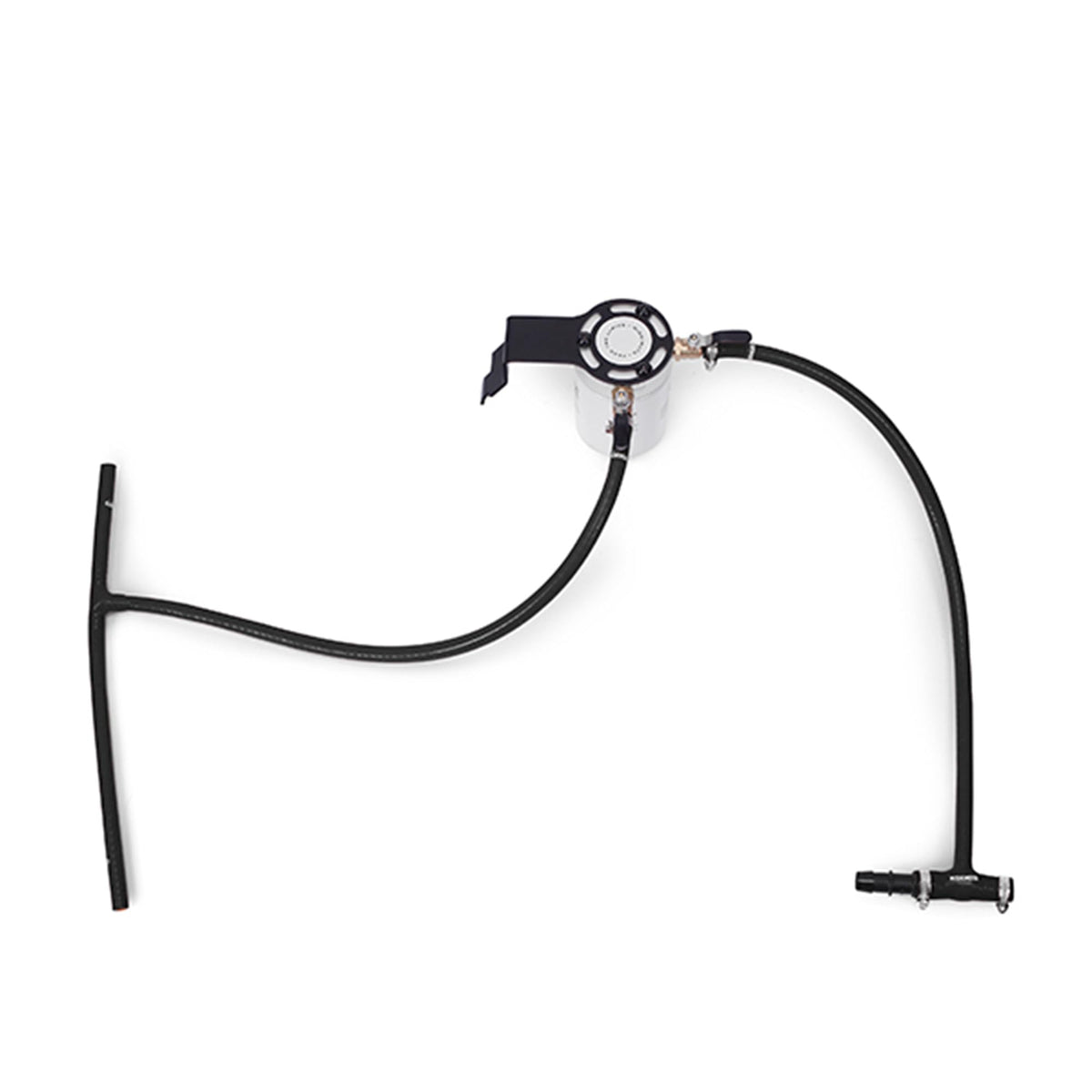

If you own a 6.0L Powerstroke, internal casting grit and leftover particulates are a well-known source of premature oil cooler and EGR cooler failures. Mishimoto’s kit addresses that vulnerability by diverting a small portion of coolant through a dedicated filter assembly mounted at the passenger-side radiator support. The system is engineered for a clean service procedure and integrates with existing coolant flow without major plumbing changes.

How does this kit reduce the risk of cooler and component clogging?

The kit operates in parallel to your truck’s coolant loop so a fraction of coolant is continually screened each time the system circulates. Solid particles get captured in the supplied WIX coolant filter before they reach critical components, reducing buildup over time. This approach doesn’t alter main coolant flow or pressure while providing ongoing debris collection.

• Parallel routing draws a small, continuous flow for filtration
• Included WIX filter traps casting grit and solid contaminants
• Brass ball valves enable clean isolation and filter changes

What parts and materials are included and why do they matter?

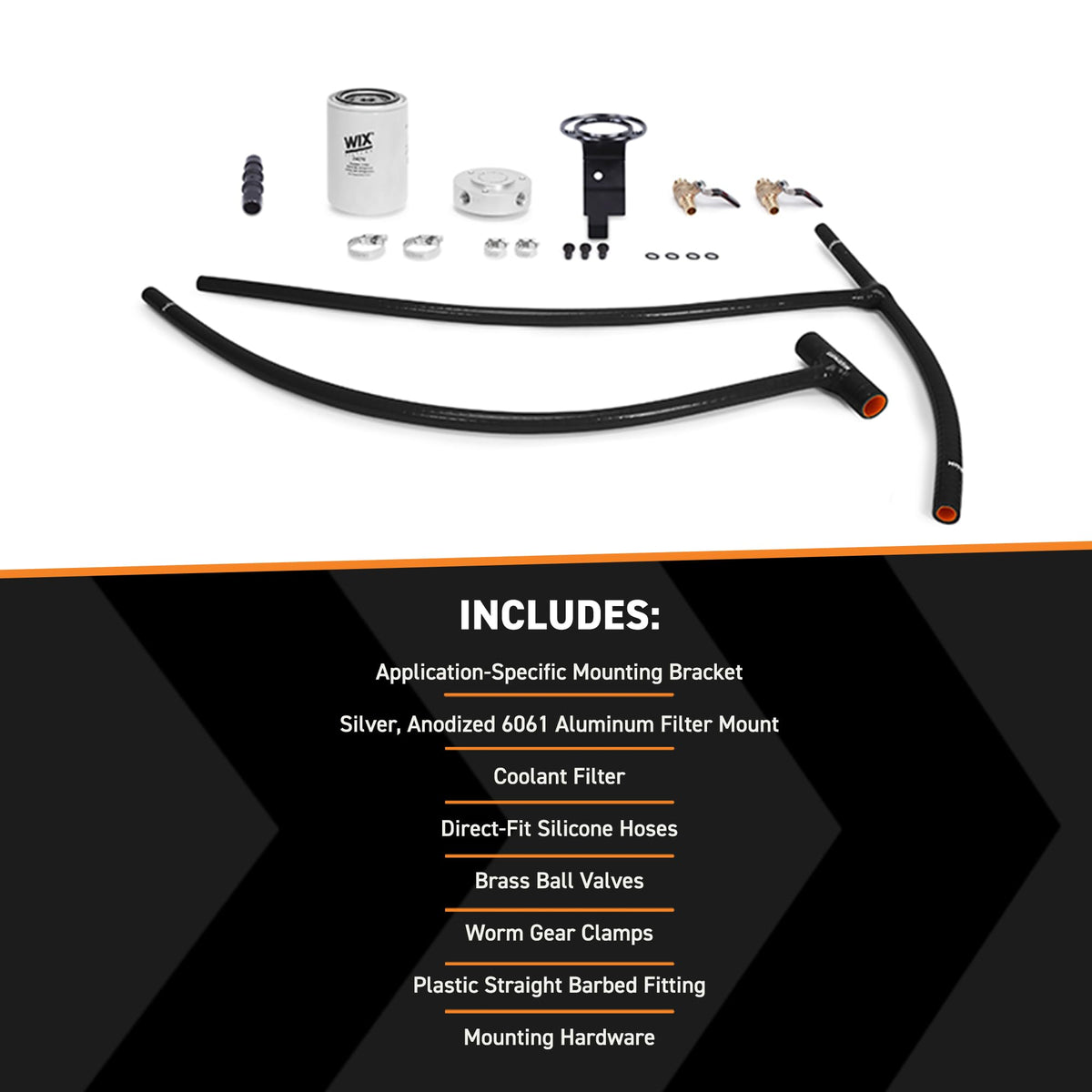

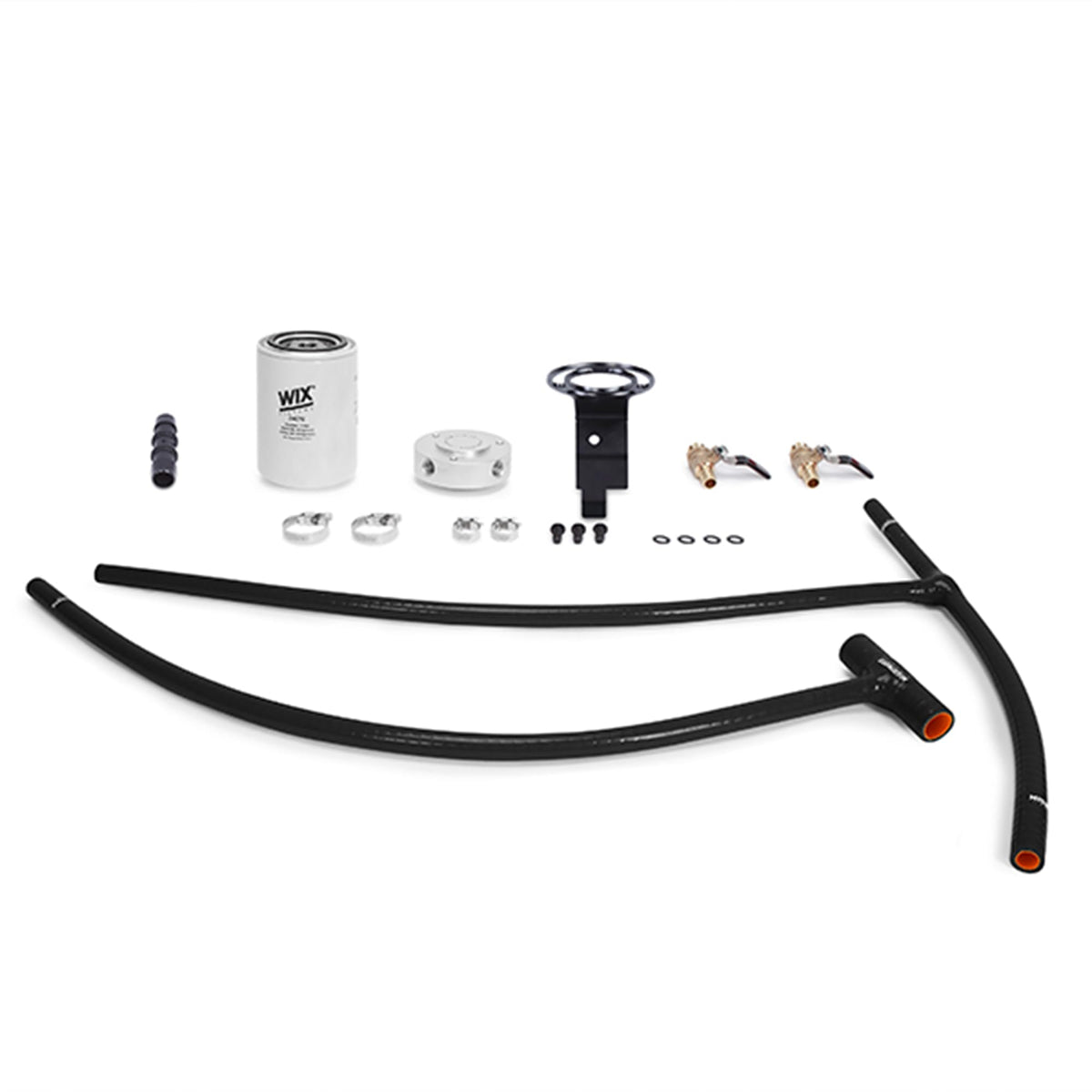

The kit ships with a precision CNC-machined 6061 aluminum mounting bracket, a WIX coolant filter, pre-formed one-piece silicone hoses, brass ball valves, and hardware tailored to the 2003–2007 6.0L. Each component is chosen to withstand engine-bay conditions and simplify installation and maintenance. The aluminum mount resists corrosion and keeps the filter accessible for routine servicing.

• 6061 CNC-machined aluminum filter mount for durability and fit
• Application-specific one-piece silicone hoses reduce leak points

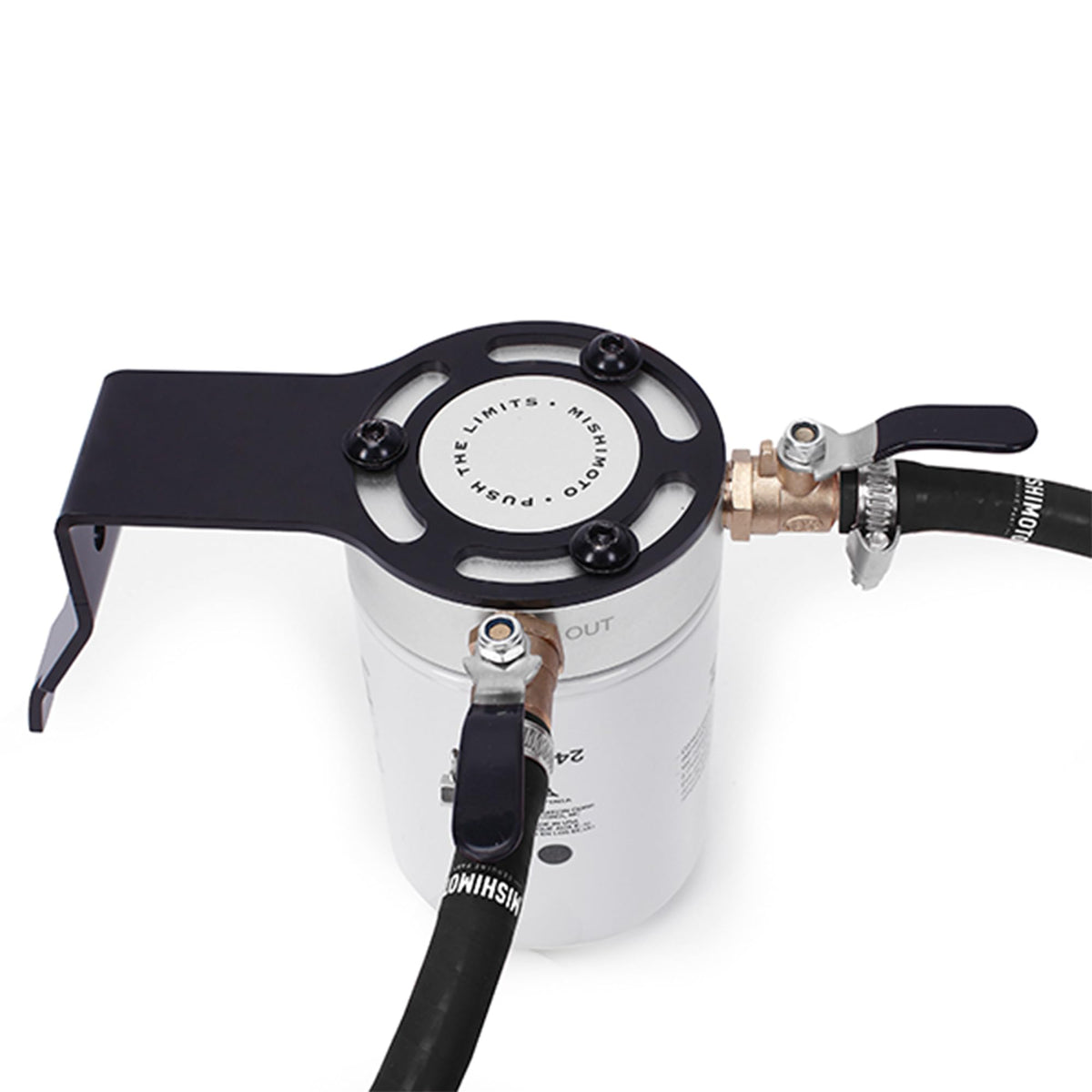

• Two brass ball valves for tidy, low-spill filter changes

How difficult is installation and what tools or modifications are required?

Mishimoto designed the MMCFK-F2D-03BK as a direct-fit kit that installs in roughly 45 minutes for most users. Some minor trimming or bracket adjustments may be necessary depending on aftermarket accessories in the engine bay. The included hardware and pre-formed hoses minimize routing guesswork and speed up installation.

• Estimated install time: under 45 minutes with basic hand tools
• Includes mounting hardware and pre-shaped hoses for quick routing
• Minor modifications occasionally needed when non-factory parts interfere

Will this work with other Mishimoto cooling upgrades?

Yes — the filtration kit is designed to complement other Mishimoto cooling products for the 6.0L Powerstroke. It pairs especially well with Mishimoto’s aluminum performance radiator and dedicated coolant hose kits to create a comprehensive cooling and contamination-control package. Use the filter kit alongside those upgrades for a more complete protection strategy.

• Compatible with Mishimoto aluminum radiators for 6.0L Powerstroke
• Integrates with Mishimoto coolant hose kits in matching colors
• Non-invasive parallel routing keeps main cooling components unchanged

Who is this for? The Mishimoto MMCFK-F2D-03BK is aimed at Ford 6.0L Powerstroke owners who want to proactively guard oil coolers, EGR coolers, water pumps, and other coolant-exposed components from factory casting debris and particulate contamination. It’s ideal for owners building a reliable daily driver or a heavy-use truck who want an easy-to-service filtration layer that complements other cooling upgrades without complex modifications.
