OptiMate Lithium 4s 0.8A LiFePO4 Battery Charger & Maintainer TM-471 — 12.8V 8‑Step, BMS Wake-Up

OptiMATE Lithium 4s 0.8A (TM-471) is an 8-step 12.8V charger and maintainer engineered to safely revive, condition and keep LiFePO4/LiFe batteries at optimal charge.

The OptiMATE Lithium 4s 0.8A combines multi-stage charging with battery-management-system (BMS) compatible wake-up technology to protect and extend the usable life of sealed lithium (LiFePO4 / LiFe / LFP) batteries. Compact and weather-resistant, it is designed for regular maintenance or recovery of batteries found in powersports, marine equipment, backup systems and electric mobility devices. The unit delivers controlled 0.8 amps and a full 8-step algorithm to balance restoration, testing, and long-term float maintenance without overcharging.

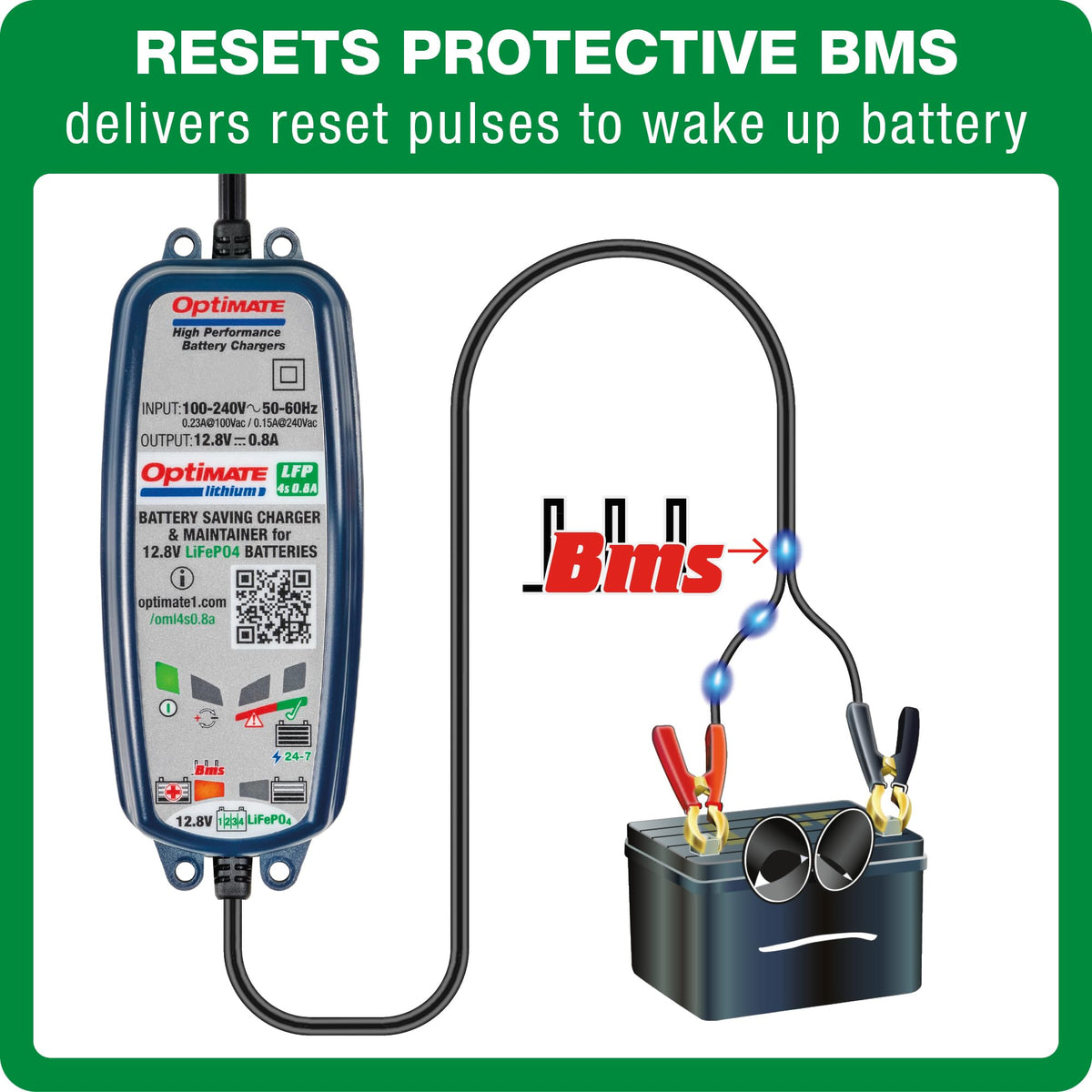

How does this charger safely wake and charge batteries with an integrated BMS?

The TM-471 includes a dedicated wake-up mode that detects batteries placed in sleep or protection state by an integrated BMS. It applies a low-voltage pulse and monitored charge steps to coax the battery out of deep-sleep modes without forcing high currents that could trigger protective shutdowns. The charger then proceeds through a measured 8-step sequence to restore voltage and verify cell condition.

• Low-current wake pulses to re-enable BMS-controlled packs.
• Gradual multi-stage charging to avoid cell stress.
• Built-in verification and safety cutouts to prevent overcharge.

What performance and protection features preserve battery life?

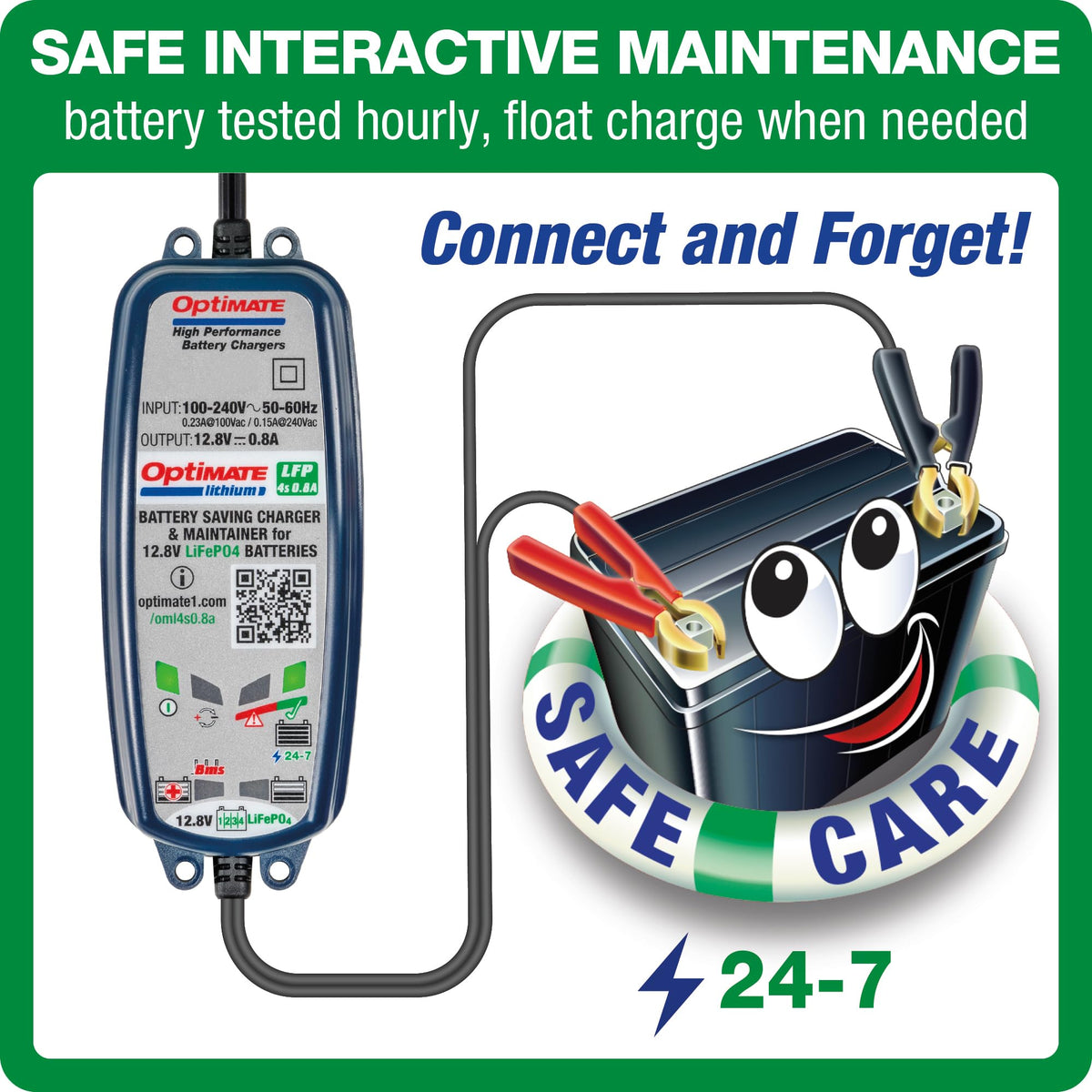

OptiMATE’s algorithm focuses on preserving capacity and preventing common failure modes by using precise voltage regulation, periodic testing, and a maintenance float that stops cycles of under- and over-charging. The charger automatically reduces current when batteries are full and performs occasional checks to maintain optimum charge without unnecessary cycling.

• 8-step charging including recovery, absorption, and float stages.
• Automatic switch to maintenance mode after full charge.
• Protection against overheating, reverse polarity, and short circuits.

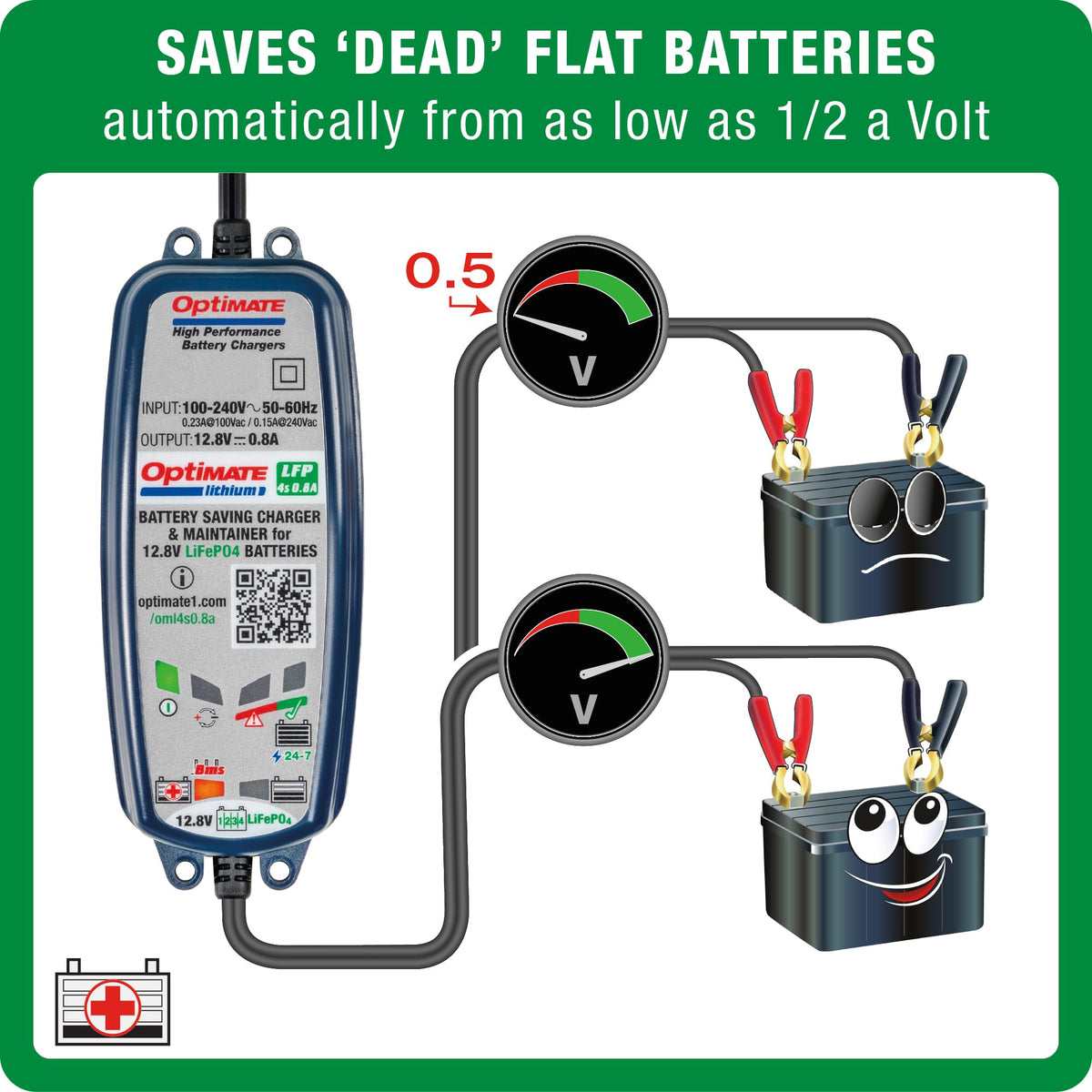

Can this unit recover batteries that other chargers cannot?

Yes — when batteries have dropped below normal operating voltage or entered a protective sleep state, the TM-471 employs a controlled recovery routine that can revive packs many simpler chargers leave unusable. Recovery success depends on battery condition and cell integrity, but the specialized wake-up and conditioning steps give a stronger chance of restoration compared with single-stage chargers.

• Special recovery mode for deeply discharged LiFePO4 packs.
• Conditioning cycles to rebalance and stabilize cells.
• Diagnostic led indicators to show recovery progress.

How easy is it to use the OptiMATE Lithium 4s on vehicles or equipment?

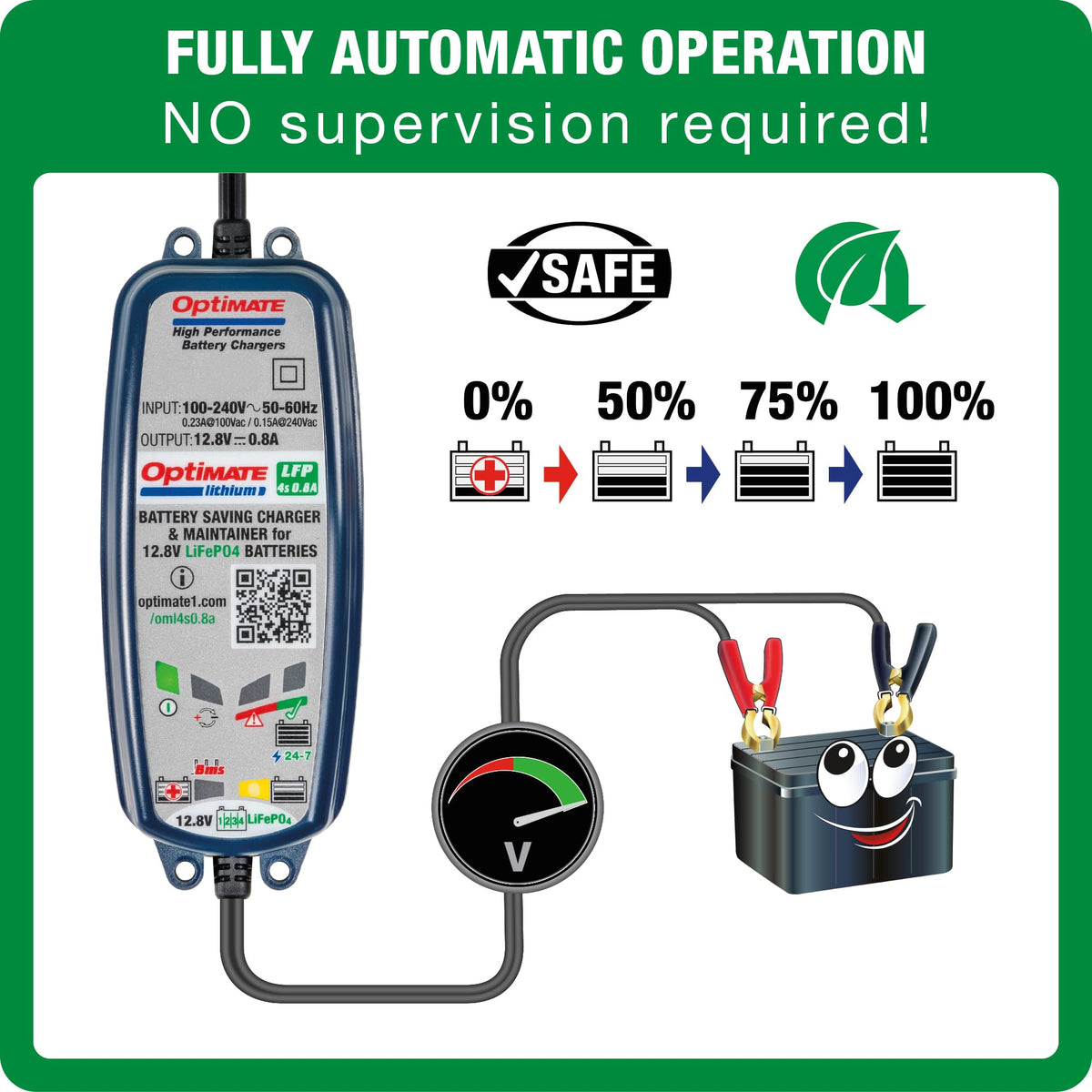

Installation and daily use are straightforward: connect the supplied clips or eyelets to the battery terminals or accessory points, plug the charger into mains, and the unit handles the rest automatically. Its compact housing and weather-resistant connectors make it suitable for workshops, garages, boats, and outdoor storage where occasional maintenance is needed.

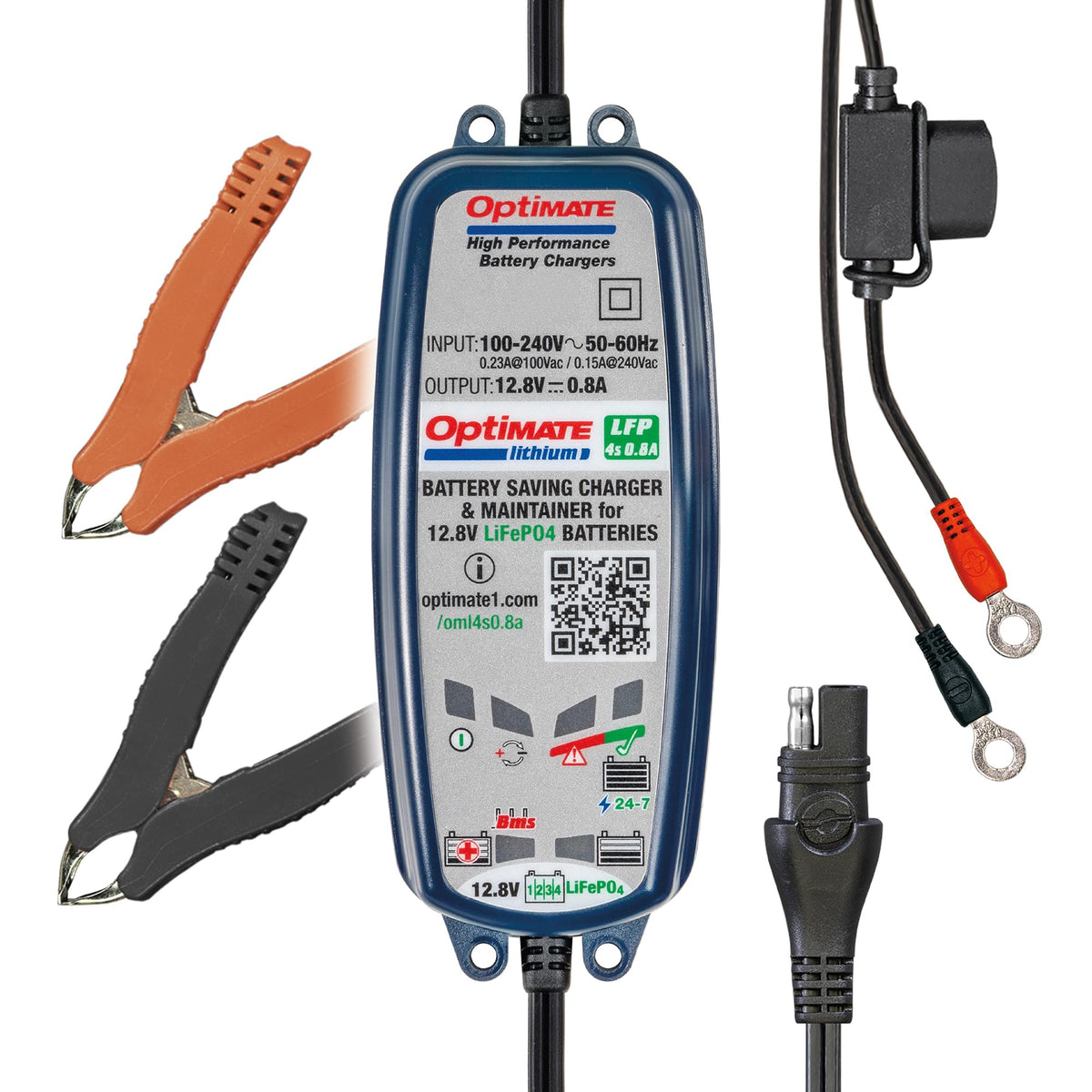

• Simple clip and ring-terminal connections for flexible mounting.
• Compact footprint for easy storage when not in use.
• LEDs indicate status: charging, recovery, full, or error.

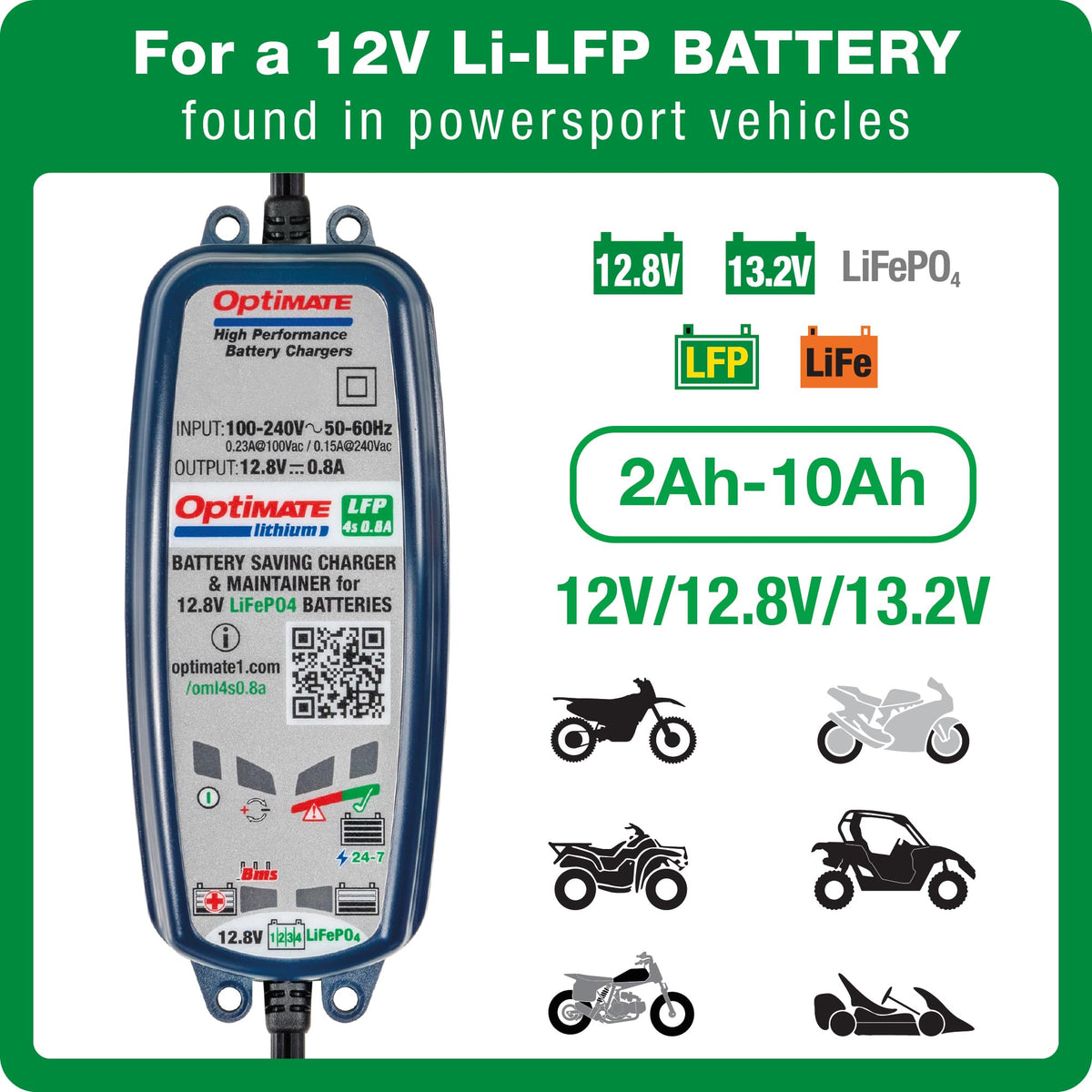

Who is this for: technicians, boat owners, powersports riders, fleet managers and homeowners who use sealed LiFePO4/LiFe batteries and need a reliable, BMS-aware charger for recovery, routine upkeep and long-term storage. If you own 12.8V LiFePO4 packs and want controlled, safe charging plus the best chance to revive batteries that have been deeply discharged, the OptiMATE Lithium 4s 0.8A (TM-471) is built to provide that functionality without complex setup.
