Partsam 38-LED Universal Rear Combination Lights Pack of 2 — 12V Stud‑Mounted Waterproof Multi‑Function

These Partsam pair 38-LED universal rear combination lamps combine stop, turn, tail, reverse and license illumination in a compact, weatherproof 12V stud-mounted assembly. Partsam designed this two-piece LED rear light set for broad compatibility across trailers, trucks, RVs, boats and many 12V vehicles where a robust, multi-function rear lamp is needed. Each lamp contains a dedicated cluster of red and white LEDs and arrives as a hardwired unit with three studs for bolting to any flat surface. The housings are built to resist water, shock and vibration so they can sit exposed to road and marine conditions.

How do these lights handle multiple rear functions in one unit?

Each lamp uses separate LED groups to perform different tasks—red LEDs handle stop/turn/tail duties while white LEDs are dedicated to reversing and plate illumination. Wiring is color-coded so you can assign signals by splicing to your vehicle harness. The design reduces the need for multiple fixtures by combining functions in one compact assembly.

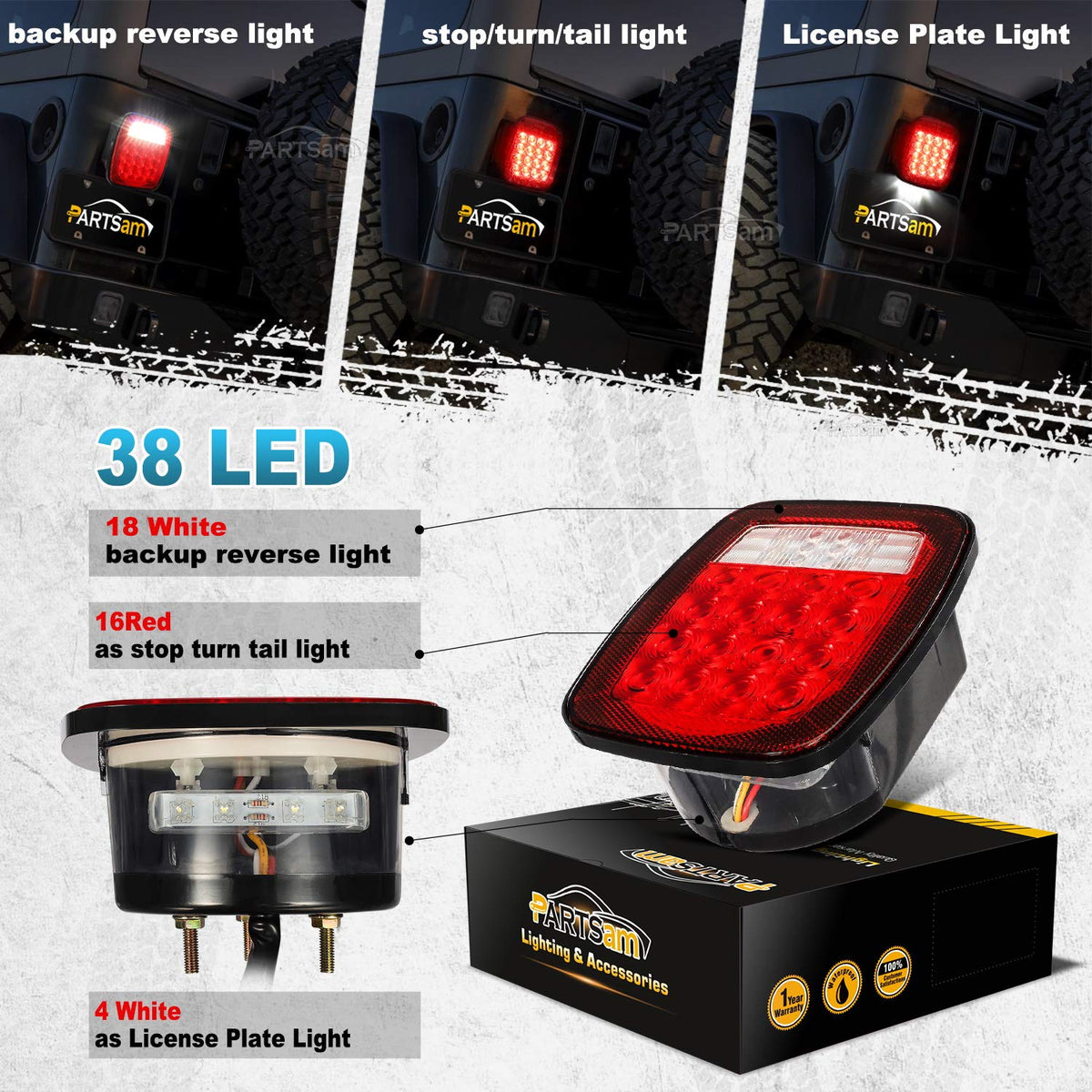

• 16 red LEDs for stop/turn/tail with selectable brightness levels
• 18 white LEDs serve as a reverse/backup beam
• 4 white LEDs illuminate the license plate (one side only)

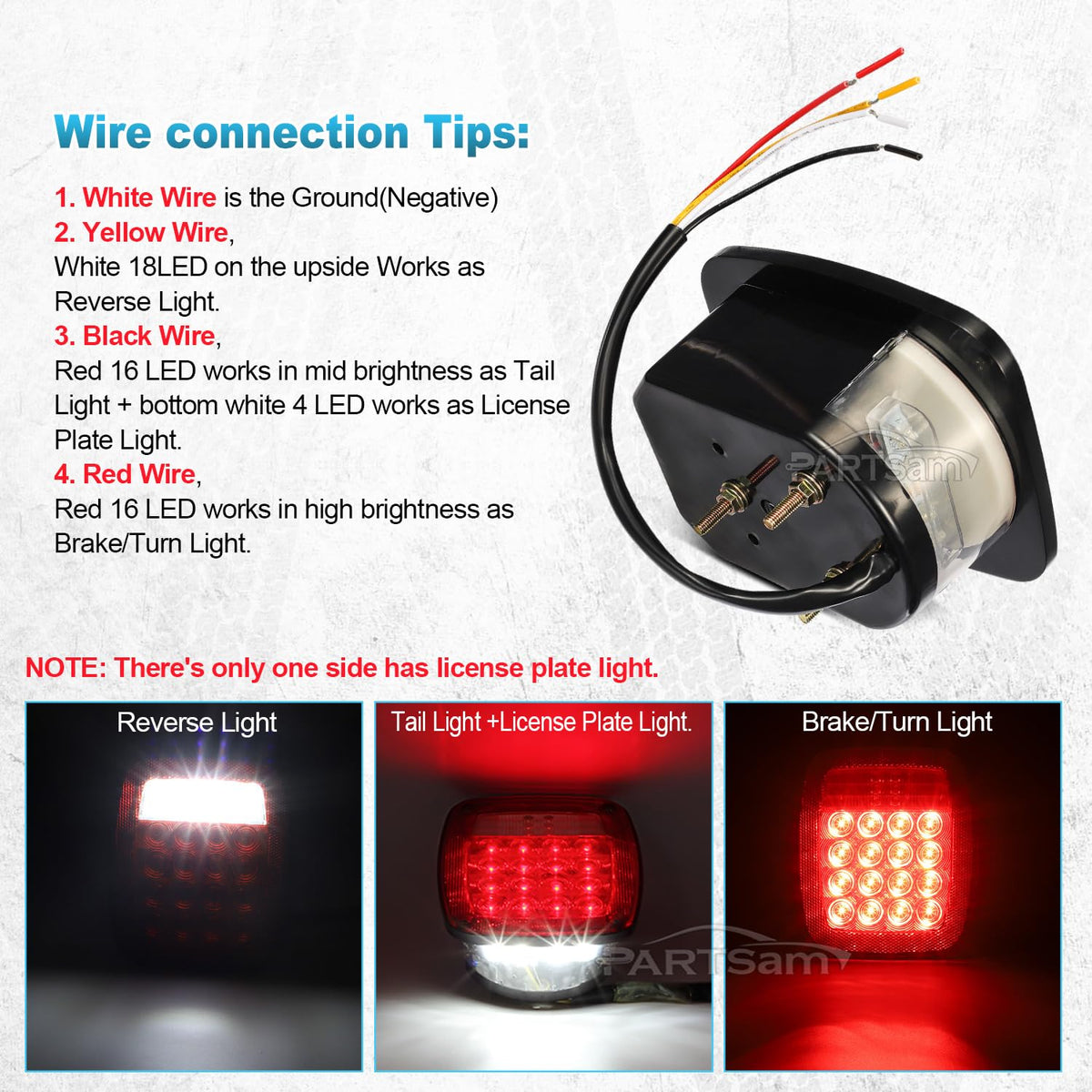

• Color-coded wires for straightforward hardwired connections

Will these tail lights fit my vehicle and how hard is installation?

These are universal, stud-mounted lights meant to bolt to flat surfaces rather than plug into factory mounts. They are not a direct OEM replacement for Wrangler YJ/CJ tail lights and may require drilling or body modifications for some vehicles. No harness is included, so basic wiring skills and splicing are required to connect signals.

• Three-stud mount with 2"–2.2" spacing between studs
• Bolt-through installation; larger holes may be necessary on some bodies
• Hardwired kit requires splicing into existing vehicle wiring
• Not a plug-and-play OEM swap for specific factory mounts

Are these lights durable and road-legal?

The assemblies use a durable polycarbonate housing and acrylic lens to protect the LED clusters from moisture and impacts. They are built for low current draw and meet DOT requirements for street use, making them suitable for many on-road and off-road applications. Still, confirm local regulations and mirror requirements when modifying vehicle lighting.

• Resistant polycarbonate housing and acrylic lens for weather protection
• Low amp draw for efficient power use
• DOT-compliant for legal road use where applicable
• Designed to resist shock and vibration on trailers and vehicles

This kit is ideal for vehicle owners, fleet managers and DIY mechanics who need a compact, multi-function rear lamp solution for trailers, work trucks, Jeeps, campers, boats and RVs. Choose this set if you want combined stop/turn/tail and reverse lighting in one rugged package and are comfortable performing simple drilling and wire splicing during installation. If you require a direct factory-fit replacement or a plug-in harness, plan for additional modification or wiring components before installation.

FAQ

Q: Do these tail lights plug into factory connectors?

A: No. They are hardwired and require splicing; no wiring harness is included.

Q: Are these lights waterproof and road-legal?

A: They use weatherproof materials and are DOT-compliant, suitable for many road applications.
