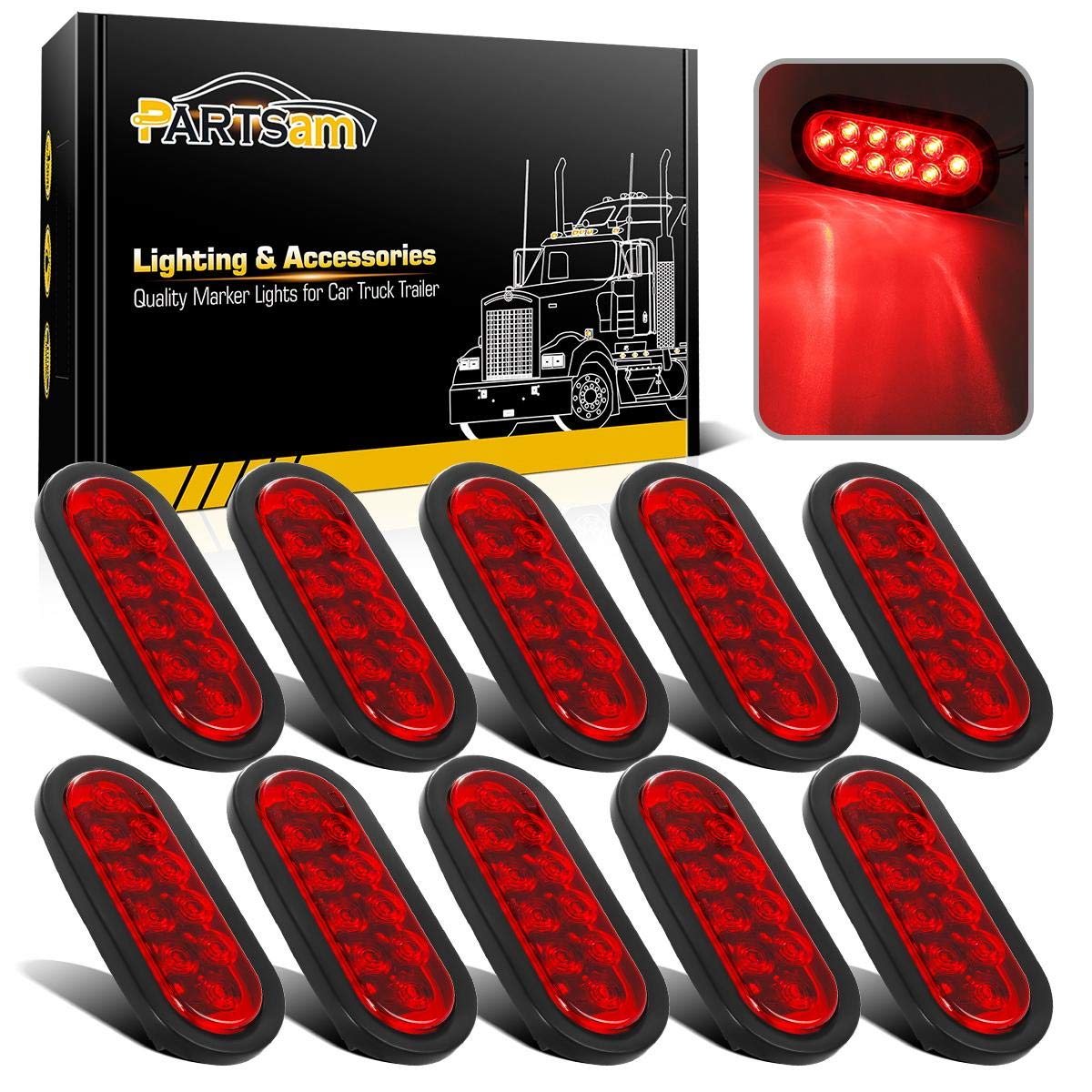

Partsam 6" Oval LED Trailer Tail Lights 10-Pack Red 10-Diode, IP65 Waterproof, 3-Prong Pigtail

Partsam 6" oval LED trailer tail lights are a 10-piece set of red, 10-diode stop/turn/tail lamps with rubber grommets and 3‑prong pigtails for weatherproof, flush-mount replacement on trailers and trucks.

These oval LED lamps are built to replace worn or outdated incandescent lights on trailers, RVs, and utility vehicles. Each unit contains 10 SMD LEDs for bright, energy-efficient signaling, ships with rubber grommets and 3-prong wire pigtails for a straightforward install, and carries an IP65 silicone seal to resist rain and road spray. The kit is designed to work with 8–16V DC electrical systems and fits most common flush-mount applications when you cut a roughly 6 1/3" hole.

How bright are these lights for nighttime visibility?

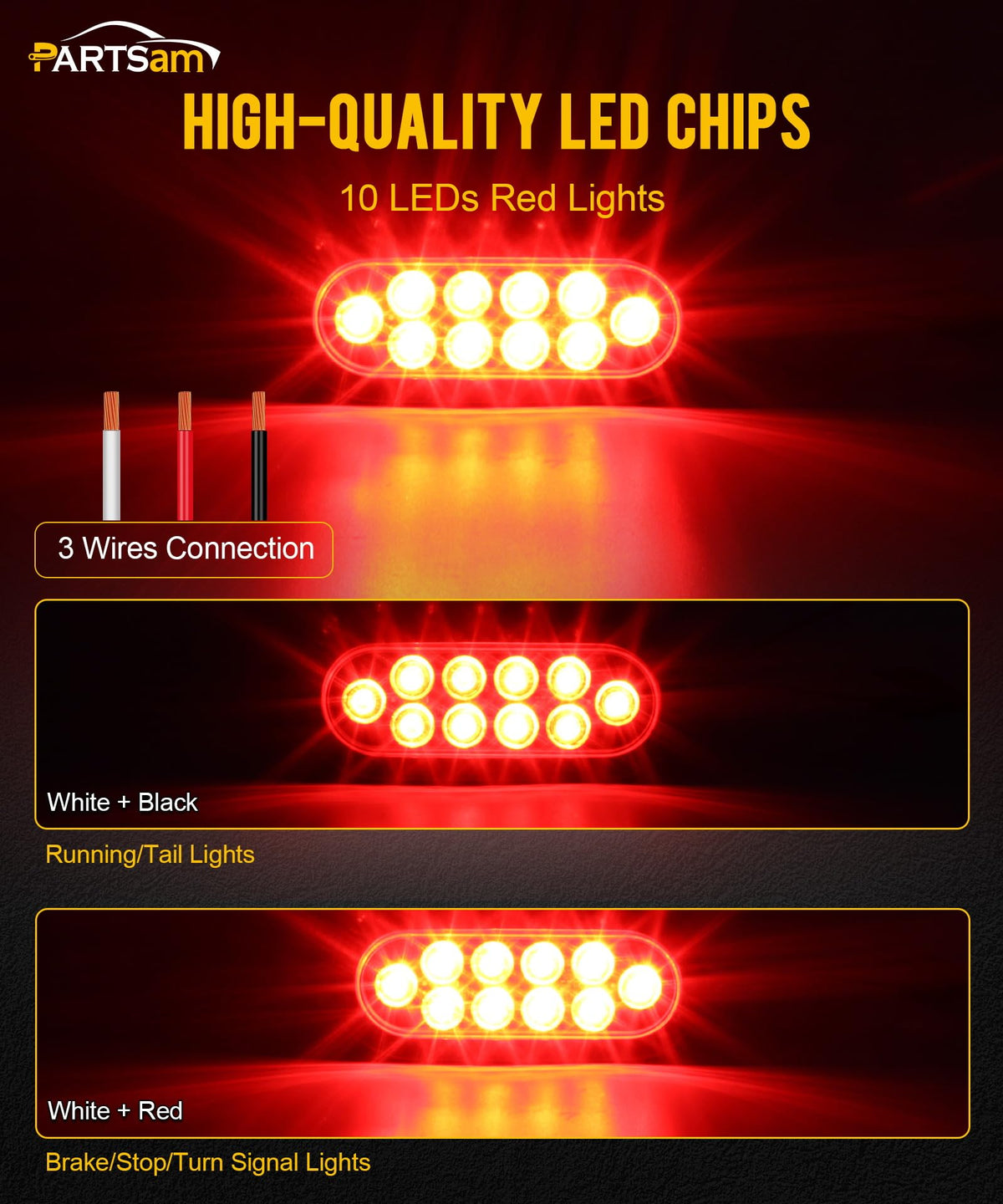

Each lamp uses 10 high-quality SMD LEDs that deliver a strong red output for stop, turn, and tail functions. LEDs draw less current than incandescent bulbs, so they provide consistent brightness without heating up.

• 10 SMD diodes per unit for intense red signaling
• Low current draw for better electrical efficiency
• Clear, quick illumination useful for brake and turn indication

What does installation involve and which wires do what?

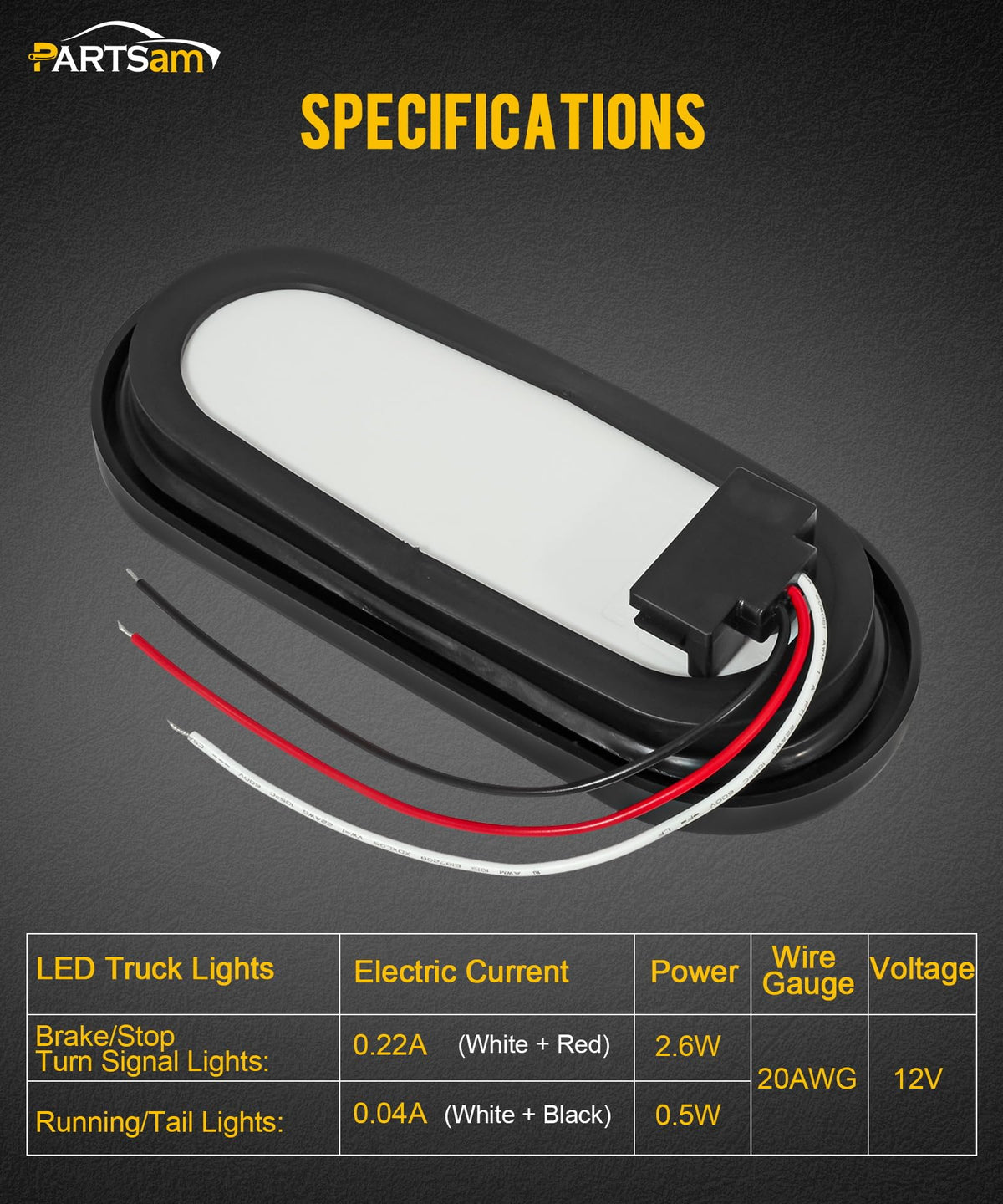

Installation is designed to be simple: press the lamp into the included rubber grommet and connect the three pigtail wires to your vehicle harness. The white wire is ground, the red wire powers the high-brightness stop/turn/brake function, and the black wire powers the low-brightness tail/running light.

• Flush-mount with supplied rubber grommet—no extra housing required
• 3-prong pigtail: white = ground, red = brake/turn, black = tail

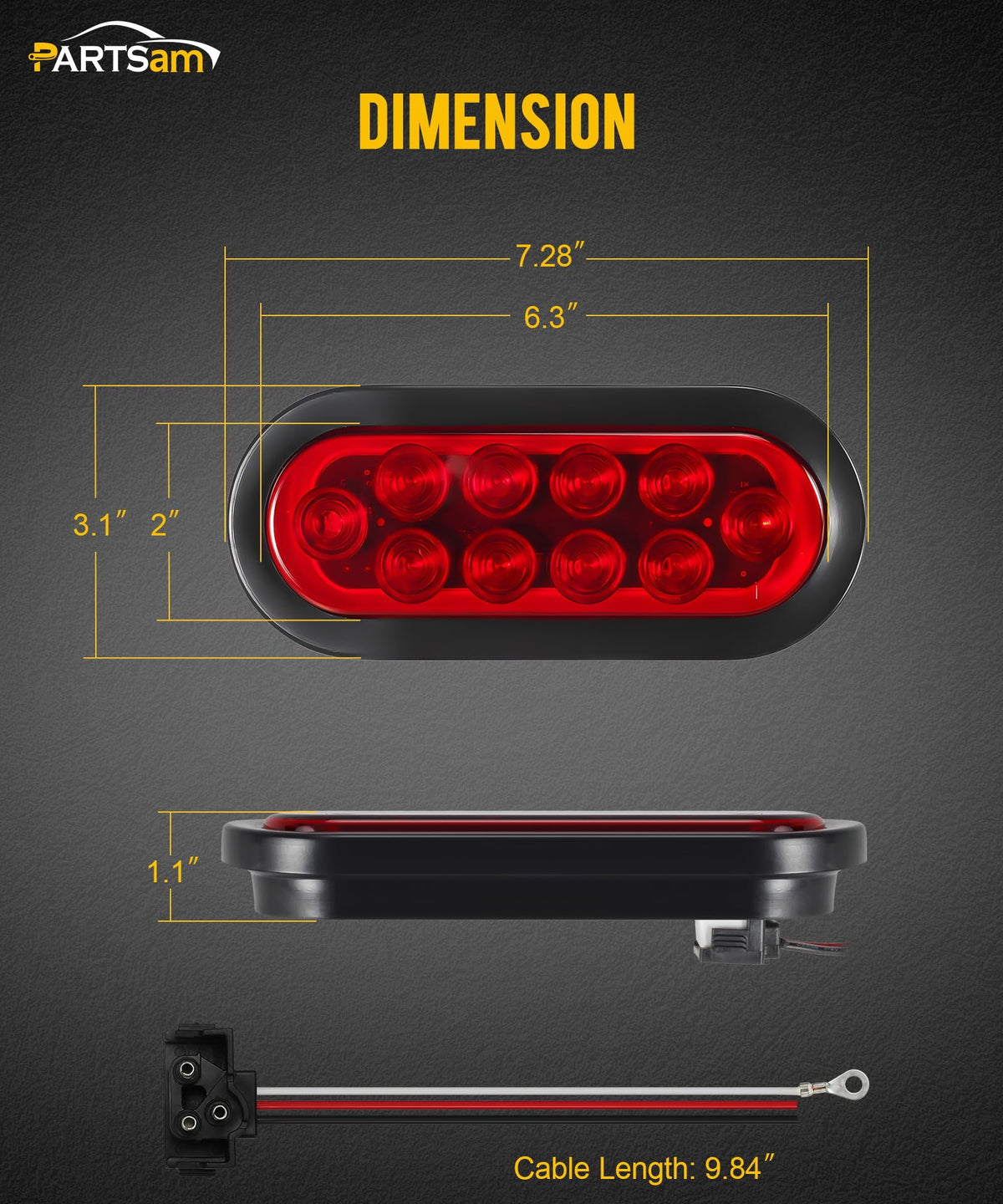

• Hole size ~6 1/3" to accommodate the lamp with grommet

Are these tail lights durable and weather-resistant?

The assemblies are silicone-sealed and rated IP65 to protect against dust and water spray, making them suitable for road use in variable weather. Their solid-state LEDs reduce the likelihood of filament failure common to incandescent lamps.

• Silicone-sealed housing for enhanced moisture protection
• IP65 rating against dust and low-pressure water jets
• Rugged construction suitable for towing, hauling, and marine trailering

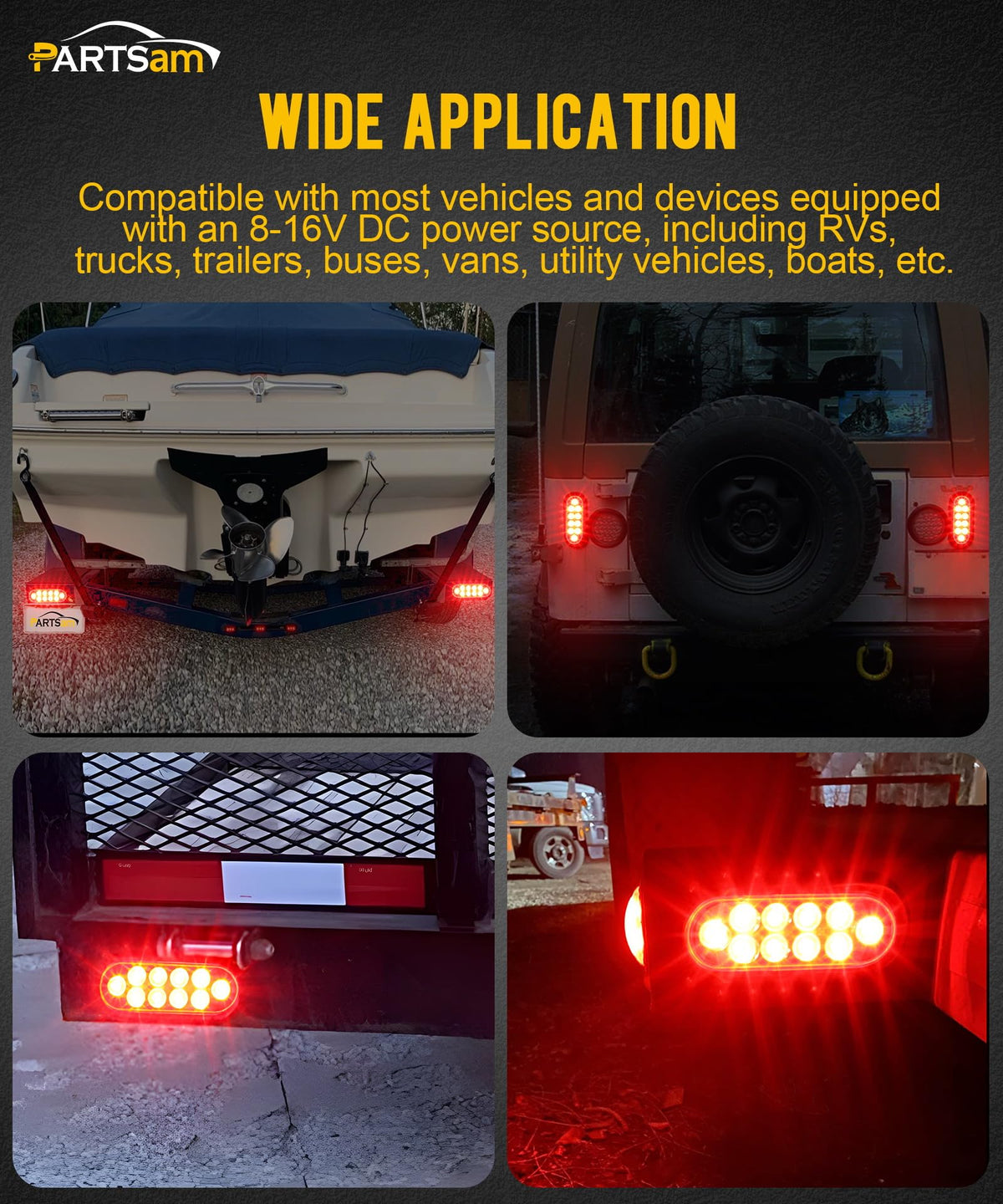

Which vehicles and voltages are these compatible with?

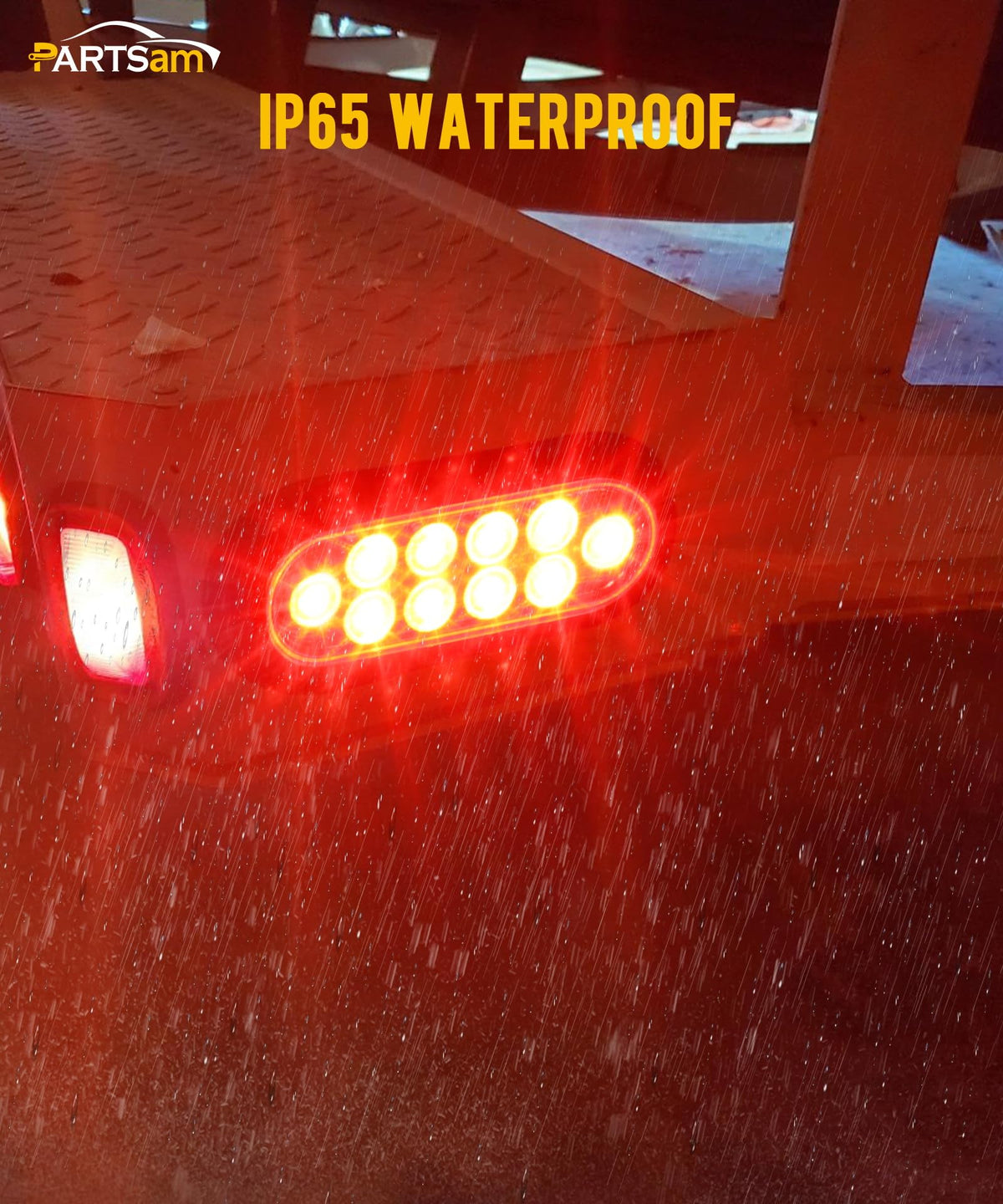

This 10-pack is compatible with most 8–16V DC systems used on trailers, trucks, RVs, and specialty vehicles. The oval shape and grommet mounting allow horizontal or vertical orientation depending on vehicle layout.

• Compatible with trailers, semi-trucks, service vans, horse trailers, and more
• Works with 8–16V DC electrical systems
• Flush-mount design supports horizontal or vertical fitment

Who is this for: the Partsam 10-pack is aimed at fleet owners, trailer hobbyists, and DIY mechanics who need multiple reliable replacement lamps for trailers, trucks, RVs, or utility equipment. If you maintain several units or want a full set for a single large trailer, this kit minimizes repeat purchases and provides standardized, bright LED signaling with straightforward installation hardware included.
