Partsam LED Trailer Tail Lights Pair — Low-Profile Surface-Mount, Smoked Lens & Black Base

Partsam's low-profile LED combination tail light pair delivers stop, turn and tail illumination plus an integrated license plate lamp in a compact surface-mount assembly.

If you need a durable, energy-efficient replacement for incandescent trailer lights, these Partsam surface-mount units offer a modern LED upgrade with a smoked lens and black base. Each kit includes left- and right-side assemblies sized for standard RV and camper applications, using multiple diodes to increase visibility while drawing minimal current. The fixtures are SAE/DOT-approved and built to mount directly to the trailer exterior, with three-wire hookups for straightforward wiring.

How do these lights improve visibility and power efficiency?

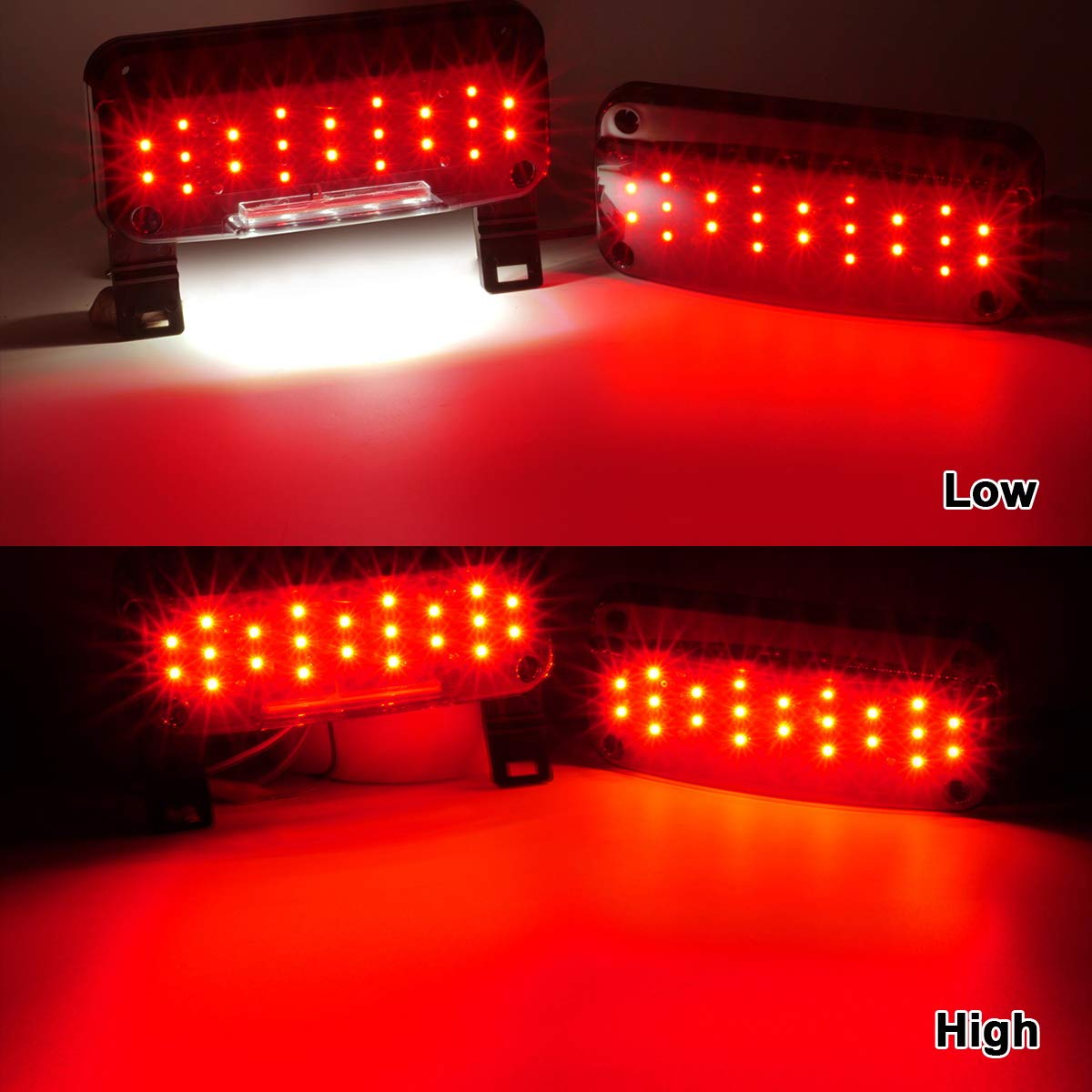

The LED arrays use many small diodes to create a bright, even illumination pattern that’s visible in daylight and at night. LEDs consume far less power than incandescent bulbs and have far longer operational life, reducing replacements and electrical load on your trailer wiring. The smoked lens gives a subtle, modern look without compromising light output.

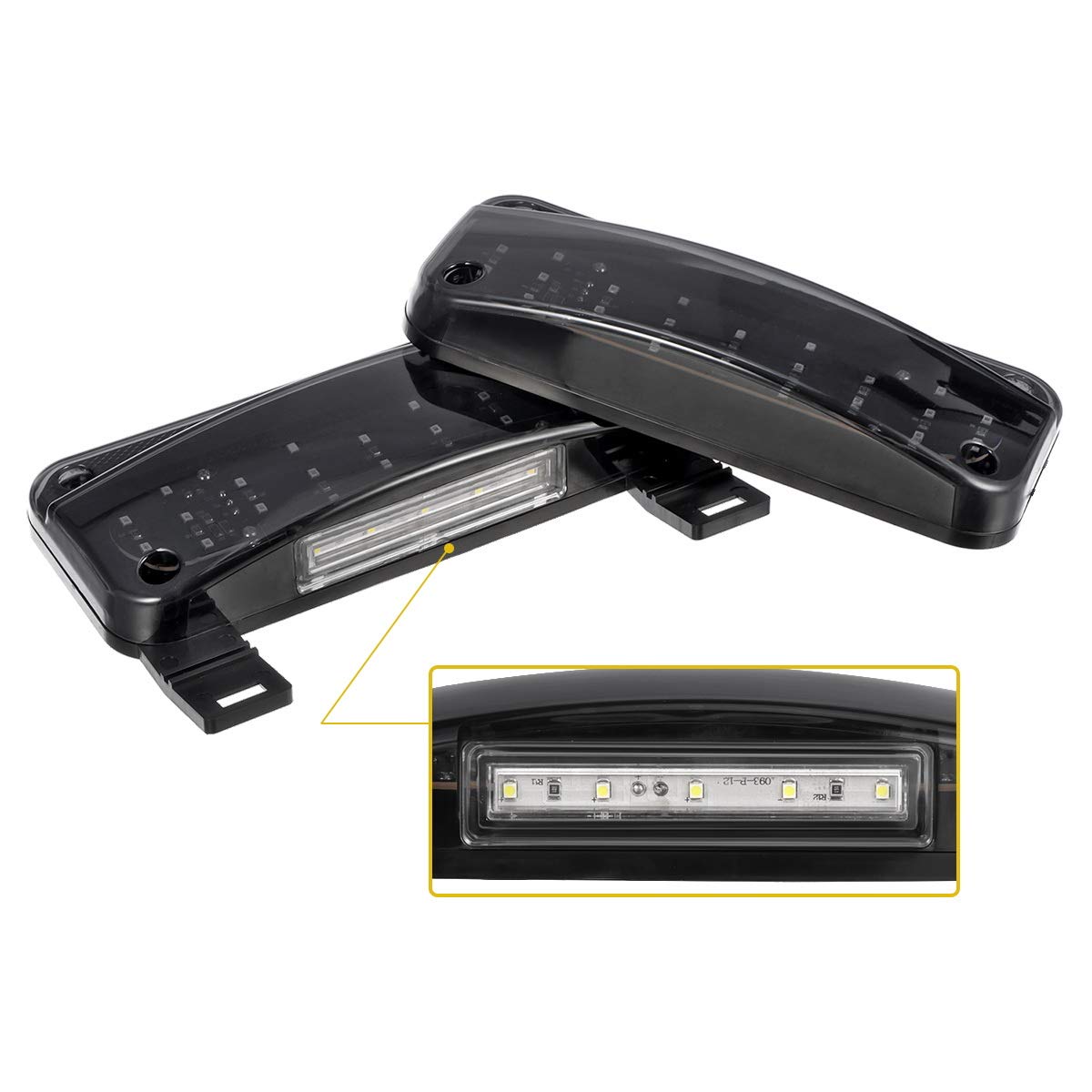

• Left lamp: 27 diodes (22 red + 5 white for plate light)
• Right lamp: 22 red diodes
• Lower energy draw and extended LED lifespan compared with bulbs

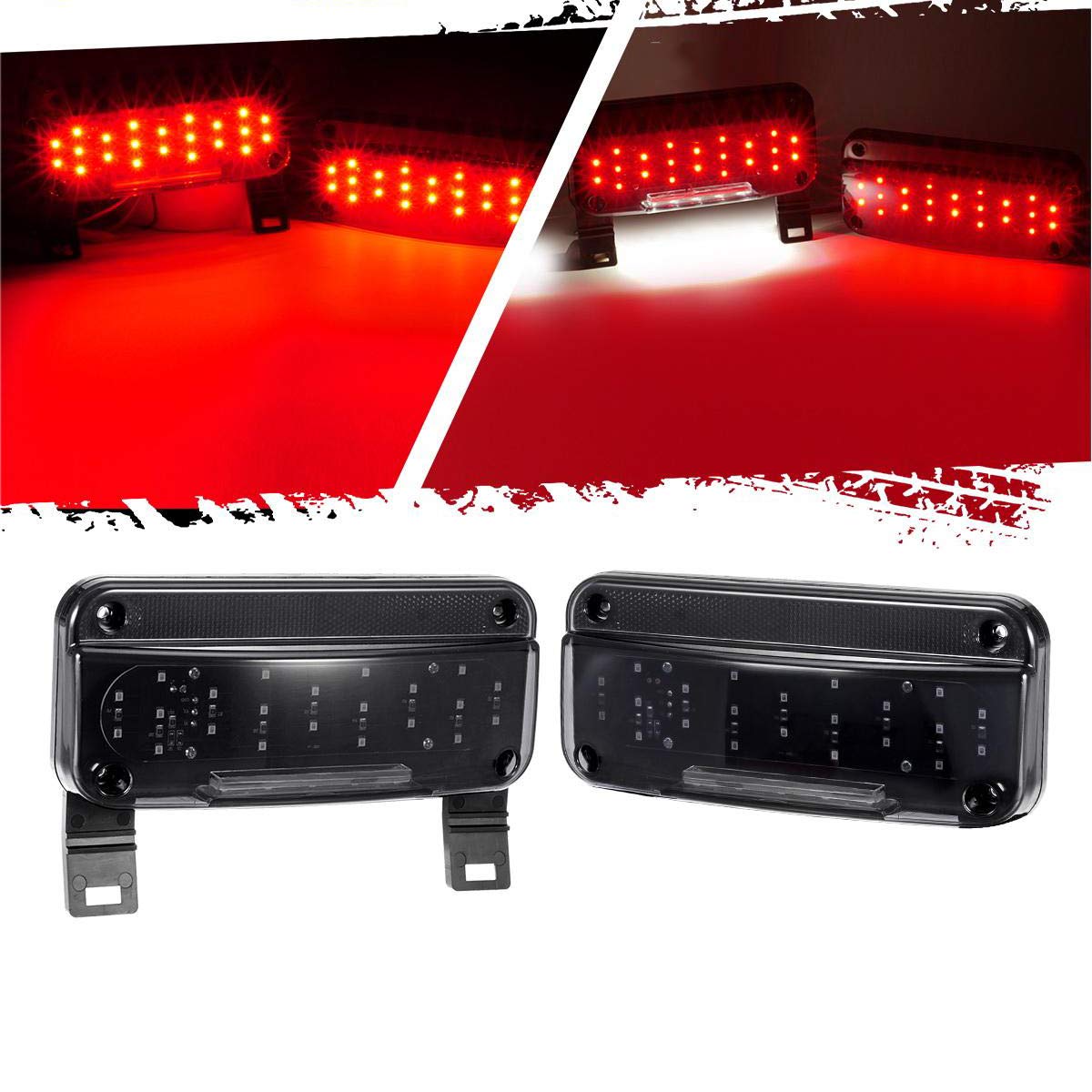

• Smoked lens for style with maintained visibility

What are the mounting and wiring requirements for installation?

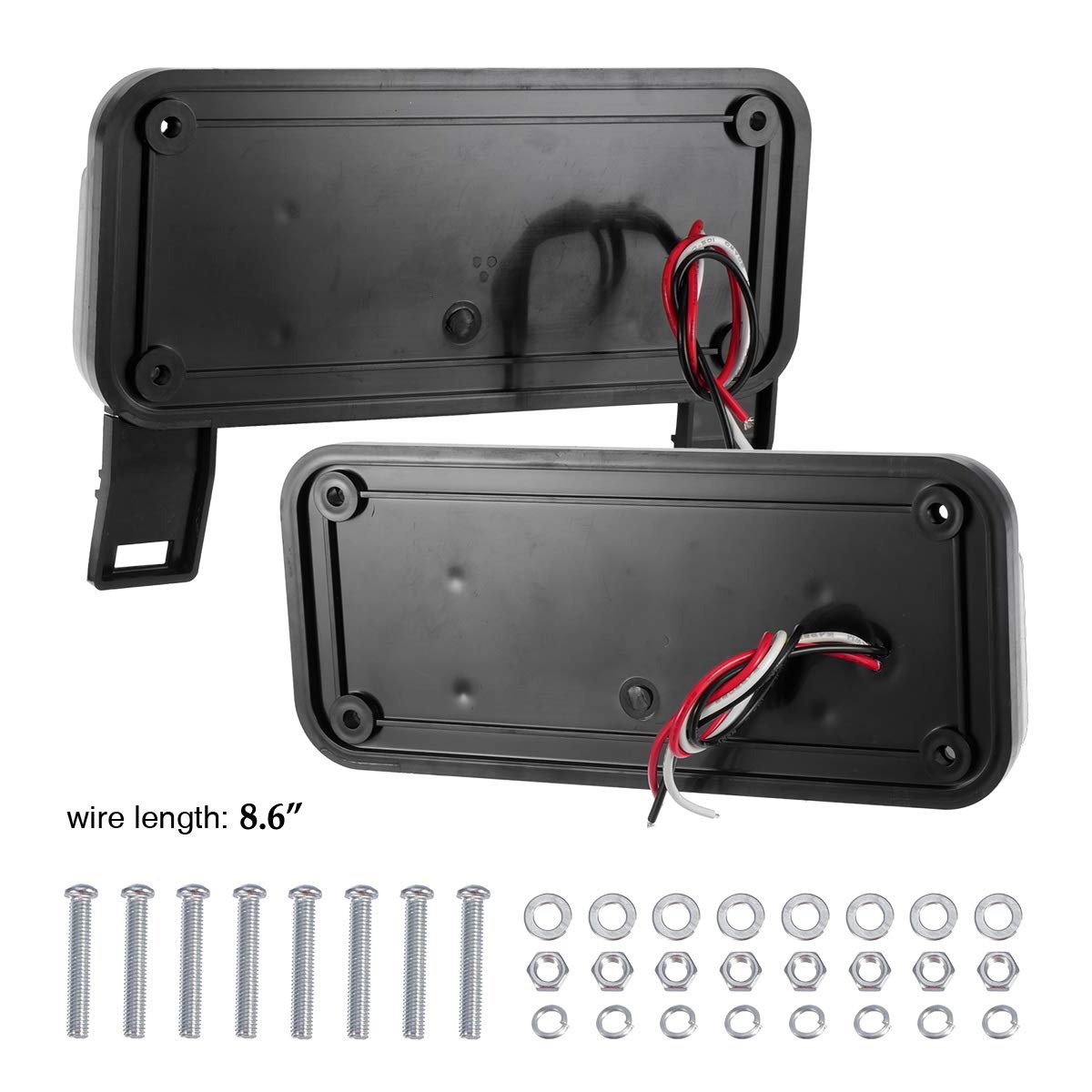

These are surface-mounted tail lights that sit flat against the trailer exterior and typically require a wiring pass-through hole. Each unit uses three wires: ground, tail, and brake/turn, and installs with a flange and mounting screws (hardware not included). The compact depth makes them suitable for most RV doorsides and rear panels.

• Three-wire hookup: white = ground, black = tail, red = brake/turn
• Surface-flange mounting; may need a hole for wiring passage
• Mounting hole centers approximately 7" by 2.5" apart
• Total depth ~1.6", low-profile design

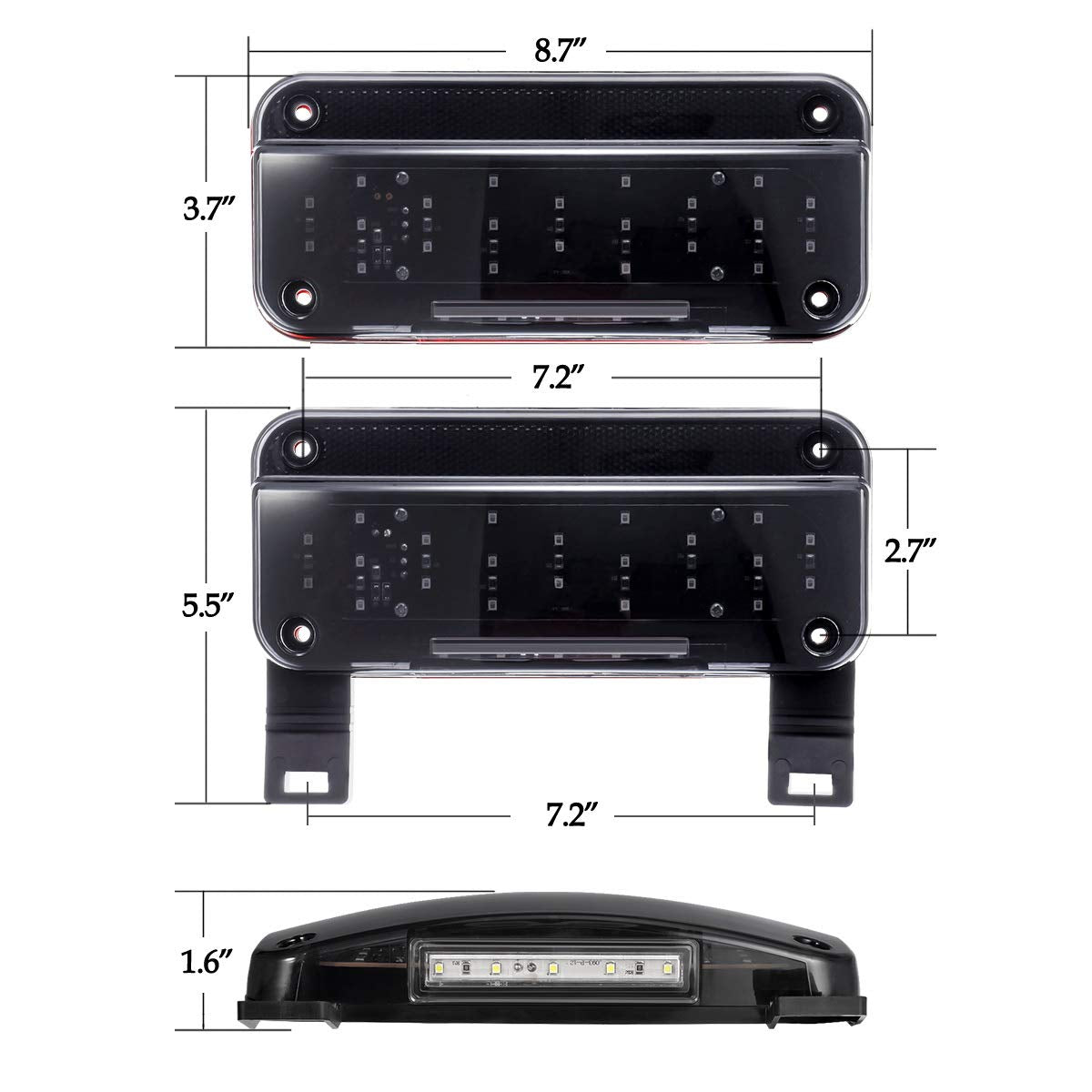

What are the exact dimensions and certification details?

The assemblies are sized to fit common camper and trailer locations while keeping a discreet footprint. Overall length and height fit typical mounting cutouts, and the design meets SAE and DOT requirements for road use in approved applications. Always verify fitment to your specific trailer panel before final mounting.

• Overall length: 8 5/8" (approx.)
• Overall height: 3 7/8" (approx.)
• Total depth: approximately 1 3/5"
• SAE and DOT approved for use where required

How simple is maintenance and what comes in the package?

Maintenance is minimal because there are no filaments to burn out; LEDs resist vibration and last many times longer than traditional bulbs. The package contains a matching left and right lamp, ready to wire into your trailer’s lighting harness. If you need replacement fasteners or a gasket, keep those handy; the lights themselves require only basic mounting tools.

• Package includes: 2 red surface-mount LED tail lights (left and right)
• Left unit: integrated white diodes for license plate illumination
• Durable black plastic base with smoked lens
• Designed to reduce bulb replacements and wiring stress

Who is this for: These Partsam LED tail lights are aimed at RV and camper owners, trailer renovators, and fleet maintainers looking for a reliable, low-profile upgrade from incandescent assemblies. They suit anyone wanting improved energy efficiency, longer service life, and a sleeker rear-end appearance without complex rewiring—ideal for do-it-yourself installation on trailers, campers, and small motorhomes seeking DOT-compliant lighting.
