Partsam LED Triple Tail Lights for Trailer & RV — Red/Clear Lens 2-Pack, Horizontal or Vertical Mount, Multi-Function

If you need a reliable, versatile lighting solution for a trailer, camper or RV, these Partsam LED triple taillights combine clear reverse illumination with three red signal lenses and a sturdy mounting kit. Each lamp contains multiple LEDs for crisp visibility, stainless steel mounting hardware, and eight-wire hardwiring to support stop/turn/tail and backup functions. The low-profile design fits a variety of surface-mount or flat-mount applications while offering a compact footprint and a red reflex border around the reverse lens for extra visibility.

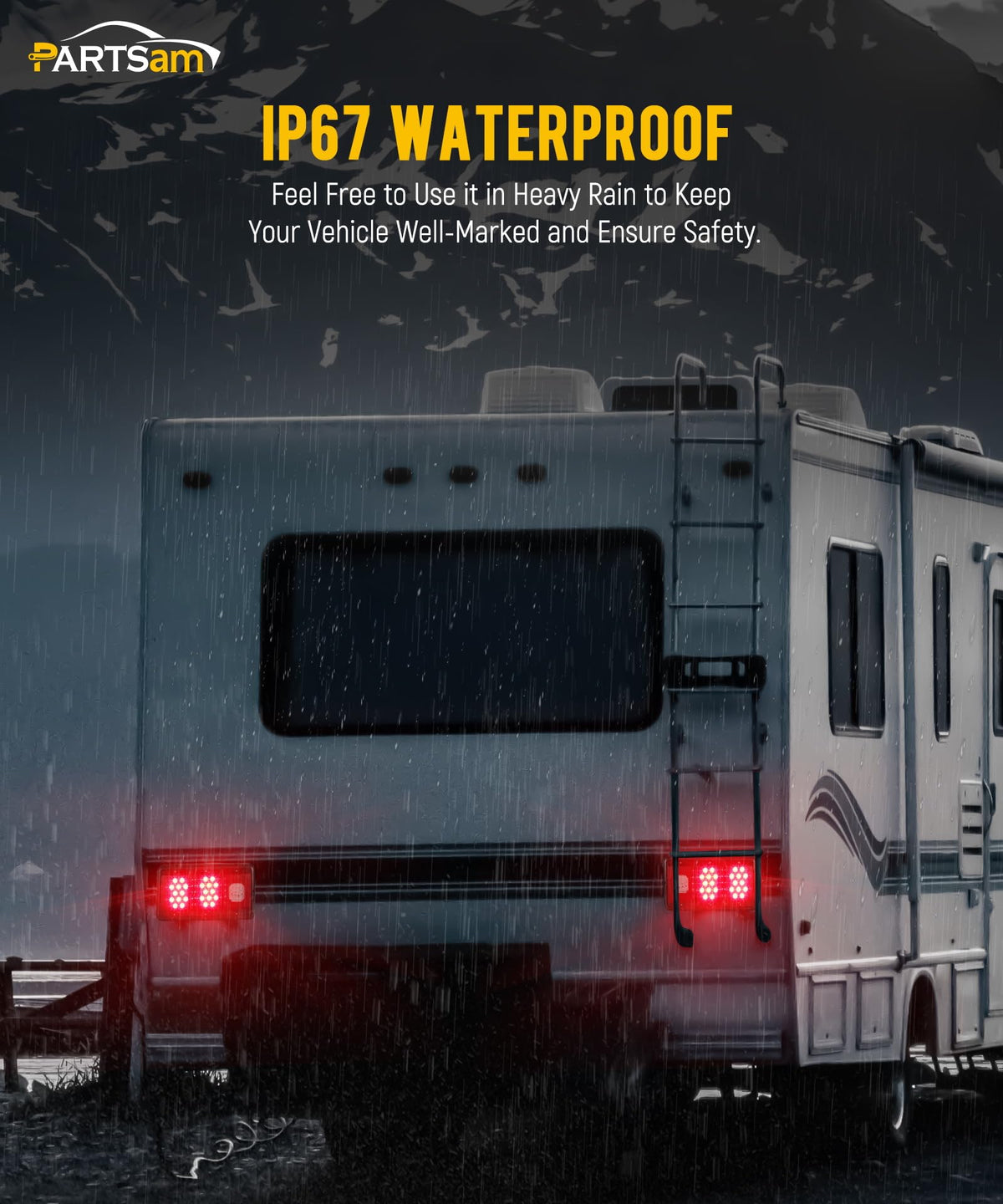

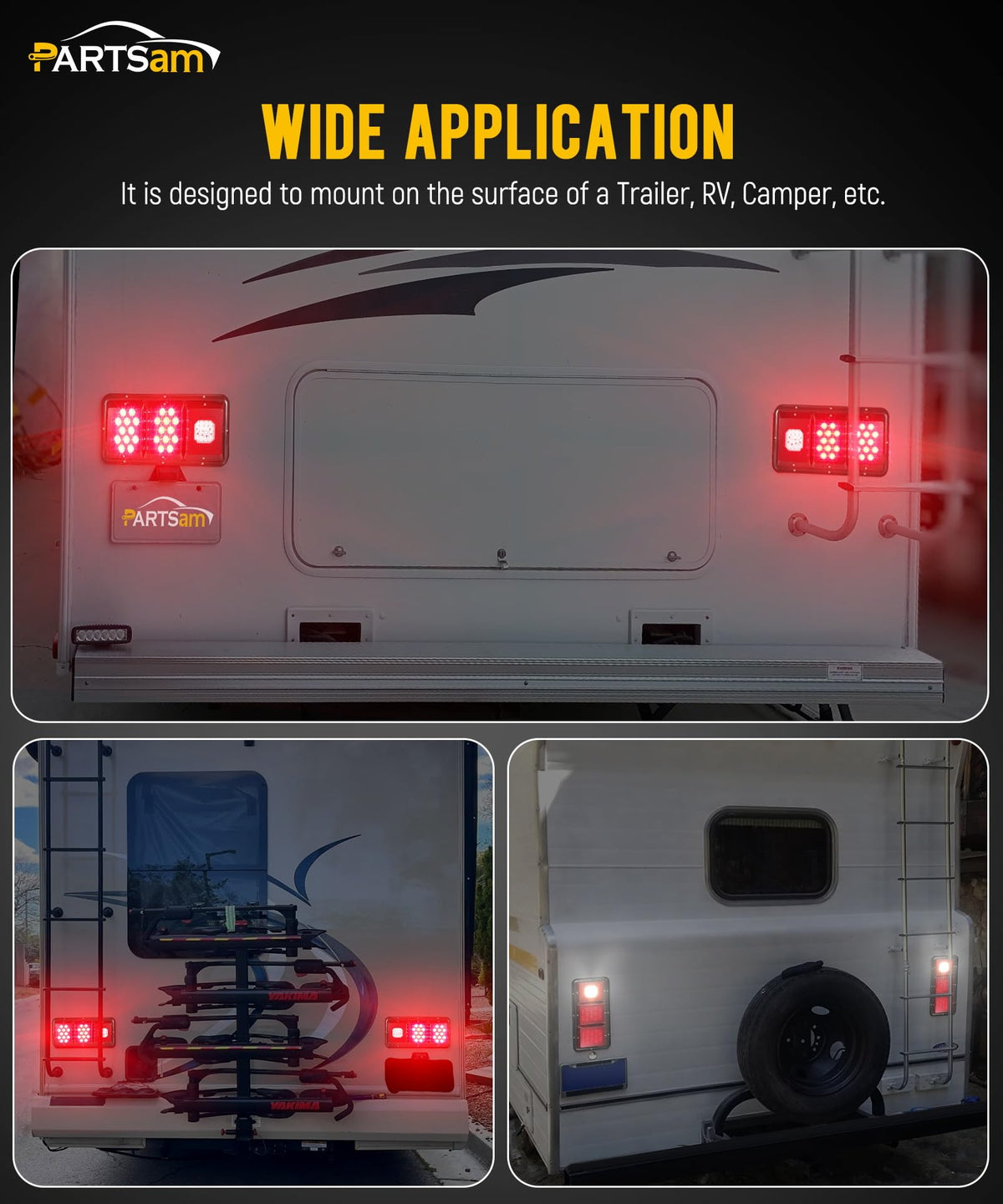

How do these taillights handle different mounting orientations?

Each unit is engineered for either horizontal or vertical installation, so you can place them where they best suit your trailer’s layout. The housing includes eight screw holes and mounting gaskets so the light sits flush and sealed against the vehicle surface.

• Can be mounted vertically or horizontally for flexible placement
• Eight screw holes for secure, vibration-resistant attachment
• Includes gaskets and stainless steel screws to protect against moisture

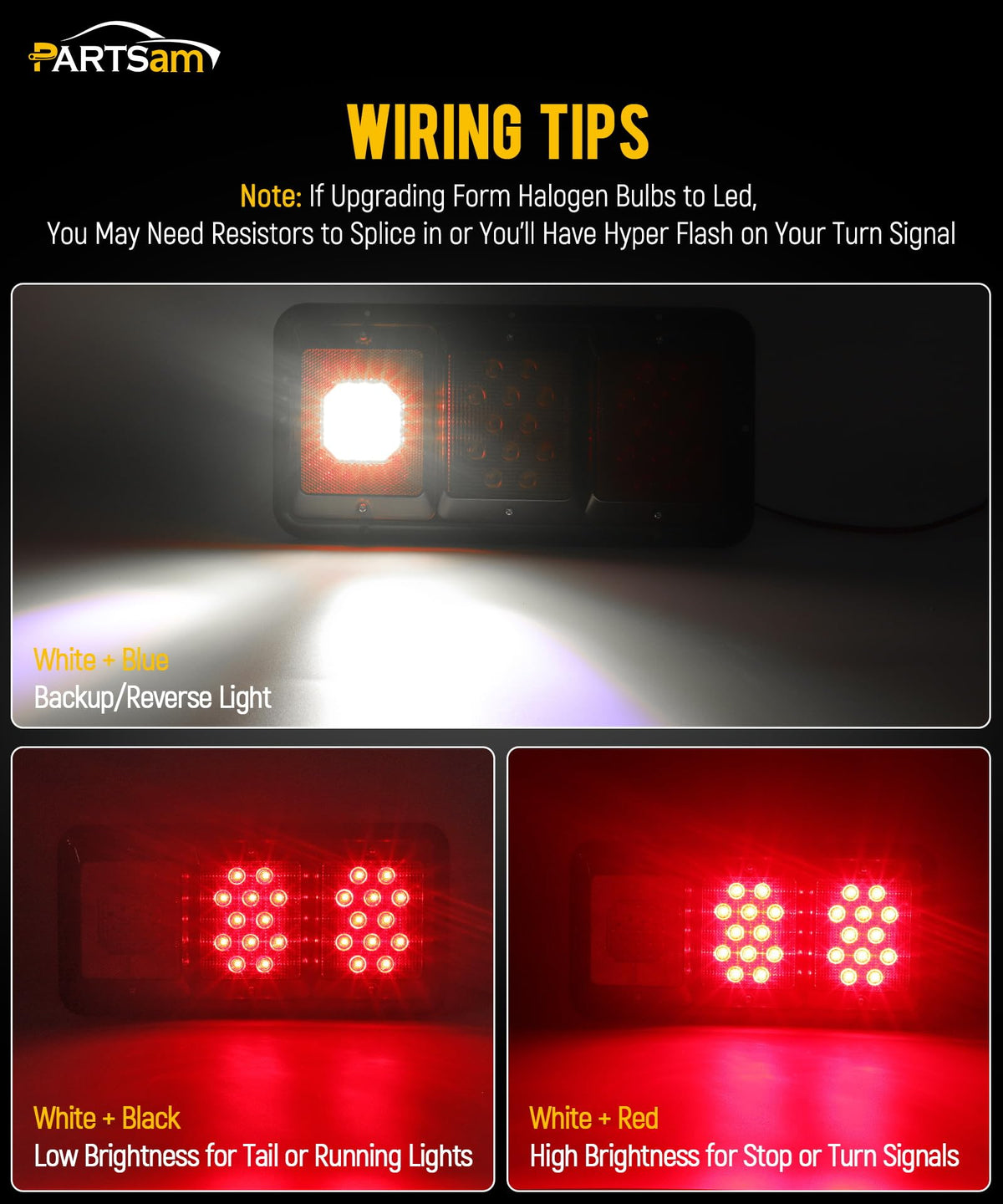

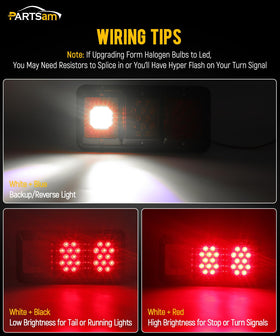

What electrical connections and functions are included?

The lights come hardwired with eight colored wires so each function—ground, backup, stop/turn, and tail—has a dedicated lead. Typical wiring colors are white for ground, blue for reverse, red for high (stop/turn), and black for low (tail), and you may need resistors if converting from halogen circuits to LEDs on some controllers.

• Eight-wire harness for separate control of all functions
• White ground, blue reverse, red high (stop/turn), black low (tail)
• Resistor compatibility note for halogen-to-LED upgrades

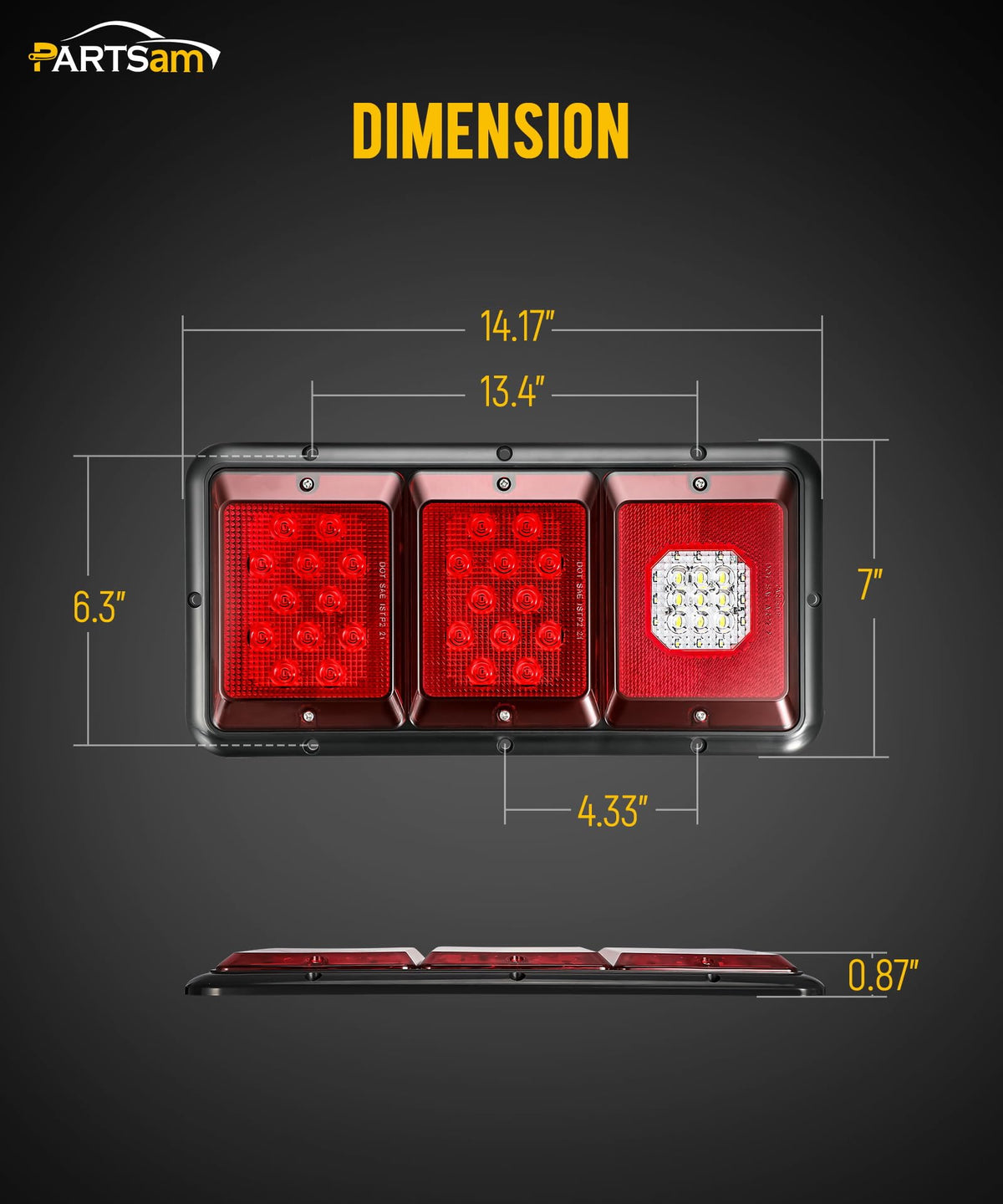

Will these lights fit my trailer or RV—what are the dimensions and cutout requirements?

The overall length is about 14.17 inches with a width around 7 inches and a slim thickness of 0.87 inch. For installation, prepare a cutout approximately 13.4 inches long with a 6.3-inch hole-to-hole spacing to align mounting fasteners.

• Overall length ~14.17 in, width ~7 in, thickness ~0.87 in
• Recommended cutout: 13.4 inches long, 6.3 inches hole-to-hole spacing
• Low-profile design fits many trailer, camper, and RV panels

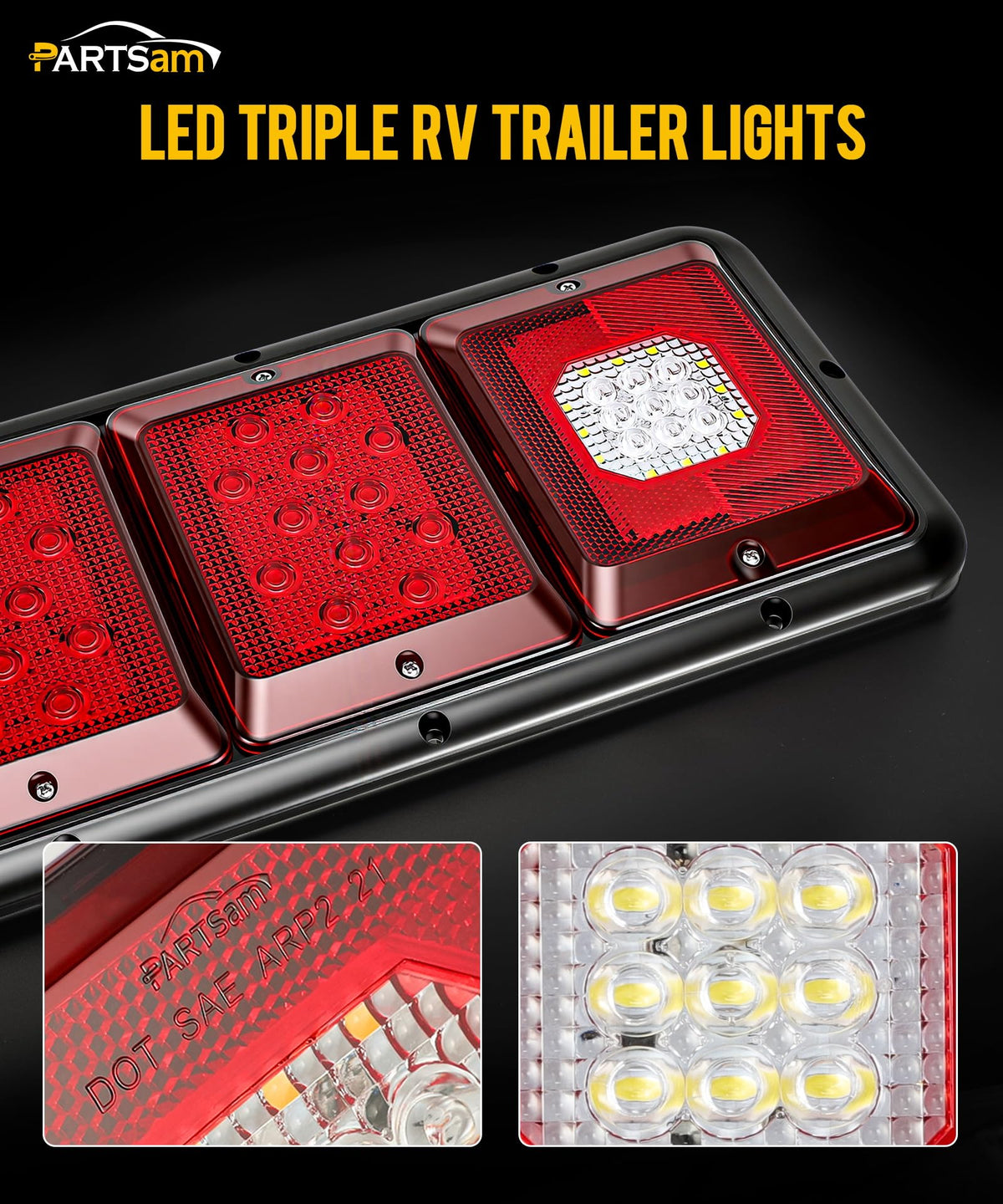

How bright and visible are the LEDs for stop, turn and backup functions?

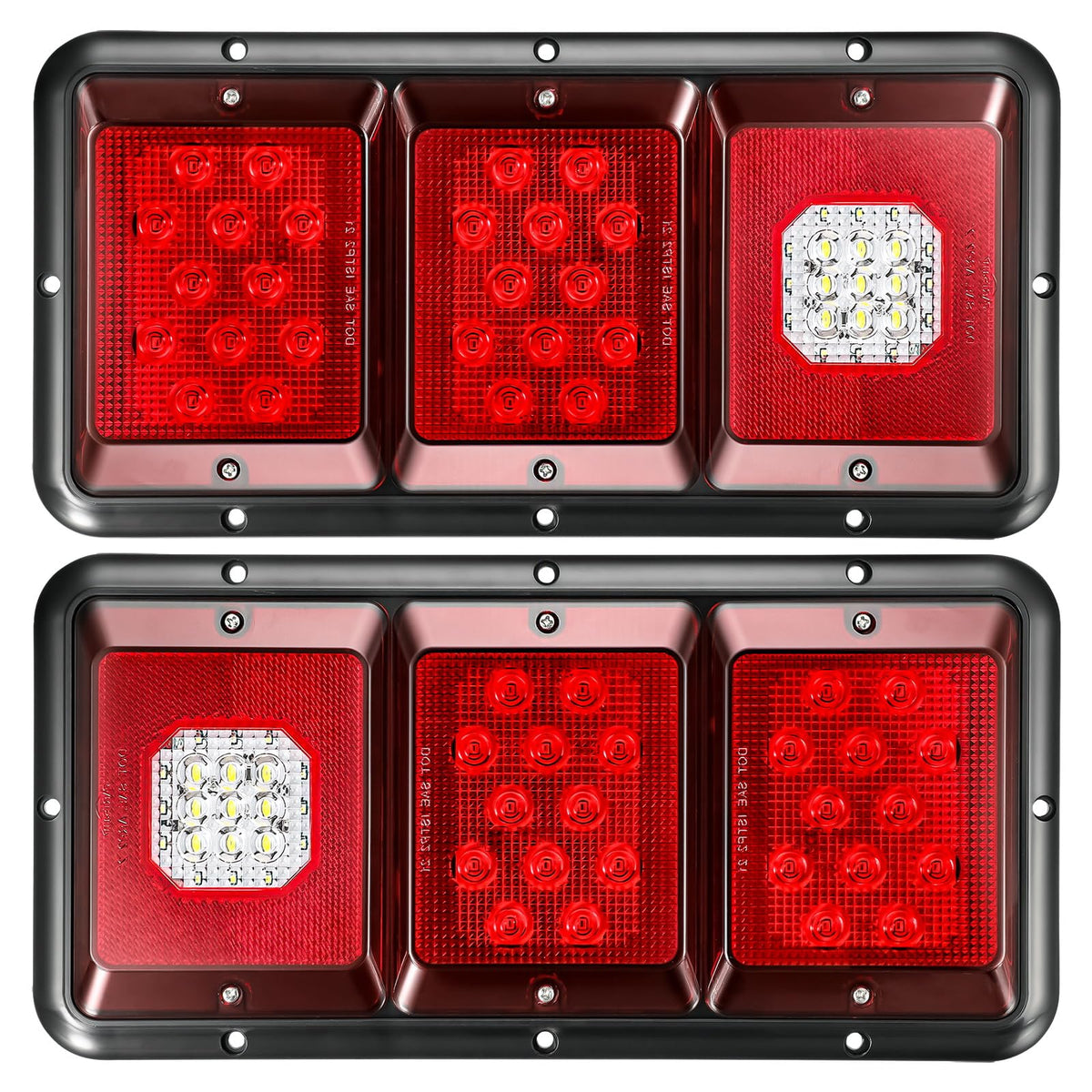

Each light contains 45 LEDs arranged behind three red lenses plus one clear backup lens with a red reflex border. The multi-LED layout produces intense, evenly distributed illumination that improves visibility at dusk and in daylight compared with single-bulb units.

• 45 total LEDs for strong, uniform output
• Three red lenses for stop/turn/tail; clear lens with white LEDs for reverse
• Red reflex border increases side visibility for the backup lens

Who is this for: These Partsam LED triple taillights are suited for trailer owners, RV and camper enthusiasts, fleet operators, and DIY mechanics who want a modern LED upgrade that fits multiple mounting orientations. They work well for new builds and replacements where a durable, low-profile, multi-function light is required; just confirm wiring compatibility and cutout dimensions before installation.
