Performance Tool 3009 12V Relay Tester — 4- & 5-Pin Automotive, LED Pass/Fail, Battery-Powered

Performance Tool 3009 is a compact 12-volt relay tester that quickly verifies 4- and 5-pin automotive relays outside the vehicle with clear green/red LED results.

When a vehicle circuit behaves unpredictably, isolating a faulty relay is one of the first troubleshooting steps. The Performance Tool 3009 relay tester is a self-contained handheld unit that powers relays with internal batteries and instantly shows whether the coil and switch contacts are operating correctly. Its small footprint and straightforward LED indicators let technicians and DIYers check common automotive relays without connecting to a car battery or complex test rigs.

How does the tester determine if a relay is good or bad?

The tester feeds the relay with the correct 12V supply from its internal AA batteries and energizes the coil while monitoring the contact operation. Two colored LEDs provide a clear pass/fail readout so you don’t need specialized electrical meters.

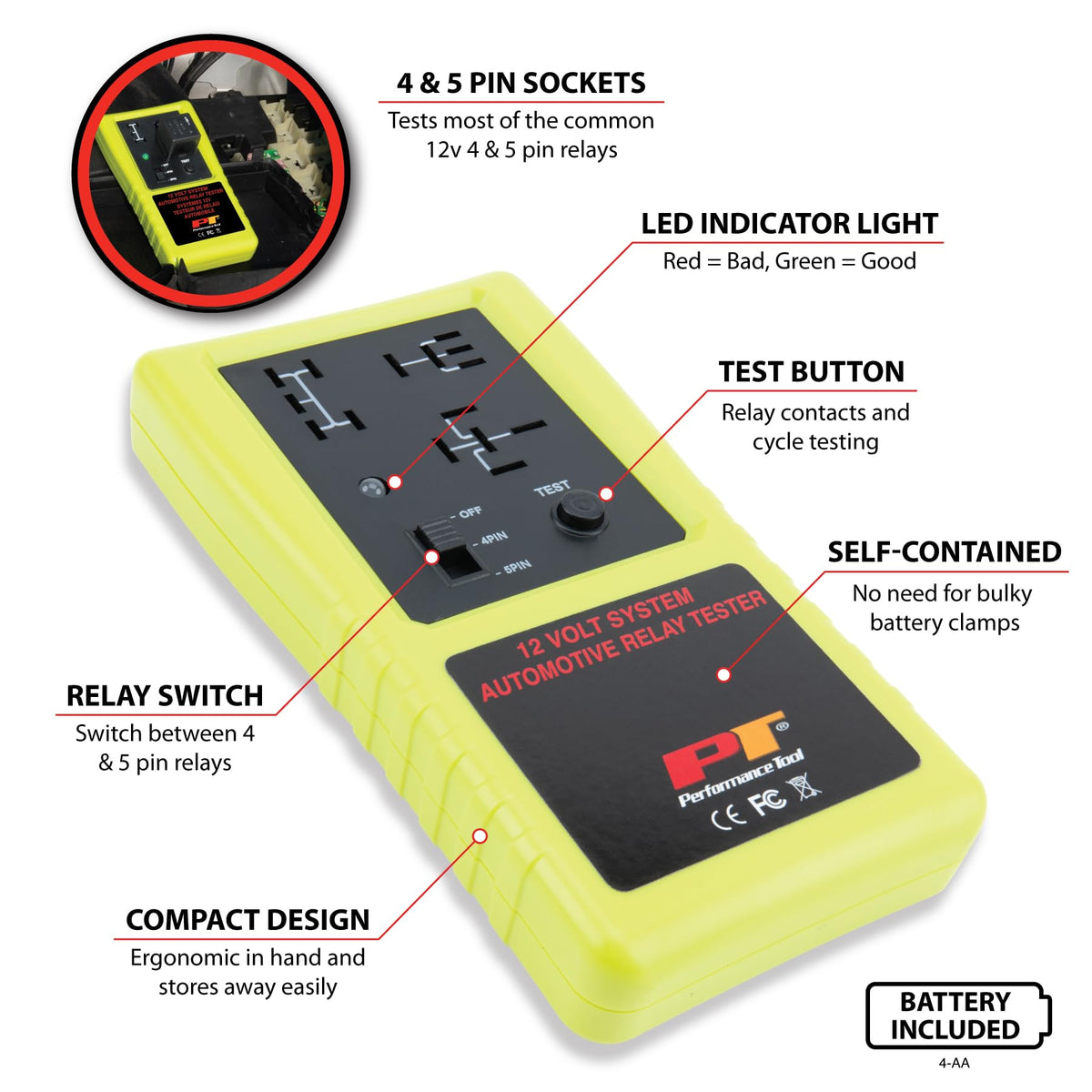

• Uses internal 4 AA batteries to supply 12V to the relay coil
• Detects coil continuity and contact switching behavior

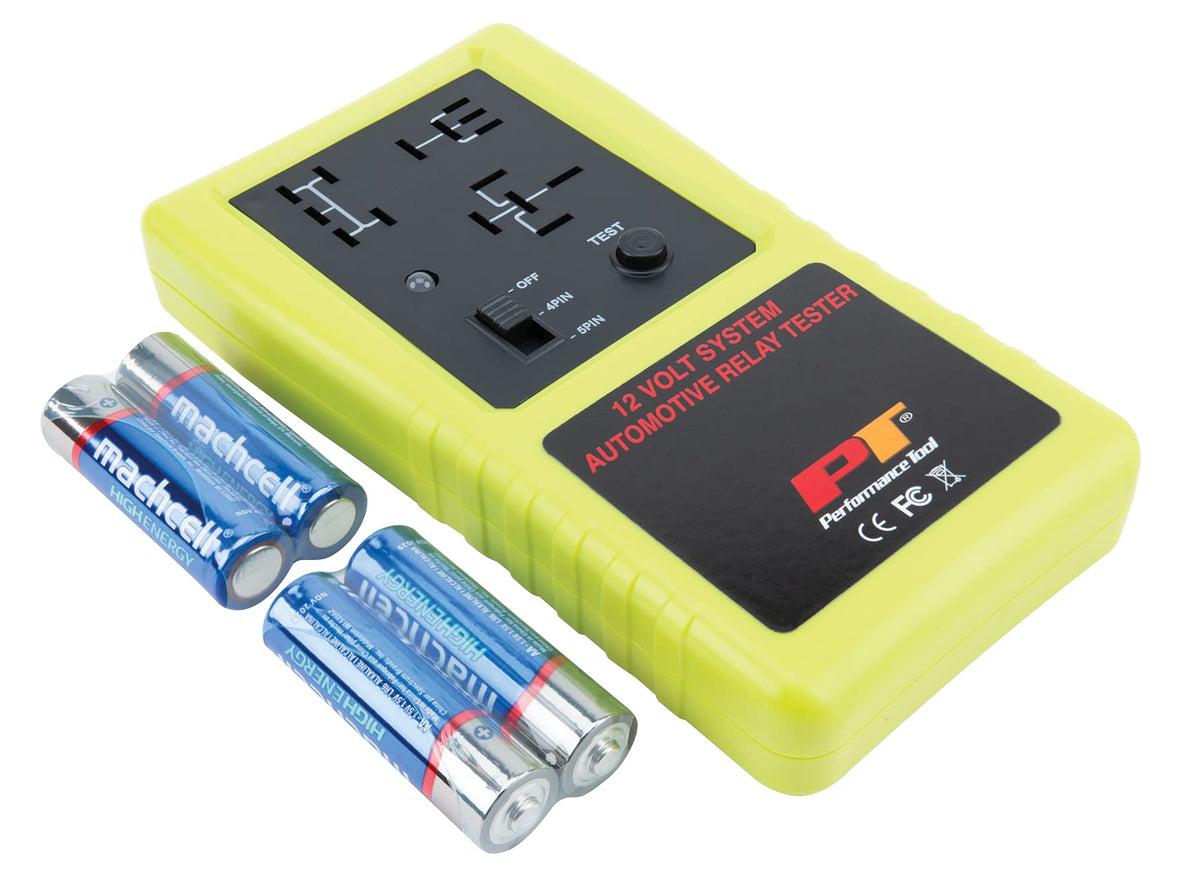

• Green LED indicates a functioning relay; red LED shows a fault

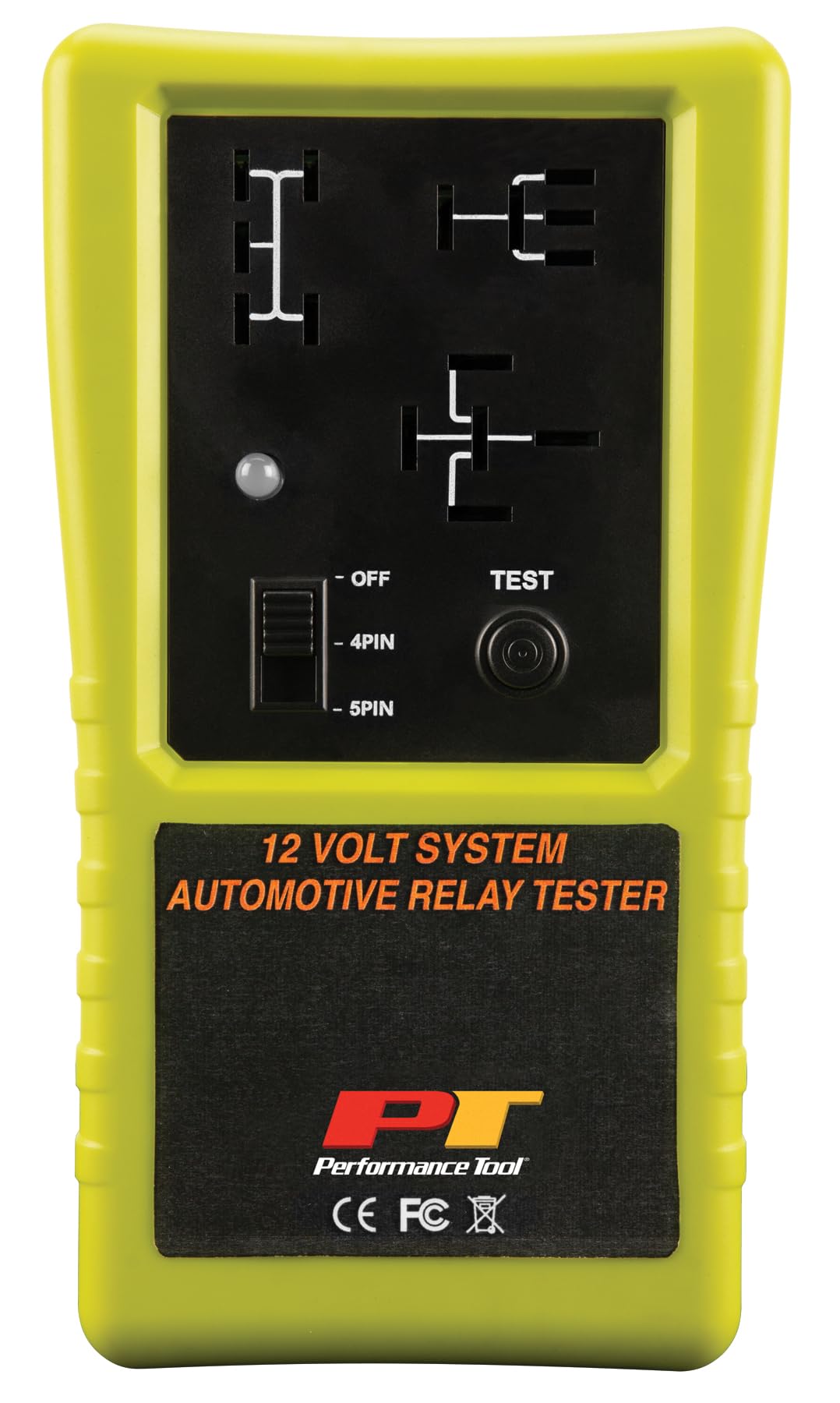

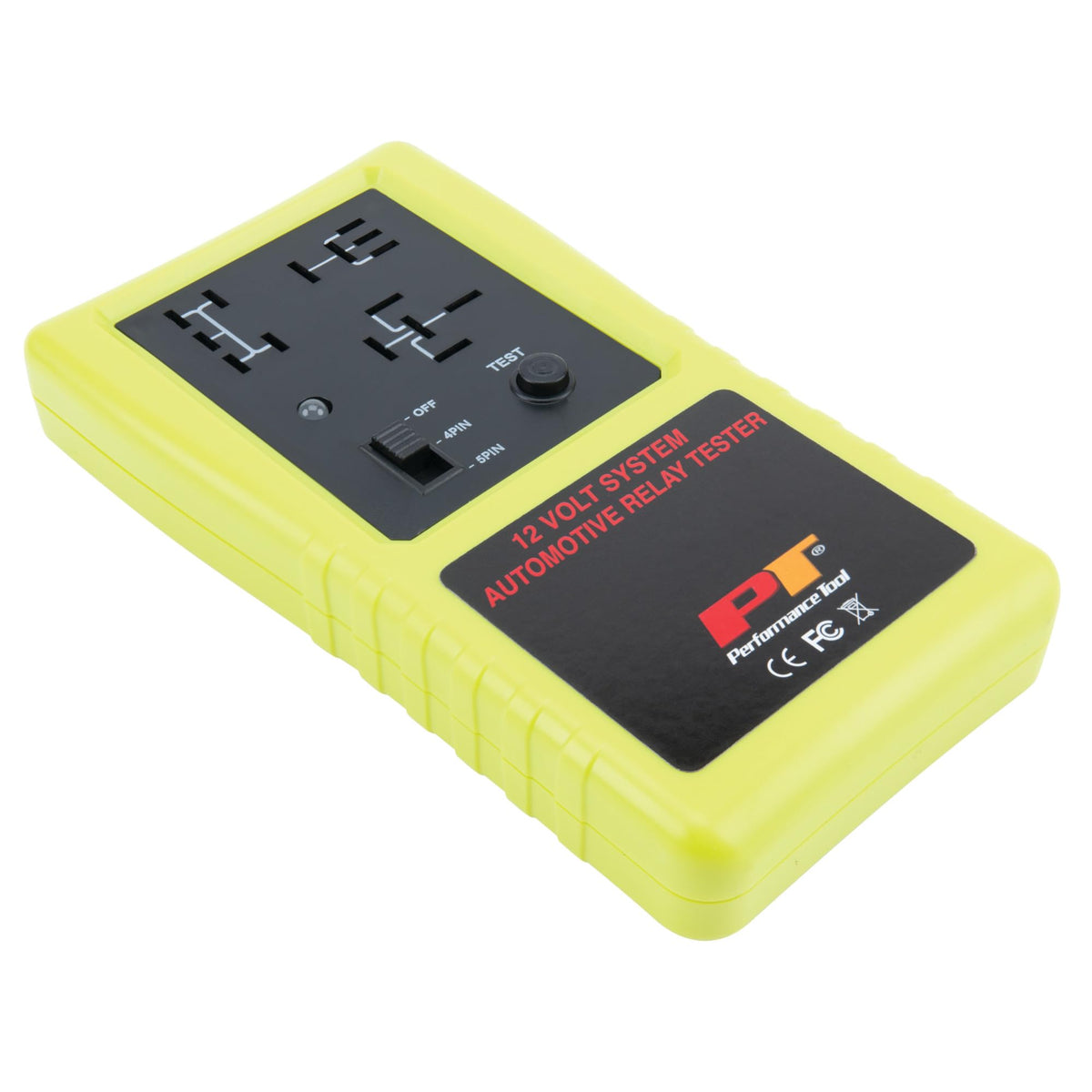

• Simple insertion of 4- or 5-pin relays into the socket for testing

Which relay types and vehicles will this unit work with?

The design targets the most commonly used 12V 4-pin and 5-pin automotive relays found across many makes and models. It won’t test uncommon pinouts or relays with nonstandard form factors, but it covers the majority used for lights, fans, pumps, horns and other accessories.

• Compatible with standard 4- and 5-pin 12V automotive relays
• Suitable for relays used in lighting, HVAC, fuel and accessory circuits
• Not intended for larger industrial or non-12V relays
• Useful for both aftermarket and OEM-style relays with common pin layouts

What makes this tester convenient for workshop and roadside use?

The compact, all-in-one format eliminates the need to clamp to a vehicle battery or carry additional wiring. The clear LED indicators speed up diagnostics, and included AA batteries mean the unit is ready to use right away.

• Self-contained—no external leads or clamps required
• Compact size for easy storage in a toolbox or glovebox
• Quick visual pass/fail LEDs reduce diagnostic time
• Includes batteries so it’s operational out of the box

How should I use the tester safely and effectively?

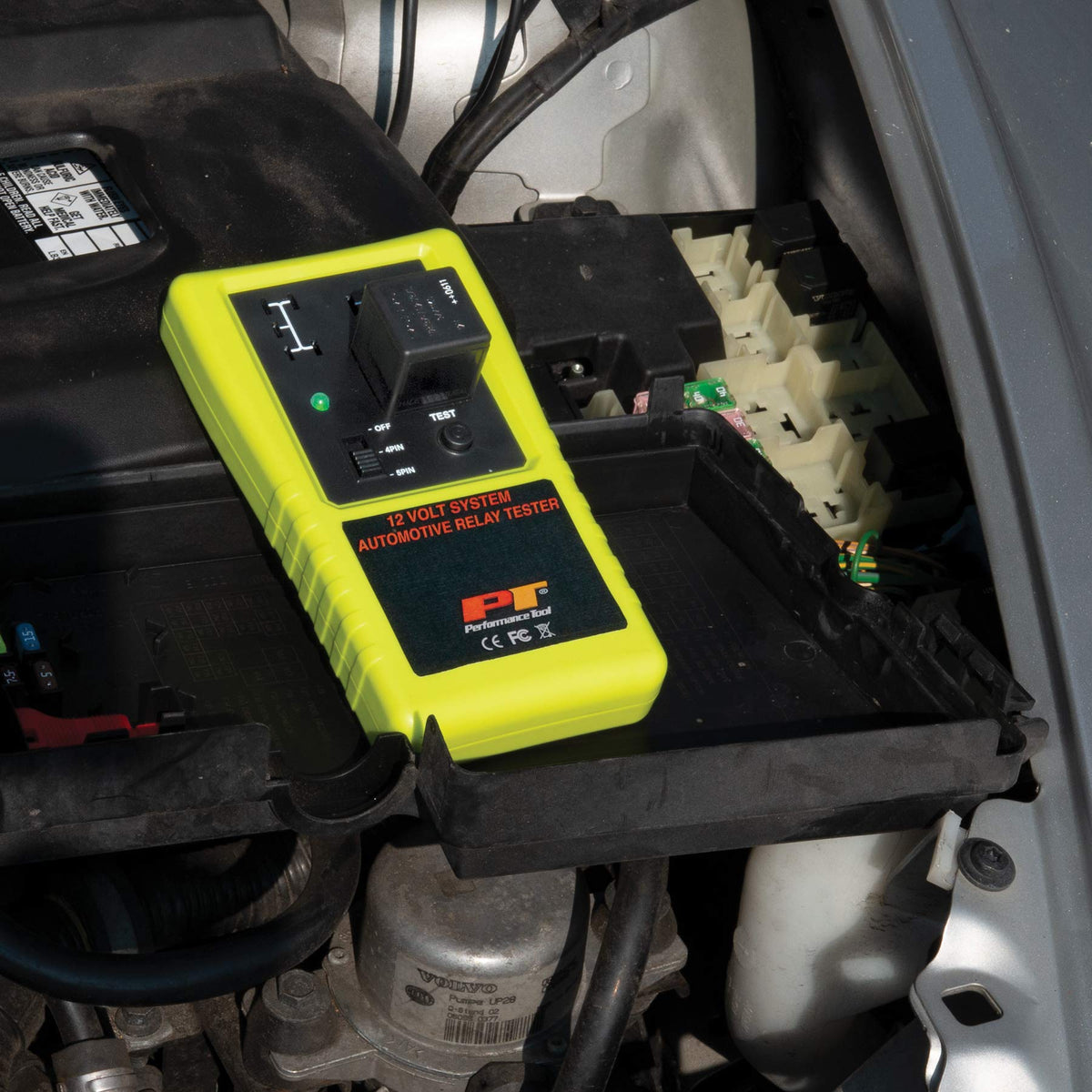

Remove the relay from the vehicle, insert it into the matching socket on the tester, and activate the unit per the instructions. Observe the LED result; a green light means the relay coil and contacts responded, while red points to a problem that requires replacement or further electrical investigation.

• Always remove relays from their sockets before testing
• Insert the relay firmly into the tester’s matching pin pattern
• Replace internal AA batteries when LED brightness or function declines
• If red LED appears, consider checking relay wiring and socket continuity

Who is this for? The Performance Tool 3009 relay tester is aimed at mechanics, fleet technicians, and automotive enthusiasts who need a fast, reliable way to confirm relay function without vehicle power or complex equipment. It’s especially useful for mobile technicians, DIY hobbyists, and service bays that diagnose common 12V relays frequently and want a portable, easy-to-read tool for everyday troubleshooting.
