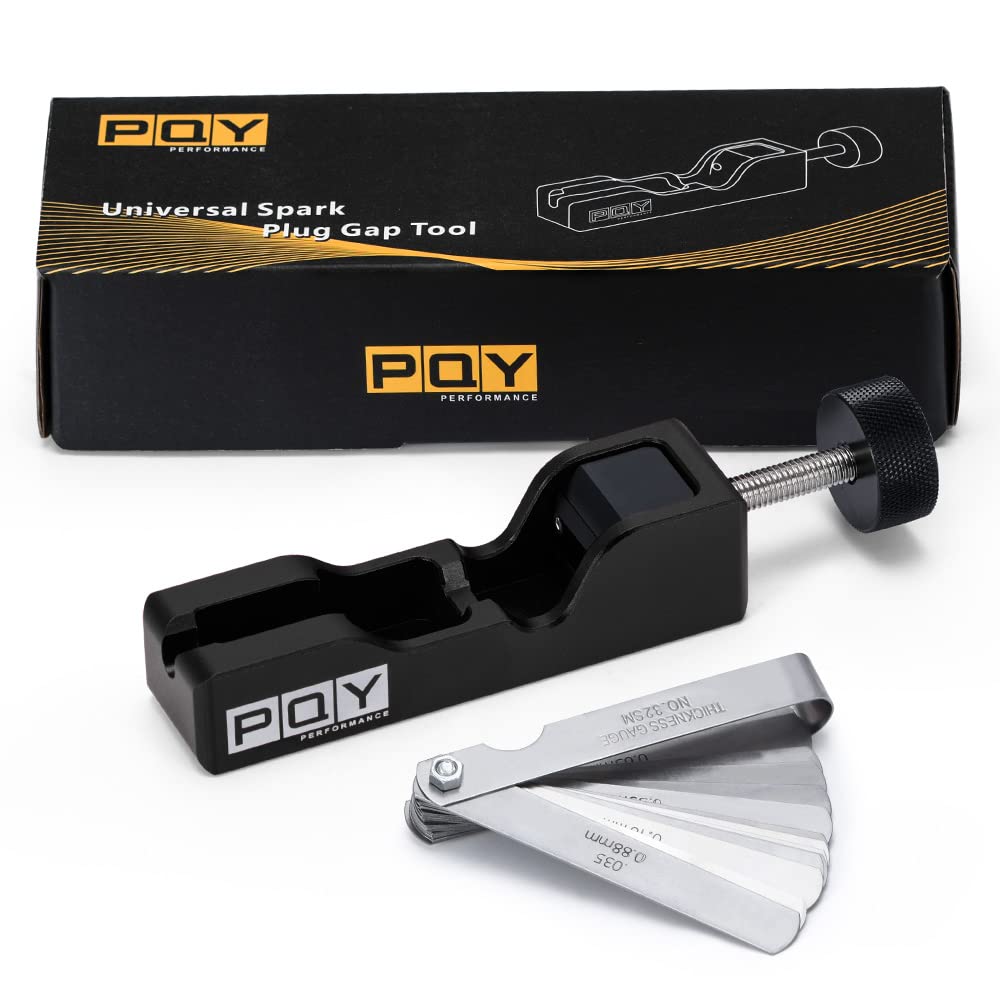

PQY Universal Spark Plug Gap Gapping Tool with 32 Blade

PQY's Universal Spark Plug Gap Gapping Tool is a compact aluminum adjuster with a 32-blade feeler gauge designed to set precise spark plug gaps for most 10mm–16mm threaded plugs (not 18mm).

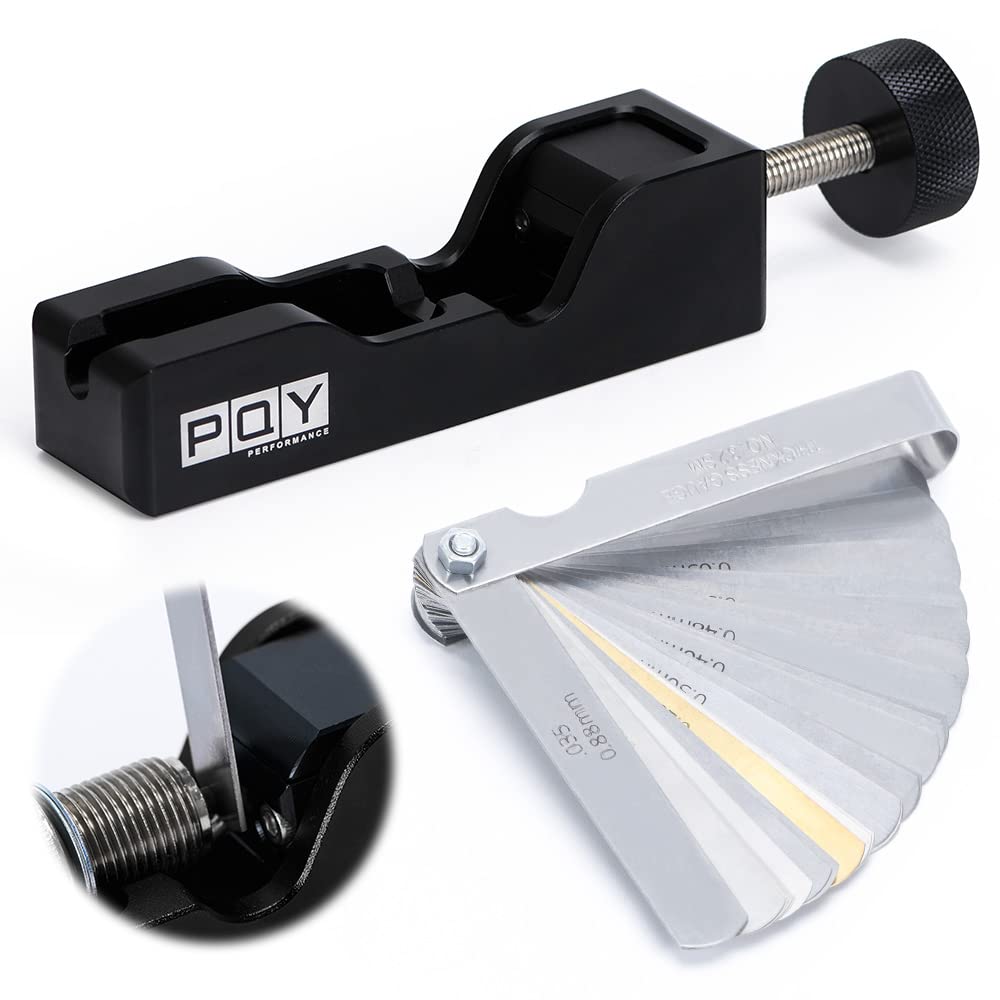

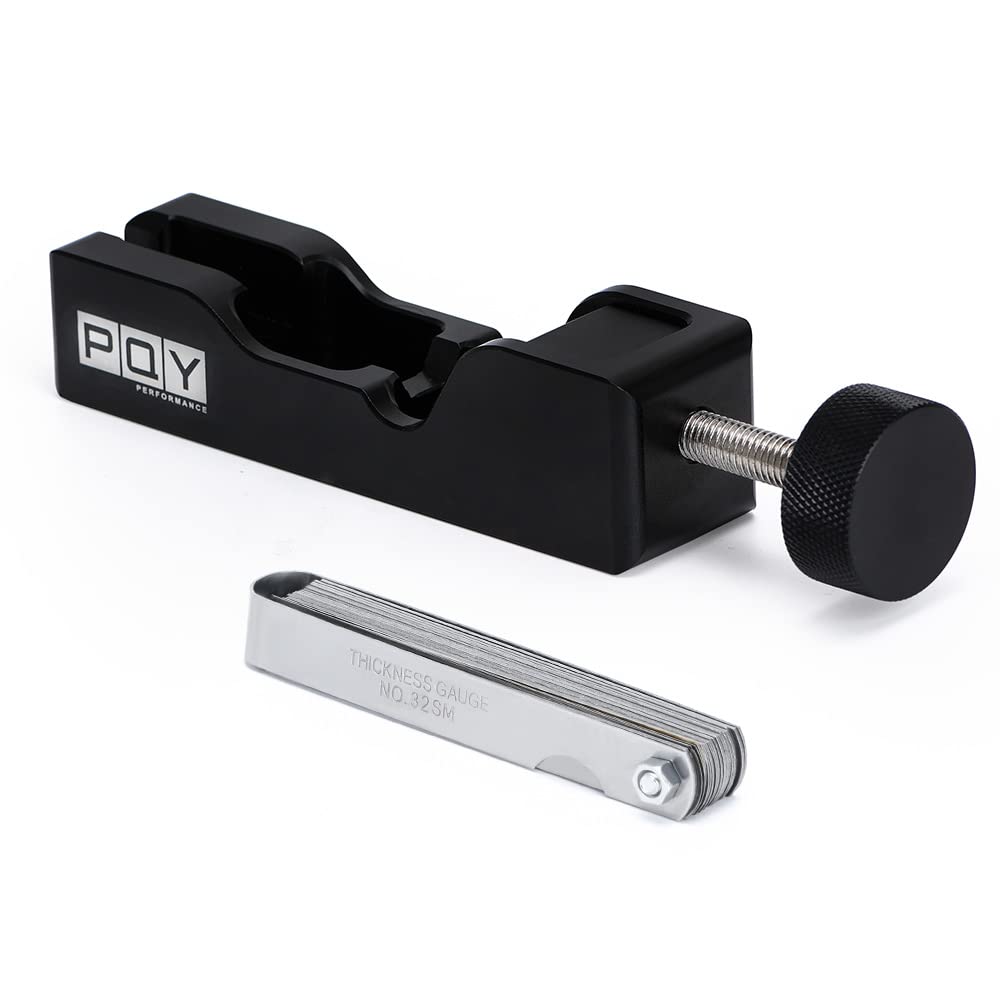

This lightweight, matte-finished tool combines a screw-adjuster body and a multi-blade feeler set so you can measure and set electrode spacing quickly and accurately. Built from aluminum and high-grade manganese steel, it includes a brass blade suitable for electronic ignition systems and covers a wide measurement range from 0.04mm to 0.88mm. The design makes it easy to hold a spark plug in place, select the correct feeler thickness, and gently adjust the electrode without risking excessive force.

How do I use the PQY gap tool to set a spark plug gap?

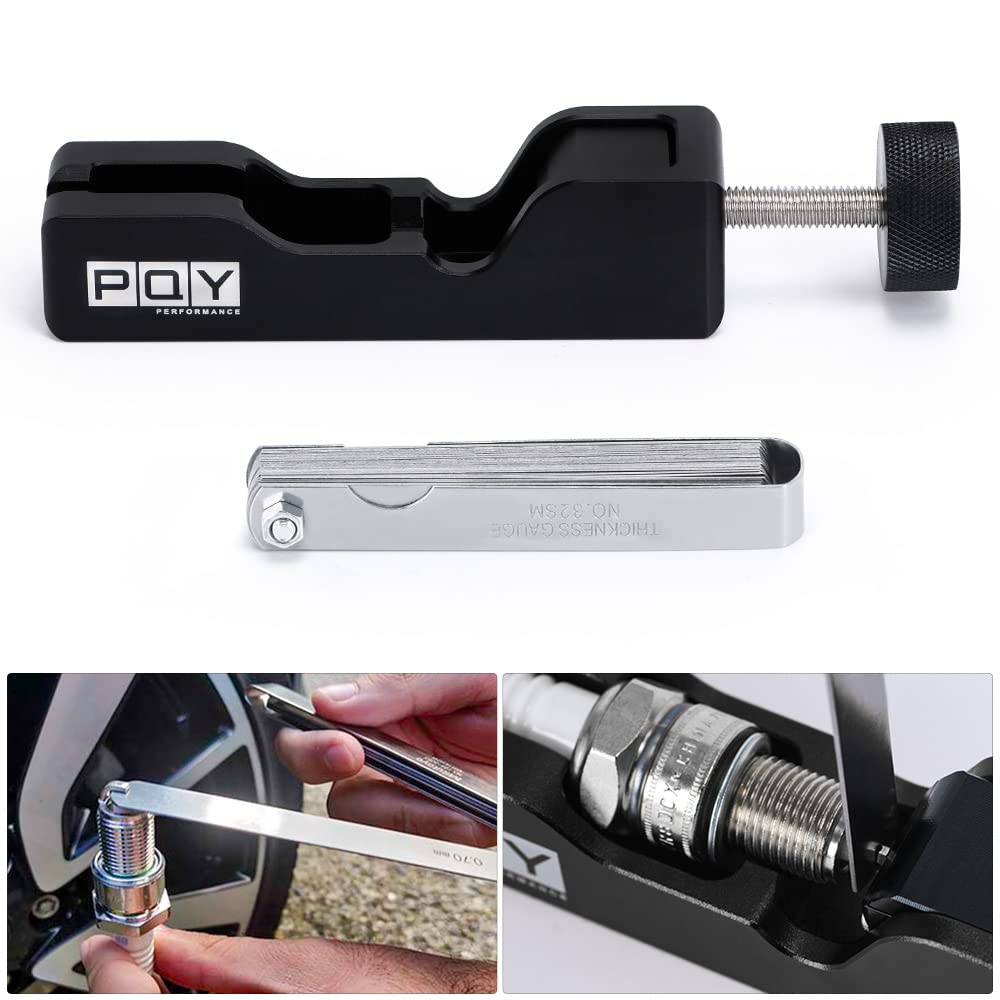

Using the PQY tool is straightforward: seat the spark plug in the tool’s cradle, slide in the chosen feeler blade, then slowly turn the knurled knob until the electrode touches the feeler. If the electrode springs back slightly after adjustment, recheck with the blade measurement and fine-tune.

• Place the plug in the tool’s slot so the electrode aligns with the feeler.
• Select a blade matching the target gap (0.04–0.88mm range).
• Turn the adjustment knob slowly until the feeler meets light resistance.
• Confirm by re-inserting the blade; reduce blade size if the electrode springs back.

Which spark plugs are compatible with this PQY gapping tool?

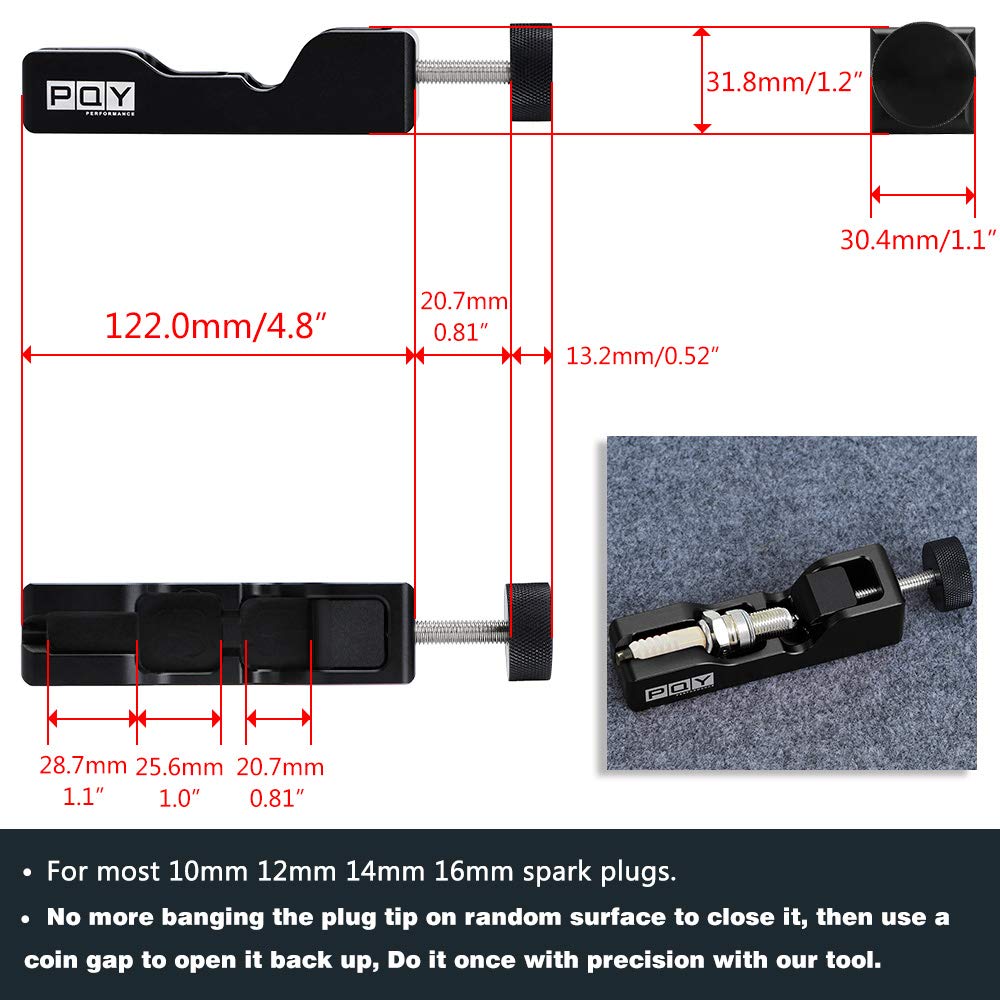

The PQY gapper fits most standard spark plugs with 10mm, 12mm, 14mm, or 16mm thread diameters and standard reach lengths. It is not suitable for plugs with 18mm threads or for very long-reach or extra-short-reach specialty plugs, so check your plug dimensions before use.

• Compatible thread sizes: 10mm, 12mm, 14mm, 16mm.
• Not compatible with 18mm-thread plugs or long/short reach specialty plugs.
• Works with common automotive and motorcycle spark plugs having standard electrode spacing.

What measurement accuracy and blade options does the 32-blade gauge provide?

The included feeler set uses manganese steel blades covering 0.04mm to 0.88mm, giving fine-grain control for most tuning and replacement needs. A 0.25mm (0.010 in) brass blade is provided specifically for electronic ignition systems where softer contact is preferred.

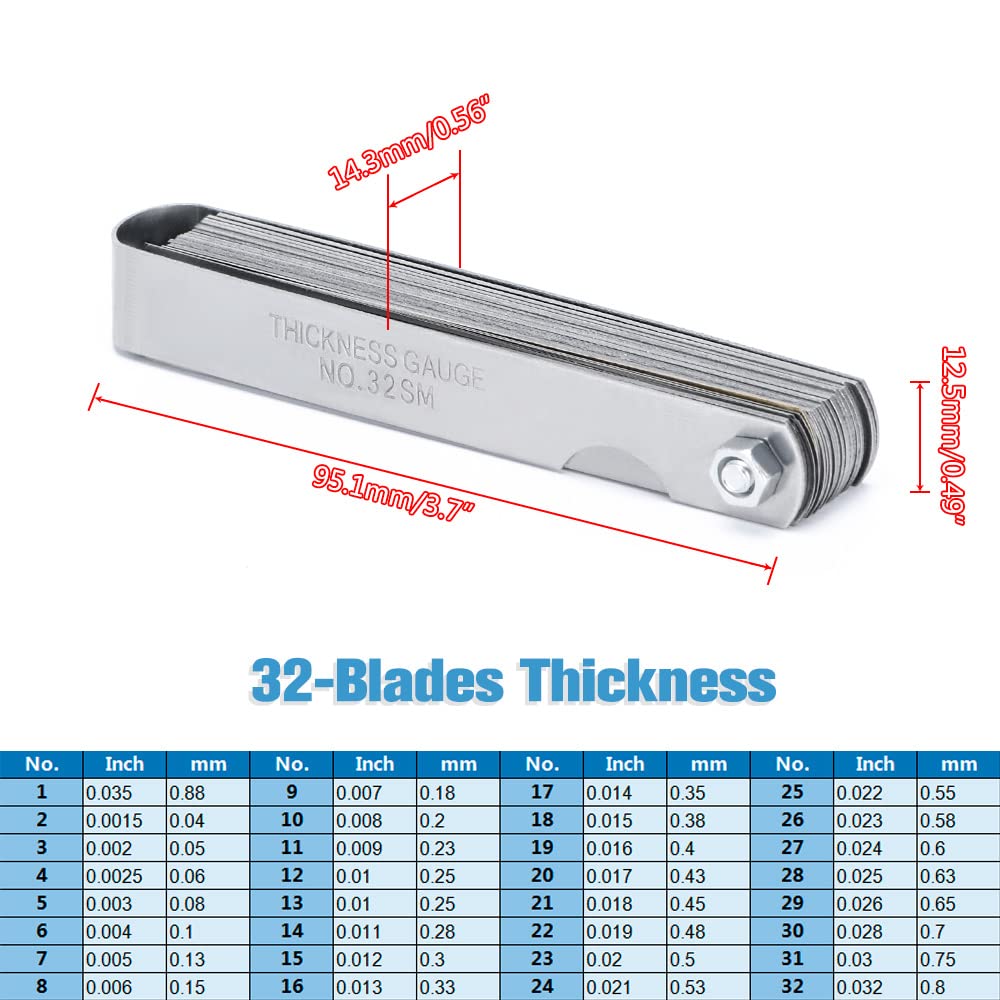

• Measurement range: 0.0015 in (0.04 mm) to 0.035 in (0.88 mm).

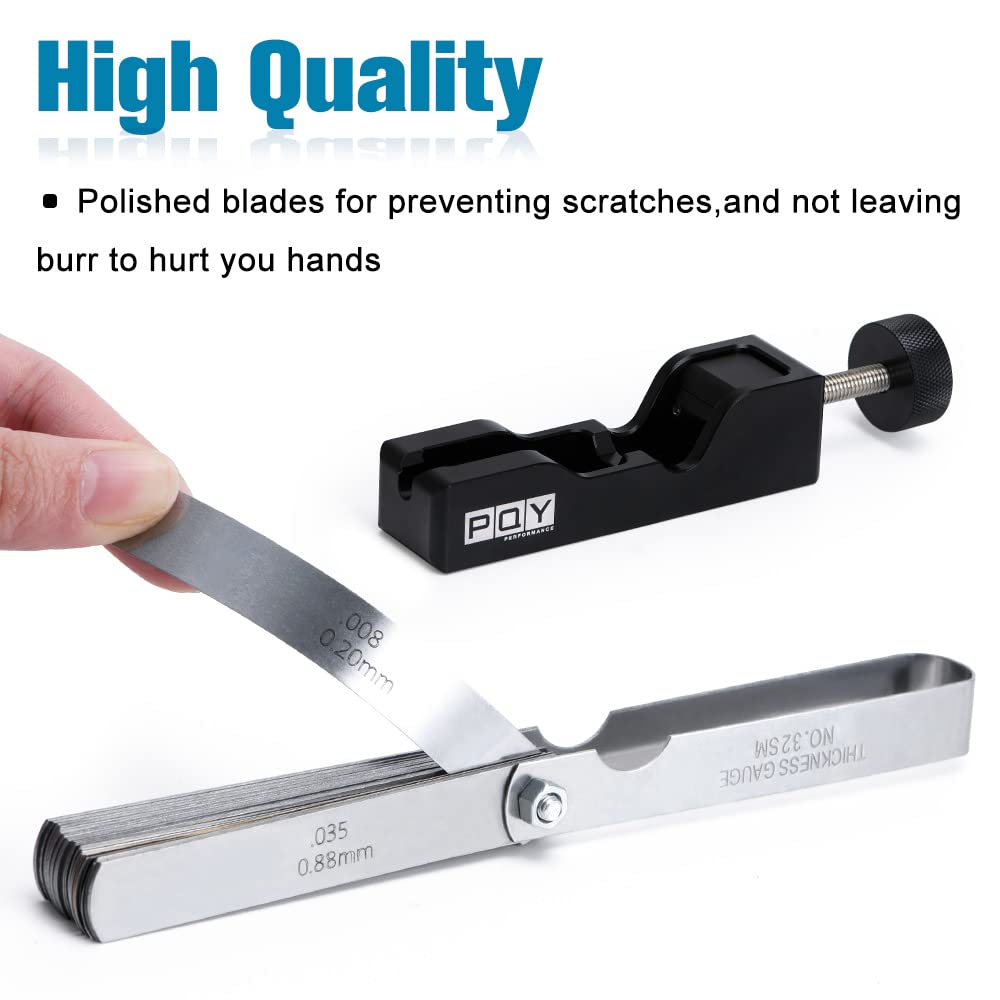

• 32 steel blades for incremental adjustments and precise readback.
• One brass 0.25 mm blade included for sensitive ignition systems.

How should I compensate if a plug electrode springs back after adjusting?

Electrode spring-back is common; set the gap slightly under the target so the final resting gap matches specifications. For example, if the target is 0.44 mm, start with a 0.42 mm blade then recheck after removing the feeler to allow spring-back to settle the electrode.

• Use a slightly smaller blade than the target to allow for spring-back.
• Recheck the gap after releasing pressure to confirm final spacing.
• Make only small incremental turns on the knob to avoid over-bending the electrode.

Who is this for: The PQY Universal Spark Plug Gap Tool is aimed at DIY mechanics, home tuners, motorbike owners, and small-shop technicians who need a compact, reliable way to measure and set spark plug gaps. It’s best for standard plugs with 10–16mm threads and for anyone who wants a portable, durable gapping kit that includes a wide selection of feeler blades, including a brass blade for electronic ignition systems.
