RED WOLF 175A Battery Quick Connector 1/0-4 AWG Jumper

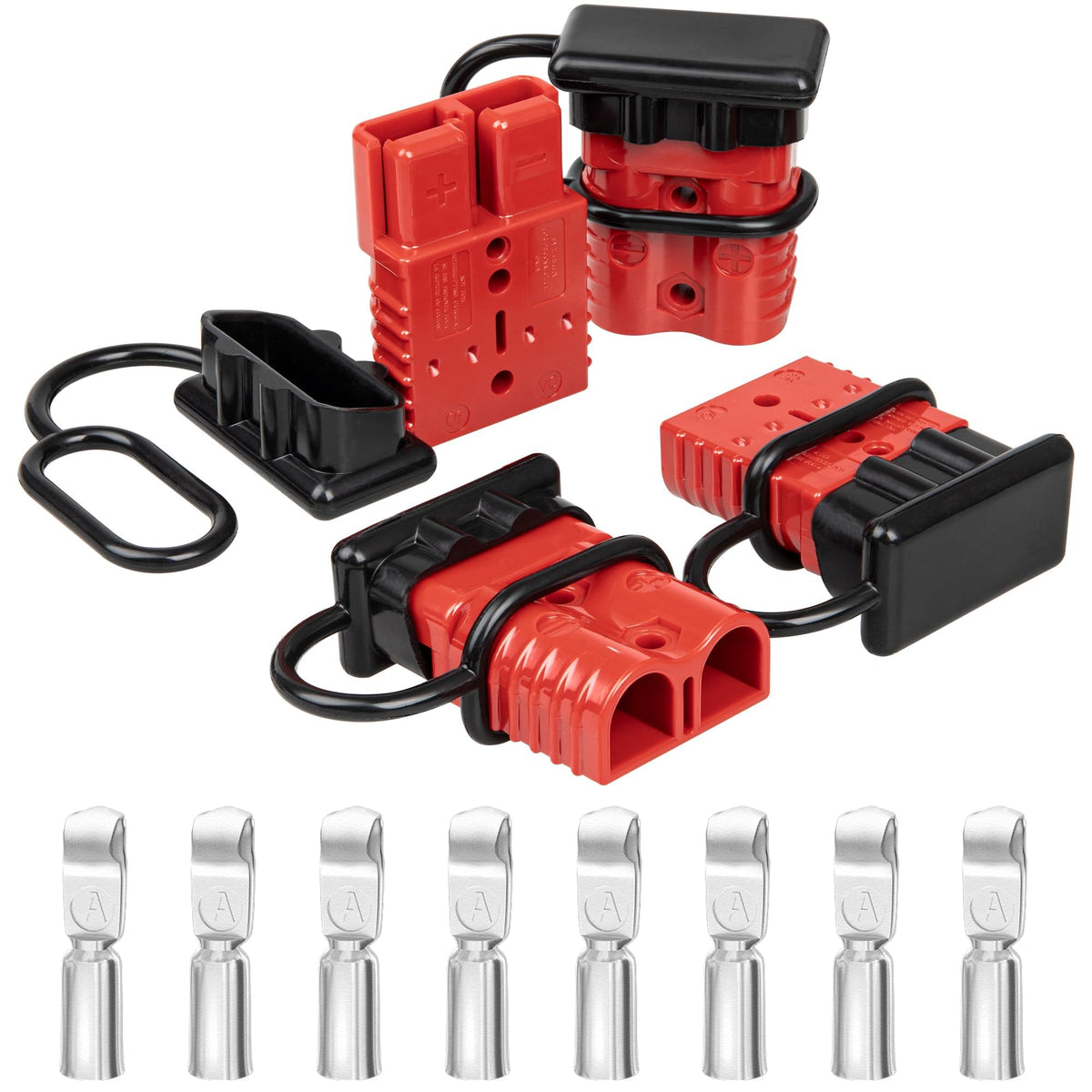

RED WOLF 175A Battery Quick Connector is a 4-piece SB175-style, flame-retardant plug kit that lets you quickly connect and disconnect 1/0–4 AWG battery cables for trailers, RVs, winches and other 12–36V systems.

This kit provides a safe, modular alternative to permanent welded connections: each plug features a unibody flame-retardant PC housing, silver-plated copper terminals and a polarized snap design that prevents reverse mating. Designed for heavy-duty use in outdoor and marine environments, the connectors support continuous high current and resist corrosion, dust and water intrusion when fitted with the supplied rubber covers.

How does this connector simplify field maintenance?

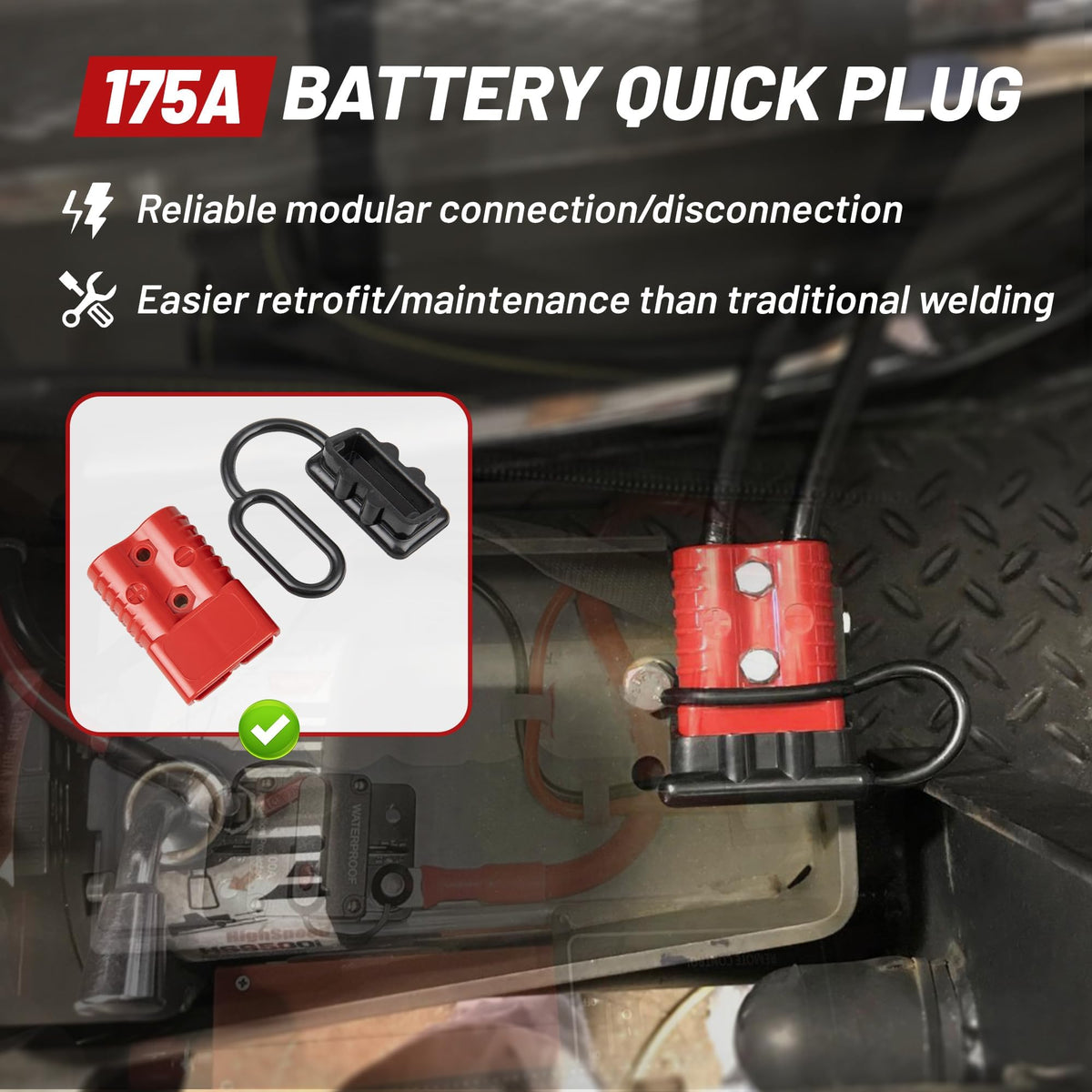

Instead of cutting and re-welding battery leads, the RED WOLF SB175 connector plugs and unplugs in a single motion for fast swaps and repairs. The screwless, snap-fit design eliminates the need for tools during normal installation and replacement, saving time on trailers, RVs and mobile equipment.

• One-click snap-fit: insert and hear a positive click to lock.
• Screwless copper terminal: crimp the lug and seat into the housing.

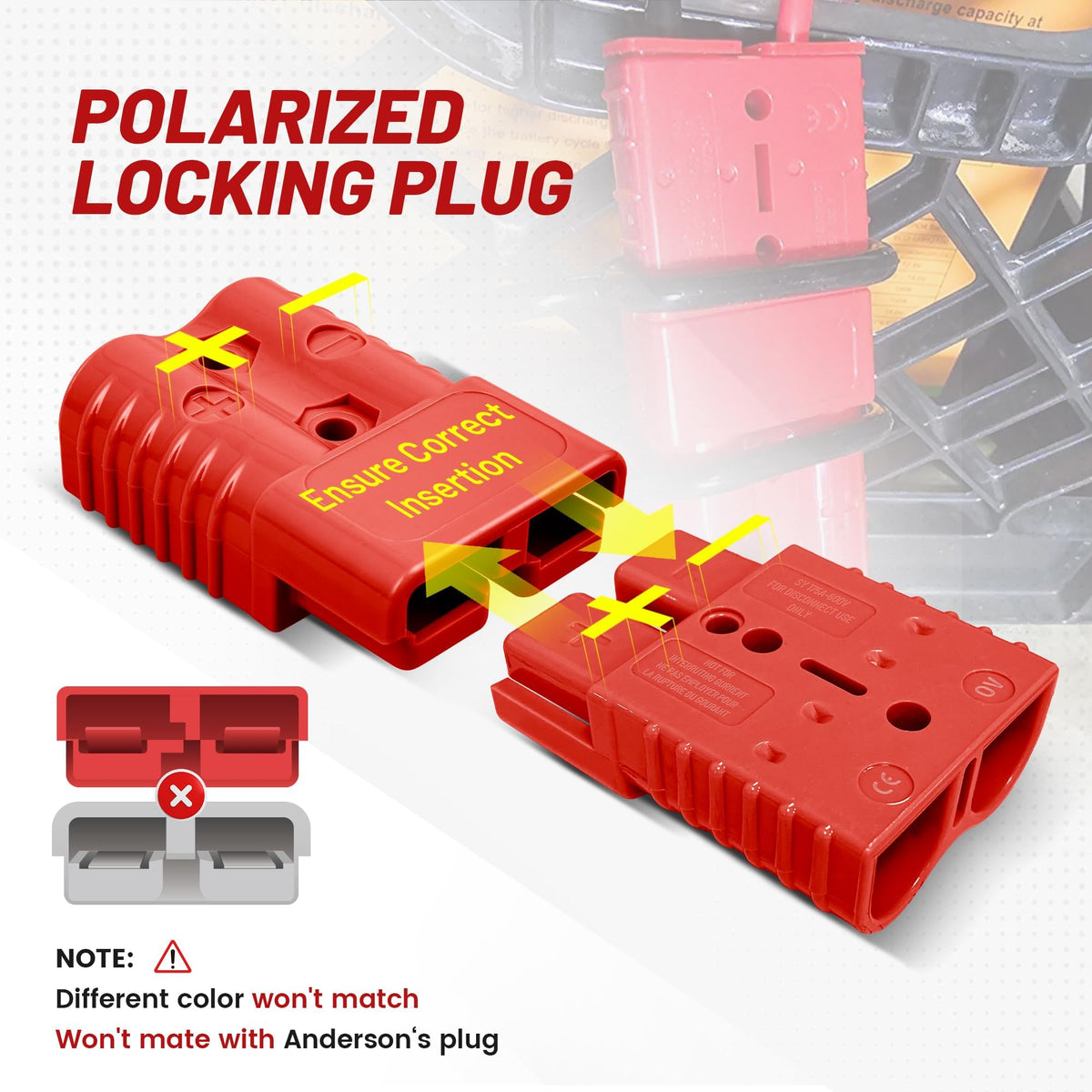

• Polarized shape: prevents accidental reverse connections.
• Dust-proof rubber cap: protects unused ports in the field.

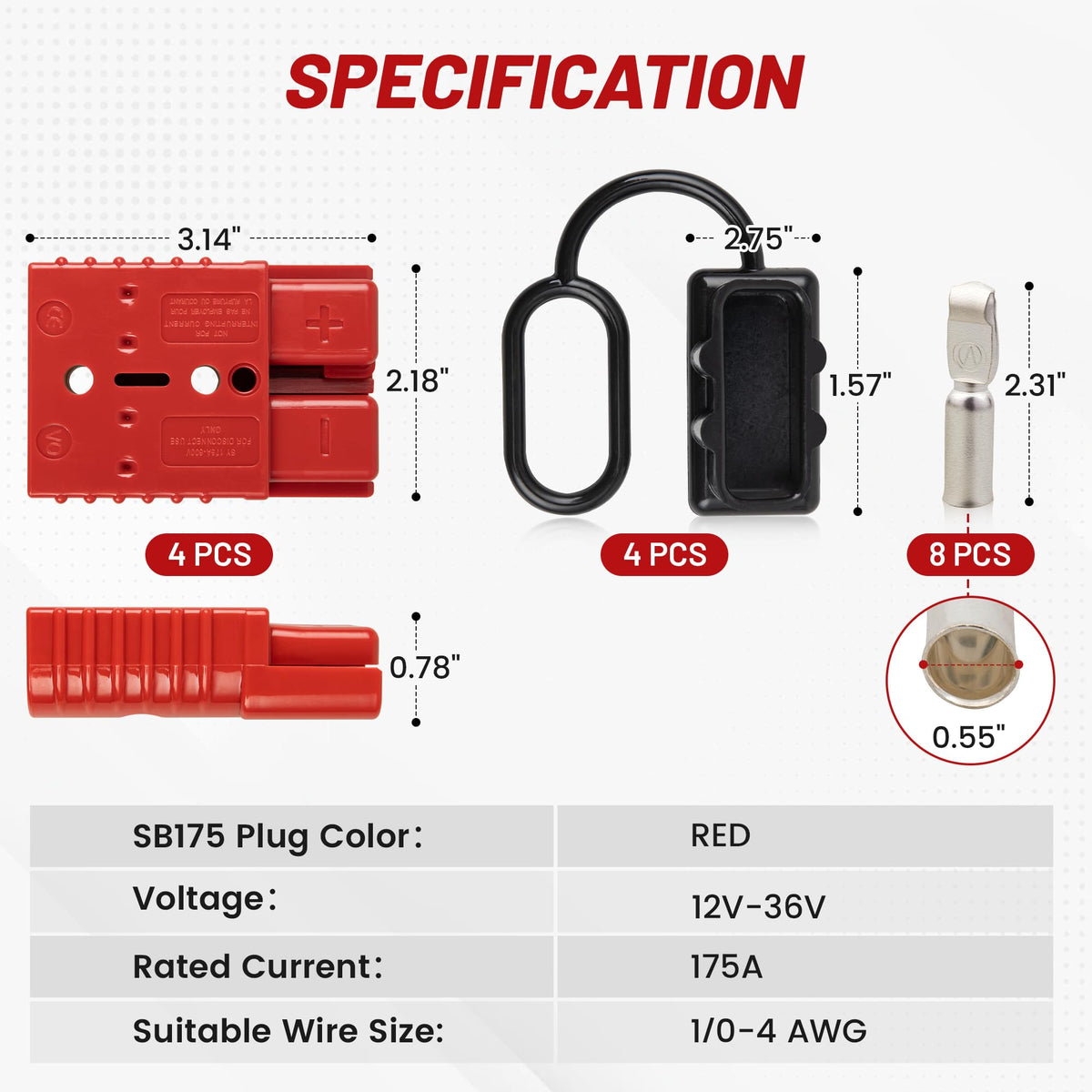

What electrical specs and wire sizes are supported?

The connector is rated to carry up to 175 amps across a 12–36V range, suitable for many 12V vehicle and auxiliary power systems. It accepts heavy gauge cable from 1/0 AWG down to 4 AWG, and the silver-plated copper lug improves conductivity and reduces voltage drop under load.

• Current rating: 175A continuous operation.
• Voltage range: 12V–36V systems.
• Compatible wire sizes: 1/0 AWG to 4 AWG.
• Copper lug with silver plating for high conductivity.

How durable is the plug in harsh outdoor conditions?

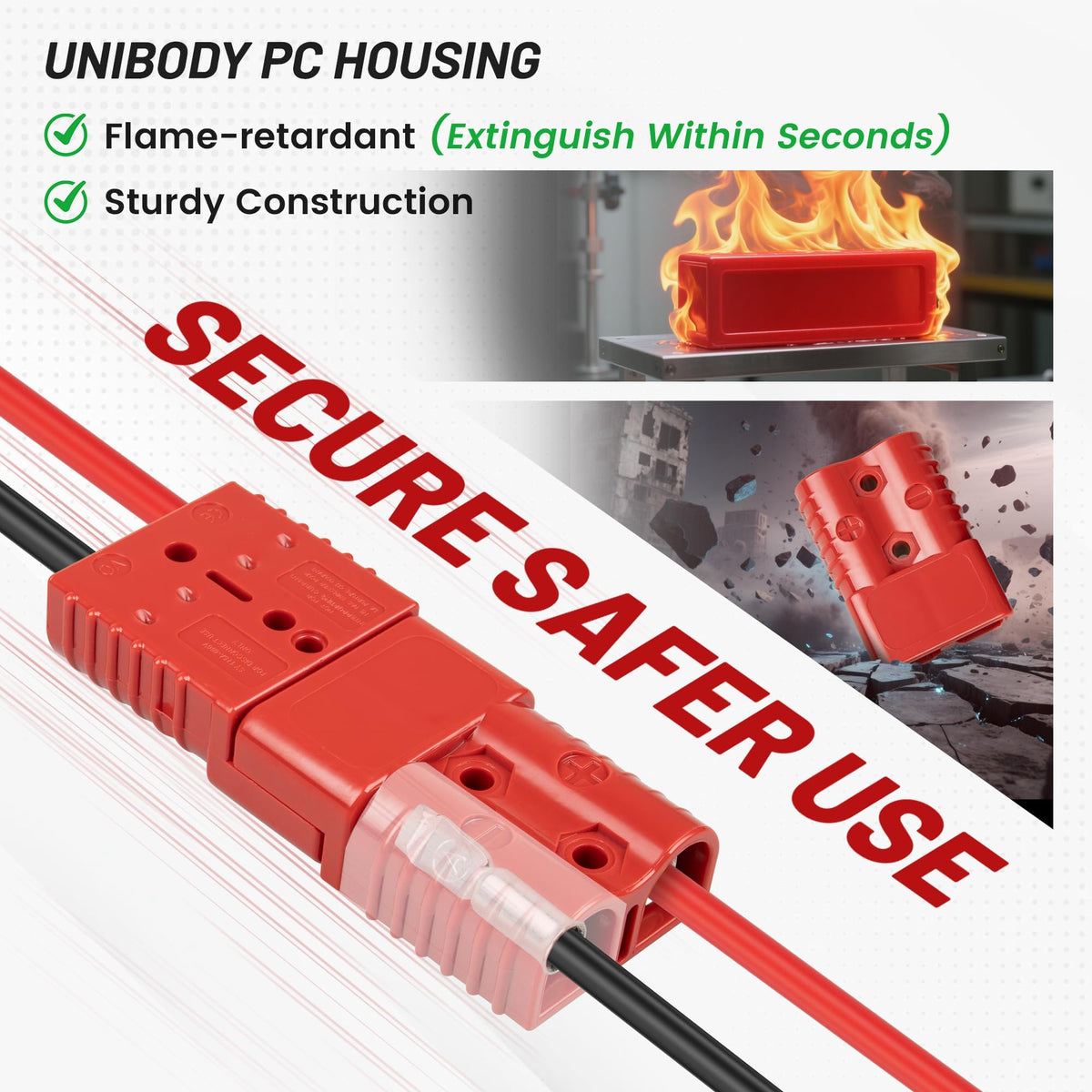

RED WOLF built this SB175 plug from flame-retardant polycarbonate for impact and heat resistance, with an internal Mn-steel locking tab to avoid corrosion and maintain contact integrity. The product tolerates a wide temperature range and the rubber dust cover helps prevent moisture and debris from degrading connections during storage or intermittent use.

• Housing: flame-retardant PC for fire and impact resistance.
• Internal contacts: Mn-steel spring tab resists rusting.

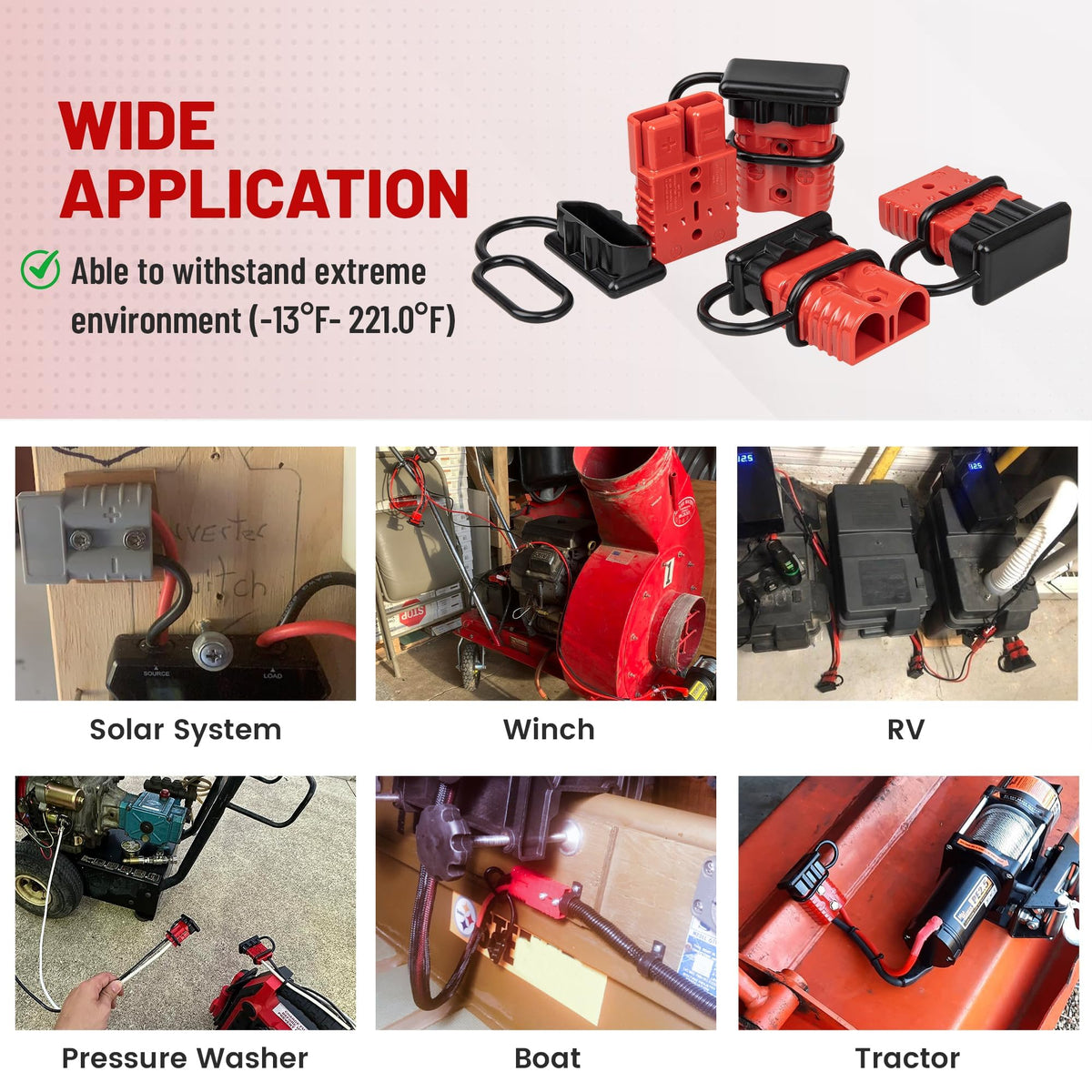

• Temperature tolerance: from approximately -13°F to 221°F.

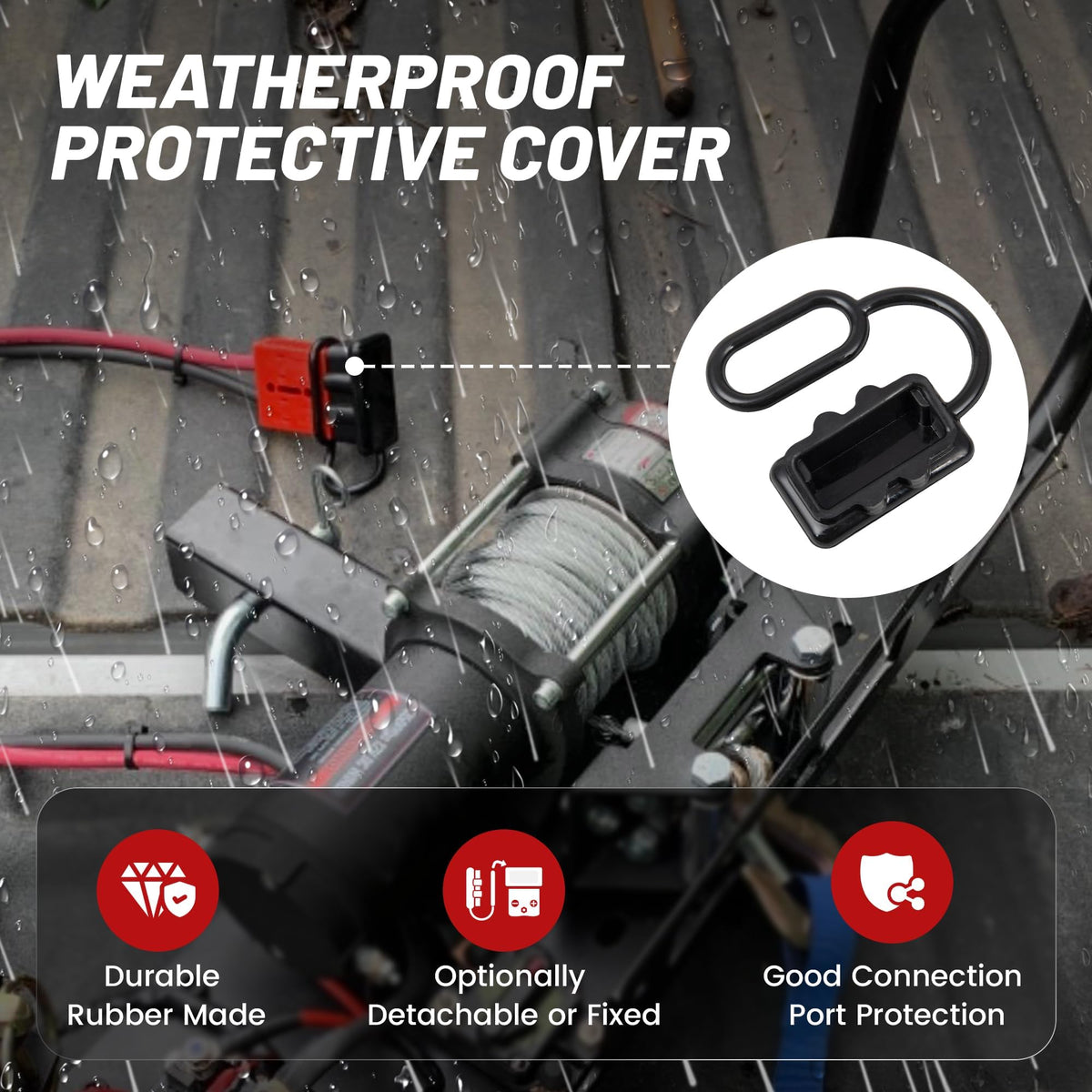

• Included rubber cover: dust and splash protection for idle ports.

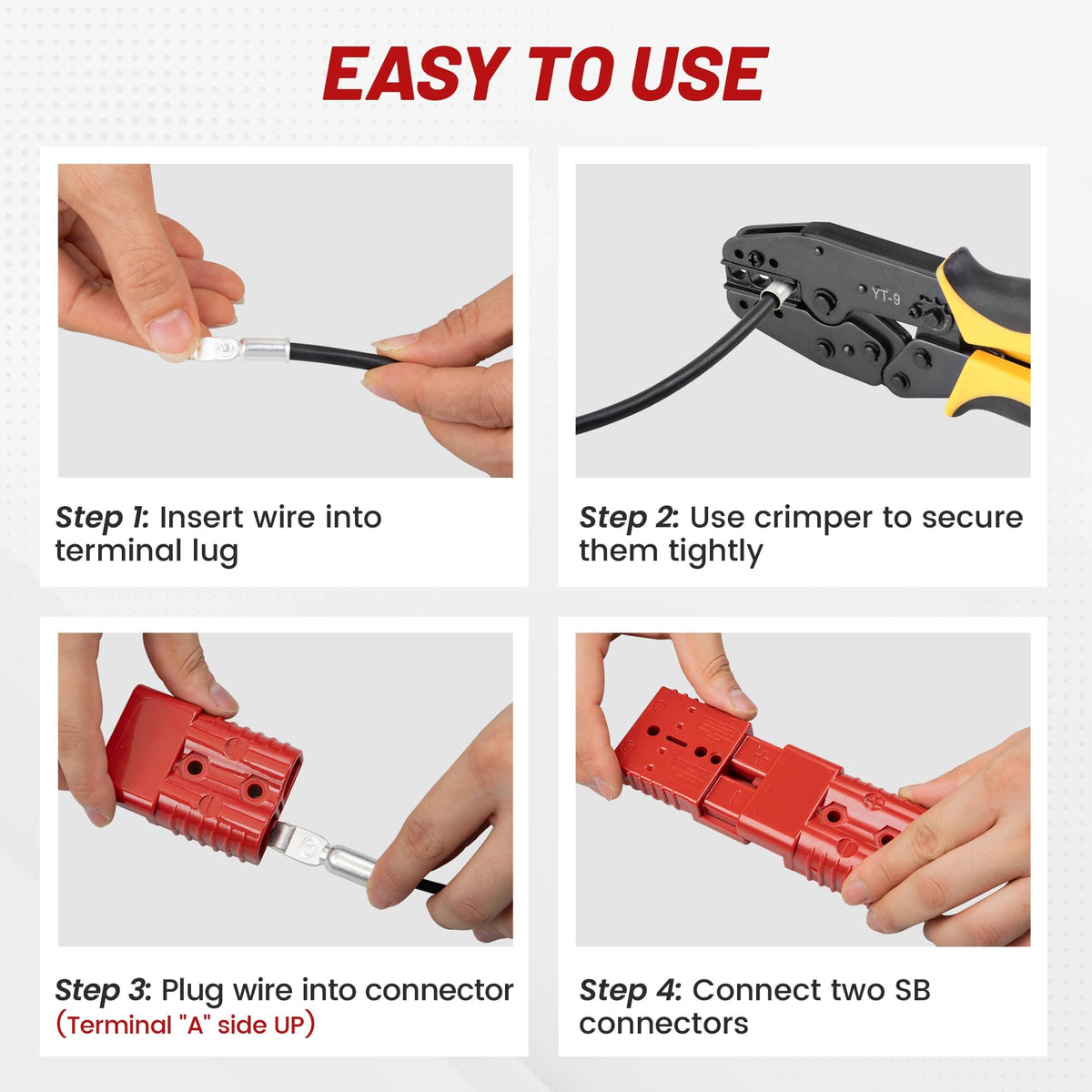

How do I install these connectors safely and correctly?

Installation requires crimping the supplied copper lug to your cable, inserting the lug into the plug housing until it locks, and ensuring polarity marks align before mating. No screws or special tools are needed beyond an appropriate crimper and heat-shrink or electrical tape for strain relief if desired.

• Strip cable to specified length and crimp onto the copper lug.
• Seat lug fully in the plug until you hear the locking click.
• Match polarity marks to avoid reverse connections.
• Fit the rubber dust cap when connector is unused.

Who is this for? Technicians, RV owners, boaters, trailer operators and fleet maintenance professionals who need a dependable, serviceable way to connect heavy-gauge battery and accessory wiring will benefit from the RED WOLF 175A SB175 connectors. This 4-pack is ideal for multi-point installations or as spare connectors for field repairs where speed, safety and corrosion resistance matter.
