Sound Troubleshooting 12V Automotive Relay Tester — 4 & 5‑Pin Compact Handheld, LED Pass/Fail

The Sound Troubleshooting Handheld 12V Relay Tester quickly verifies 4‑ and 5‑pin automotive relays, showing pass/fail status with green or red LEDs.

If you work on vehicle electrical systems or want a fast way to confirm relay function, this compact tester gives clear, repeatable results without needing a full lab setup. It operates from a standard 12V car battery (11–15V range), automatically detects socket orientation and pin count, cycles the relay multiple times to check timing and consistency, and indicates a good or bad relay with an LED. It’s designed for general-purpose automotive relays (note: not intended for all BMW relays) and ships with battery clips for direct connection.

How does the tester identify and test different relay pinouts?

The tester uses automatic detection to recognize 4‑pin and 5‑pin relay configurations and chooses the right socket orientation for the relay you insert. Once connected to the vehicle battery and the relay is seated, pressing Test triggers several actuation cycles while the unit measures contact closure timing and repeatability.

• Automatic 4‑ or 5‑pin recognition—no manual wiring required.

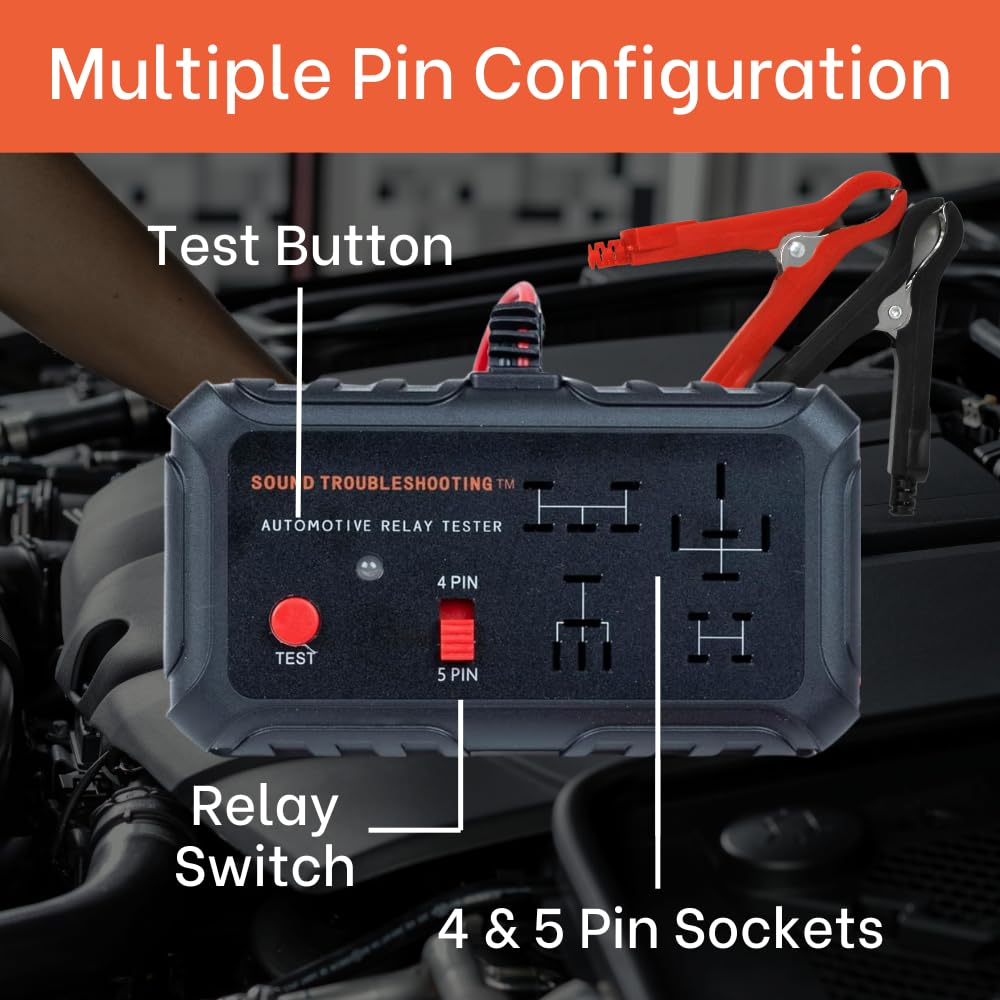

• Selectable socket positions to match common industry pin layouts.
• Multiple actuation cycles to reveal intermittent faults or sticking contacts.
• Green LED for pass, red LED for fail—easy visual readout.

What are the steps to run a relay test safely and correctly?

Testing is straightforward: connect the alligator clips to the vehicle battery (black to negative, red to positive), set the 4/5 pin switch to match the relay, choose the correct socket, insert the relay, then press Test. The tester lights its red LED when it’s ready; during the test it will cycle the relay and then indicate status with a single LED color.

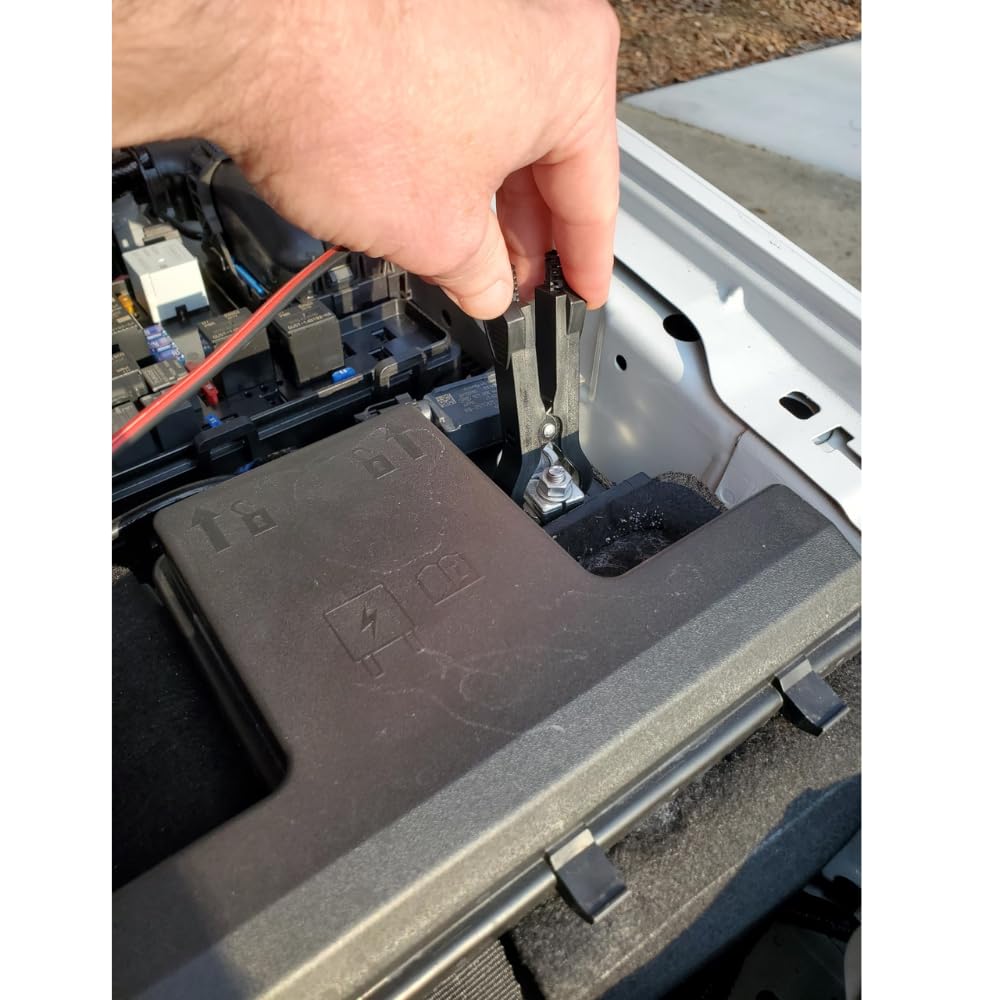

• Attach black clip to battery negative, red clip to battery positive.
• Confirm battery voltage is between 11V and 15V prior to testing.
• Match the 4/5 pin selector and socket to relay pins before pressing Test.
• Interpret green = good, red = faulty; repeat if results are inconsistent.

Which relays and vehicle systems will this tester support?

The Sound Troubleshooting tester supports most general-purpose 12V automotive relays used for lights, fans, horns, fuel pumps and other common circuits, provided the coil resistance is preferably above 20 ohms. It’s intended for routine shop and field diagnostics but not all OEM-specific or proprietary relay designs.

• Works with typical 4‑pin and 5‑pin automotive relays found on many makes and models.
• Best results when coil resistance is >20 ohms and battery voltage is 11–15V.
• Not recommended for some specialized or certain BMW relays—check fitment.
• Includes battery clips to test relays directly from the vehicle battery.

How does the unit help spot intermittent relay faults?

By automatically cycling the relay several times and measuring action timing and consistency, the tester reveals intermittent contact failures, slow or sticking contacts, and timing irregularities that a single manual activation might miss. The multiple-cycle check exposes defects that occur only under repeated operation.

• Runs several actuation cycles to detect inconsistent behavior.
• Checks release time and action consistency across cycles.
• Instant LED feedback highlights failing relays quickly.
• Compact design encourages on-site testing where intermittent faults often occur.

Who is this for: technicians, DIY mechanics, mobile mechanics, fleet maintenance staff, and hobbyists who need a portable, uncomplicated way to validate relays in automotive electrical systems. If you require a durable, handheld diagnostic tool to confirm relay performance on the go or in the shop—and your relays conform to common 12V 4‑ or 5‑pin designs—the Sound Troubleshooting Handheld 12V Relay Tester is built for that purpose. Verify compatibility for certain OEM or uncommon relays before purchase.
