TOTEDELL Ignition Coil Armature for Briggs & Stratton 595304 Compatible — 17–20HP Intek/OHV Replacement, Direct-Fit Magneto

This TOTEDELL ignition coil armature is an aftermarket replacement designed to restore spark performance in many Briggs & Stratton and compatible lawn mower engines. It matches the physical and electrical fit of OEM magneto armatures listed under 595304 and cross-reference numbers, making it a practical repair part for walk-behind mowers, riding equipment and select Vanguard/MTD applications. The unit is manufactured to the same basic form factor as the original so it installs using standard mounting and flywheel clearances.

Which engines and part numbers will this replace?

This armature is compatible with numerous Briggs & Stratton engine models across several series and horsepower ranges, plus select Vanguard and MTD units. It covers older L-head and modern OHV Intek engines from roughly 10HP up through 20HP depending on model. Use the list below to check against your engine model plate or existing part number before purchase.

• Covers Briggs & Stratton references such as 21A807, 21R502, 21R607, 21R707 and many variants.
• Fits Intek OHV models in the 17–20HP range and L-head/Vanguard engines from 9HP–14HP.

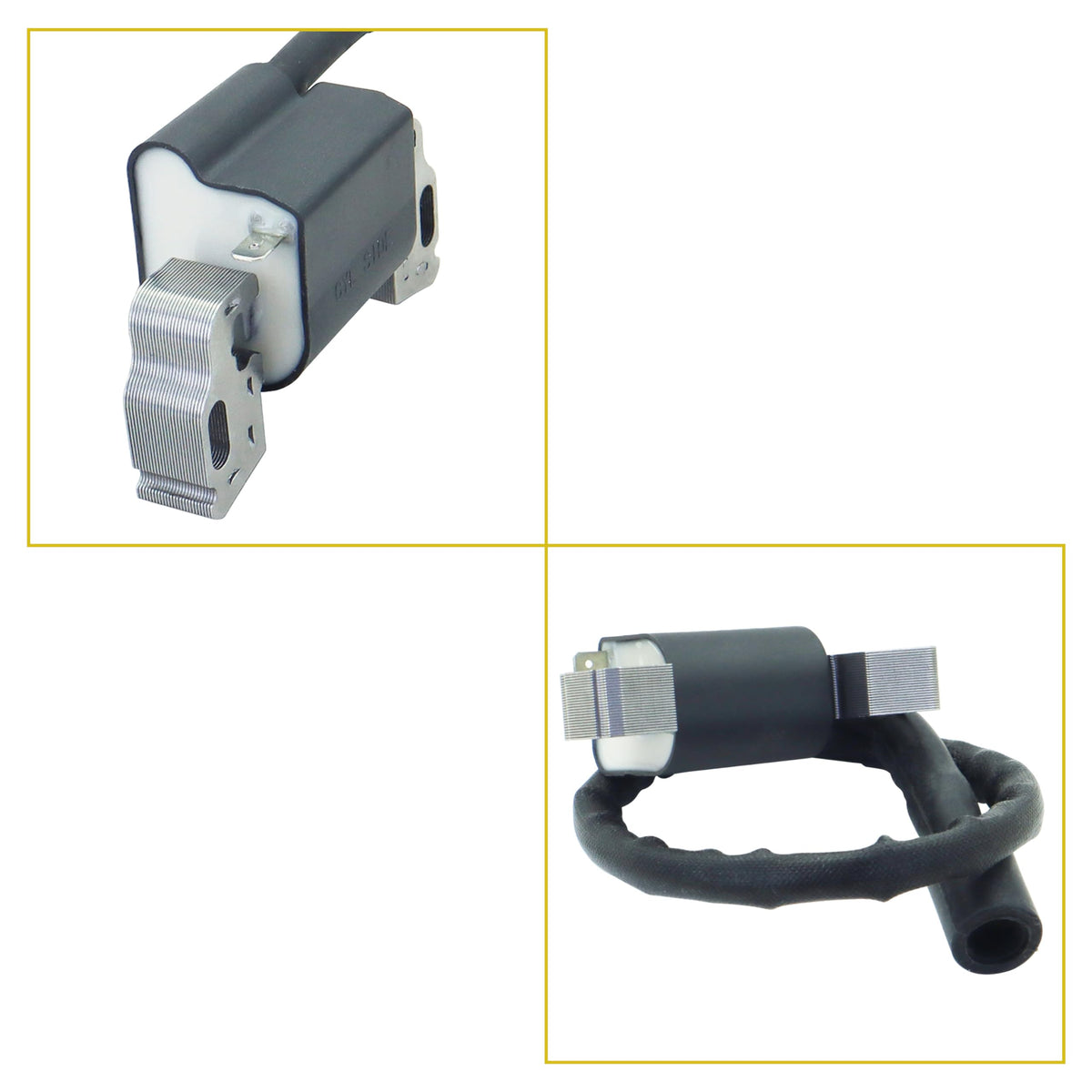

• Cross-references include OEM numbers like 595304, 799650, 795315 and 592841.
• Also compatible with some MTD model designations such as G1236 and CC760 series.

How straightforward is installation for a homeowner?

Installing this armature is typically a bolt-on replacement when the flywheel and ignition components are accessible. Basic hand tools, a flywheel puller if required, and routine safety steps (disconnect spark plug) are all that’s needed. If you’re comfortable removing a flywheel and swapping magneto components, you can complete the job in an afternoon.

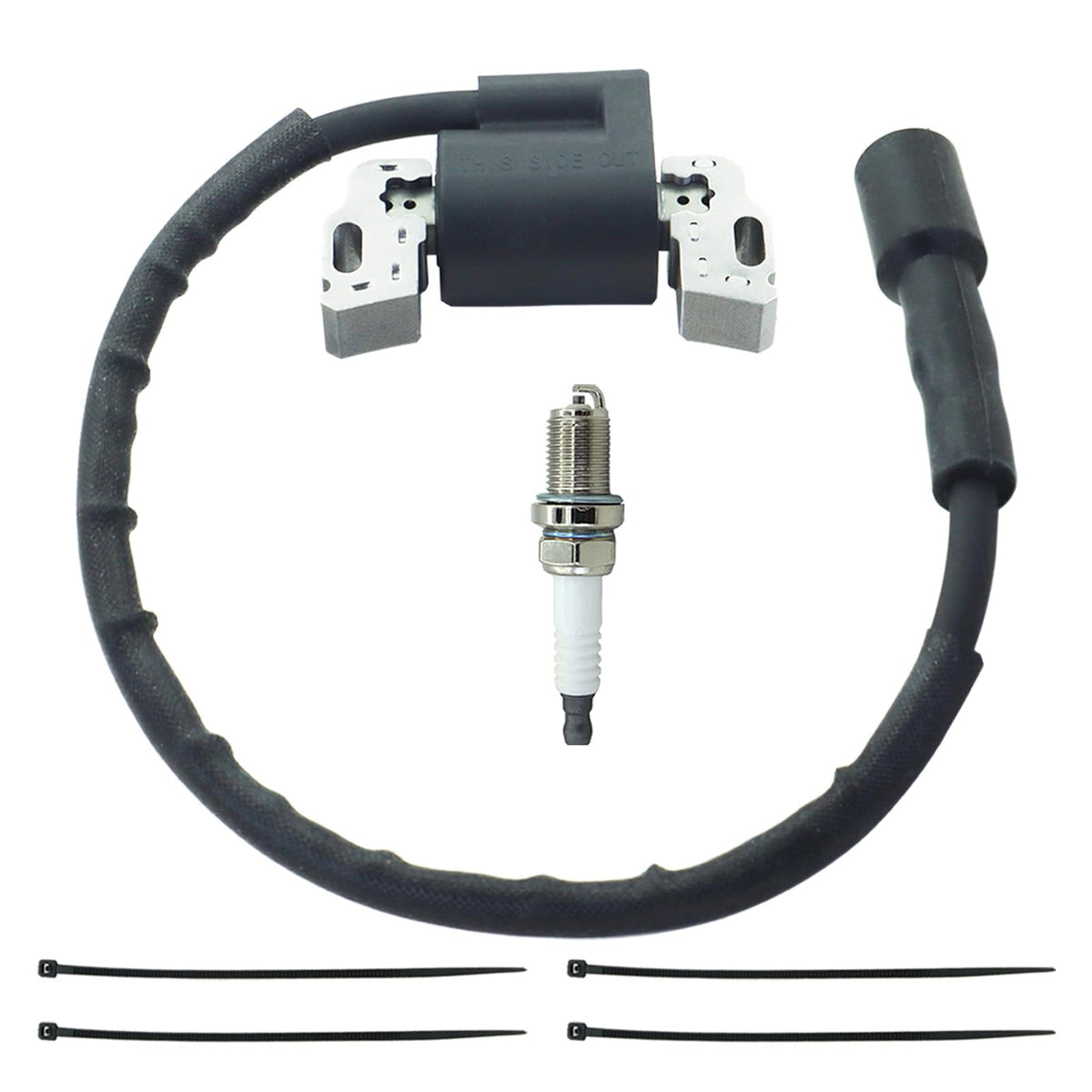

• Direct swap for engines using the 595304-style magneto flange and mounting holes.
• Aligns with original ignition gap and coil mounting positions; verify gap per engine manual.
• No special wiring changes—matches original conductor exit and coil terminals.
• Recommended: service manual and torque specs for correct reassembly.

Will this part restore reliable spark and engine starting?

When the original armature has failed, replacing it with this compatible unit will return the magneto’s ability to generate ignition voltage, improving starting and running if the remainder of the ignition system is sound. Confirm other components—spark plug, condenser/coil connections and flywheel key—are in good condition to avoid repeat issues. This armature addresses core electrical generation; it cannot remedy unrelated mechanical problems.

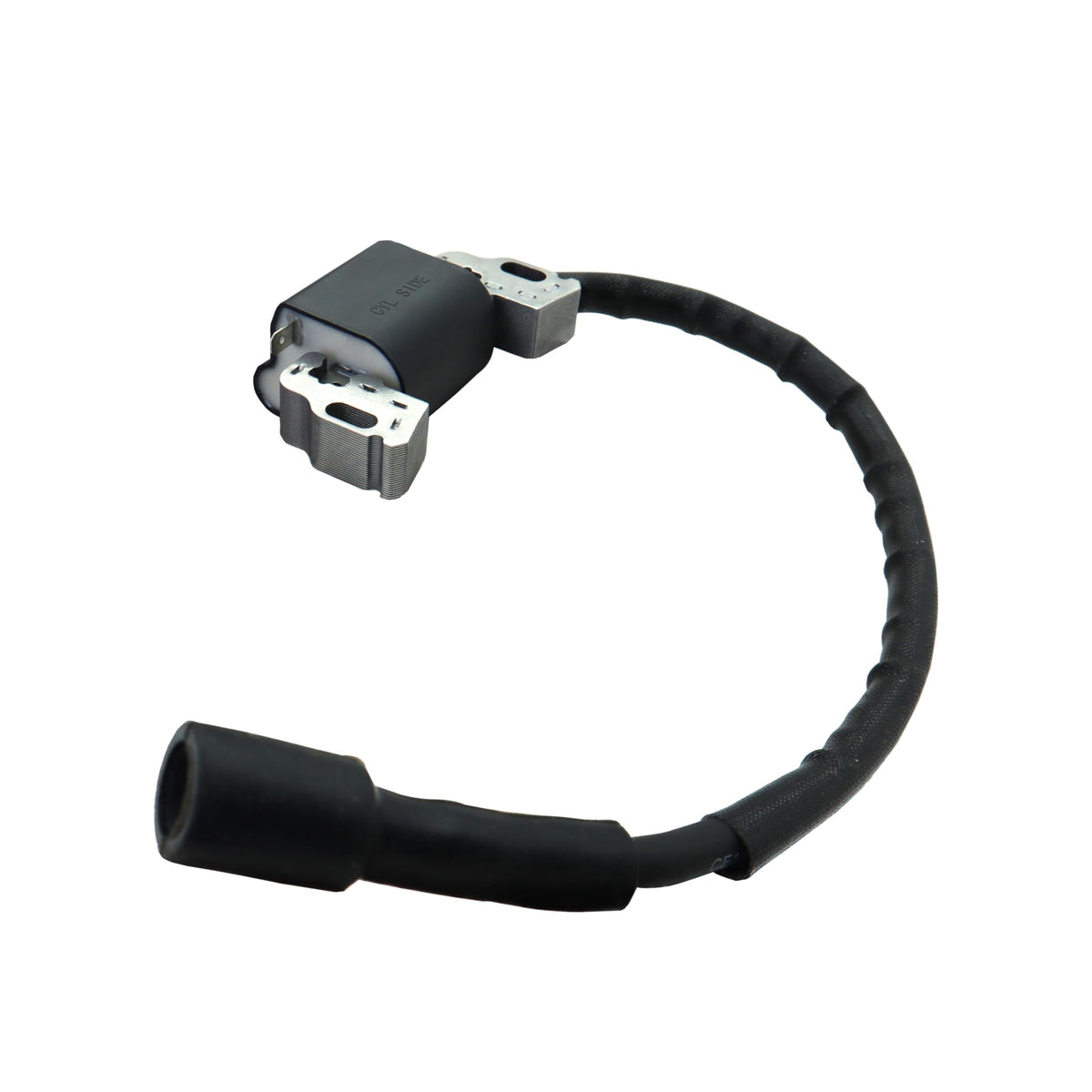

• Replaces worn or damaged magneto windings and mounting cores.
• Restores high-voltage generation for spark plug firing when properly installed.
• Works best alongside a new plug and verified ignition timing.
• Inspect flywheel key and gap to ensure consistent performance.

Who is this for: The TOTEDELL 595304 ignition coil armature is aimed at DIY lawn mower owners, small engine mechanics and service shops needing a reliable aftermarket replacement for Briggs & Stratton-style magnetos. Choose this part if your engine identification or old part number matches the compatibility list and you want a straightforward, budget-friendly option to get a mower back to dependable ignition without sourcing rare OEM stock.
