Ucreative 3" Silicone 45° Elbow Coupler — 3in Turbo/Intake Connector with 5mm Wall & T-Bolt Clamps

The Ucreative 45 Degree 3" silicone elbow coupler is a heavy-duty, 4-ply turbo and intake connector that joins 45° piping runs while resisting extreme temperatures and pressure.

This 3-inch (76.2 mm) silicone elbow from Ucreative is built for engine bays and performance systems where a reliable angled connection is needed. With 5 mm wall thickness and two included stainless T-bolt clamps, it replaces worn or generic rubber joins and provides a firmer, longer-lasting seal for intercooler piping, turbo outlets, and intake plumbing. The coupler’s wide temperature range and multi-layer silicone construction make it suitable for both high-heat and cold-start conditions without cracking or softening.

How does this elbow handle high heat and cold starts?

The Ucreative coupler is rated from -60°C (-140°F) up to 230°C (428°F), thanks to its 4-ply silicone composition and robust build. This range helps preserve flexibility in cold climates and dimension stability under prolonged engine heat. It reduces the risk of brittleness in winter and maintains a tight seal at higher operating temperatures.

• Temperature tolerance: -60°C to 230°C (-140°F to 428°F).
• 4-ply silicone construction for thermal resilience.
• 5 mm wall thickness resists heat-related deformation.

Will it withstand boost pressure and prevent leaks?

Yes—the coupler’s 4-ply silicone body and included T-bolt clamps are designed to handle typical turbocharged system pressures and provide a dependable clamp surface. The manufacturer lists a bursting pressure of 2 MPa, which indicates a strong safety margin for most automotive and light-duty performance setups. Proper clamp torque and clean mating surfaces are still important to avoid leaks.

• Bursting pressure: 2 MPa for reliable pressure containment.
• Includes two stainless steel T-bolt clamps for even compression.
• Thick 5 mm walls reduce bulging under boost.

What are the exact dimensions and how will it fit my system?

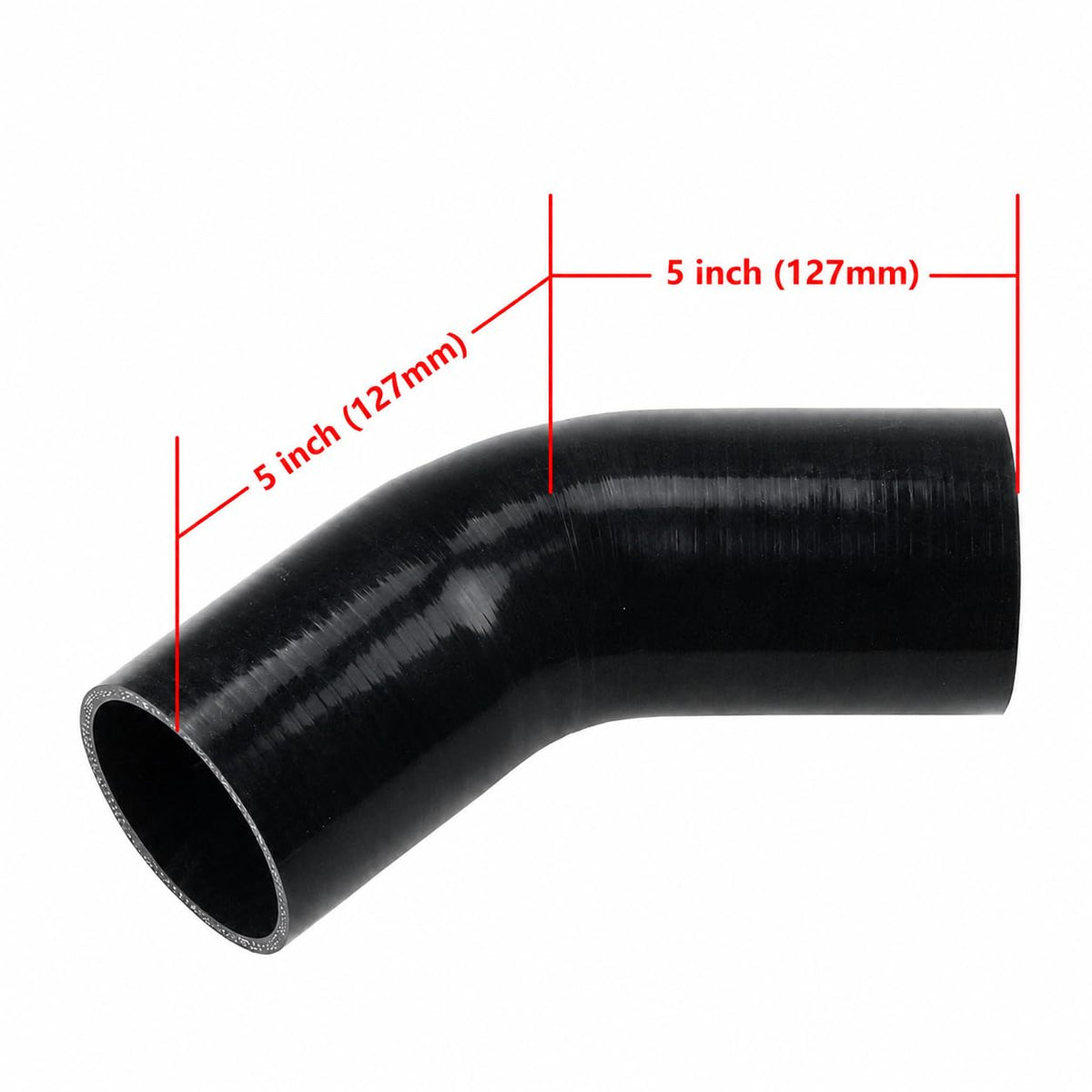

The elbow has a 3-inch inner diameter (76.2 mm) and each leg measures 5 inches (127 mm) from the center of the bend to the end, making it suitable where a 45° directional change is needed. Its 45-degree angle simplifies routing when space or clearance prevents using a straight coupler. Measure your piping OD and available length to confirm fit—silicone allows small adjustments, but exact ID matching ensures best performance.

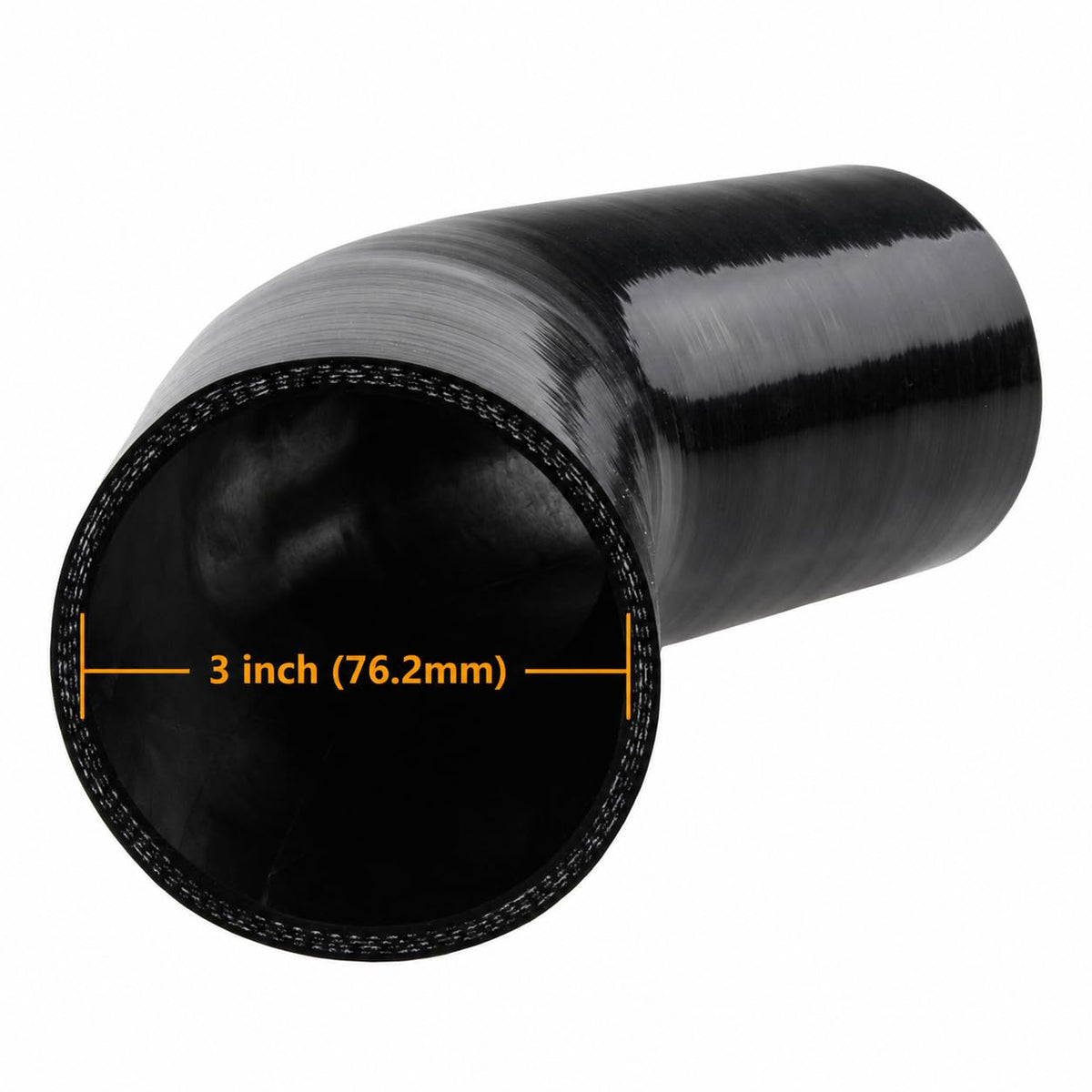

• Inner diameter: 3" (76.2 mm) to match standard 3" pipe.
• Leg length: 5" (127 mm) per side for compact routing.
• Wall thickness: 0.197" (5 mm) for durability and fit stability.

How easy is installation and what comes in the package?

Installation is straightforward: slide the coupler over the mating pipes and tighten the two included T-bolt clamps to the recommended torque. The T-bolt clamps distribute clamping force evenly around the silicone to minimize leaks and hose distortion. No adhesives are required; just ensure mating surfaces are clean and free of old sealant or oil for the best seal.

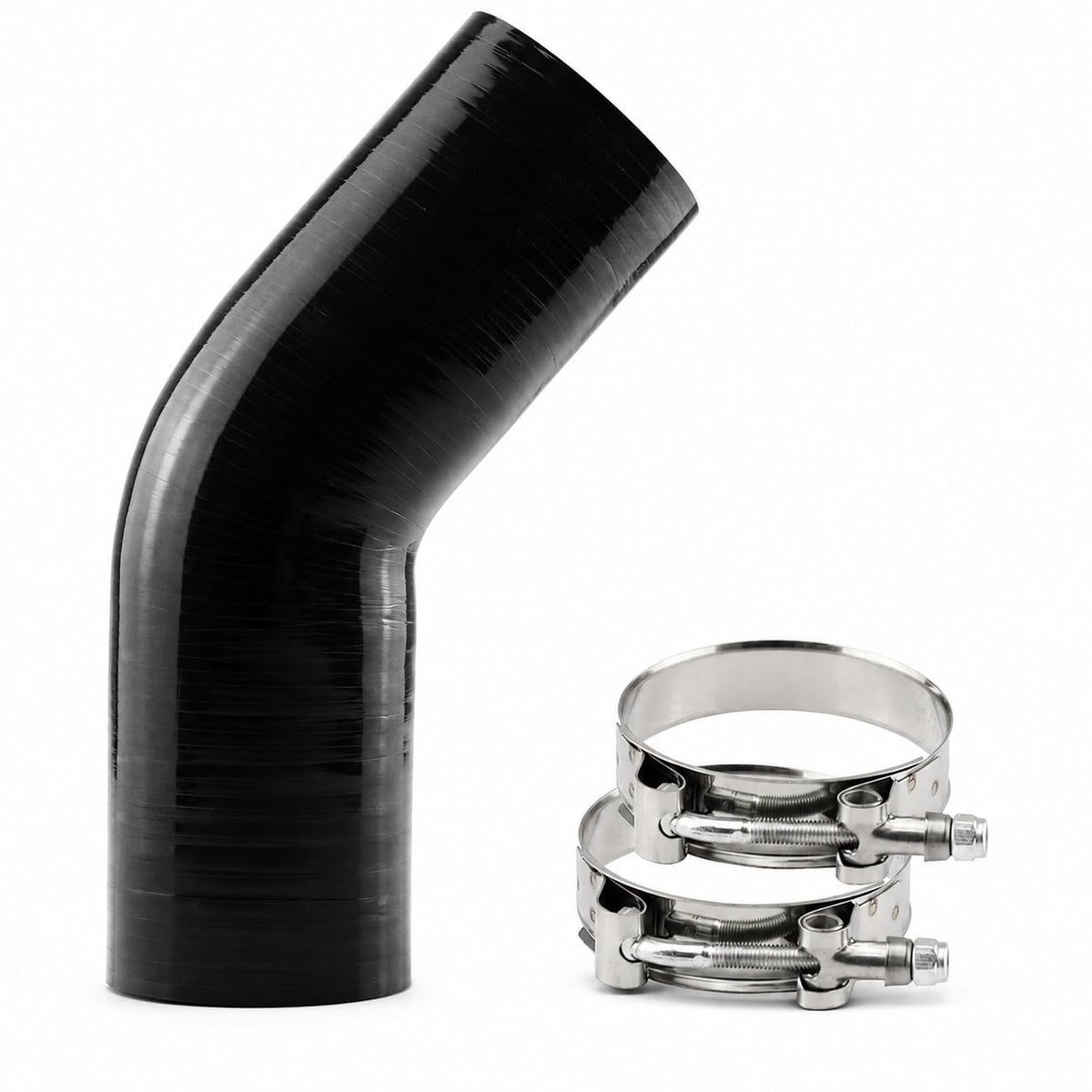

• Package contents: 1 x 45° silicone elbow, 2 x T-bolt clamps.

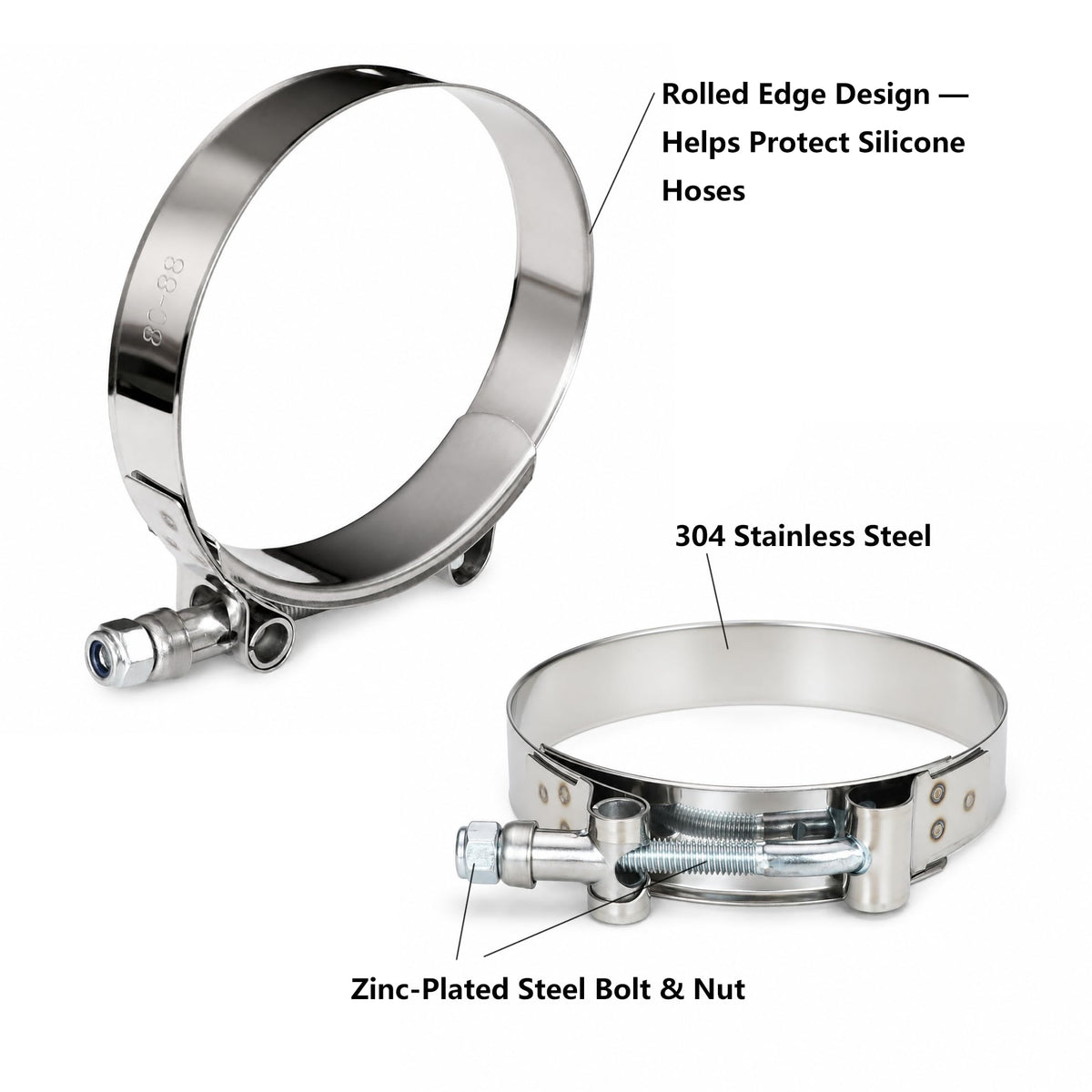

• Clamps are stainless steel for corrosion resistance in engine bays.
• Fits standard 3" piping with minor on-vehicle adjustment.

Who is this for? This Ucreative 45° 3" silicone elbow is for mechanics, tuners, and DIY enthusiasts upgrading or repairing turbo, intercooler, and intake plumbing. It suits anyone needing a compact 45° transition with high thermal tolerance and improved longevity over stock rubber connectors. Ideal for performance builds, replacement of deteriorated couplers, or when routing constraints demand an angled silicone solution that stands up to temperature swings and pressure.
