WUSHIXAN 2 PCS 4-inch Round LED Trailer Tail Lights — Bracket-Mounted 12V-24V, IP68 Waterproof

WUSHIXAN 2 PCS round LED tail lights are 4-inch, bracket-mounted, IP68-rated trailer lamps that deliver bright stop, turn, running and reverse signaling for 12V–24V vehicles.

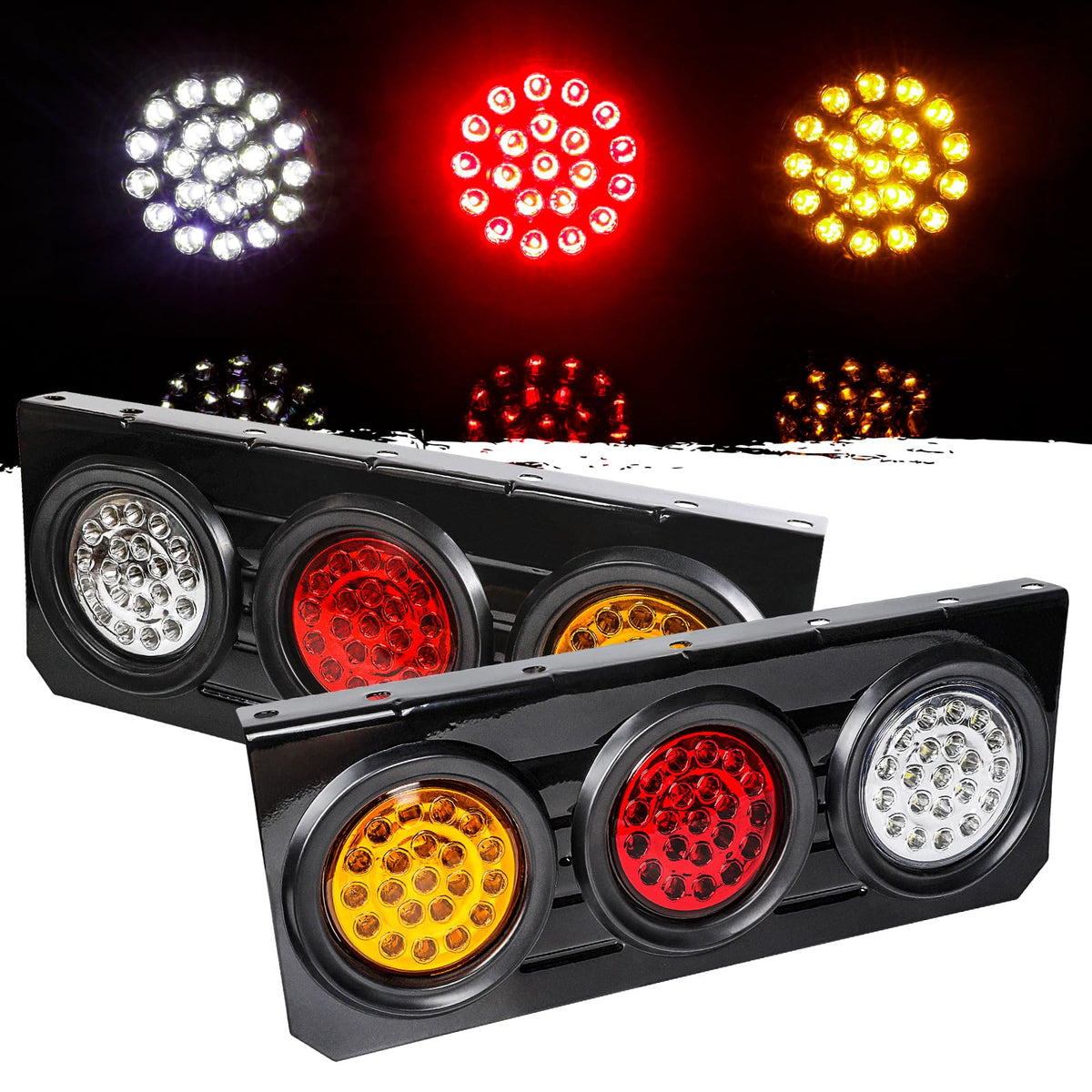

These compact, heavy-duty round LED lights combine a durable iron bracket base with a removable lamp module and a thick rubber grommet to fit a wide range of trucks, trailers, RVs and specialty vehicles. With 63 LEDs per lamp and color-specific zones for amber turn signals, red brake/running lights and white reverse illumination, the set aims to improve visibility and last through wet, dusty, off-road and highway conditions.

How do these lights mount to my trailer or truck?

Each lamp ships preassembled on a sturdy iron bracket that bolts to standard mounting surfaces. The rubber grommet protects the wiring and helps align the 4-inch lamp through a 5.5-inch hole or recess, while the light module can be removed from the bracket for maintenance.

• Iron bracket provides firm support for flatbed and enclosed mounts
• 5.5-inch grommet diameter for flush or recessed installations
• Removable lamp module simplifies replacement or servicing

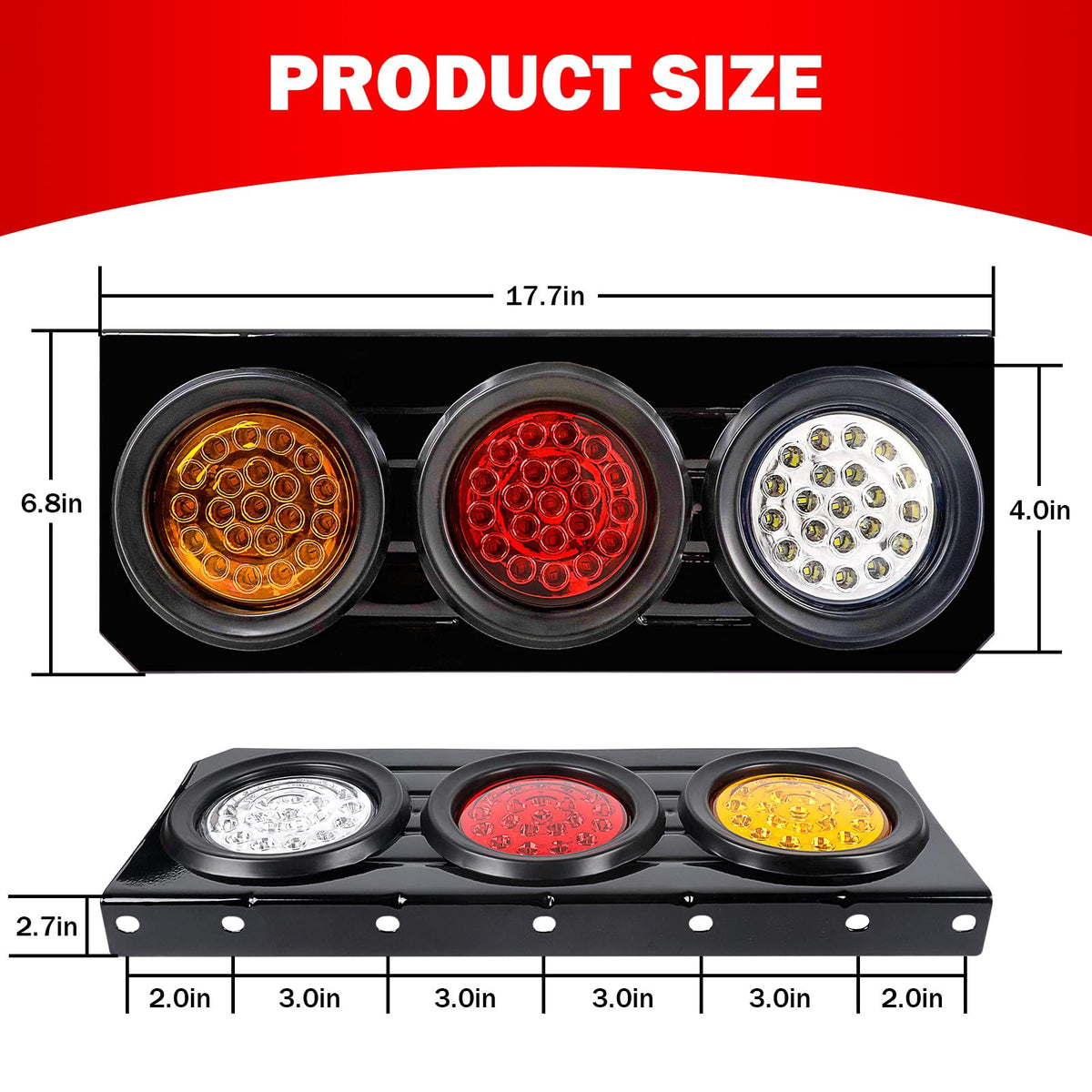

• Compact 4-inch face fits tighter panel spaces

What lighting functions and brightness features are included?

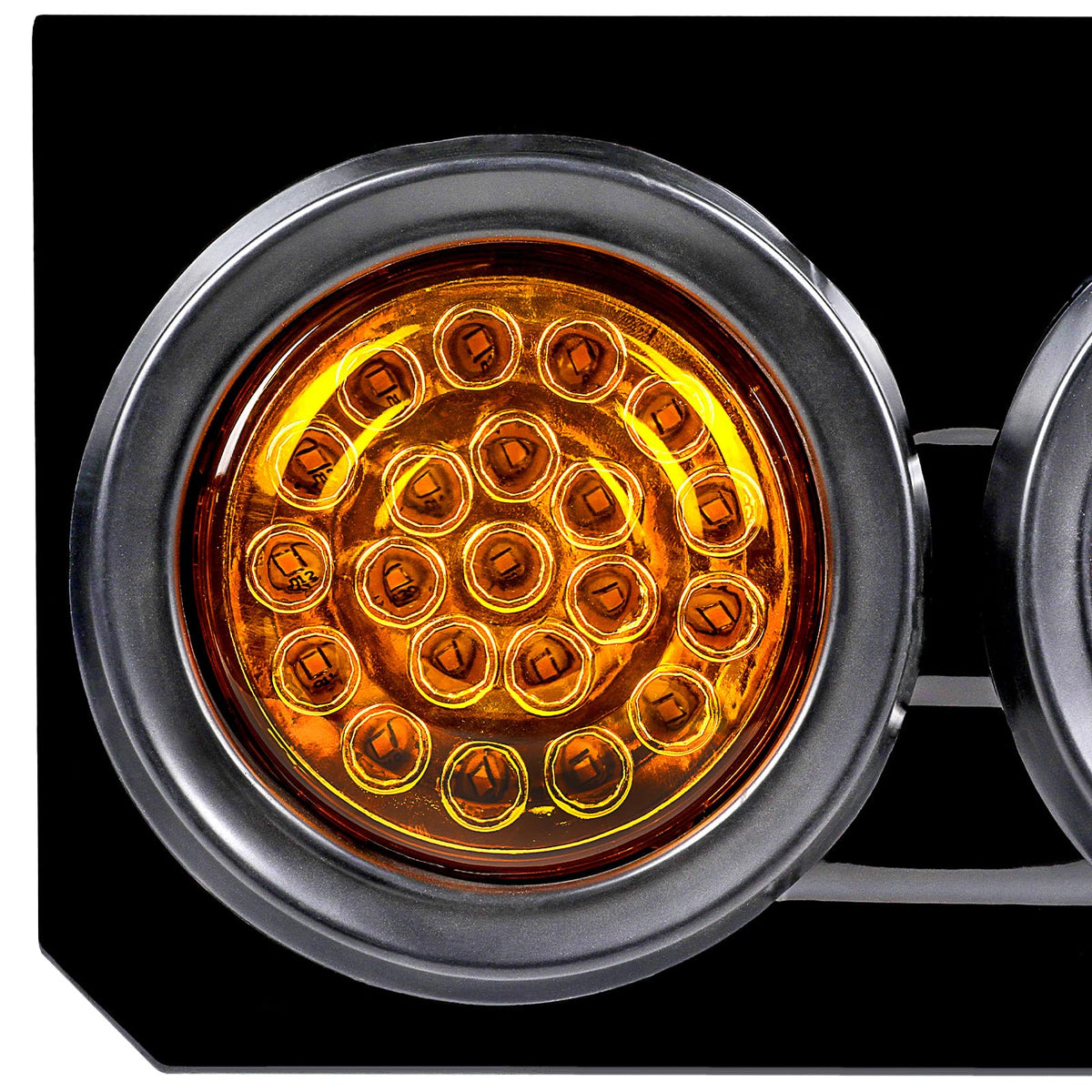

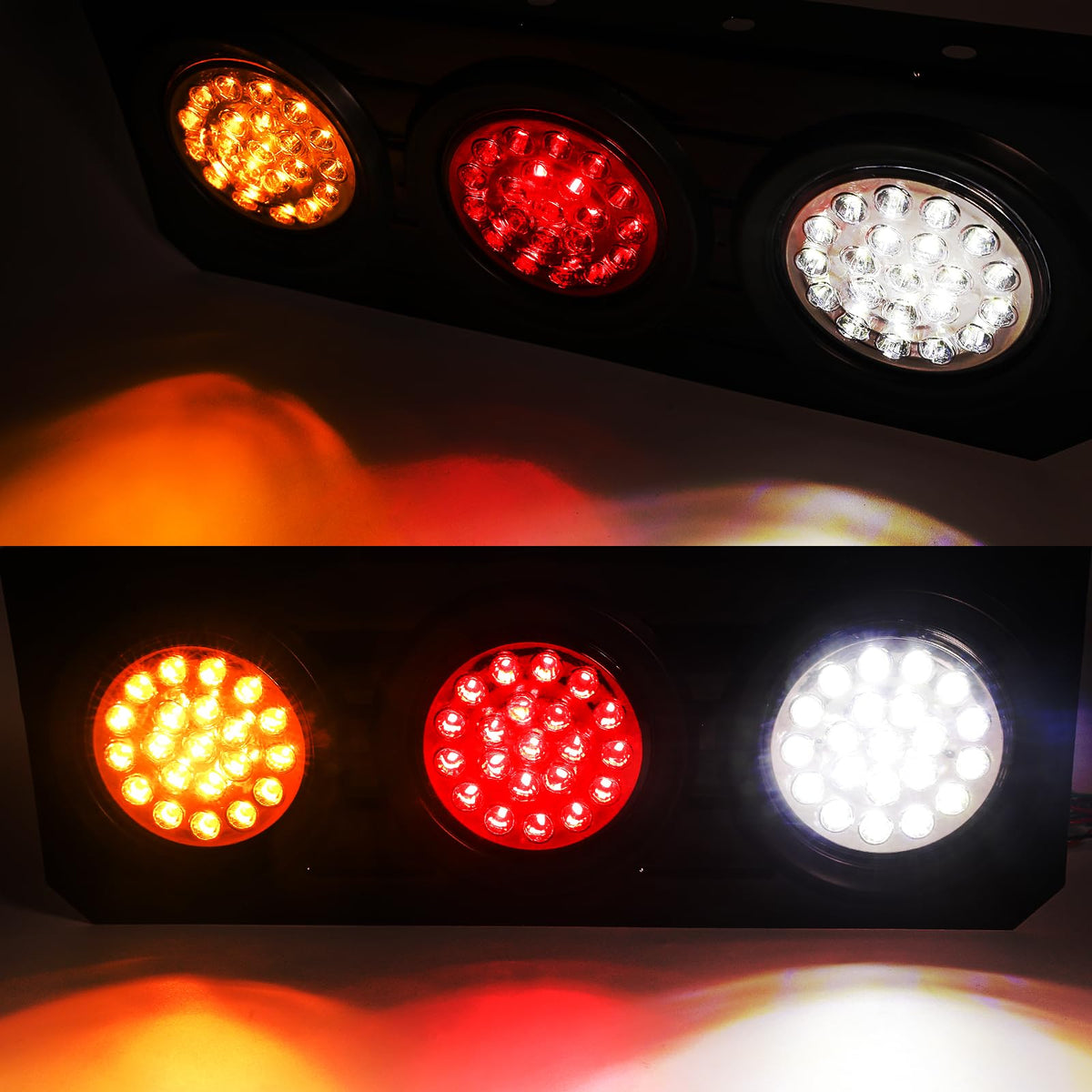

Each round light organizes 63 LEDs into three colored zones—amber, red and white—so turn, brake/running and reverse functions are distinct and highly visible. The translucent lens balances intensity for clear signaling without dazzling other drivers.

• 63 total LEDs per lamp: 21 amber, 21 red, 21 white
• Separate color zones for turn, brake/running and reverse
• Translucent cover for bright but comfortable light output
• Stable LED performance with long expected service life

Are these lights weatherproof and durable enough for heavy use?

The assembly uses a sealed housing and heavy iron bracket to resist dust, wind and sand; its IP68 rating indicates reliable protection against moisture and immersion scenarios common in marine, agricultural and off-road use. Rugged materials extend service life while maintaining stable electrical connections.

• IP68 waterproof rating for moisture and dust protection
• Heavy iron bracket supports payload vibrations and road shock
• Sealed design reduces corrosion risk in harsh environments

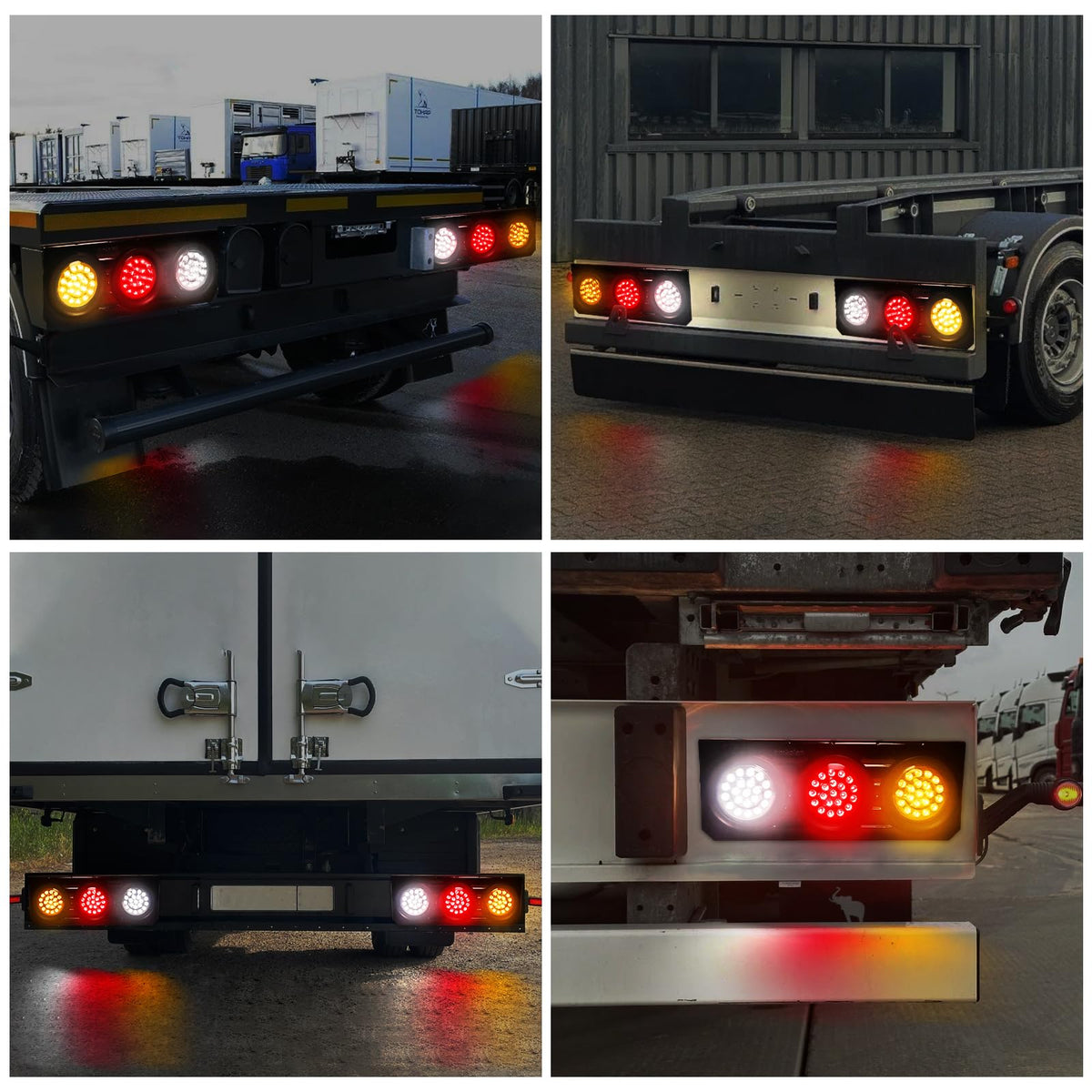

• Suitable for boats, trailers, RVs and commercial trucks

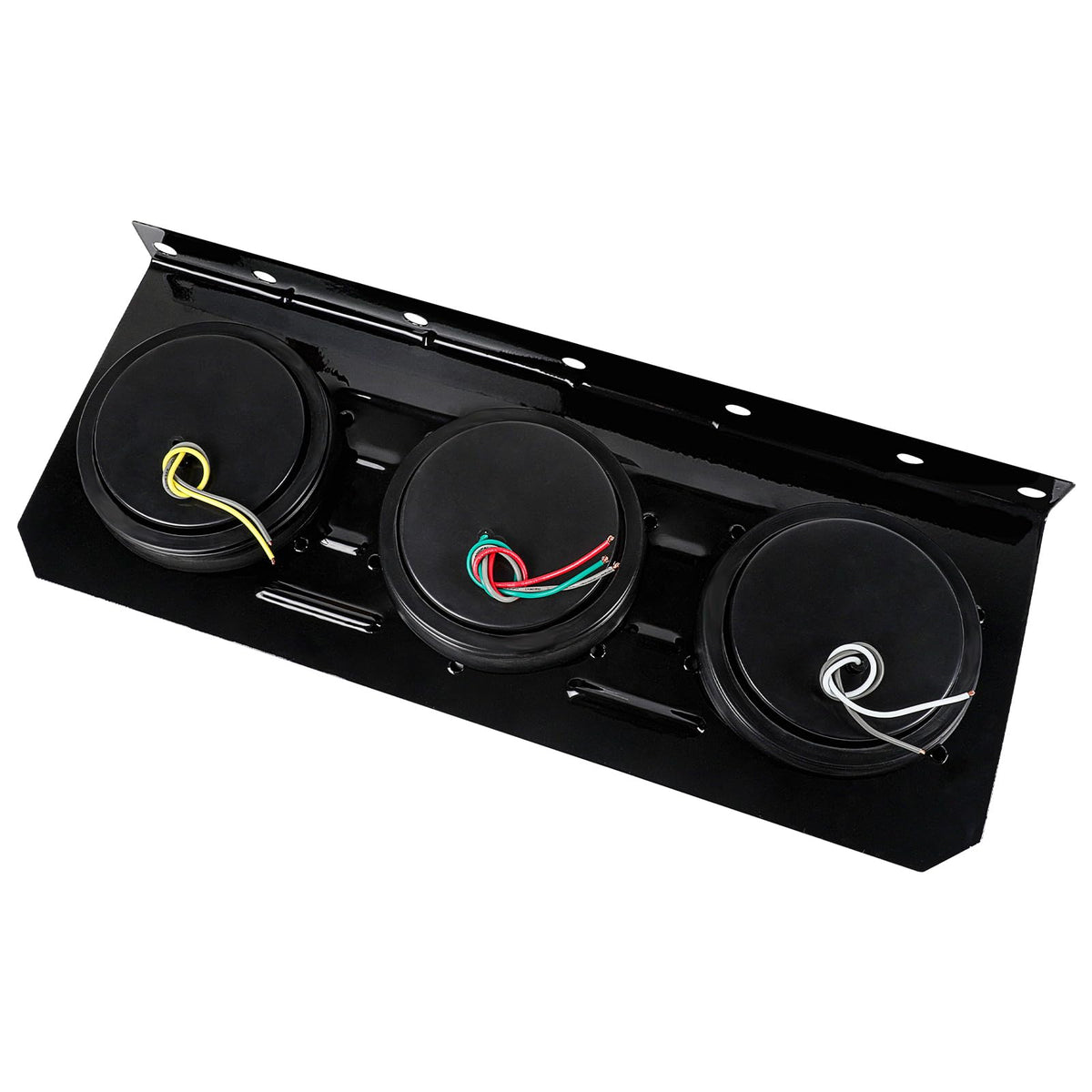

How do I wire these lights for standard trailer functions?

Wiring follows common color conventions so integration with 12V or 24V systems is straightforward. Secure connections and correct grounding are essential for reliable operation across stop, turn, running and reverse circuits.

• Gray — Ground (connect to chassis ground)
• Red — Brake light
• Green — Tail light / Running light
• Yellow — Turn signal
• White — Reverse light

Who this is for: WUSHIXAN's round LED tail lights are designed for owners and fleets that need compact, robust signaling lamps for trailers, RVs, work trucks, tractors, UTVs and boats. Choose this set if you want a corrosion-resistant, easy-to-install lamp with clear multi-function LEDs and a removable module for quick service. These lights suit DIY installers, repair shops, and commercial customers seeking an economical, high-visibility replacement or upgrade compatible with both 12V and 24V electrical systems.
