XIKOBY Electric Shift Motor & Angle Sensor for Honda Rancher 420 and Pioneer 500 — 11‑Tooth Stainless Gear, Direct Replacement Kit

XIKOBY Electric Shift Motor & Angle Sensor is a complete, direct-replacement kit that restores precise electronic shifting for compatible Honda Rancher, FourTrax Foreman and Pioneer ATV/UTV models.

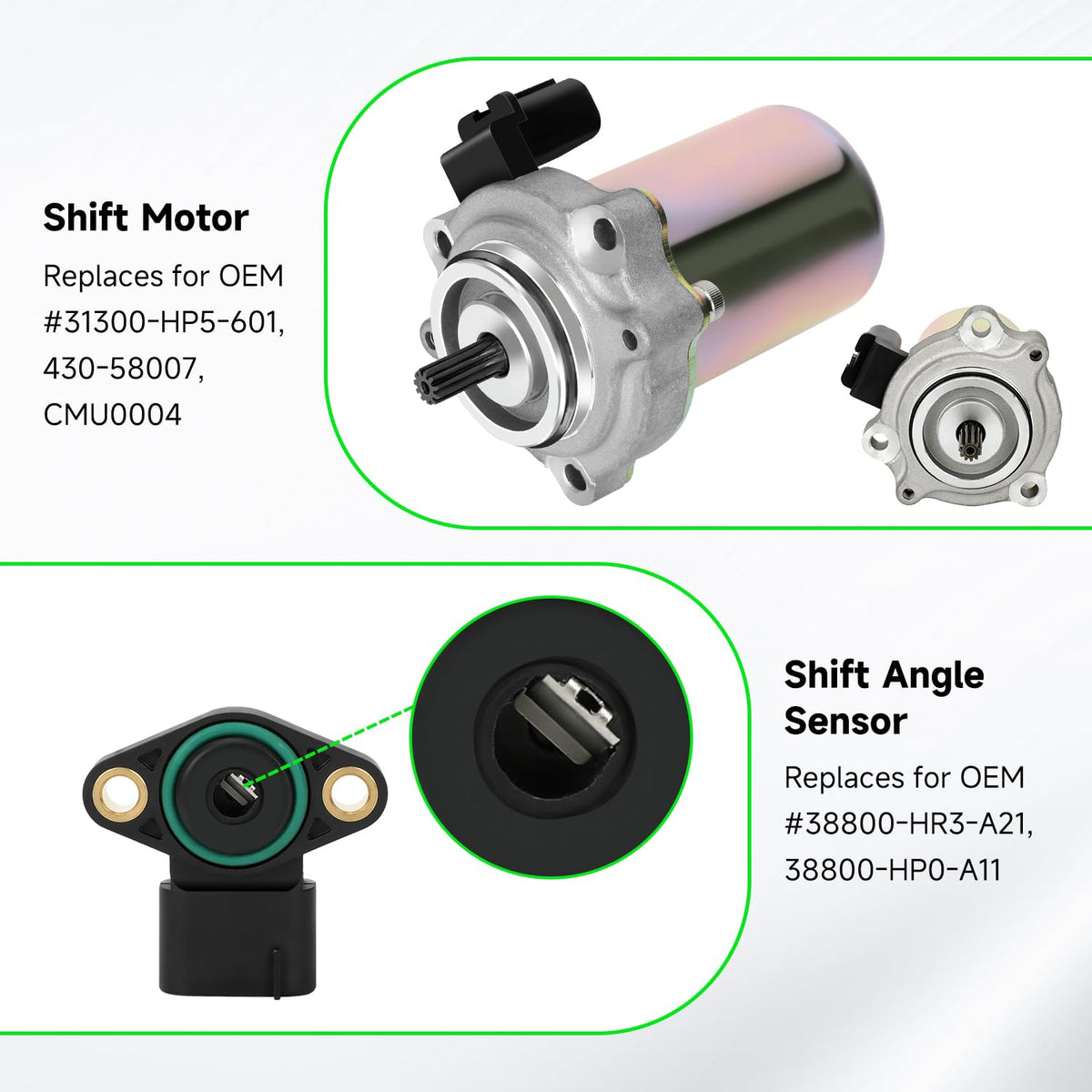

This XIKOBY assembly combines a robust 11-tooth stainless-steel electric shift motor with a matched shift angle sensor to recreate the factory closed-loop control that governs automatic transmission gear positioning. Engineered to replace OEM part numbers (31300-HP5-601, 430-58007, CMU0004 and sensor 38800-HR3-A21 / 38800-HP0-A11), the kit fits a broad range of Hond* Rancher 420, Foreman 500 and Pioneer 500/1000 model years listed, and ships with the motor, sensor, a carbon dirt jet cleaner tool kit and all required hardware for a straightforward swap.

Which ATV and UTV models does this XIKOBY kit fit?

This kit is designed as a direct fit for many Honda-model ATVs and side-by-sides. Confirm compatibility by cross-checking year and model against your vehicle’s OEM part numbers.

• Rancher 420 TRX420FA/FE/TE/FPA (2007–2020)
• FourTrax Foreman 500 TRX500FE (2005–2009, 2011–2019) and TRX500FA/FM (2015–2019)
• Pioneer 500 SXS500 (2015–2020); Pioneer 1000 and 1000-5 (2016–2020)
• Replaces OEM motor and sensor part numbers listed in product features

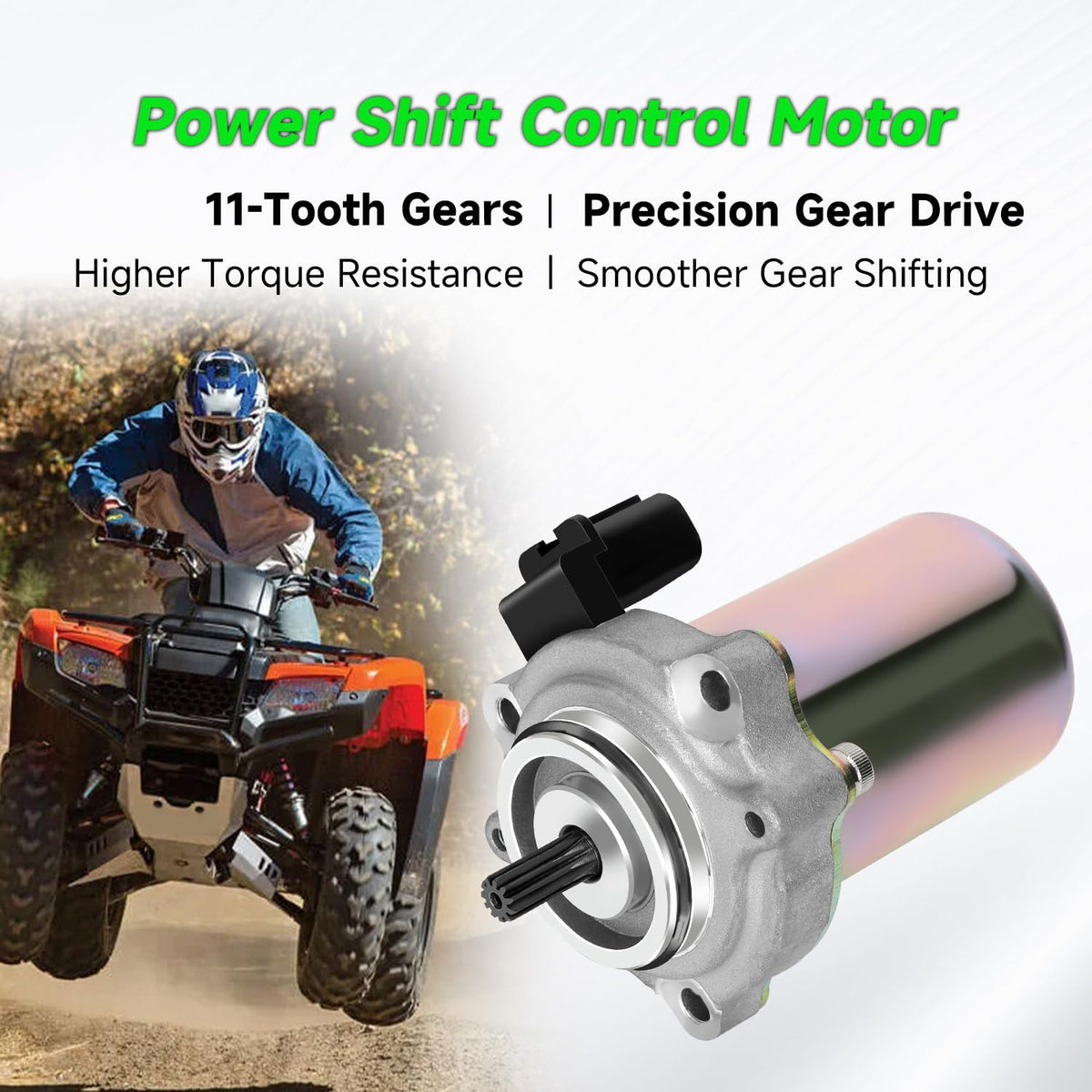

How does the electric shift motor improve shifting performance?

The XIKOBY motor uses an 11-tooth stainless-steel gearset to translate electronic commands into precise mechanical movement, reducing gear engagement errors and grinding. It is built to manage the shock torque common in off-road use and deliver repeatable shifts in variable conditions.

• 11-tooth stainless-steel gears resist wear from instant torque
• Precision actuation reduces missed shifts and clunks
• Durable housing and components stand up to trail vibration and debris

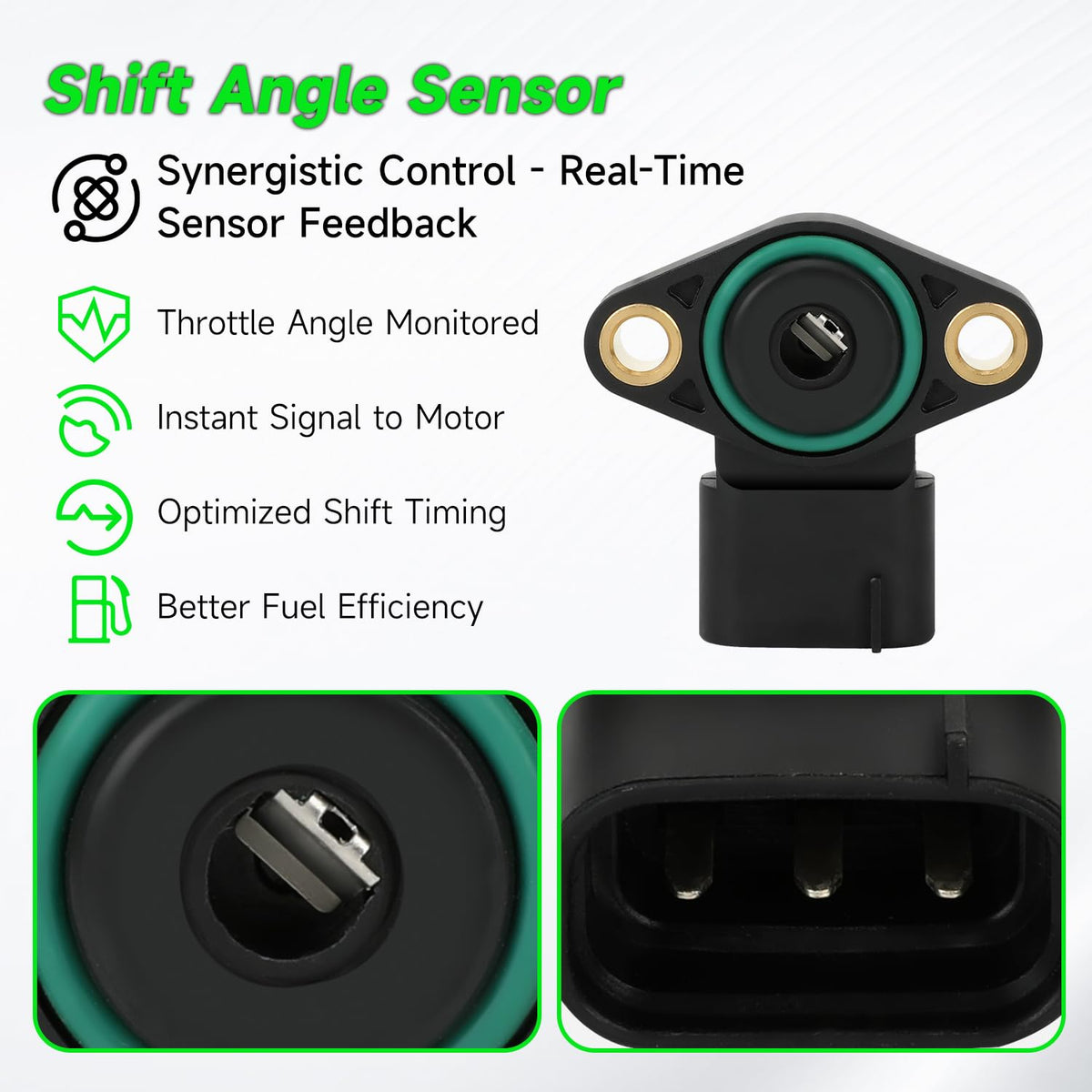

What role does the shift angle sensor play in the transmission system?

The angle sensor continuously reports the selector’s position to the transmission control module, closing the loop between intent and action. When paired with the motor, the sensor helps the system confirm accurate gear selection, enhancing reliability and drivability.

• Real-time position feedback to the control unit
• Improves transmission response and reduces unnecessary wear
• Helps maintain consistent performance across different loads and terrains

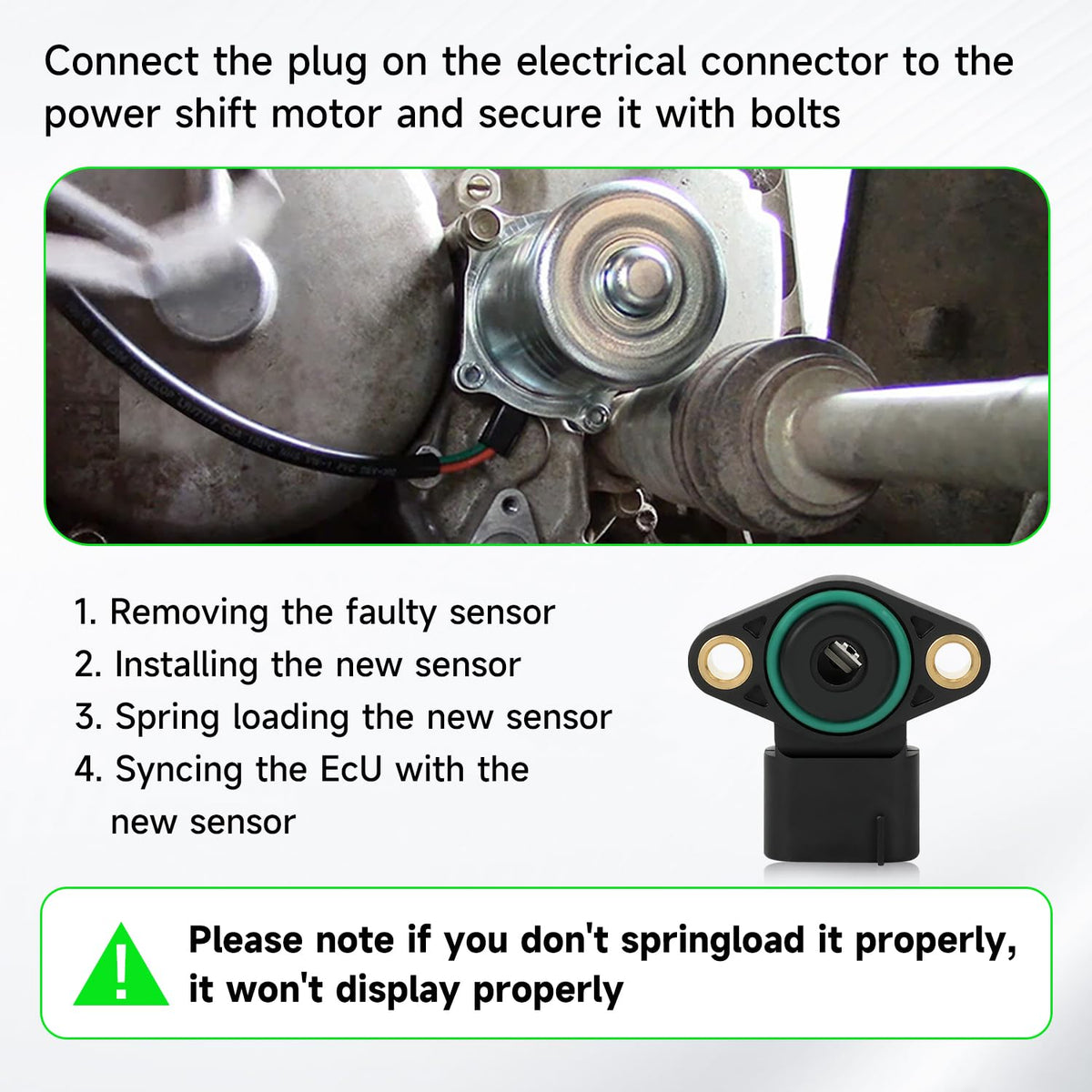

What comes in the package and what should I expect during installation?

XIKOBY supplies a complete replacement set so you have everything needed to swap the old components. Installation complexity varies by model and mechanical experience; basic mechanical skills and standard hand tools are typically sufficient.

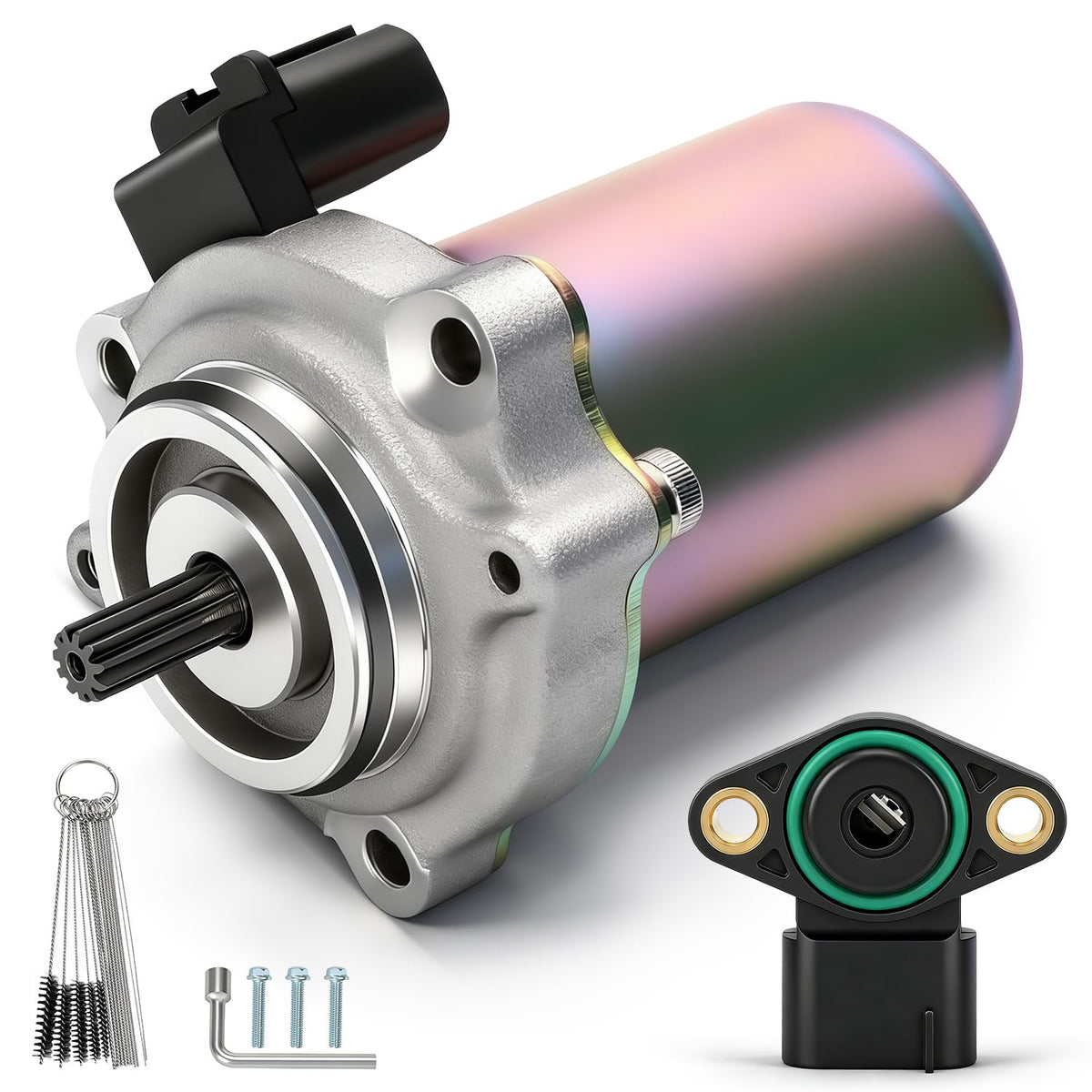

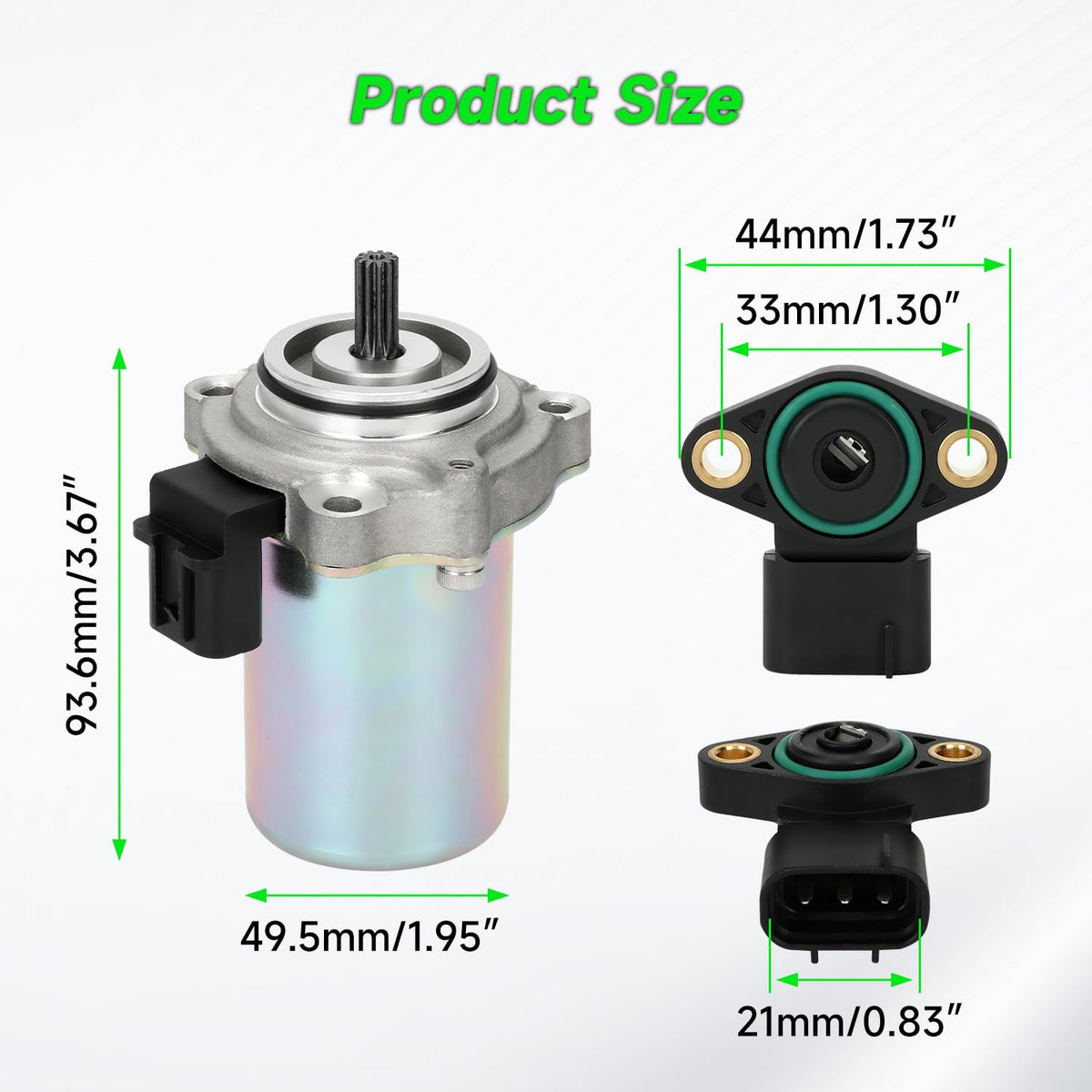

• Included: power shift control motor, shift angle sensor, carbon dirt jet cleaner tool kit, hardware set
• Direct-replacement design minimizes modifications and wiring changes
• Turnaround time depends on access to the transmission housing—plan an afternoon for most DIY installs

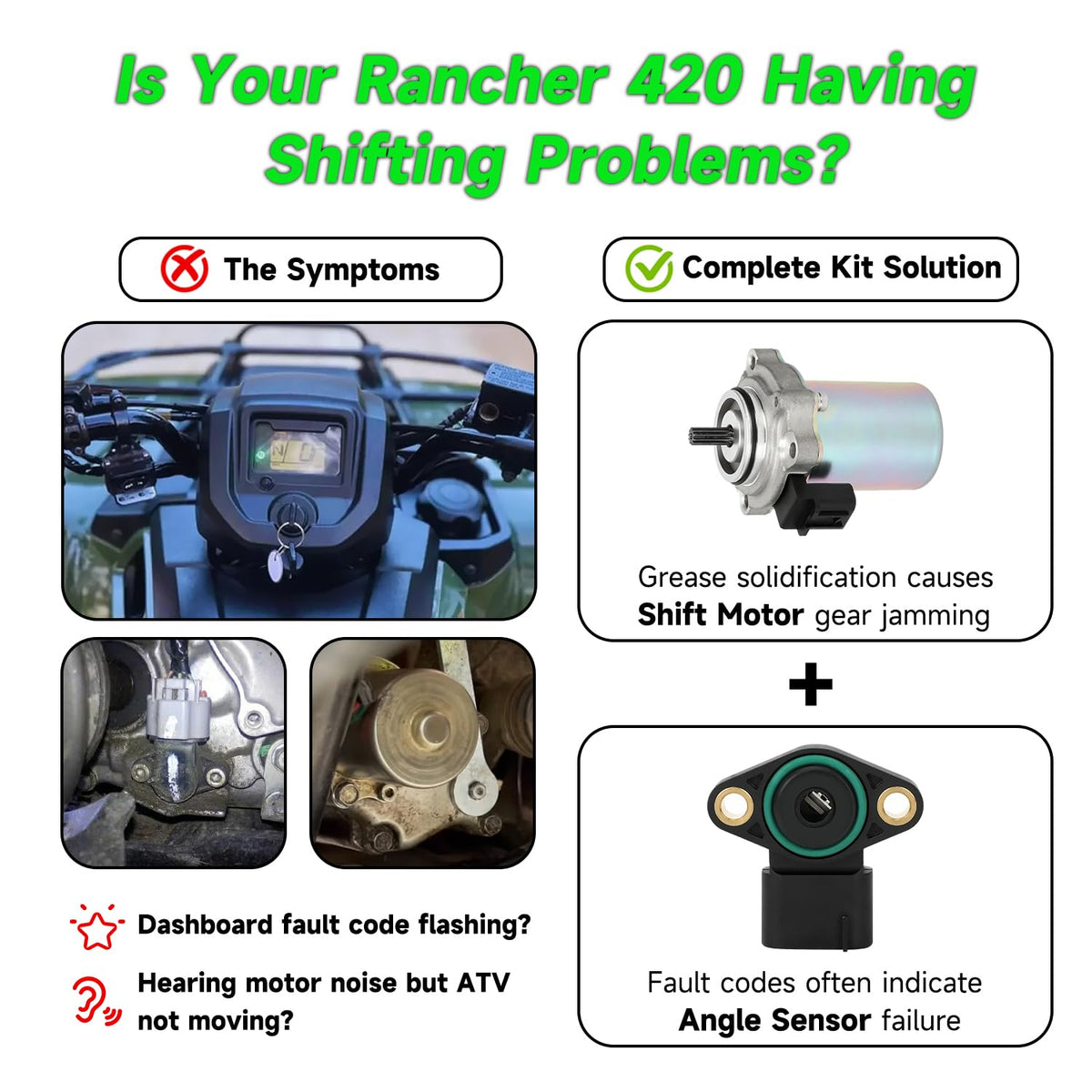

Who is this for: This XIKOBY Electric Shift Motor & Angle Sensor kit is aimed at owners of compatible Honda Rancher 420, Foreman 500 and Pioneer models who need a reliable, OEM-compatible replacement for worn or failed shift components. It suits do-it-yourself mechanics who want a cost-effective restore of electronic shift function and technicians performing routine drivetrain repairs. If your ATV/UTV shows erratic shifting, delayed gear engagement, or diagnostic codes pointing to the shift motor or sensor, this kit supplies the matched parts and hardware to return the system to proper operation.
