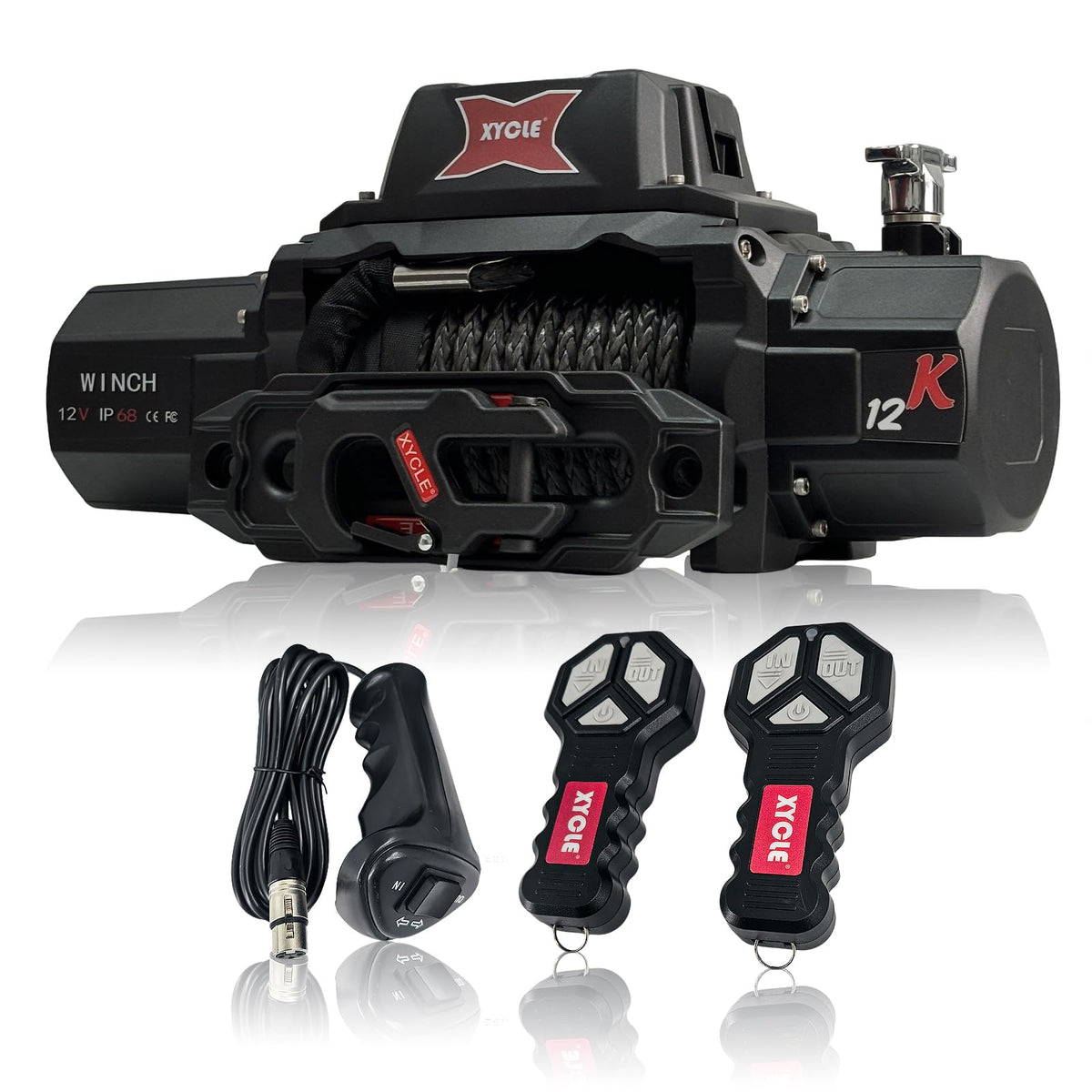

XYCLE 12,000 lb Recovery Winch — 1/2" Synthetic Rope (70 ft), IP68 Aluminum Housing, Wired & Wireless Controls

This winch blends durable materials, precision gearing and flexible controls so you can pull heavy loads reliably on trails, work sites and trailers. Designed around an aviation-grade aluminum die-cast body and high-strength planetary gearing, it balances strength, heat dissipation and corrosion resistance. The long synthetic rope and dual-control options (wired and wireless) give you reach and convenience while a reinforced clutch and aluminum control box improve long-term reliability.

How much pulling power and gearing does this winch provide?

The XYCLE winch delivers 12,000 pounds of rated line pull with a three-stage planetary geartrain engineered for sustained torque. Precision cold-extruded alloy steel gears and a 218:1 gear ratio deliver stable, controlled power transfer for heavy recoveries and towing.

• Rated capacity: 12,000 lb line pull
• Three-level planetary gears for consistent torque
• 218:1 gear ratio for high mechanical advantage
• High-strength alloy steel gears for long service life

What materials and weather protection are used?

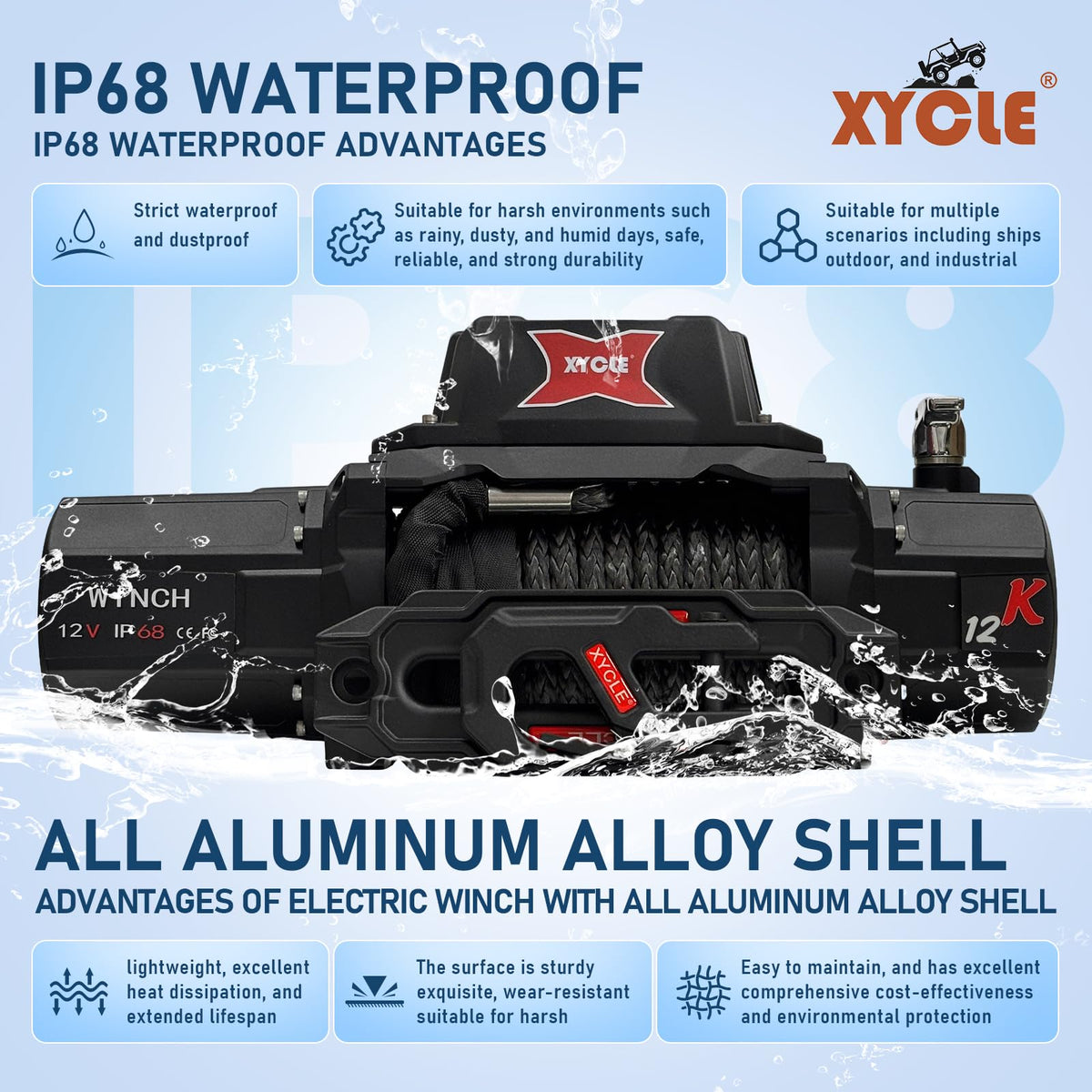

Key components use corrosion-resistant or heat-managing materials: an aviation-grade aluminum die-cast housing for heat dissipation, an aluminum control-box shell to protect relays, and a sealed IP68 design to resist dust and water. These choices reduce weight and increase durability across seasons.

• Die-cast aluminum body for lightweight heat dissipation
• Aluminum control box shell to lower relay temperatures
• IP68 rating for dust- and water-resistance
• High-purity copper motor windings for reliable electrical performance

What rope, clutch and control features improve safety and ease-of-use?

The winch uses a 1/2" UHMWPE synthetic rope, 70 ft long, which is stronger and safer than thinner alternatives and lighter than steel cable. A pull-type clutch design reduces engagement failures, and you can operate the unit by wired control up close or a wireless remote up to about 100 ft away.

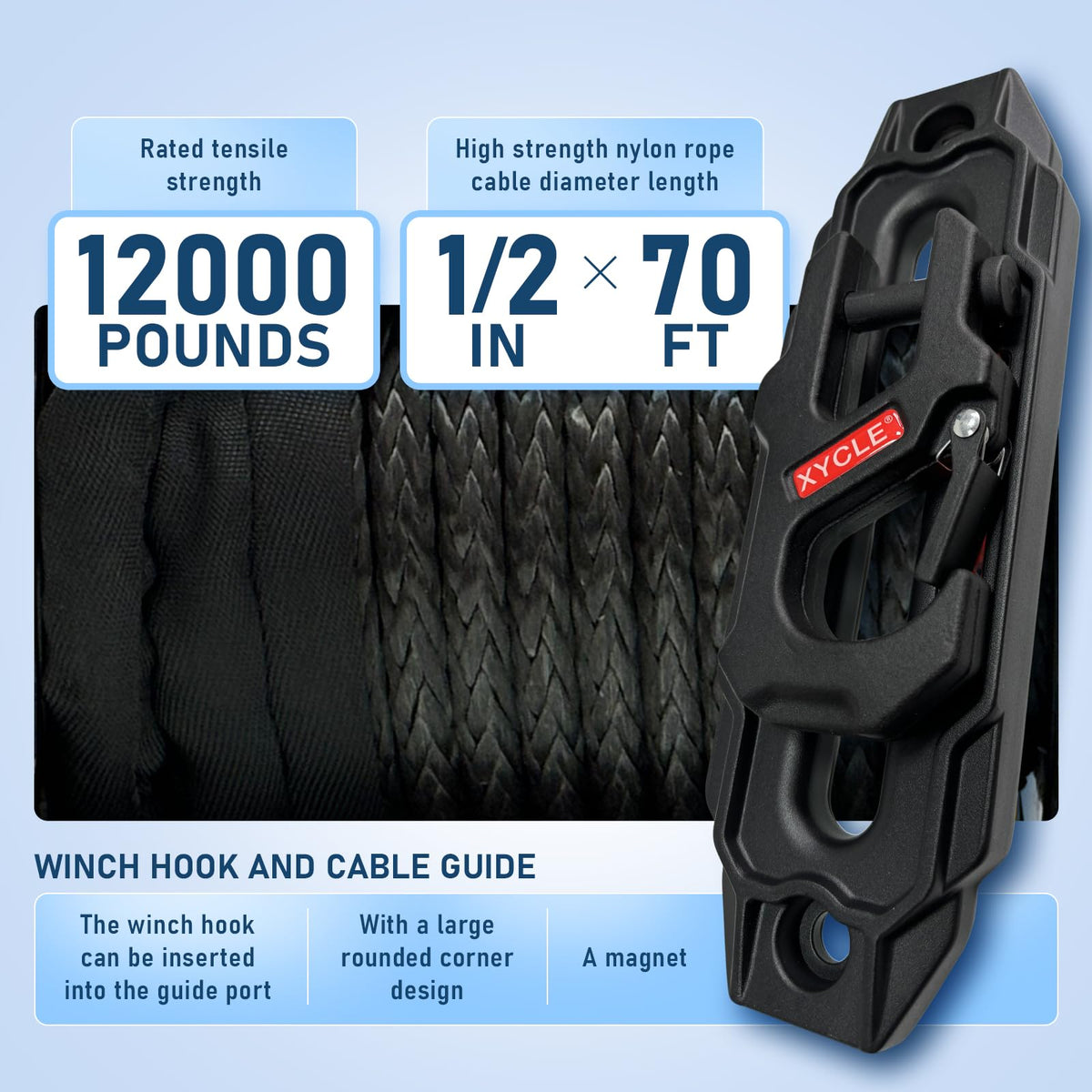

• 1/2" UHMWPE synthetic rope, 70 ft length for longer reach

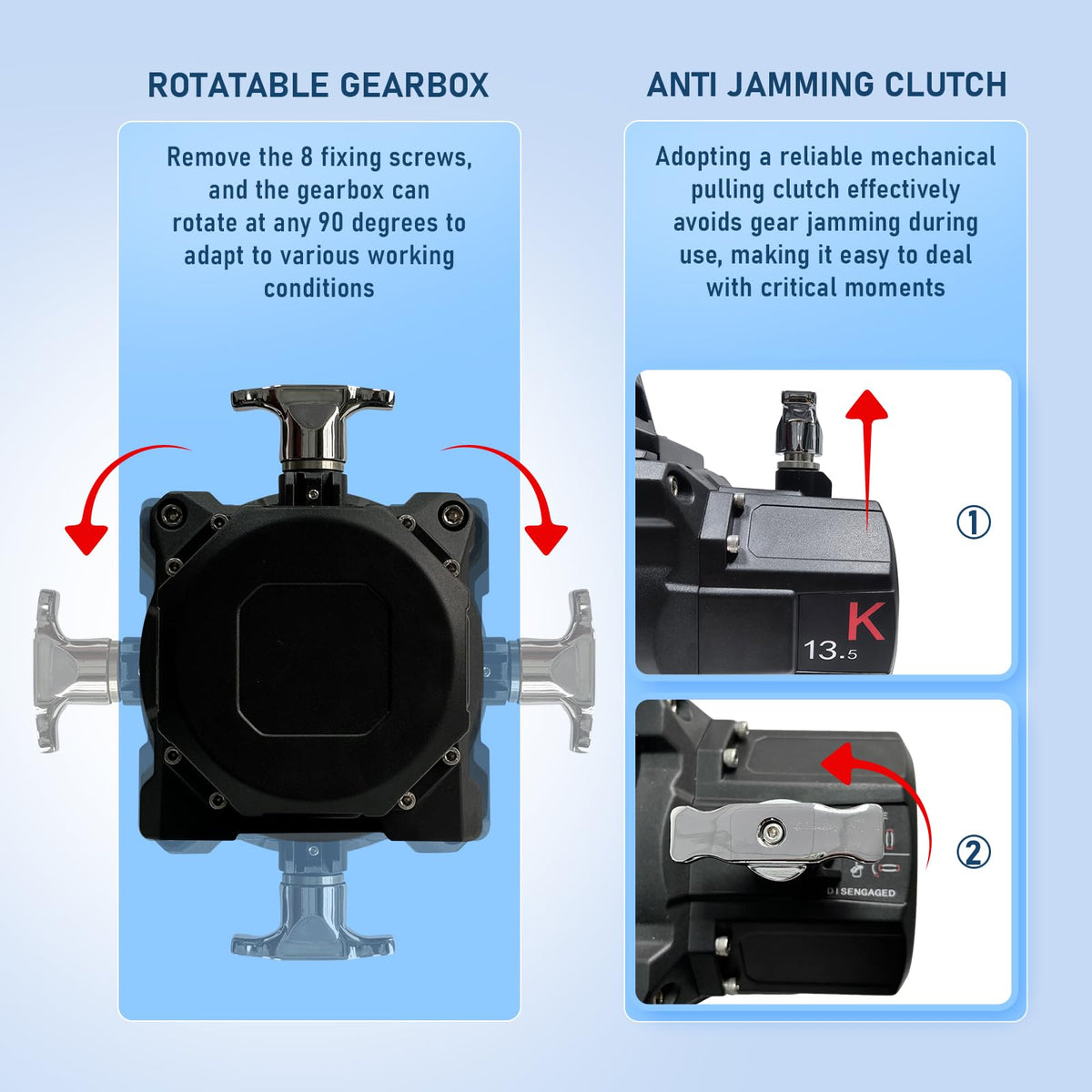

• Pull-type clutch to ensure reliable engagement

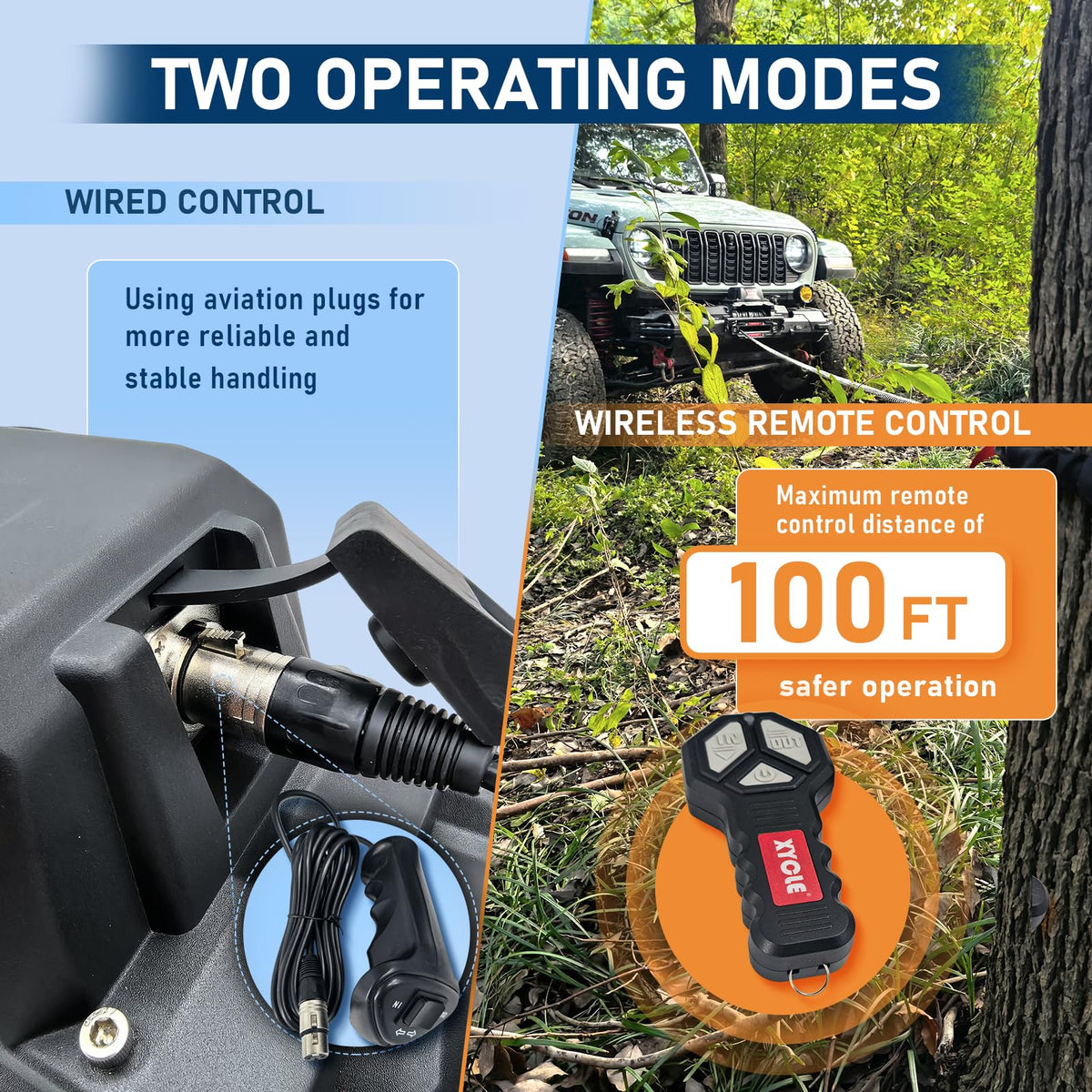

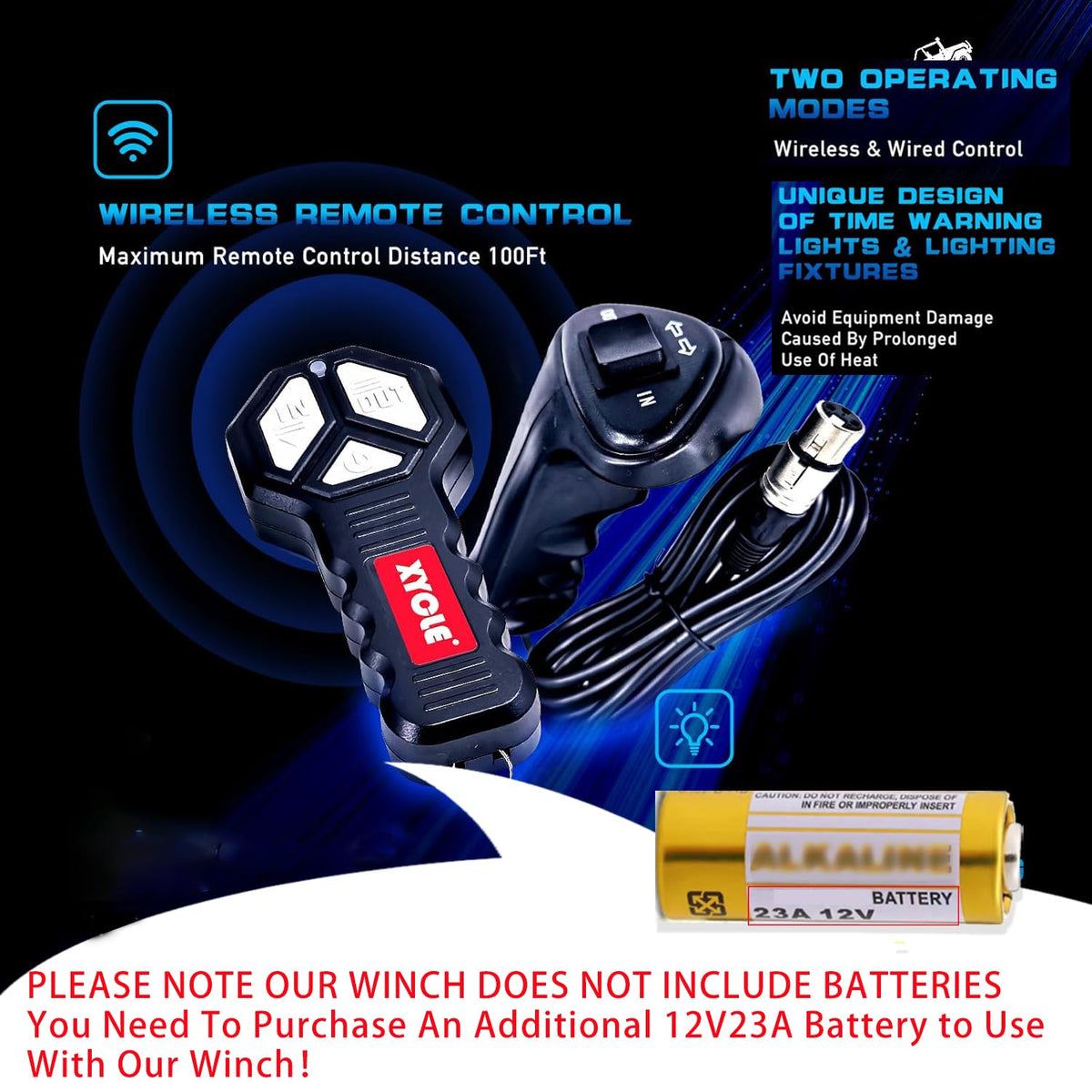

• Wired and wireless controls; wireless range around 100 ft
• Control box shell improves component life under load

How do I install and maintain this winch?

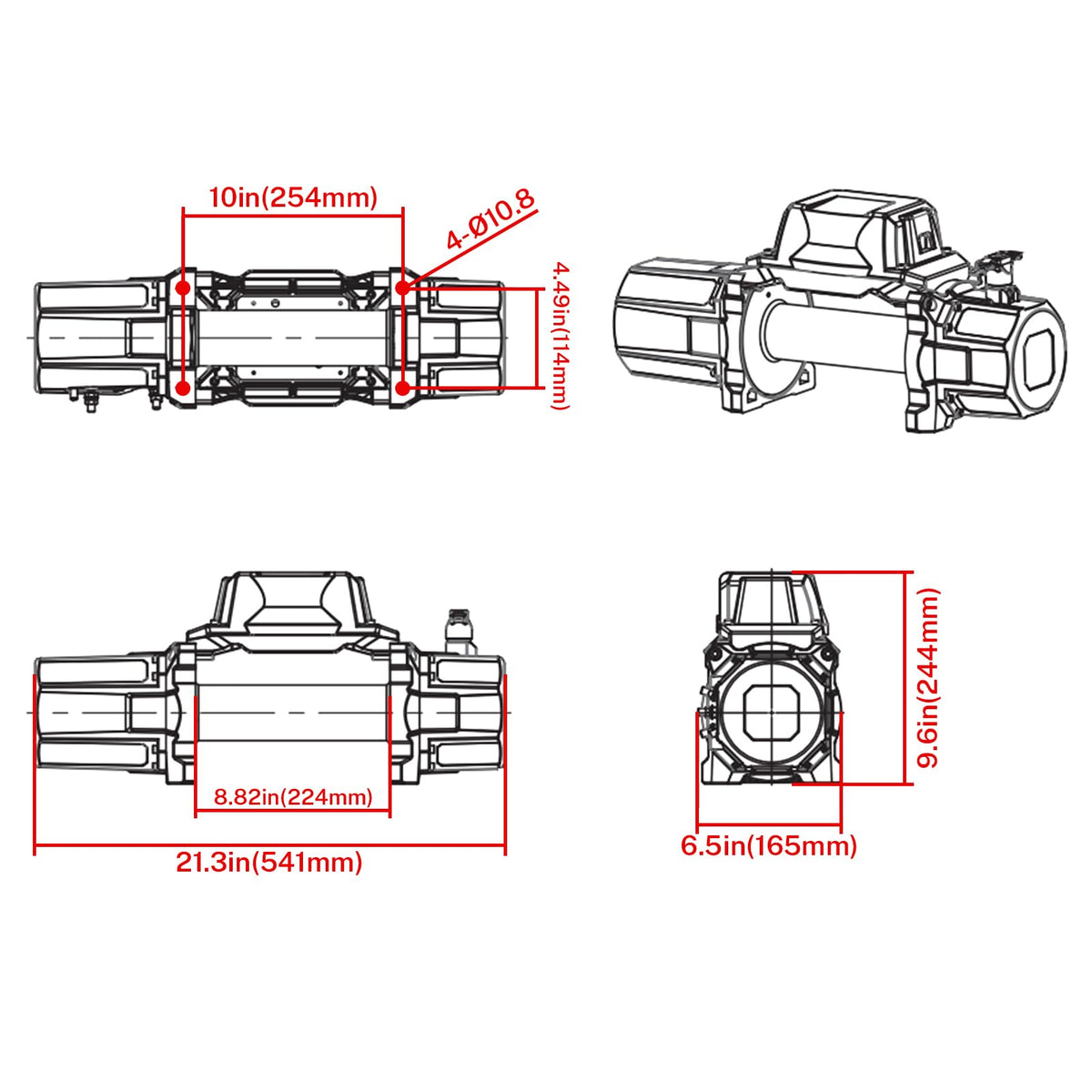

The winch has a compact footprint (installation pattern approximately 10" x 4.49") and does not include a mounting plate, so plan a compatible plate or bumper mount. For safe operation, keep at least 10 wraps of rope on the drum and inspect fasteners, electrical connections and rope condition regularly.

• Mounting footprint: roughly 10 in by 4.49 in (no plate included)

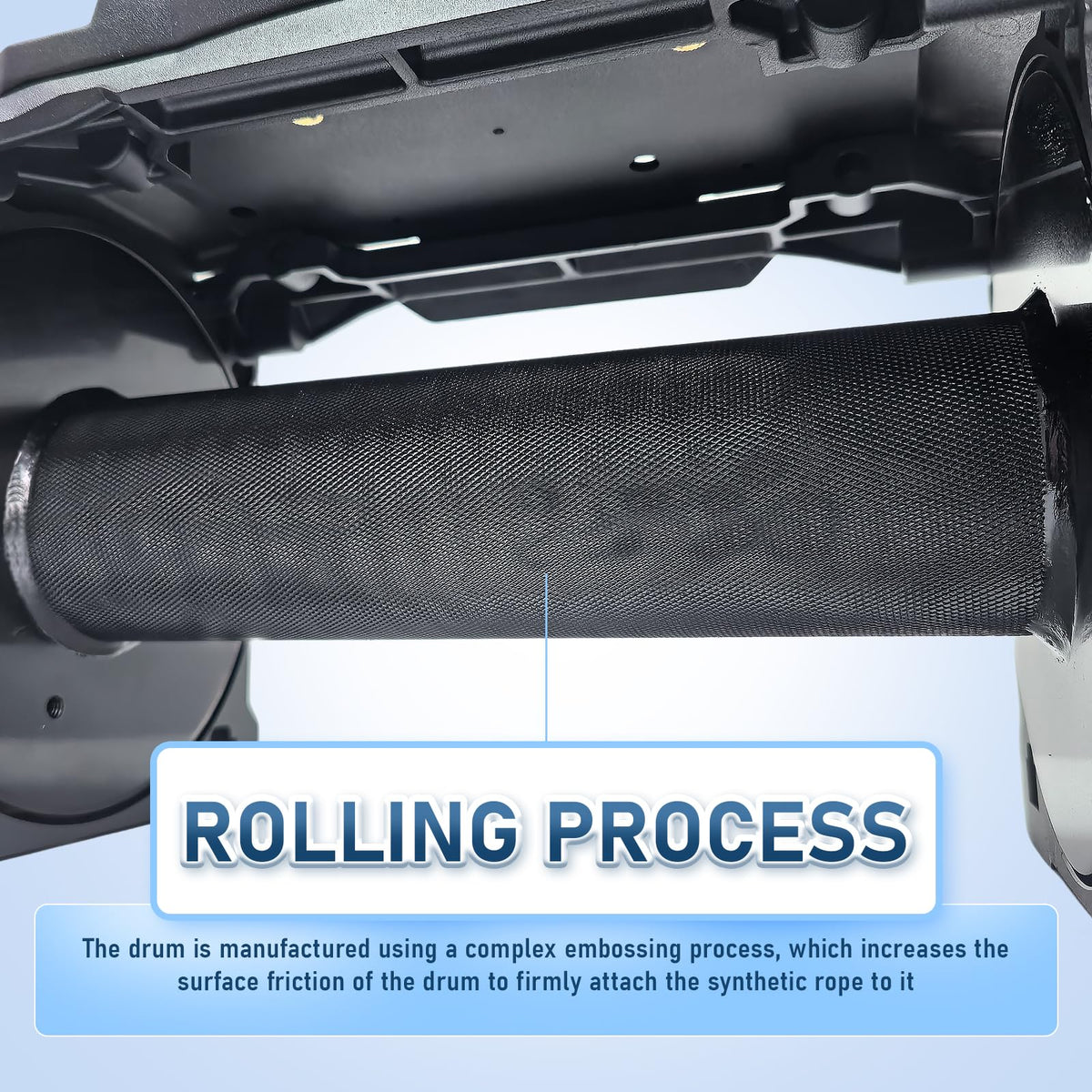

• Recommended: wrap rope around drum at least 10 turns before loading
• Inspect rope, fasteners and electrical connections periodically
• Use rated shackles and recovery gear matched to 12,000 lb capacity

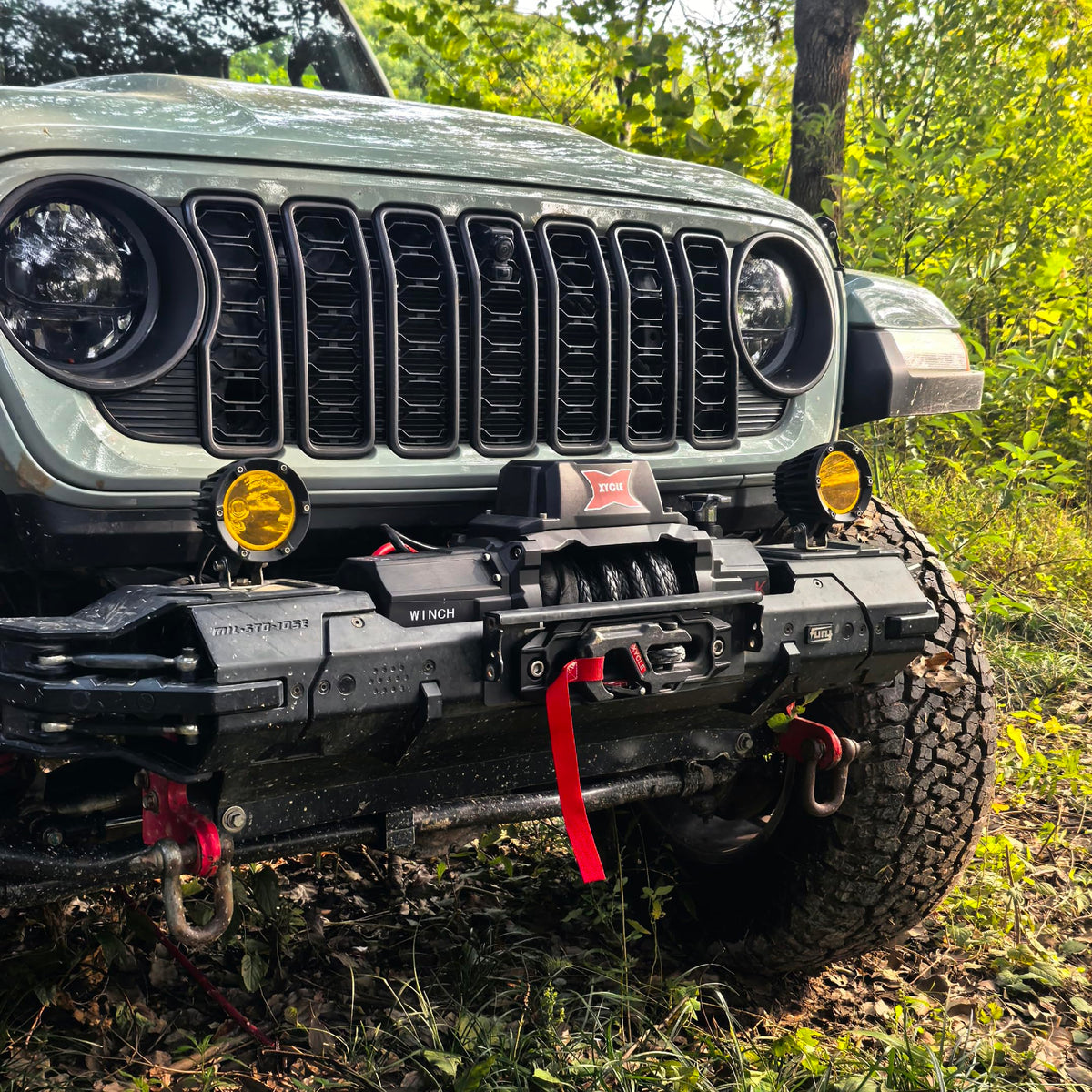

Who is this for? Off-roading enthusiasts, tow operators, rural and commercial users, and anyone who needs a rugged recovery solution will appreciate the XYCLE 12,000 lb winch. It’s intended for trucks, Jeeps, trailers, ATVs and work rigs that demand a high-capacity, weather-resistant pulling system with flexible controls and long synthetic rope for remote or complex recoveries.
