ZEAJSRU Compression Tester Kit for Cars & Motorcycles — 300 PSI Gauge with Spark Plug Tester and M10–M18 Adapters

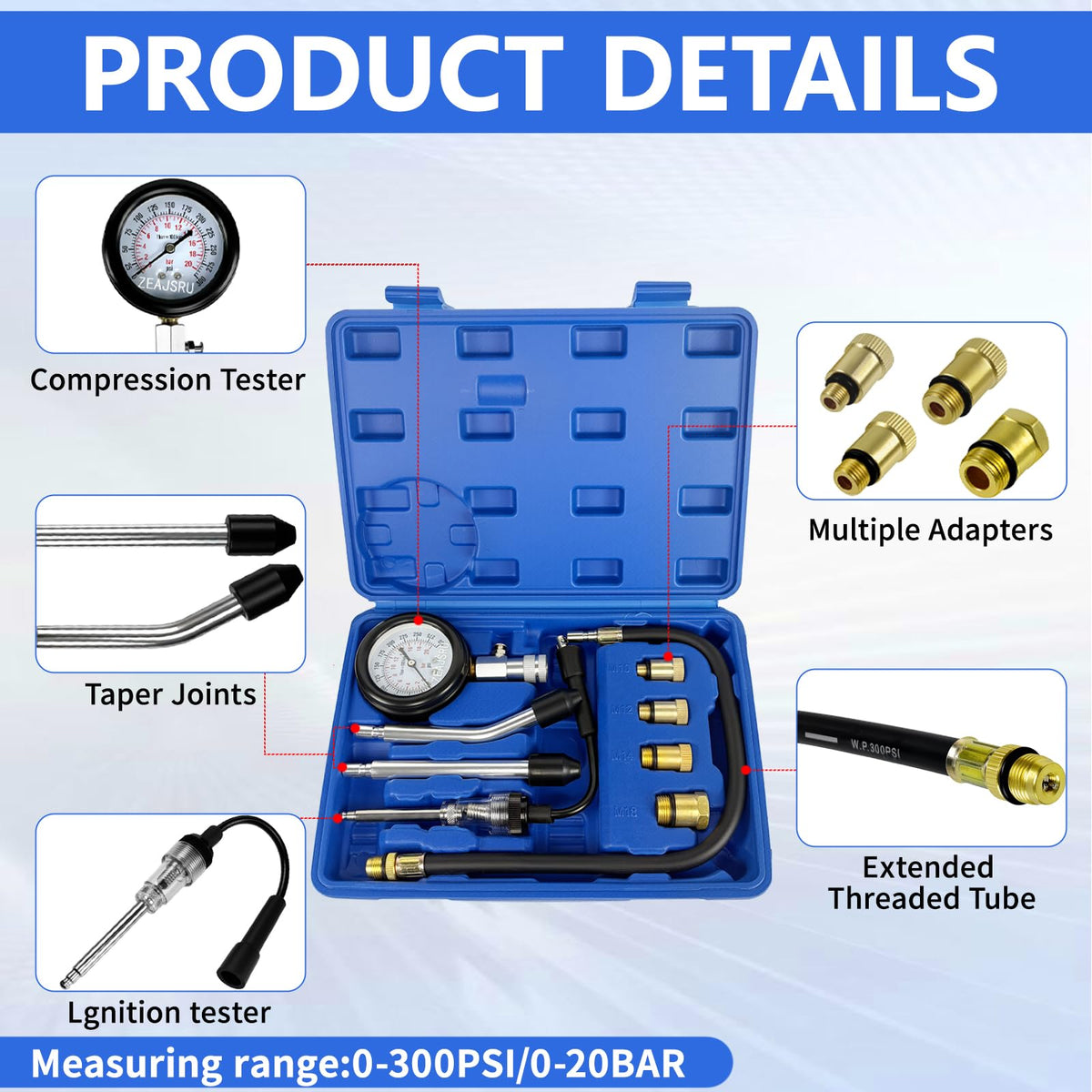

ZEAJSRU Compression Tester Kit is a complete 300 PSI cylinder pressure and spark plug testing set built to diagnose gasoline engine compression and basic ignition health on cars and motorcycles.

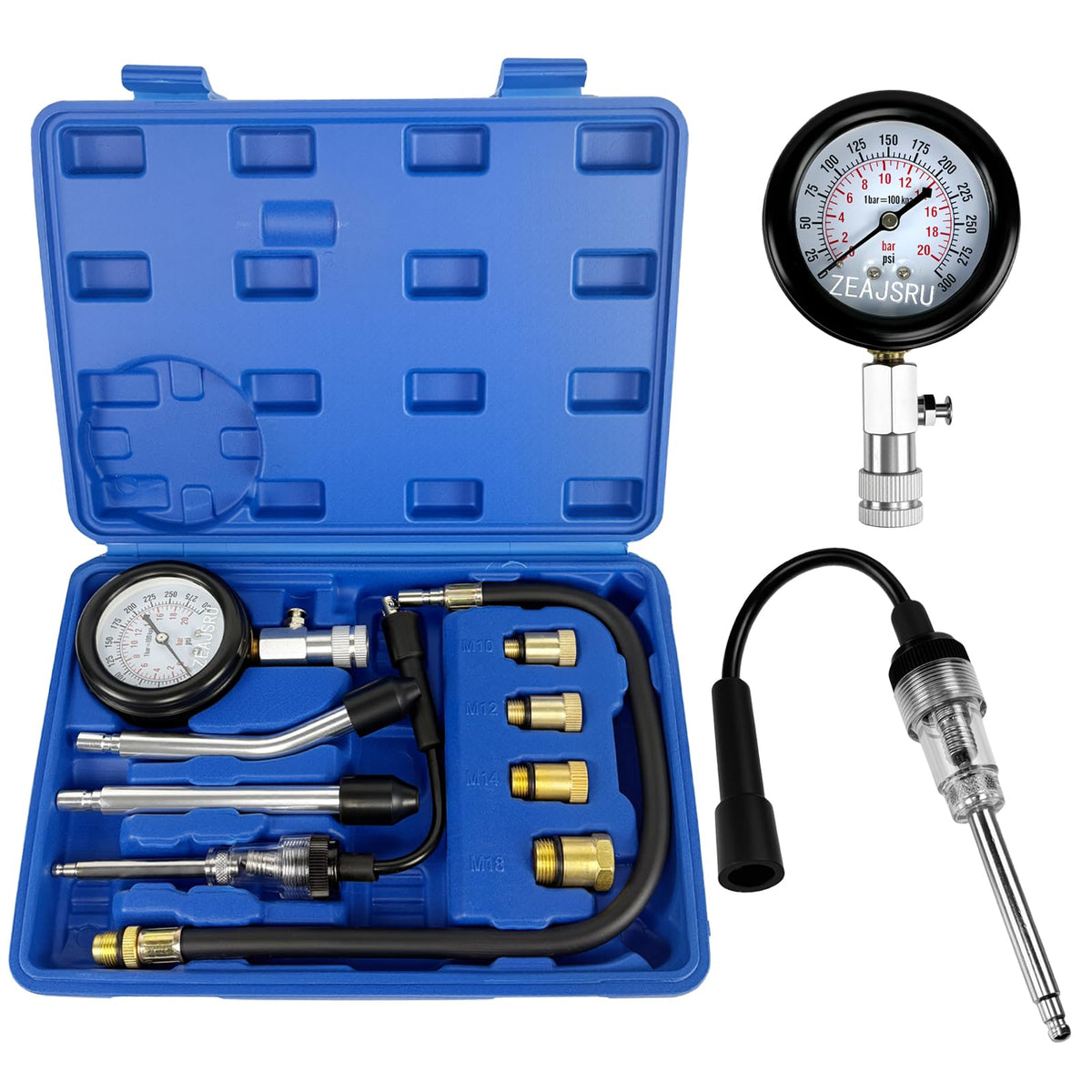

The ZEAJSRU kit combines a 300 PSI dual-scale gauge, flexible hose, brass thread adapters, rubber cone fittings and a spark plug tester so you can quickly assess cylinder pressure and check ignition pulses without specialized shop equipment. Compact and portable, the kit is intended for routine diagnostics, pre-purchase checks, tune-ups and troubleshooting when an engine is running rough or losing power.

How does this kit measure cylinder compression reliably?

The metal-bodied gauge reads up to 300 PSI and displays clear dual-scale markings for quick interpretation. A spring-loaded pressure release valve lets you vent the line and reset between cylinders while a flexible hose helps get the tester into awkward spark plug wells.

• 300 PSI dual-scale analog gauge for accurate readings
• Rigid gauge housing for stable pointer response
• Pressure release valve for fast reset after each test
• Flexible hose to reach deep or offset spark plug ports

Which engines and spark plug sizes will this compression tester fit?

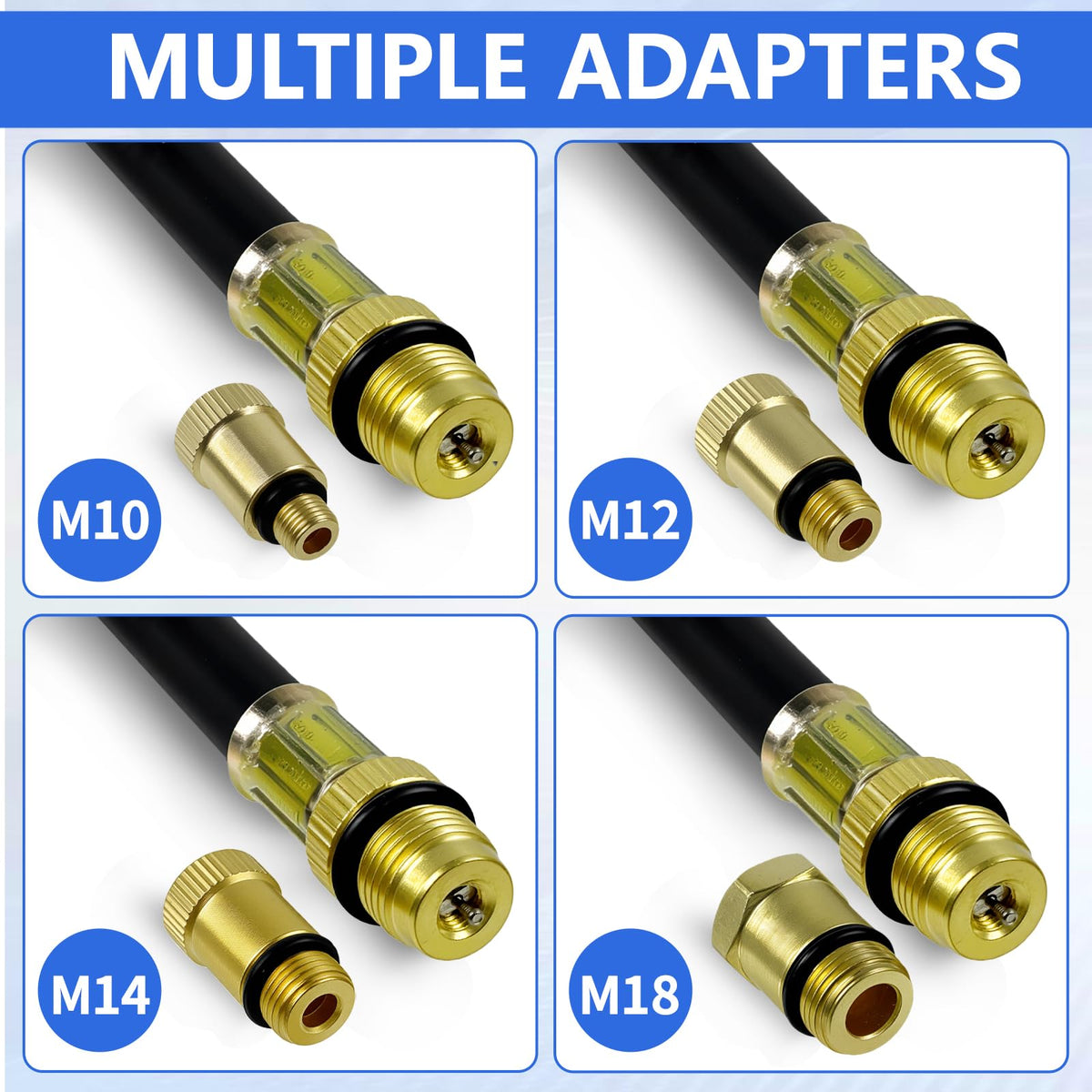

The set is designed for gasoline engines on cars, light trucks and motorcycles. It includes brass threaded adapters sized M10, M12, M14 and M18, covering the majority of common spark plug threads in small engines and many automotive applications.

• M10, M12, M14 and M18 brass adapters for widespread compatibility

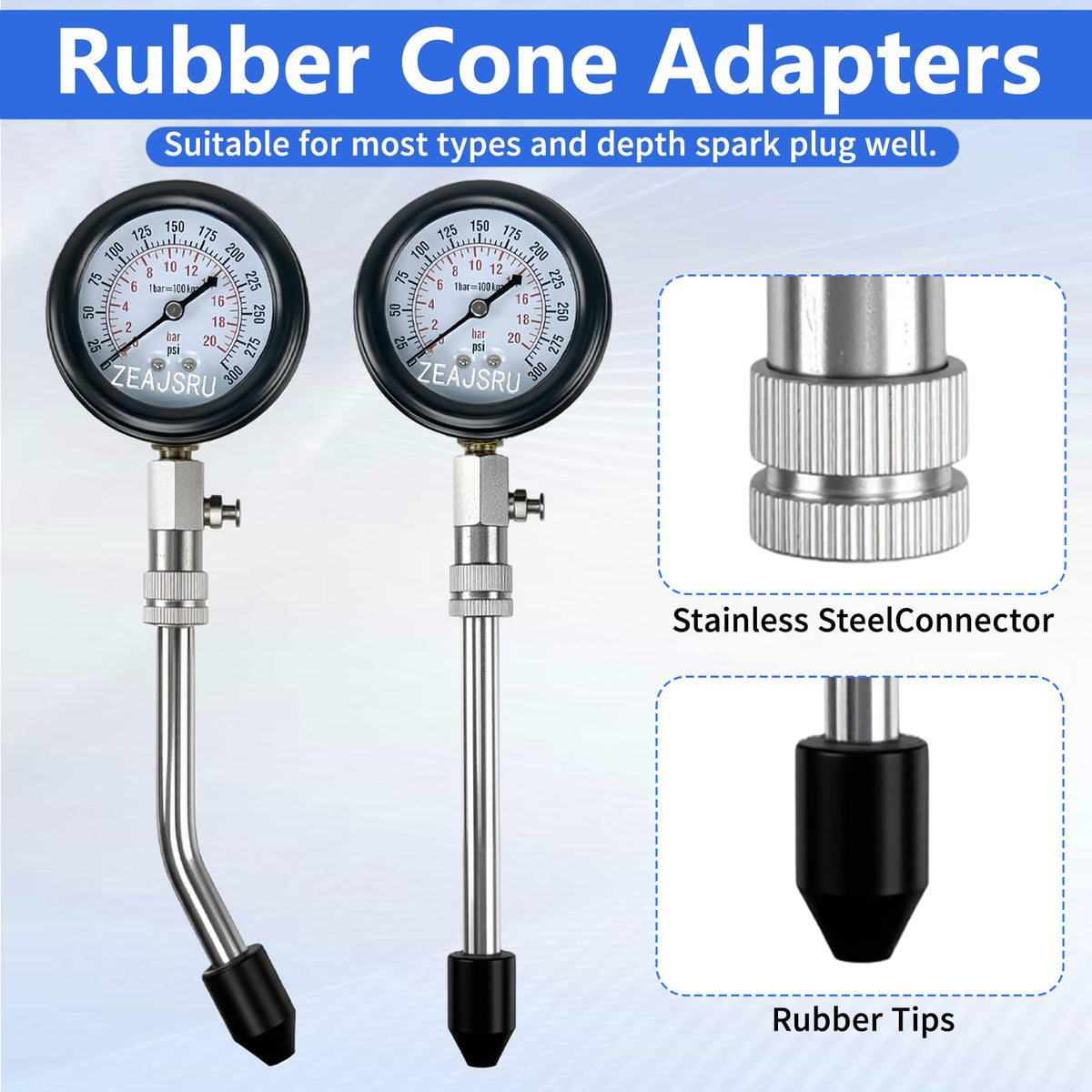

• Straight and curved rubber cone adapters for irregular ports
• Flexible hose to accommodate cramped engine bays
• Works on most passenger cars and motorcycle cylinders

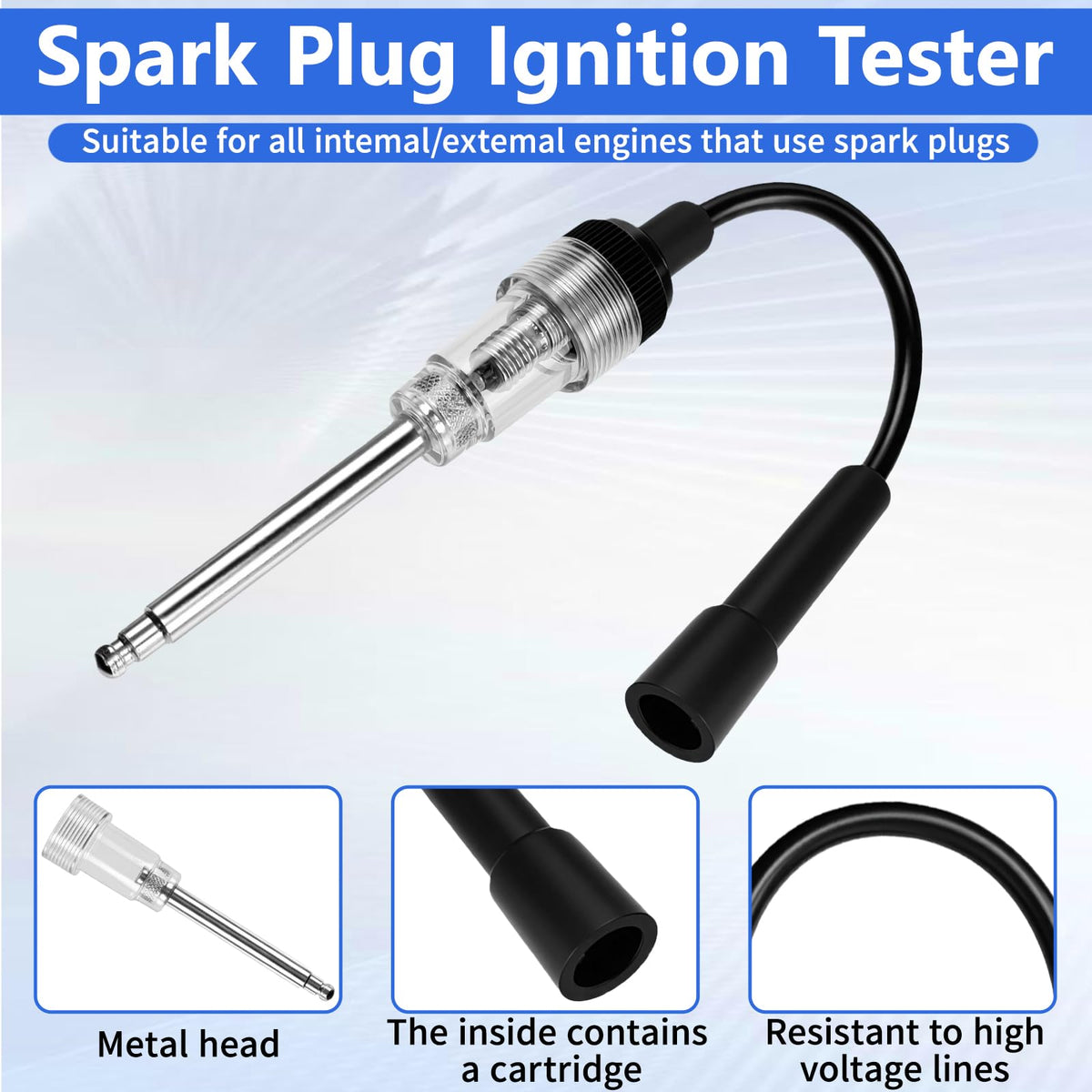

What does the spark plug tester do and when should I use it?

The included spark plug tester provides a visual check of ignition by revealing whether spark energy is being produced at the plug lead. Use it when compression results are marginal or when diagnosing misfires, ignition coil or wiring faults before performing deeper engine work.

• Quick visual confirmation of ignition pulse at the plug lead
• Helps separate ignition issues from compression problems
• Handheld, insulated design for safe checks
• Useful for on-vehicle troubleshooting without removing plugs first

How do I get consistent test results with the ZEAJSRU kit?

Warm the engine to operating temperature, disable fuel and ignition per vehicle instructions, and crank the engine with the throttle open for uniform readings. Test each cylinder the same way and compare values against the manufacturer’s specifications and between cylinders to spot leaks, worn rings or valve problems.

• Warm engine to operating temperature before testing
• Disable ignition/fuel per safety procedure before removing spark plugs
• Crank consistently (same number of revolutions) for each cylinder
• Compare readings across cylinders and to factory specs

Who is this for: Mechanics, home DIYers and motorcycle owners who need an affordable, portable compression and basic ignition test solution will benefit from the ZEAJSRU Compression Tester Kit. It suits anyone wanting fast on-vehicle diagnostics, pre-purchase inspections, routine engine checks or troubleshooting misfires without carrying heavy shop tools. The comprehensive adapter set and spark plug tester make it a practical choice for multi-vehicle garages and mobile technicians.
