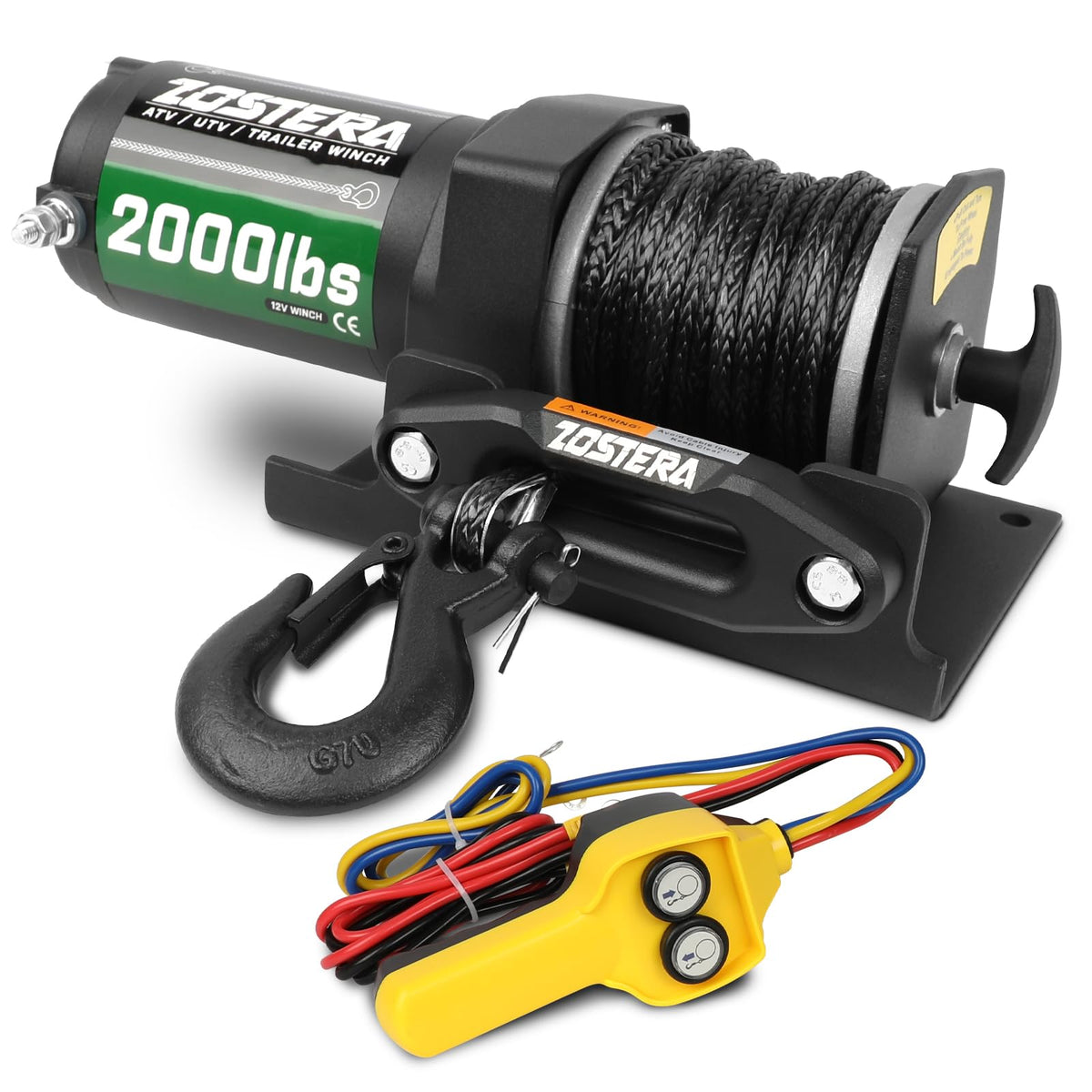

Zostera 2000lb ATV Winch 12V with 50' Dyneema Rope — Compact Waterproof, 1HP Torque

Zostera 2000lb ATV Winch is a compact 12V electric winch kit with 50' Dyneema synthetic rope designed to tow, recover, and anchor vehicles reliably while resisting water, corrosion, and UV.

This all-in-one winch package arrives ready for straightforward installation on many ATVs, UTVs, RVs and light utility vehicles. It pairs a 1HP permanent magnet motor and a high 153:1 gear reduction ratio with a lightweight Dyneema synthetic rope for safe, controlled pulls up to 2,000 pounds. The kit includes a mounting plate, hawse fairlead, hook, wired manual remote switch, and clear wiring color-coding to make hookup quick and predictable.

How powerful and fast is this Zostera winch?

The winch delivers a 2,000 lb maximum rated line pull using a 0.735 kW (1HP) 12V motor and a 153:1 gearbox. Speed varies with load: about 13.3 feet per minute unloaded and roughly 4.1 feet per minute at full rated load, providing steady, controllable operation for recoveries and towing.

• Maximum rated pull: 2,000 lb

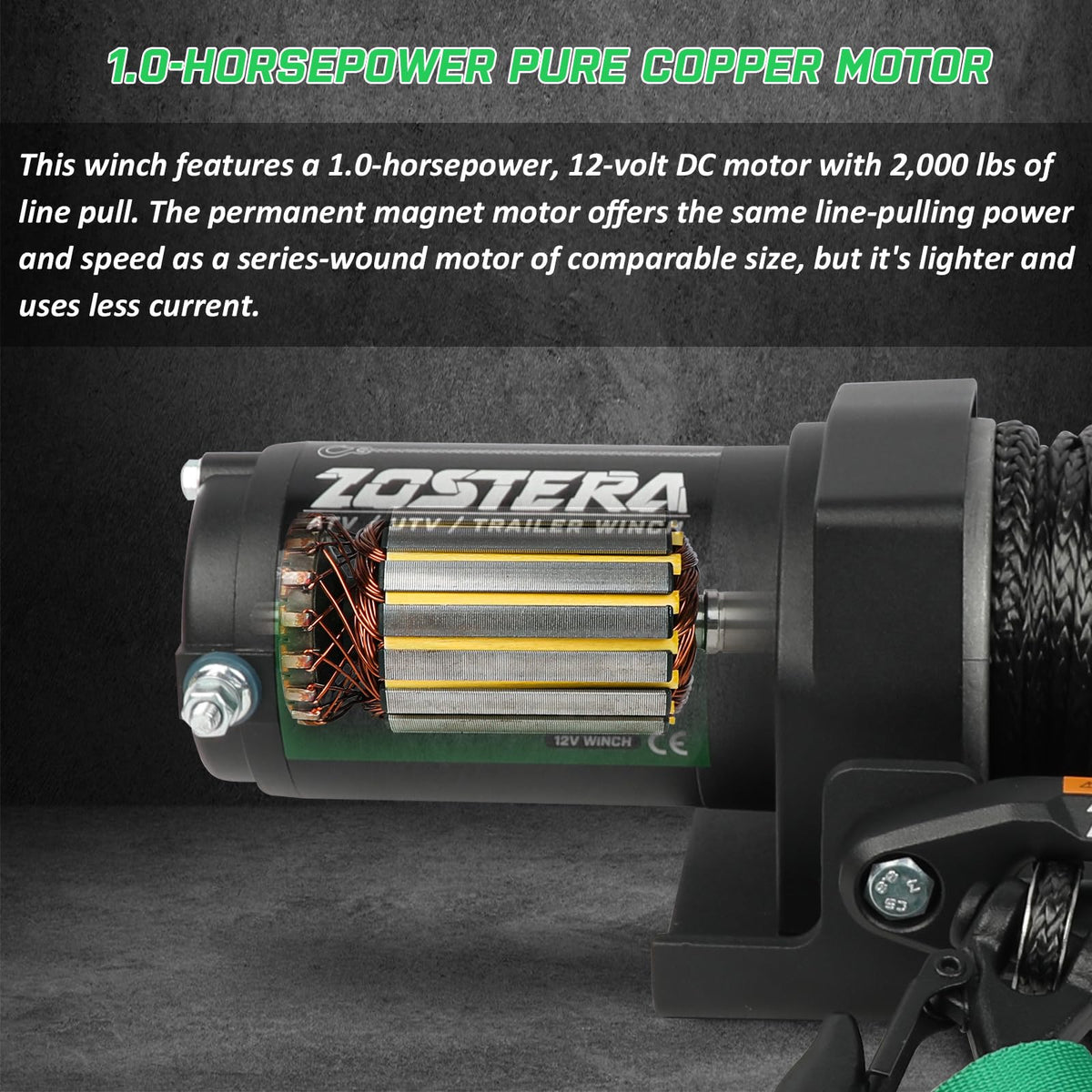

• Motor output: 0.735 kW / 1 HP, 12V DC permanent magnet
• Gear reduction: 153:1 for torque and control
• Line speed: ~13.3 fpm unloaded, ~4.1 fpm at 2,000 lb

What makes the synthetic rope preferable to steel cable?

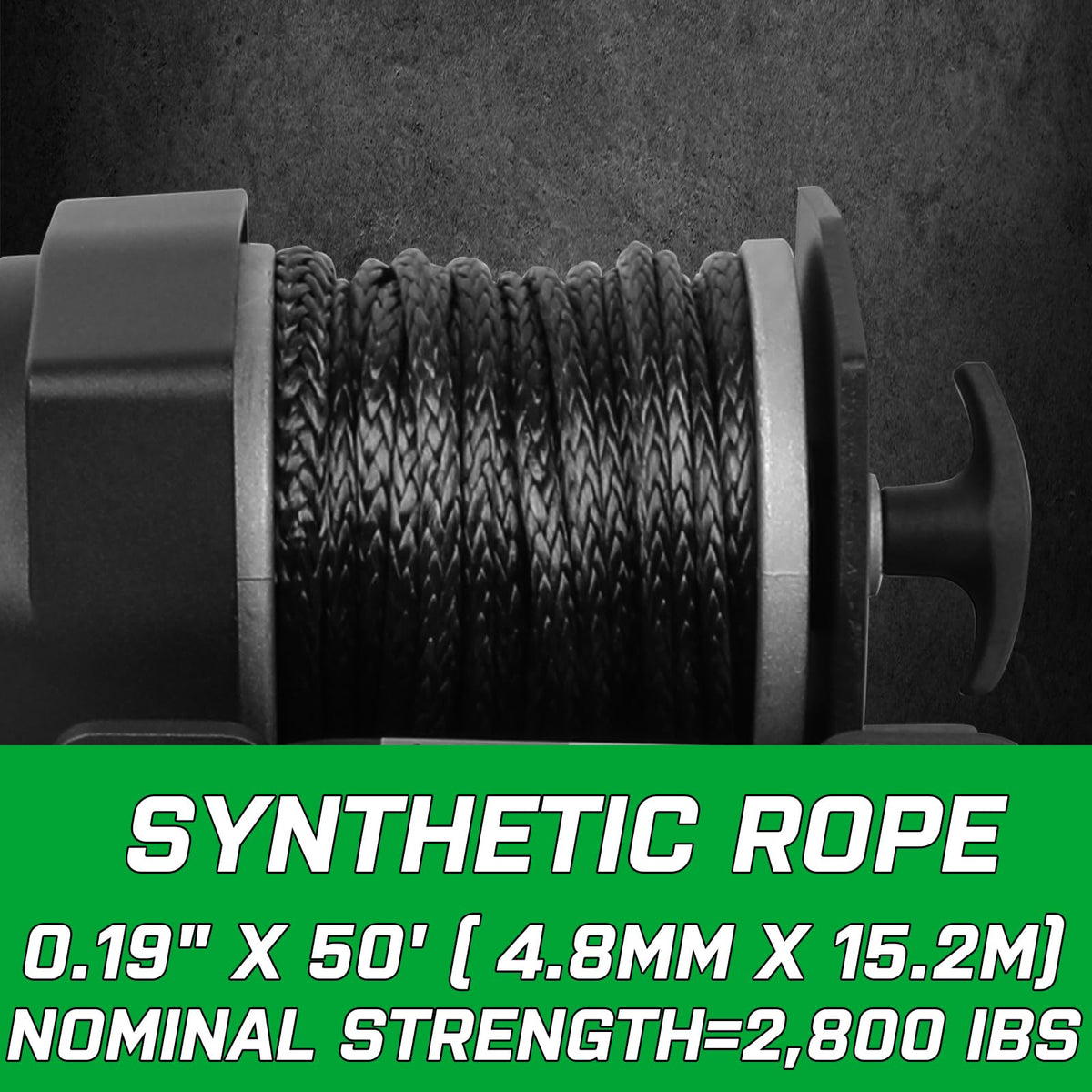

This model uses a 5/32" (φ5/32") Dyneema synthetic rope that is significantly lighter than steel, easier to handle, and reduces recoil risk if the rope parts. Synthetic rope floats, resists UV and corrosion, and lowers overall kit weight without sacrificing tensile strength compared to conventional winch cable.

• Rope material: Dyneema synthetic, 50' length
• Diameter: 5/32" for a compact, strong line
• Benefits: lighter, floats, safer recoil behavior
• Durability: designed for UV and corrosion resistance

Is this winch easy to install and use on my vehicle?

Zostera standardizes mounting dimensions and provides a mounting plate and clear wiring color codes to simplify installation. The kit works with many ATV/UTV brackets and can also be fitted to trailers, RVs, small trucks, and boats when the mounting hole patterns match the listed dimensions.

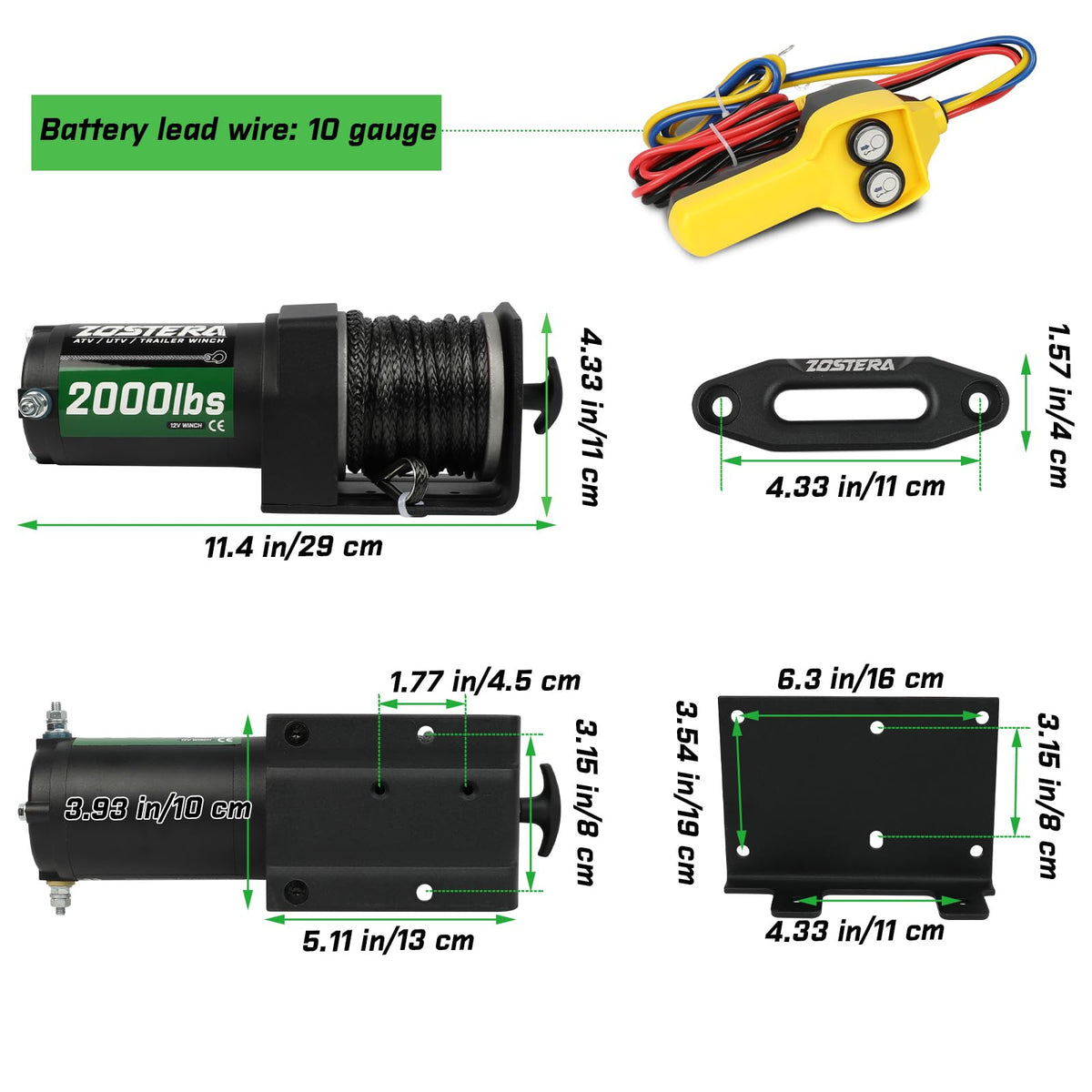

• Fairlead mounting pattern: 6.3 in (160 mm)
• Mounting plate 2-hole spacing: 3.54" (90 mm) / 3.15" (80 mm)

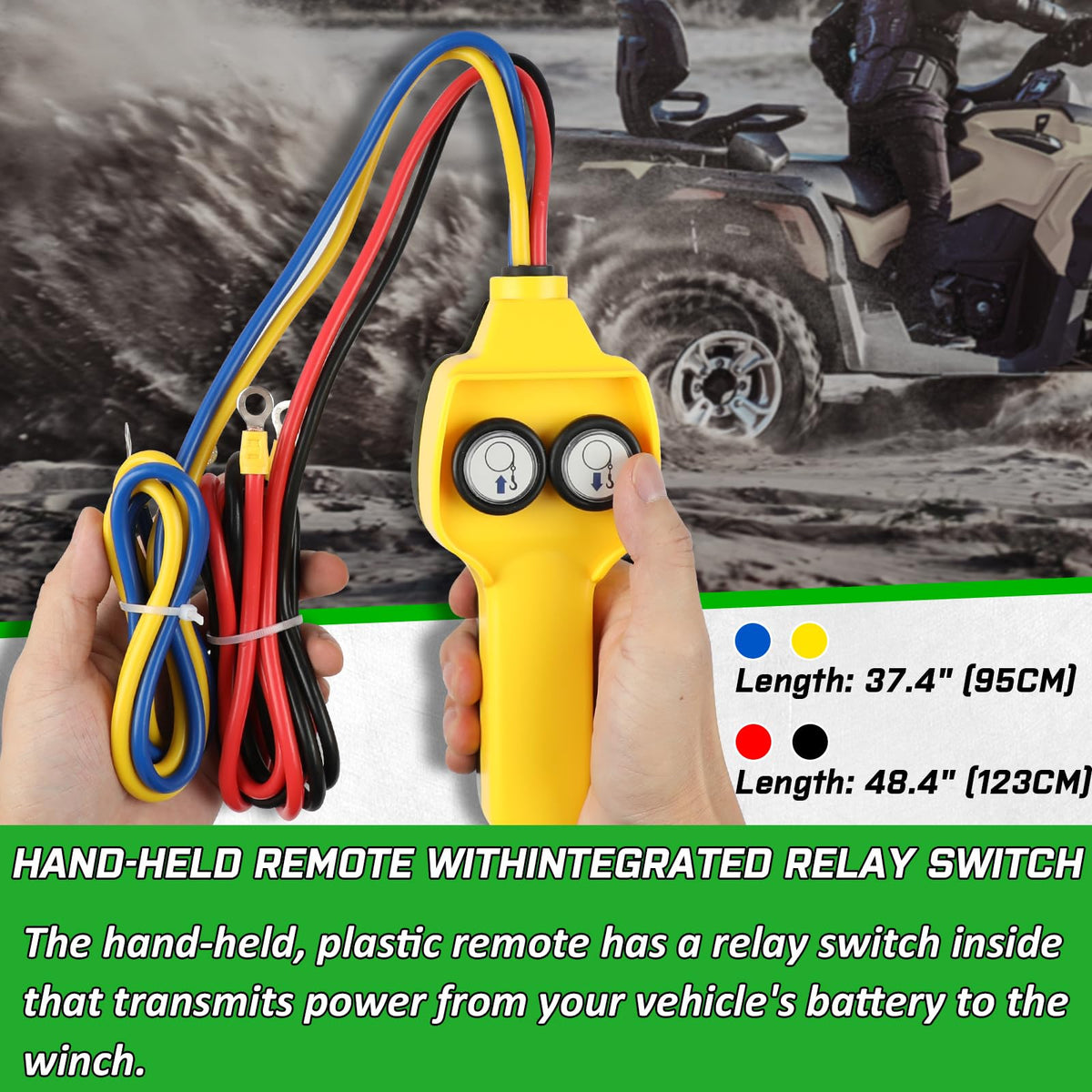

• Includes wired manual remote controller switch
• Color-coded wiring and detailed instructions for easier hookup

How weather-resistant and serviceable is the unit?

The winch housing and control box meet IP65 level protection, giving resistance to water spray and dust, suitable for outdoor use on boats and vehicles. Zostera offers a one-year after-sales service and clear wiring to help troubleshooting; note the winch requires an external 12V battery (not included) to operate.

• Ingress rating: IP65 for water and dust resistance
• Corrosion and UV resistant components
• Battery: requires external 12V battery (not included)
• Support: 1-year after-sales service from Zostera

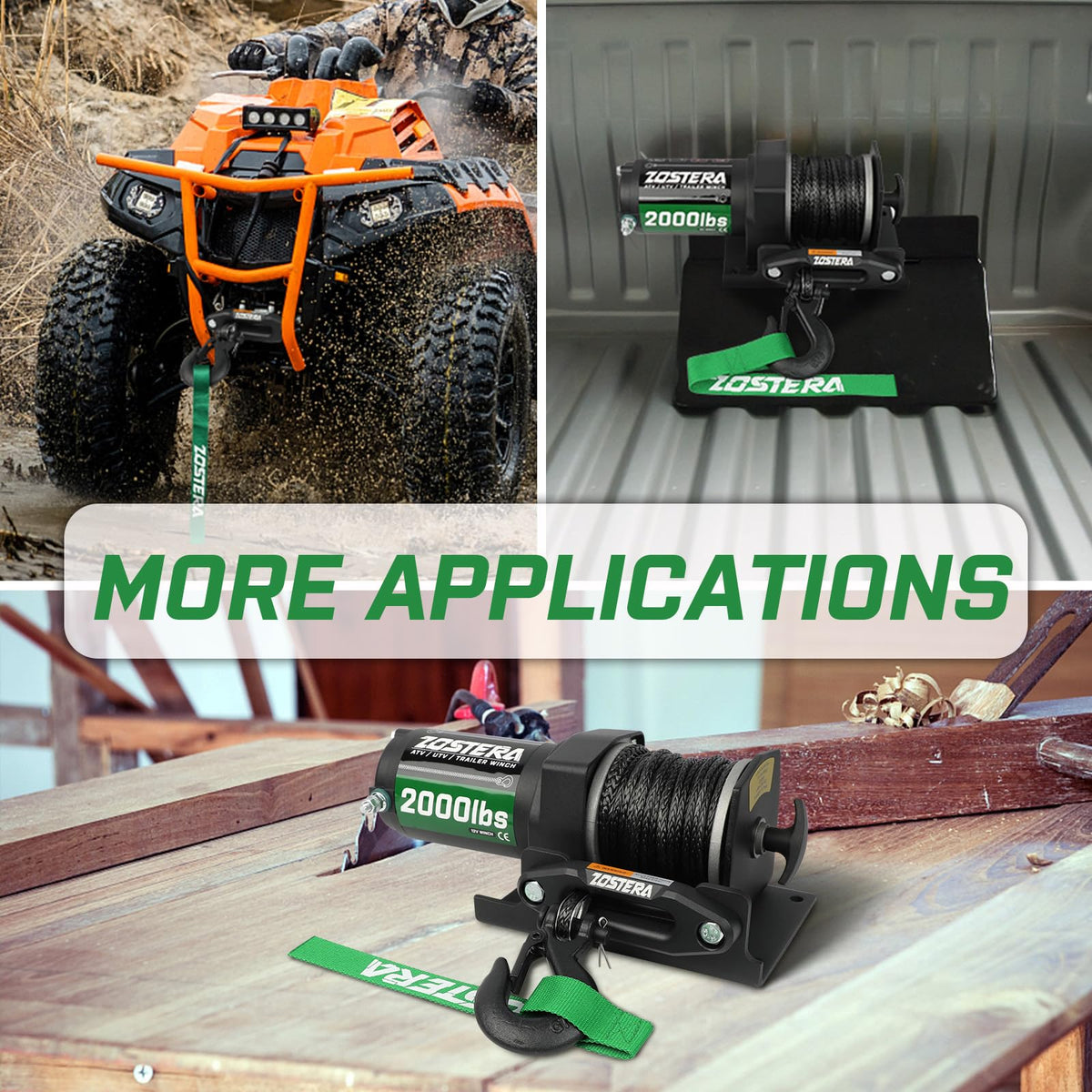

Who is this for? The Zostera 2000lb ATV Winch is aimed at ATV and UTV owners, RVers, and DIYers who want a compact, safer-to-handle synthetic-rope winch for light recoveries, boat anchoring, and towing small vehicles. It's a practical choice for those seeking a balance of portability, weather resistance, and straightforward installation—provided your vehicle’s mounting holes match the specified pattern.
