Every F-150 leaves the factory with a nose that sits lower than its tail. That rake is deliberate — it levels out when the bed is loaded — but on an unloaded truck it reads as a slight forward lean, and it limits how large a tire you can fit. A leveling kit raises the front to match the rear. The question is how much.
What a leveling kit actually is

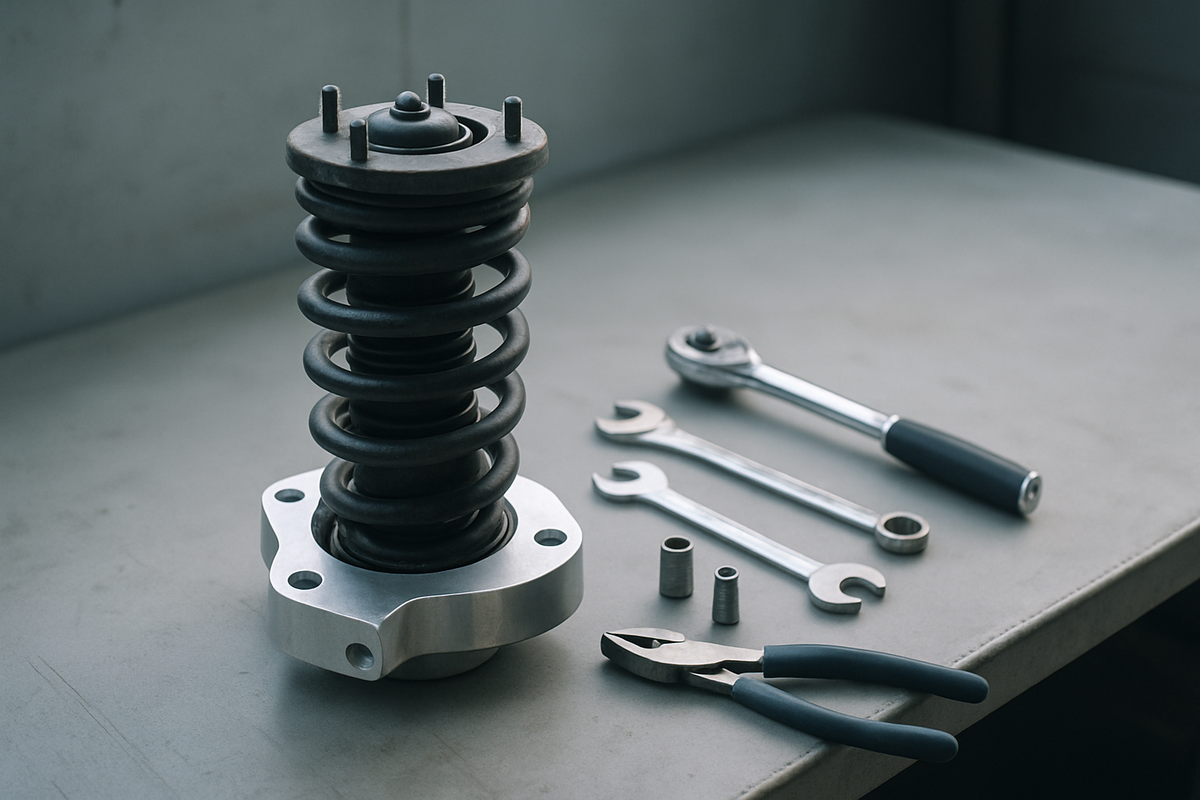

On the F-150 the front suspension uses coil-over struts. A leveling kit is a machined spacer, usually forged aluminum, that bolts on top of the strut assembly and pushes the whole unit further down in relation to the frame. The suspension travel does not change; the truck simply sits higher on it. This is why leveling kits install in an afternoon with hand tools while a true lift kit — new knuckles, control arms and often driveshaft work — does not.
How much lift, and where the limits are
- 1.5 to 2 inches. The safe default. It levels the truck, clears a slightly larger tire, and stays inside the factory geometry. Most owners want this.
- 2.5 inches. Still common and still a bolt-on, but you are getting close to the edge of the factory alignment range. Budget for an alignment straight after installation and expect the caster to need attention.
- 3 inches and above. The ball joints and CV axles start operating at angles they were not designed for. On 4WD trucks this shortens CV boot and joint life noticeably. If you want this much height, a full lift kit that corrects the geometry is the more sensible purchase.
A leveling kit does not increase load capacity and it does not improve ride quality. It very slightly reduces front droop travel, which most drivers never notice on pavement.
Match the kit to your generation
The F-150 changed platform in 2004, 2009, 2015 and again in 2021, and the strut mount pattern is not shared across all of them. Kits are usually sold for 2004–2026 because the top-mount bolt circle carried over, but read the listing rather than assuming — the Raptor, the 2WD trucks and the trucks with the factory off-road package often have their own part numbers because the strut length differs.
If you own an F-250 or F-350, none of the above applies: the Super Duty uses a solid front axle on 4WD trucks and levels with a coil spacer or new coils rather than a strut spacer.
Tire size is the real reason most people do this
Two inches of front lift on a stock F-150 typically clears a 33-inch tire without trimming, and gets you close on a 34. Going past that usually means cutting the front bumper valance or fitting fender flares. Remember that a larger tire changes your effective gearing and your speedometer reading — a jump from 32 to 34 inches puts the speedometer out by roughly six percent unless it is recalibrated.
What to do straight after installation
Get an alignment. Raising the front changes camber and caster, and driving on the old alignment is the fastest way to destroy a new set of tires. Re-torque the strut mount nuts after the first 100 kilometres, and check them again after a month. If you hear a knock over expansion joints afterwards, it is usually the strut mount bearing rather than the spacer.
Winter considerations in Canada
A levelled truck sits its front bumper and air dam higher, which genuinely helps in deep snow. It also lifts the headlight aim, so have the beams reset — an upward-aimed headlight on a levelled truck blinds oncoming traffic and does not light the road any better. Salt reaches the new hardware too: the exposed strut mount studs are worth a shot of anti-seize at installation if you plan to service the truck later.
Shop the collection
- Ford F-150 Parts & Accessories
- Leveling & Lift Kits
- Wheel Bearings & Hub Assemblies
- Ford Super Duty Parts & Accessories
- Exterior Accessories
Frequently asked questions
Do I need new shocks with a 2-inch leveling kit?
No. A 2-inch strut spacer works with the factory struts because it does not change suspension travel. New shocks become worth considering at 2.5 inches and up, or if the originals are already worn.
Will a leveling kit affect my ride quality?
Very little on a 1.5 to 2-inch kit — the spring and damper are unchanged. What owners usually notice afterwards is the larger tire they fitted at the same time, not the spacer itself.
Does a leveling kit void the factory warranty?
It cannot void the whole warranty, but a dealer can decline a claim on a component the modification plausibly caused, such as a CV joint or a ball joint. Keep the installation and alignment receipts.
How long does installation take?
Most owners with a spring compressor and basic hand tools finish in three to four hours. The awkward part is compressing the coil safely, not the spacer.
