CARVALAX V-Head Pipe Jack Stands Adjustable 28–52" Height, 2,500 lb Capacity, Foldable Tripod

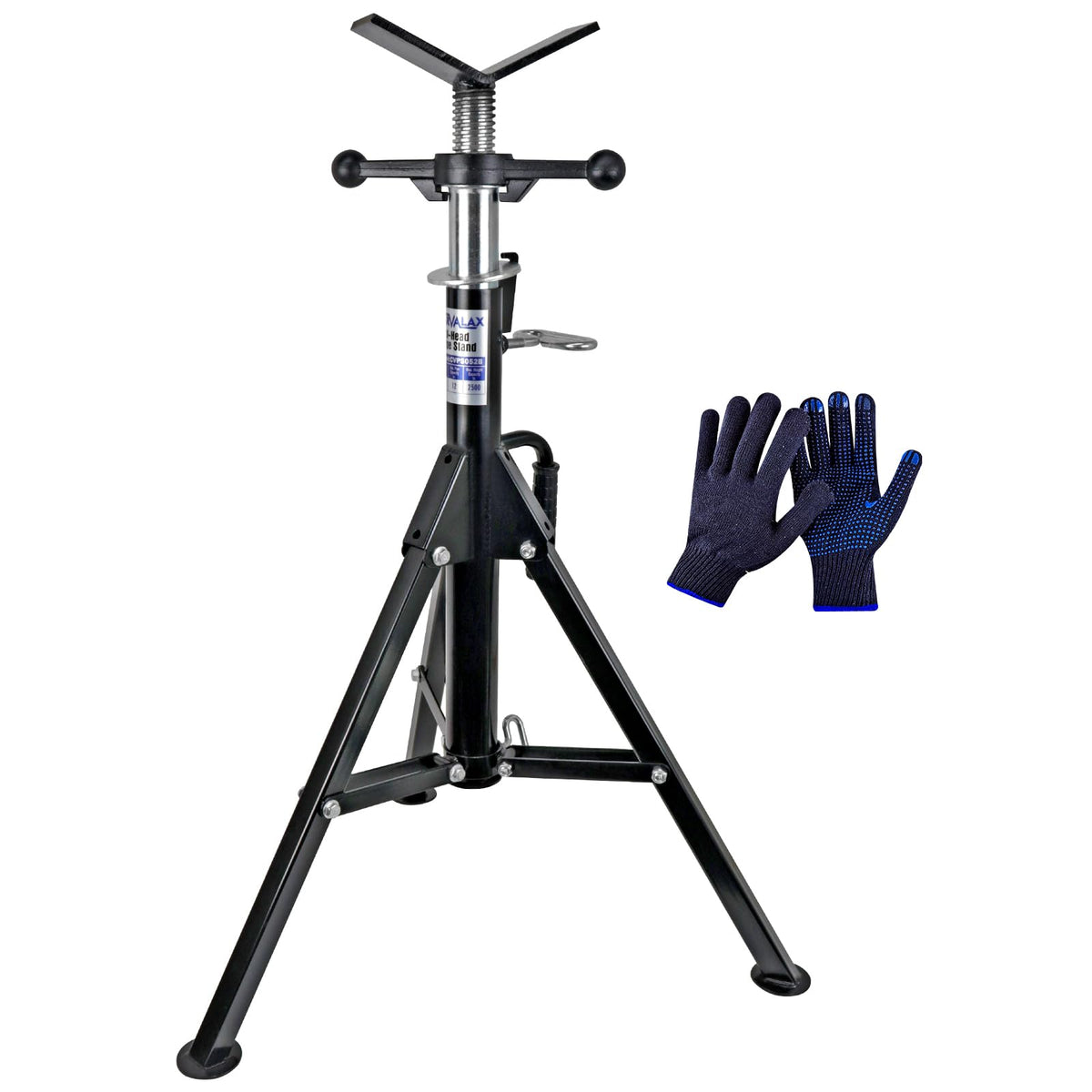

CARVALAX V-Head Pipe Jack Stands are adjustable, portable tripod supports engineered to hold pipes and shafts between 1/2" and 12" diameter with a rated capacity of 2,500 lb (1,125 kg).

These adjustable pipe stands are built for welders, mechanics and tradespeople who need a stable, height-variable support while cutting, welding or positioning cylindrical stock. Constructed from alloy steel with corrosion-resistant finishes and chrome-plated adjustment components, the stands fold for transport and offer fine-tuning through a locking washer and spanner nut. They’re intended to be used in multiples so long pipes remain level and fully supported during work.

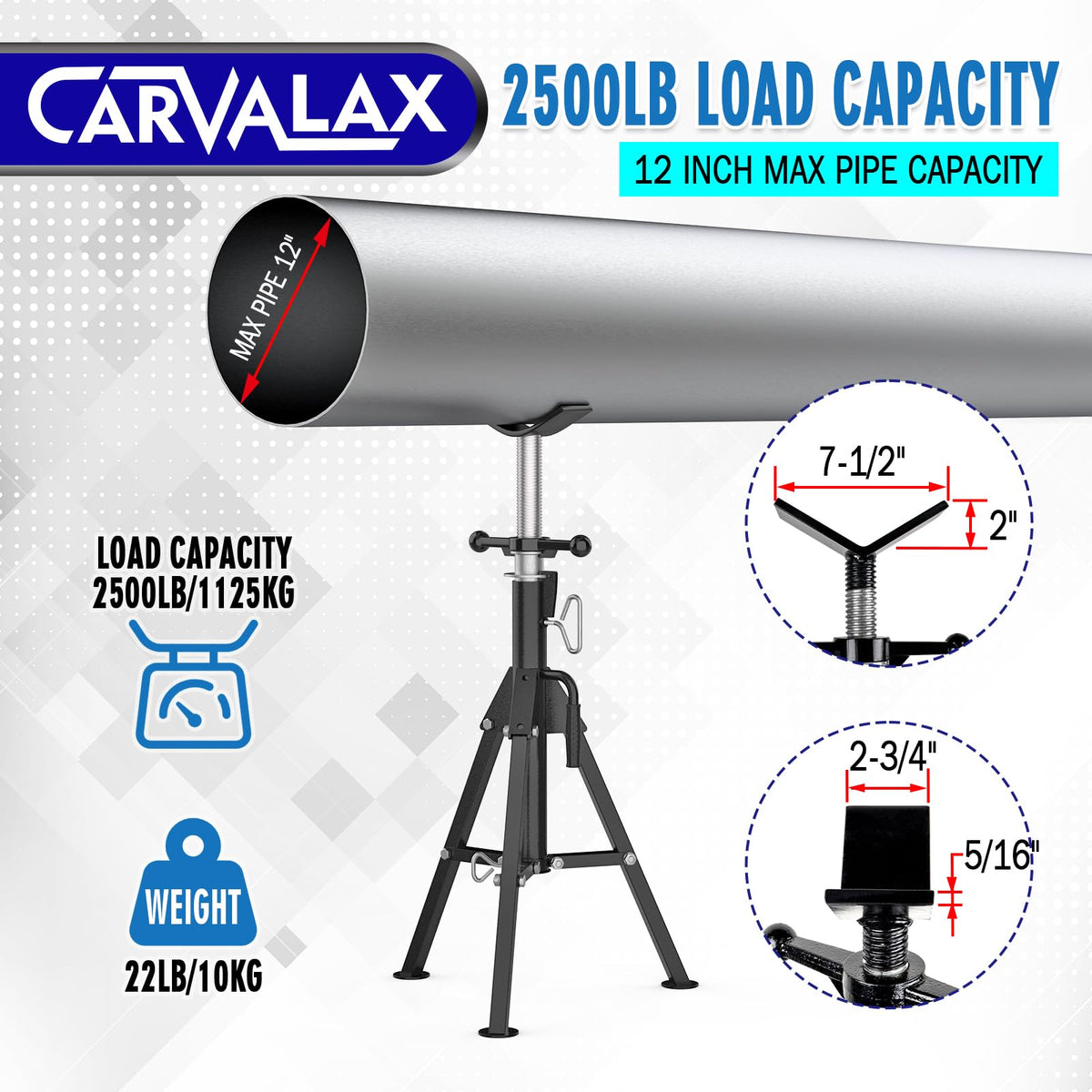

What sizes and load ratings do these pipe jack stands handle?

The CARVALAX V-head supports pipe diameters from 1/2" (1.3 cm) up to 12" (30.5 cm). Each stand is rated for a maximum static load of 2,500 lb (1,125 kg), making them suitable for heavy steel sections and pipe assemblies when used correctly.

• Pipe diameter range: 0.5"–12" (1.3–30.5 cm)
• Maximum rated capacity: 2,500 lb / 1,125 kg per stand
• Height range: 28"–52" (71–132 cm) to match common work heights

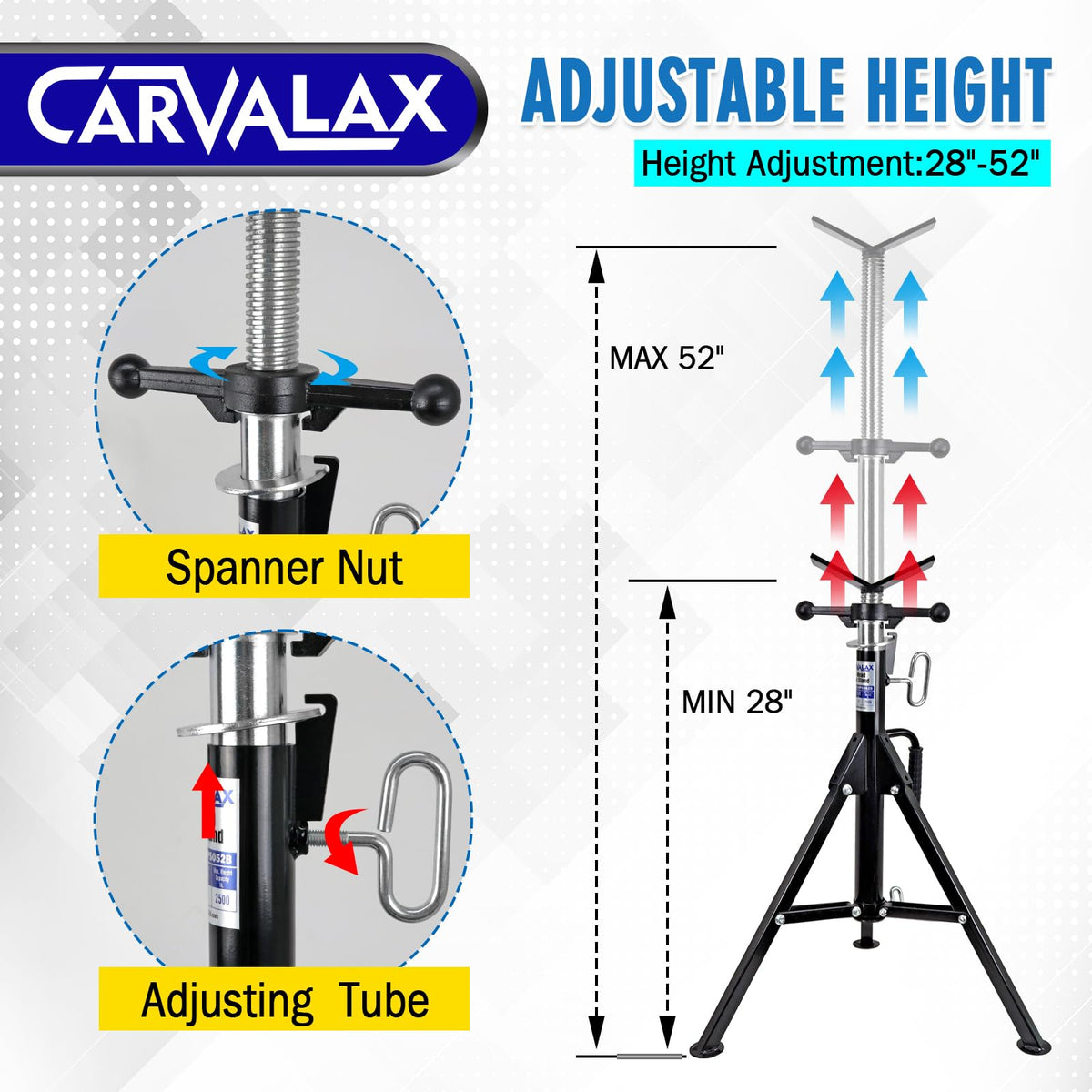

How do I adjust height and secure the stand during work?

Height changes are quick: lift the lock washer and slide the inner tube to the desired position, then use the spanner nut for fine adjustment and to lock the stand at its working height. Chrome plating on the adjustment tube and screw reduces wear and keeps the mechanism operating smoothly over time.

• Quick lift-and-slide adjustment for coarse height changes
• Spanner nut allows precise leveling when using multiple stands
• Lock washer prevents unintended lowering during use

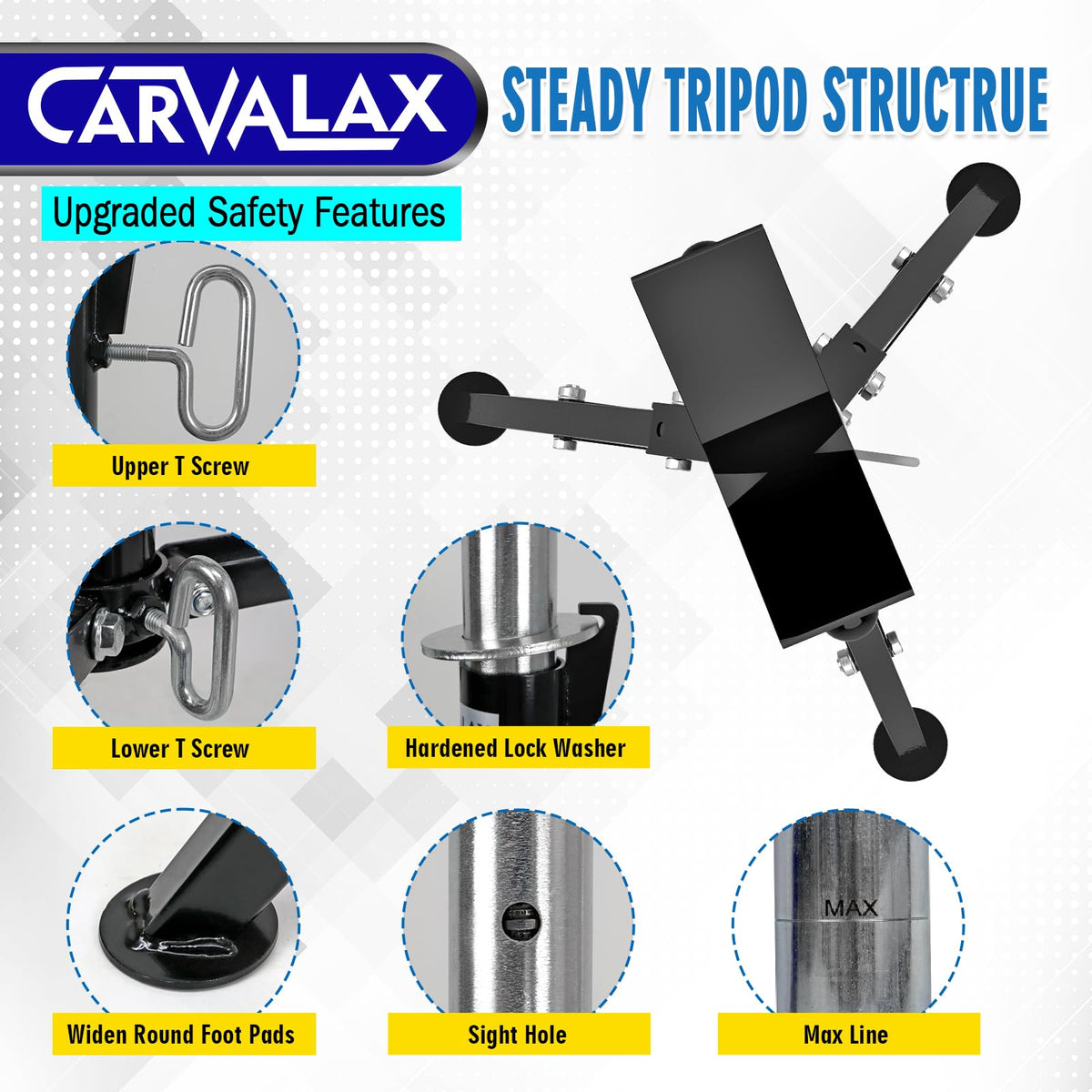

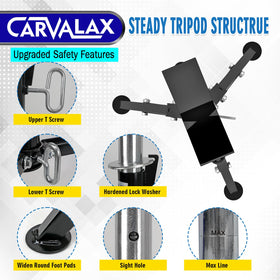

Are these stands stable on different surfaces and during welding?

Stability is achieved through a tripod layout, reinforced leg assemblies and a strut tension plate that spreads load forces. Large footpads increase surface contact to reduce slipping on shop floors, gravel or compacted dirt, but always place stands on firm, level ground and use at least two supports for longer pipe spans.

• Tripod base with thickened legs for increased rigidity
• Widened footpads boost grip and lower tipping risk
• Recommended use: multiple stands for long or heavy pipes

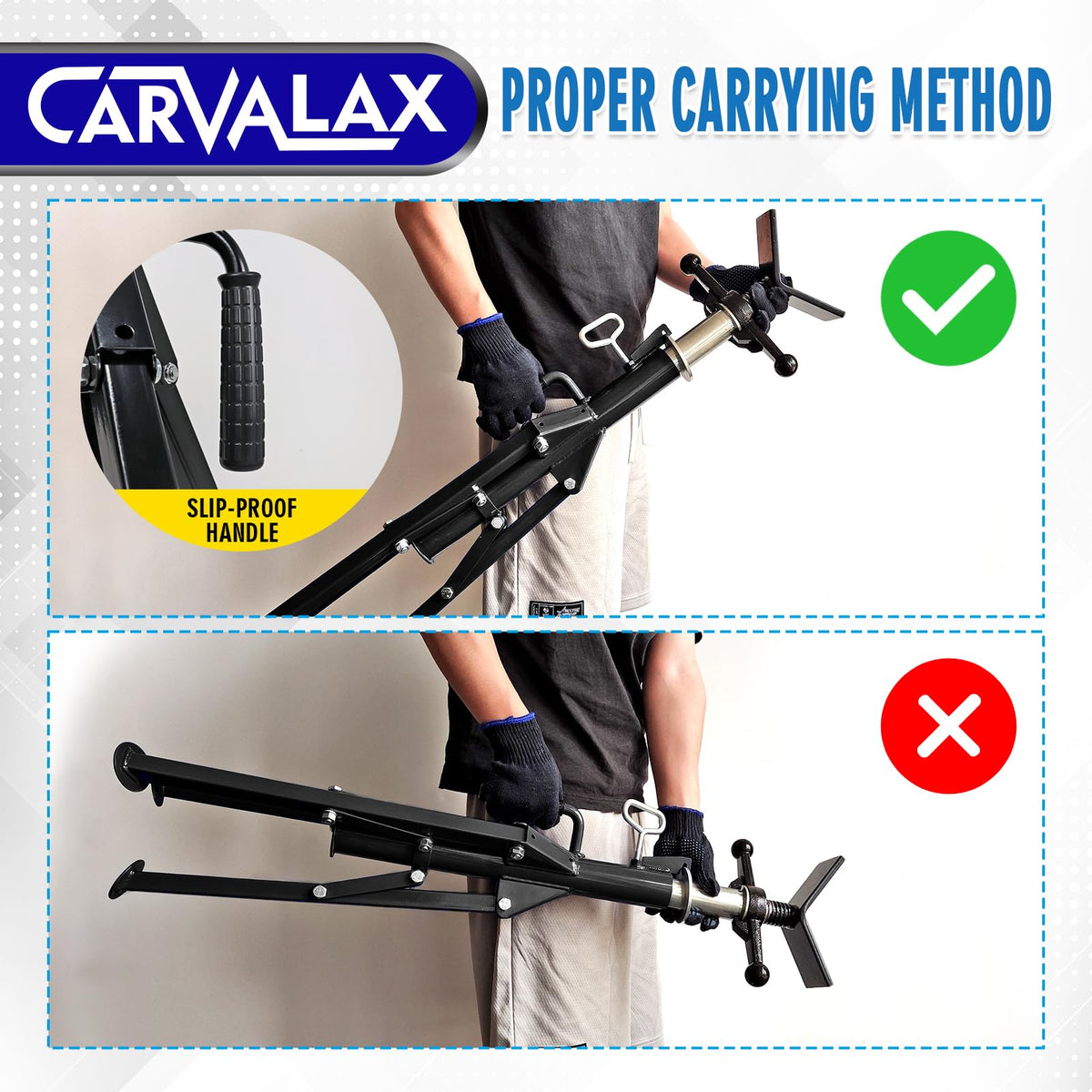

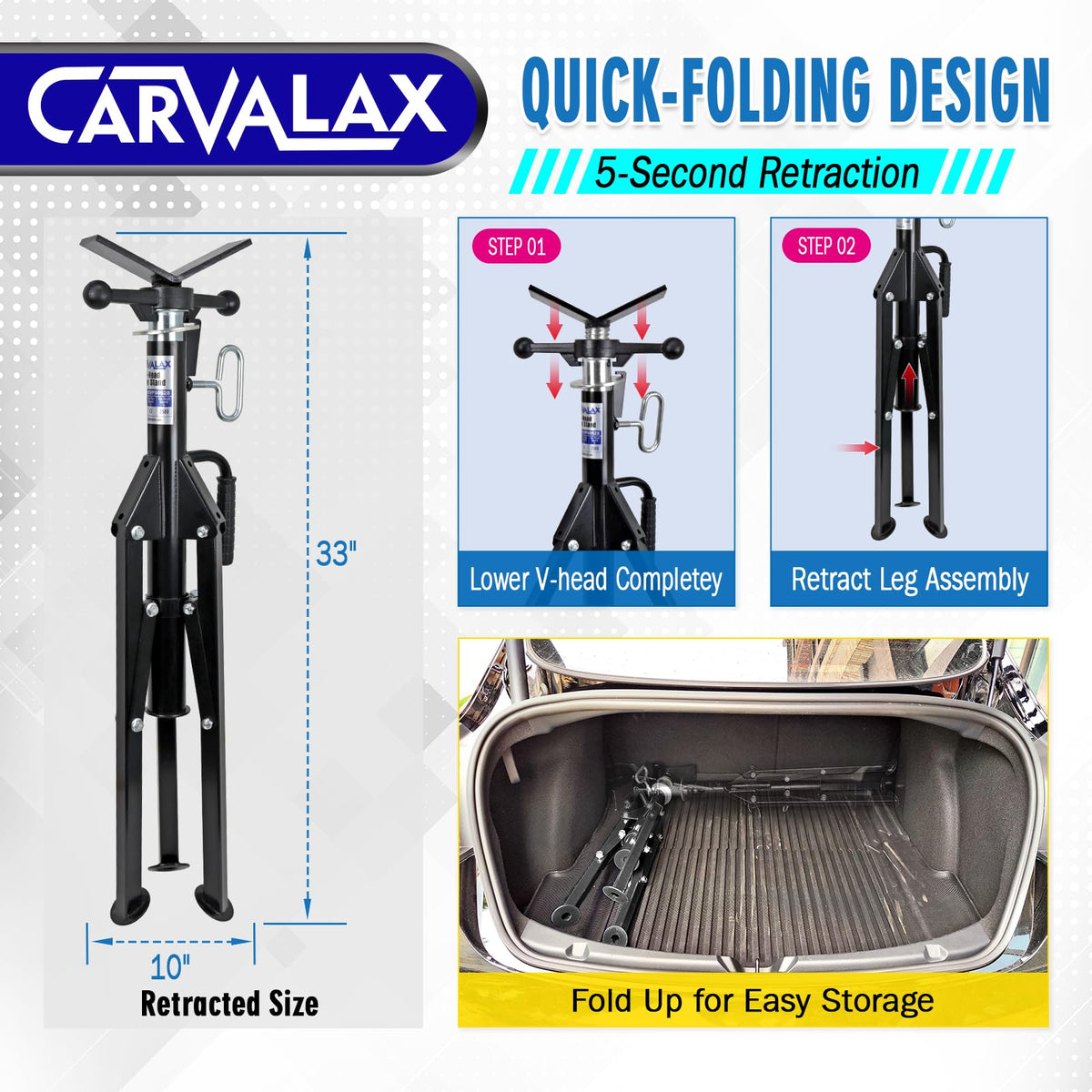

How portable are these pipe stands for jobsite travel?

CARVALAX designed the stands to fold compactly: lower the V-head, collapse the legs and carry using the slip-resistant rubber handle. The quick-folding mechanism makes them easy to store in a van or workshop rack and speeds scene setup and teardown between jobs.

• Quick-fold design for compact storage and transport
• Slip-proof rubber handle for comfortable carrying
• Durable blue anti-corrosion paint protects the main body

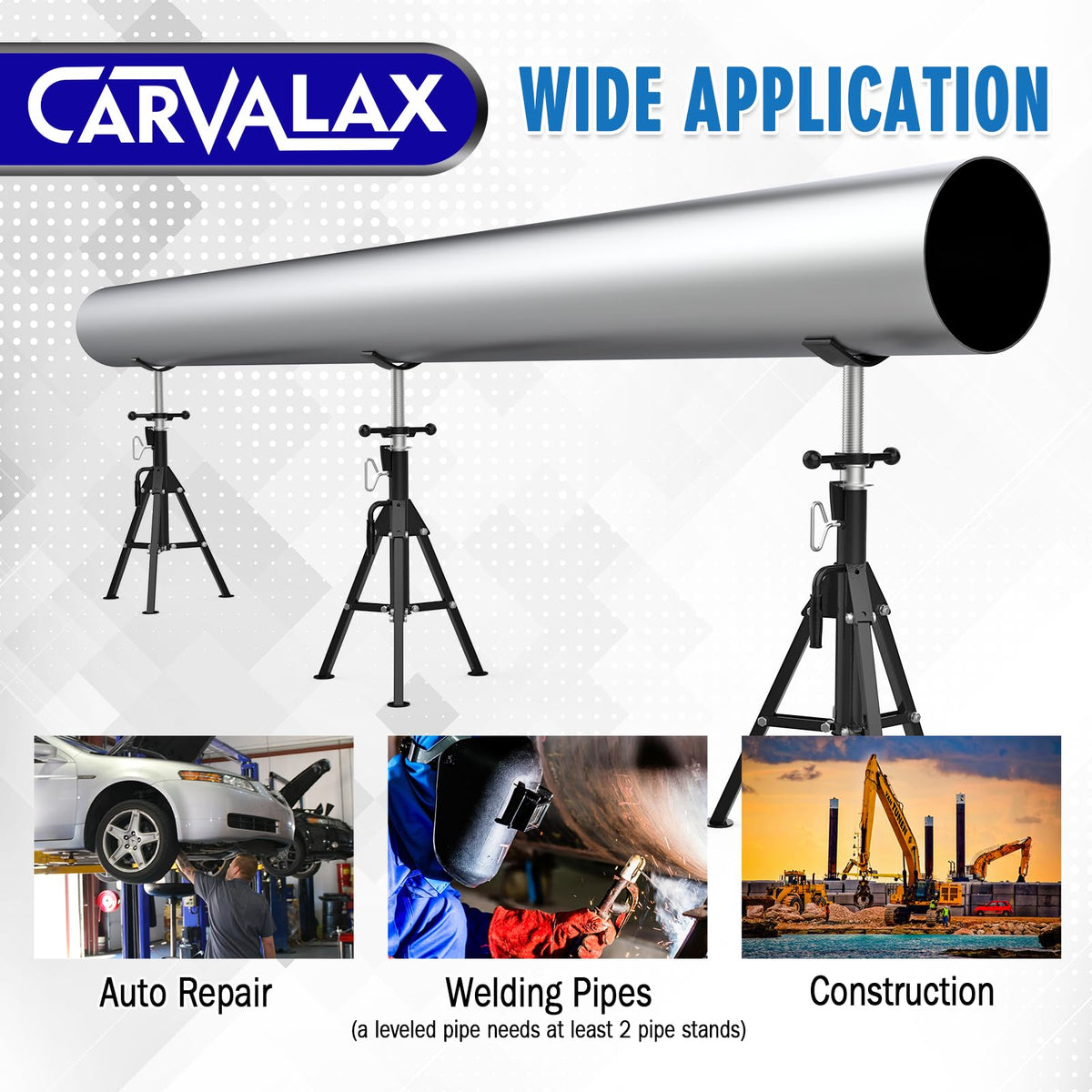

Who this is for: These jack stands suit professional welders, fabricators, mechanics and serious DIYers who handle pipe, conduit or round stock and require an adjustable, high-capacity support. They’re especially useful on welding benches, assembly tables and automotive underbody work where secure, height-adjustable pipe support simplifies alignment and keeps work steady. Always follow safe load practices: use two or more stands for long runs and inspect the stand condition before each job.
