Spicer U-Joint Kit 1330 Series 5-213X (OSR) Greaseable – 1.062in Caps, 3.625in Span

The Spicer 5-213X is a greaseable 1330-series universal joint kit with outside snap rings, built as a direct OE-style replacement to restore drivetrain reliability.

This kit supplies a Spicer-manufactured U-joint engineered to the same fit and tolerances as original equipment, making it suitable for repairing or rebuilding driveshaft assemblies that use a 1330-series joint. Designed for durability in varied driving conditions, the 5-213X features serviceable grease fittings and outside snap rings for secure installation and straightforward maintenance.

What key dimensions and specifications should I check before ordering?

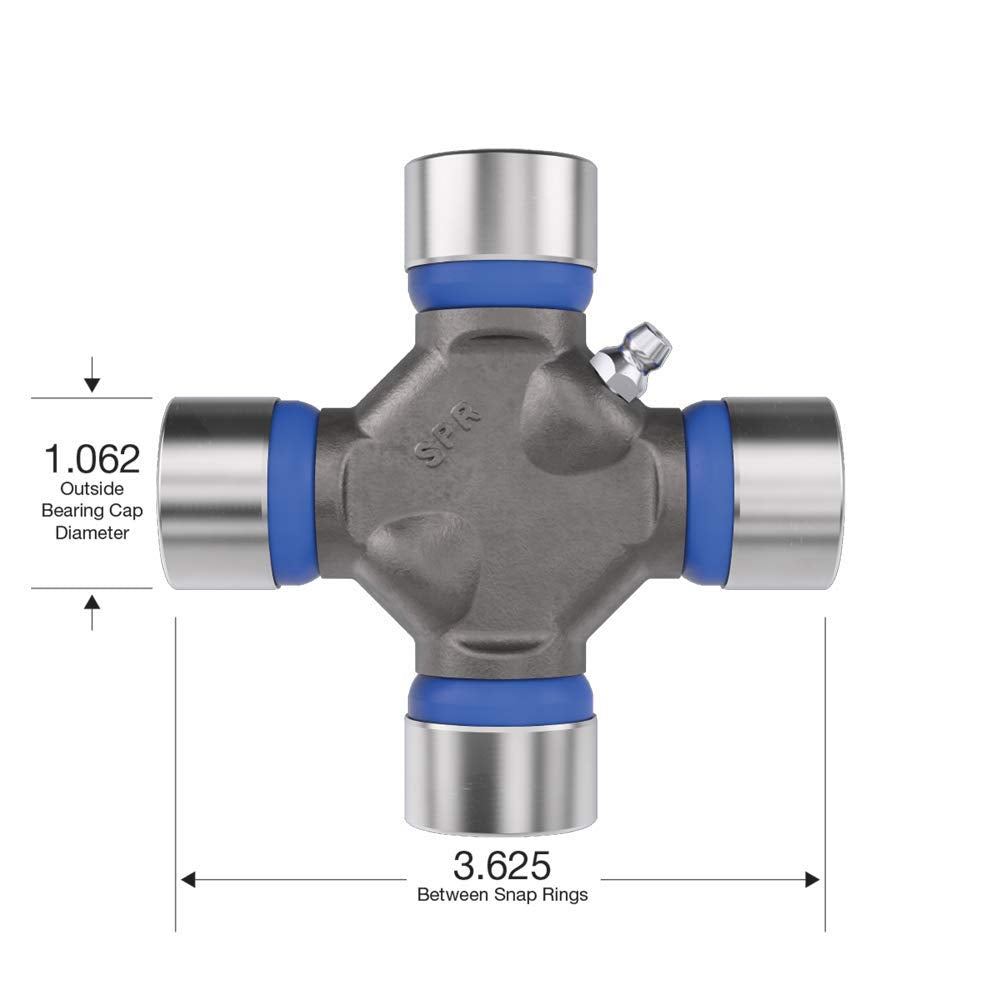

Confirm these critical measurements to ensure compatibility with your driveshaft yoke and companion flange: bearing cap diameter and the distance from bearing cap to bearing cap. The 5-213X matches standard 1330-series dimensions.

• Bearing cap diameter: 1.062 inches
• Outside-to-outside (cap-to-cap) span: 3.625 inches
• Series designation: 1330 (Spicer)

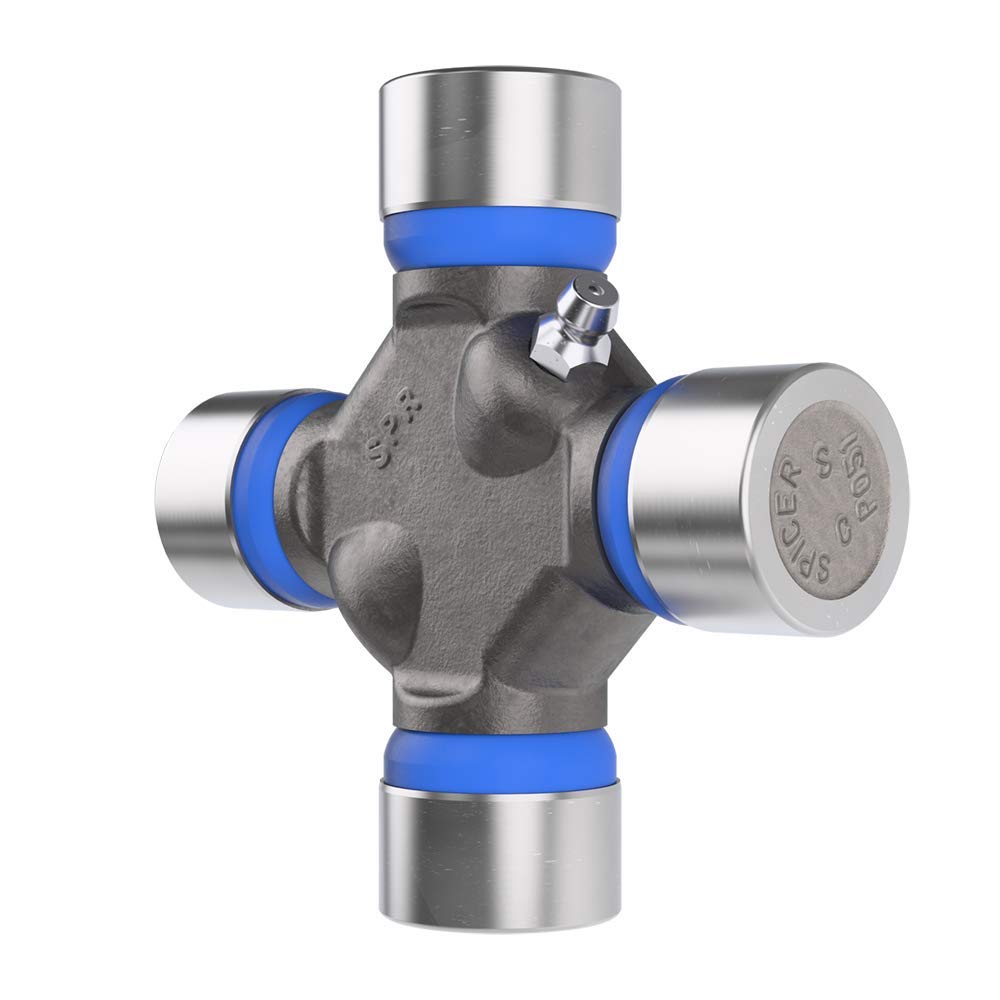

• Snap ring style: outside snap rings (OSR) for yokes that accept external retaining rings

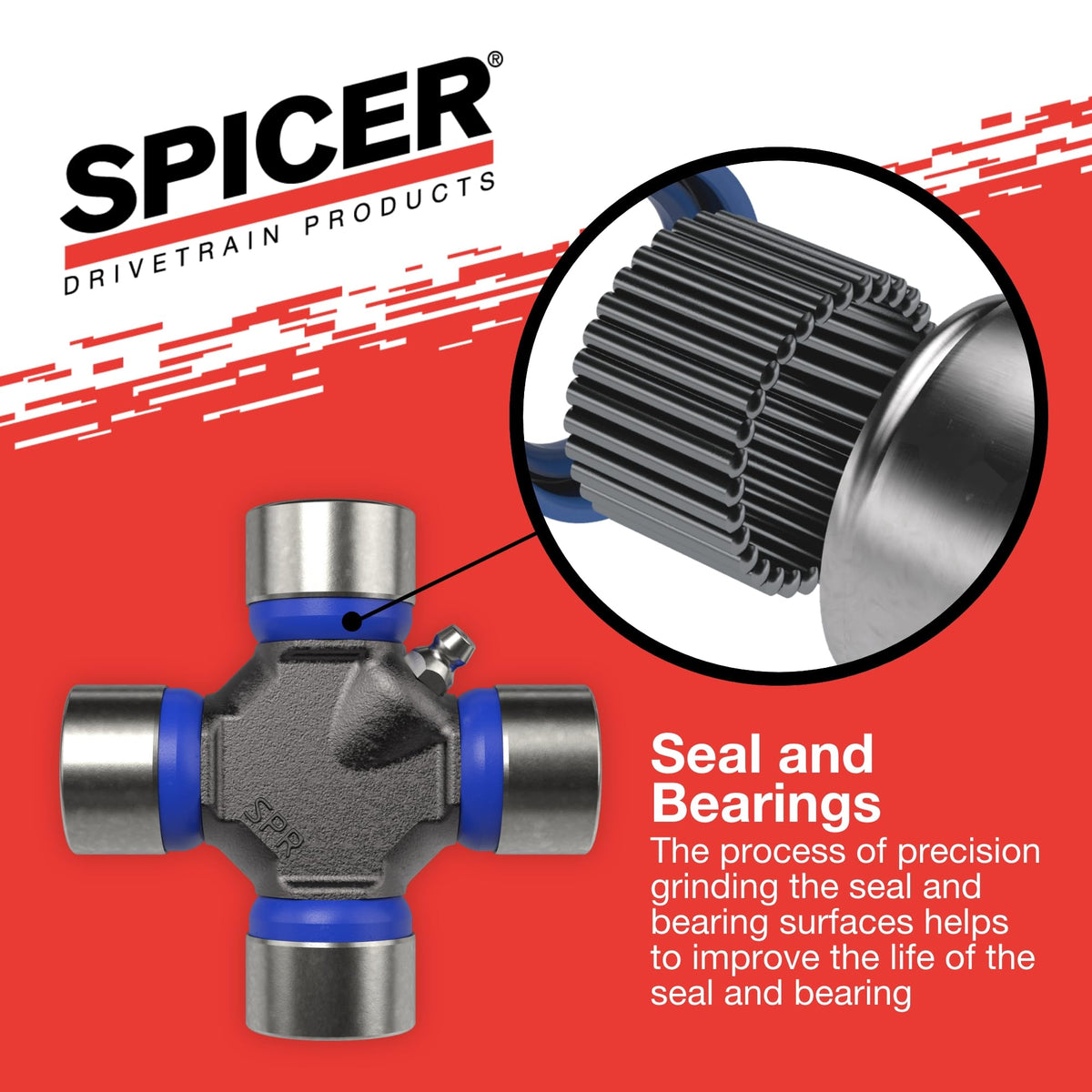

How does the greaseable design affect maintenance and longevity?

The greaseable fitting allows routine lubrication that replenishes grease at the needle bearings and seals, reducing wear and extending service life compared with sealed-for-life units when properly maintained. Periodic greasing helps prevent premature failure from contamination or lubricant breakdown.

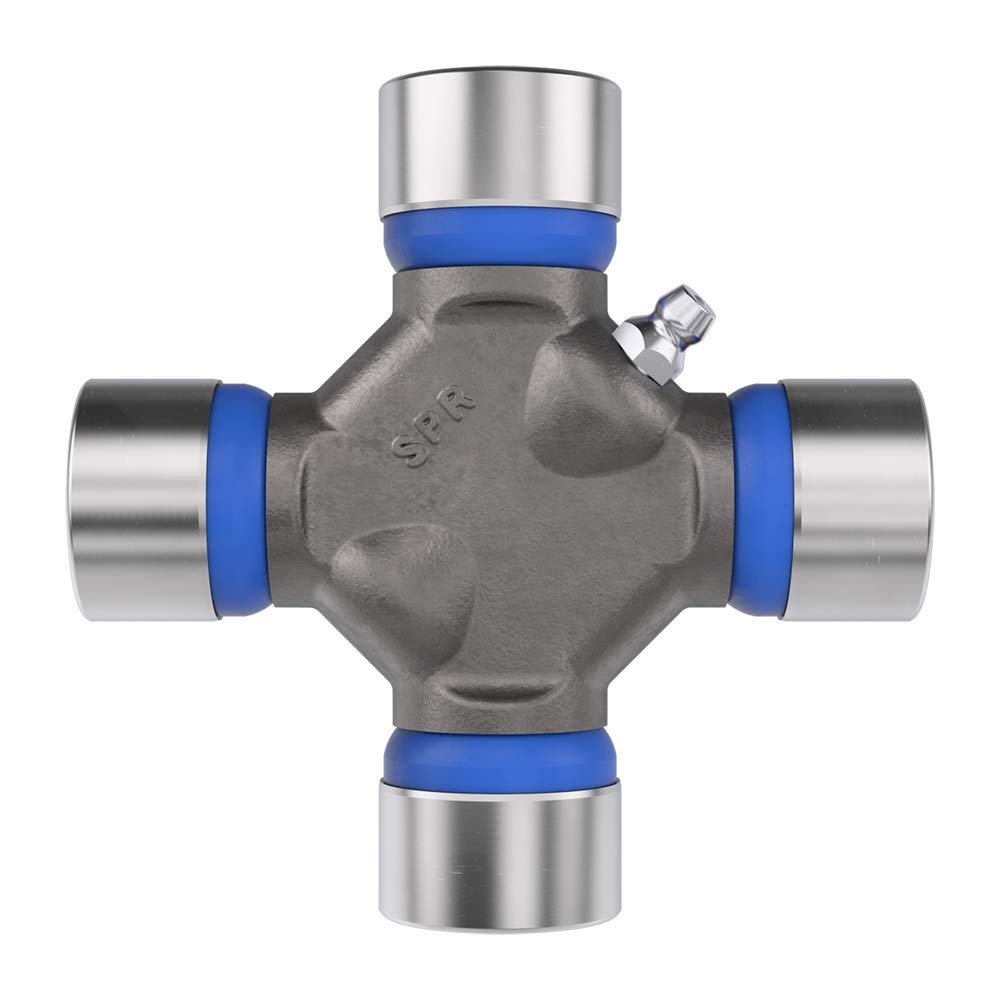

• Grease fitting accessible from cup end for simple servicing
• Needle-bearing lubrication reduces metal-to-metal wear

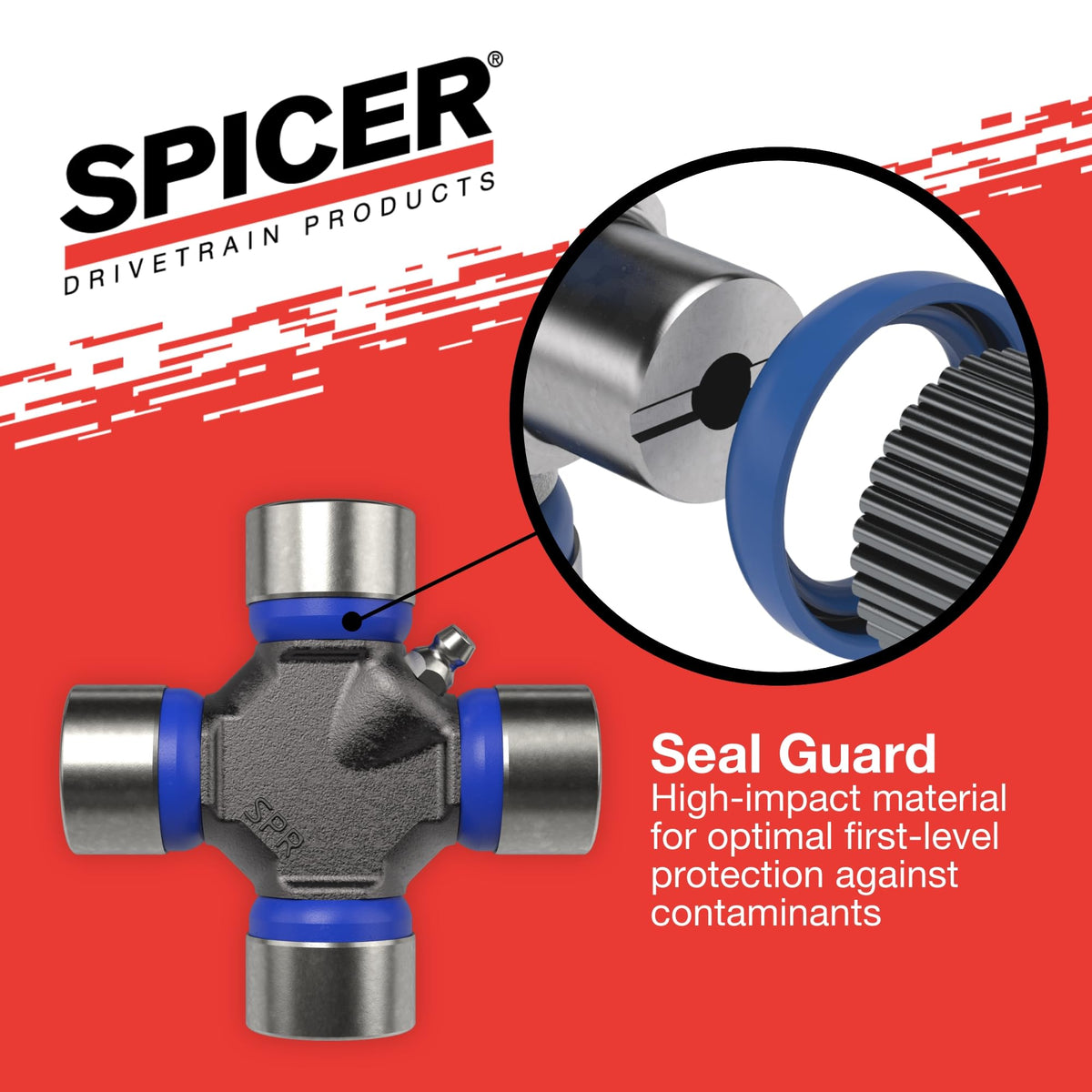

• Regular re-greasing helps preserve seal function and joint smoothness

What type of installation and vehicle applications is this kit meant for?

The 5-213X is a genuine Spicer OE-style replacement intended for driveshafts that call for a 1330-series, outside-snap-ring U-joint. It fits many light- and medium-duty driveline applications; always cross-reference OEM part numbers or measure the existing joint.

• Direct-fit replacement for yokes accepting outside snap rings (OSR)
• Common in trucks, SUVs, and light commercial driveshafts using 1330-series joints

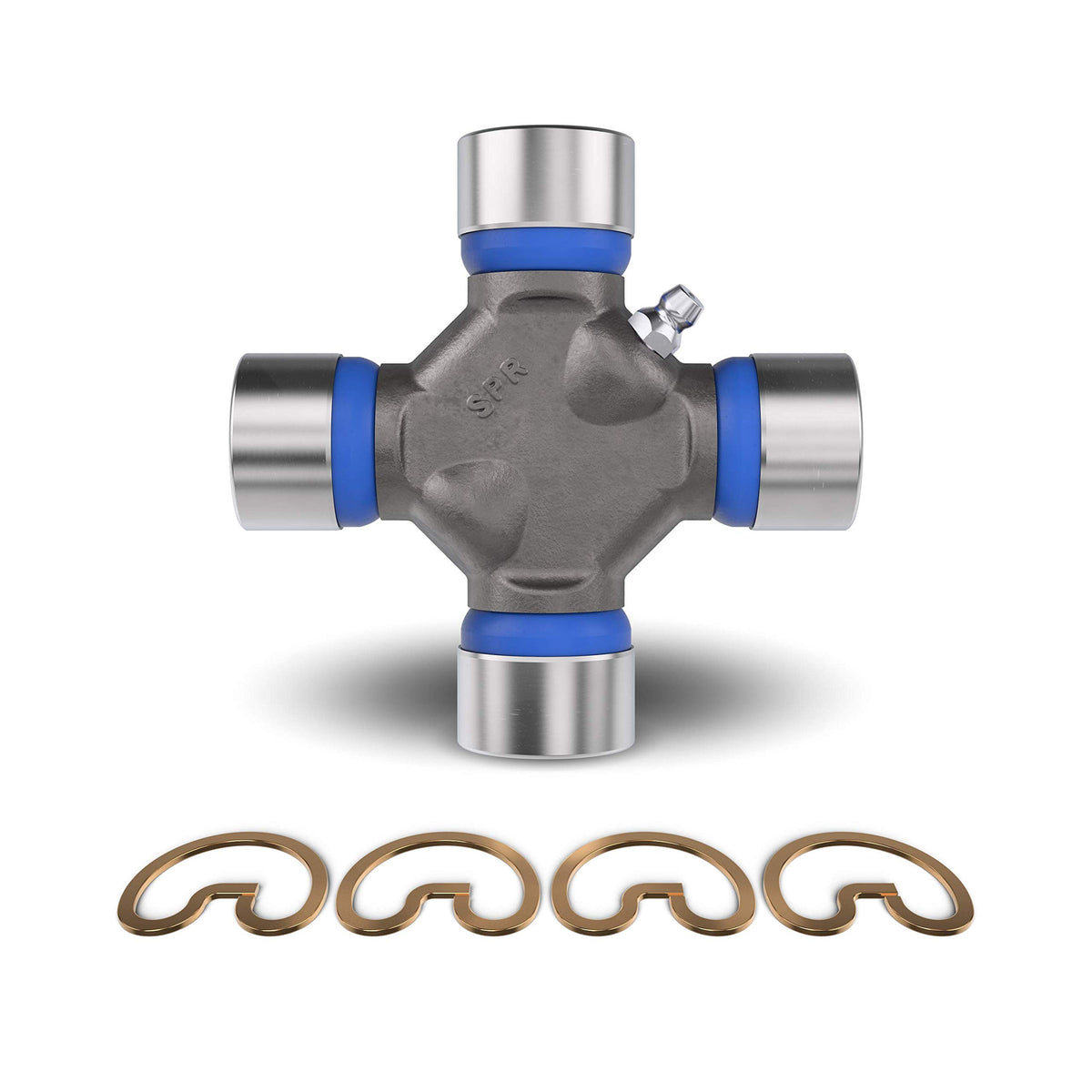

• Supplied as a kit ready for pressing into yokes and securing with snap rings

Which parts and identifiers are included or cross-referenced with this kit?

This Spicer kit includes the greaseable universal joint and outside snap rings to match OE-style installs. It’s cross-referenced with several common part numbers, making it easier to confirm compatibility with your vehicle’s service manual or parts diagram.

• Spicer part number: 5-213X
• Series: 1330
• Cross references: 2-1203, CP213X, 433

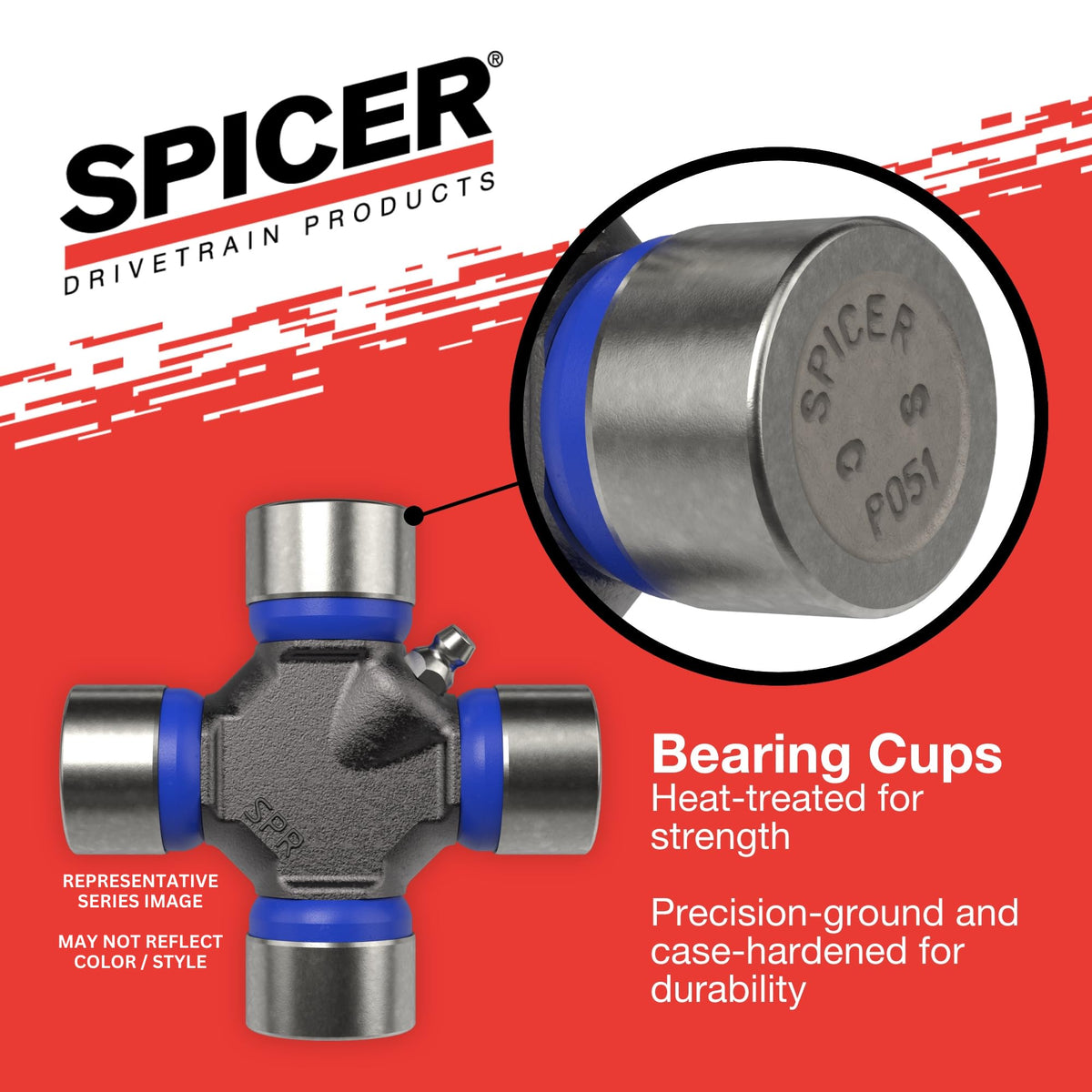

• Bearing cup size: 1.062 inch diameter

Who is this for: The Spicer 5-213X U-joint kit is intended for mechanics, DIY enthusiasts, and fleet technicians replacing worn U-joints on driveshafts that require a 1330-series, outside-snap-ring configuration. Choose this kit when you need an OE-quality, greaseable replacement that matches factory dimensions and offers straightforward servicing. If you’re unsure about fitment, measure the bearing cap diameter and cap-to-cap span on your existing joint or consult vehicle OEM references before purchase.
