Victron Energy Battery Balancer for 24V systems — 12V pair, 1A passive equalizer

Victron Energy Battery Balancer is a compact device that equalizes the state of charge between series-connected 12V batteries, reducing imbalance and extending battery bank life.

In multi-battery systems, small differences in internal resistance and charge acceptance cause one battery to reach higher voltage sooner, which leads to chronic imbalance and premature wear. The Victron Energy Battery Balancer monitors two series-connected 12‑V batteries (or parallel strings of series batteries) and automatically transfers up to 1 A from the higher-voltage battery to the lower-voltage battery when system voltage rises above the activation threshold. It’s a simple, passive solution designed to work alongside existing chargers, solar controllers and inverters without complex programming.

How does the balancer detect and correct voltage differences?

The unit measures the voltage across the two series batteries once the system charge voltage exceeds about 27 V for 24 V systems. When it senses a voltage difference, the balancer draws current from the higher-voltage battery and dumps it into the system so the lower-voltage battery receives relatively more net charge. This action continues until the batteries’ voltages converge.

• Automatically activates above ~27 V in 24 V systems
• Continuously monitors both battery voltages
• Shifts up to 1 A from the higher-voltage battery
• Helps equalize during charging cycles without user intervention

Will a Victron balancer work with larger or higher-voltage battery banks?

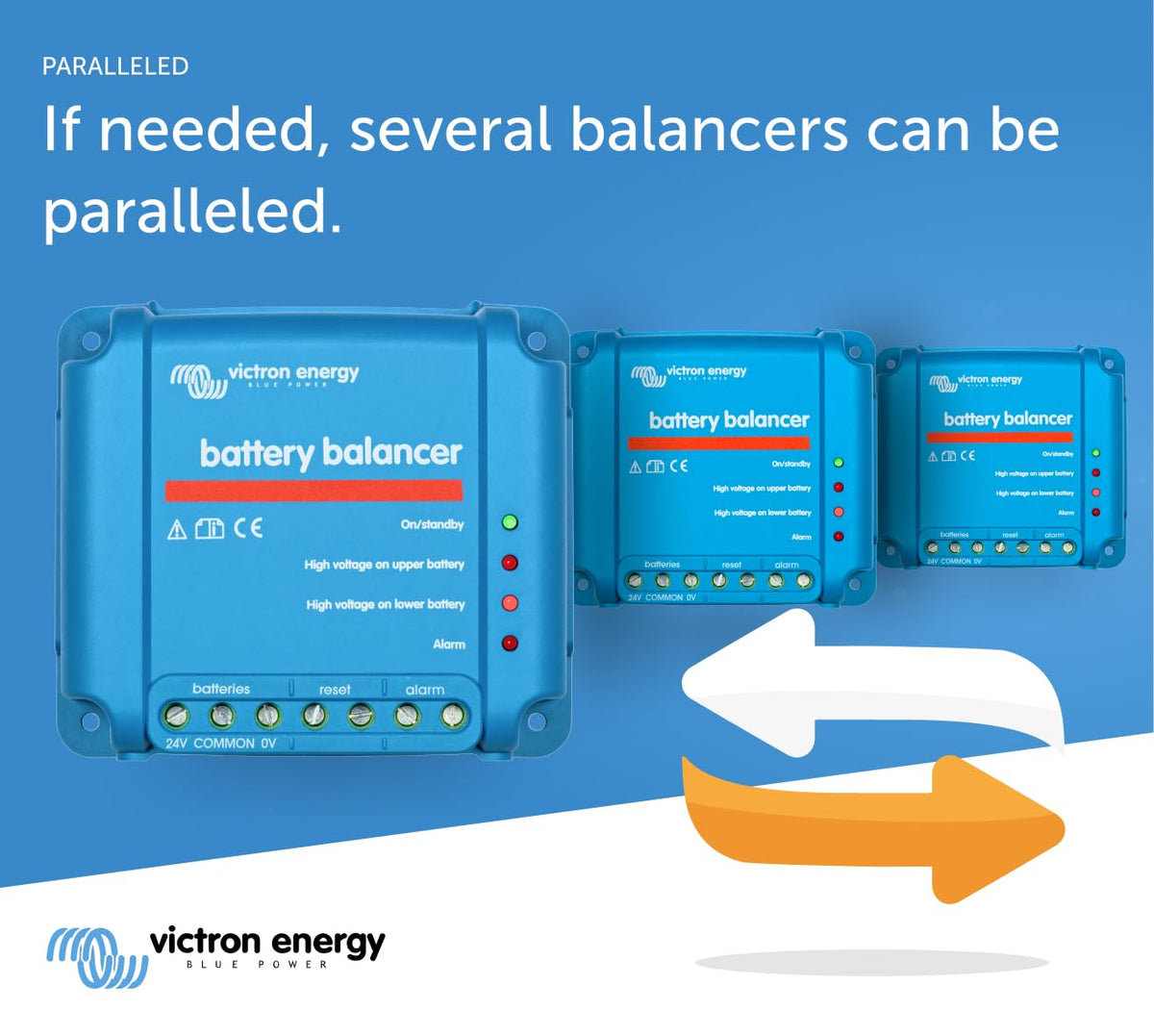

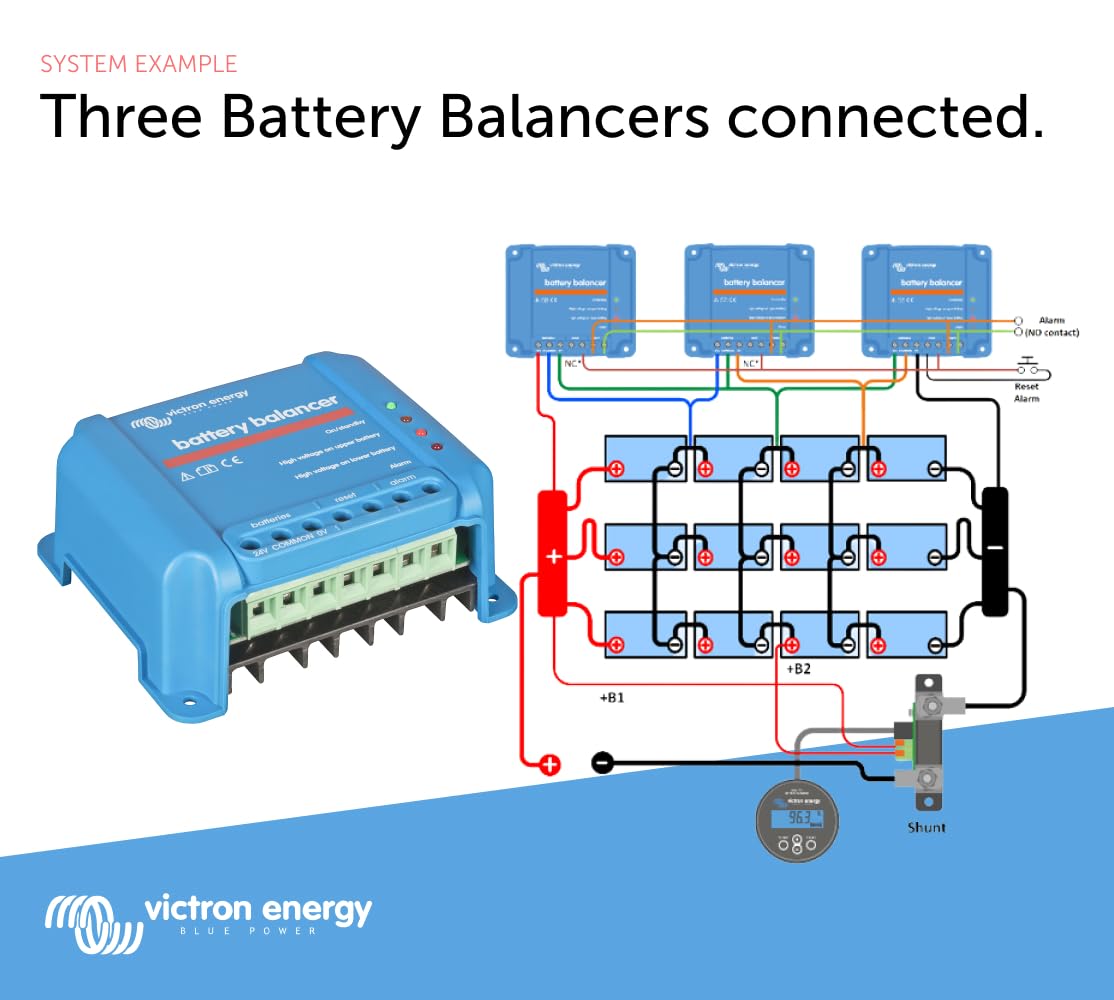

Yes — the design allows multiple balancers to be paralleled so larger or higher-voltage banks can be balanced. For example, a 48 V bank can be balanced using three individual balancers, each handling one pair of series batteries. Paralleling balancers increases coverage while keeping each device within its rated limits.

• Can be paralleled for higher-voltage systems (e.g., three units for 48 V)
• Suitable for parallel strings of series-connected batteries
• Modular approach avoids expensive centralized equalizers
• Maintains performance across different battery chemistries when wired correctly

Does the balancer interfere with chargers, inverters or solar controllers?

No configuration changes are typically required. The balancer is passive in operation and designed to work in parallel with existing charging equipment; it draws a small balancing current only when charging voltages rise above the activation threshold. This makes it compatible with most chargers, MPPT solar controllers and inverters used in 12 V, 24 V, and upgradable 48 V architectures.

• Operates transparently with chargers and controllers
• Activates only during higher charging voltages
• Does not require programming or control wiring
• Safe to add to most lead‑acid and some other battery chemistries when installed per instructions

What practical benefits can I expect after installing one?

By reducing persistent state-of-charge differences between series batteries, the balancer helps prevent one battery from being chronically over- or under-charged. That leads to more consistent performance across the bank and can slow the development of imbalance-related failure modes. While not a substitute for proper maintenance and matching batteries, it’s a low-cost way to improve overall bank longevity and reliability.

• Reduces long-term imbalance and premature failure risk
• Improves usable capacity consistency across batteries
• Low-power, automatic operation without regular adjustment
• Cost-effective compared to full active equalization systems

Who is this for: The Victron Energy Battery Balancer is aimed at boat owners, RV users, off-grid households, and professionals managing multi-battery systems who want a simple, maintenance-light way to reduce voltage imbalance between series batteries. It’s especially useful when batteries are of similar age and capacity but still develop mismatch over time, or where a modular balancing approach is preferred over a centralized equalizer. Install it where series-connected 12 V batteries form 24 V or larger banks and pair units as needed for higher voltages.
